INSTALLATION
The pump must operate in strict compliance with local water supply regulations. Before installation, be certain that the pump’s
power source is disconnected.
The installation location must be:
- Easy to reach
- Well ventilated, covered for weather protection, dry and frost-free
- On a concrete pad or directly on a smooth and horizontal oor
- Adequately ventilated
- A location where you a familiar with the maximum diameter of the particles in the water (a pre-lter screen may be
required in some locations)

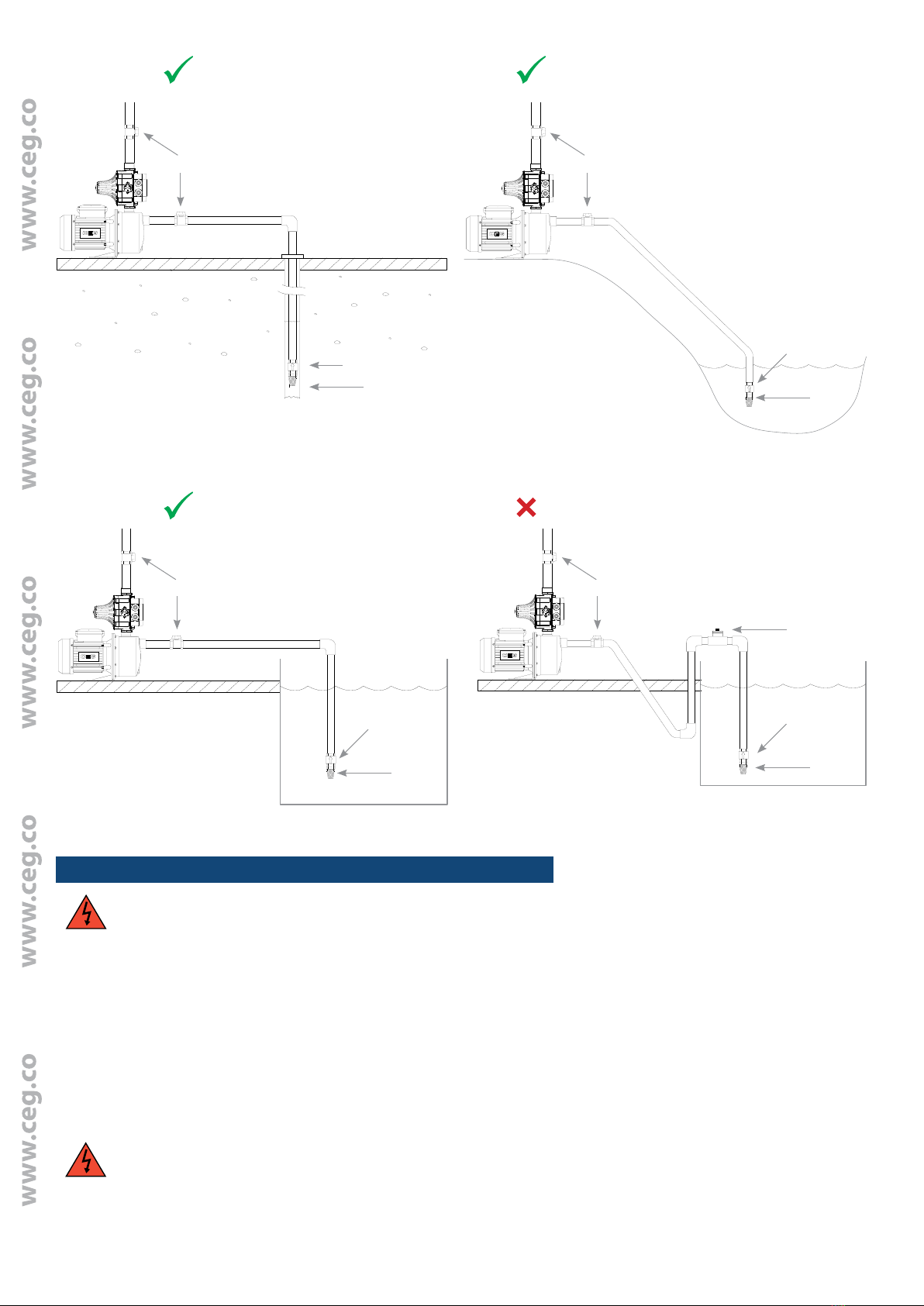

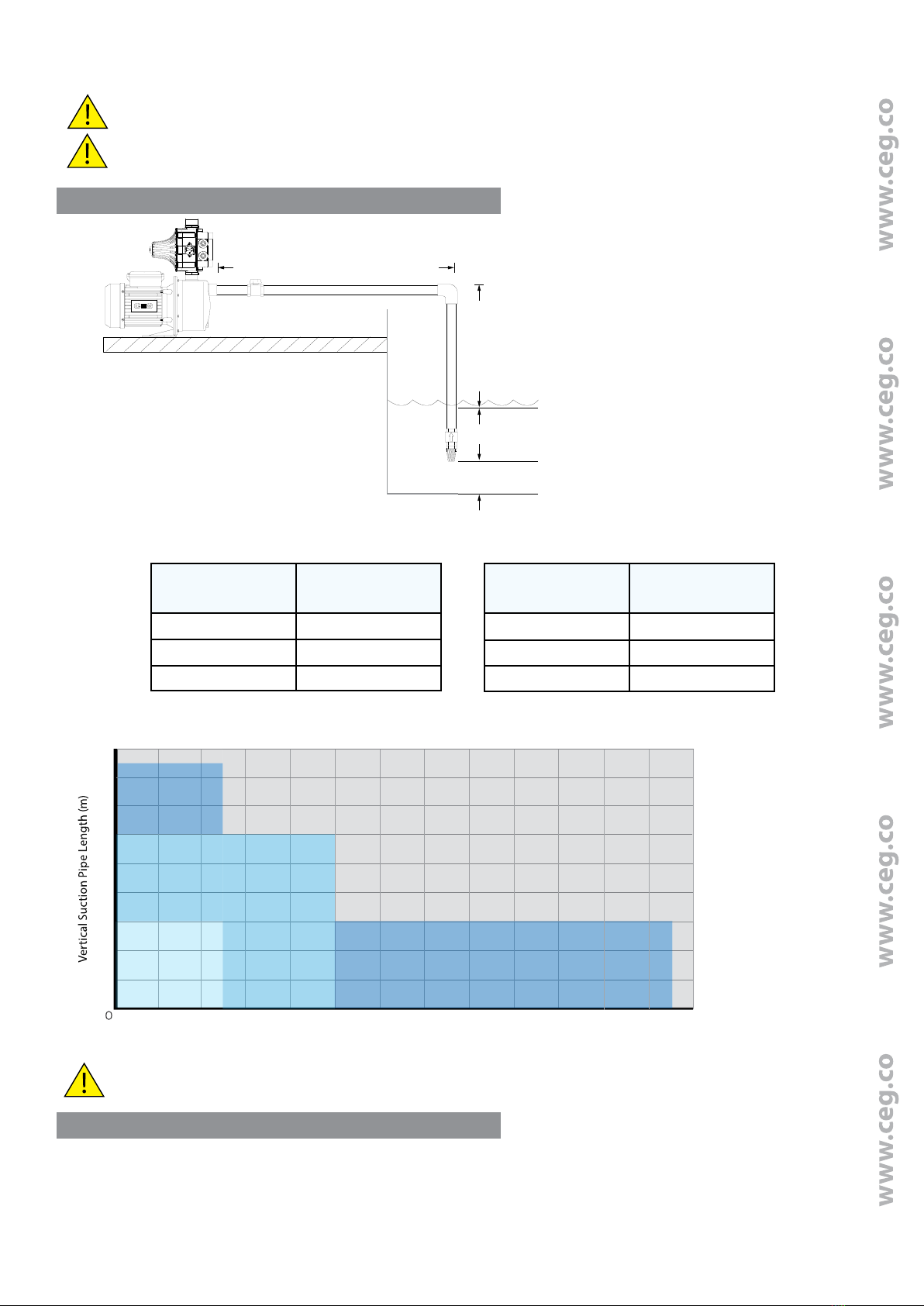

- For suction lift installation please refer to Drawing 2.0

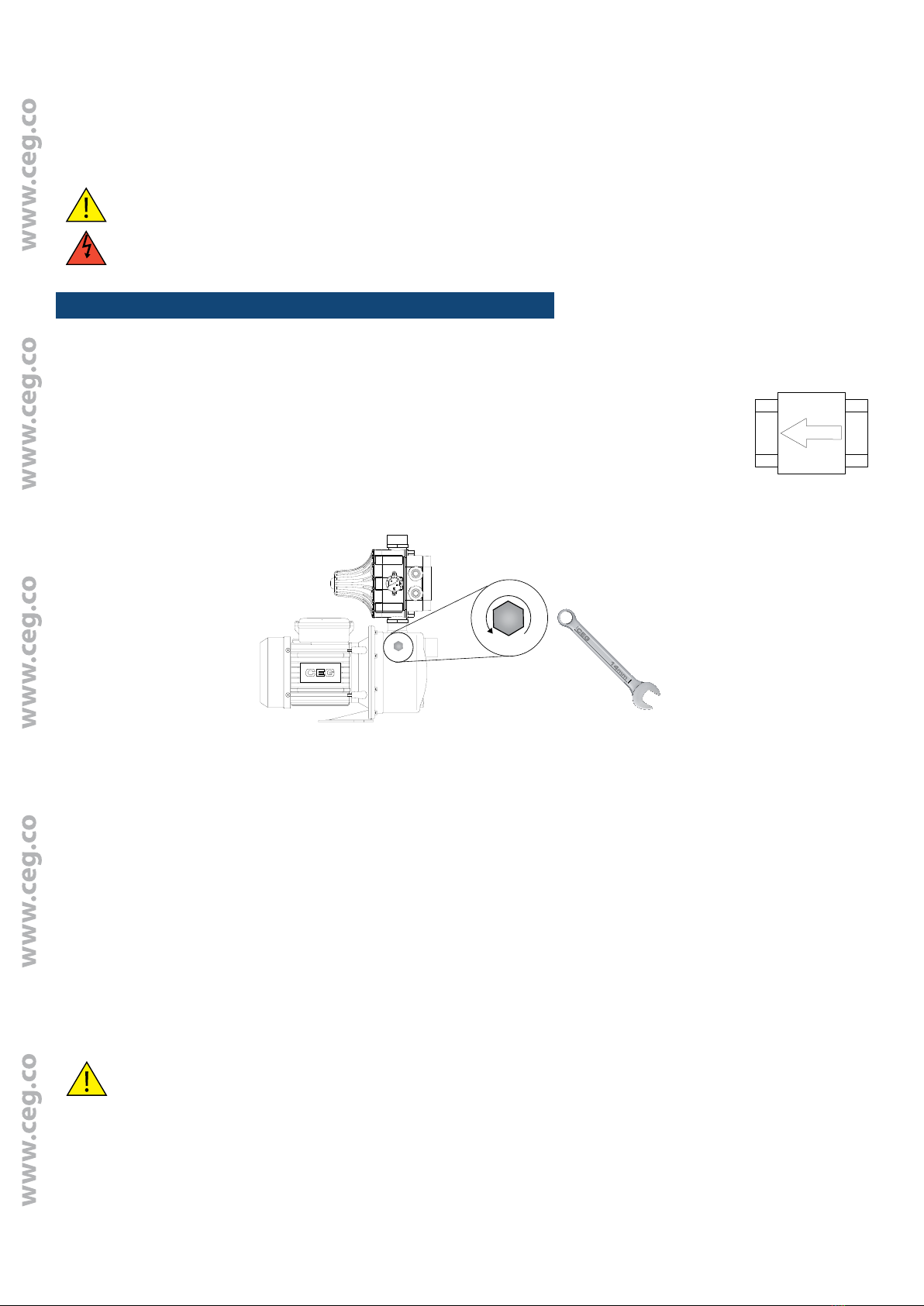

- Non-return valve must be installed on the inlet side of the pipe, as close to the water source inlet as possible
- If a non-return valve is required at the end of the suction line. lt must be located no less than 300mm below the
lowest water level and 100mm from the bottom (a pre-lter screen may be required). See Drawing 2.0
- Inlet and outlet piping to be provided by operator
- When using solid pipe connections the pump must be rmly xed to the oor
- If not rmly xed, exible connectors must at least be used for inlet and outlet ports
- The suction pipe must be fully airtight and be installed free of stress, steadily rising towards the pump
- Discharge pipe connections must be free of stress on the pump
TRANSPORT AND STORAGE
When transported and stored, the pump must not be subjected to temperatures outside the limits of 0 - 50 °C. Pump must be
stored in a dry, sheltered place.
ABNORMAL OPERATING CONDITIONS
Operational safety of the pump is only ensured if the pump is used in accordance with technical data Table 1.0. The limits
stated there must not be exceeded under any circumstances.
ALTERATIONS AND SPARE PART PROCUREMENT
Any alterations to the pump are only permitted in agreement with the manufacturer’s written consent. Only original spare
parts and authorised accessories are permitted. The use of unauthorised parts will immediately void warranty.
PERSONNEL QUALIFICATION
Only suitably qualied personnel may service this equipment. The operator must observe the local regulations for the
prevention of accidents. The operator is responsible for ensuring that all inspections and installation work are carried
out by authorised and qualied personnel only, having made themselves fully conversant with these instructions.
Work must only be carried out when the pump is switched o and at a complete standstill!!
GENERAL ELECTRICAL SAFETY
Before installation please check the following for safety reasons:
- Check power cords and electrical sockets for any damage and ensure they are in a ood free area
- The mains plug and any extension cords must be watertight, ensure any couplings are not lying on the ground
- Never carry the pump by its power cord or pull to power cord to unattach from the mains
- Install the pump in a safe, dry place where it is clear of harsh weather (continuous rain, ooding or humidity)
- Ensure the voltage indicated on the nameplate corresponds with the voltage on the electrical source
SAFETY
This instruction manual contains basic rules on safety which must be strictly adhered to. The installer and the operator must
carefully read these instructions prior to installation and commissioning. Please observe all of the safety directions, not only
under the main heading ‘Safety’ but each sub-heading also. Non-observance of safety reference may cause bodily harm to
persons or damage to the pump.
Failure to follow this safety reference could invalidate warranty and/or damage claims to pump!
Failure to follow this safety reference could cause death or severe physical injury!!
Keep pump equipment out of reach from children!!
