cec CD5 Manuel
Installaton and Setup Gudie
for USB Driver on Windows PC
SOURCE
POWER
HEADPHONE
VOLUME
BELT DRIVE CD PLAYER CD5
Thank you for purchasing a CD5.
This guide book will show you how to install and setup the CD5 USB
driver at your Windows PC to playback music files through USB
connection.
CD5
Belt Drive CD Player
USB Sound System
CD PLAYER / USB SOUND SYSTEM CD5
2
Introduction …………………………………………………………………………………………… 2
USB Driver installation
1. Installation for BRAVO-HD …………………………………………………………………… 3
Installation and Setup to playback DSD les
2. Installation for foobar2000 …………………………………………………………………… 7
3. Installation for ASIO Driver on foobar2000 ………………………………………………… 9
4. Installation for ASIO Proxy on foobar2000 ……………………………………………… 11
5. Setup for foo_input_sacd.dll ……………………………………………………………… 13
BRAVO-HD Control Panel ……………………………………………………………………… 16
Contents
Introduction
The USB Interface equipped with CD5 is compatible to USB 2.0 audio device.
It is necessary for Windows PC users to install special driver for PCM music sources,
which is possible to download from the CEC home page.
When ASIO and DSD drivers are installed to the freeware pc-music player, foobar2000,
DSD les may be reproduced. This is to explain on how to install and set up those drivers
using foobar2000.
Compatible OS: Windows XP, Windows Vista, Windows 7, Windows 8
Mac PC (X10.6.8 or newer) are already equipped with a standard driver for USB 2.0 audio
device, and it is not necessary to install CEC specic driver.
Download site
Windows users may access to download this specic driver at CEC home page.
▷http://www.cec-web.co.jp/service/download/driver/index_ex.html
※It is not abnormal to see SECURITY WARNING upon downloading and/or installation. You may
continue to download and/or install according to the instructions by OS or Browser.
USB Driver (Your PC recognizes CD5 as a regular audio device.)
▷
BRAVO-HD (is the USB driver specialized in CD5, supplied by SAVITEC, USB Audio
IC manufacturer.)
Necessary components to reproduce DSD les at foobar2000
▷foo_out_asio_v2p1p2.fb2k-component (ASIO driver by foobar 2000)
▷
ASIOProxyInstall-0.6.0.exe (driver for the reasonable connection between ASIO and
DSD)
▷foo_input_sacd.fb2k-component (DSD driver by foobar 2000)
Note: The above are the possible components publicized on our internet. Up-dated version at CD5 might
not be assured.
Note: Free ware Music reproduction player foobar2000 can be downloaded at http://www.
foobar2000.org/
CD5 USB Driver Installation and Setup
3
USB Driver Installation
Install a USB driver, BRAVO-HD* on your Windows PC to recognize CD5 as USB audio device
and playback PCM music les.
*
BRAVO-HD is an exclusive USB driver that a USB Audio IC maker, SAVITEC company
provides for CD5.
1. Installation for BRAVO-HD
1.1. Melt (open) the "CD5_usb_win.zip" file downloaded from CEC download site and save the
melted folder at ex. desktop.
1.2. Double-click and open the saved "cd5_usb_win" folder.
1.3. Double-click "setup.exe" in the folder to start the installation.
CD PLAYER / USB SOUND SYSTEM CD5
4

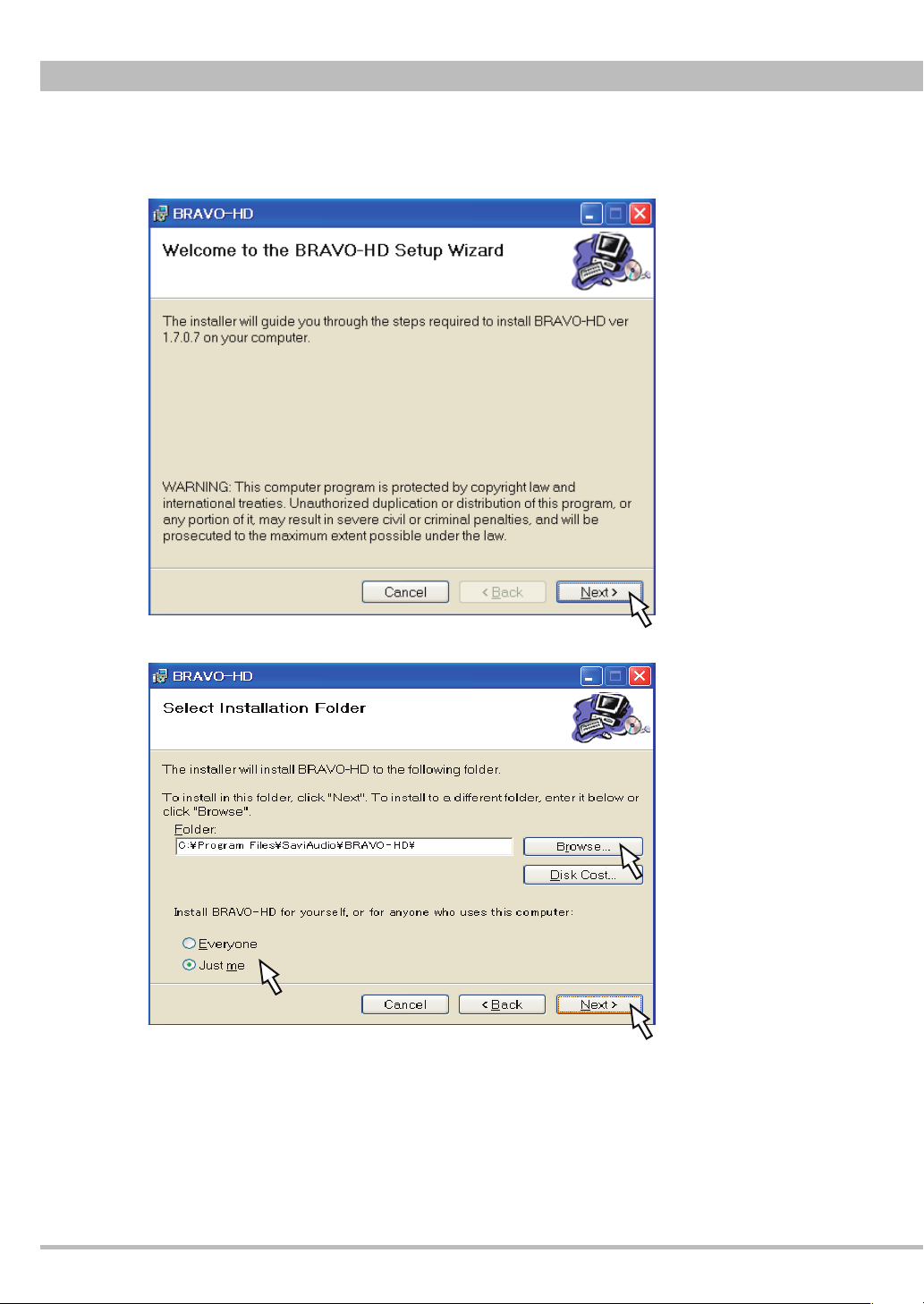

1.4. BRAVO-HD install wizard will start. Click "Next" to continue.
1.5. Select an install folder and Windows user.
Click "Browse" to select an installation folder other than the default folder being showed.
Select "Everyone" for all Windows users to use BRAVO-HD or "Just me" only for the user
that is installing the driver now.
Click "Next" to continue.
CD5 USB Driver Installation and Setup
5
1.6. Click "Next" to start the installation.
1.7.
When the installation nishes a short-cut icon "BRAVO-HD Audio CPL" will be created on
desktop and the restart wizard will appear. Click "Yes(Y)" to restart the computer.
CD PLAYER / USB SOUND SYSTEM CD5
6
1.8. After the computer restarted connect with CD5 via USB cable.
1.9. Turning on CD5 the computer will recognize CD5 as CEC CD5 HS USB Audio and
automatically apply it to the output device. You can check the setting through control panel
- sound and audio device property. If not select CD5 as output device.
1.10. Starting a PC-music after selecting the USB input on CD5 you can listen to the playback
music through the analog or headphones output on CD5.
CD5 USB input is compatible with up to 32bit/384kHz PCM signal but the sampling frequency
may be limited by the system setting or PC-Music player.
Refer to "BRAVO-HD Control Panel" after completing "Installation and Setup to play DSD les"
Note: You can delete the downloaded "cd5_usb_win.zip" file and the saved "cd5_usb_win"
folder with files after the installation finished.
Sound property on WindowXP Sound property on Windows7
CD5 USB Driver Installation and Setup
7
Installation and Setup to play DSD les
Installing ASIO and DSD drivers to a freeware pc-music player foobar2000 for Windows
DSD64(2.8224MHz) and DSD128(5.6448MHz) les can be played through CD5.
Before starting these steps install foobar2000 to your Windows PC, which can be downloaded
from http://www.foobar2000.org/.
2. Installation for foobar2000 ASIO driver
2.1. Melt (open) the downloaded "cd5_dsd-plugin_fb2k.zip" le and save the melted folder at
ex. Desktop.
2.2. Double-click open the saved "cd5_dsd-plugin_fb2k" folder.

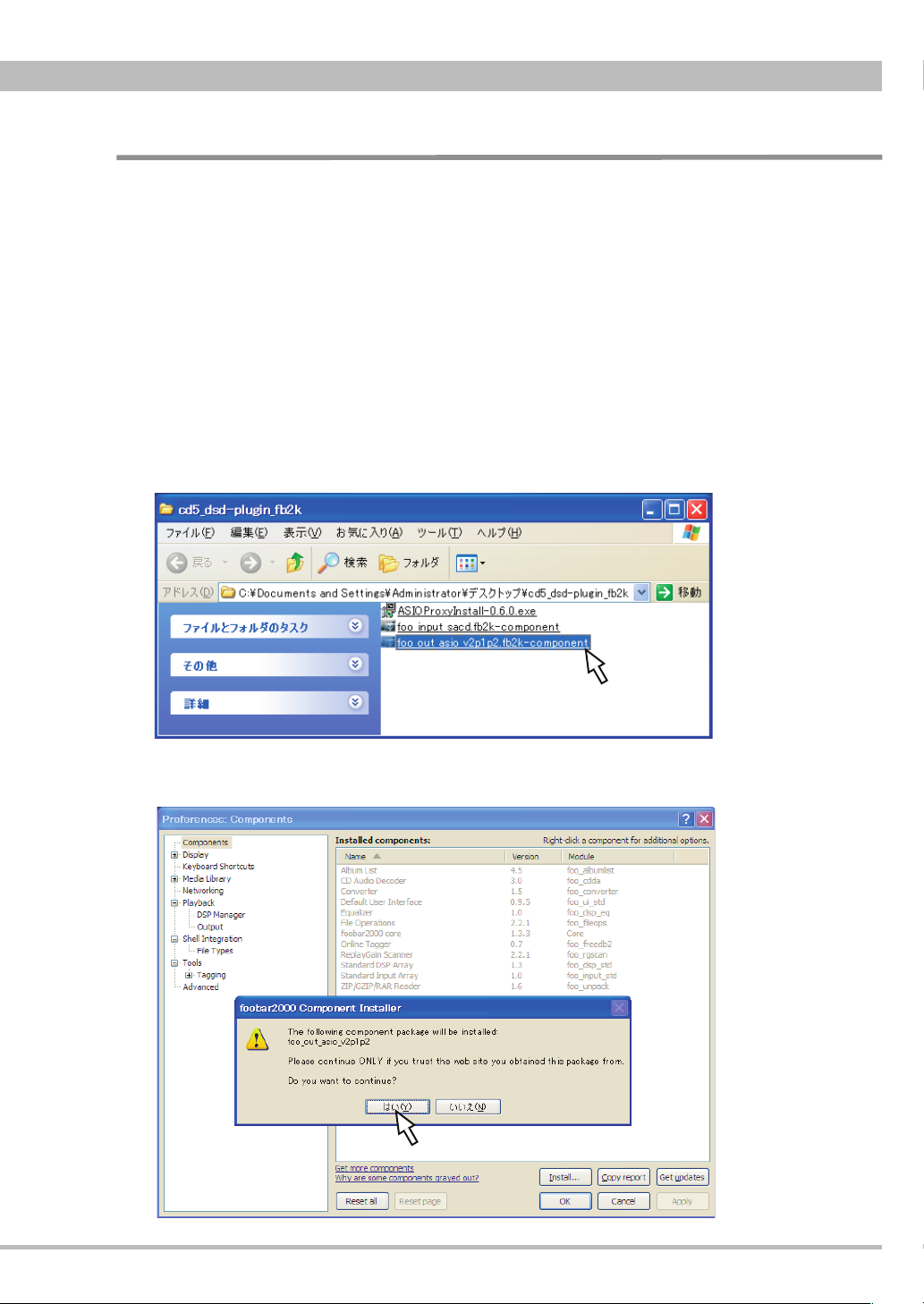

2.3. Double-click "foo_out_asio.fb2k-component" in the folder.
2.4.
foobar2000 Components Installer will start. Click "Yes(Y)" to continue.
CD PLAYER / USB SOUND SYSTEM CD5
8
2.5. The installing component "foo_out_asio" will be listed up marked with (unknown). Click
"Apply" to continue the installation.
2.6. Click "OK" to complete the installation and change. foobar2000 will restart.
CD5 USB Driver Installation and Setup
9
3. Installation for foobar2000 ASIO Proxy
3.1. Double-click "ASIOProxyInstall-0.6.0.exe" in the "cd5_dsd-plugin_fb2k" folder.
3.2. Click "Next" on ASIO Proxy for foobar2000 Setup wizard to continue.
CD PLAYER / USB SOUND SYSTEM CD5
10
3.3. Select an install folder.
Click "Browse" to select a folder other than the default folder being showed.
Click "Install" to start the installation.
4.2. Install will nish soon and click "Close" to complete the installation.
