CE-Link WPC02 Manuel utilisateur

User’s Manual

Content

1 INTRODUCTION………………….…………………………1

2 SPECIFICATION…………..……..…………………..……..1

3 PACKAGE CONTENT……….……………………………..2

4PANEL DESCRIPTION………………….………….………2

5 CONNECTION DIAGRAM……………………..……………2

6 FCC NOTICE…………………………………....……………2

Wireless charging pad

5w Wireless Charging Pad

DEAR CUSTOMER

Thank you for purchasing this product. For optimum performance and safety,

please read the following instructions carefully before connecting, operating or

using this product. Please keep this manual for future reference.

1. INTRODUCTION

1.1 Product Description

This is a high performance 5w Wireless Charging Pad, which allows you to

charge your phone without plugging the cable, just need to put the phone on

the charging Pad. Suitable for all the Qi wireless charging capable phone, such

as S4, S3(9300/9308), NOTE2(7100/7102), NOKIA Lumia 920/820/720,

Nexus4, HTC 8X, IPHONE5/4S/4,etc.

1.2 Features

This product has many features that enable it to perform in a superior manner.

Among those features you will find:

Qi wireless charging Standard compatible.

Rounded design suitable for various mobile phones with different shape.

Can charge for two phones at the same time, only one of them can use the

wireless way.

Thanks to the antiskid design of surface and bottom, the charging pad

compatible well with the phone with different surface material.

Intelligent inductive charging.

Can be directly connected to the desktop or laptop and mobile phone

adapter to get power supply.

Bevel design, can instead of the phone stand holder, support charging

while playing the phone.

2. SPECIFICATION

Input

DC 5V,1A~3A

Output voltage

4.75-5.0V

Output current 0.1~1A max

Size

100(DIA)*30.8mm(Height)

Input port Micro USB

Output port

USB A Type

Operating Temperature Range

0~45°C

Storage Temperature Range

20 ~ 85°C

High Humidity Operation

+40 C and 90 ~ 95%

Color

White+Grey

Weight

145 g

Overload protection

Yes

Short circuit protection

Yes

Wireless charging pad

Efficiency:

>65%

Life span

50000 Hours

Limited Warranty

1 Year

User Manual

English Version

Note: Specifications are subject to change without notice.

3. PACKAGE CONTENT

Before using this unit, please check the packaging and make sure the

following items are contained in the shipping carton:

1×Main unit

1×User's Manual

4. PANEL DESCRIPTION

A○

1E APower in, DC 5V

A○

2E AUSB A Type port: charging for your phone use one USB cable;

A○

3E AIndicator: When the product powered on, the indicator will glow blue and

red lights and flash three times; When your phone charging, the indicator will

glow red light. After the product finish charging, the indicator will glow blue light.

When an accident appeared, the indicator will glow alternating red and blue

light.

A○

4E AThe surface is for wireless charging.

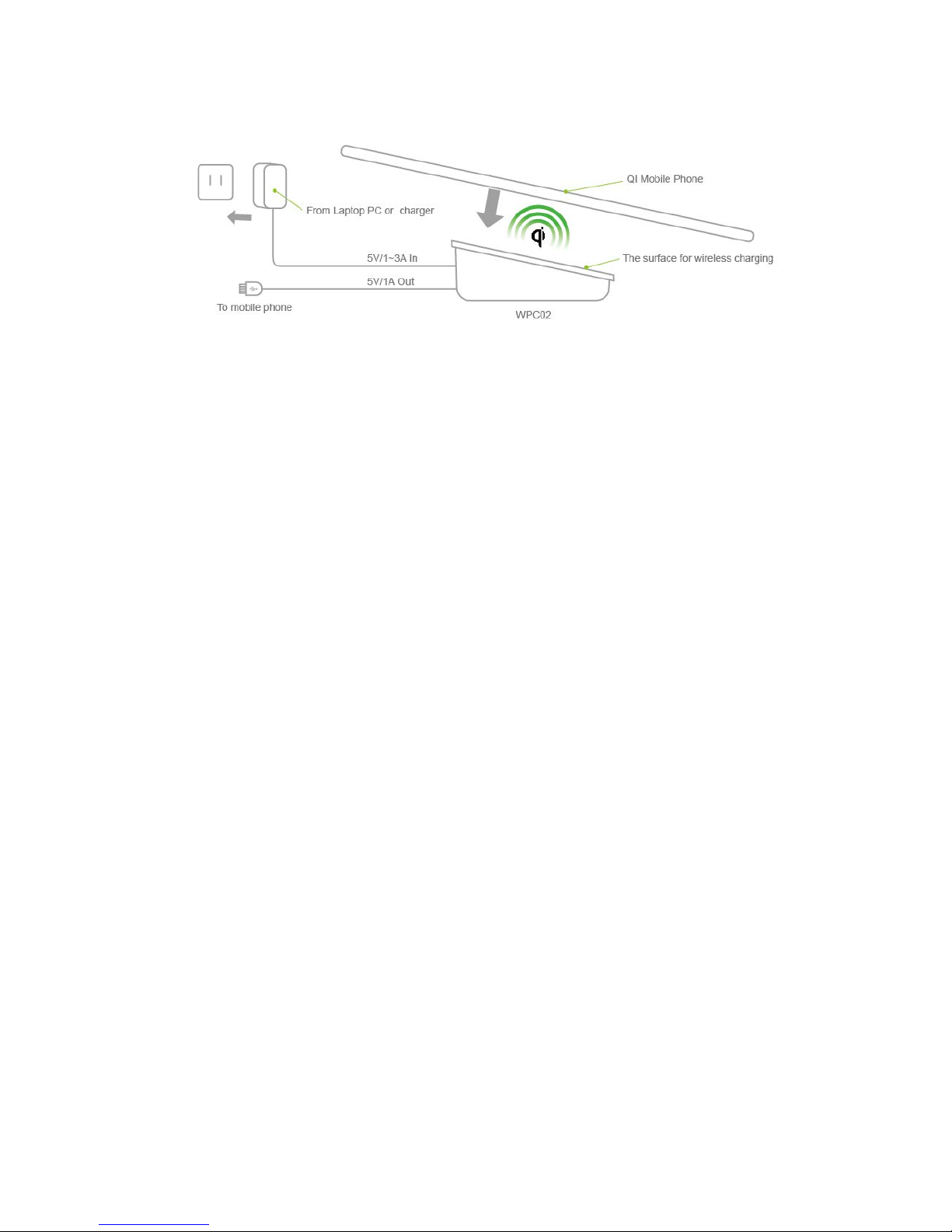

5. CONNECTION DIAGRAM

Wireless charging pad

6.FCC NOTICE

The product may cause potential interference to your home electronic product.

During operation the user must keep a minimum separation distance of 10cm with the RF devices

Please do not put any metal substance like coin when charging. It can cause product damage and

serious burns

Unplug the device USB and when unused for extended periods of time

Troubleshooting:

Adopt following measures by the user itself once the product is interfered.

1. Turning the equipment OFF and ON

2. Reorient or relocate the receiving antenna.

3. Increase the separation between the equipment and receiver

Note：

Changes or modifications to this unit not expressly approved by

CE-LINK may cause interference and void the user authority to

operate the equipment.

FCC ID: A4X-WPC02

P/N7006
