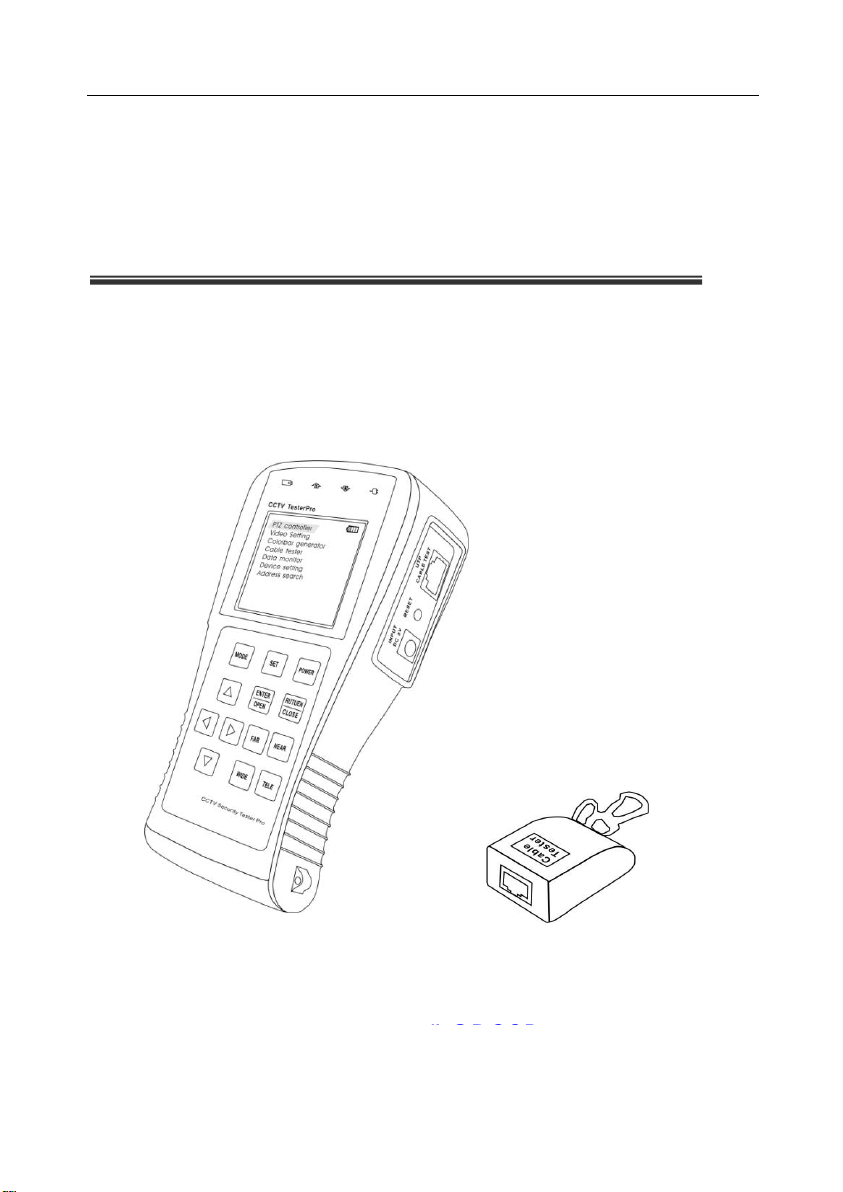

CCTV Test Monitor User’s Manual
2. Introduction

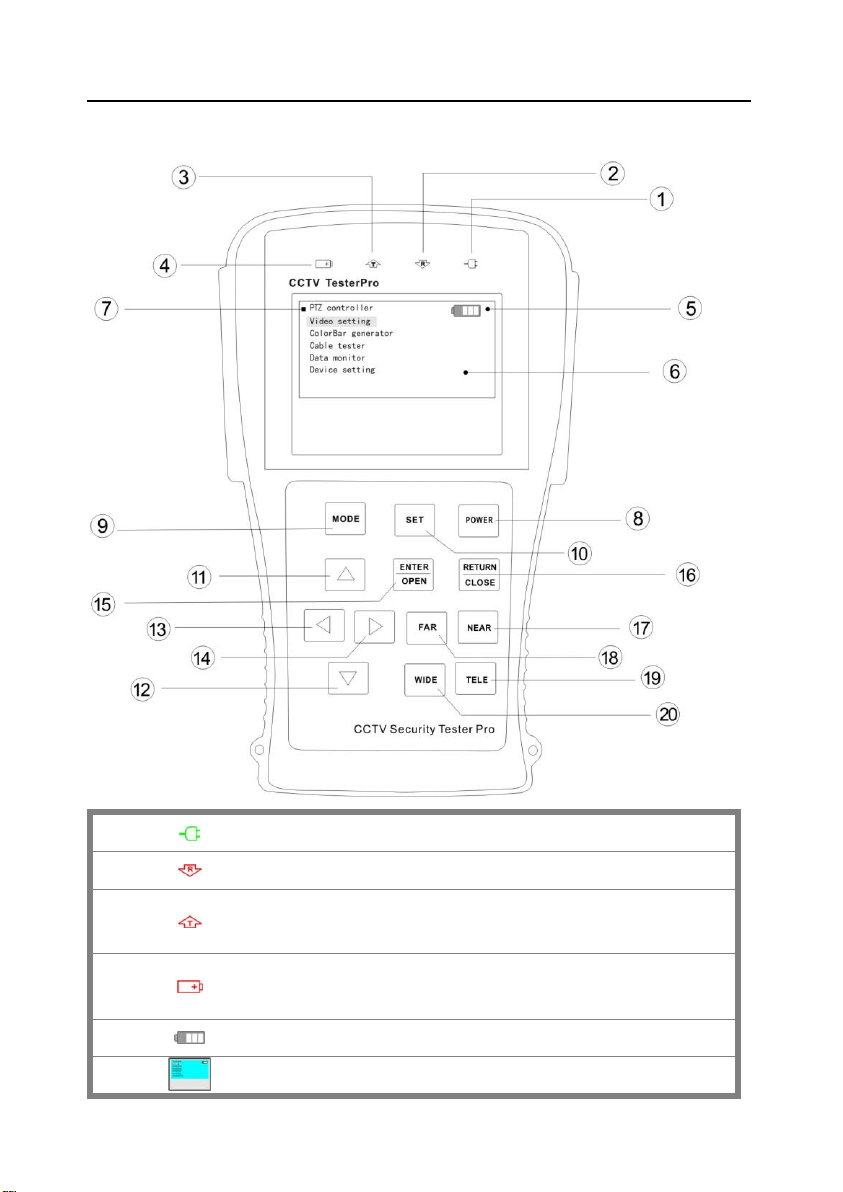

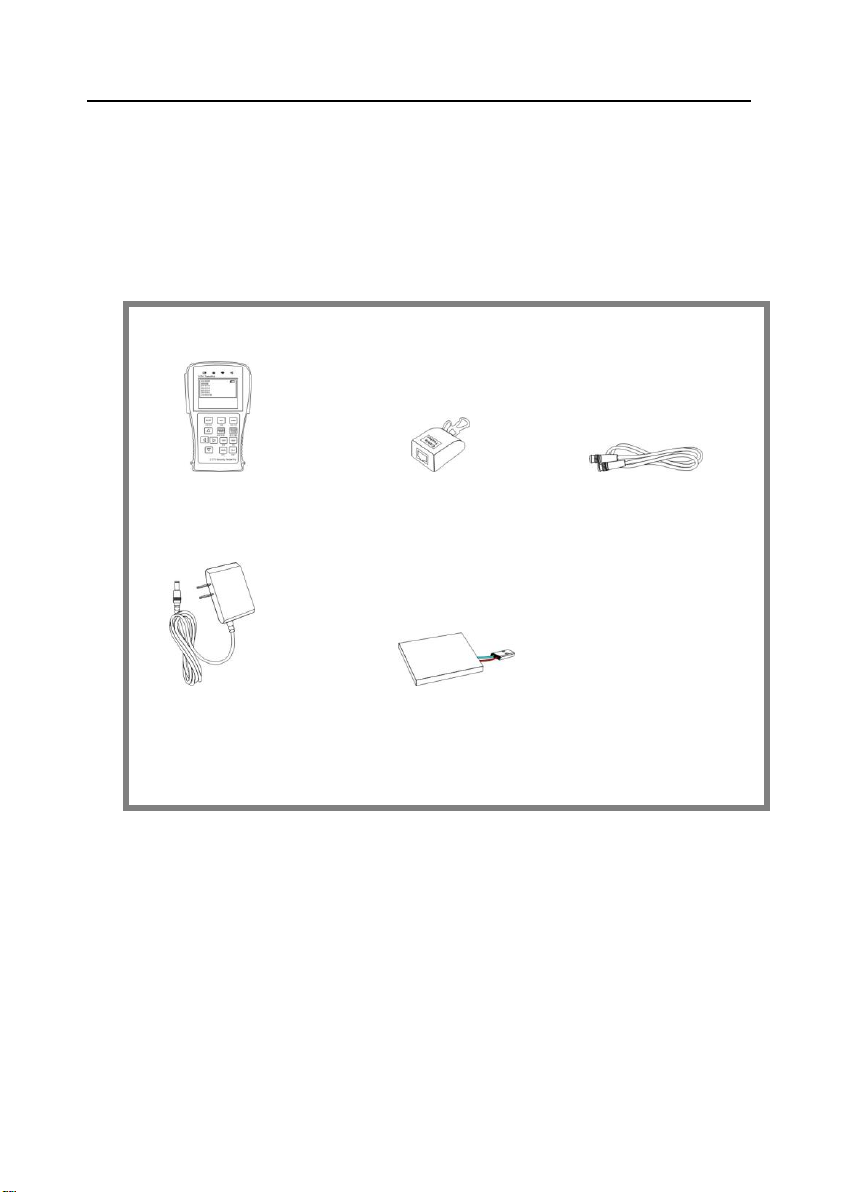

The CCTV Test Monitor is developed for the On-Site installation and maintenance of video
monitoring system. It can be used for displaying video, controlling PTZ, generating images,
capturing data of RS485 and testing LAN cable etc. Its functions, easy operation, and portability
makes it simple for the CCTV technician to install and maintain CCTV system, improving work
efficiency and get the labor cost down.
2.1 Features
2.8"TFT-LCD , 960（H）×240（V）resolution.
Video Level testing, video signals measured in IRE or mV
DC12V 1A power output for camera
Audio input test, testing the audio signal from pickup devices.

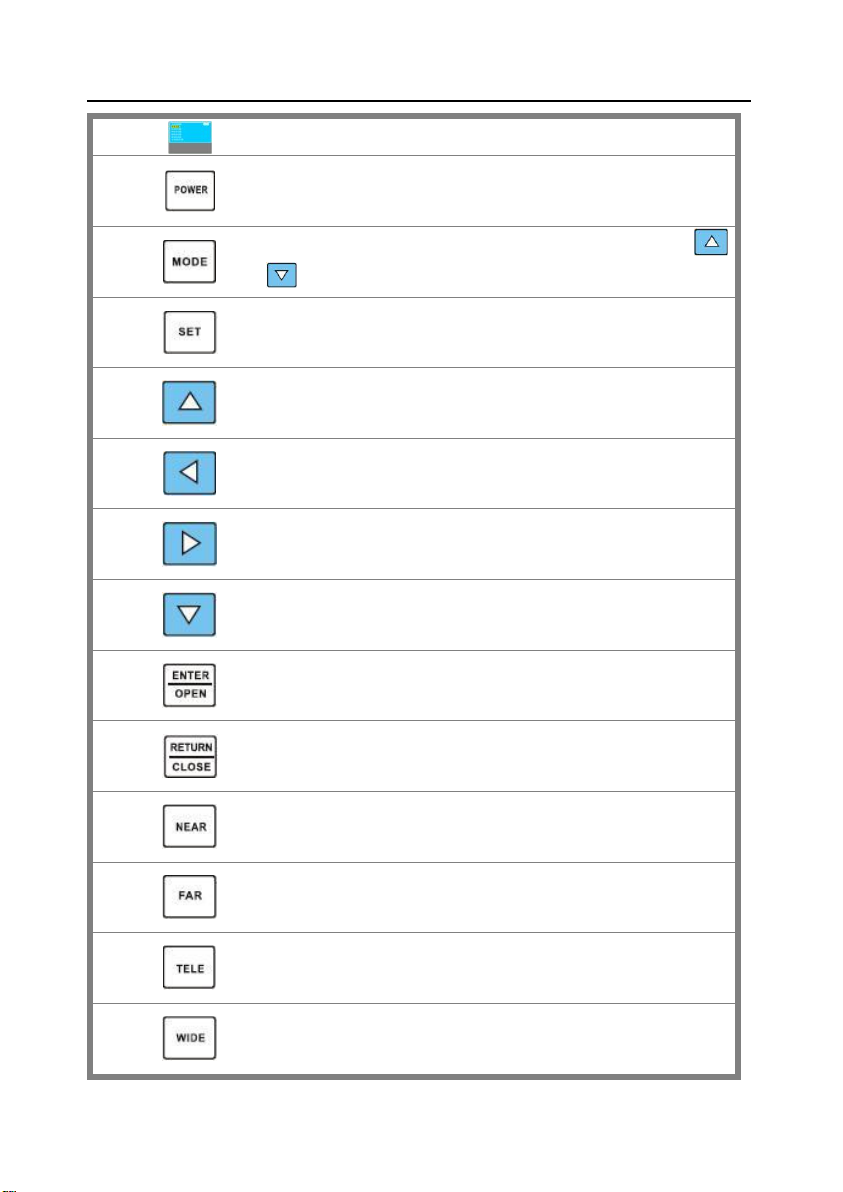

PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and sets
and calls the preset position
Video displaying. Automatically adapts and displays the video format of NTSC/PAL.
LCD Brightness/Contrast/Color Saturation are adjustable.
Video Generating, The PAL/NTSC multi-system colorbar video generator (seven-system
switchable, transmit/receive seven-system colorful imagines)
Data analyst. Captures and analyzes RS485 controlling data to help the technician to find out
the problem.

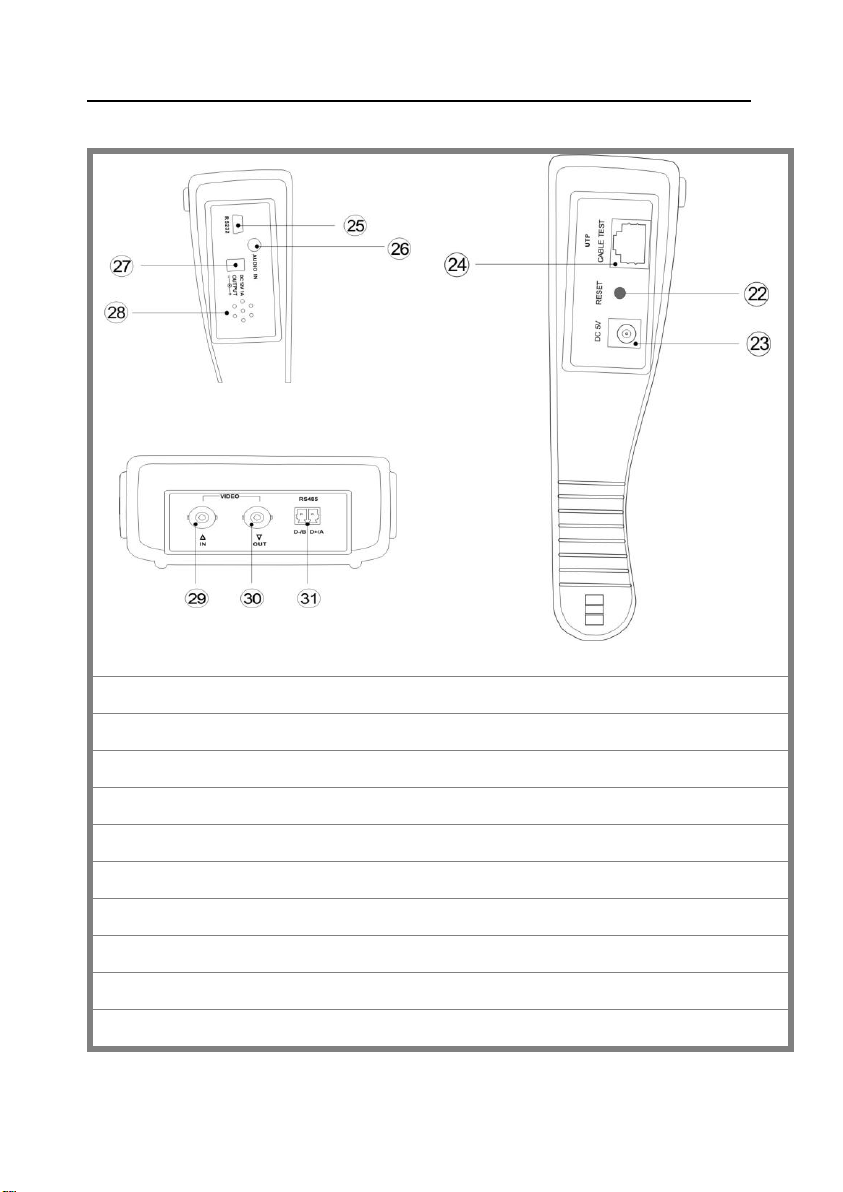

Cable testing. It is powerful in testing LAN cable, measuring the connecting status ，displaying
the sequence of connection and the NO. of the LAN cable.
Multi-interface and Multi-baudrate. Support RS232 ,RS485 and RS422 interface; baud rate
ranging from 150, 600 to 19200bps.
Multi-protocol. Supports more than twenty PTZ protocols. For example, PELCO-P, PELCO-D,
SAMSUNG etc.
PTZ address scanning, search up the ID of PTZ camera.

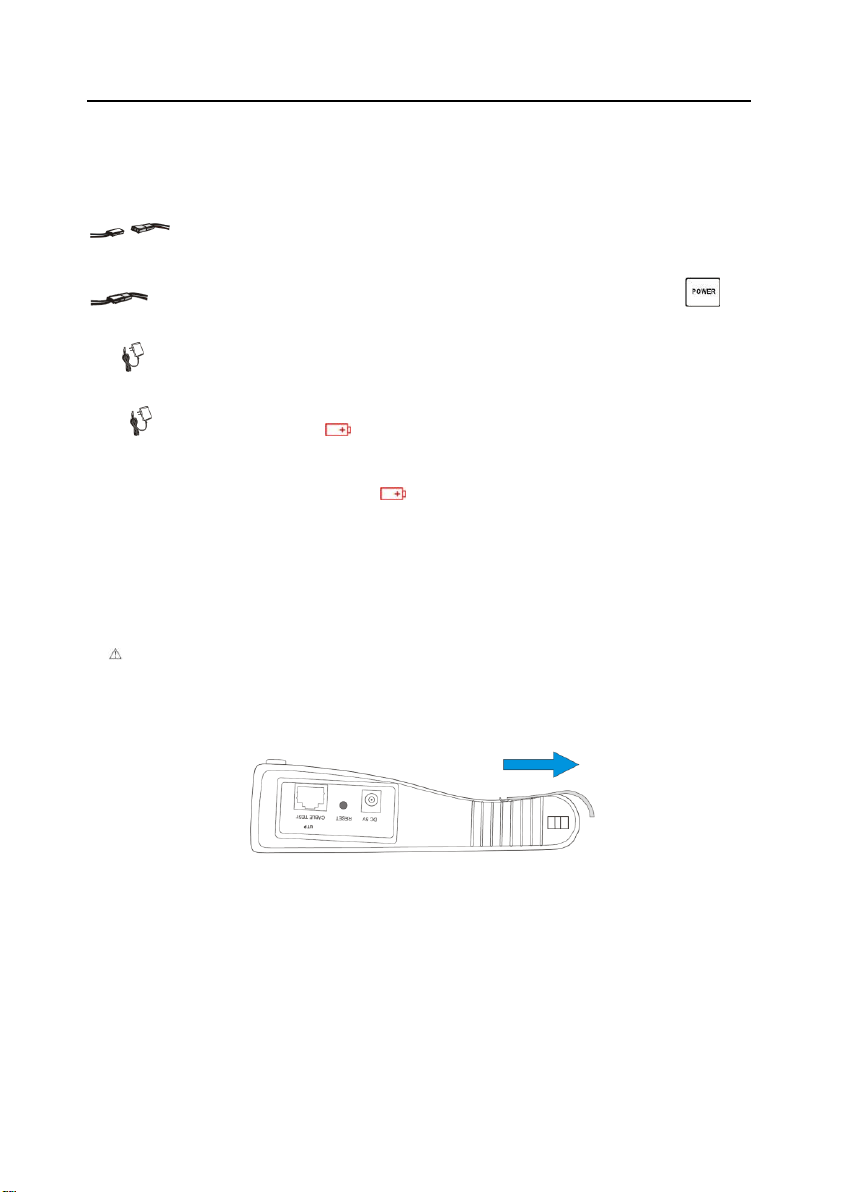

Lithium Ion Polymer Battery (3.7V DC2800mAh). The device employs advanced power control
and protection circuit. The device is high power-efficient, energy saving and environmental
protection. It can last 15 hours for normal use after charging for 4 hours.
