Cateye Strada Smart CC-RD500B Guide de configuration

* Instructions differ depending on the devices you have.

For troubleshooting related to the smart computers or to Cateye Cycling™, see "Frequently

Asked Questions".

* For explanatory purposes, in this manual red text/icons on the smart computer screen

represent ﬂashing items.

* The display screens and illustrations used in this manual are provided for instructional

purposes only. Actual screens and illustrations may differ depending on devices used.

* The online manual and YouTube videos for this product are subject to change without

notice.

Usage Instructions

Select the devices you have.

Setup method

Setup with smartphone

Setup method

If you have purchased smart computer

Checking package contents

Setup (first time only)

Mounting the bracket

If you have not yet purchased smart computer

Setup (first time only)

Optional accessories

Mounting the speed (cadence) sensor (ISC-12)

Wearing the heart rate sensor (HR-12)

* Mount non-CatEye sensors as directed in relevant instruction manuals.

Setup with smartphone

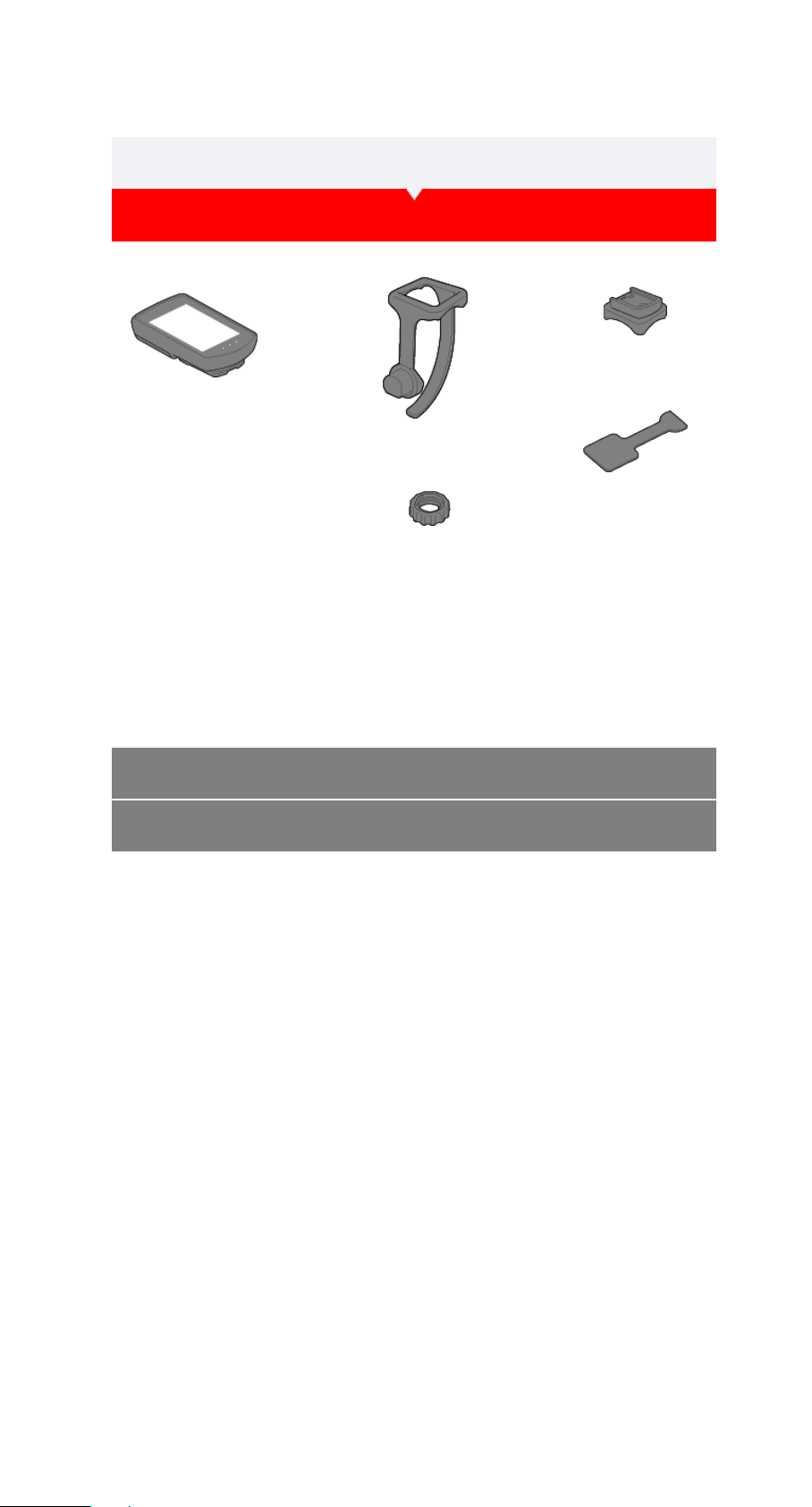

Checking package contents

Smart computer unit

Bracket band

Bracket

Bracket rubber pad

Dial

* The Speed + Cadence Kit includes an integrated speed (cadence) sensor (ISC-12) in

addition to the items above.

* The Triple Wireless Kit includes an integrated speed (cadence) sensor (ISC-12) and a heart

rate sensor (HR-12).

Mounting the bracket

Setup

Checking package contents

Setup

Setup with smartphone

Setup uses the Cateye Cycling™ smartphone app (free).

1. Install Cateye Cycling™.

If using an iPhone

If using an Android smartphone

Smartphone

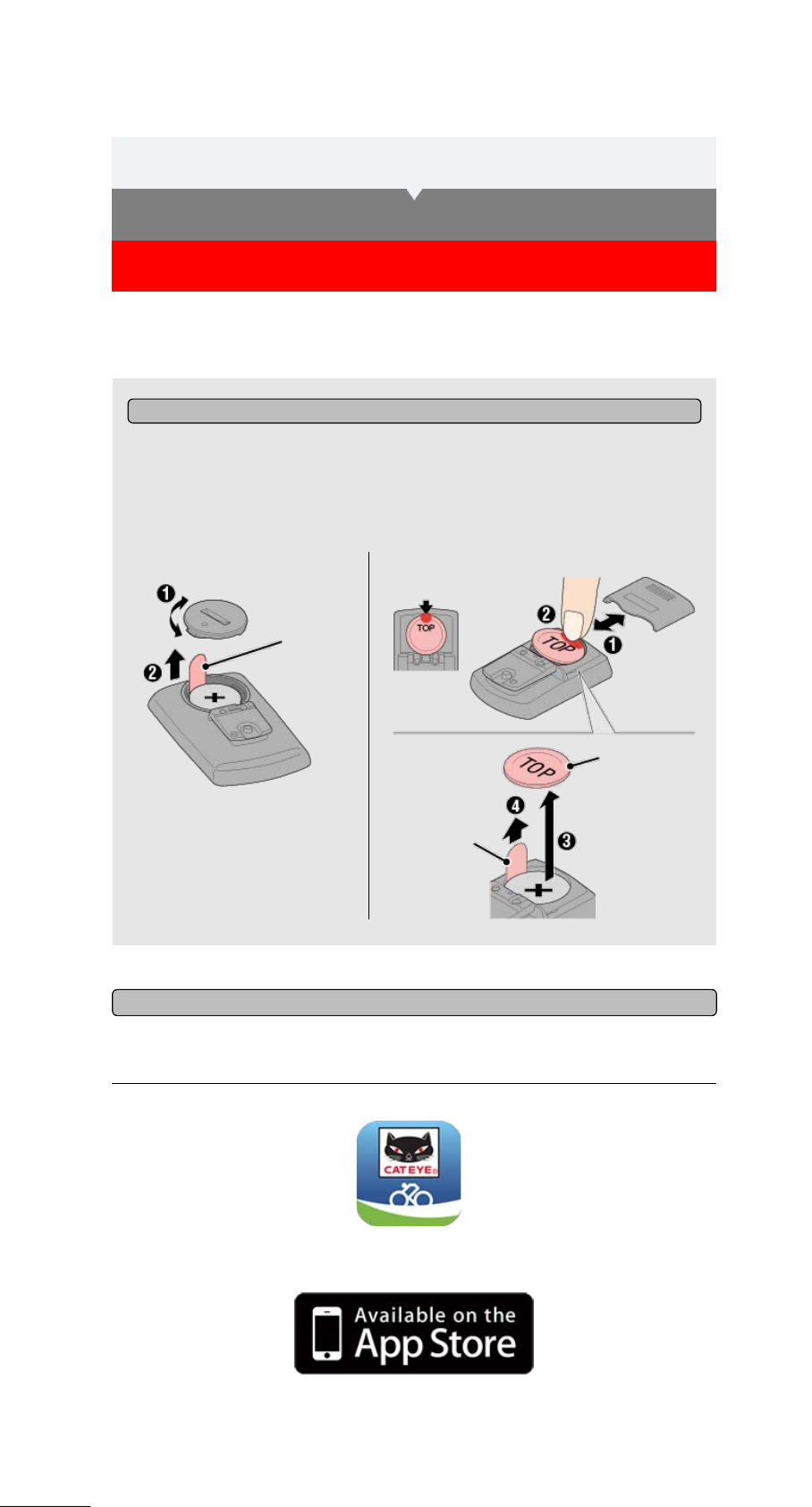

Pullfreethesmartcomputer'sinsulationsheet.

After you pull free the insulation sheet, return the battery cover to its previous location.

* If characters are lit on the LCD screen, you can use the product as is.

Insulation

sheet

Padrone Smart

Open

Insulation

sheet

Strada Smart

Press

Slide

Waterproof

inner cap

Smart computer

When you use this device for the ﬁrst time, follow the procedure below to set the smartphone

and smart computer.

* See Cateye Cycling Recommended Devices for the latest information about

smartphones recommended for use with Cateye Cycling™.

2. Launch Cateye Cycling™.

Follow the on-screen instructions and allow the use of GPS and Bluetooth® devices.

Once basic settings are complete the Trip screen appears.

3. Pair smart computer with sensors.

When the smartphone's Bluetooth settings are turned on, it will search for devices, but

do not conﬁgure settings at this stage. Switch to Cateye Cycling™ and follow the

procedure below.

Important

• Pairing (sensor ID synchronization) must be performed in order to use smart computer

and sensors.

• Do not pair sensors at a race venue or in similar locations where there are many other

users. Doing so may cause smart computer to be paired with another device.

Important

From (MENU) at the top left of the screen, turn on [Connect], and then tap [Device].

Tap [Device Pairing] to start pairing.

For instructions on using devices, refer to the following:

Pairing with smart computer

Smart computer

1. Format (initialize) smart computer.

All data will be deleted and smart computer will be reset to factory default settings.

Caution

While holding down the MENU button on smart computer, press the AC button.

When Cateye Cycling™ detects smart computer, a message is displayed on the

smartphone.

Tap [Pairing] to complete pairing.

* If you are using Padrone Smart with an iPhone, a subsequent message will be

displayed.

Tap [Pair] again.

After pairing is completed, from (MENU) at the top left of the screen, tap [Trip] to

switch to the Trip screen.

Smartphone

Smart computer

The whole display turns on and then switches to the smartphone search screen.

Whole display

turns on

Smartphone search

screen

* If smart computer switches to the measurement screen without the whole screen

turning on, it has not been formatted. Redo the procedure.

* The appearance of the smart computer screen depends on the state of Cateye

Cycling™.

Pairing with a sensor

1. Activate the sensor.

Activating the sensor

When Cateye Cycling™ detects the sensor signal, a message is displayed on the

smartphone.

Tap [Pair]. The synchronized sensor is displayed on the [Device] screen and pairing is

completed.

* When pairing a sensor with Cateye Cycling™, an "A" is displayed after the sensor

name.

* If you have paired a sensor capable of speed measurement, proceed to step 2.

2. Enter the tire circumference.

From the [Device] screen, tap the added sensor and select a tire circumference (the

length of the outer circumference of the tire).

Determining tire circumference

* Default value: 2096 mm (700x23c)

* Set tire circumference for each sensor.

* You can also change sensor names and cancel pairing from this screen.

Sensor pairing is now complete.

* Pair all sensors that you intend to use.

If you want to pair another sensor, repeat the same procedure again.

Smartphone

• Pair all sensors that you intend to use. If you want to pair another sensor, repeat the

same procedure again.

• When using an iPhone, you cannot sync settings of commercial sensors.

When measuring in Sensor Direct Mode, it is necessary to conﬁgure sensor settings

separately via smart computer.

1. Switching to Sensor Direct Mode

2. Pairing (Sensor ID synchronization)

3. Tire circumference setting

Important

Smart computer can be used with sensors compatible with Bluetooth 4.0. Pair it with

optional accessories or commercial sensors as required.

When pairing is complete, smart computer switches from the smartphone search screen

to the [ready] (measurement standby) display.

Smart computer pairing is now complete.

* If you have other sensors, continue pairing them.

Smartphone search

screen

Measurement

standby

Mounting the bracket

Switching to Sensor Direct Mode

Smartphone

Smart computer



1. Close Cateye Cycling™ or from (MENU), turn off [Connect].



2. Switch smart computer to Sensor Direct Mode.

Measurement screen

(Sensor Direct Mode)

Smartphone search

screen

(1 second)

* Smart computer will search for a sensor instead of your smartphone. In this mode, the

sensor icon ﬂashes to indicate sensor reception status.

•S(Flash):Whenthespeedsignalisreceived

•C(Flash):Whenthecadencesignalisreceived

•S/C(SandCﬂashsimultaneously):Whenthespeed/cadence(ISC)sensor

signalisreceived

•H(Flash):Whentheheartratesignalisreceived

•P(Flash):Whenthepowersignalisreceived

Sensor Direct Mode and Mirror Mode measure independently and data has no continuity.

Important

Pairing (Sensor ID synchronization)

Setup

Tire circumference setting

Switching to Sensor Direct Mode

Pairing (Sensor ID synchronization)

Pair a sensor that you want to use with smart computer.

• Pairing (sensor ID synchronization) must be performed in order to use a sensor.

• Do not pair sensors at a race venue or in similar locations where there are many other

users. Doing so may cause smart computer to be paired with another sensor.

• Pair all sensors that you intend to use.

Important

1. From the measurement screen, press MENU to switch to the menu

screen.

* When the menu screen is left on for 1 minute, smart computer returns to the

measurement screen.

2. Press MODE to display the screen shown below, and then press MODE

for 2 seconds.

3. Activate the sensor that you want to pair.

Activating the sensor

The synchronized sensor is displayed on the top of the screen and pairing is completed.

Measurement

screen

Menu screen

(Clock setting)

(2 seconds)

Ready for

synchronization

Sensor

activated

Synchronization

complete

Setup
