Cateye PADRONE DIGITAL CC-PA400B Manuel utilisateur
3
SET 4
1
5
2
Using the app
Using the unit
Appendix
Cover,
Introduction
CATEYE
PADRONE
DIGITAL
CYCLOCOMPUTER
CC-PA400B
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use
of such marks by CATEYE Co., Ltd. is under license. Other trademarks and trade names
are those of their respective owners.
1
• This instruction manual is subject to change
without notice. See our website for the latest
instruction manual (PDF).
• Please visit our website, where a detailed
Quick Start manual containing videos can be
downloaded.
http://www.cateye.com/products/detail/CC-PA400B/manual/
Setting up
the
PADRONE DIGITAL
Smartphone
PADRONE DIGITAL
Mounting
the PADRONE DIGITAL
Wearing
the heart rate sensor
Introduction
Starting measurement
Changing settings
Capabilities with a smart-
phone (Cateye Cycling™)
Warning / Caution
Product Warranty, etc.
3
SET 4
1
5
2
Using the app
Using the unit
Appendix
Cover,
Introduction
2
The PADRONE DIGITAL is a cyclocomputer that uses Bluetooth® SMART sensors. In
addition to the included sensors, optional or commercial sensors can also be connected
for use.
Mounting the PADRONE DIGITAL, Wearing the heart rate sensor
If you have purchased the double wireless kit
The model you have purchased does not come with the heart rate sensor and HR strap.
You can use all the functions written in this instruction manual, such as measurements
related to your heart rate, by using an optional heart rate sensor kit.
• Mount the bracket (Page 3)
• Mounting the speed/cadence sensor (ISC-12) (Page 5)
• Wearing the heart rate sensor (HR-12) (Page 9)
* For detailed explanations on how to use CATEYE sensors such as mounting, or pairing,
see the sensor’s Online Manual (on our website) or the Quick Start Manual (PDF/smart-
phone app).
Setting up the PADRONE DIGITAL
The first time that you use this product, perform the initial setup from the PADRONE
DIGITAL or from a smartphone (Cateye Cycling™).
Use the method corresponding to your device to set up the PADRONE DIGITAL. You can
change the display of its measurement screen and its total distance value as necessary.
* If you have a smartphone, you can use the “Cateye Cycling™” smartphone app (free of
charge) to easily set up the PADRONE DIGITAL.
• If you do not have a smartphone
1. Setup with the PADRONE DIGITAL (Page 11)
2. Changing settings (Page 22)
• If you have a smartphone
1. Setup with a smartphone (Cateye Cycling™) (Page 15)
2. Capabilities with a smartphone (Page 31)
Introduction
Cover,
Introduction
3
SET 4
5
2
Using the app
Using the unit
Appendix
1/8
1
3
• When mounting on handlebar

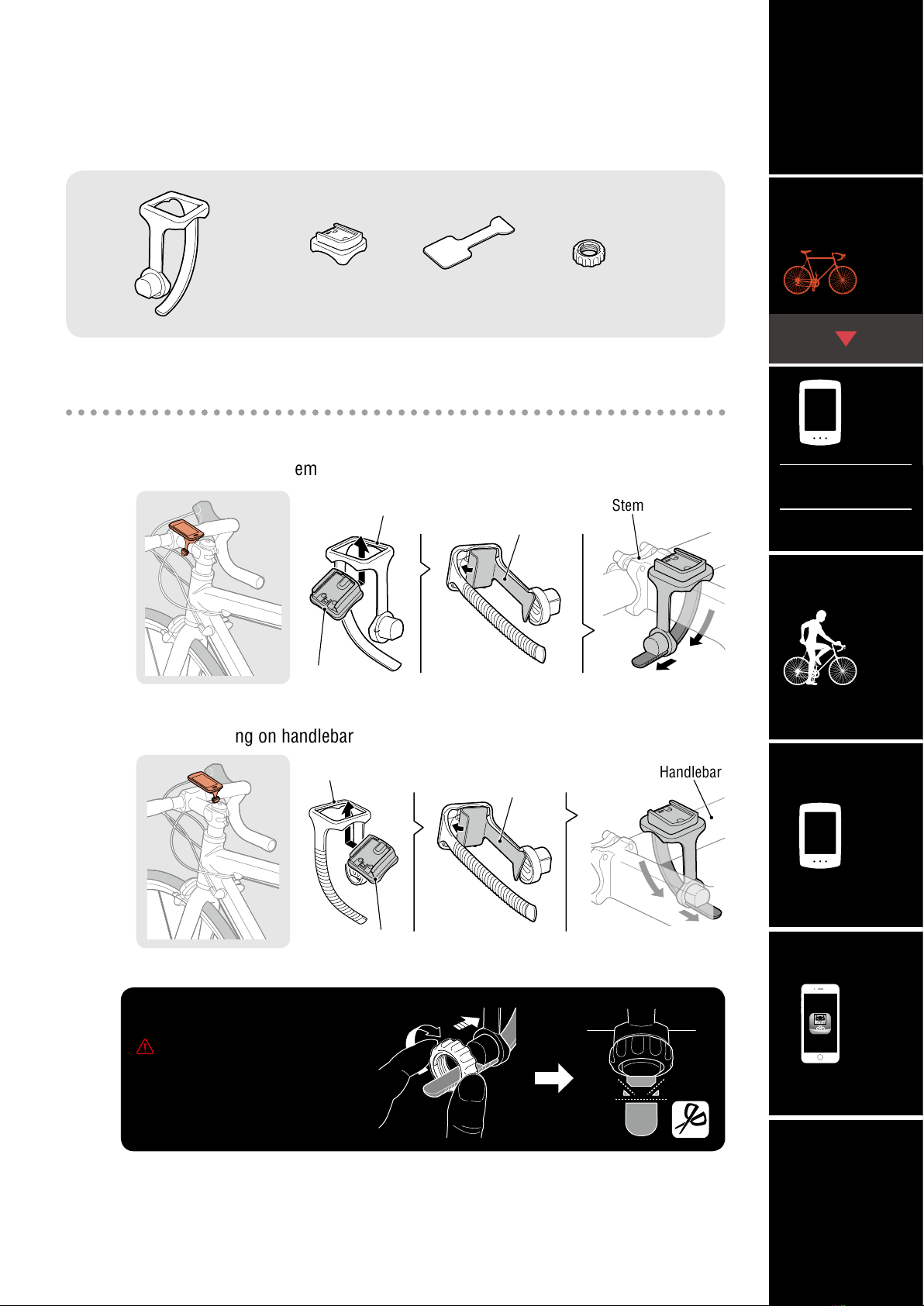

Mount the bracket
The bracket can be mounted on either the stem or the handlebar.
1
Mount the bracket
• When mounting on stem

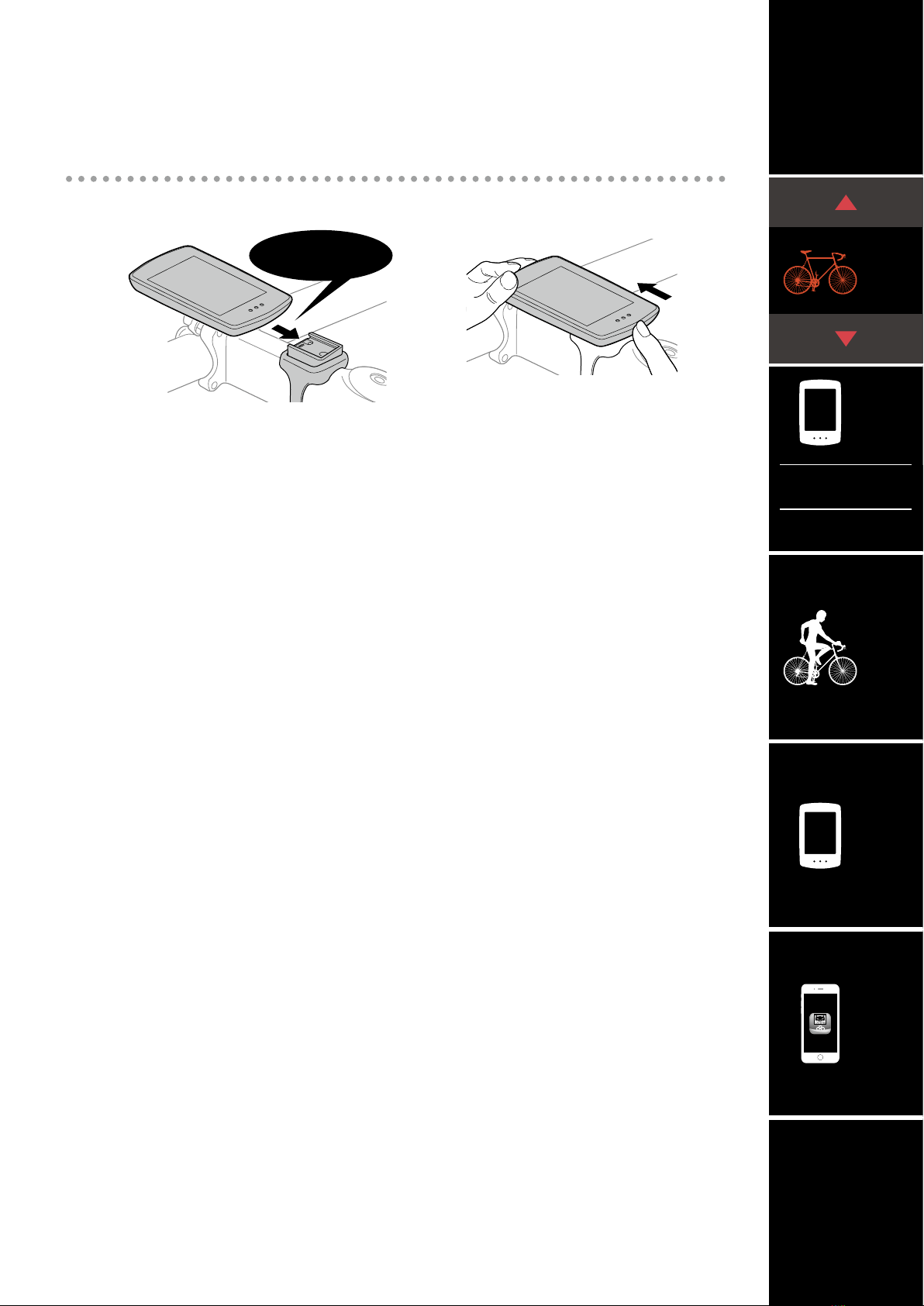

Mounting the PADRONE DIGITAL
Cut
Cutting band after mounting
Caution!:
Cut the bracket band so
that cut end will not cause
injury.
Dial
Handlebar
Bracket band
Bracket
Bracket
rubber pad
Stem
Bracket band
Bracket
Bracket
rubber pad
Bracket band Bracket DialBracket rubber pad
Cover,
Introduction
3
SET 4
5
2
Using the app
Using the unit
Appendix
3/8
1
5
• Mounting on top of chain stay

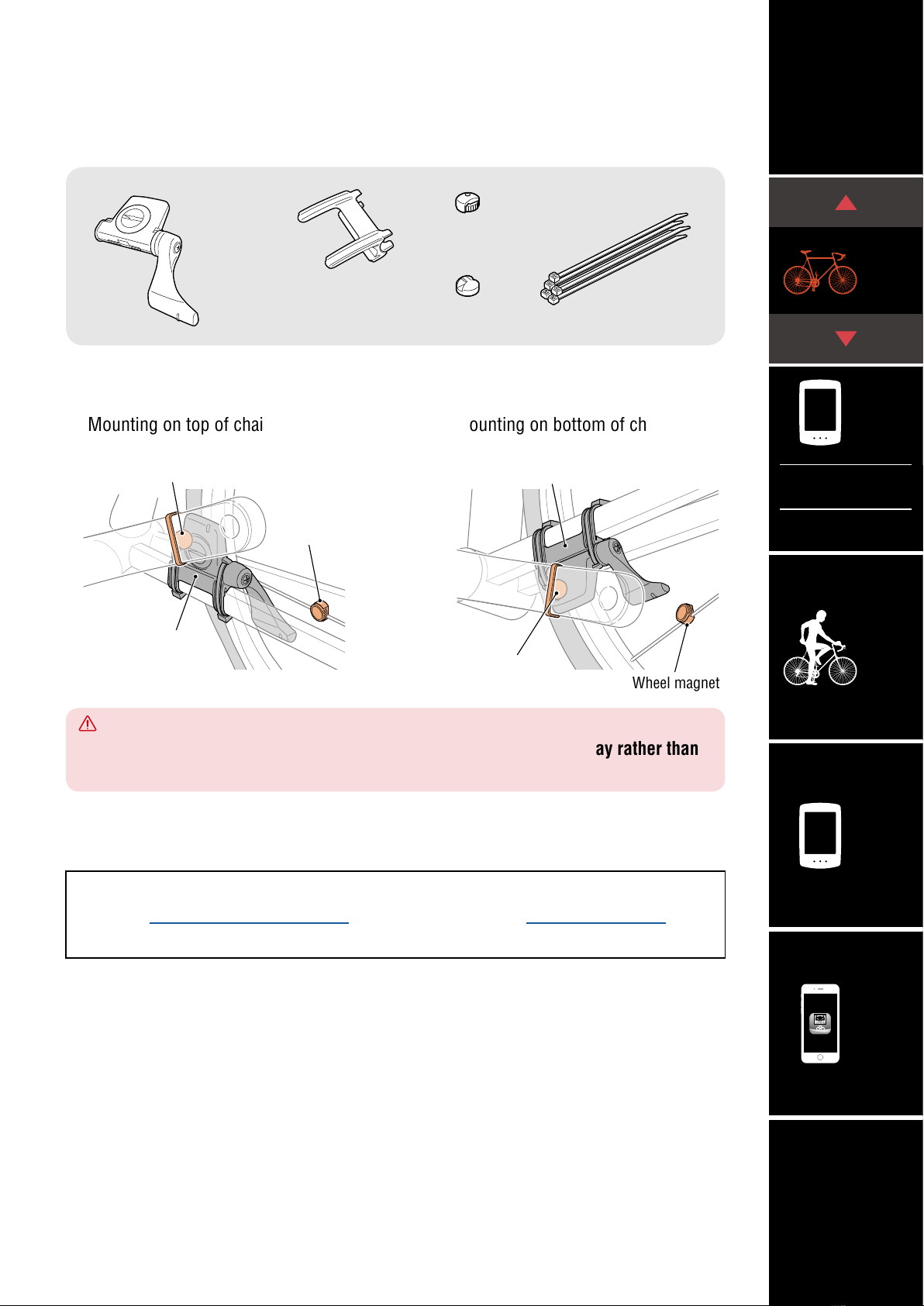

Mounting the speed/cadence sensor (ISC-12)
The speed (cadence) sensor can be mounted either on the top or bottom of the chain stay.
• Mounting on bottom of chain stay
Caution!:
If the speed (cadence) sensor is mounted on the bottom of the chain stay rather than
on the top, the adjustment range between the sensor and the magnet will be narrower.
* If using pedals with steel axles, the cadence magnet can be attached magnetically to the
pedal axle.
* For detailed explanations on how to use CATEYE sensors such as mounting, or pair-
ing, see the sensor’s Online Manual (on our website) or the Quick Start Manual (PDF/
smartphone app).
* The following mounting procedure gives instructions for mounting on the top of the
chain stay.
Mounting the PADRONE DIGITAL
Cadence magnet
Cadence magnet
Speed (cadence)
sensor
Speed (cadence) sensor
Wheel magnet
Wheel magnet
Wheel magnet
Cadence magnet
Nylon tie (x5)
Sensor rubber pad
Speed/Cadence
sensor
(ISC-12)
Cover,
Introduction
3
SET 4
5
2
Using the app
Using the unit
Appendix
4/8
1
6
1

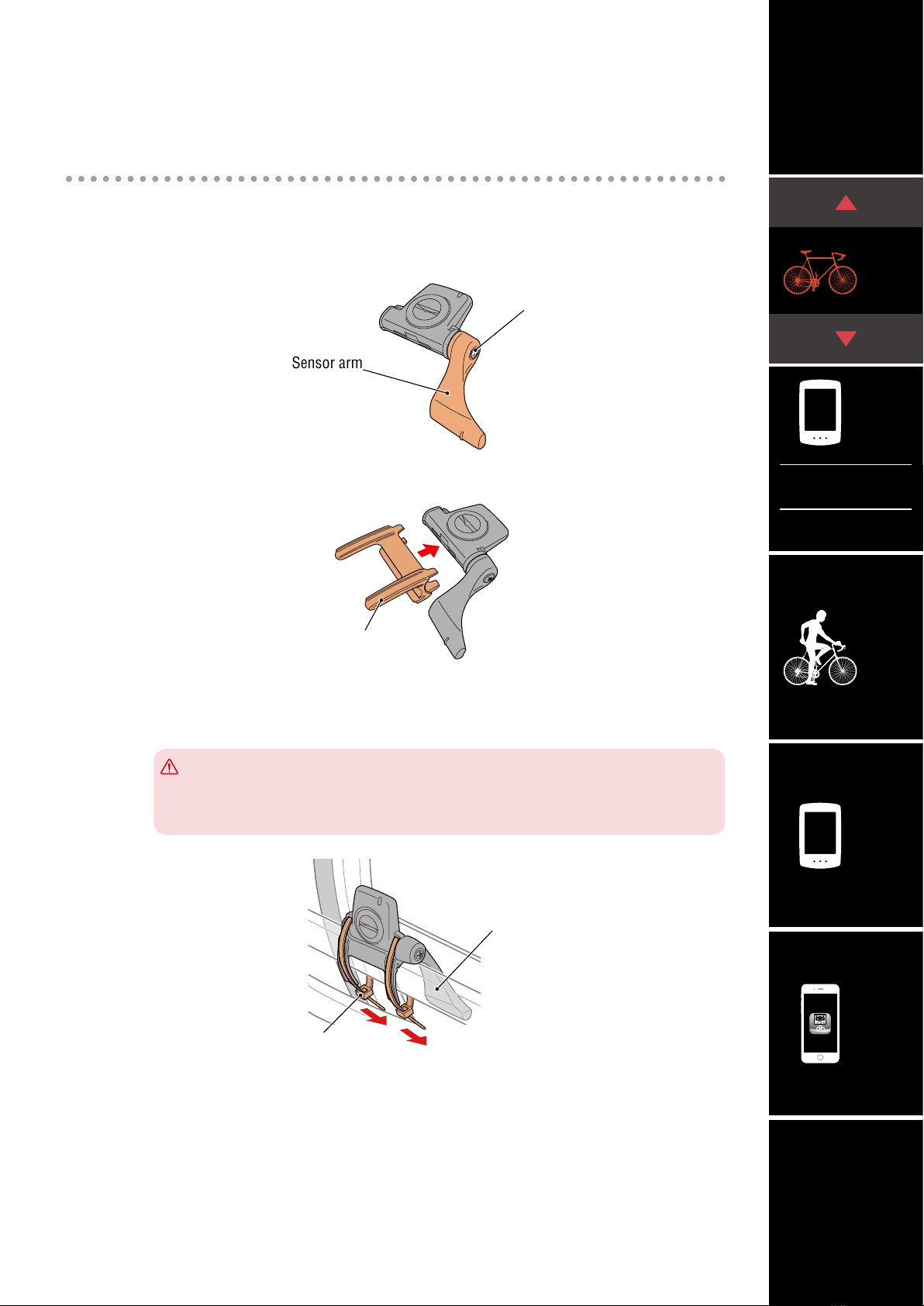

Temporarily attach the sensor to the left chain stay.
(1) Loosen the sensor screw using a Phillips screwdriver and check that the sen-
sor arm moves.
(2) Attach the sensor rubber pad to the sensor.
Sensor rubber pad
(3) Refer to the illustration and temporarily attach the sensor to the left chain stay
with nylon ties.
Caution!:
Do not fully tighten the nylon ties.
Once the nylon ties are fully tightened they cannot be removed.
Nylon tie
Sensor arm
Sensor screw
Left chain stay
Mounting the PADRONE DIGITAL
Mounting the speed/cadence sensor (ISC-12)
Cover,
Introduction
3
SET 4
5
2
Using the app
Using the unit
Appendix
5/8
1
7
2

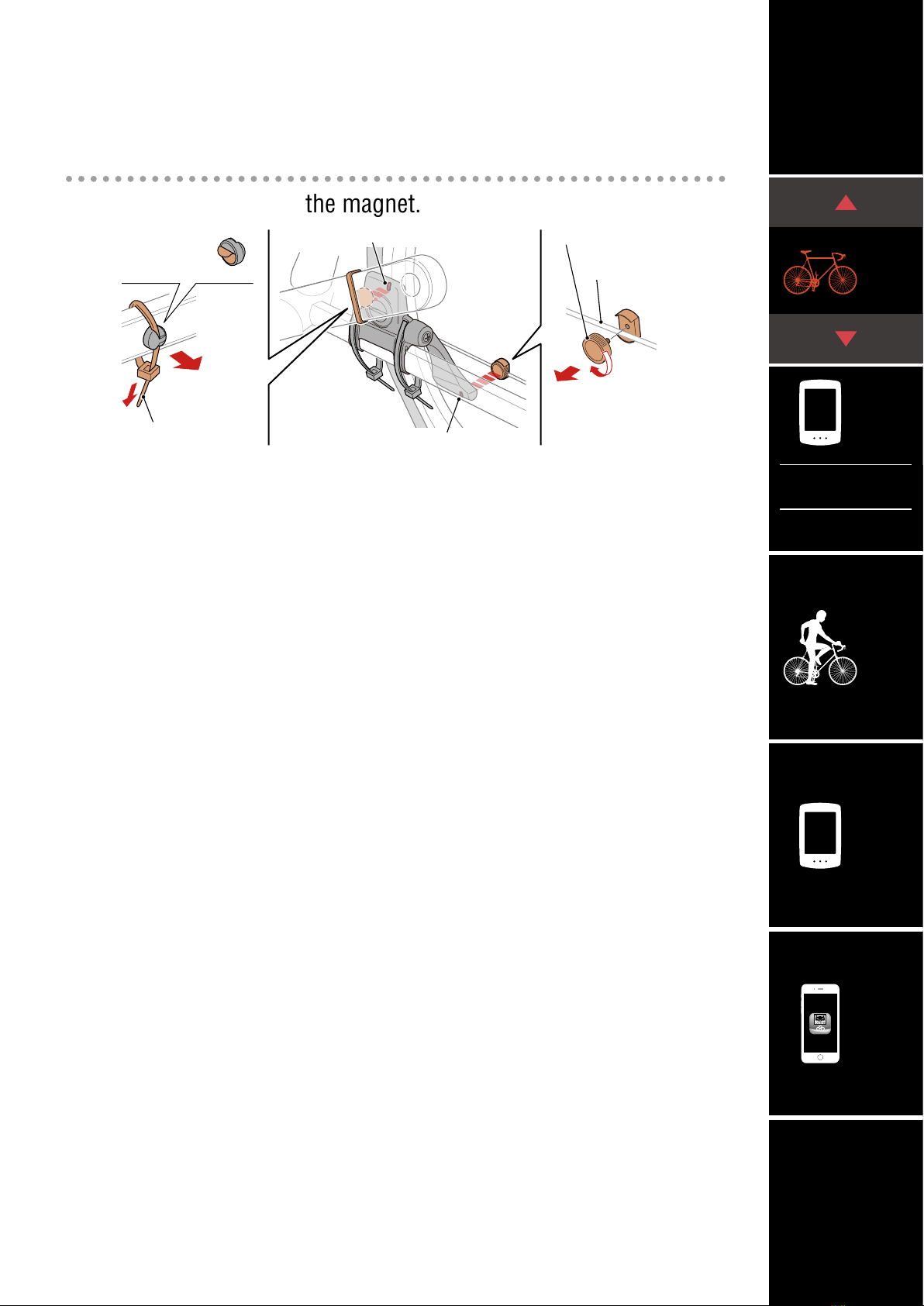

Temporarily attach the magnet.
Nylon tie
Sensor zone
(CADENCE) side Sensor zone (SPEED) side
Cadence
magnet Spoke
Wheel magnetSensor zone (CADENCE)
Sensor zone (SPEED)
(1) Using a nylon tie, temporarily attach the cadence magnet to the inside of the
left crank arm so that it faces the cadence sensor zone.
* If using pedals with steel axles, the cadence magnet can be attached mag-
netically to the pedal axle. In this case, remove the adhesive tape from the
magnet and do not use the nylon tie.
(2) Rotate the sensor arm and temporarily attach the wheel magnet to a spoke
facing the speed sensor zone.
* Reposition the sensor and the magnets if both magnets (speed and cadence)
cannot pass through their respective sensor zones.
Mounting the PADRONE DIGITAL
Mounting the speed/cadence sensor (ISC-12)
Cover,
Introduction
3
SET 4
5
2
Using the app
Using the unit
Appendix
6/8
1
8
3

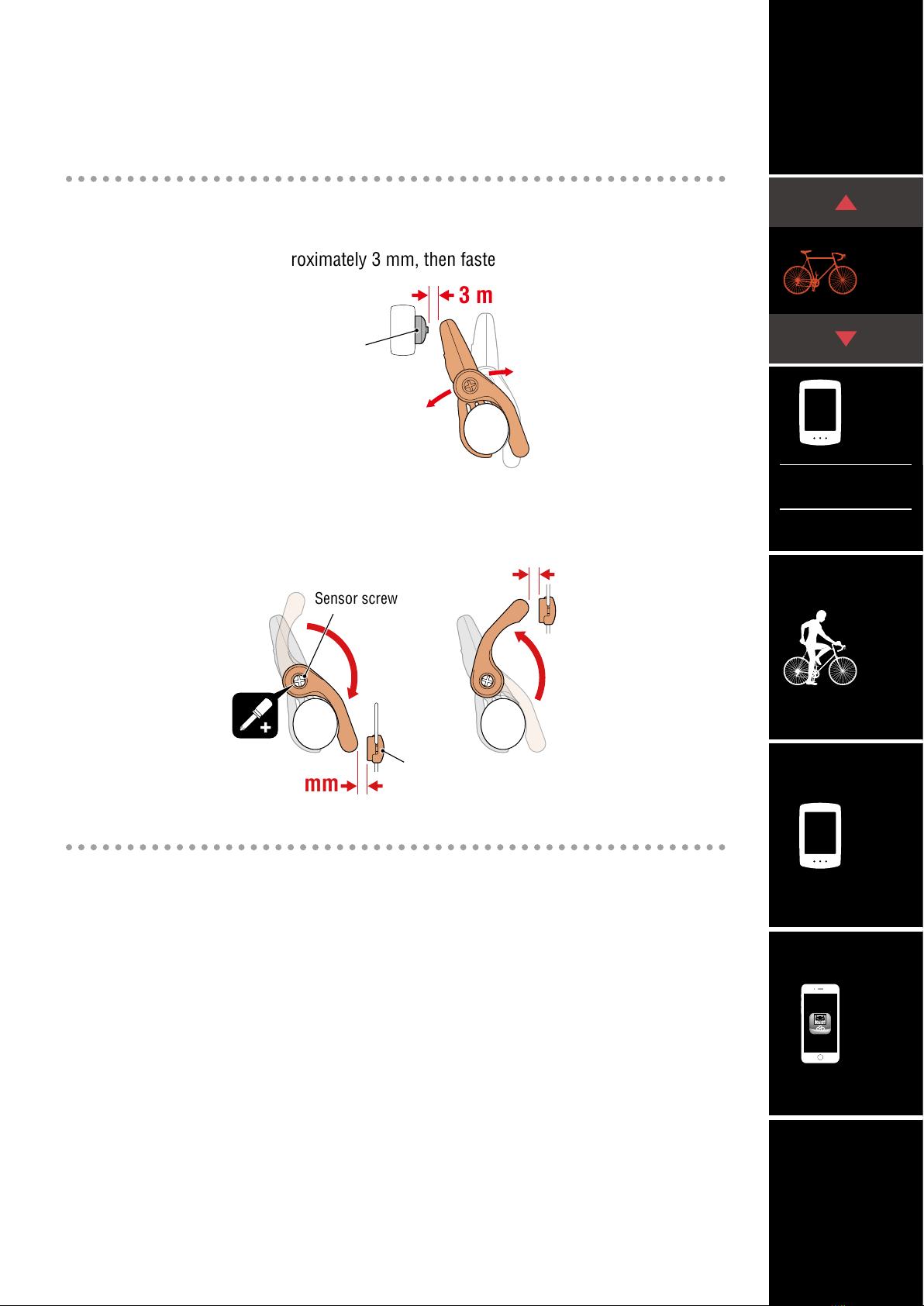

Adjust the gap between the sensor zone and the magnet.
(1) Tilt the sensor so that the gap between the cadence magnet and the cadence
sensor zone is approximately 3 mm, then fasten the sensor securely with
nylon ties. 3 mm
Cadence magnet
(2) Rotate the sensor arm so that the gap between the wheel magnet and the
speed sensor zone is approximately 3 mm, then tighten the sensor screw
securely. 3 mm
3 mm
Sensor screw
Wheel magnet
4
Secure all parts.
Securely tighten the sensor’s nylon ties, the sensor screw, the wheel magnet, and
the cadence magnet so that they do not move, and then check that these items are
not loose.
Trim off the excess nylon tie.
Mounting the PADRONE DIGITAL
Mounting the speed/cadence sensor (ISC-12)
Cover,
Introduction
3
SET 4
5
2
Using the app
Using the unit
Appendix
7/8
1
9

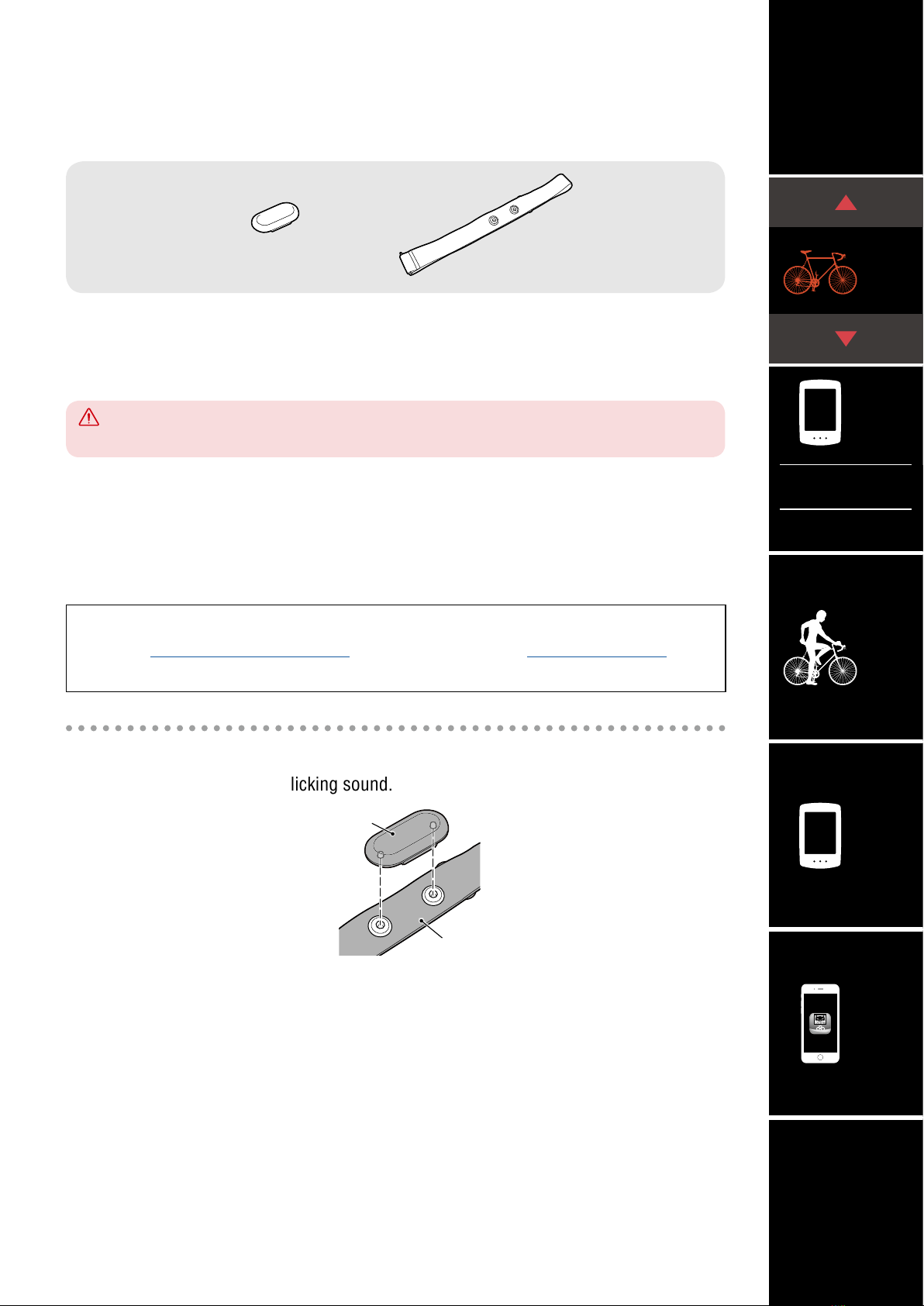

Wearing the heart rate sensor (HR-12)
Heart rate is measured by wearing a heart rate sensor around the chest.
* The double wireless kit does not include a heart rate sensor. Purchase this item sepa-
rately.
Before wearing the heart rate sensor
Warning!!!:
Never use this device if you use a pacemaker.
• To eliminate measurement errors, it is recommended to moisten the electrode pads
with water or apply electrolyte cream to the pads.
• If you have sensitive skin, moisten the electrode pads with water and wear it over a
thin shirt.
• Chest hair may interfere with measurement in some cases.
* For detailed explanations on how to use CATEYE sensors such as mounting, or pair-
ing, see the sensor’s Online Manual (on our website) or the Quick Start Manual (PDF/
smartphone app).
1
Attach the sensor to the HR strap.
Press until you hear a clicking sound.
Heart rate sensor
HR strap
Heart rate sensor
(HR-12) HR strap
Cover,
Introduction
3
SET 4
5
2
Using the app
Using the unit
Appendix
8/8
1
10
2

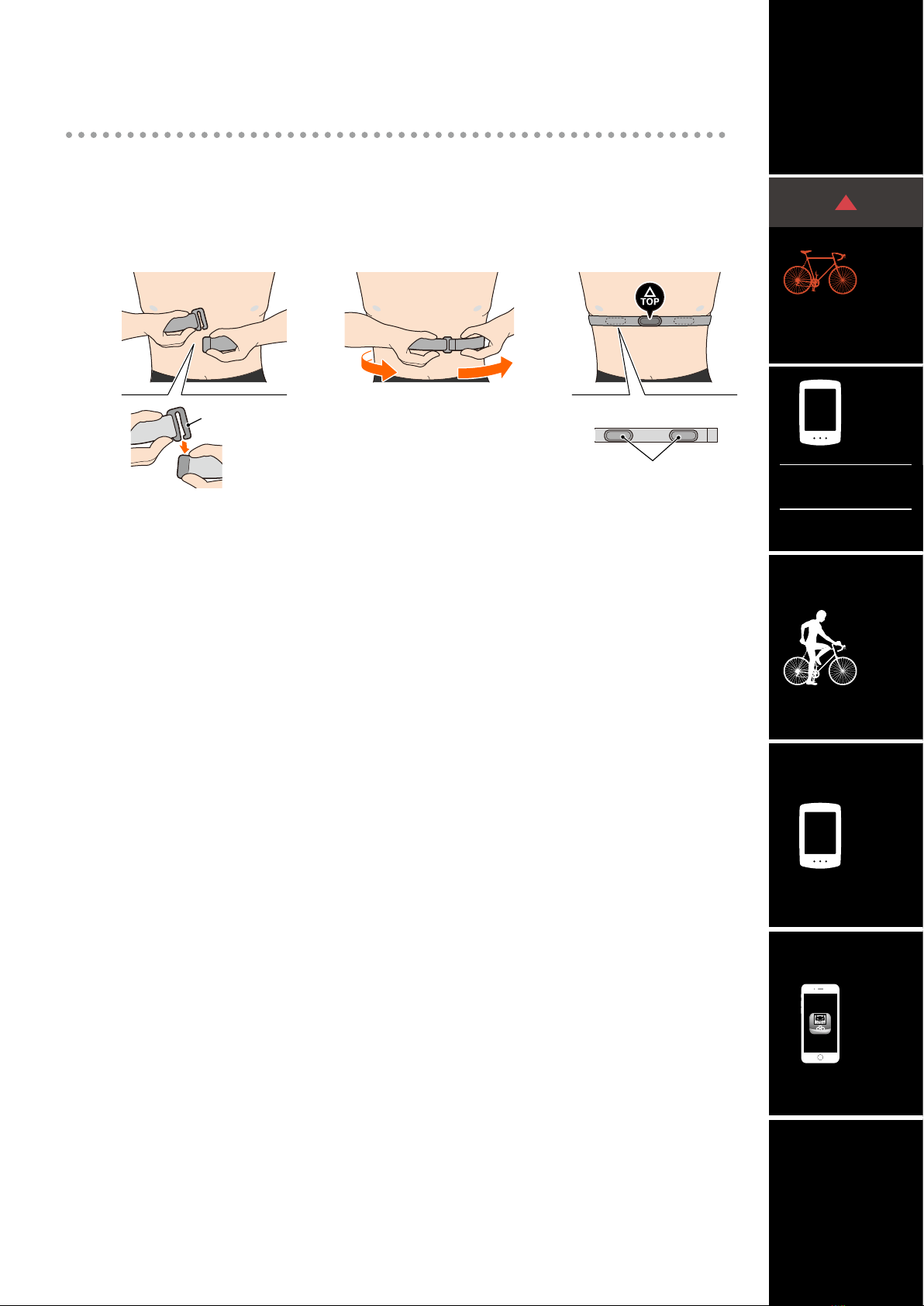

Wear the HR strap by sliding the hook over the other end of
the strap.
Wind the HR strap around your body and adjust the length to suit your chest (un-
derbust). Overtightening the strap may cause discomfort during measurement.
Hook Back side
Electrode pads
* Wear the heart rate sensor so that TOP faces up.
* Ensure that the electrode pads are in close contact with your body.
* If you have dry skin or are wearing the sensor over a shirt, measurement errors
may result. In such cases, moisten the electrode pads with water.
Wearing the heart rate sensor (HR-12)
