Cateye PADRONE DIGITAL CC-PA400B Manuel utilisateur

SET 4

Using the app

Using the unit

Appendix

Cover,

Introduction

CATEYE

PADRONE

DIGITAL

CYCLOCOMPUTER

CC-PA400B

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth

SIG, Inc. and any use of such marks by CATEYE Co., Ltd. is under license. Other

trademarks and trade names are those of their respective owners.

This instruction manual is subject to be

changed without notice.

https://www.cateye.com/instruction/?id=CC-PA400B

Setting up

the

PADRONE DIGITAL

Smartphone

PADRONE DIGITAL

Mounting

the PADRONE DIGITAL

Introduction

Starting measurement

Changing settings

Capabilities with a

smartphone

(Cateye Cycling™ app)

Warning / Caution

Product Warranty, etc.

Cateye Cycling™ iOS version

SET 4

Using the app

Using the unit

Appendix

Cover,

Introduction

The PADRONE DIGITAL is a cyclocomputer that uses with Bluetooth® sensors.

In addition to the included speed/cadence sensor, heart rate measurement can be added

by pairing with an optional heart rate sensor.

Mounting the PADRONE DIGITAL

• Mounting the bracket (Page 3)

• Mounting the speed/cadence sensor (ISC-12) (Page 5)

* For details about how to perform operations such as mounting CATEYE sensors and

pairing, see the sensor’s online manual (on our website).

Setting up the PADRONE DIGITAL

The ﬁrst time that you use this product, perform the initial setup from the PADRONE

DIGITAL or from a Cateye Cycling™ app.

Use the method corresponding to your device to set up the PADRONE DIGITAL. You can

change the display of its measurement screen and its total distance value as necessary.

* If you have a smartphone, you can use the “Cateye Cycling™” smartphone app (download

for free) to easily set up the PADRONE DIGITAL.

• If you do not have a smartphone

1. Setup with the PADRONE DIGITAL (Page 9)

2. Changing settings (Page 21)

• If you have a smartphone

1. Setup with a Cateye Cycling™ app (Page 13)

2. Capabilities with a smartphone (Page 30)

Introduction

Cover,

Introduction

SET 4

Using the app

Using the unit

Appendix

1/6

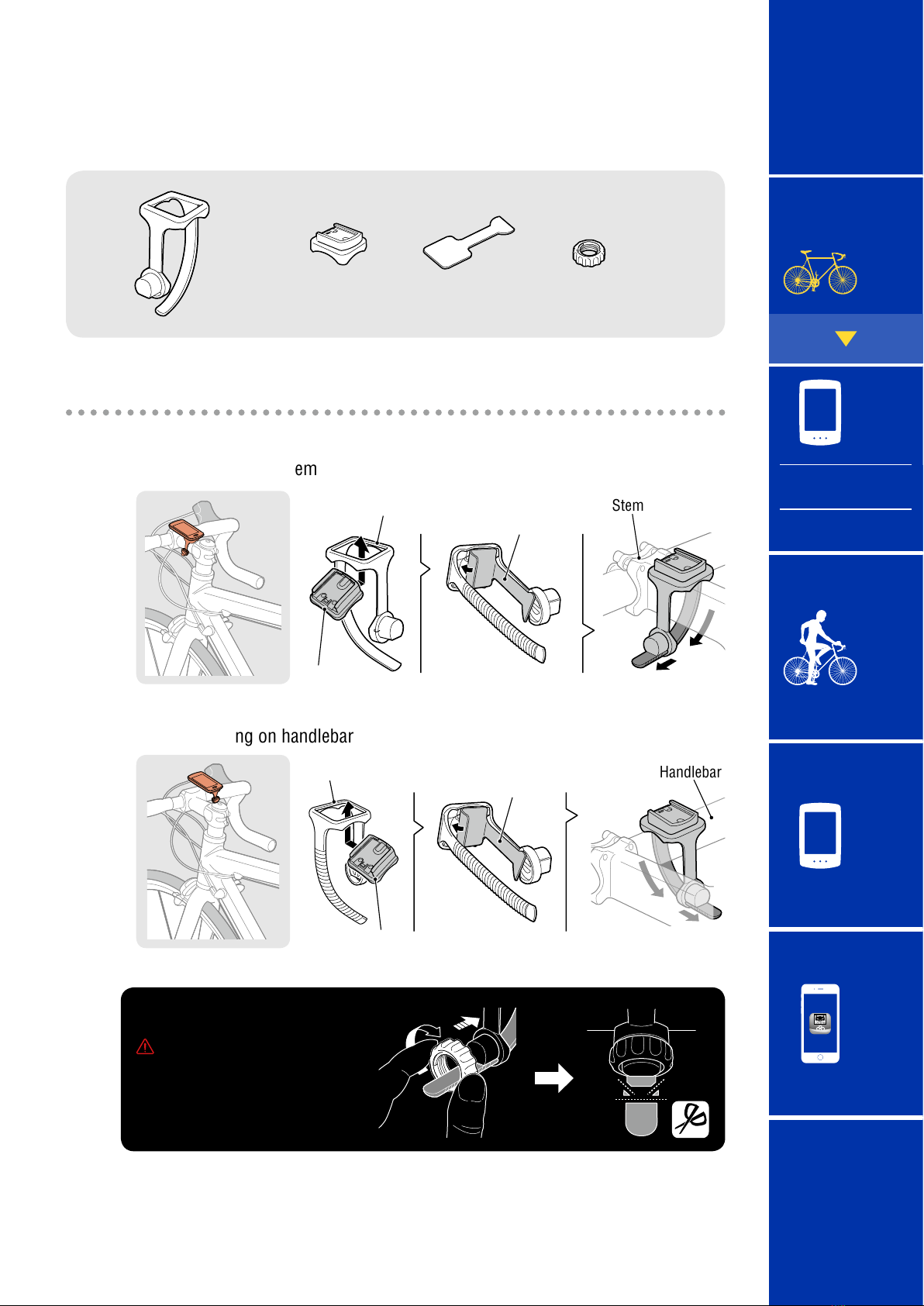

• When mounting on handlebar

Mounting the bracket

The bracket can be mounted on either the stem or the handlebar.

Mounting the bracket

• When mounting on stem

Mounting the PADRONE DIGITAL

Cut

Cutting band after mounting

Caution!:

Cut the bracket band so

that cut end will not cause

injury.

Dial

Handlebar

Bracket band

Bracket

rubber pad

Stem

Bracket band

Bracket

rubber pad

Bracket band Bracket DialBracket rubber pad

Cover,

Introduction

SET 4

Using the app

Using the unit

Appendix

2/6

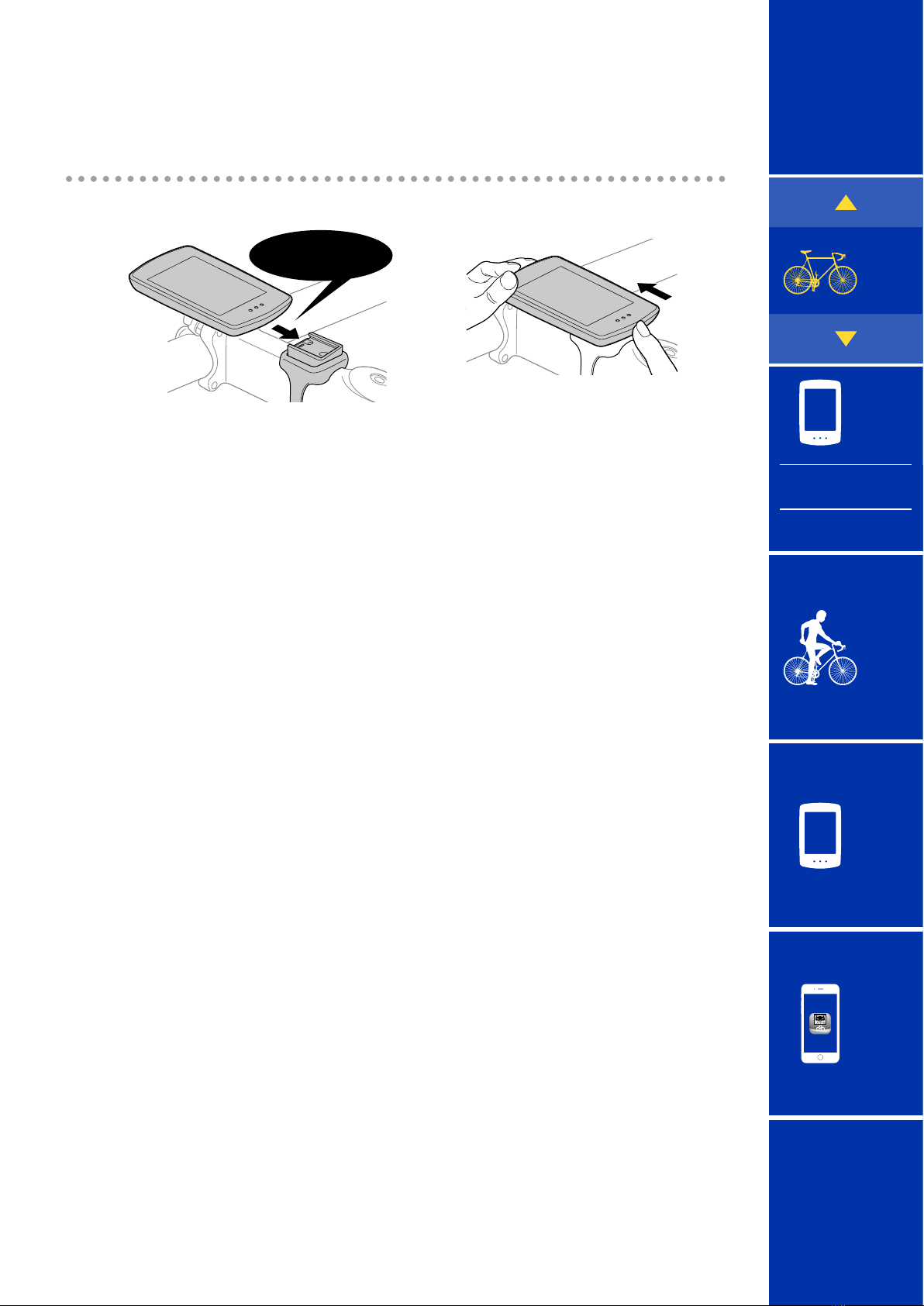

Attach/detach PADRONE DIGITAL

Mounting the PADRONE DIGITAL

Hold PADRONE DIGITAL.

Push out so that front lifts up.

Click

Cover,

Introduction

SET 4

Using the app

Using the unit

Appendix

3/6

• Mounting on top of chain stay

Mounting the speed/cadence sensor (ISC-12)

The speed (cadence) sensor can be mounted either on the top or bottom of the chain stay.

• Mounting on bottom of chain stay

Caution!:

If the speed (cadence) sensor is mounted on the bottom of the chain stay rather than

on the top, the adjustment range between the sensor and the magnet will be narrower.

* If using pedals with steel axles, the cadence magnet can be attached magnetically to the

pedal axle.

* For details about how to perform operations such as mounting CATEYE sensors and

pairing, see the sensor’s online manual (on our website).

* The following mounting procedure gives instructions for mounting on the top of the

chain stay.

Mounting the PADRONE DIGITAL

Cadence magnet

Speed (cadence)

sensor

Speed (cadence) sensor

Wheel magnet

Cadence magnet

Nylon tie (x5)

Sensor rubber pad

Speed/Cadence

sensor

(ISC-12)

Cover,

Introduction

SET 4

Using the app

Using the unit

Appendix

4/6

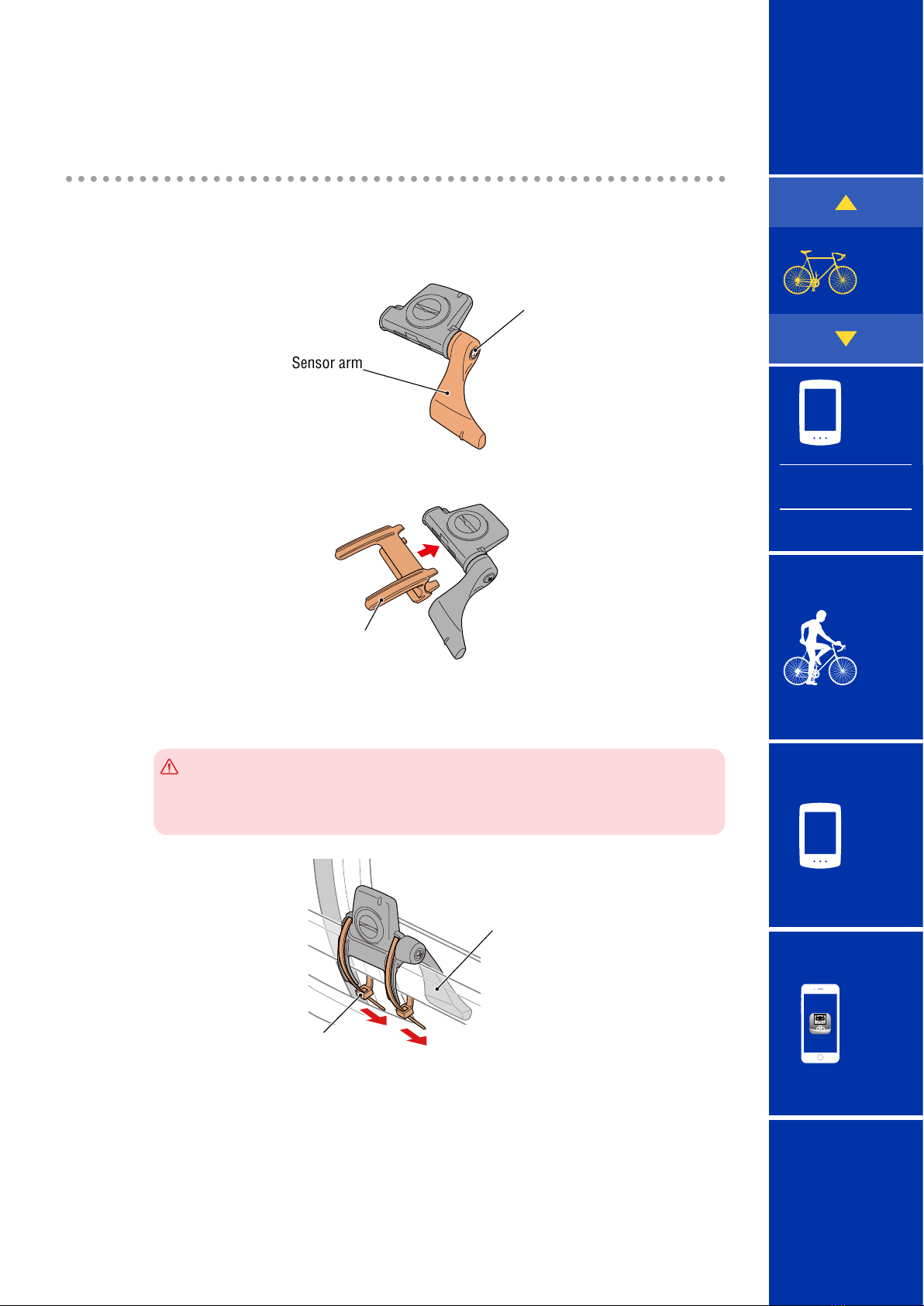

Temporarily attach the sensor to the left chain stay.

(1) Loosen the sensor screw using a Phillips screwdriver and check that the

sensor arm moves.

(2) Attach the sensor rubber pad to the sensor.

Sensor rubber pad

(3) Refer to the illustration and temporarily attach the sensor to the left chain stay

with nylon ties.

Caution!:

Do not fully tighten the nylon ties.

Once the nylon ties are fully tightened they cannot be removed.

Nylon tie

Sensor arm

Sensor screw

Left chain stay

Mounting the PADRONE DIGITAL

Cover,

Introduction

SET 4

Using the app

Using the unit

Appendix

5/6

Temporarily attach the magnet.

Nylon tie

Sensor zone

(CADENCE) side Sensor zone (SPEED) side

Cadence

magnet Spoke

Wheel magnetSensor zone (CADENCE)

Sensor zone (SPEED)

(1) Using a nylon tie, temporarily attach the cadence magnet to the inside of the

left crank arm so that it faces the cadence sensor zone.

* If using pedals with steel axles, the cadence magnet can be attached

magnetically to the pedal axle. In this case, remove the adhesive tape from

the magnet and do not use the nylon tie.

(2) Rotate the sensor arm and temporarily attach the wheel magnet to a spoke

facing the speed sensor zone.

* Reposition the sensor and the magnets if both magnets (speed and cadence)

cannot pass through their respective sensor zones.

Mounting the PADRONE DIGITAL

Cover,

Introduction

SET 4

Using the app

Using the unit

Appendix

6/6

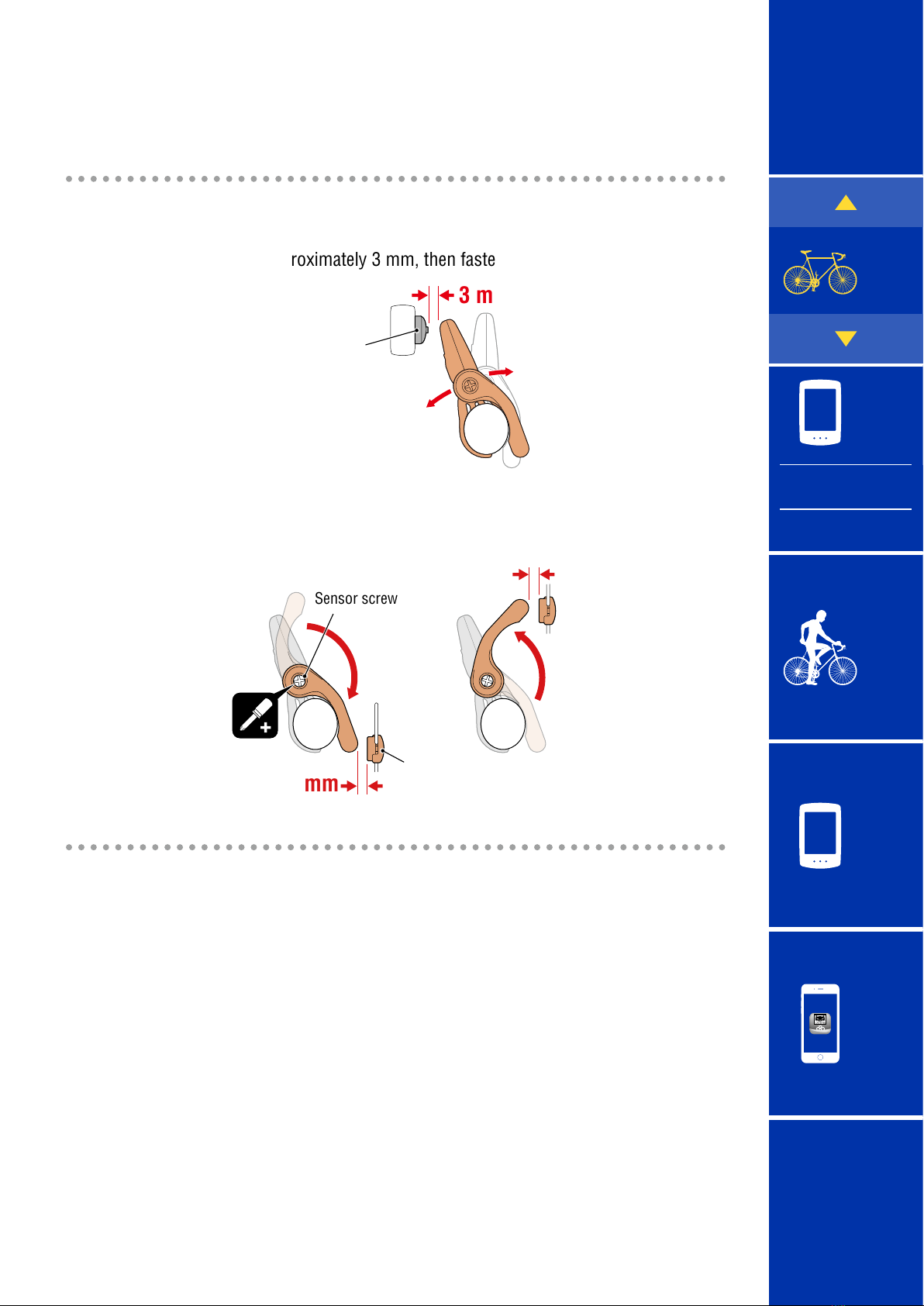

Adjust the gap between the sensor zone and the magnet.

(1) Tilt the sensor so that the gap between the cadence magnet and the cadence

sensor zone is approximately 3 mm, then fasten the sensor securely with

nylon ties. 3 mm

Cadence magnet

(2) Rotate the sensor arm so that the gap between the wheel magnet and the

speed sensor zone is approximately 3 mm, then tighten the sensor screw

securely. 3 mm

3 mm

Sensor screw

Wheel magnet

Secure all parts.

Securely tighten the sensor’s nylon ties, the sensor screw, the wheel magnet, and

the cadence magnet so that they do not move, and then check that these items are

not loose.

Trim off the excess nylon tie.

Mounting the PADRONE DIGITAL

Cover,

Introduction

SET 4

Appendix

Unit

1/4

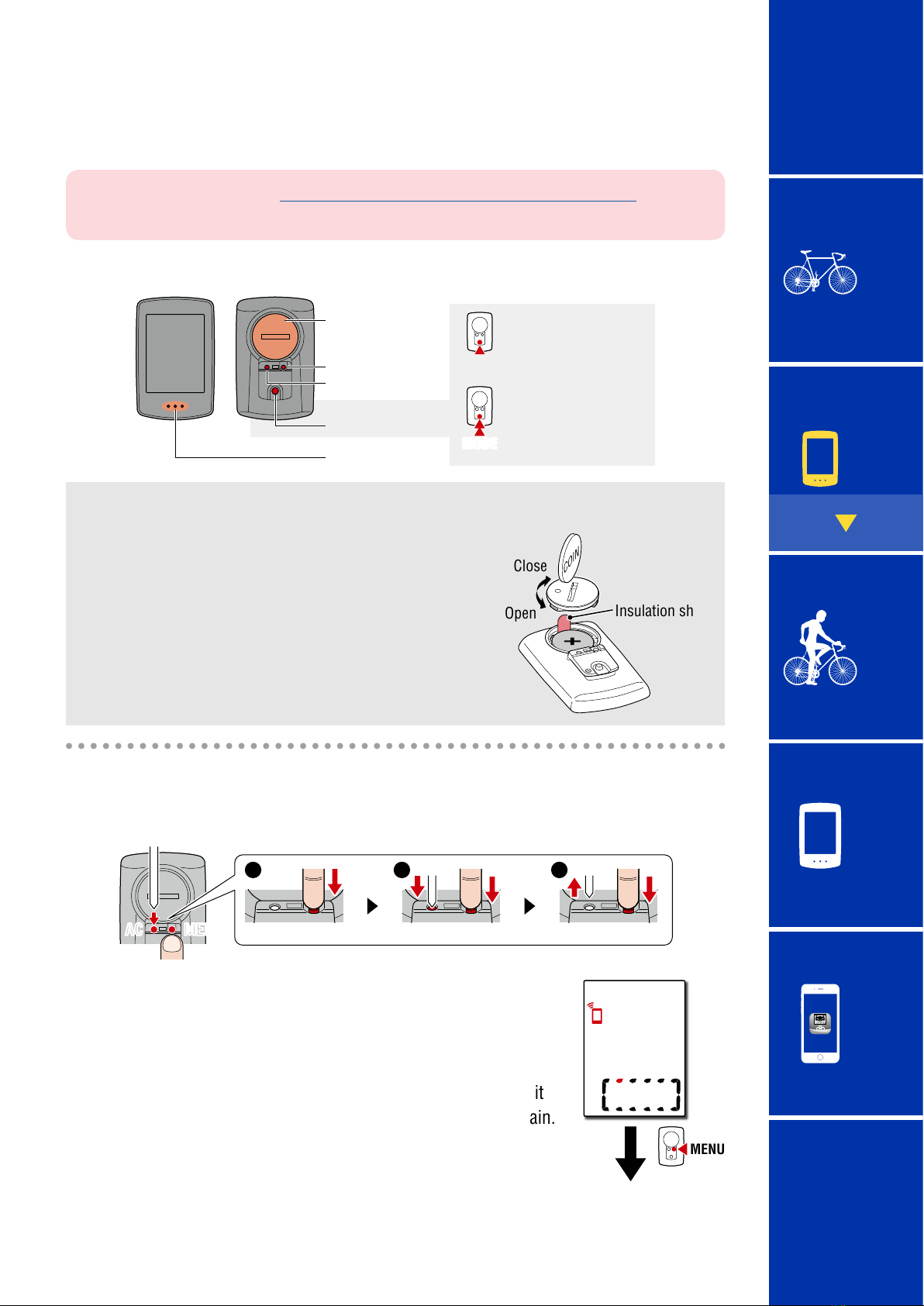

Setting up the PADRONE DIGITAL

Setup with the PADRONE DIGITAL

If using a smartphone, see “Setup with a Cateye Cycling™ app” (Page 13) to set

up the device.

* Check the locations of the buttons on the PADRONE DIGITAL before starting setup.

MODE

Battery case cover

Dot section

Short press

Long press

(2 sec.)

MODE

Remove the battery insulation sheet from the PADRONE DIGITAL.

After removing the battery insulation sheet, return

the battery cover to its previous location.

Insulation sheet

COIN

Open

Format (initialize) the unit.

While holding down MENU on the back of the PADRONE DIGITAL, press and

release the AC button.

ACAC MENUMENU ACAC MENUMENUMENUMENU MENUMENU

1 2 3

The whole display turns on, and then the smartphone search

screen is displayed.

* All data is deleted and the unit is reset to the factory

default settings.

* If the smartphone search screen is not displayed, the unit

could not be formatted. Try to perform the operation again.

Cover,

Introduction

SET 4

Appendix

Unit

2/4

Select the measurement unit.

Press MODE to select “km/h” or “mph”.

After selecting a value, press MENU to proceed

to the next step.

Pair with a sensor.

Caution!:

• To use the PADRONE DIGITAL, you have to pair it with a sensor that

supports the Bluetooth® standard.

• Avoid pairing sensors at a race venue or in similar locations where there

are a lot of other users. Doing so may cause the PADRONE DIGITAL to be

paired with another device.

The unit switches to the pairing standby screen and Pr

ﬂashes on the screen.

Included sensor Activating the sensor Display

Speed/Cadence

sensor (ISC-12)

Move the magnet through the sensor zone

several times. (Within 3 mm) ISC

* For the CATEYE sensor signal activation procedure, refer to the sensor’s online

manual.

Once pairing is complete, the name of the sensor is shown in the upper display.

* When pairing a sensor with the PADRONE DIGITAL, a “C” is displayed after the

sensor name.

To pair multiple sensors, hold down MODE to return to the

pairing standby screen.

Repeat step 3 to pair all the sensors that you intend to use.

* To add heart rate measurement, perform pairing with the

heart rate sensor here.

Once you are ﬁnished pairing sensors with the unit, press

MENU to proceed to the next step.

Setting up the PADRONE DIGITAL

MODE

Re-verify

(press and hold)

Conﬁrm

MODE

km/h ↔mph

Conﬁrm
