CATEYE STRADA
CC-RD400DW
Quick Start
START
Thank you for purchasing our cyclocomputer CATEYE STRADA.
This Quick Start Manual explains how to set up the computer and how to install the unit on
your bicycle.
Please set up the unit according to the specified procedure, then it will be ready for use as a
cyclocomputer.
Before use, read the instruction manual that comes with the product thoroughly
to the end to understand the functions of this unit, and to use it safely in a
correct manner.
Next
This PDF contains a movie file.
When you click on the movie screen, a message regarding security appears. Click the
“Trust in the text” or “Play” button to close the message.
Click the screen again to play the movie.
Next
CATEYE STRADA
Quick Start Manual Contents
Click the item you wish to view.
Return to a Cover
Setting up the computer
How to install the speed sensor (movie)
How to install the bracket (movie)
Operation of buttons
Set up the computer by operating the buttons as follows.
Check the button position before you start setting up.
MODE
MENU
Back
Press the MENU button and the MODE
button on the back of the computer.
Next
CATEYE STRADA
Quick Start Manual Setting up the computer
Setting the speed unit

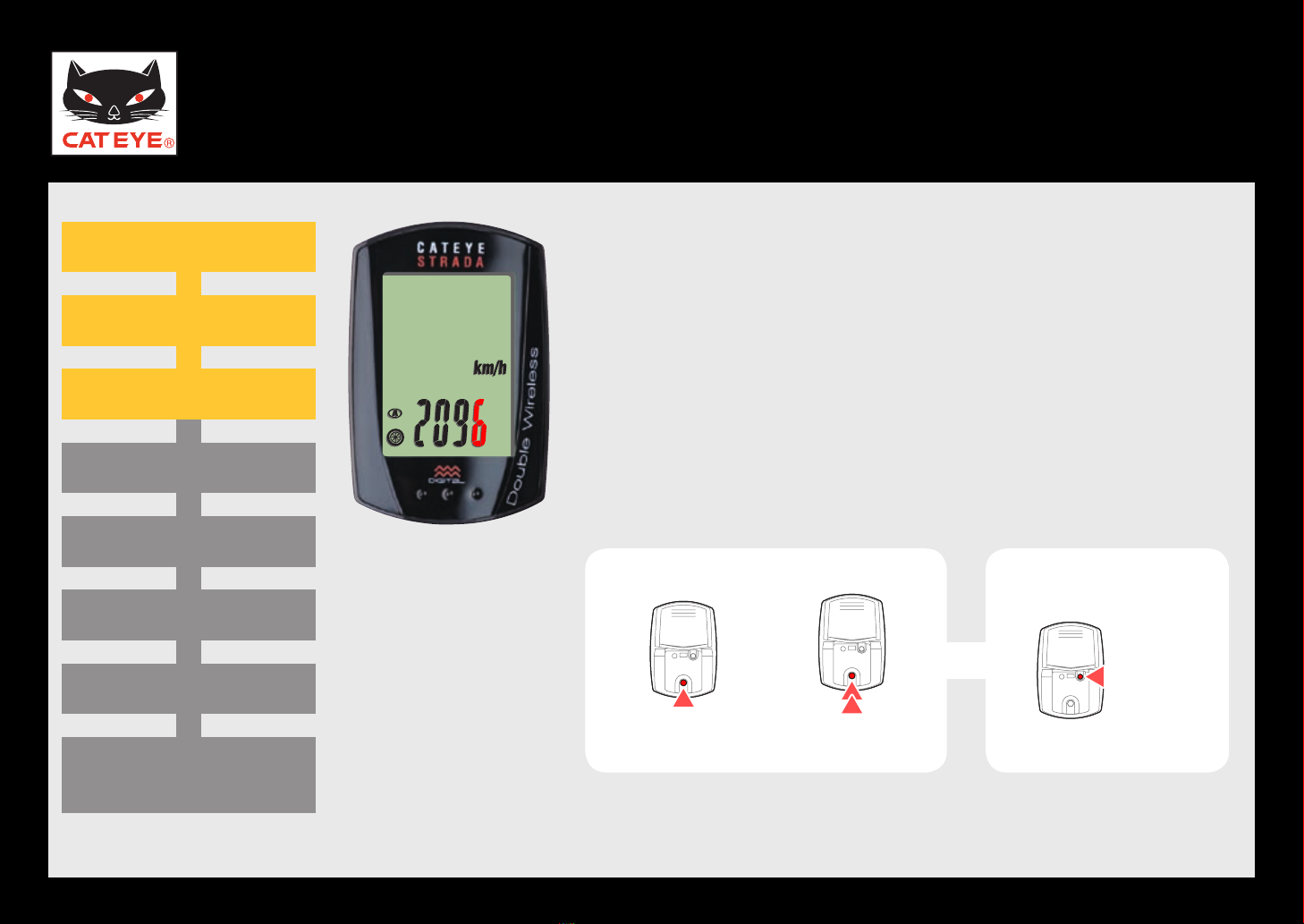

Entering the tire circumference

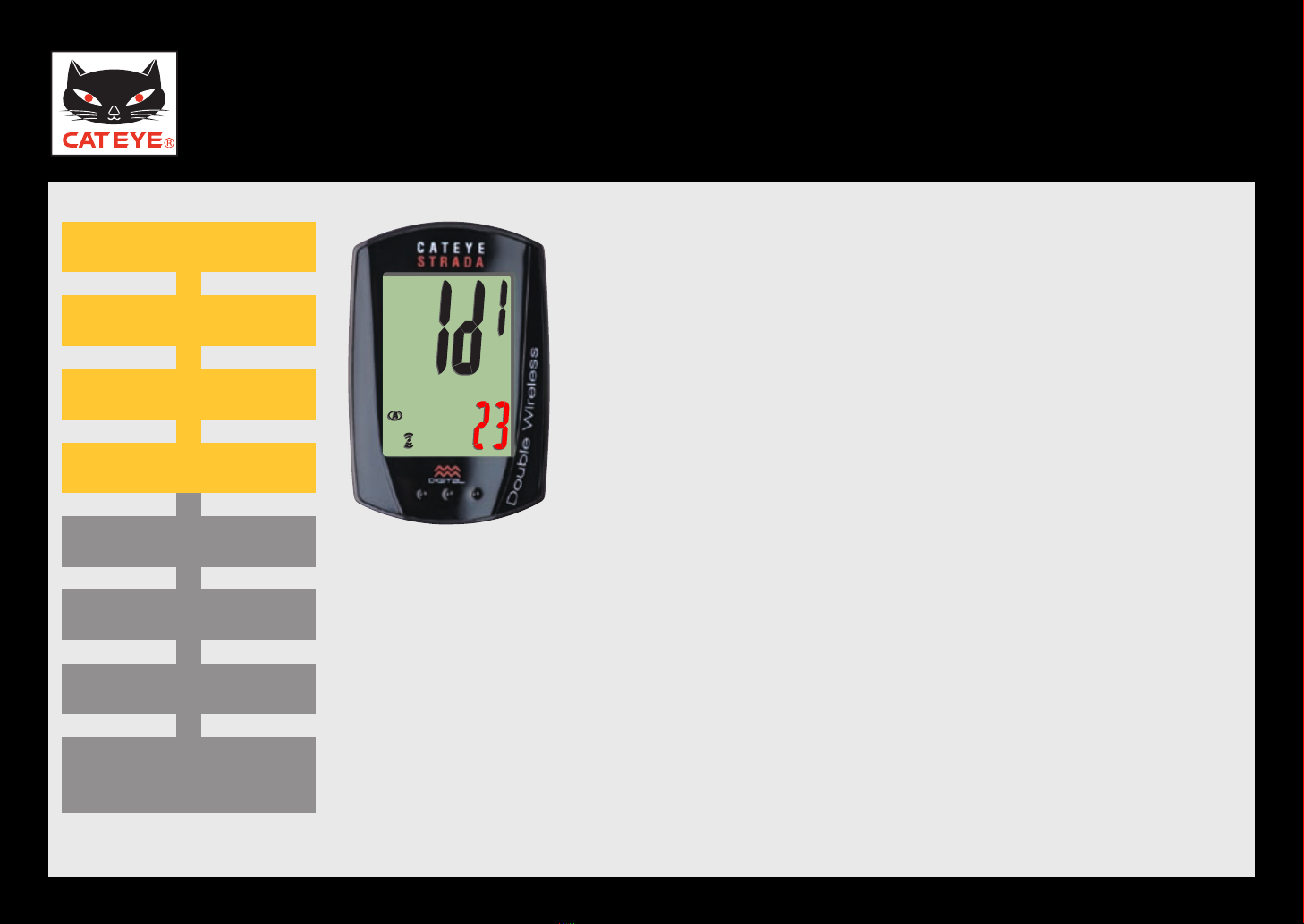

Searching the sensor ID
Setting the clock display
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Clear all data (initialization) Clear all data (initialization)
Press the AC button on the back of the computer.
After full lighting of the screen, the computer switch-
es to the speed unit setting screen to start setup.
ACAC
Full lighting Setting the speed unit
Return to Contents
Next
Return
CATEYE STRADA
Quick Start Manual Setting up the computer
Entering the tire circumference
Searching the sensor ID
Setting the clock display
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Setting the speed unit
Clear all data (initialization)

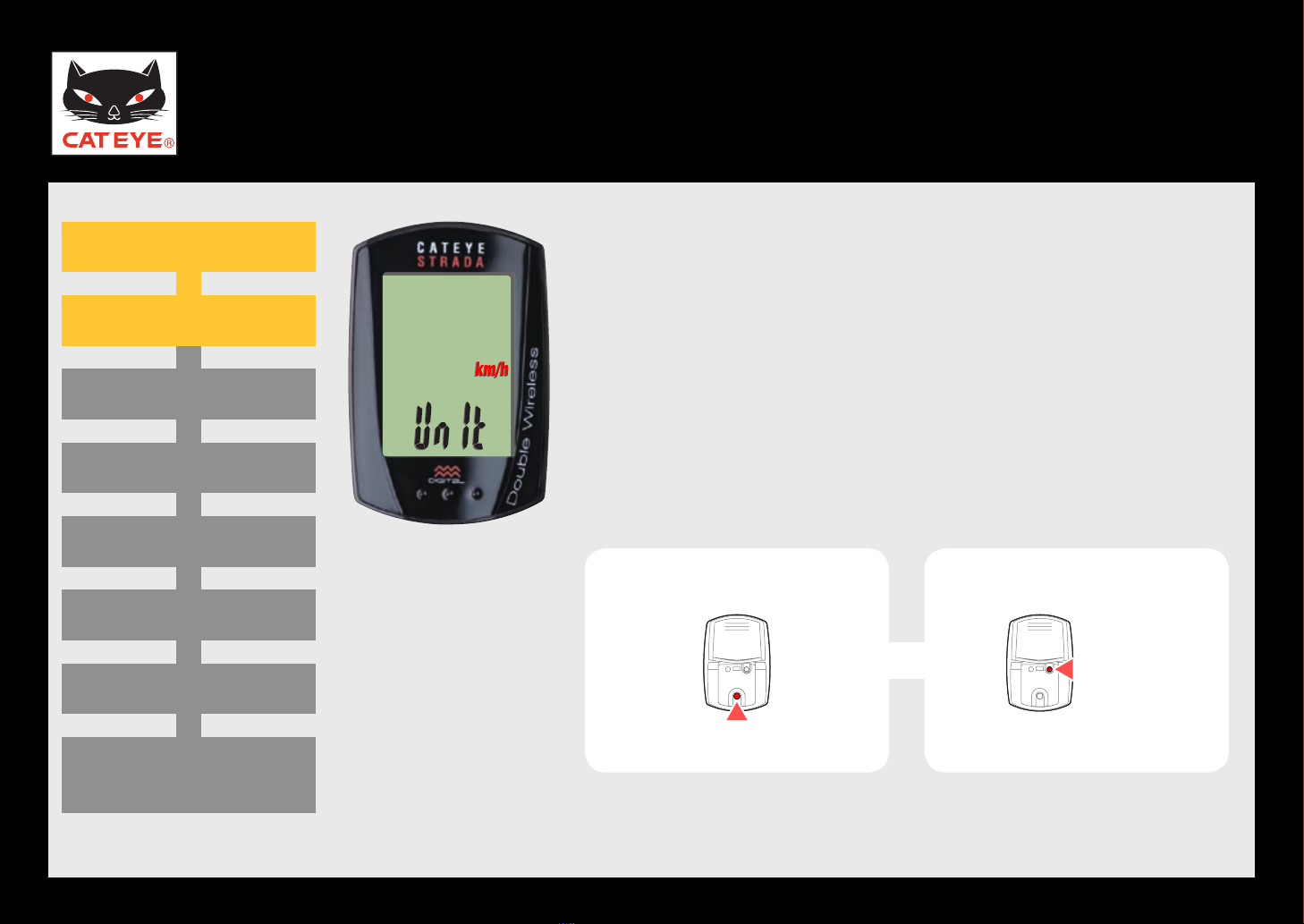

Setting the speed unit
Setting the speed unit
When the MODE button is pressed, either “km/h” or “mph”
is selected for the speed unit display. Select the display of
your choice.
After selecting, press the MENU button to proceed to the
next step “Entering the tire circumference”.
MENU
To the next step
MODE
km/h ↔mph
Return to Contents
Next
Return
CATEYE STRADA
Quick Start Manual Setting up the computer
Searching the sensor ID
Setting the clock display
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Entering the tire circumference
Setting the speed unit
Clear all data (initialization) Entering the tire circumference
Enter the tire circumference (mm) of your bicycle with 4
digits using the tire circumference reference table.
Pressing the MODE button increases the value flashing,
and pressing and holding the MODE button moves to the
next digit.
After entering, press the MENU button to proceed to the
next step “Searching the sensor ID”.
Entering the tire
circumference Move digitIncrease the value
MENU
To the next step
MODE
MODE
(Press and hold)
Return to Contents
Next
Return
Tire circum-
ference refer-
ence table
CATEYE STRADA
Quick Start Manual Setting up the computer
Setting the clock display
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Searching the sensor ID
(1/2)
Entering the tire circumference
Setting the speed unit
Clear all data (initialization) Searching the sensor ID

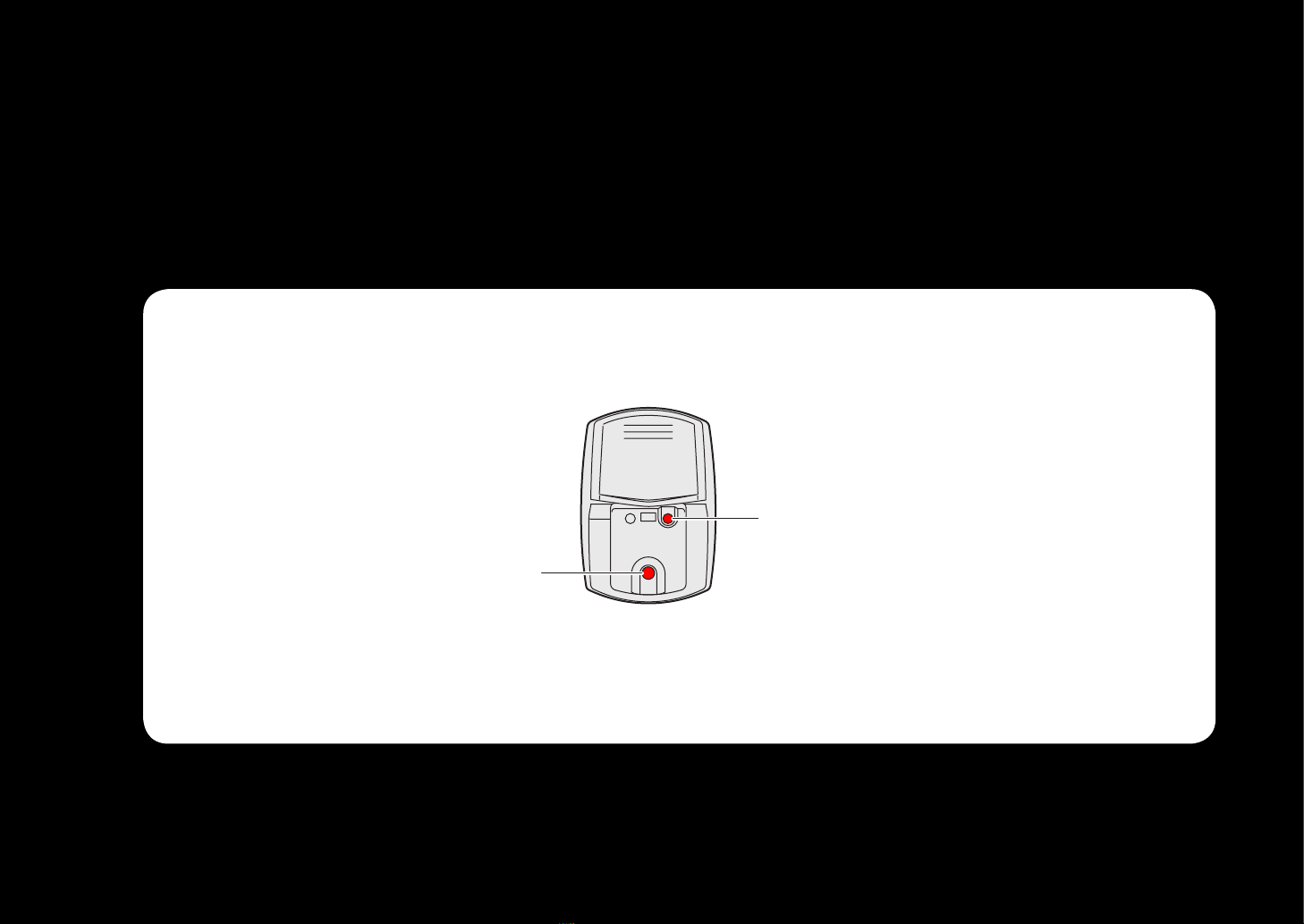

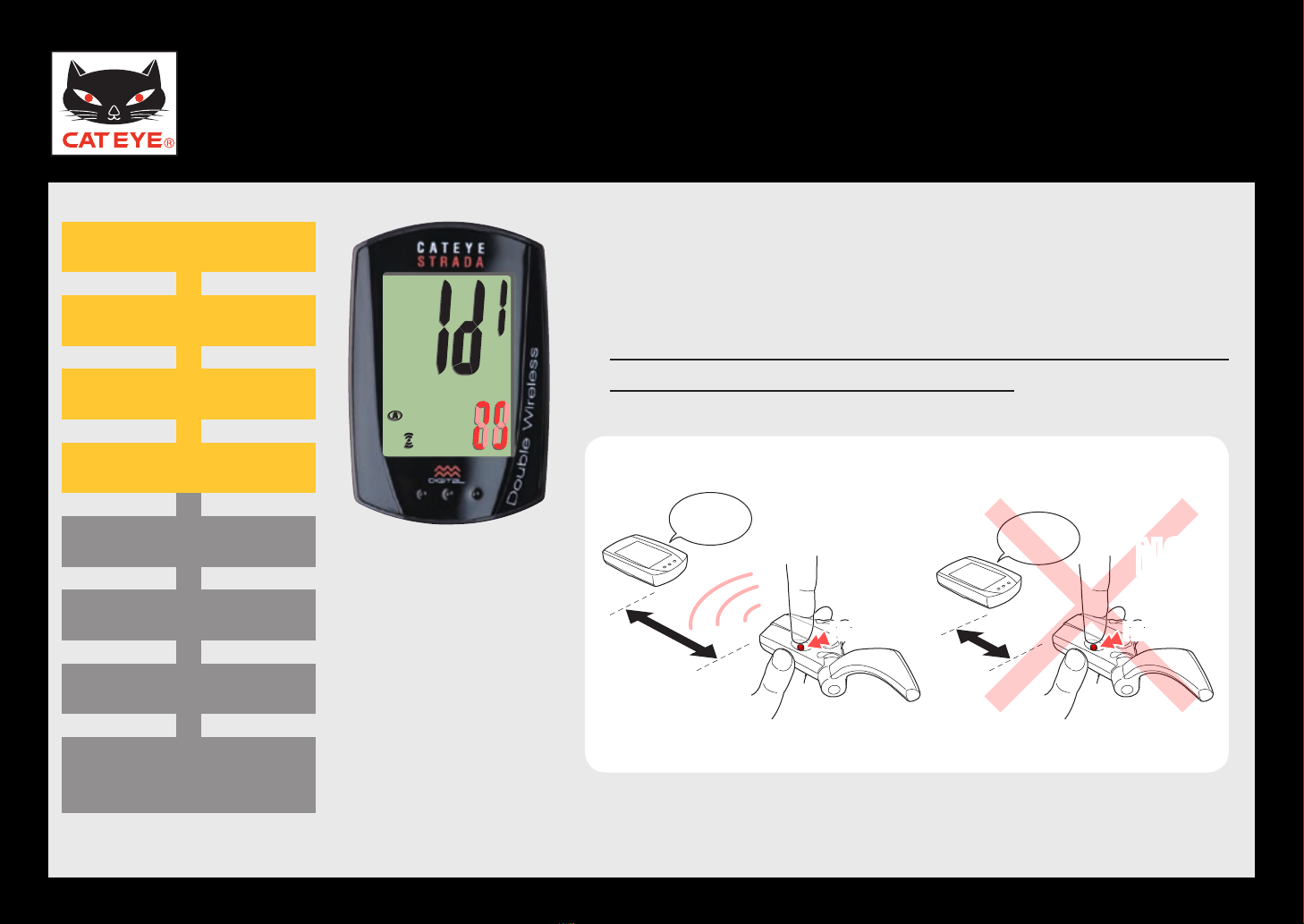

Keep the computer 30 cm (12”) away from the sensor,
and press and hold the RESET button of the sensor.
A sensor ID signal is sent when you release the* RESET
button after pressing and holding it.
OK
!... NO!
RESETRESET RESETRESET
Under going search
of the sensor ID
Keep about 30 cm (12”) away. Distance is too close or too far.
Return to Contents
Next
Return
Searching
the sensor ID
(movie)
CATEYE STRADA
Quick Start Manual Setting up the computer
Setting the clock display
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Searching the sensor ID
(2/2)
Entering the tire circumference
Setting the speed unit
Clear all data (initialization) Searching the sensor ID
When the computer receives the ID signal from the sen-
sor successfully, the ID number is displayed.
After searching, proceed to the next step “Setting the clock
display”.
Searching of sensor
ID completed
Return to Contents
Next
Return
