CASTLE Euro mini Manuel utilisateur
EN50131-1
Grade 2 Compliance
2x
Installation Manual
RINS1211-9
EN50131-1
Grade 2 Compliance
2x
Castle Page:3
Contents Page
System Overview 4
Technical Specication 5
Overview 6
The Control Panel 6
The Printed Circuit Board 7
The Tamper Spring and Connections 8
Connections 9
Transformer / Battery Connection 9
Keypad Connection 10
Reader Connection 11
External Reader Connection 12
Double Pole - Alarm Connections 13
Double Pole - Tamper Connections 13
DEOL: 4K7 Alarm, 2K2 Tamper 14
DEOL: 4K7 Alarm, 4K7 Tamper 14
Siren Connection 15
Speaker Connection 15
Output Connection/Example 16
Compliance Statement and Warranty 17
Compliance Statement 17
Warranty 17
Input Table Appendix 18
Page:4 Castle
System Overview
Inputs on main
control panel
10 fully programmable inputs
Input conguration Double end of line (4K7 Alarm, 2K2 Tamper)
Double end of line (4K7 Alarm, 4K7 Tamper)
Double Pole
Input Types Unused, Fire, Hold Up, 24 Hour, Intruder, Final
Exit, Entry Route, ER (FX in part), FX (ER in part),
Keyswitch Latched, Keyswitch Pulsed
Programmable
Outputs
PGM, Bell, Strobe + 4 Outputs on Inputs 7,8,9 and 10
(programmed either as an input or output)
Output Types Not Used, Fire, Hold Up Any, Intruder Any, Tamper Any,
Set Fail, Entry Deviation, Siren Any, Strobe Any, Exit
Starts Any, Final Set Any, Strobe Set Fail, Keyswitch
Unset, Entry/Exit, Lights, Restore 1, Restore 2, PIR
Latch 1, PIR Latch 2, Mains Good, Detr Indn Enable,
Follow Test, Off During Test, Detr Walk Test, Mains Fail,
Battery Fault, Low Volts, Global Fault 1, Global Fault 2,
Engineer Access
Keypad Contemporary LCD Keypad 32 Character
Number of Keypads 4
Arming Options Timed, Final Door, Timed/Final
User Codes 30 user codes, 1 Master Manager, 1 Engineer
Logs 500 Mandatory, 200 Optional
Fuses AUX, Bell, RS485 Bus, Battery
Tampers Case Tamper and Siren Tamper
Castle Page:5
Technical Specication
Electrical Specication
Supply Voltage (A.C.) 18VAC Nominal (+-20%), 50Hz (+-10%)
Supply Voltage (D.C.) 12VDC Nominal (10-15 Volt DC Range)
Power Supply 1A Regulated
Supply Current <80mA Quiescent (DC supply, no active outputs)
Internal battery charger 800mA continous, 13.68V nominal (fold-back
current limited)
Battery supply protection Reverse polarity protected
Battery nal disconnect
voltage 10.5V
Zone inputs 0-20V, normally closed, normally open, double
balanced circuits
PGM/SAB outputs Switched negative 1Ah (max)
Shared PGM outputs Switched negative 50mA (max)
SAB/AUX supply fuses 800mA quick-blow
Battery reverse
protection fuse 1.6A slow-blow
Mains Fuse Mains Fuse - Anti-Surge 315mA
Physical/Mechanical Specication
Dimensions 250 x 297 x 82mm
Weight 3.07 kilos
Environmental Specication
Operational temperature
range -20°C to +60°C
Storage temperature
range -20°C to +60°C
Battery recommend 3Ah or 7Ah (Max)
Page:6 Castle
Overview Control Panel
The EURO mini is already fully assembled in a metal case. The diagram below
shows a basic overview of the different components.
The Control Panel
Castle Page:7
Overview Printed Circuit Board
The Printed Circuit Board
BELL
BUS
BATTERY
AUX
Remove for DP
PGM AUX+ SPK STB BELL TR B- B+
Fuses
Fuses
Power LED
(flashes)
Double Pole
Link
The Z1 and Z2 GND terminal cannot be used as 0V
Z1 COM Z2 0V +12V Z3 COM Z4 Z5 COM Z6 0V +12V Z7 COM Z8 Z9 COM Z10 D1- D2+ D3 D4 - BAT + GND
PGM Output 1 Z6 Input 6
AUX+ +12V Supply 0V 0V/Common
SPK Speaker Output +12V +12V Supply
STB Output 2 Z7 Input 7 / Output 4
BELL Output 3 COM 0V/Common
TR Siren Tamper Return Z8 Input 8 / Output 5
B- 0V Z9 Input 9 / Output 6
B+ +12V Supply COM 0V/Common
Z1 Input 1 Z10 Input 10 / Output 7
COM Common Only D1- RS485 Bus: 0V
Z2 Input 2 D2+ RS485 Bus: +12V
0V 0V/Common D3 RS485 Bus: Data A
+12V +12V Supply D4 RS485 Bus: Data B
Z3 Input 3 -BAT Battery Negative
COM 0V/Common BAT+ Battery Positive
Z4 Input 4 GND Earth
Z5 Input 5 ~ 17V Input
COM 0V/Common ~ 17V Input
The EURO mini printed circuit board is as follows:
Page:8 Castle
Overview Tamper Connections
The Tamper Spring and Connections
BELL
BUS
BATTERY
AUX
Remove for DP
PGM AUX+ SPK STB BELL TR B- B+
Tamper
Connection
Tamper
Spring
Z1 COM Z2 0V +12V Z3 COM Z4 Z5 COM Z6 0V +12V Z7 COM Z8 Z9 COM Z10 D1- D2+ D3 D4 - BAT + GND
The EURO mini printed circuit board is protected by a metal casing. The lid is
tampered by a spring that is connected to the printed circuit board.
To disable the tamper spring, simply link out the tamper connections shown
below.
Castle Page:9
Connections Transformer
Battery
BELL
BUS
BATTERY
AUX
PGM AUX+ SPK STB BELL TR B- B+
Transformer
Battery 12V
To Earth terminal
of mains block
Remove for DP

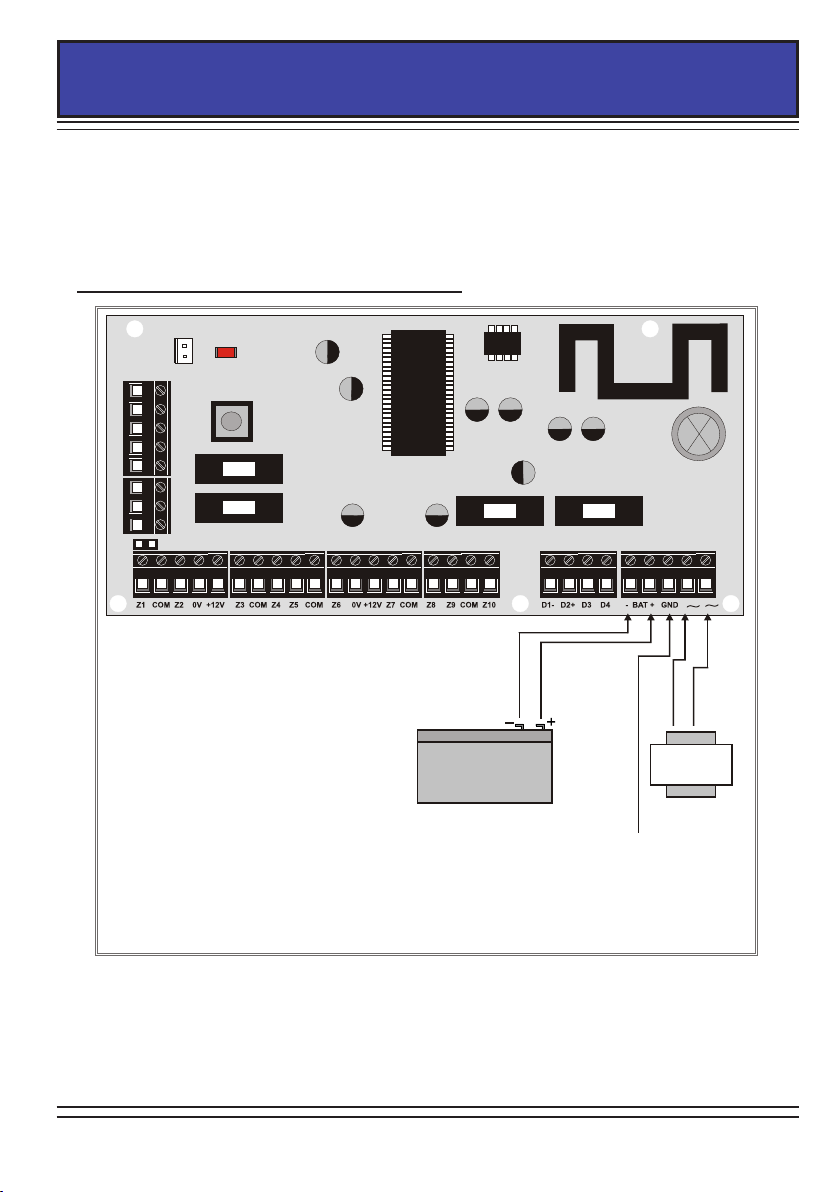

Transformer / Battery Connection
The transformer will be factory tted to the connections shown below on the
EURO mini.
It is recommended that a 3Ah or 7Ah battery should be used on the EURO mini.
This connects to the Battery positive and negative terminals.
Page:10 Castle
Connections Contemporary
Keypad
D1- D2+ D3 D4
BELL
BUS
BATTERY
AUX
PGM AUX+ SPK STB BELL TR B- B+
Remove for DP
Keypad Connection
A maximum of 4 keypads may be installed to the EURO mini. Each keypad
(EUR-068 or EUR-069) connects to the RS485 terminal: D1-, D2+, D3 and D4.
Each keypad must be individually addressed, starting with 00. To do this, press
and hold the ‘D’ key, until ‘KEYPAD CODE’ is displayed. Enter ‘2000’ and select the
appropriate address. Press the ‘YES’ key to change any other required options, and
the ‘A’ key to save the data.
