The EURO mini Keypad
Page 1
Contents
Introduction 1-5
Using EURO mini with PIN Codes 5-9
Intelligent Setting 10-11
When Problems Arise 12
Setting Individual Areas 13-14
Chime Facility 16
Omitting Zones 17-18
Keypad Hold Up/Personal Attack 19
Manager Menu 20-21
Changing Date & Time 22
Change/Add Codes 23-27
Review History Log 28
Walk Testing Detectors 29
Testing your Sounder 30
Allow Engineer Menu 31
Note the specification of EURO mini may vary
between different software version, and some
facilities in the manual may not be available.
Check with your installer for full details. This
equipment may be used in systems installed to
a lower grade, which will be agreed with your
installation company. There are no user
serviceable parts contained in this product.
© Castle Care-Tech 2012 (RINS1209) Issue 5
For electrical products sold within the European Community. At the end
of the electrical products useful life, it should not be disposed of with
household waste. Please recycle where facilities exist. Check with your
Local Authority or retailer for recycling advice in your country.
When disposing of the product, the batteries must be removed and
disposed of separately in accordance with the local regulations.
The EURO mini Keypad
Page 2
Using your EURO mini Alarm System just
couldn’t be easier!

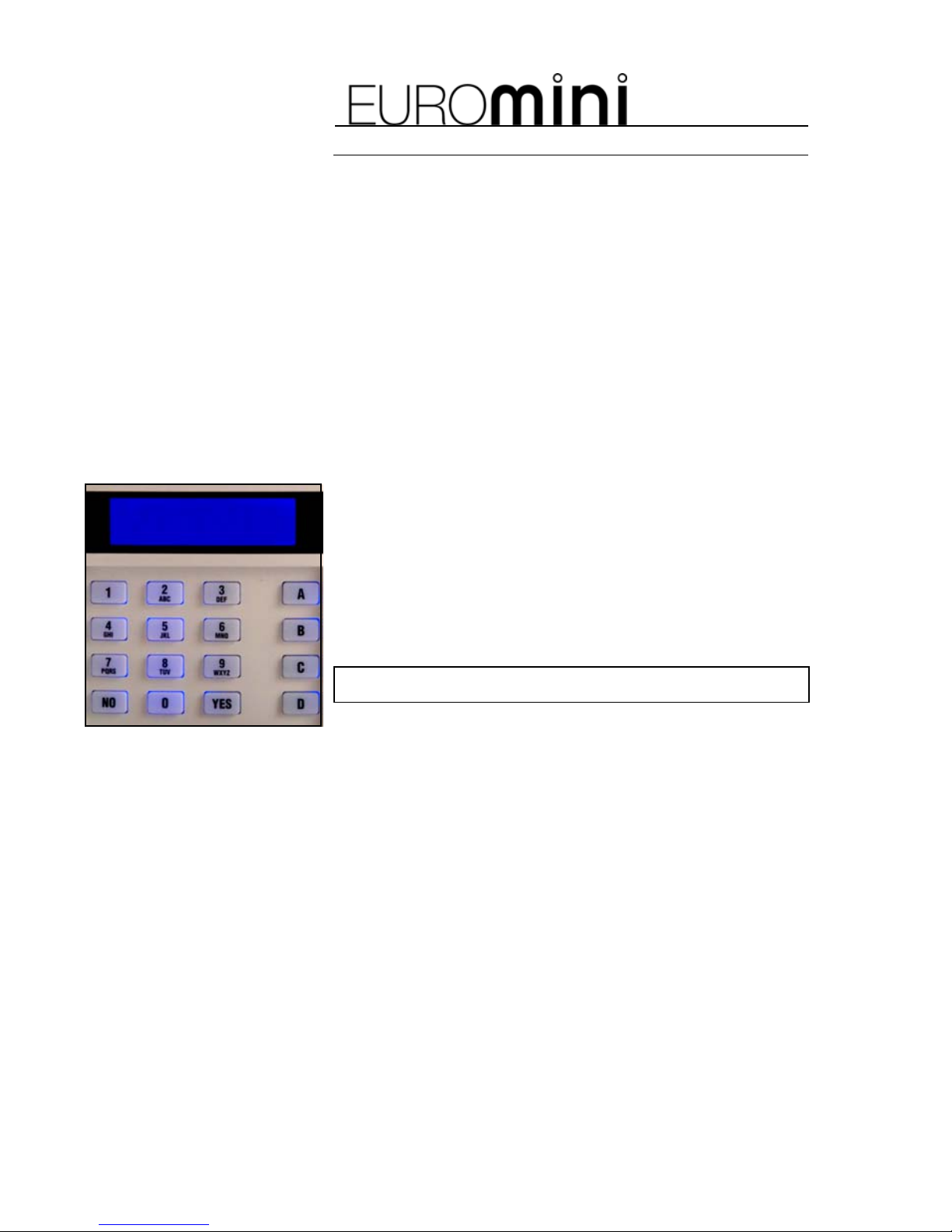

This is the Keypad from where you control
your Alarm System*
The LCD display guides you through user
menus and gives you any important messages
regarding the status of the system.
The 10 digit numeric keypad is where you use
your PIN code.
The A B C D keys allow you to choose which
level of security you wish to apply when you
leave the building, or to part-set the system.
EUROmini
Ti
me:
15
:
02
MAINS
FAIL
MAINS
FAIL
EUROmini
Ti
me:
15
:
02
Note:
For your security, the
keypad becomes disabled
for 90 seconds after 30
incorrect key-presses. It
will subsequently be
disabled again after 7
further incorrect key-
presses. Once a correct
code has been registered,
the keypad is returned to
normal operation.
*Please note that Keypad design
may differ from that shown.
Using Proximity Tags
Page 3
Your EURO mini system may have been
enabled for use with proximity tokens, or
‘Tags’.*
If you have Tag Readers installed then
simply hold your Tag against the ‘Tag’
logo.
When using the keypads, hold your Tag to
the area shown left.
When your Tag has been accepted there
will be an acknowledgement ‘beep’.
You can use your Tag in place of a pin
code for all operations of the alarm
system, i.e. setting, unsetting, and
entering the Manager and User Menus.
*The Tag facility will only work with EURO mini
systems fitted with an EUR-068 or EUR-064
keypad.
Security Checks
Page 4
All keypads have LEDs to clearly indicate
what is happening.
The ‘Alert’ (orange) LED will flash if there
is information to display for you. Enter
your code to see the information. After a
code has been entered, one of the
following lamps will light: Alarm, tamper or
fault. The relevant detail of the problem
will be shown on the display. To clear the
display, press the ‘Yes’ key (or the display
will clear automatically after 3 minutes.)
The ‘Alarm’ (red) LED will flash after code
entry if an alarm occurs.
The ‘Tamper’ (red) LED will flash after
code entry if the wiring or equipment is
tampered with.
The ‘Fault’ (orange) LED will light after
code entry to indicate if a technical fault
occurs.
The ‘Unset’ (green) LED will light for 5
seconds after unsetting any part of the
system. It will also light during the setting
procedure, going off once set.
Alert Alarm Tamper Fault Unset
Security Checks
Page 5
Before you set your system:
You must ensure all doors and
windows are securely closed and
any pets or people are excluded
from areas protected by movement
sensors.
Close Windows
Close Doors
Exclude Pets & People
Leaving the Building
Page 6
If you are leaving the building, go
to your keypad and key in your PIN
code or present your Tag. Select
the level of security you wish to set
by pressing the ABCD keys.
Exit tone Starts
Leave by agreed Exit Route,
within the designated time.
Close and Lock the Final Exit
Door
Exit tone will cease
EURO
mini
is now SET
SETTING [009]
OFFICE
If your exit is timed,
you will see the screen
above.
If you use a final-door-
set, you will see the
screen below.
EUROmini
Ti
me:
15
:
02
SETTING [009]
House
Leave via
Exit Route
If Unable to Set
Page 7
If when you key in your PIN code
a warning tone sounds and the
unset
LED comes on, the keypad
display will show the nature of the
problem.
The tone will cease after about 10
seconds.
Press the
‘NO’
key
The system will remain unset, so
you can resolve the problem.
For example, you may have left a
door open, if so, close the door.
Now commence the setting
procedure again.
UNABLE TO SET
BACK
DOOR
Faults when Leaving the Building
Page 8
If when you have closed the final
exit door, the exit tone continues
to sound an interrupted tone…
“beep – beep – beep – “
You have probably left a
protected door on the exit route
open.
Return to the keypad and note
the message on the display.
Stop the setting procedure with
your PIN code or your Tag.
Close the open door
Now commence the setting
procedure again (see page 6).
EXIT VIA
HALLWAY
