SERVICE MANUAL
ELECTRONIC CASH REGISTER
(without price)
QT-6100
(EX-819)
AUG. 2008
QT-6100
CONTENTS
QT-6100 PAGE
1. SPECIFICATIONS .........................................................................................1
2. INITIALIZATION ............................................................................................5
3. DISASSEMBLY .............................................................................................9
4. ASSEMBLY .................................................................................................15
5. OPTION INSTALLATION ............................................................................21
6. IN LINE / ON LINE ......................................................................................25
7. DIAGNOSTIC OPERATION ........................................................................27
8. CIRCUIT EXPLANATIONS ..........................................................................47
9. ERROR CODE LIST ....................................................................................66
10. IC DATA .......................................................................................................78
11. PCB LAYOUT ..............................................................................................90
12. CIRCUIT DIAGRAMS ..................................................................................93
13. PARTS LIST ..............................................................................................110
To prevent malfunctions caused by the weak batteries, charge the memory
protection batteries for over 12-hours before installation or after a long-time
vacation (over 30 days).
• Before installation, initialize the terminal and leave it turn on over 12-hours.
• After a long-time vacation, initialize the terminal and restore the program data
if the terminal is in malfunction, and leave it turn on over 12-hours.
• Over 48-hours charging makes the batteries fully charged.
— 1 —
1. SPECIFICATIONS
1-1. Electrical Specifications
1-2. Environmental specifications
1-3. Main LSI specifications
• CPU Name HD6417751RF240 (SH-4)
Number of control bit 32 bits
• I/O controller Name D784215AGC2728EUA
Number of control bit 16 bits
• Gate array Name UPD65945GJ-P16-JEU
• SDRAM Name HY5V52ALFP-H-C
Capacity 256 Mbits
• Flash ROM Name 29PL127J60TFI13004
Capacity 128 Mbits
• Display controller Name SM712GX04LF02-BA
• Ethernet controller Name LAN91C113-NE (10/100BASE TX)
• Operating temperature 0 °C ~ 40 °C
• Operating humidity 20 % ~ 85 %
• Storage temperature -20 °C ~ 65 °C
• Storage humidity 10 % ~ 85 %
120V 220V 230V 240V
• Power consumption <AC input current at Adaptor>
In operation Max. 1.1A 1.1A 1.1A 1.1A
Display off Max. 0.25A 0.15A 0.15A 0.15A
<DC input current at QT-6100>
In operation Max. 1.1A 1.1A 1.1A 1.1A
Display off Max. 0.5A 0.5A 0.5A 0.5A
• Memory protection Back-up battery NiMH (nickel-metal-hydride)
HHR-21HL3G1B (USA only)
HHR-21HL3G1C (Except USA)
Back-up period 30 days (25 °C)
Battery life Replace the battery every 5 years.
Recharge time 24 hours (full charge)
• Clock & Calendar Accuracy Within ± 40 sec. Per month (25 °C)
Auto calendar Effective until 2099 A.D.
— 2 —
1-5. I/O Ports
COM port (D sub 9pin) x 3
LAN port (Ethernet 10BASE-T/100BASE-TX) x 1
CF CARD slot x 1
Drawer port x 2
• LCD Display Name NL8060BC31-27
Size 12.1 inch SVGA TFT panel
Resolution 800 x 600
Interface CMOS 6 bits
Colors 262,144 colors
• Touch Panel Name N010-0550-T711
Size 12.1 inch
• Panel brightness control 1 x VR controller
• Power supply External adaptor "ADP820AA"
• Cleck key Magnetic ibutton prove "94-J-04"
1-4. Devices specifications
DC IN
PC/MODEM
SCANNER
DISPLAY
DRW1
DRW2
COM1
COM3COM2
LAN1
COM1 COM2 COM3
From the AC adaptor
Inline (10/100Base-T)
Drawer 2
Drawer 1
Card slot cover
CF CARD slot
— 3 —
DEVICE NAME MODEL NOTE
• Magnet i-Button QT-6011DLS
• Display set for customer QT-6060D Connect to Com 3
• Display cable for customer QT-6061CB
(for mounting to the base)
• Display 5-meter cable for customer QT-6062CB
• Slip printer SP-1300 Connect to Com 2, 3
• Slip printer cable PRT-CB-8C Length 1.5m
• Remote printer UP-250 Connect to Com 2, 3
• Remote printer UP-350 Connect to Com 2, 3
• Remote printer SA-3015 Connect to Com 2, 3
• Remote printer UP-360 Connect to Com 2, 3
• Printer cable PRT-CB-8A Length 3m
• Printer cable PRT-CB-8B Length 5m
• Power unit for External Printer PS-180 EPSON MODEL
• Handy scnner HHS-15 Com2 port only
• MCR QT-6046MCR
• Drawer cable QT-6031CB Length 3m
• PC cable PRL-CB-2 Com1 port only
1-6. Option List
CASIO sales options
1-7. Drawer
Type Drawer Name Specification USA Other
Countries
M DL-2785 D-20BC-B84M-15* X
M DL-2786 D-20BC-B84SM-15* X
M DL-2920 D-20BC-B87M-15* X
M DL-2921 D-20BC-B87SM-15* X
M DL-2425 D-20BC-B55SM-15* X
M DL-2525 D-20BC-B64SM-15* X
L DL-3616 D-11BH-B65SS-9* X X
L DL-3617 D-11BH-B65S-9* X
DEVICE NAME MAKER MODEL NOTE
• Slip printer/ AC adaptor AD31-U or E U: 100V / E: 200V
• Remote printer EPSON TM-T88 lll Connect to Com 2, 3
• Remote printer EPSON TM-U220 Connect to Com 2, 3
• Power cord for power unit EPSON AC-170
• Laser scanner PSC QuickScan6000 Com2 port only
• Handy scnner PSC HS1250 Com2 port only
• CF Memory card Sandisk SDCFB-xx-505
• Modem U.S.Robotics 56k FAX
• ISDN TA DEVOLO MICROLINK ISDN
• HUB NETGEAR DS104, DS108
Local purchase options
— 4 —
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer.
Dispose of used batteries according
to the manufacture’s instructions.
VORSICHT !
Explosionsgefahr bei unsachgemäßem Austausch der
Batterie.
Ersatz nur durch denselben oder einen vom
Hersteller empfohlenen gleichwertigen Typ.
Entsorgung gebrauchter Batterien nach
Angaben des Herstellers.
ADVARSEL !
Lithiumbatteri - Eksplosionsfare ved fejlagtig hándtering.
Udskiftning má kun ske med batteri
af samme fabrikat og type.
Levér det brugte batteri tilbage til leverandØren.
1-8. Duration of Life
Panel of TFT LCD 50,000 hours
Back Light of TFT LCD 43,000 hours
Touch Panel (number of touch times) 10 million times
LCD of customer display (option) 20,000 hours
Back light of customer display (option) 20,000 hours
Head of MCR 300,000 times (in a clean office room)
■ Installing Precautions
When installing QT-6100, attach the ferrite core to the QT-6100 side. Wind the AC
adaptor cable around the ferrite core two times.
The ferrite core is packed with QT-6100.
— 5 —
Copyright(C) 2004
CASIO COMPUTER CO.,LTD.
All rights reserved.
ROM VER. xxxxxx xxxx
CREATE xxxx-xx-xx xx:xx
QT-6100 x.xx
APL VER. xxxxxx xxxx
Version
INIT
C
789
456
123
0
OK

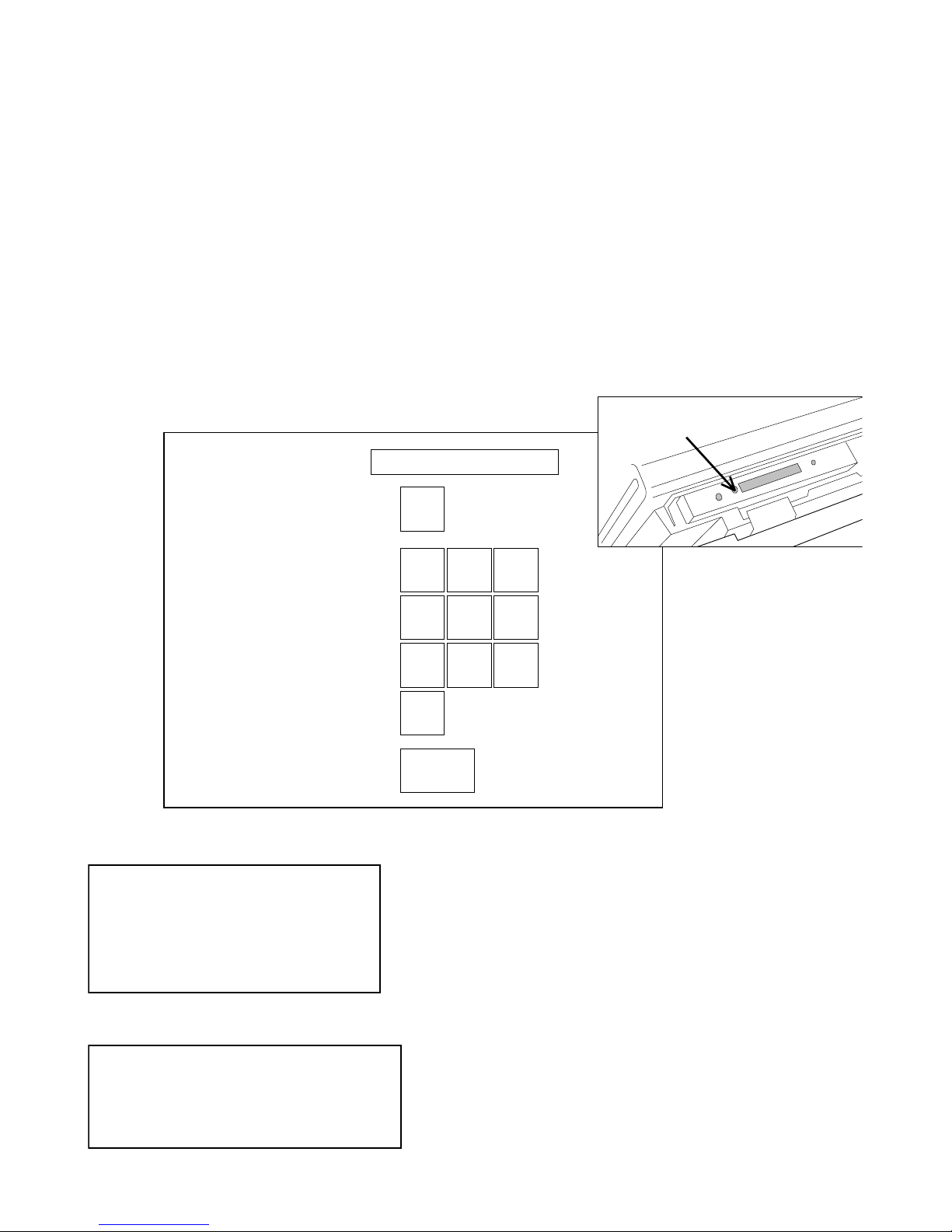

2. INITIALIZATION
2-1. MACHINE INITIALIZATION
2-1-1. How to initialize the terminal
Preparation:
1. All peripheral devices and terminals should be turned off.
2. Connect all of the peripheral devices (such as printer, display etc.) to terminal.
• In case of wire inline:
3. Connect all terminals by inline.
Operation:
4. Turn on all peripheral devices of a terminal
5. Turn on this terminal with pressing the initialize switch and release.
6. After releasing the key, enter “20000” (U.S.), “10000” (other area: English), “40000” (other area:
German), “50000” (other area: French), “60000” (other area: Spanish) and press the <OK> key.
ID & IP ADDRESS
Terminal ID ENTER ID
IP ADDRESS AUTO
OK? Yes
——— Terminal ID: 1 ~ 32
——— Press <YES> to continue.
Enter terminal ID and IP address
• Case 1: Terminal ID = “1”
Init Sw
IP ADDRESS MANUAL
192.168. 0. 1
DHCP SERVER
OK? Yes
——— Enter IP address if you want to change.
——— Select “CLIENT”, if you want to use this terminal as a
DHCP client.
——— Press <YES> to continue.
— 6 —
• Case 2: Terminal ID = “2” ~ “32”
* The IP address of each terminal should be the unique number from 192.168. 0. 1 to
192.168.255.255.
Declare terminal configuration
——— Enter date if it is wrong.
——— Enter time if it is wrong.
——— Within 12 characters
——— Master / Backup master / Satellite / Self master
——— “Check Cluster ID” is always 0
——— No printer / UP-350 / UP-360 / SA-3015 / UP-250 for
R/J or Order printer.
——— No printer / SA-3015 / SP-1300
——— Press <YES> to continue.
Date 01-10-10
Time 12:34 00
ID Character MC #01
Check System Master
Check Cluster ID 0
R/J/Order Printer1 No
R/J/Order Printer2 No
R/J/Order Printer3 No
Slip Printer No
OK? YES
Program restoration
• Restore from CF card.
Insert the CF card into the slot and select the appropriate file and press the <YES> key.
——— Select, if no need to download any data.
——— Select to download a program data from CF card.
——— Select to download a program data from other terminal.
INIT 10-10-01 12:34 000001
AUTO PGM
1.No Restore / Receive
2.PGM Restore (CF Card)
3.PGM Receive (Inline)
——— All Data (including totalizer) / All PGM (program only)
——— Select the machine to send the data.
INIT 10-10-01 12:34 000001
Receive Data All PGM
PGM Receive from MC #05
OK? YES
• Program receive from other terminal.
2-1-2. How to initialize the terminal (add / replace one terminal)
Preparation:
1. All peripheral devices and terminals of this cluster should be turned off.
2. Connect all of the peripheral devices (such as printer, display etc.) to this terminal.
3. Connect the added / replaced terminal to inline.
Operation:
Follow the steps shown on the page 5 to 6.
IP ADDRESS AUTO
OK? Yes
——— Select “MAUAL”, if you want to enter IP address manually.
(IP address setting line will appear on the screen.)
——— Press <YES> to continue.
— 7 —
2-1-3. How to flag clear the terminal (or INIT2)
Preparation:
1. All peripheral devices and this terminal should be turned off.
2. Check the connection of all peripheral devices (such as printer, display etc.) of this terminal.
3. Check the connection of this terminal to inline.
Operation:
4. Turn on all peripheral devices of this terminal.
5. Turn on this terminal with pressing the <DISP ON/OFF> key.
6. Press <OK> key.
FC
Copyright(C)2004
CASIO COMPUTER CO.,LTD.
All rights reserved.
ROM VER xxxxxx xxxx
CREATE xxxx-xx-xx xx:xx
QT-6100 Version x.xx
APL VER. xxxxxx xxxx
OK
7. Select “1. Flag Clear” and press <YES> key to flag clear.
or select “2.Init2” and press <YES> key and enter “8888888888” and <YES> key to Init 2.
2-2. SYSTEM INITIALIZATION
In this chapter shows how to install QT-6100 systems and peripherals.
2-2-1. How to load IPL (Initial Program Loading)
Normally, IPL is not necessary since the terminal has efficient programmable options to
meet your circumstances.
In some cases, you need to change the application program to meet your requirements, the
IPL is necessary to download the application program to the terminal.
To load IPL, there are two methods:
1) From PC to a terminal via RS-232C
2) From CF card to a terminal
— 8 —
2-2-2. IPL Operation
xxxxxxx
xxxxxxx
xxxxxxx
xxxxxxx
xxxxxxx
xxxxxxx
xxxxxxx
xxxxxxx
IPL :CF CARD
IPL :COM1 PORT
xxxxxxx
xxxxxxx
xxxxxxx
IPL :COM1 PORT
115200 bps
57600 bps
56000 bps
34800 bps
19200 bps
9600 bps
CANCEL
xxxxxxx
xxxxxxx
xxxxxxx
xxxxxxx
xxxxxxx
CANCEL
START
2. If you choose COM port or IN LINE port, select baud rate of
the IPL source device.
3. Press the <START> key to proceed, in case of downloading
via inline, automatic ID definition is made by this timing. So
press the <YES> key terminal by terminal.
4. After finishing IPL, machine initialization is necessary.
If you select “CF card”, insert the CF card into the slot before this
step.
1. Select the appropriate method to loading IPL data.
(using COM PORT)
Autres manuels pour QT-6100
4
Table des matières
Autres manuels Casio Caisse
Casio
Casio SE-S400 Manuel utilisateur
Casio
Casio TE8000 Manuel utilisateur
Casio
Casio CE-4000 Instructions de montage
Casio
Casio TK-1550 Manuel utilisateur
Casio
Casio TK-6500 Series Manuel utilisateur
Casio
Casio SE-S3000 Manuel utilisateur
Casio
Casio SE-G1 Manuel utilisateur
Casio
Casio TE-2200 Manuel utilisateur
Casio
Casio SE-S3000 Manuel utilisateur
Casio
Casio 130CR Manuel utilisateur
Casio
Casio PCR T265 - Electronic Cash Register Manuel utilisateur
Casio
Casio TK-T500 Series Manuel utilisateur
Casio
Casio TE-100 Manuel utilisateur
Casio
Casio PCR-T273 Manuel utilisateur
Casio
Casio PCR-T540 Manuel utilisateur
Casio
Casio SE-C300 Manuel utilisateur
Casio
Casio PCR-330 Instructions de montage
Casio
Casio 130CR Manuel utilisateur
Casio
Casio TE-4000F Series Manuel utilisateur
Casio
Casio TK-7000 Manuel utilisateur
Manuels Caisse populaires d'autres marques
Sharp
Sharp XE-A137-WH Operation Manuel rapide
Sharp
Sharp XE-A203 - Cash Register Thermal Printing Graphic Logo... Manuel utilisateur
TEC
TEC TEC MA-1060 Manuel utilisateur
ELCOM
ELCOM Euro-2100TE Manuel utilisateur
American Changer
American Changer CLASSIC Series Manuel utilisateur
Sam4s
Sam4s ER-180 Manuel utilisateur
