Casio FX-9750G Manuel utilisateur

Chapter

Statistical Graphs and

Calculations

This chapter describes how to input statistical data into lists, and

how to calculate the mean, maximum and other statistical values. It

also tells you how to perform regression calculations.

18-1 Before Performing Statistical Calculations

18-2 Paired-Variable Statistical Calculation Examples

18-3 Calculating and Graphing Single-Variable Statistical

Data

18-4 Calculating and Graphing Paired-Variable Statistical

Data

18-5 Other Graphing Functions

18-6 Performing Statistical Calculations

Important!

• This chapter contains a number of graph screen shots. In each case, new data

values were input in order to highlight the particular characteristics of the graph

being drawn. Note that when you try to draw a similar graph, the unit uses data

values that you have input using the List function. Because of this, the graphs

that appears on the screen when you perform a graphing operation will prob-

ably differ somewhat from those shown in this manual.

284

18-1 Before Performing Statistical Calculations

In the Main Menu, select the STAT icon to enter the STAT Mode and display the

statistical data lists.

Use the statistical data lists to input data and to perform statistical calculations.

1(GRPH) .... Graph menu

2(CALC)..... Statistical calculation menu

6(g) ........... Next menu

6(g)

1(SRT•A).... Ascending sort

2(SRT•D) ... Descending sort

3(DEL) ....... Single data item delete

4(DEL•A).... Delete all data

5(INS) ........ Insert data item

6(g) ........... Previous menu

• The procedures you should use for data editing are identical to those you use

with the list function. For details, see “17. List Function”.

123456

P.285

P.305

P.270

P.268

P.269

P.263

Use

f, c, d

and

to move

the highlighting around the lists.

285

18-2 Paired-Variable Statistical Calculation

Examples

Once you input data, you can use it to produce a graph and check for tendencies.

You can also use a variety of different regression calculations to analyze the data.

Example To input the following two data groups and perform statistical

calculations

0.5, 1.2, 2.4, 4.0, 5.2

–2.1, 0.3, 1.5, 2.0, 2.4

kInputting Data into Lists

Input the two groups of data into List 1 and List 2.

a.fwb.cw

c.ewewf.cw

-c.bwa.dw

b.fwcwc.ew

Once data is input, you can use it for graphing and statistical calculations.

• Input values can be up to 10 digits long.

• You can use the f, c, dand ekeys to move the highlighting to any cell in

the lists for data input.

kPlotting Data

Example To specify Graph 1 as non-draw (Off) and Graph 3 as draw (On)

and use Graph 3 to plot the data you input into statistical data

List 1 and List 2 above

While the statistical data list is on the display, press 1(GRPH) to display the graph

menu.

1(GRPH)

1(GPH1)..... Graph 1 draw

2(GPH2)..... Graph 2 draw

3(GPH3)..... Graph 3 draw

4(SEL)........ Graph (GPH1, GPH2, GPH3) selection

6(SET) ....... Graph settings (graph type, list assignments)

123456

P.287

P.288

286

• You can specify the graph draw/non-draw status, the graph type, and other gen-

eral settings for each of the graphs in the graph menu (GPH1, GPH2, GPH3).

• You can press any function key (1,2,3) to draw a graph regardless of the

current location of the highlighting in the statistical data list.

• The initial default graph type setting for all the graphs (Graph 1 through Graph 3)

is scatter diagram, but you can change to one of a number of other graph types.

kPlotting a Scatter Diagram

It is often difficult to spot the relationship between two sets of data (such as height

and shoe size) by simply looking at the numbers. Such relationships often become

clear however, when we plot the data on a graph, using one set as x-values and the

other set as y-values.

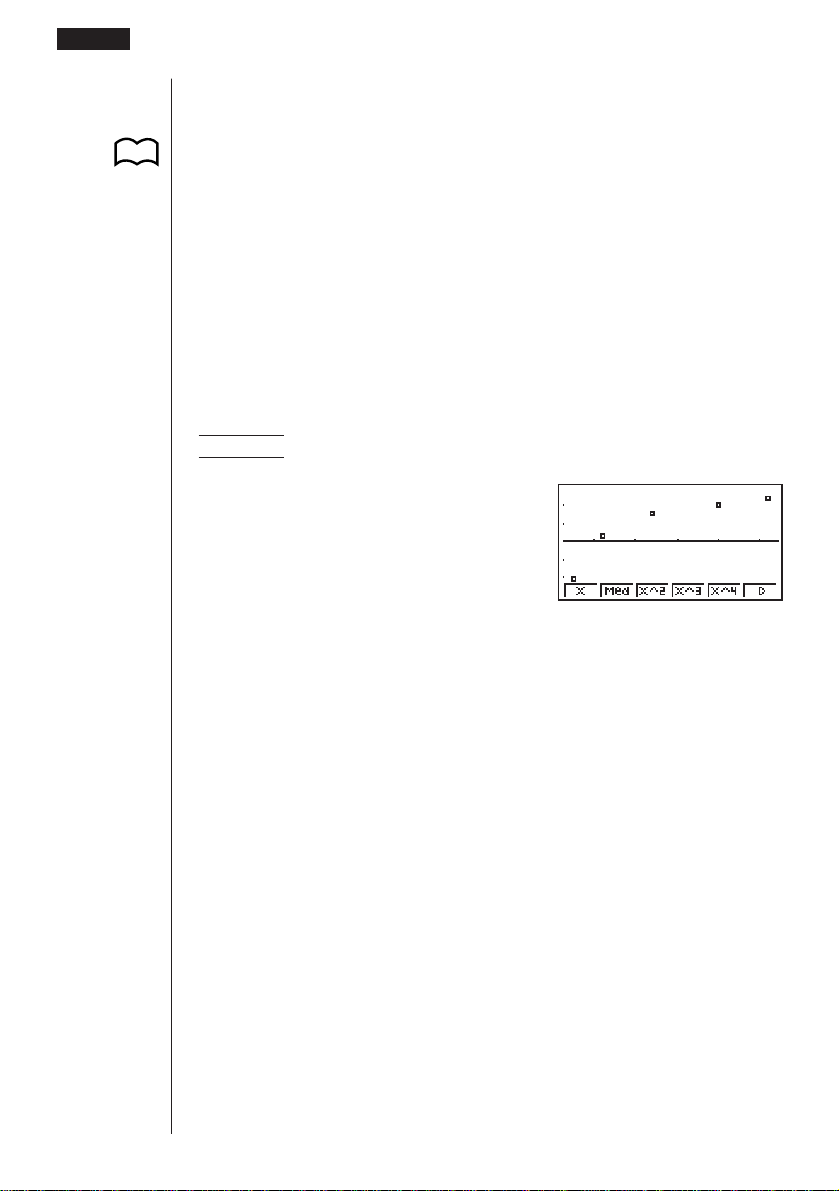

uTo plot a scatter diagram

Example To plot the data we input in statistical data List 1 and List 2

1(GPH1)

• The default setting automatically uses List 1 data asx-axis values and List 2 data

as y-axis values. Each set of x/ydata is a point on the scatter diagram.

• To return to the statistical data list, press Jor !Q.

kChanging Graph Parameters

Use the following procedures to specify the graph draw/non-draw status, the graph

type, and other general settings for each of the graphs in the graph menu (GPH1,

GPH2, GPH3).

18 - 2 Paired-Variable Statistical Calculation Examples

P.287

287

1. Graph draw/non-draw status (SELECT)

The following procedure can be used to specify the draw (On)/non-draw (Off) status

of each of the graphs in the graph menu.

uTo specify the draw/non-draw status of a graph

1. While the graph menu is on the display, press 4(SEL) to display the graph On/

Off screen.

1(GRPH)

4(SEL)

1(On).......... Graph On (graph draw)

2(Off).......... Graph Off (graph non-draw)

6(DRAW).... Draw all On graphs

• Note that the StatGraph1 setting is for Graph 1 (GPH1 of the graph menu),

StatGraph2 is for Graph 2, and StatGraph3 is for Graph 3.

2. Usefand cto move the highlighting to the graph whose draw (On)/non-draw

(Off) status you want to change and press 1(On) or 2(Off).

3. To return to the graph menu, press J.

uTo draw a graph

Example To draw a scatter diagram of Graph 3 only

1(GRPH)4(SEL)

2(Off)

cc1(On)

6(DRAW)

123456

Paired-Variable Statistical Calculation Examples 18 - 2

288

2. General graph settings (SET)

This section describes how to use the general graph settings screen to make the

following settings for each graph (GPH1, GPH2, GPH3).

• Graph Type

The initial default graph type setting for all the graphs is scatter graph. You can select

one of a variety of other statistical graph types for each graph.

• List

The initial default is statistical data List 1 for single-variable data, and List 1 and List

2 for paired-variable data. You can specify which statistical data list you want to use

for x-data and y-data.

• Frequency

Normally, each data item or data pair in the statistical data list is represented on a

graph as a point. When you are working with a large number of data items however,

this can cause problems because of the number of plot points on the graph. When

this happens, you can specify a frequency list that contains values indicating the

number of instances (the frequency) of the data items in the corresponding cells of

the lists you are using for x-data and y-data. Once you do this, only one point is

plotted for the multiple data items, which makes the graph easier to read.

• Mark Type

This setting lets you specify the shape of the plot points on the graph.

uTo display the general graph settings (SET) screen

While the graph menu is on the display, press 6(SET) to display the general graph

settings screen.

1(GRPH)

6(SET)

• The settings shown here are examples only. The settings on your general graph

settings screen may differ.

uTo select the StatGraph area

1. While the general graph settings screen is on the display, use fand cto

move the highlighting to the StatGraph item.

123456

18 - 2 Paired-Variable Statistical Calculation Examples

289

2. Use the function key menu to select the StatGraph area you want to select.

1(GPH1)..... Graph 1

2(GPH2)..... Graph 2

3(GPH3)..... Graph 3

uTo select the graph type (Graph Type)

1. While the general graph settings screen is on the display, use fand cto

move the highlighting to the Graph Type item.

2. Use the function key menu to select the graph type you want to select.

1(Scat) ....... Scatter diagram

2(xy)........... xy line graph

6(g) ........... Next menu

6(g)

1(Hist) ........ Histogram (bar graph)

2(Box) ........ Med-box graph

___

3(Box) ........ Mean-box graph

4(N•Dis) ..... Normal distribution curve

5(Brkn) ....... Line graph

6(g) ........... Next menu

6(g)

1(X) ............ Linear regression graph

2(Med) ....... Med-Med graph

3(X^2) ........ Quadratic regression graph

4(X^3) ........ Cubic regression graph

5(X^4) ........ Quartic regression graph

6(g) ........... Next menu

123456

Paired-Variable Statistical Calculation Examples 18 - 2

290

6(g)

1(Log) ........ Logarithmic regression graph

2(Exp) ........ Exponential regression graph

3(Pwr) ........ Power regression graph

6(g) ........... Previous menu

uTo select the x-axis data list (XList)

1. While the graph settings screen is on the display, use fand cto move the

highlighting to the XList item.

2. Use the function key menu to select the name of the statistical data list whose

values you want on the x-axis of the graph.

1(List1)....... List 1

2(List2)....... List 2

3(List3)....... List 3

4(List4)....... List 4

5(List5)....... List 5

6(List6)....... List 6

uTo select the y-axis data list (YList)

1. While the graph settings screen is on the display, use fand cto move the

highlighting to the YList item.

2. Use the function key menu to select the name of the statistical data list whose

values you want on the y-axis of the graph.

1(List1)....... List 1

2(List2)....... List 2

123456

18 - 2 Paired-Variable Statistical Calculation Examples

291

3(List3)....... List 3

4(List4)....... List 4

5(List5)....... List 5

6(List6)....... List 6

uTo select the frequency data list (Frequency)

1. While the general graph settings screen is on the display, use fand cto

move the highlighting to the Frequency item.

2. Use the function key menu to select the frequency setting you want.

1(1) ............ Plot all data (1-to-1)

2(List1)....... List 1 data is frequency data.

3(List2)....... List 2 data is frequency data.

4(List3)....... List 3 data is frequency data.

5(List4)....... List 4 data is frequency data.

6(g) ........... Next menu

6(g)

1(List5)....... List 5 data is frequency data.

2(List6)....... List 6 data is frequency data.

6(g) ........... Previous menu

uTo select the plot mark type (Mark Type)

1. While the general graph settings screen is on the display, use fand cto

move the highlighting to the Mark Type item.

2. Use the function key menu to select the plot mark you want to select.

1( ) ........... Plot using

2(X) ............ Plot using X

3(•) ............. Plot using •

123456

Paired-Variable Statistical Calculation Examples 18 - 2

292

kDrawing an xy Line Graph

Paired data items can be used to plot a scatter diagram.A scatter diagram where the

points are linked is an xy line graph.

Press Jor !Q to return to the statistical data list.

kSelecting the Regression Type

After you graph statistical data, you can use the function menu at the bottom of the

display to select from a variety of different types of regression.

1(X) ............ Linear regression graph

2(Med) ....... Med-Med graph

3(X^2) ........ Quadratic regression graph

4(X^3) ........ Cubic regression graph

5(X^4) ........ Quartic regression graph

6(g) ........... Next menu

6(g)

1(Log) ........ Logarithmic regression graph

2(Exp) ........ Exponential regression graph

3(Pwr) ........ Power regression graph

4(2VAR) ..... Paired-variable statistical results

6(g) ........... Previous menu

18 - 2 Paired-Variable Statistical Calculation Examples

P.289

(GraphType)

(xy)

123456

Autres manuels pour FX-9750G

Table des matières

Autres manuels Casio Calculatrice

Casio

Casio FX-95 Manuel utilisateur

Casio

Casio SLIM FX-9860G Manuel d'installation

Casio

Casio CFX-9850G PLUS Feuille d'instructions

Casio

Casio SF-A7 Guide de dépannage

Casio

Casio FX-9860GII - SOFTWARE VERSION 2-00 Manuel utilisateur

Casio

Casio Fx-96SG Manuel utilisateur

Casio

Casio ALGEBRA FX 2.0 Plus Manuel utilisateur

Casio

Casio HR-170RC Manuel utilisateur

Casio

Casio FX-D400 Guide de dépannage

Casio

Casio MS-80TE Manuel utilisateur

Casio

Casio FX-9860GII - SOFTWARE VERSION 2-00 Manuel utilisateur

Casio

Casio CFX-9850G PLUS Manuel d'utilisation et d'entretien

Casio

Casio CFX-9850G PLUS Manuel utilisateur

Casio

Casio fx-CG50 Manuel utilisateur

Casio

Casio FX-61F SCIENTIFIC CALCULATOR Manuel utilisateur

Casio

Casio fx-1000F Manuel utilisateur

Casio

Casio DS-120TV Manuel utilisateur

Casio

Casio FX-220 PLUS Manuel utilisateur

Casio

Casio DX-12S Manuel utilisateur

Casio

Casio DH-20 Manuel utilisateur

Casio

Casio FX-6300G Manuel utilisateur

Casio

Casio fx-7400G PLUS Manuel utilisateur

Casio

Casio ALGEBRA FX 2.0 Manuel utilisateur

Casio

Casio JW-200SC Manuel utilisateur

Manuels Calculatrice populaires d'autres marques

HP 35s Manuel

LEXIBOOK

LEXIBOOK EL350 Manuel utilisateur

HP HP-97 Manuel utilisateur

Citizen

Citizen SDC-414N Manuel utilisateur

Canon

Canon P26-DHIII Manuel utilisateur

Citizen

Citizen 520DPA Manuel utilisateur

Sharp

Sharp EL-9900 Manuel utilisateur

Sharp

Sharp WriteView EL-W506 Manuel technique

HP HP-67 Guide de l'utilisateur

Royal

Royal CBC2000 Manuel utilisateur

Heathkit

Heathkit IC-2009 Manuel utilisateur

Universal

Universal UNV-15907 Manuel utilisateur

Sharp

Sharp EL-9650 Manuel utilisateur

Sharp

Sharp EL2192RII - Printing Calculator Manuel utilisateur

Ativa

Ativa AT-30i Manuel utilisateur

HP StreamSmart 400 Manuel utilisateur

HP 20b Business Consultant Manuel utilisateur

HP 9g Manuel utilisateur
