C asio fx 9750 G PLUS

User’s guide

For estimation of isolation and ventilation parts

1. Pipe bend partition to 12 or 24

2. T-connector straight on regular pipe partition to 12 or 24

3. T-connector warped on regular pipe

4. T-connector not centric on regular pipe

5. Cone, long parted to several cones

6. Cone with triangles

7. Cone with radius

8. Cone end

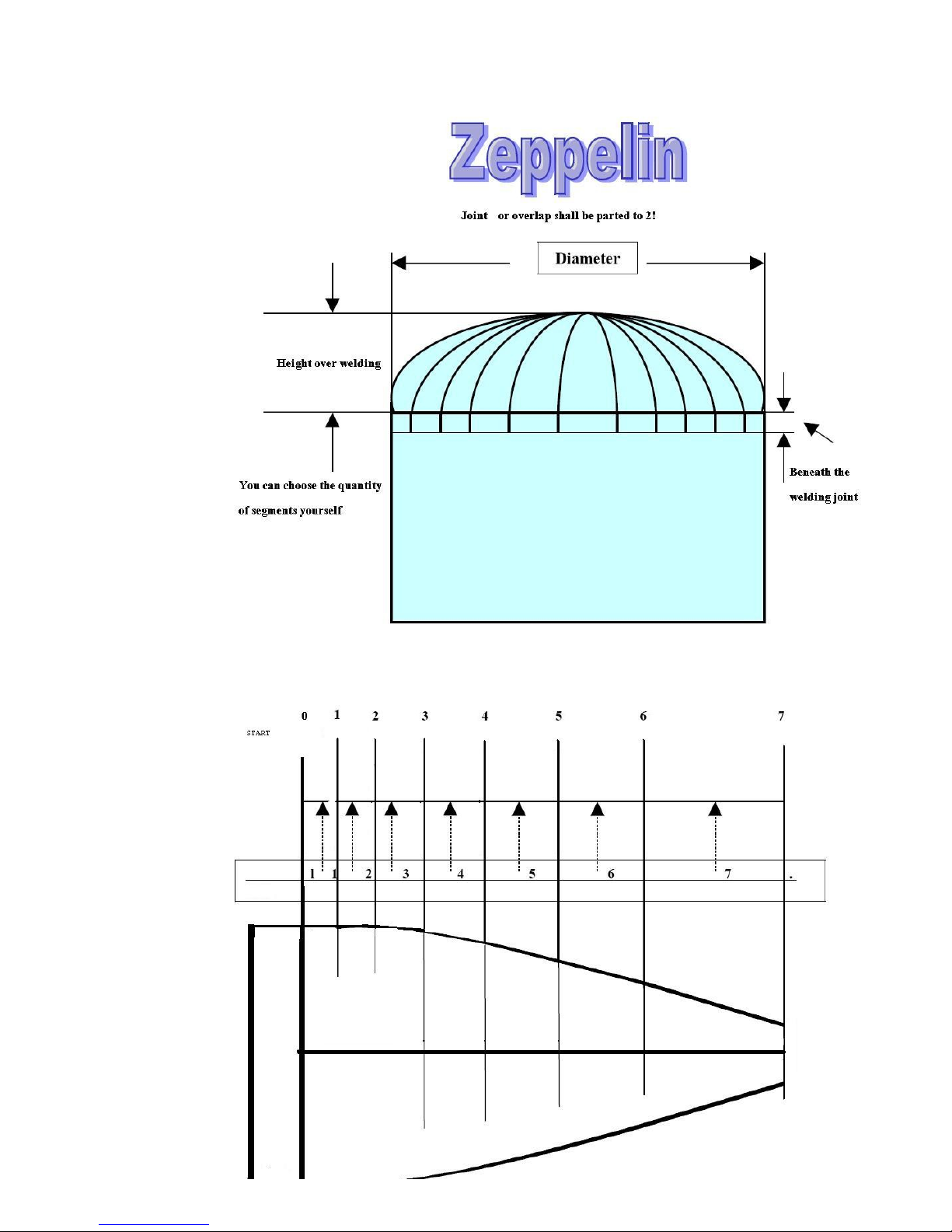

9. Zeppelin

10. Insertion

11. Change angular to round

12. Measure of angle in degrees 200-200 method

13. Medium part to 45 degrees bend on ventilation (spiro)

14. EURO > currency

Casio fx-9750 G PLUS

ON and OFF CASIO:

ON Press (AC)

OFF Press (Shift and AC)

Open program: Drive with arrowbutton black cursor to (PRGM)

Choose from MAIN MENU………….

Press – BLUE EXE…………………Press

LANGUAGE Press

Start program: Press – Choose language Press

Now you have started!!

Read text and press Press

Now you have come to program-menu

Choose the number you wish

And press Press

Answers to questions and press Press

If it is written down to the right on the screen

(Disp) read and Press

If you have problems you can call me??

Veli Orre phone (47) 93095139 E-mail: veli@bisab.no Web: www.bisab.no

AC/ON

SHIFT

AC/ON

EXE

[email protected]

http://botnia.no

Estimation of BEND

Note! Sections in 4 parts are: 3 whole and 2 halfsections

You get the next measure:

Partition to 12 or 24

The figure measured from the lower edge and up with measuring tape

Partition to 12 parts: start from mark 4

Partition to 24 parts: start from mark 7.

The holes are marked the same as figure, as 1, 2 and 3.

The partition starts from left or right edge and follows the middle line,

measures get bigger, at the end the last is overlapping.

Partition direction

You use only measuring tape during the whole estimation!!

Overlappin

Center radius

Half section

from the edge

Full section

Keep distance

Middle line

Figure to pattern

The distance of the holes from the edge

Pattern length with overlapping

T-connector

Combined:

Straight T-connector

Warped T-connector

Side T-connector

You get the next measure:

Partition to 12 or 24

Middle line

difference

Diameter

Regular pipe

Angle to

regular pipe

Figure to patter

The figure is

measured from

below

Partition direction

Diameterr T-connecto

Page 5

Long cone: several cones in a row

Large diameter Center difference

Partition

Small diameter

Whole length to cone

Thereafter, the program goes to program: “Cone with triangles”.

Measure to cone come after each other continuously, starting from small cone and ending

with the last large cone.

Please remember partition, (even numbers) and look for or overlap to all cones.

Cone with triangles

You can choose partition yourself

Here is only half part of the cone, so you have to draw a similar part to get the

whole cone.

Small diameter

Length

to cone

Large diameter

Center difference

Small

diameter

parted to 6

Large

diameter

parted to 6

Cone with radius

Partition is 12 or you can choose quantity of partitions yourself.

Small

diameter

Large

diameter

Length to

crossing

Small radius

Large radius

Conical end or finish.

Casio asks about isolation diameter or pipe diameter.

You get large radius or small radius.

Draw a big circle and a small circle, take away ¼ part from the drawing and overlap.

Small

diameter

Large

diameter

Overlapping

¼ part

Diameter

Attention: Even numbers

Please remember !!! Quantity of sections should be even numbers

Figures on the sides Straight

Partition to pattern

Insertion

Measure to

insertione

Shorter

Diameter

Length to straight line

Turning-point

Measre to insertone

Shortened length

Shortert
