This chapter tells you everything you need to know to transfer
programs between two CASIO Power Graphic calculators
connected using the cable that is equipped as a standard
accessory.
You can also use the cable to connect the calculator to a CASIO
Label Printer to print screen data.
To transfer data between a calculator and a personal computer,
you need to purchase the separately available CASIO FA-123
Connection Kit.
10-1 Connecting Two Units
10-2 Connecting the Unit with a CASIO Label Printer
10-3 Connecting the Unit to a Personal Computer
10-4 Performing a Data Communication Operation
10-5 Data Communications Precautions
10-6 Sending a Screen Shot
10-7 Add-ins
10-8 MEMORY Mode
Chapter
10
19990401
10-1-1
Connecting Two Units
10-1 Connecting Two Units
The following procedure describes how to connect two units with the connecting cable that
comes equipped as a standard accessory.
uu
uu
uTo connect two units
1. Check to make sure that the power of both units is off.
2. Remove the covers from the connectors of the two units.
3. Connect the two units using the cable.
Cable
#Models that are supported for this configura-
tion are shown below.
ALGEBRA FX 2.0/FX 2.0 PLUS
FX 1.0/FX 1.0 PLUS
#Be sure you keep the connector covers in a safe
place so you can replace them after you finish
your data communications.
#Keep the connectors covered when you are not
using them.
2001100120011101
19990401
10-2-1
Connecting the Unit with a CASIO Label Printer
10-2 Connecting the Unit with a CASIO Label
Printer
After you connect the unit to a CASIO Label Printer with cable, you can use the Label Printer
to print screen shot data from the unit (see 10-6 Sending a Screen Shot). See the user’s
guide that comes with your Label Printer for details on how to perform this operation.
•The operation described above can be performed using the following Label Printer
models: KL-2000, KL-2700, KL-8200, KL-8700 (as of February 1999).
uTo connect the unit to a Label Printer
1. Check to make sure that the power of the unit and the Label Printer is off.
2. Connect the cable to the Label Printer.
3. Remove the cover from the connector of the unit.
4. Connect the other end of the cable to the unit.
5. Turn on the power of the unit, followed by the Label Printer.
•After you finish data communications, turn off power in the sequence: the unit first, and
then the Label Printer. Finally, disconnect the equipment.
Label Printer
Cable
#Be sure you keep the connector cover in a
safe place so you can replace it after you
finish your data communications.
19990401
10-3 Connecting the Unit to a Personal
Computer
To transfer data and screen shots between the unit and a personal computer, you must
connect them through a separately available CASIO FA-123 Connection Kit.
For details on operation, the types of computer that can be connected, and hardware
limitations, see the user’s manual that comes with the FA-123.
Some types of data may not be able to be exchanged with a personal computer.
uTo connect the unit to a personal computer
1. Check to make sure that the power of the unit and the personal computer is off.
2. Connect the personal computer to the FA-123 Connection Kit.
3. Remove the cover from the connector of the unit.
4. Connect the unit to the FA-123 Connection Kit.
5. Turn on the power of the unit, followed by the personal computer.
10-3-1
Connecting the Unit to a Personal Computer
#The ALGEBRA calculator also supports to PC
transfer of programs created with a CASIO
CFX-9850 Series calculator.
#Be sure you keep the connector cover in a safe
place so you can replace it after you finish your
data communications.
•After you finish data communications, turn off power in the sequence: the unit first, and
then the personal computer. Finally, disconnect the equipment.
2001100120011101
19990401
10-4 Performing a Data Communication
Operation
From the Main Menu, enter the LINK Mode. The following data communication main menu
appears on the display.
•{TRNS}/{Recv} ... menu of {send settings}/{receive settings}
Communication parameters are fixed at the following settings.
•Speed (BPS): 38.4 kbps (sending a data)
9,600bps (sending a screen shot)
•Parity (PARITY): NONE
kk
kk
kPerforming a Data Transfer Operation
Connect the two units and then perform the following procedures.
Receiving unit
To set up the calculator to receive data, press 2(Recv) while the data communication main
menu is displayed.
The calculator enters a data receive standby mode and waits for data to arrive. Actual data
receive starts as soon as data is sent from the sending unit.
10-4-1
Performing a Data Communication Operation
20011101
19990401
Sending unit
To set up the calculator to send data, press 1(TRNS) while the data communication main
menu is displayed.
Press the number key that corresponds to the type of data you want to send.
• {Select} ... {selects data items and sends them}
• {Currnt } ... {selects data items from among previously selected data items and sends
them}
• {Backup} ... {sends all memory contents, including mode settings}
• {H-Copy} ... {selects H-Copy screen shot data and sends it}

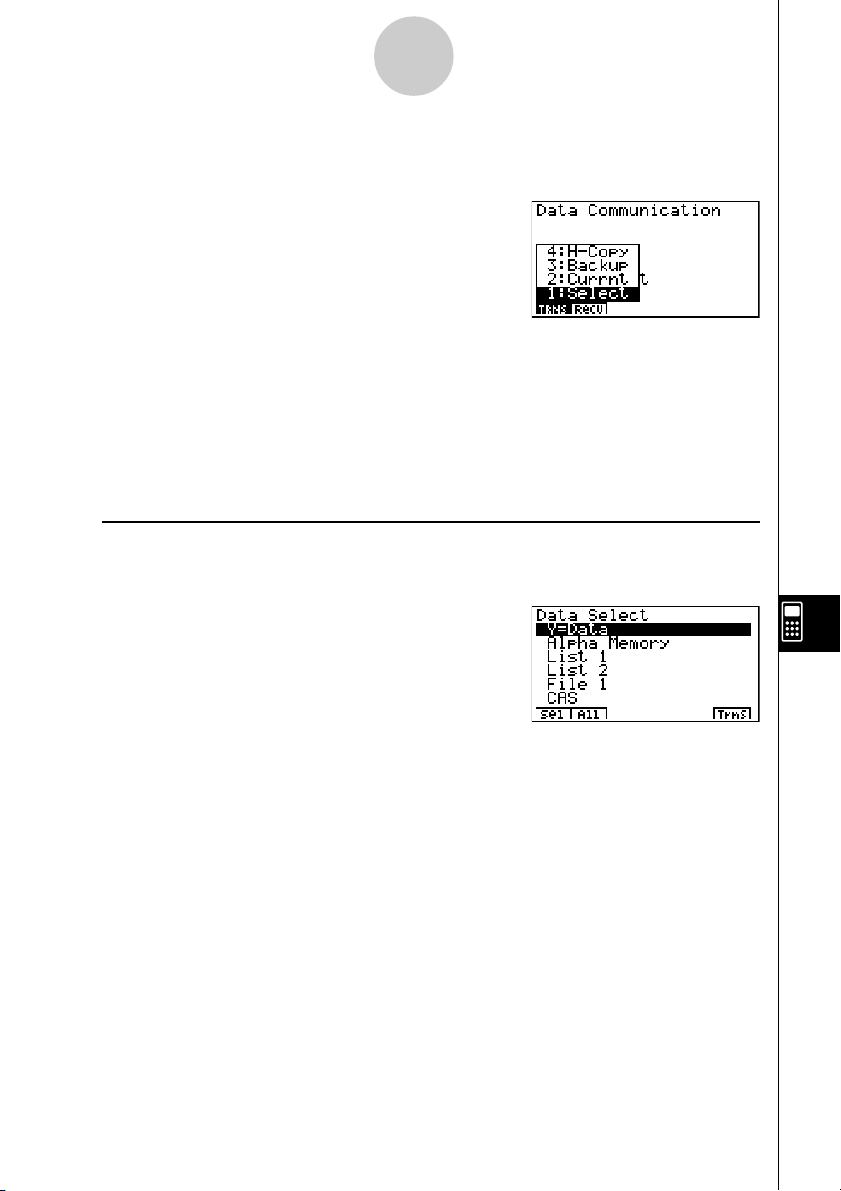

uTo send selected data items
Press b(Select) or c(Currnt) to display a data item selection screen.
• {Sel} ... {selects data item where cursor is located}
• {All} ... {selects all data}
• {Trn s } ... {sends selected data items}
Use the fand ccursor keys to move the cursor to the data item you want to select and
press 1(Sel) to select it. Currently selected data items are marked with “'”. Pressing
6(Trns) sends all the selected data items.
•To deselect a data item, move the cursor to it and press 1(Sel) again.
Only items that contain data appear on the data item selection screen. If there are too many
data items to fit on a single screen, the list scrolls when you move the cursor to the bottom
line of the items on the screen.
10-4-2
Performing a Data Communication Operation
19990401
uTo execute a send operation
After selecting the data items to send, press 6(Trns). A message appears to confirm that
you want to execute the send operation.
•w(Yes) ... sends data
•i(No) ... returns to data selection screen
Press w(Yes) to send the data.
•You can interrupt a data operation at any time by pressing A.
The following shows what the displays of the sending and receiving units look like after the
data communication operation is complete.
Sending Unit Receiving Unit
Press ito return to the data communication main menu.
10-4-3
Performing a Data Communication Operation
19990401
uTo send backup data
This operation allows you to send all memory contents, including mode settings.
While the transmit data type selection menu is on the screen, press d(Backup), to display
the screen shown below.
Press w(Yes) to start the send operation.
The following shows what the displays of the sending and receiving units look like after the
data communication operation is complete.
Sending Unit Receiving Unit
Press ito return to the data communication main menu.
10-4-4
Performing a Data Communication Operation
#Data can become corrupted, necessitating a
RESET of the receiving unit, should the
connecting cable become disconnected during
data transfer.
Make sure that the cable is securely connected to
both units before performing any data communi-
cation operation.
19990401
10-5 Data Communications Precautions
The following are the types of data items that can be sent.
Data Item Contents Overwrite Password
Check*1Check*2
Program names Program contents Ye s Ye s
(All programs are listed.)
Mat nMatrix memory (A to Z) contents Yes
List nList memory (1 to 20) contents Yes
File nList file memory (1 to 6) contents Yes
Y=Data
Graph expressions, graph write/
non-write status, V-Window contents, No
zoom factors
G-Mem nGraph memory (1 to 20) contents Yes
V-Win nV-Window memory contents No
Picture nPicture (graph) memory (1 to 20) data No
DynaMem Dynamic Graph functions Yes
Equation Equation calculation coefficient values No
Alpha Memory Variable memory contents No
F-Mem nFunction memory contents No
CAS CAS formula data contents
(ALGEBRA FX 2.0 PLUS only) No
Algebra Algebra data contents
(ALGEBRA FX 2.0 PLUS only) No
DIFF Equation Differencial Equation data No
E-CON Data E-CON data No
Add-in application Add-in application data No
names (All add-in applications are listed.)
*1No overwrite check: If the receiving unit already contains the same type of data, the
existing data is overwritten with the new data.
With overwrite check: If the receiving unit already contains the same type of data, a
message appears to ask if the existing data should be overwritten with the new data.
10-5-1
Data Communications Precautions
Data item name
20010102
19990401
•1(YES) ... {replaces the receiving unit’s existing data with the new data}
•6(NO) ... {skips to next data item}
*2With password check: If a file is password protected, a message appears asking for input
of the password.
2
After inputting the password, press w.
Note the following precautions whenever you perform data communications.
•An error occurs whenever you try to send data to a receiving unit that is not yet standing
by to receive data. When this happens, press ito clear the error and try again, after
setting up the receiving unit to receive data.
•An error occurs whenever the receiving unit does not receive any data approximately six
minutes after it is set up to receive data. When this happens, press ito clear the error.
•An error occurs during data communications if the cable becomes disconnected, if the
parameters of the two units do not match, or if any other communications problem
occurs. When this happens, press ito clear the error, then correct the problem before
trying data communications again. If data communications are interrupted by the ikey
operation or an error, any data successfully received up to the interruption will be in the
memory of the receiving unit.
•An error occurs if the receiving unit memory becomes full during data communications.
When this happens, press ito clear the error and delete unneeded data from the
receiving unit to make room for the new data, and then try again.
•The E-CON item contains the following data.
1. Current Setup Data
2. Setup Memory Data
3. Custom Probe Memory Data
The corresponding data is overwritten on the receiver. Setup Memory data and Custom
Probe Memory data overwrites the data for the same memory number on the receiver. If
you want to keep data from being overwritten on the receiver, change its memory number.
10-5-2
Data Communications Precautions
20010102
Name of password protected file
Password input field
20011101
Autres manuels pour ALGEBRA FX 2.0 Plus
9
Ce manuel convient aux modèles suivants
3
Table des matières
Autres manuels Casio Calculatrice
Casio
Casio FX-820MS Manuel utilisateur
Casio
Casio ClassPad 330 Manuel utilisateur
Casio
Casio fx-580 Manuel utilisateur
Casio
Casio FX-9750G Manuel utilisateur
Casio
Casio HR-150TER Manuel utilisateur
Casio
Casio COLLEGE fx-80 Manuel utilisateur
Casio
Casio CFX-9800G-w - Color Graphing Calculator Manuel utilisateur
Casio
Casio fx-CG50 Manuel utilisateur
Casio
Casio CFX-9970G Document technique
Casio
Casio fx-590 Manuel utilisateur
Casio
Casio CFX-9850G PLUS Manuel utilisateur
Casio
Casio E-Con EA-200 Manuel d'utilisation et d'entretien
Casio
Casio CFX-9970G Manuel utilisateur
Casio
Casio CFX-9800G Manuel utilisateur
Casio
Casio fx-260 Guide de configuration
Casio
Casio FX-9860GII - SOFTWARE VERSION 2-00 Manuel utilisateur
Casio
Casio fx-9750G PLUS Manuel utilisateur
Casio
Casio DS-120TV Manuel utilisateur
Casio
Casio My Magic Diary JD-5000 Guide de dépannage
Casio
Casio MS-10VC Manuel utilisateur
