Case C12000ES Manuel utilisateur
User Manual
GENERATOR
C12000ES
2
Introduction
4 Using the Operators Manual
4 Registering Your Product
Wattage Reference Guide
5 Wattage Reference Guide
Safety
6 Safety Rules
6 Hazard Symbols and Meanings
9 Ground Fault Circuit Interrupter Protection
Generator Components
13 General Component Chart
Preparing the Generator
14 Grounding the Generator
Pre-Operation Checklist
15 Engine Oil
15 Fuel
16 General Recommendations
16 Fuel Type
16 Gasoline/Alcohol Blends
16 Gasoline/Ether Blends
16 Check Component Parts
17 Check Generator Surroundings
Starting the Generator
17 Recoil Start
19 Electric Start
TABLE OF CONTENTS
3
Operation
20 Using Electric Power
20 AC Application
21 DC Application
21 Connection of Cable
21 Safety Precautions While Charging
22 Wattage Information
23 Spark Arrester
23 How To Remove The Spark Arrester
23 Clean The Spark Arrester Screen
Stopping the Generator
24 Stopping the Generator
24 Oil Sensor
Troubleshooting
25 Troubleshooting Chart
Maintenance
26 Maintenance
26 Daily Inspection
26 Periodic Maintenance
27 Changing Engine Oil
27 Servicing The Air Cleaner
27 Cleaning and Gapping Spark Plug
27 Cleaning Fuel Strainer
27 Periodic Operation and Inspection
28 Maintenance Schedule
Transporting & Storage
29 Transporting & Storage Preparation
TABLE OF CONTENTS
4
Using the Operator’s manual
The operating manual is an important part of your generator. It should
be read thoroughly before initial use, and referred to often to make sure
adequate safety and service concerns are being addressed.
Reading the owner’s manual thoroughly will help avoid any personal injury
or damage to your machine. By knowing how best to operate this
machine you will be better positioned to show others who may also
operate the unit.
This manual was written to take you from the safety requirements to the
operating functions of your machine. You can refer back to the manual at
any time to help troubleshoot any specific operating functions, so store it
with the machine at all times.
If you need to contact an Authorized Dealer or Customer Service line
for information on servicing, always provide the product model and
identification numbers.
You will need to locate the model and serial number for the machine and
record the information in the places provided below.
For more information please visit:
CNHPOWEREQUIPMENT.COM
Date of Purchase:
Dealer Name:
Dealer Phone:
Product Identification Numbers
Model Number:
Serial Number:
Attention: Read through the complete
manual prior to the initial use of your
generator.
INTRODUCTION
5
WATTAGE REFERENCE GUIDE
DEVICE RUNNING WATTS
*Air Conditioner
(12,000 BTU) 1700
*Air Conditioner
(24,000 BTU) 3800
*Air Conditioner
(40,000 BTU)
6000
Battery Charger
(20 Amp)
500
3” Belt Sander 1000
*Clothes Dryer
(Electric)
5750
*Clothes Dryer
(Gas)
700
*Clothes Washer 1150
Coffe Maker 1750
*Compressor
(1HP)
2000
Curling Iron 700
*Dehumidifier 650
9” Disc Sander 1200
Electric Blanket 400
Electric Range
(Per Element)
1500
*Freezer 700
DEVICE RUNNING WATTS
*Garage Door
Opener
500 - 750
Hair Dryer 1200
Hand Drill 250 - 1100
Iron 1200
Lawn Mower 1200
Light Bulb 75 - 100
*Milk Cooler 1100
Microwave Oven 700 - 1000
*Paint Sprayer,
Airless (1/3 HP)
600
Radio 50 - 200
*Refrigerator 700- 1000
Slow Cooker 200
*Submersible
Pump
2000
10” Table Saw 1750 - 2000
Television 200 - 500
Toaster 500
* Allow for 3 times the listed value for starting these devices.
6
The safety alert symbol is used with a signal word (DANGER, CAUTION,
WARNING), a pictorial and/or a safety message to alert you to hazards.
DANGER Indicates a hazard which, if not avoided, will result in death
or serious injury.
WARNING Indicates a hazard which, if not avoided, could result in
death or serious injury.
CAUTION Indicates a hazard which, if not avoided, might result in
minor or moderate injury.
NOTICE Indicates a situation that could result in equipment
damage.
Follow the safety warnings to avoid any potential injury and damage to the
device or other property.
Hazard Symbols and Meanings
SAVE THESE INSTRUCTIONS
Safety Rules
This is the safety alert symbol. It is used
to alert you to potential personal injury
hazards. Obey all safety messages that
follow this symbol to avoid possible
injury or death.
explosion
kickback read manual
fire electric shock
toxic fumes
SAFETY
7
WARNING
Generator exhaust contains carbon monoxide, a
poisonous gas that can kill you.
You CANNOT smell or see this gas.
• Use the generator outdoors, away from open windows, vents, or
doors that could allow the carbon monoxide gas to come indoors.
Keep the generator at least 1 meter (3 feet) away from any structure
or building during use.
• NEVER use a generator indoors, including in homes, garages,
basements, crawl spaces, and other enclosed or partially-enclosed
areas, even with ventilation. Opening doors and windows or using
fans will not prevent carbon monoxide build-up in the home.
• NEVER use a generator in enclosed or partially-enclosed spaces.
Generators can produce high levels of carbon monoxide very quickly.
When you use a portable generator, remember that you cannot smell
or see carbon monoxide. Even if you can’t smell exhaust fumes, you
may still be exposed to carbon monoxide.
• NEVER operate the generator in an explosive atmosphere, near
combustible materials or where ventilation is not sufficient to carry
away exhaust fumes. Exhaust fumes can cause serious injury or death.
• If you start to feel sick, dizzy, or weak while using a generator, get
to fresh air RIGHT AWAY. DO NOT DELAY. The carbon monoxide
from generators can rapidly lead to full incapacitation and death.
• If you experience serious symptoms, get medical attention
immediately. Inform medical staff that carbon monoxide poisoning
is suspected. If you experienced symptoms while indoors, have
someone call the fire department to determine when it is safe to
re-enter the building.
SAFETY
8

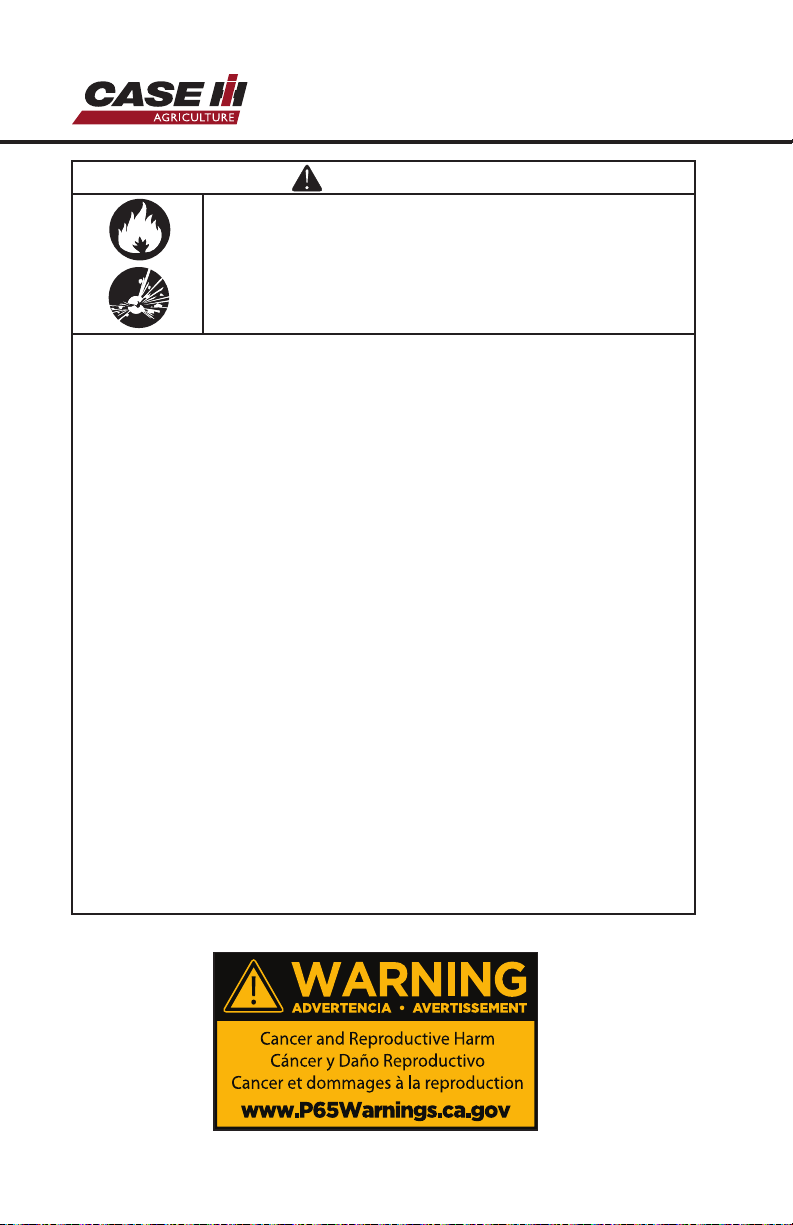

WARNING
Fuel and its vapors are extremely flammable and
explosive.
Fire or explosion can cause severe burns or death.
When Adding or Draining Fuel
• Observe all safety regulations for the safe handling of fuel. Handle
fuel in safety containers. If the container does not have a spout, use
a funnel.
• Do not overfill the fuel tank. Leave room for the fuel to expand.
• Do not refill fuel tank while the engine is running. Before refueling the
generator, turn it off and let it cool down. Gasoline spilled on hot
engine parts could ignite.
• Fill the tank only on an area of bare ground. While fueling the tank,
keep heat, sparks and open flame away. Carefully clean up any spilled
fuel before starting engine.
• Always fill fuel tank in an area with plenty of ventilation to avoid
inhaling dangerous fumes.
• NEVER store fuel for your generator in the home. Gasoline, propane,
kerosene, and other flammable liquids should be stored outside of
living areas in properly-labeled, non-glass safety containers. Do not
store them near a fuel-burning appliance, such as a natural gas water
heater in a garage. If the fuel is spilled or the container is not sealed
properly, invisible vapors from the fuel can travel along the ground and
can be ignited by the appliance’s pilot light or by arcing from electric
switches in the appliance.
SAFETY
9
WARNING
The GFCI may not function unless the generator is properly
grounded. Follow the correct procedure specified in the section
labeled GROUNDING INSTRUCTIONS.
Ground Fault Circuit Interrupter Protection
These generators are equipped with a GFCI (Ground Fault Circuit
Interrupters) 120V duplex receptacles for protection against the hazards
of electrical shock from defective attachments such as, tools, cords,
and cables.
A GFCI is a device that interrupts electricity from either the utility or
generator by means of a special type of circuit breaker that determines if a
current flow to the ground occurs.
A GFCI can be used only with generators that have the neutral wire
internally bonded to the frame, and the frame properly grounded to the
earth. A GFCI will not work on generators that do not have the neutral
wire bonded to the frame, or on generators which have not been properly
grounded. All of our generators have internally bonded ground wires.
THERE IS A PERMANENT CONDUCTOR BETWEEN THE
GENERATOR (STATOR WINDING) AND THE FRAME.
SAFETY
10
DANGER
Improper grounding can result in a risk of electrocution.
Check with a qualified electrician for your local
requirements if you are in doubt as to whether the unit is
properly grounded.
This generator is equipped with a grounding terminal for added
protection. Using the ground path from the generator to an
external ground source as instructed in the section labeled “Grounding
Instructions” in the Preparation section of this manual can be
necessary. Please consult a qualified electrician for local regulations.
The generator is a potential source of electrical shock if not kept dry.
Keep the generator dry and do not use in rain or wet conditions. To
protect from moisture, operate it on a dry surface under an open,
canopy-like structure. Dry your hands if wet before touching the
generator.
Plug appliances directly into the generator. Or, use a heavy duty,
outdoor-rated extension cord that is rated (in watts or amps) at least
equal to the sum of the connected appliance loads. Check that the
entire cord is free of cuts or tears and that the plug has all three
prongs,especially a grounding pin.
NEVER try to power the house wiring by plugging the generator into
a wall outlet, a practice known as “back feeding”. This is an extremely
dangerous practice that presents an electrocution risk to utility workers
and neighbors served by the same utility transformer. It also bypasses
some of the built-in household circuit protection devices.
If you must connect the generator to the house wiring to power
appliances, have a qualified electrician install the appropriate
equipment in accordance with local electrical codes.
This product has been designed with internal grounding or floating bonded
neutral. If it should malfunction or breakdown, grounding provides a path of
least resistance for electric current to reduce the risk of electric shock.
SAFETY
