Cascade corporation 35E Manuel

cascade

corporation

Cascade is a registered Trademark of Cascade Corporation

35E

45E

OPERATOR'S GUIDE

Manual Number 684945-R5

QFM,

™

Push/Pull and

Load Push

2 684945-R5

PP0124.eps

Introduction i

Safety Rules 1

Daily Inspection 2

Attachment Operation 2

Slipsheet Loads 3

Loads with Torn Slipsheet Tabs 3

Loading 4

Loading from Floor 4

Loading from Pallets 4

Loading from Stacks 5

Loading from Truck Trailers 5

Unloading 6

Unloading on Stacks 6

Unloading on Pallets 6

Pallet Boards In Line with Push Direction 6

Unloading on Pallets 7

Pallet Boards Opposite Push Direction 7

Unloading into Truck Trailers 7

Sheet-Sav® Operation 8

Attachment Removal – QFM™ 8

Attachment Installation – QFM™ 9

Platen Adjustment 9

Faceplate Stop Adjustment 10

Safe Operation and Maintenance 11

OSHA Regulations 11

CONTENTS

WARNING: Rated capacity of the truck/

attachment combination is a responsibility

of the original truck manufacturer and may

be less than shown on the attachment

nameplate. Consult the truck nameplate.

WARNING: Do not operate this attachment

unless you are a trained and authorized

lift truck driver.

This guide contains operating instructions for

cascade35E/45E Load Push/Pulls. It will

help avoid common errors which often cause

damage to the equipment or loads being

handled.

Read this manual thourghly before operating

the attachment. Be sure you know and

understand all operating procedures and safety

precautions. If you have any questions or don't

understand a procedure ask your supervisor.

Emphasize Safety! Most accidents are caused

by operator carelessness or misjudgement.

You must watch for hazardous situations and

correct them.

NTRODUCTION

Platens

Faceplate

Frame

Platen

locks

Mechanism

linkage

Gripper bar

Gripper jaw

1684945-R5

PP0125.eps

PP0383.eps

AFETY RULES

Motor off, park, lower load

No load

With load

Raise

Traveling

Tilt

3in.

No riders No reach through mast No standing under load

PPRAMPS

TRAFFIC

Slow for two

way trafﬁc

Sound horn, slow

at intersection

Sound horn,

slow at corner

Observe

StopsWorkers

No park on ramp No turn on ramp Watch clearance

Dips

Wet ﬂoors Bumps

STOP

2 684945-R5

PP0127.eps

AILY INSPECTION

Check items each day. Report problems to

your supervisor. See Service Manual 686455

for maintenance and repair procedures.

Nicks and burrs

Leaks Fasteners

Mounting

engagement

3684945-R5

PP0326.eps

PP0327.eps

PP0325.eps

PP0384.eps

TTACHMENT OPERATION

PUSH/PULL WITH SIDESHIFT

LOAD PUSH WITH SIDESHIFT

ASideshift left

BSideshift right

C Faceplate push

DFaceplate retract/pull

PUSH/PULL

LOAD PUSH

AFaceplate push

BFaceplate retract/pull

CNot used

DNot used

PUSH/PULL WITH SHEET-SAV 

ASideshift left

BSideshift right

CFaceplate push

CSheet-Sav



-lift (press button)

DFaceplate retract/pull

DSheet-Sav



-retain (press button)

SOLENOID EQUIPPED ATTACHMENTS

PUSH/PULL

LOAD PUSH

ASideshift left

AFaceplate push (press button 1)

APosition platens-out (press button 2)

BSideshift right

BFaceplate retract/pull (press button 1)

BPosition platens-in (press button 2)

CNot used

DNot used

SEQUENCE VALVE EQUIPPED

ATTACHMENTS

ASideshift left

APosition platens-out

(after complete sideshift left)

BSideshift right

BPosition platens-in

(after complete sideshift

right)

CFaceplate Push

DFaceplate Retract

Hoist down Tilt forward

Hoist up Tilt back

SHEET-SAV 

WARNING: Truck control handle and

attachment function activation shown

here conforms to ASME/ANSI B56.1

recommended practices. Failure to

follow these practices may lead to serious

bodily injury or property damage. End

user, dealer and OEMs should review

any deviation from the practices for safe

operation.

PP0324.eps

4 684945-R5

PP0129.eps

PP0130.eps

SLIPSHEET LOADS

Unitized loads

Nonskid coating

recommended

Transport

Stack behind fold

Tilt

Banding OR Stretchwrap

1/4in.

3-4°

Tilt

Wall

Second

Load

2Wedge both tips under

slipsheet. Drive forward.

1/4in.

Position load 6 in. over new slipsheet.

Lower platen onto slipsheet. 4Push off load.

Postion 1/4 in.

behind fold.

5Raise platen.

Drive in reverse

Tab

Loads with Torn Slipsheet Tab

5684945-R5

PP0131.eps

PP0132.eps

LOADING FROM FLOOR

5Tilt

4Pull load

OPTIONAL: Pull and drive forward

2Tilt

Sheet tab in gripper

3-4°

Square tips to load

LOADING FROM PALLETS

Tilt

2Sheet tab in gripper

3-4°

1 in. Raise platens 1 in.

above pallet

4Pull Load.

OPTIONAL: Pull and drive

forward

Tilt

6 684945-R5

PP0133.eps

PP0134.eps

LOADING FROM STACKS

4Pull load

OPTIONAL: Pull and drive forward.

Raise platens as load is pulled on.

3-4°

Sheet tab in gripper

35Lower

and tilt

1Square tips to load

Tilt

Platen tip just below tab

3Pull load

OPTIONAL: Pull and drive forward

2Sheet tab in

gripper

Dockplate

required

CAUTION: Trailer wheels

must be locked

LOADING FROM TRUCK TRAILERS

Tilt

3-4°

Sideshift to square load and

make room for removal

CAUTION: Level trailer with dock. Watch for nails or screws on trailer ﬂoor and walls.

7 684945-R5

PP0135.eps

PP0136.eps

UNLOADING ON STACKS

Position load 6 in. from load

edge, 1/2 in. above load.

3Drive in reverse and lower

slightly as load is pushed

5Lower and

tilt

Match load corners

1-2°

Tilt 2

1/2in.

2Position load 6 in. over pallet.

Lower platen onto pallet.

UNLOADING ON PALLETS

Pallet Boards in line with Push Direction

Tilt

3Push load to

pallet edge

4Raise platen slightly

3-4°

5Drive in reverse

as load is pushed

6 in.

8 684945-R5

PP0137.eps

PP0138.eps

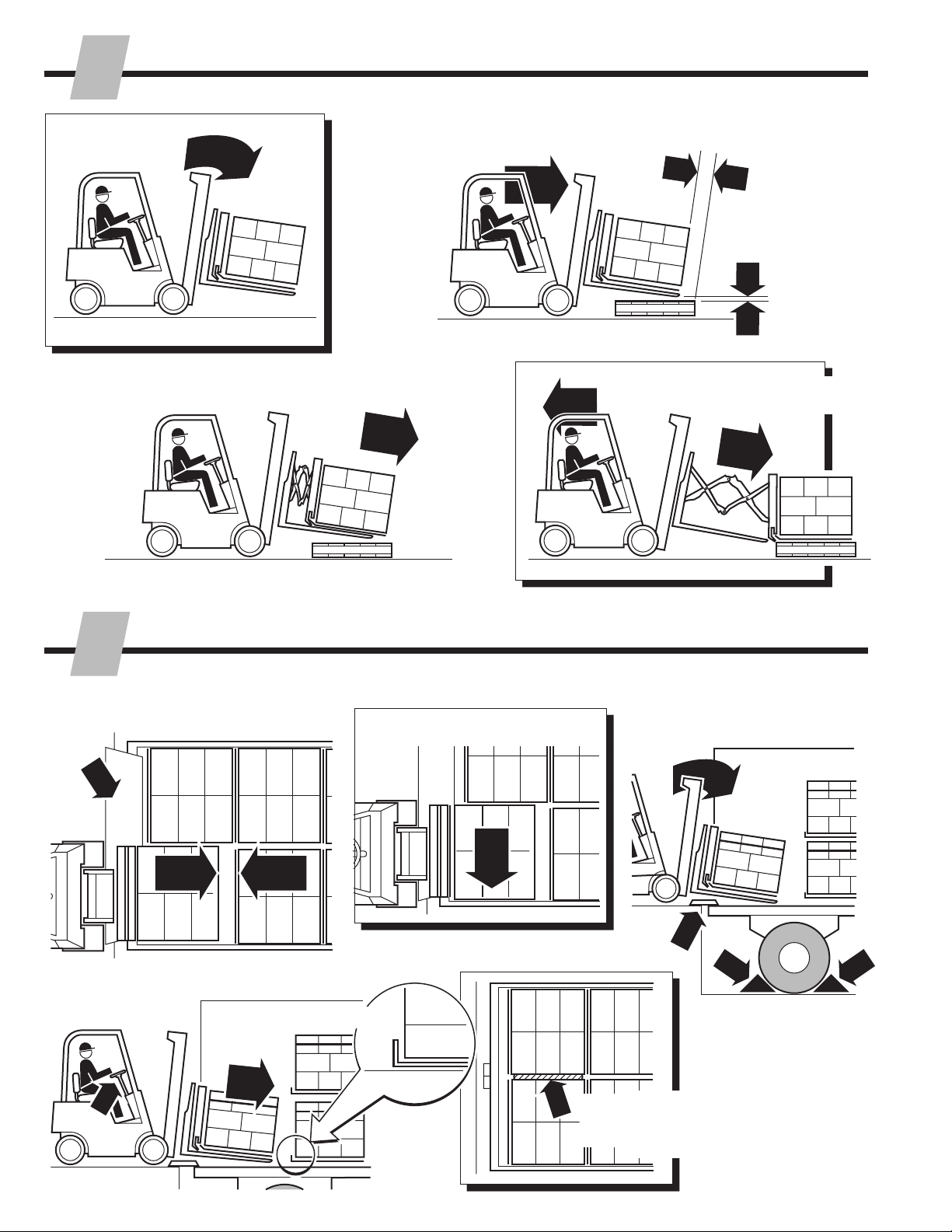

2Position load 4 in. from pallet edge,

1/2 in. above pallet

Tilt

3-4°

3Push load to pallet edge Drive in reverse as

load is pushed

4 in.

NLOADING ON PALLETS

Pallet Boards Opposite Push Direction

1/2in.

13Tilt

NLOADING INTO TRUCK TRAILERS

CAUTION: Level trailer with dock. Watch for nails or screws on trailer ﬂoor and walls.

3-4°

Position 12 in. from

forward load

Dockplate

required

Dockplate

required

Sideshift against wall

12 in.

CAUTION: Trailer wheels

must be blocked

5Place spacing material or

air bags between loads to

prevent shifting

4Truck in neutral.

Push. Keep all

sheet tabs up.

Neutral

Sheet tabs up
