Carson FY5 Destroyer Manuel utilisateur

ForYoungster5 from Carson Model Sport, is a brushless

truggy that speaks sheer brute force.

Robust technology sturdy alloy components and cool

looks guarantee plenty of action out there. The FY5 get

its power from the 1150watt 4S BL system.

The beefy electric drive makes light work of handling

and develops its own torgue throughoutthe rev range.

A range of set-up options allow the chassis to be adju-

sted for any terrain. The professional, interference-free

2,4GHz remote control included with the FY5, sits com-

fortably in your hand. The ready to run FY5 is supplied

with 2 LiPo power packs 11T.

FY5 Destroyer Line BL4S 2,4GHz RTR

Jegindøvej 21, DK- 8800 Viborg

+45 89281818 - [email protected]

All

brands available for Danish customers.

For specic brands available in your country

please contact us.

Only whole sale, no sale to END users – Please contact your nearest Dealer.

Art.: 500409040

V.nr.: 450710

• 4WD

• RTR

• Motortype: Brushless11T

• Motor size: 4S Brushless 1500 kV

• Ballbearing: 4 Whells

• Servo: 22kg - metal gear

• Battery: 2 x 7,4V 3200mAh LiPo power

• Speed: 70km/h

• Scale: 1:5

• Length: 680mm

• Width: 415mm

• Not incl: Charger & 8xAA batt.(radio)

• Ballbearing: 4 Whells

• Tires: Off Road

• Rims: Black plastic

• Suspension: Adjustable

• Shock absorbers: Oil lled 4 alum.

• Remote control: 2,4GHz Reex-X LCD

• Anodized aluparts

• Spareparts: available

ma am

CARSON FY5 Destroyerline Brushless 50 040 9040

DBetriebsanleitung Seite 2 - 15

GInstruction Manual Page 16 - 29

29CARSON FY5 Destroyerline Brushless 50 040 9040

l. Troubleshooting

Problem Cause Correction

Model doesn’t move Transmitter or chassis power switch is not ”ON“ Switch power on receiver or transmitter

Polarity or battery type is wrong Check polarity and type of battery

Batteries have run down Change batteries or charge them

Loss of control Batteries have run down Change batteries or charge them

Antenna is missing or not attached properly Attach receiver antenna and/or transmitter antenna

screw tight

R/C model using same band (frequency) is nearby Run model in different area or change crystal

Doesn’t run straight Steering trim is not adjusted correctly Make adjustment

Front and rear wheel nuts are too lose Tighten wheel nuts

Doesn’t stop Throttle trim is not adjusted correctly Make adjustment

Doesn‘t reverse Throttle trim is not adjusted correctly Make adjustment

Wrong action Control properly

Running too slowly Batteries have run down Change batteries or charge them

Motor has lost power Change to spare motor

Rear wheel nuts are too loose Tighten wheel nuts

Dust or foreign objects are inside gears Turn the power switch ”OFF“ and clean out gears

30 CARSON FY5 Destroyerline Brushless 50 040 9040

Montage

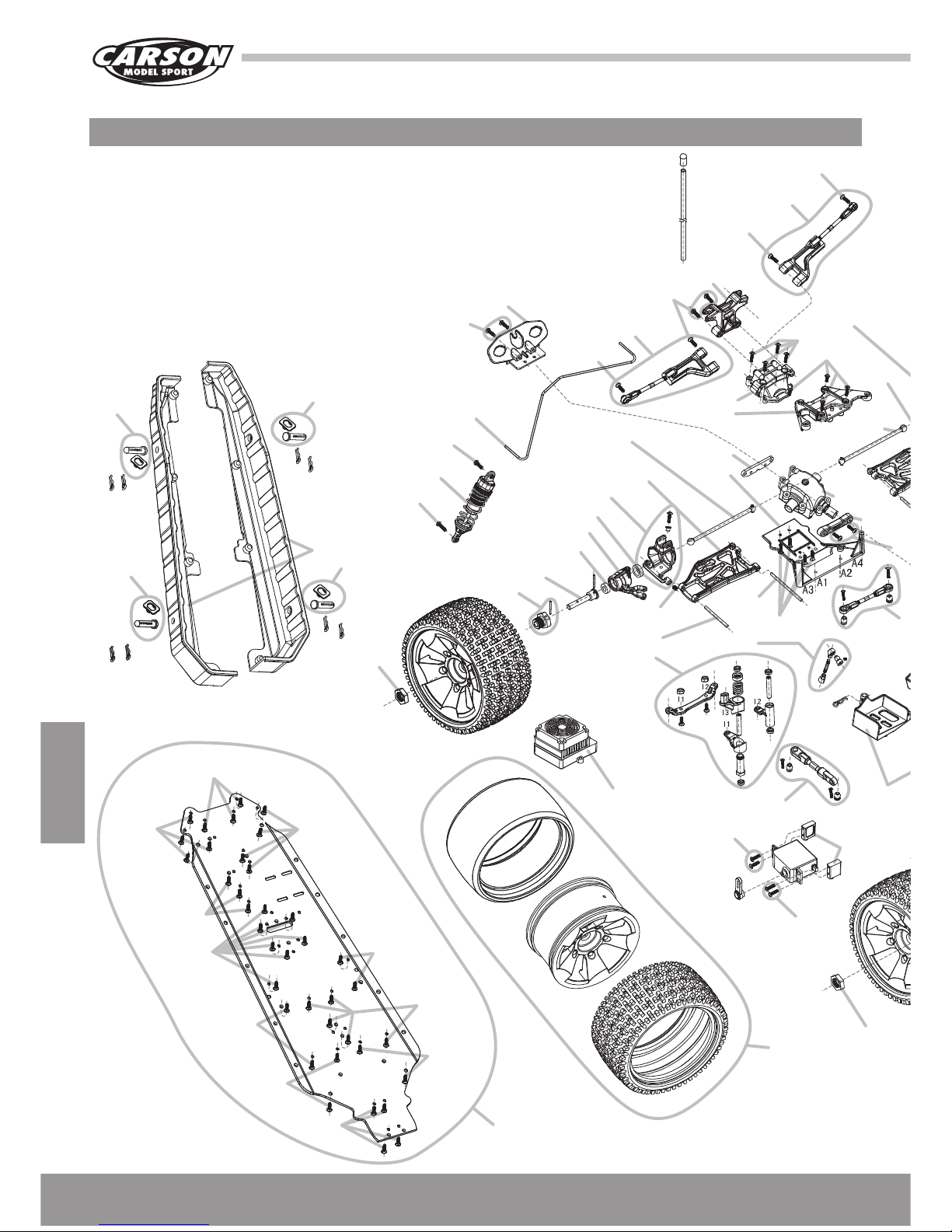

Explosionszeichnung • Exploded View

50 040 5380

50 040 5280

50 040 5381

50 040 5369

50 040

50 040 5

50 040 5392

50 090 6139

50 040 5382

50 040 5368

50 040 5381

50 040 5380

50 040 5381

50 040 5384

50 040 5383

50 040 5386

50 090 0101

50 040 5368

50 040 5369

50 040 5370

50 040 5373

50 0

50 040 5272

50 040 5315

50 040 5379

50 040 5256

50 040 5257

50 040 52

50 040 5258

50 040 5276

50 040 5

50 040 5275

50 040 5289

50 040 5377

50 0405377

50 040 5260

50 04

50 040 5267

50 040 5280

50 040 5268

50 040 5378

50 040 5326

31CARSON FY5 Destroyerline Brushless 50 040 9040

Montage

50 040 5380

50 040 5369

50 040 5383

50 040 5380

50 040 5383

50 040 5383 50 040 5328

50 040 5380 50 040 5369

040 5380 50 040 5328

50 040 5333

0 5338

50 040 5338

50 040 5392

50 090 6138

50 040 5387

50 040 5389

50 040 5391

50 080 0073

50 040 5393

50 040 5382

50 040 5376

370

500405371

50 040 5373

50 040 5319

50 040 5373

50 040 5375

50 040 5378

50 040 5272

50 040 5326

50 040 5319

50 040 5374

50 040 5379

50 040 5385

50 040 5257

50 040 5269

5269

50 040 5258

50 040 5273

50 040 5275

50 040 5276

40 5276

50 040 5276

50 040 5275

50 040 5279

50 040 5260

500405267

0 040 5267

50 040 5267

50 040 5280

50 090 0101

50 040 5289

50 040 5378

500405273

50 040 5326

50 040 5319

50 040 5378

50 040 5326

32 CARSON FY5 Destroyerline Brushless 50 040 9040

Montage

N° Bezeichnung Description

50 040 5256 Frontrammer Frontbumper

50 040 5257 Querlenkerhalter 2 Stück Suspension arm mount 2 pcs

50 040 5258 Querlenkerhalter oben vorne/hinten Upper suspension arm mount fr/rear

50 040 5260 Radachse mit Pin 2 Stück Axle w/pin 2 pcs

50 040 5267 Querlenkerstifte vorne kurz 4 Stück/ 4 Stück lang Front suspension arm pin short 4 pcs

suspension arm pin long 4 pcs

50 040 5268 Chassis-Front Front chassis

50 040 5269 Unterer Querlenkerhalterblock V/H Lower suspension mount block fr/rr

50 040 5273 Radträger hinten L/R Hub rear carrier

50 040 5275 4x Querlenker Pin hinten 4x Rear suspension arm pin

50 040 5276 Schrauben, Muttern, Beilagscheiben Screws, nuts, washers

50 040 5279 Diffmitnehmer Diff. outdrive

50 040 5280 Kugellagerset 8 Stück Ball bearing 8 pcs

50 040 5284 Differenzialgehäuse Diff gear box

50 040 5289 Dämpferbrücke Shocktower

50 040 5315 Abdeckung vorne Upper deck front

50 040 5319 Mitteldifferenzial komplett Center diff unit complete

50 040 5325 Differenzial Zahnrad-Set Driven gear bevel set

50 040 5326 Differenzial v/h komplett Diff gearbox unit f/r complete

50 040 5328 Empfänger-Box Receiver-case

50 040 5333 Oberdeckhalterung v/h Front rear upper deck mount

50 040 5338 Akkuhalterungs-Set Battery base/cover

33CARSON FY5 Destroyerline Brushless 50 040 9040

Montage

N° Bezeichnung Description

50 040 5368 Chassis-Platte FY5 Chassis plate

50 040 5369 Querlenker oben 2 Stück FY5 Upper suspension mount front 2 pcs

50 040 5370 Querlenker unten vorne 2 Stück FY5 Lower suspension mount front 2 pcs

50 040 5371 Querlenker unten hinten 2 Stück FY5 Lower suspension mount rear 2 pcs

50 040 5372 Antriebswellen 2 Stück FY5 Driver shaft 2 pcs

50 040 5373 Lenkgestängeset FY5 Steering linkage

50 040 5374 Motorritzel FY5 Motor gear

50 040 5375 Mittelantriebswellen v/h FY5 Centre driving shaft f/r

50 040 5376 Oberdeck-Set FY5 Upper deck set

50 040 5377 Achsschenkel-Set vorne 2 Stück FY5 C carrier front/rear 2 pcs

50 040 5378 Stoßdämpferset v/h 2 Stück FY5 Shock absorber front/rear 2 pcs

50 040 5379 Lenkhebel-Set 2 Stück FY5 Steering horn set 2 pcs

50 040 5380 Linsenkopfschrauben Set FY5 B-head cross screws

50 040 5381 Senkkopfschrauben Set FY5 Flat cross screw set

50 040 5382 Stabilisatorset FY5 Anti roll bar set

50 040 5383 Schrauben-Set MIX FY5 Screw set mix

50 040 5384 Servosaver-Set FY5 Servo saver set

50 040 5385 Diffmitnehmer FY5 Diff. outdrive

50 040 5386 Lenkservohalterung + Karosseriehalter FY5 Steering servo mount + body holder

50 040 5387 Differenzial-Einheit FY5 Differential unit

50 040 5388 Motorhalter FY5 Motor mount

50 040 5389 Motorkühler + Lüfter FY5 Motor heat sink + cooling fan

50 040 5390 Hauptzahnrad 49 Z. FY5 Main gear 49 T

50 040 5391 Chassis hinten FY5 Rear chassis

50 040 5392 Radmitnehmer-Set 2 Stück Rim hub set 2 pcs

50 040 5393 Spoilerhalter FY5 Wing mount

50 080 0073 Karosserie + Spoiler FY5 Body + wing

50 090 6138 Brushlessmotor KV1500 FY5 Brushless motor KV1500

50 090 6139 Brushlessregler FY5 ESP

50 090 0101 Reifenset FY5 2 Stück Wheel set 2 pcs

34 CARSON FY5 Destroyerline Brushless 50 040 9040

Ersatzteile

Spare Parts

50 040 5257 2x Querlenkerhalterung

2x Suspension arm mount

50 040 5260 2x Achse

2x Axle

50 040 5256 Rammer vorne

Front bumper

50 040 5276 M12 Nuss

Nut M12

50 040 5279 Diﬀerenzialzapfen Set

Diﬀ. outdrive set, M4 x 4 mm

50 40 5273 Nabenhalterung hinten

Hub rear carrier

50 040 5275 4x Querlenker Pin hinten

4x Rear suspension arm pin

3 x 34.5 mm

50 040 5268 Stoßfänger vorne

Front damper

50 040 5267 Querlenker Pin 4x lang, 4x kurz

Front susp. arm pin 4x l., 4x short

50 040 5269 Unterer Querlenker v + h

Lower susp. mount block f + r

50 040 5280 8x Kugellager

8x Ball bearings

50 040 5284 Diﬀerenzialgehäuse

Diﬀ gear box

50 040 5289 Dämpferbrücke

Shocktower

50 040 5258 Querlenkerhalterung oben v + h

Upper suspension mount f + r

50 040 5315 Abdeckung vorne

Upper deck front

50 040 5319 Zentraldiﬀerenzial komplett

Centre diﬀerential unit complete

50 040 5325 Antriebs- + Diﬀ-Zahnräder

Driving + diﬀ gear set

35CARSON FY5 Destroyerline Brushless 50 040 9040

Ersatzteile

Ersatzteile • Spare Parts

50 040 5374 Motorritzel mit Madenschraube

Motor gear with grub screw

50 040 5370 2x Querlenker vorne unten

2x Front lower suspension arm

50 040 5371 2x Querlenker unten hinten

2x Rear lower suspension arm

50 040 5375 Mittelantriebswellen vorne/hi

Centre drive shaft front/rear

50 040 5368 Chassis

Chassis

50 040 5369 2x Querlenker oben

2x Suspension arm unit left/r

50 040 5376 Oberdeck-Set

Upper deck front/rear

50 040 5372 2x Antriebswelle l + r

2x Transverse drive shaft l + r

50 040 5373 Lenkgestängeset

Steering link unit

50 040 5326 Diﬀerenzial v/h komplett

Diﬀ gear box unit f/r complete

50 040 5333 Oberdeckhalterung v + h

Upper deck mount front + rear

50 040 5338 Akkubox und Abdeckung

Battery base and cover

50 040 5328 Empfängerbox

Receiver case

50 040 5377 C-Halterung vorne + hinten

C-carrier front + rear

36 CARSON FY5 Destroyerline Brushless 50 040 9040

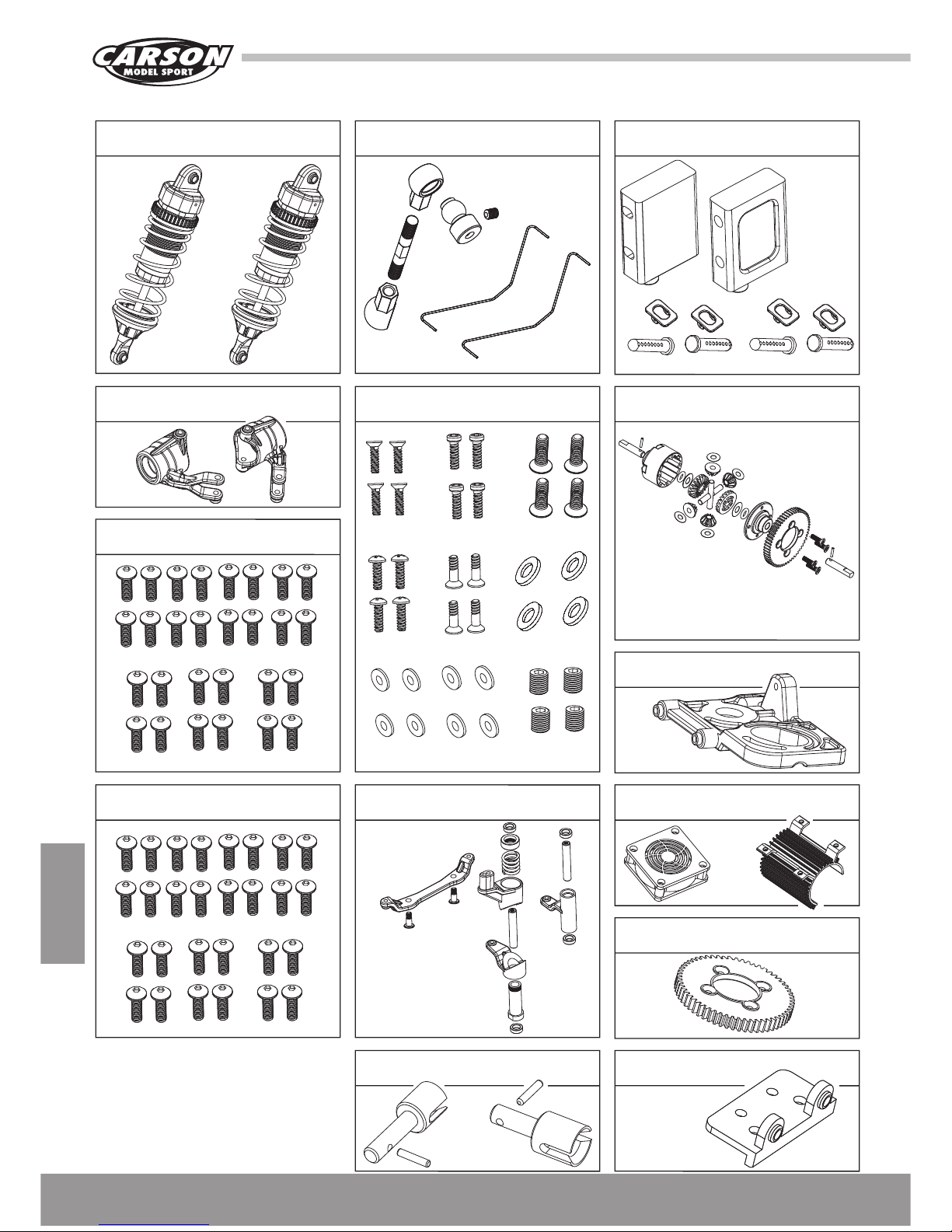

Ersatzteile • Spare Parts

Ersatzteile

50 040 5384 Servosaver Set

Servo saver unit

50 040 5388 Motorhalter

Motor mount

50 040 5379 Achsschenkel links/rechts

Knuckle arm left/right

50 040 5382 Stabilisatorset

Anti roll bar set

50 040 5383 Schraubenset Mix

Mix screw set

50 040 5389 Motorkühler + Lüfter

Motor heat sink + cooling fan

50 040 5385 Diﬀmitnehmer

Diﬀ outdrive

50 040 5386

Lenkservo- + Karosseriehalterung

Steering servo + body mount

50 040 5387 Diﬀerenzialeinheit

Diﬀ unit

50 040 5378 2x Stoßdämpferset vorne/hinten

2x Shock absorber set front/rear

50 040 5380 Linsenkopfschraubenset

B-head hex screw set

50 040 5381 Senkkopfschrauben Set

Flat hex screw set

50 040 5390 Hauptzahnrad 49 Z

Main gear 49 T

50 040 5391 Chassis hinten

Rear chassis

Table des matières

Autres manuels Carson Voiture jouet motorisée

Carson

Carson Street Rebel Manuel utilisateur

Carson

Carson FY10 Brushless 50 040 4040 Manuel utilisateur

Carson

Carson 1:16 Raupenbagger Volvo 2.4 GHz Manuel utilisateur

Carson

Carson CE-10 Desert Quad 50 040 4012 Manuel utilisateur

Carson

Carson Mountain Warrior MC-10 Manuel utilisateur

Carson

Carson Virus Rocket 120 Manuel d'utilisation

Carson

Carson FY5 Destroyerline Manuel utilisateur

Carson

Carson Linde H40D Manuel utilisateur

Carson

Carson Virus 4.0 GP V21 Manuel utilisateur

Carson

Carson 1:20 MB Arocs Cement Mixer 100% RTR Manuel utilisateur

Carson

Carson Desert Warrior 3.0 Manuel utilisateur

Carson

Carson X8E Chassis 500409015 Manuel utilisateur

Carson

Carson X-24 Manuel utilisateur

Carson

Carson UNIMOG U300 Mercedes Benz Manuel utilisateur

Carson

Carson 1st Go-Kart RTR 103016 Manuel utilisateur

Carson

Carson DirtWarrior X10EB Chassis Manuel utilisateur

Carson

Carson Nitrobone Automatic Manuel utilisateur

Carson

Carson DirtWarrior X10EB Chassis Manuel utilisateur

Carson

Carson Monster Cage V36 Manuel utilisateur

Carson

Carson Virus 4.0 Brushless Manuel utilisateur

Carson

Carson New Generation CV-10B Manuel utilisateur

Carson

Carson FD Stormracer II Manuel utilisateur

Carson

Carson CV-10 Stormracer Pro Manuel utilisateur

Carson

Carson 1st Go-Kart RTR electric Manuel utilisateur

Manuels Voiture jouet motorisée populaires d'autres marques

Eduard

Eduard Humber Scout Car Mk.I exterior Manuel utilisateur

Traxxas

Traxxas 4995X Manuel utilisateur

Jamara

Jamara VW T1 Bus Manuel utilisateur

REVELL

REVELL 68 CHEVY CHEVELLE SS 396 Manuel utilisateur

Schumacher

Schumacher Pro Cat Manuel utilisateur

Tamiya

Tamiya TT-01 TYPE E Manuel utilisateur

Eduard

Eduard Krupp Protze 6x4 1/48 Manuel utilisateur

New Bright

New Bright 61072UEP Manuel utilisateur

Team Durango

Team Durango DEX410v5 Manuel utilisateur

Jamara

Jamara Mercedes Actros Muldenkipper 2,4 GHz Manuel utilisateur

PLAYMOBIL

PLAYMOBIL 9536 Manuel utilisateur

Atomic

Atomic BZ3 Manuel utilisateur

Aiyaplay

Aiyaplay 370-290V00 Manuel utilisateur

Power Wheels

Power Wheels GRJ53 Manuel utilisateur

ZEROTRIBE

ZEROTRIBE Zetricks ZT1144 Manuel utilisateur

INJUSA

INJUSA 412 Manuel utilisateur

Maverick

Maverick MSC-30BR-WP Manuel utilisateur

Land of B.

Land of B. Rollin' Riders Manuel utilisateur
