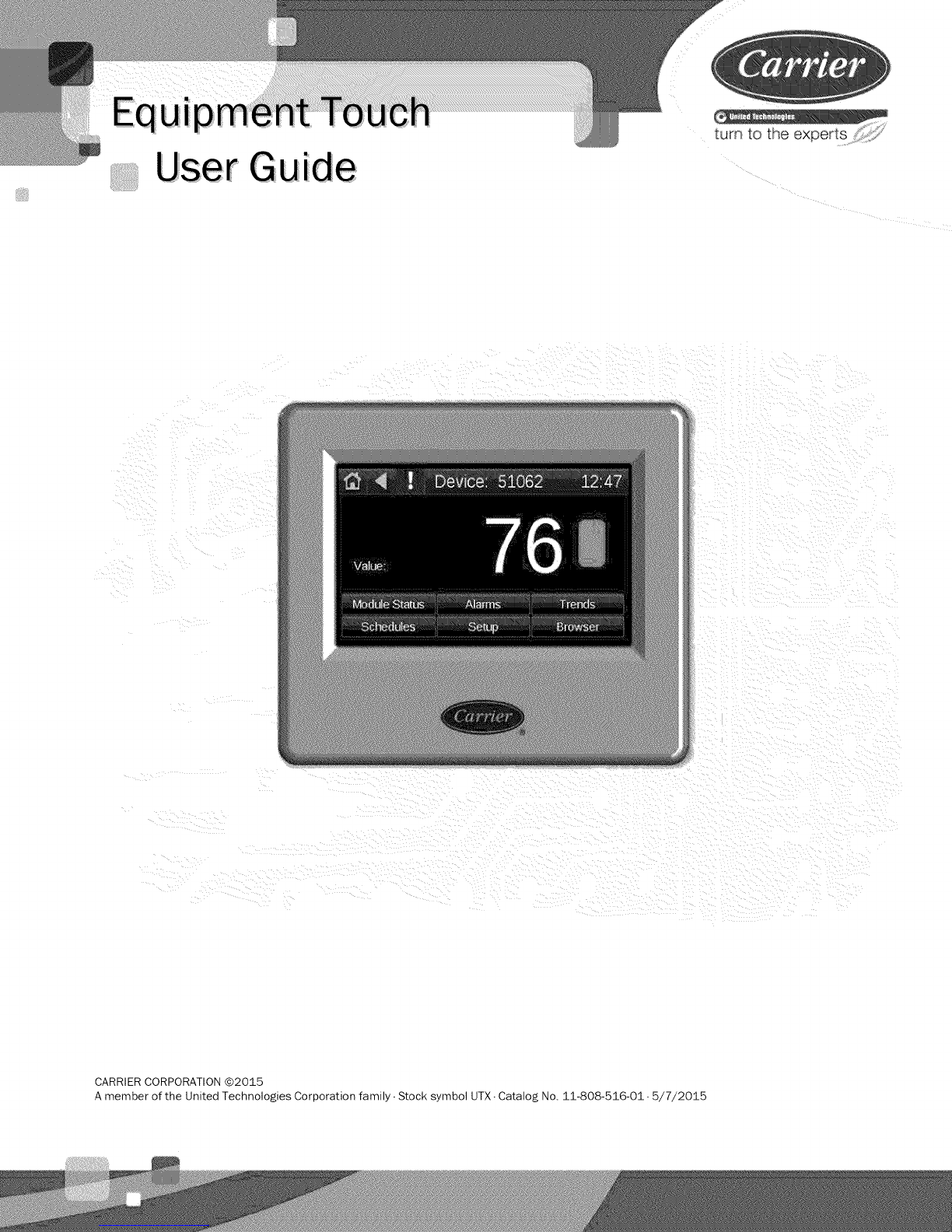

Carrier Equipment touch Manuel utilisateur

User Guide

CARRIER CORPORATION @2015

A member of the United Technologies Corporation family- Stock symbol UTX- Catalog No. 11-808-516-01- 5/7/2015

_ Verify that you have the most current version of this document from www.hvacpartners.com or your local Carrier

office.

Important changes are listed in Document revision history at the end of this document.

Corporation. BACnet is a registered trademark of ASHRAE. All other trademarks are the property of their respective

owners.

Contents

What is the Equipment Touch? .................................................................................................................................. 1

Equipment Touch screens ........................................................................................................................................... 2

Viewing alarms .......................................................................................................................................................... 12

Viewing trends ........................................................................................................................................................... 13

To view trends .................................................................................................................................................... 13

Viewing or creating schedules .................................................................................................................................. 14

To view schedules .............................................................................................................................................. 14

To create a schedule ......................................................................................................................................... 15

To edit touchscreen settings ..................................................................................................................................... 18

Document revision history ........................................................................................................................................ 20

The Equipment Touch is a touchscreen device that you can attach to a controller to view or change its property

values, schedule equipment, view trends, and more, without having to access the system's server.

Touch to display:

Home screen

Previous screen

Alarms screen

Touch abutton to

display that screen

Carrier Proprietary and Confidential

Equipment Touch CARRIER CORPORATION @2015

EquipmentTouchscreens

The Equipment Touch will display the system screens below as well as custom-designed screens.

Screen name Description

Standby If included in the touchscreen file, a custom screen that displays when the Equipment

Touch has had no user activity for the time specified on the Inactivity Timeout screen. The

Standby screen is not interactive, and as soon as you touch the screen, the Home screen

displays. If the touchscreen file does not include a Standby screen, the Home screen

displays after a period of inactivity.

Home A custom screen for the Equipment Touch.

Displays if the screen you selected requires a password. Enter your password, then touch

Done.

Each screen is programmed with one of the following password levels:

A screen requiring this Can be accessed by...

password level...

User A user logged in with the

User, Admin, or Factory password

Admin A user logged in with the

Admin or Factory password

Factory A user logged in with the

Factory password

No password Anyone

NOTES

•You log out on the Setup screen.

• You can change passwords on the Touchscreen Setup > Passwords screen (page 18).

Carrier Proprietary and Confidential

Equipment Touch CARRIER CORPORATION @2015

EquipmentTouchscreens

Screen name Description

System

Displays the BACnet device instance number, the controller's time, temperature read from

the controller's prime variable, and zone color. Touch a button to jump to the Module

Status, Alarms, Trends, Schedules, Setup, or Browser screen.

Module Status

Touch a button to see one of the following sections of a Module Status report: Device

Data, Driver Data, Reset Counters, System Errors, Warnings, Information, Hardware,

Database, Network.

For example, the screens below show examples of the Driver Data and Reset Counters

information.

Carrier Proprietary and Confidential

Equipment Touch CARRIER CORPORATION @2015

EquipmentTouchscreens

Screen name Description

Alarms

Lets you view alarms from the controller. See Viewing alarms (page 12).

Trends

Lets you view trends for points that have trending enabled. See Viewing trends (page 13).

Carrier Proprietary and Confidential

Equipment Touch CARRIER CORPORATION @2015

EquipmentTouchscreens

Screen name Description

Schedules

Setup

Lets you view, add, edit, or delete BACnet schedules in the controller. See Setting up

schedules (page 14).

Touch a button to jump to the Module Setup, Touchscreen Setup, or Login screen.

Carrier Proprietary and Confidential

Equipment Touch CARRIER CORPORATION @2015

EquipmentTouchscreens

Screen name Description

Browser

Touch a button to see that type of BACnet objects found in the controller. Each screen

shows a list of network-visible BACnet objects with BACnet Object Name, Current Value,

and BACnet Object Instance number.

Below is an example of AV BACnet objects in a controller.

Touch an object in the above screen to see the details shown below.

Carrier Proprietary and Confidential

Equipment Touch CARRIER CORPORATION @2015

EquipmentTouchscreens

Screen name Description

Module Setup

Touch a button to jump to the Set Time and Date, Communication, Router, IP, or Time

Master screen.

NOTE A yellow value on a Module Setup screen indicates the value has been changed.

Set Time and Date

Touch the time or date field to edit it.

Carrier Proprietary and Confidential

Equipment Touch CARRIER CORPORATION @2015
