Carel Supernode Manuel

Integrated Control Solutions & Energy Savings

Technical leaet

Foglio istruzioni

supernode

controllo elettronico per umidicazione

electronic controller for humidication

Simboli:

Attenzione: il simbolo nel coperchio plastico del controllo indica di riferirsi al presente foglio

istruzione durante l’installazione elettrica.

Symbol:

Warning: the symbol in the plastic cover of the control, means to refertto this techinical leaet,

during the electrical installation.

ENG

+050003325 Supernode for humidiﬁcation - 1.0 - 20.06.2014

1. INTRODUCTION

The gateway can connect up to a maximum of 20 devices (humiSteam Y-X-W, heaterSteam, gaSteam), allowing up to 150

variables (50 analogue, 50 integer, 50 digital) for each connected device to be managed by the external supervisor.

Seven pre-set templates allow the variables exchanged between the humidier and the gateway to be addressed

automatically, depending on the device selected during programming: simply specify the type of device and the number

of devices connected. The built-in pGD on the Supernode or an external pGD1 terminal can be used for programming.

Supernode part number:

Description Carel P/N

Supernode for humidication + FLSTDmUGWS SNU0000EM0

On the external supervisor side, the protocol can be selected by choosing the corresponding optional serial card. The

possible options are:

item P/N description

1 Modbus®/CAREL RS485 PCOS0004850 Opto-isolated RS485 serial

2 LON PCO10000F0 LON FTT10 serial

3 BACnet™ Ethernet™ PCO1000WB0 Ethernet™ 8 MB serial

4 BACnet™ RS485 PCO1000BA0 BACnet™ MS/TP 485 serial

5 KONNEX PCOS00KXB0 KONNEX BMS port serial

tab. 1a

The module is DIN rail mounted, with 24 Vac power supply (+10%, -15%).

Supernode for humidication allows the possibility to select UR, UEX, UEW, UEY and UG humidiers, including a combination

of dierent models.

For the address settings of the variables on the supervisor side, refer to the dynamic table, requesting from Carel the

“FLSTDmUGWS_Supervisory_List_dinamic_table_supernode_for_humidication” Excel le.

The application on Supernode also features the following options:

• Edit the humidier model, if necessary add/re-address the pre-set variables

• Manage a generic device using the “Universal” model, which can be freely edited according to customer requirements

ENG

+050003325 Supernode for humidiﬁcation - 1.0 - 20.06.2014

2. INSTALLATION

Below is a description of the connectors used for connection and installation of Supernode:

2.1 Connectors

1 5 2

3 4

J7 J10J9J8J5

+5Vref

+VDC

ID1

GND

NC1

NO1

SYNC

GND

serial card 2

serial card 1

TLAN

GND

NO2

GND

C622P028/R2

GNX

ISOLATED

Tx/Rx PWM 0/10V

GNDTx/Rx

24 V (+10/-15%); 50/60 Hz

48 V (36Vmin…72 Vmax)

input voltage: max. power:

8 VA / 6 W

Key

1 power connector (G+,G0) 24 Vac or 36 V min...72 V max

2 SPDT relay digital output

3 pLAN network connector

4 optically-isolated “Field-Bus” serial connector

5 connector for BMS serial cards

ENG

+050003325 Supernode for humidiﬁcation - 1.0 - 20.06.2014

2.2 Connection diagram

serial card 1

serial card 2

status RS485

GNX RS485+ –

P1 P2 P3

BACnet™MS/TP

RS485

CAREL master

GND

RS485

CAREL slave

PCOS004850:

RS485 serial card

PCO100MDM0:

modem card

PCO1000BA0:

BACnet™ MSTP RS485

interface

PCO1000WB0: pCO Web

- Ethernet™/BACnet™

interface card

PCO10000F0:

LON cards

PCO100CLP0:

TREND card

PCOS00KXB0:

Konnex card

device 1

device 2

device n

(n<=20)

ENG

+050003325 Supernode for humidiﬁcation - 1.0 - 20.06.2014

3. PROGRAMMING THE DEVICE

1. Set the number of devices connected to the gateway:

values available: from 1 to 20 devices.

Menu path: Service Service Settings Device settings

2. Set the address and type of device :

Models available: heaterSteam, humiSteam X-plus, humiSteam basic,

gaSteam, generic device

Menu path: Service Service Settings Device settings

The address setting and type of model must be selected for each

device connected to the gateway

3. Set the BMS1 and BMS2 serial port for reading by external

supervisor:

Address, protocol and baud rate setting.

Menu path: Service BMS Settings

4. Set the Carel master protocol for communication between

Supernode and devices:

Supernode communication protocol setting with devices: baud rate

(Retry n. and ORT can be left as default)

Note: the baud rate to be set always corresponds to the slowest

device connected (for heaterSteam the baud rate is 9600).

Menu path: Manufacturer Factory Settings

ENG

+050003325 Supernode for humidiﬁcation - 1.0 - 20.06.2014

5. Edit the model:

The selected model can be edited

Menu path: Manufacturer Devices cong 1-10 or Manufacturer 

Devices cong 11-20 (depending on the device)

6. Alarm settings:

Enable alarms in the event of supervisor oine

Menu path: Manufacturer Factory Settings

ENG

+050003325 Supernode for humidiﬁcation - 1.0 - 20.06.2014

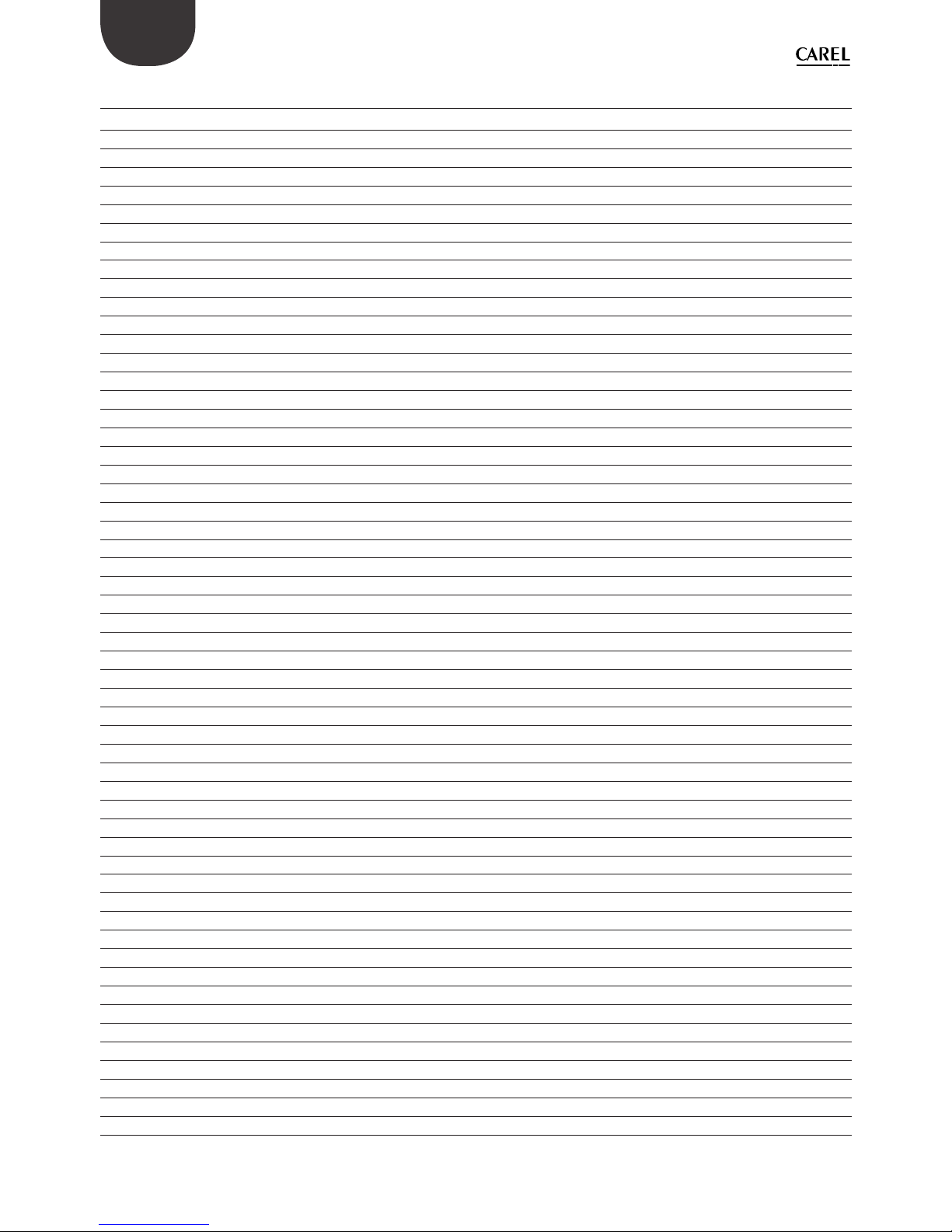

Note:

CAREL INDUSTRIES HQs

Via dell’Industria, 11 - 35020 Brugine - Padova (Italy)

Tel. (+39) 049.9716611 - Fax (+39) 049.9716600

e-mail: [email protected] - www.carel.com

Agenzia / Agency:

+050003325 Supernode for humidiﬁcation - 1.0 - 20.06.2014
