Cardo Systems SMARTH Manuel utilisateur

SMARTH

Manual

SMARTH Manual

- 2 -

Place QR Code here

Scan this QR code or go to cardosystems.com/quick-guides/ to download a Pocket Guide that can be viewed on your

smartphone/tablet, or printed and folded for easy reference while on the road.

This is version 3 of the SMARTH Manual. Please visit cardosystems.com/product-manuals/ for the latest version of this

manual in your preferred language, as well as other manuals and tutorials.

SMARTH Manual

- 3 -

Table of Contents

Introduction 6

1.1

Abbreviations 6

Charging the SMARTH 7

Getting Started 8

3.1

Getting to Know Your Headset 8

3.2

Switching Your Headset On/Off 8

3.3

Different Ways to Operate Your SMARTH 8

3.4

Basic Functions 9

3.5

Pairing Your Headset to Bluetooth Devices 9

3.5.1

Pairing through the Headset Buttons 9

3.5.2

Pairing through the Headset Voice-Assisted Menu 10

3.6

Pairing the Bluetooth Intercom 11

3.6.1

Pairing the Bluetooth Intercom to other Cardo Headsets 11

3.6.2

Pairing the Bluetooth Intercom to non-Cardo Headsets 12

3.7

Using One+8 Intercom 14

3.7.1

Managing Your One+8 Intercom Buddy List 14

Before You Ride 16

4.1

Configuring Your SMARTH through Cardo SmartSet 17

4.1.1

Configuring Your SMARTH Basic Settings 18

4.1.2

Configuring Speed Dial Numbers 19

4.1.3

Configuring Your FM Radio Manually 20

4.1.4

Configuring Your FM Radio Using Auto Tuning 21

4.1.5

Configuring FM Radio RDS Retuning through Cardo SmartSet 23

4.2

Configuring Your SMARTH through the Cardo Community 23

4.2.1

Installing the Cardo Updater on Your Computer 23

4.2.2

Configuring Your SMARTH Basic Settings 24

4.2.3

Configuring Your FM Radio through Cardo Cardo Community 24

4.2.4

Upgrading Firmware for New Features 25

4.3

Configuring Your SMARTH through the Headset Voice-Assisted Menus 25

4.4

Checking Battery Status through Cardo SmartSet 25

4.5

Setting the Default Mobile Phone 26

4.6

Using Voice Commands 27

4.7

Creating Groups for DMC Intercom 28

4.7.1

Starting DMC intercom Groups 28

4.7.2

Joining DMC intercom Groups 29

- 4 -

SMARTH Manual

4.7.3

Leaving DMC intercom Groups 30

4.7.4

Deleting DMC intercom Groups 31

4.7.5

Switching to Bluetooth Intercom 31

On the Road 32

5.1

Making and Receiving Phone Calls 32

5.1.1

Making Phone Calls 32

5.1.2

Answering Phone Calls 32

5.1.3

Rejecting Phone Calls 33

5.1.4

Ending Phone Calls 33

5.1.5

Toggling Between Two Calls on Two Mobile Phones Paired to Your Headset 33

5.1.6

Disconnecting the Current Call and Switching To The Second Call 33

5.2

Using DMC intercom 34

5.2.1

Muting DMC intercom Groups 34

5.2.2

Unmuting DMC intercom Groups 34

5.2.3

Streaming Music in DMC intercom Mode 35

5.2.3.1

Background Audio Level and Audio Source Priorities 35

5.3

Making and Receiving Bluetooth Intercom Calls 35

5.3.1

Receiving Bluetooth Intercom Calls 36

5.3.2

Bluetooth Intercom Busy Signal 36

5.3.3

Click-To-Link Calls 36

5.3.3.1

Incoming Click-to-Link Intercom Calls 37

5.4

Making and Receiving One+8 Intercom Calls 37

5.4.1.1

Making One+8 Intercom Calls 37

5.4.1.2

Receiving One+8 Intercom Calls 38

5.4.1.3

Ending One+8 intercom call 38

5.5

Listening to Music and Radio 38

5.5.1

Listening to Music 38

5.5.1.1 Switching Music Sources 39

5.5.2

Listening to FM Radio 40

5.5.3

Sharing Music and Radio 41

5.5.4

Audio Source Priorities 43

Troubleshooting 44

6.1

Soft Reset 44

6.2

Reset Pairing 44

6.3

Reset to Factory Settings 44

6.4

FAQ 44

- 5 -

SMARTH Manual

Support 45

Glossary 46

Appendix A. Modes and Events SMARTH 47

- 6 -

SMARTH Manual

1. Introduction

Introduction

Thank you for choosing the Cardo SMARTH Bluetooth® communication and entertainment system for motorcycle

helmets.

This Manual describes the features of your SMARTH and how to use them.

We wish you a great SMARTH experience with your SMARTH and encourage you to write to us at

support@cardosystems.com regarding any questions, suggestions or comments you may have.

If you have not yet installed the SMARTH headset in your helmet, please install it as described in the SMARTH

Installation Guide provided in the package.

1.1 Abbreviations

The following abbreviations are used in this manual:

Abbreviation

Description

A2DP

Advanced Audio Distribution Profile (Bluetooth profile)

AGC

Automatic Gain Control

Intercom

RDS

Radio Data System

VOX

Voice Operated Control

- 7 -

SMARTH Manual

2. Charging the SMARTH

Charging the SMARTH

To charge the SMARTH:

Connect the USB cable Type A plug to either the wall charger supplied with your SMARTH, or to a computer USB

port.

Connect the USB cable Type B plug to the SMARTH USB port.

During charging, the LED indicates charging status as follows:

●

red LED on - charging

●

red LED off - charging complete

Make sure that your SMARTH battery is fully charged for at least 4 hours before initial use.

Charging with the wall charger is faster than via a computer USB port.

Charging your headset switches it off automatically. To use your headset while it is being charged, switch it on.

(see Section 3.2 - Switching Your Headset On/Off).

- 8 -

SMARTH Manual

3. Getting Started

Getting Started

3.1

Getting to Know Your Headset

The SMARTH headset has the following items for operating the unit:

3.2

Switching Your Headset On/Off

To switch your SMARTH on:

●

Tap ~Audio and ~Phone. The speaker plays an ascending tone and a voice message "Hello SMARTH".

The LED confirms your SMARTH is on:

■

Normal and low battery states - LED flashes blue three times.

■

Charging - LED flashes purple three times.

To switch your SMARTH off:

●

Tap ~Audio and ~Phone. The speaker plays a descending tone and a voice message "Goodbye".

3.3

Different Ways to Operate Your SMARTH

You can operate the various features by any of the following methods:

●

Pressing a button or combination of buttons on the headset.

●

Using the SmartSet app on your mobile device (once it is paired with the headset).

●

Using the Voice-Assisted Menu in combination with either headset buttons or with the VOX (by saying a word

loudly, see the note below).

●

Automatic voice recognition (by saying a command, for example "radio on").

This manual describes the most suitable method or methods to operate each feature.

LEDs indicates modes and events for the battery states. For more information, see Modes and Events SMARTH

You hear voice announcements on your headset for mode changes and events.

VOX (voice operated control) is for hands free operation of your SMARTH. You can say a word or phrase loudly and

your SMARTH performs that function. You can also adjust VOX sensitivity for the microphone, see "Configuring

Your SMARTH Basic Settings" on page 18

Connecting your headset to a charge switches off the headset.

- 9 -

SMARTH Manual

3. Getting Started

3.4

Basic Functions

To turn the volume up for current audio source:

●

Tap ~Volume Up.

With each tap, a louder tone is played on the speaker.

To turn the volume down for current audio source:

●

Tap ~Volume Down.

With each tap, a quieter tone is played on the speaker.

To mute the microphone completely and lower the speaker volume for the current state:

●

Tap ~Volume Up and ~Volume Down.

The red LED comes on for 2 seconds and a descending tone is played on the speaker.

3.5

Pairing Your Headset to Bluetooth Devices

Your SMARTH has two Bluetooth channels for connection to mobile phones, GPS devices and music players with A2DP.

To connect your SMARTH to a Bluetooth device, you must first pair them. Once paired, they automatically recognize

each other whenever they are within range (10m / 33ft).

3.5.1

Pairing through the Headset Buttons

To pair Bluetooth channel 1 to a device:

Enable Bluetooth on the device.

Press ~Phone for 5 seconds.

Search for Bluetooth devices on your device as described in your device's instructions.

After a few seconds the device lists your SMARTH. Select it.

If prompted for a PIN or Passkey, enter 0000 (four zeros).

The device confirms that pairing has succeeded and the LED flashes purple for 2 seconds.

To pair Bluetooth channel 2 to another device:

Enable Bluetooth on the device.

Press ~Audio for 5 seconds.

Tap ~Phone twice until the LED start flashing red and green.

Search for Bluetooth devices on your device as described in your device's instructions.

After a few seconds the device lists your SMARTH. Select it.

If prompted for a PIN or Passkey, enter 0000 (four zeros).

The device confirms that pairing has succeeded and the LED flashes purple for 2 seconds.

You can automatically adjust your volume to reduce noise by using AGC (automatic gain control). AGC adjusts your

volume according to ambient noise and riding speed. You can also adjust AGC sensitivity, see "Configuring Your

SMARTH Basic Settings" on page 18.

If you are pairing more than one device, Cardo recommends that you pair the mobile phone to channel 1, and the

GPS or music player to channel 2.

- 10 -

SMARTH Manual

3. Getting Started

To pair a Bluetooth channel to a GPS device:

Enable Bluetooth on the device.

Press ~Phone for 5 seconds.

Tap ~Volume Up.

The device confirms that pairing has succeeded and the LED flashes purple for 2 seconds.

To cancel the pairing process:

●

Press ~Phone until the LED stops flashing red and blue or green and blue.

To reset all Bluetooth device pairing:

Press ~ and ~Phone for 5 seconds and your SMARTH LED confirms pairing reset:

■

Normal and low battery states - LED flashes purple slowly 5 times.

■

Charging - LED flashes purple and red slowly 5 times.

3.5.2

Pairing through the Headset Voice-Assisted Menu

To pair your SMARTH with Cardo headsets through the headset voice-assisted menu:

Tap ~ and ~Volume Up twice.

When the voice-assisted menu reaches "Advanced Features", tap ~ or use VOX.

When the voice-assisted menu reaches the required option, tap ~ or use VOX.

If you want to pair the GPS device to Bluetooth channel 2, tap ~Phone twice.

If pairing is not completed within 2 minutes, the headset automatically returnsto Standby.

If you have paired two different mobile phones directly to your SMARTH, set one as default for making calls

(see "Setting the Default Mobile Phone" on page 26).

If your GPS supports it, you can pair the second mobile phone directly to the GPS and then pair the GPS to

your SMARTH, and so connect both mobile phones and the GPS to your SMARTH.

Not all Bluetooth mobile phones broadcast Bluetooth Stereo music (A2DP), even if the phone has an MP3

player function. Consult your mobile phone’s user manual for more information.

Not all Bluetooth GPS devices allow connection to Bluetooth audio devices. Consult your GPS User Manual for

more information.

To reset all Bluetooth intercom pairing, select the menu option "Reset Mobiles and GPS Pairing".

Autres manuels pour SMARTH

Table des matières

Autres manuels Cardo Systems Accessoires pour motos

Cardo Systems

Cardo Systems PACKTALK EDGE Manuel utilisateur

Cardo Systems

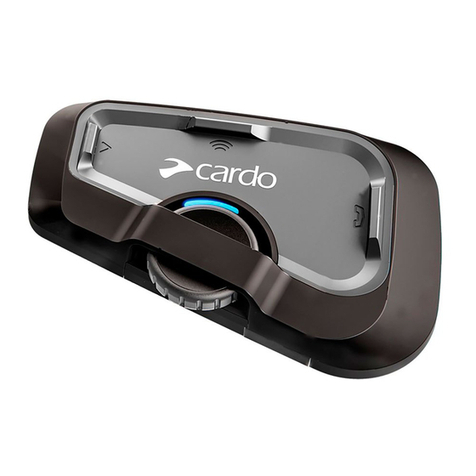

Cardo Systems Freecom 4x Manuel utilisateur

Cardo Systems

Cardo Systems FREECOM 4+ Manuel utilisateur

Cardo Systems

Cardo Systems PACKTALK EDGE Manuel utilisateur

Cardo Systems

Cardo Systems SMARTH Manuel utilisateur

Cardo Systems

Cardo Systems Freecom 4x Manuel utilisateur

Cardo Systems

Cardo Systems FREECOM 1 Manuel utilisateur

Cardo Systems

Cardo Systems PACKTALK SLIM Manuel utilisateur

Cardo Systems

Cardo Systems FREECOM 1 Manuel utilisateur

Cardo Systems

Cardo Systems PACKTALK EDGE Manuel utilisateur

Cardo Systems

Cardo Systems PACKTALK EDGE Manuel utilisateur

Cardo Systems

Cardo Systems FREECOM X Manuel utilisateur

Cardo Systems

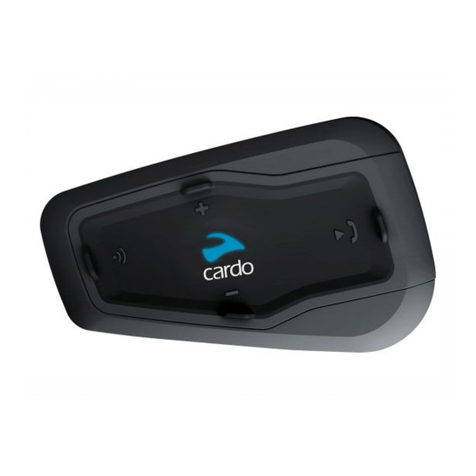

Cardo Systems FREECOM1+ Manuel utilisateur

Cardo Systems

Cardo Systems PACKTALK BLACK Manuel utilisateur

Cardo Systems

Cardo Systems Packtalk NEO Manuel utilisateur

Cardo Systems

Cardo Systems scala rider Q3 MULTISET Manuel utilisateur

Cardo Systems

Cardo Systems scala rider Q1 TEAMSET Manuel utilisateur

Cardo Systems

Cardo Systems Packtalk Bold Manuel utilisateur

Cardo Systems

Cardo Systems PACKTALK SLIM Manuel utilisateur

Cardo Systems

Cardo Systems Packtalk Bold Manuel utilisateur

Cardo Systems

Cardo Systems Packtalk NEO Manuel utilisateur

Cardo Systems

Cardo Systems SMARTPACK Manuel utilisateur

Cardo Systems

Cardo Systems FREECOM 2 Manuel utilisateur

Cardo Systems

Cardo Systems SHO-1 Manuel utilisateur

Manuels Accessoires pour motos populaires d'autres marques

SRC

SRC B-TRK502-01-01-SL Manuel utilisateur

3M Speedglas 9100 MP Manuel utilisateur

hepco & becker

hepco & becker 6307520 00 01 Manuel utilisateur

HOMCOM

HOMCOM AA0-077 Manuel utilisateur

hepco & becker

hepco & becker 6307558 00 01 Manuel utilisateur

Wunderkind Custom

Wunderkind Custom 106503-F15 Guide de l'utilisateur

Dräger

Dräger HPS 3500 Manuel utilisateur

M-WAVE

M-WAVE SKI Manuel utilisateur

Kuryakyn

Kuryakyn 6212 Manuel utilisateur

hepco & becker

hepco & becker 6507504 00 01 Manuel utilisateur

Tool it

Tool it PROMAX LCD 9.13G Manuel utilisateur

Custom Dynamics

Custom Dynamics TruWrapz Manuel utilisateur

Roof

Roof RO200 CARBON Manuel utilisateur

Kabuto

Kabuto Japan IBUKI Manuel utilisateur

PUIG

PUIG 5051 Manuel utilisateur

rizoma

rizoma ZTH050 Manuel utilisateur

Joubert

Joubert 10001711 Manuel utilisateur

Sperian

Sperian Optrel p420 Manuel utilisateur
