Cardinal CLiC HC-198
Standalone Controller
Installation Manual
Page 2 of 14
Rev. A
PRECAUTIONS
IMPORTANT SAFETY INSTRUCTIONS
Read Instructions: Read all safety and operating instructions before using the device.
Retain Instructions: Keep safety and operating instructions for future reference.
Heed Warnings: Adhere to all warnings on the device and in the operating instructions.
Follow Instructions: Follow operating instructions and installation instructions. Failure to follow these instructions
may damage the product or void the product warranty.
Power Sources: Connect only to a standard 120V outlet.
Power Cord Protection: Route power supply cords so that they are not likely to be stepped on or pinched by items
placed on or against them. Paying particular attention to the cords at plugs, receptacles, and at the point at which
they connect to the device.
Heat: Keep the device away from heat sources such as radiators, heat registers, stoves, etc.
Water and Moisture: Do not use the device in an environment where water may be present; for example, near a
sink, in a wet basement, near a swimming pool, near an open window, in a damp mechanical room, etc.
Object and Liquid Entry: Do not allow objects to fall or liquids to be spilled into the enclosure through openings.
Indoor Use Only: The device is intended to be installed and used indoors in a climate-controlled environment only.
Do not use the device outdoors.
Servicing: There are no user serviceable parts inside of the device. Do not attempt to open the enclosure or perform
any service beyond that described in the operating instructions. Refer all other service needs to qualified service
personnel.
WARNING – RISK OF ELECTRIC SHOCK – CONNECT THIS FURNISHING TO A PROPERLY GROUNDED BUILDING SUPPLY ONLY,
OR THE EQUIVALENT. FAILURE TO DO SO MAY RESULT IN ELECTRIC SHOCK OR OTHER HAZARDS.
Damage: Discontinue use of the device if any of these have occurred:
•Objects have fallen or liquid has been spilled into the device.
•The power supply cord or the plug has been damaged.
•The device does not appear to operate normally or exhibits a marked change in performance.
•The device has been dropped or the enclosure has been damaged.
WARNING!
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE STANDALONE CONTROLLER TO RAIN OR MOISTURE.
ALL PROTECTIVE FILMS MUST BE REMOVED FROM THE CLiC GLASS PANEL PRIOR TO MAKING CONNECTIONS TO THE DEVICE!
Page 3 of 14
Rev. A
DISCLAIMER
FCC INFORMATION TO USERS
FCC Information to Users
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
Subpart B of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in commercial, industrial, and residential installations. This equipment generates, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications not expressly approved by Cardinal IG Company could void the user’s authority
to operate the equipment.
Page 4 of 14
Rev. A
CONTENTS
TABLE OF CONTENTS
Important Safety Instructions...............................................................................................................................2
FCC Information to Users......................................................................................................................................3
Overview..............................................................................................................................................................5
Important Notes...................................................................................................................................................5
Compatibility........................................................................................................................................................5
What’s In The Box?...............................................................................................................................................5
Unpacking and Inspection ....................................................................................................................................6
HC-198 Standalone Controller Layout ...................................................................................................................7
Wire Connection Terminals ..................................................................................................................................7
Trigger Input.........................................................................................................................................................8
Site Wiring and Preparation..................................................................................................................................9
System Layout Examples.....................................................................................................................................11
Specifications .....................................................................................................................................................12
Common Symptoms and Solutions .....................................................................................................................13
Contacting Us .....................................................................................................................................................14
Page 5 of 14
Rev. A
CHAPTER 1 - INTRODUCTION
OVERVIEW
This guide pertains to the Cardinal CLiC HC-198 Standalone Controller. This device and the associated CLiC Glass
Panel(s) have been designed as a NEC Class-3 electrical system. The purpose of this document is to provide guidance
on how to set up and install the device in a commercial, industrial, or residential environment. This document
includes installation site requirements, wiring requirements, system connection instructions, and basic
troubleshooting.
IMPORTANT NOTES
Please read these important notes about the HC-198 Standalone Controller:
•The device must be installed within a dry, ventilated area that maintains a normal room temperature
between 50°F (10°C) to 104°F (40°C).
•Avoid installing the device in a location where it will have exposure to prolonged direct sunlight.
•Do not let the device get wet. It should not be handled with wet hands or placed in an area where it could
get wet.
•All wiring and installation shall be in accordance with the National Electrical Code (NEC).
•Do not disassemble the device. Only authorized personnel should perform service.
•Completely remove protective films from glass panels prior to connecting glass wiring to the device.
COMPATIBILITY
The HC-198 Standalone Controller is specifically designed for use only with CLiC Glass panels. Use this device only
for its intended use as described in these instructions. Do not use attachments not recommended by the
manufacturer. Connecting this device to load types other than CLiC Glass panels may damage the device or the
unauthorized loads. Cardinal IG Company will not be responsible for any damage caused by inappropriate usage of
this device.
WHAT’S IN THE BOX?
The following items are included with the HC-198
Standalone Controller:
•Quick Start Guide
•Cardinal Screwdriver
•6’ Power Cord
•4x 10-32 Rack Mount Screws
The following items are pre-attached to the HC-198
Standalone Controller:
•8x 4-Position Trigger Connectors
•8x 2-Position Glass Connectors
•125V 6A 5mm x 20mm Bussmann Fuse
•Rack Ears
Page 6 of 14
Rev. A
UNPACKING AND INSPECTION
After opening the HC-198 Standalone Controller package, save all the packaging material in case you ever need to
ship the unit. Thoroughly inspect and make sure the device is in good condition and there is no visible damage. If
you have any doubt about the product’s integrity, please contact your reseller or an authorized support center
immediately.
Page 7 of 14
Rev. A
CHAPTER 2 - FEATURES

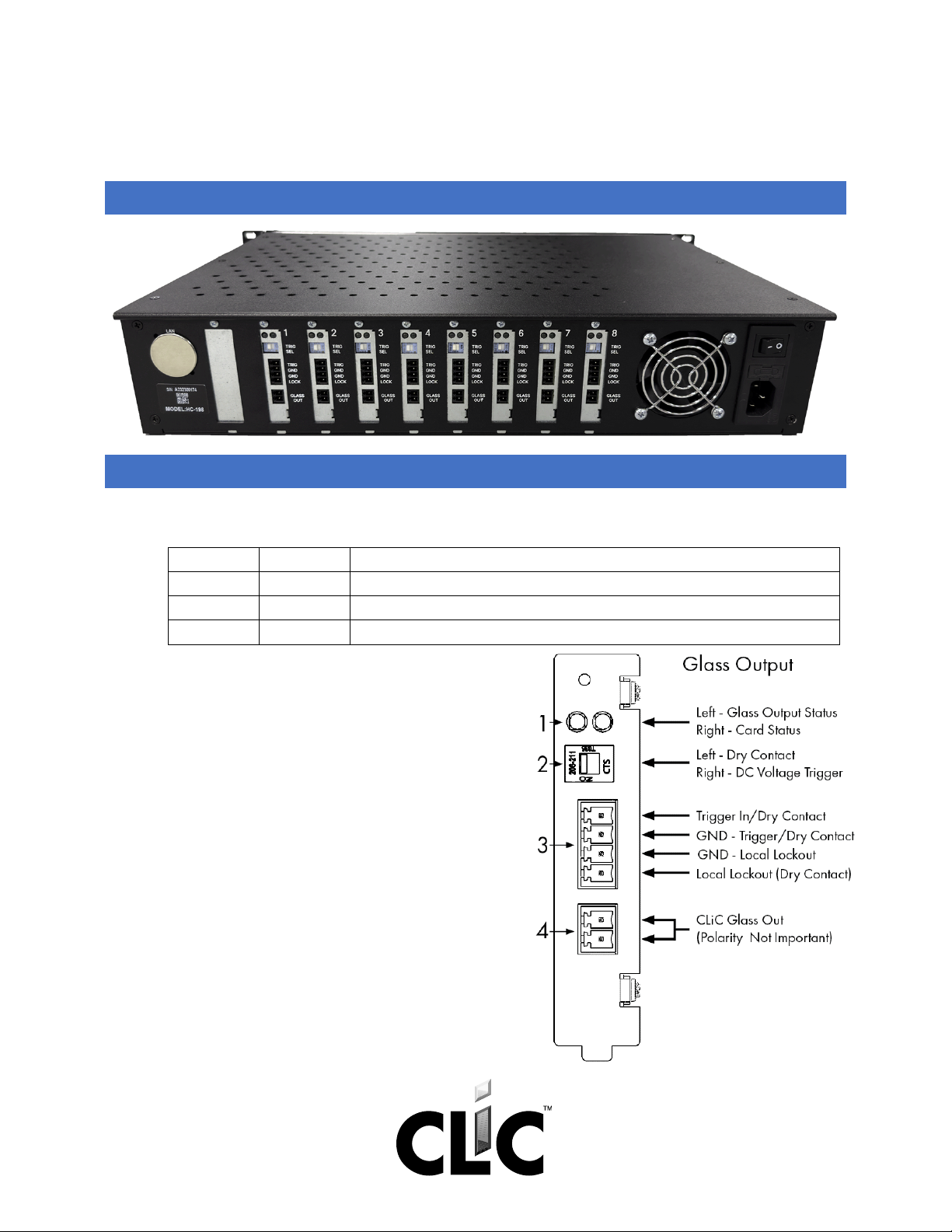

HC-198 STANDALONE CONTROLLER LAYOUT
WIRE CONNECTION TERMINALS
Note: Each Glass Out operates independently.
1. Channel Output Status LEDs
Red LED
Green LED
Description
On
On
Glass State is Clear, as determined by Local Lockout or Trigger
Off
On
Glass State is Private, as determined by Lock Lockout or Trigger
Flashing
Flashing
Error condition. See troubleshooting section on page 13.
2. TRIG SEL (Trigger Select)
Left (On) – Dry Contact Trigger
Right (Off) – Voltage Trigger
3. Trigger Input and Local Lockout Input
These inputs control the Glass Output
a. TRIG
Trigger input that is used to allow external
devices to control the state of the CLiC Glass
panel. See Trigger Input below.
b. GND
Common ground connection. Use this ground
reference for Trigger ground connections.
c. GND
Common ground connection. Use this ground
reference for Lockout ground connections.
d. LOCK
Lockout input disables switching the glass to
the clear state with the trigger input. This
input accepts only a dry contact.
Page 8 of 14
Rev. A
4. GLASS OUT
This is the Class 3 output used to connect the CLiC Glass panel. Both connections on the glass out must be
connected to the CLiC Glass panel. There is no polarity in these connections. Shorting the outputs while
powered could damage the HC-198 Standalone Controller and should be avoided. Connecting this output
to the glass lines prior to removing the protective film on the glass can damage the device and should be
avoided.
5. Power Switch
Ensure this is off during wire termination and connection.
6. Power Inlet
Power input connection for an IEC Cord (IEC-60320 C13) to a 120V receptacle. Contains a Busman GMA-
6A fuse.
TRIGGER INPUT
The HC-198 Standalone Controller has been designed to accommodate many installation configurations and
scenarios by utilizing a custom engineered Trigger Input Circuit. This circuit allows a wide variety of switch devices,
relays, contact closures, or other automation controllers to provide end user control of the CLiC Glass panel. There
is a separate input for each Glass Out for a total of 8 trigger inputs. The triggering device shall use either a dry
contact or a direct current voltage trigger.
The trigger circuit supports daisy chaining multiple channels together to allow a single switch device to control
multiple glass outputs. Note: Only daisy chain channels that are set to the same trigger method.
The CLiC Glass panel will go to the clear state when the dry contact is either shorted to ground, or when the
voltage trigger is above +2.8VDC. The CLiC Glass panel will go to the private state when the dry contact is open, or
the voltage trigger is below +2.4VDC. The maximum input voltage shall not exceed +25VDC when set to voltage
trigger. Do not apply voltage to the trigger input when the Trigger Select is set to dry contact mode.
Control devices can include, but are not limited to:
•Standard light switches NOTE: USED FOR LOW-VOLTAGE CONTACT CLOSURE ONLY AND NOT CONNECTED TO AC POWER
•Occupancy Sensors
•Relays, Switch outputs, or voltage triggers from automation controllers or remote-control systems
•Doorjamb Plunger Switches
•Magnetic Security Style Door Switches
Page 9 of 14
Rev. A
CHAPTER 3 – INSTALLATION
SITE WIRING AND PREPARATION
Wiring from the HC-198 Standalone Controller to the CLiC Glass panel(s) should be run prior to the CLiC Glass panel
installation. All wiring must be performed in accordance with the applicable building codes and electrical wiring
requirements as denoted for Class 3 systems of the National Electric Code (NEC). All wiring should be completed by
a qualified and experienced technician. Protective film must be removed from CLiC Glass panels prior to connecting
glass panel wiring to the HC-198 Standalone Controller.
Placement
The HC-198 Standalone Controller has integrated rack ears that can be used to mount it within a standard 19-inch
audio/video rack. The device does not need to be mounted near the CLiC Glass panel. The CLiC Glass outputs and
the trigger inputs can be extended up to 328 feet (100 meters). Use a standard IEC power cord (IEC-60320 C13) to
connect the device to a standard 120V receptacle.
Wire Size and Maximum Length
The wire utilized for glass connections on the HC-198 Standalone Controller shall be a minimum of 18 AWG CL3
wiring. It is important that the correct gauge wire is used to assure the correct voltage and signal reaches the CLiC
Glass panel. The maximum wire distance between the device and the CLiC Glass panel is 328 feet (100 meters).
Wiring with CL3P wire may be required if it passes through a plenum airspace. Consult your local building codes for
details.

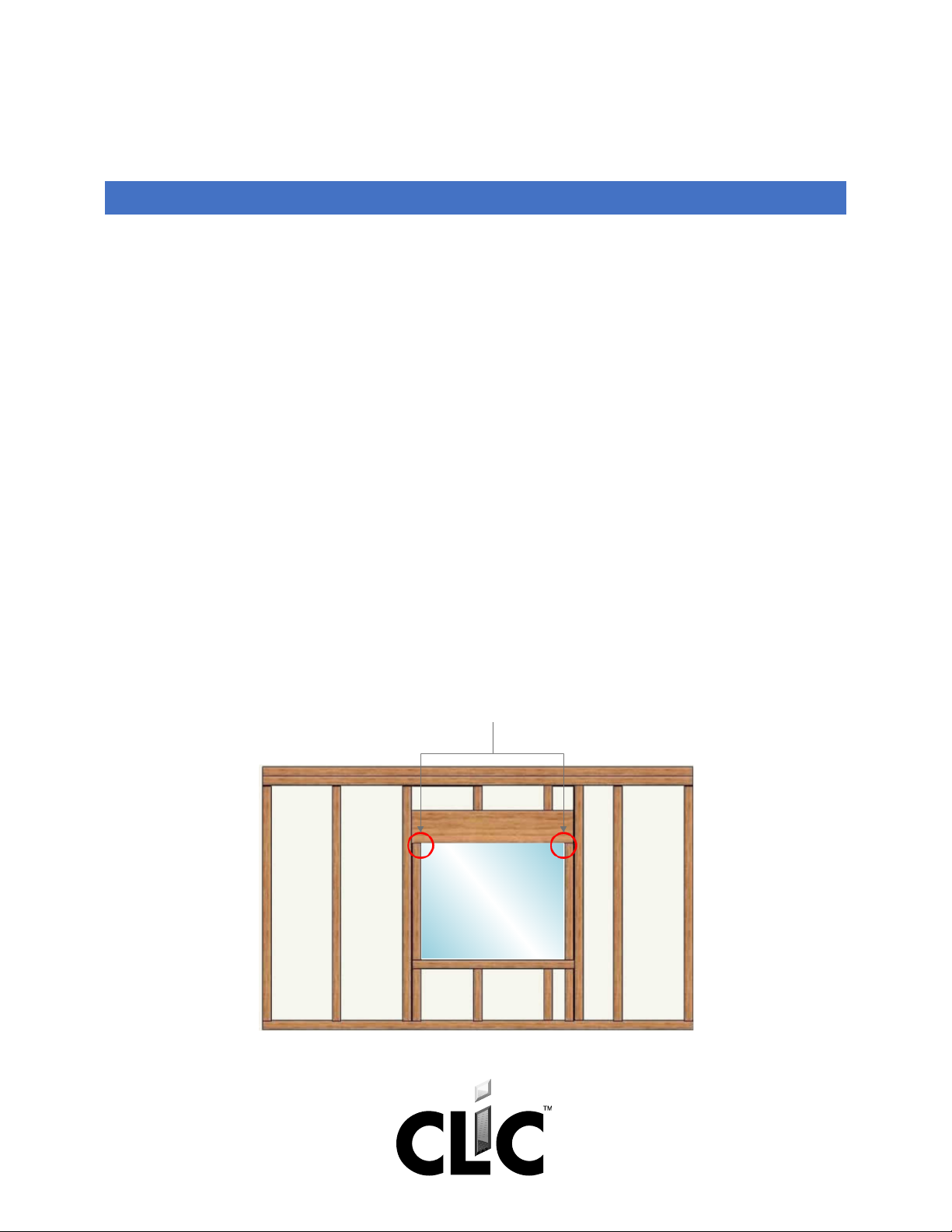

NOTE: CLiC glass can arrive in a Window or Door frame, or as a standalone panel. There will be 2 wires to connect
to the building wiring going to the Glass Output of the HC-198 Standalone Controller.
Example Wire Lead Locations
May differ
CLiC Glass Panel
Page 10 of 14
Rev. A
IMPORTANT: REMOVAL OF PROTECTIVE FILMS CAN PRODUCE ELECTRIC SHOCKS AND SPARKS WHICH COULD CAUSE
DAMAGE TO CONNECTED ELECTRONICS! ALL PROTECTIVE FILMS MUST BE REMOVED PRIOR TO THE CONNECTION OF THE
HC-198 STANDALONE CONTROLLER!
IMPORTANT: TO AVOID DAMAGE TO YOUR CLIC SMART GLASS PRODUCT, DO NOT PLACE OUTDOOR USE FURNISHINGS
WITHIN CLOSE PROXIMITY TO POOLS, PONDS, OR OTHER BODIES OF WATER.
DO NOT APPLY POWER PRIOR TO COMPLETING ALL WIRING CONNECTIONS AND TERMINATIONS!
