Caraudio-Systems CI-TF-NTG2 Manuel utilisateur

Version 30.09.2014 CI-TF-NTG2

TV-Free

Video-in-motion Interface

CI-TF-NTG2

For Mercedes Benz

Comand APS NTG2, NTG2.5, NTG4-204,

NTG4-212 and Comand Online NTG4.5

navigation systems

Legal Information

By law, watching moving pictures while driving is prohibited, the driver must not be

distracted. We do not accept any liability for material damage or personal injury resulting,

directly or indirectly, from installation or operation of this product. This product should only

be used while standing or to display fixed menus or rear-view-camera video when the

vehicle is moving, for example the MP3 menu for DVD upgrades.

Changes/updates of the vehicle’s software can cause malfunctions of the interface. We

offer free software-updates for our interfaces for one year after purchase. To receive a free

update, the interface must be sent in at own cost. Labor cost for and other expenses

involved with the software-updates will not be refunded.

Version 30.09.2014 CI-TF-NTG2

Page1

Contents

1. Prior to installation

1.1. Delivery contents

1.2. Check compatibility of vehicle and accessories

1.3. Setting the Dip-switches of the CAN-Box TV-500

1.3.1.1. Exception: Vehicles with Comand Online NTG4.5

1.4. Pin-assignments

2. Installation

3. Activation of the video-in-motion function

4. Specifications

5. Technical support

1. Prior to installation

Read the manual prior to installation. Technical knowledge is necessary for installation. The

place of installation must be free of moisture and away from heat sources.

1.1. Delivery contents

CAN-box TV-500

HW_____ SW_____

Harness

TV-NTG2

Take down the SW-version and HW-version of the interface-boxes, and store this

manual for support purposes!

Version 30.09.2014 CI-TF-NTG2

Page2

1.2. Check compatibility of vehicle and accessories

Requirements

brand

compatible vehicles

navigation system

Mercedes Benz

A-Class (W169) from 09/2004 til 06/2008, B-

Class (W245) from 09/2004 til 06/2008, C-Class

(W203) from 04/2004 til 02/2007, CLC-Class

(CL203) from 06/2008 til 09/2008, CLK-Class

(C209 W209) from 06/2004, G-Modell (G463)

from 04/2007 til 08/2008, GL-Class (X164) til

06/2008, ML-Class (W164) til 06/2008, R-Class

(W251) til 06/2008, Sprinter, Viano

Comand APS NTG2

A-Class (W169) from 07/2008, B-Class (W245)

from 07/2008 til 10/2011, CLS-Coupe (W219)

from 04/2008 til 12/2010, E-Class (W211) from

06/2008 til 03/2009, G-Modell (G463) from

09/2008, GL-Class (X164) from 07/2008, ML-

Class (W164) from 07/2008 til 10/2011, R-Class

(W251) from 07/2008, SL-Class (R230) from

04/2008, SLK-Class (R171) from 04/2008 til

02/2011, Viano

Comand APS NTG2.5

C-Class (W204) from 03/2007 til 02/2011, CLC-

Class (CL203) from 09/2008, GLK-Class (X204)

from 09/2008, SLS (C197) from 03/2010

Comand APS NTG4-204

E-Class (W212) from 04/2009 til 05/2011, E-

Class Coupe (W207) from 05/2009 til 05/2011,

CLS-Coupe (C218) from 01/2011 til 05/2011

Comand APS NTG4-212

A-class (W176) from 07/2012, B-class (W246)

from 11/2011 til about end of 2014, C-class

(W204) from 03/2011, C-class Coupe (C204)

from 06/2011, CLA-Coupe (C117) from 01/2013,

CLS-Coupe (C218) from 06/2011, E-class

(S/W212) from 06/2011 til about 10/2014, E-

class Coupe (C207) from 06/2011, G-model

(G463) from 07/2012, GL-class (X166) from

11/2012, GLA-class (X156) from 09/2013, GLK-

class (X204) from 01/2011, ML-class (W166)

from 11/2011, SLK-class (R172) from 03/2011,

SL-class (R231) from 2012

Comand Online NTG4.5

Crafter

Comand APS NTG2

Limitations

Comand APS NTG2.5 While the video-in-motion function is active, the navigation will

not work!

Comand Online NTG4.5 On some vehicles the navigation will not work while the video-

in-motion function is active. This can only be detected by a test

drive with built-in TV-free!

Version 30.09.2014 CI-TF-NTG2

Page3

1.3. Setting the Dip-switches of the Can-Box TV-500

Vehicle/ navigation

Dip 1

Dip 2

Dip 3

Dip 4

Dip 5

Dip 6

Vehicles with NTG2/NTG4-xxx*

OFF

Vehicles with NTG2.5

OFF

* With dip1 to OFF on vehicles with NTG2/NTG4-xxx the included green cable is used to

activate the video-in-motion function.

Note: Dip switch functions of the TV-500

Dip 1 –activation TV-free

Dip 2 –no function

Dip 3 –no function

Dip 4 –no function

Dip 5 –CAN-bus termination resistor on the vehicle side

Dip 6 –CAN-bus termination resistor on the head-unit side

1.3.1. Exception: Vehicles with Comand Online NTG4.5

On some vehicles with Comand Online NTG4.5 the navigation performance is affected as

long as the video-in-motion function is activated. This can only be detected by a test drive

with built-in TV-free with Dip 1 to ON!

If the navigation performance is affected you have to set Dip 1 to OFF. As long as the video-

in-motion function is activated, the navigation will NOT be working! You can activate and

deactivate the video-in-motion function by pressing a button (see chaper “Activation of the

video-in-motion function”).

Vehicle/ navigation

Dip 1

Dip 2

Dip 3

Dip 4

Dip 5

Dip 6

NTG4.5 with TV-free pemanent

OFF

NTG4.5 with TV-free selective

(hang-up button)

OFF

Note: It is possible to install the TV-free on vehicles with Comand Online NTG4.5 with

selective activation generally.

Version 30.09.2014 CI-TF-NTG2

Page4

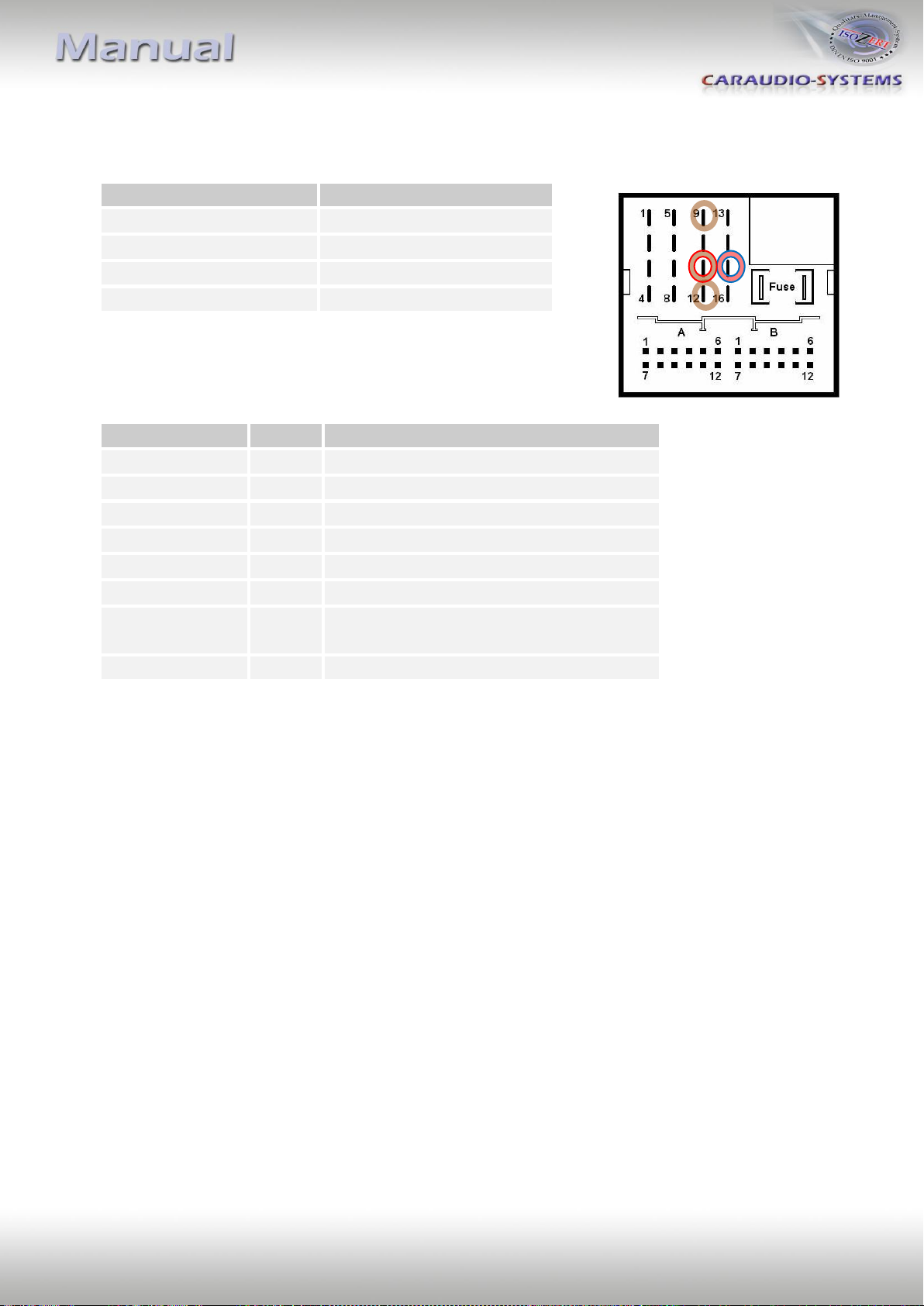

1.4. Pin-assignments

Pin-assignment vehicle connector

Pin-assignment of the CAN-Box TV-500 (Molex 8pin)

Cable colour

Pin-No.

Assignment

●Yellow

Pin 4

CAN-HIGH –connection to the head-unit

●Blue

Pin 3

CAN-LOW –connection to the head-unit

●●Yellow/Black

Pin 8

CAN-HIGH –connection to the vehicle

●●Blue/Black

Pin 7

CAN-LOW –connection to the vehicle

●Red

Pin 1

+12V permanent

●Black

Pin 5

Ground

●Green

Pin 6

Activation of the video-in-motion function

(+12V = TV-free activated)

●White

Pin 2

Trigger output (+12V DC 500mA)

Cable colour

Assignment

●●Red/Blue

+12Volt Permanent 15

●Brown

Ground Pin 12

●●Brown/Red

CAN HIGH Pin 11

●Brown

CAN LOW Pin 9

Version 30.09.2014 CI-TF-NTG2

Page5

2. Installation

Switch off ignition and disconnect the vehicle’s battery! If according to factory rules

disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle is

sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a

resistor lead.

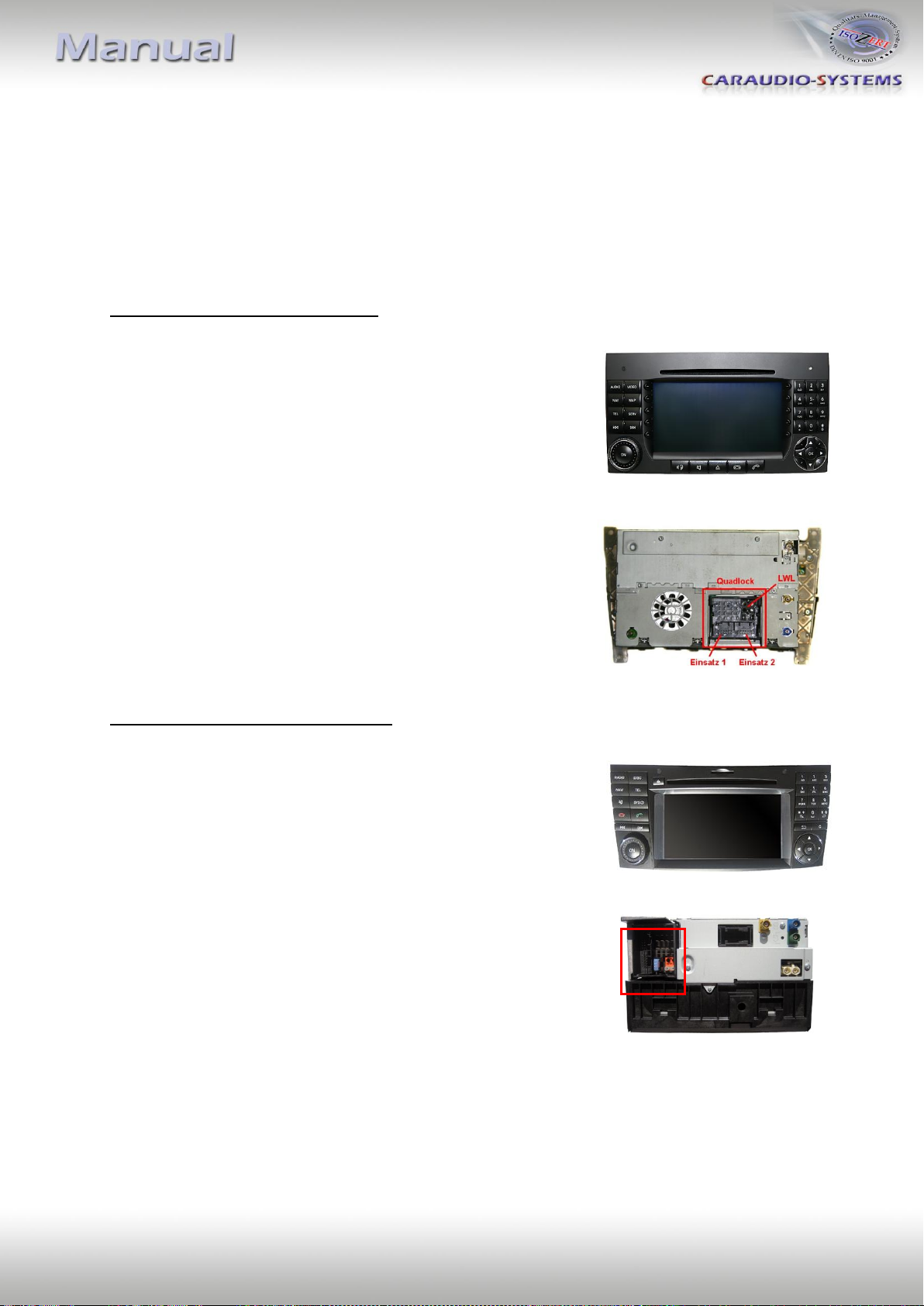

Instruction for vehicles with NTG2:

1. Remove all covers of the navigation computer.

2. Remove the 4 screws of the navigation computer and pull it

out.

3. RemoveQuadlock connector from the navigation computer

and connect it to Harness TV-NTG2.

4. Remove the both 12pin inserts from the original Quadlock

connector and connect them together with the optical leads

to the Harness TV-NTG2. Connect the TV-NTG2 to the

navigation computer.

Instruction for vehicles with NTG2.5:

1. Remove the navigation computer from the centre console.

2. RemoveQuadlock connector from the navigation computer

and connect it to Harness TV-NTG2.

3. Remove the both 12pin inserts from the original Quadlock

connector and connect them together with the optical leads

to the Harness TV-NTG2. Connect the TV-NTG2 to the

navigation computer.

NTG2.5

NTG2

Version 30.09.2014 CI-TF-NTG2

Page6

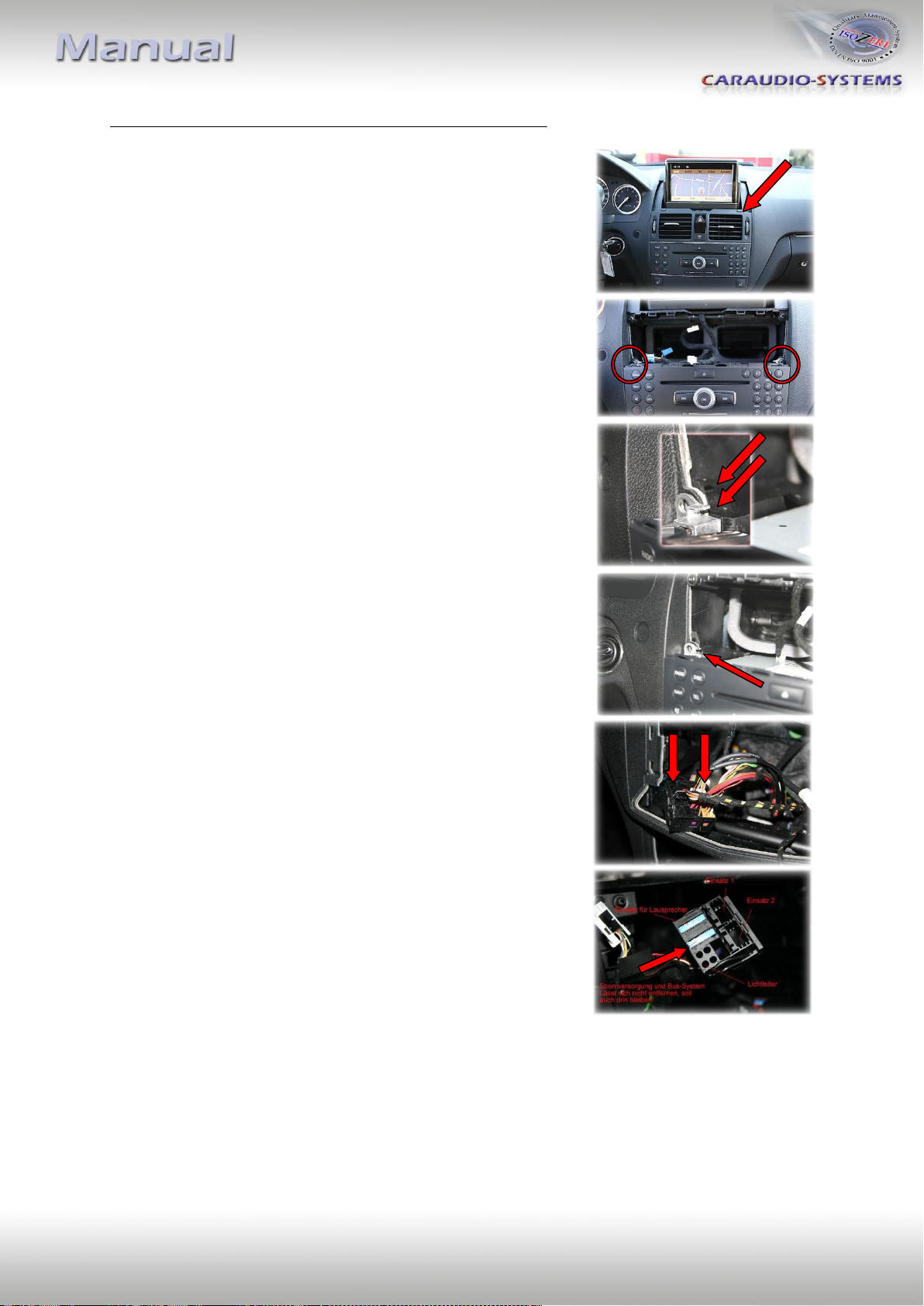

Instructions for vehicles with NTG4-2xx (NTG4.5 similar):

1. Remove the centre air nozzle unit with the accordant

tool kit.

2. Remove both TORX-screws.

3. Slide upward the interlock behind the removed TORX

screws and pull out the navigation computer.

(In the right picture the interlock is closed!)

….In this picture the interlock is open.

4. Remove Quadlock connector from the navigation computer

and connect it to Harness TV-NTG2.

5. Remove the both 12pin inserts from the original Quadlock

connector and connect them together with the optical leads

to the Harness TV-NTG2. Connect the TV-NTG2 to the

navigation computer.

Version 30.09.2014 CI-TF-NTG2

Page7

3. Activation of the video-in-motion function

On vehicles with Comand APS NTG2/NTG4-2xx and on some vehicles with Comand Online

NTG4.5 the video-in-motion function is activated permanently without disturbing the

navigation performance.

On vehicles with Comand APS NTG2/NTG4-2xx the video-in-motion can be activated and

deactivated by Dip 1 or alternatively by the included loose green cable in connection with a

switch (not included in delivery).

Video-in-motion permanent

With dip1 to ON the video-in-motion function is activated permanently without disturbing

the navigation performance.

Video-in-motion selective

With dip1 to OFF the included green cable is used to activate the video-in-motion function.

Connect a switch to the green cable and connect the green cable to +12V ACC.

●+12V = TV-Free is activated

●0V = TV-Free is not activated

Note: The loose white cable is not required and must be isolated.

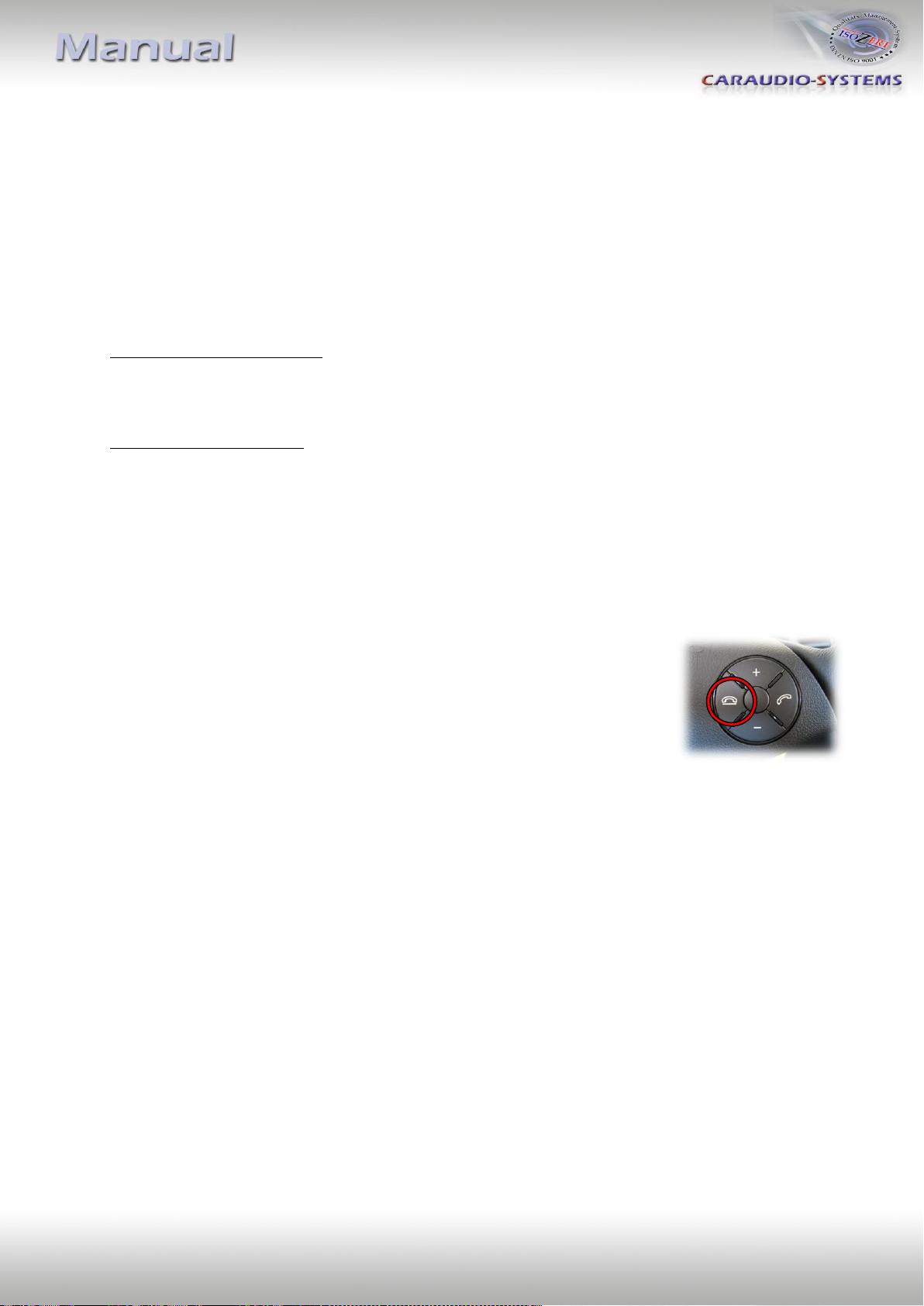

On vehicles with Comand APS NTG2.5 and on some vehicles with

Comand Online NTG4.5 select the “navigation mode” on the instrument

and press the “hang-up”-button on the steering-wheel for more than 3

seconds to activate/deactivate the video-in-motion function. When the

ignition is off, the video-in-motion interface will be automatically

disabled.

Note: As long as the video-in-motion function is activated, the navigation of the command

will NOT be working! The loose white and green cable are not required and must be isolated.

Version 30.09.2014 CI-TF-NTG2

Page8

4. Specifications

Operation voltage 10.5 –14.8V

Stand-by power drain <2mA

Operation power drain ~60mA

Power consumption ~0,08W

Temperature range -30°C to +80°C

Weight 44g

Measurements (box only) W x H x D 76 x 27 x 54 mm

5. Technical support

Caraudio-Systems Vertriebs GmbH

manufacturer/distribution

Rheinhorststr. 22

D-67071 Ludwigshafen am Rhein

phone +49 180 3 907050

email [email protected]

Legal disclaimer: Mentioned company and trademarks, as well as product names/codes are registered

trademarks ® of their corresponding legal owners.

Table des matières

Autres manuels Caraudio-Systems Équipement d'enregistrement

Caraudio-Systems

Caraudio-Systems c.LOGiC lite C1-MFD3 Manuel utilisateur

Caraudio-Systems

Caraudio-Systems c.LOGiC C1-RNSE Manuel utilisateur

Caraudio-Systems

Caraudio-Systems c.LOGiC C2-RNSE Manuel utilisateur

Caraudio-Systems

Caraudio-Systems usbLOGiC USB-RNSE Manuel utilisateur

Caraudio-Systems

Caraudio-Systems TF-MYGIG Manuel utilisateur

Caraudio-Systems

Caraudio-Systems c.LOGiC lite C1-CCC Manuel utilisateur

Caraudio-Systems

Caraudio-Systems z.LiNK ZL-MYGIG Manuel utilisateur

Caraudio-Systems

Caraudio-Systems TV-Free TF-PCM21 Manuel utilisateur

Caraudio-Systems

Caraudio-Systems AUX-101 Manuel utilisateur

Manuels Équipement d'enregistrement populaires d'autres marques

KV2 Audio

KV2 Audio 500 Series Manuel utilisateur

Robotics Technologies

Robotics Technologies microBus-Cam II Manuel utilisateur

Seca

Seca 460 Manuel utilisateur

Cognex

Cognex MVS-8000 Series Manuel utilisateur

Mect

Mect MPNC006 Series Manuel utilisateur

Bad Caf

Bad Caf THE LEASH Manuel utilisateur

Strymon

Strymon NIGHTSKY Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Manuel utilisateur

Tews Technologies

Tews Technologies TPMC465 Manuel utilisateur

Honeywell

Honeywell Excel 50 Manuel utilisateur

SeaLevel

SeaLevel COMM+8.LPCI Manuel utilisateur

Arturia

Arturia AUDIOFUSE STUDIO Manuel utilisateur

Rukra

Rukra RK-1240 Manuel utilisateur

Samson

Samson SCOM Manuel utilisateur

Dynacord

Dynacord DPS260 Manuel utilisateur

Nice

Nice Core Manuel utilisateur

Pyle Pro

Pyle Pro PSS8 Manuel utilisateur

RF-System

RF-System TinyGate Manuel d'utilisation et d'entretien
