Caraudio-Systems RL-MFD1 Manuel utilisateur
Version 04.11.2022 RL-MFD1
r.LiNK-Interface
RL-MFD1
Audio-video-input
compatible with navigation systems
Volkswagen MFD1 and Audi Navigation Plus
AV-input to connect any AV-source or rear view camera
to the factory navigation system
Version 04.11.2022 RL-MFD1
Page1"
Contents
1. Prior to installation

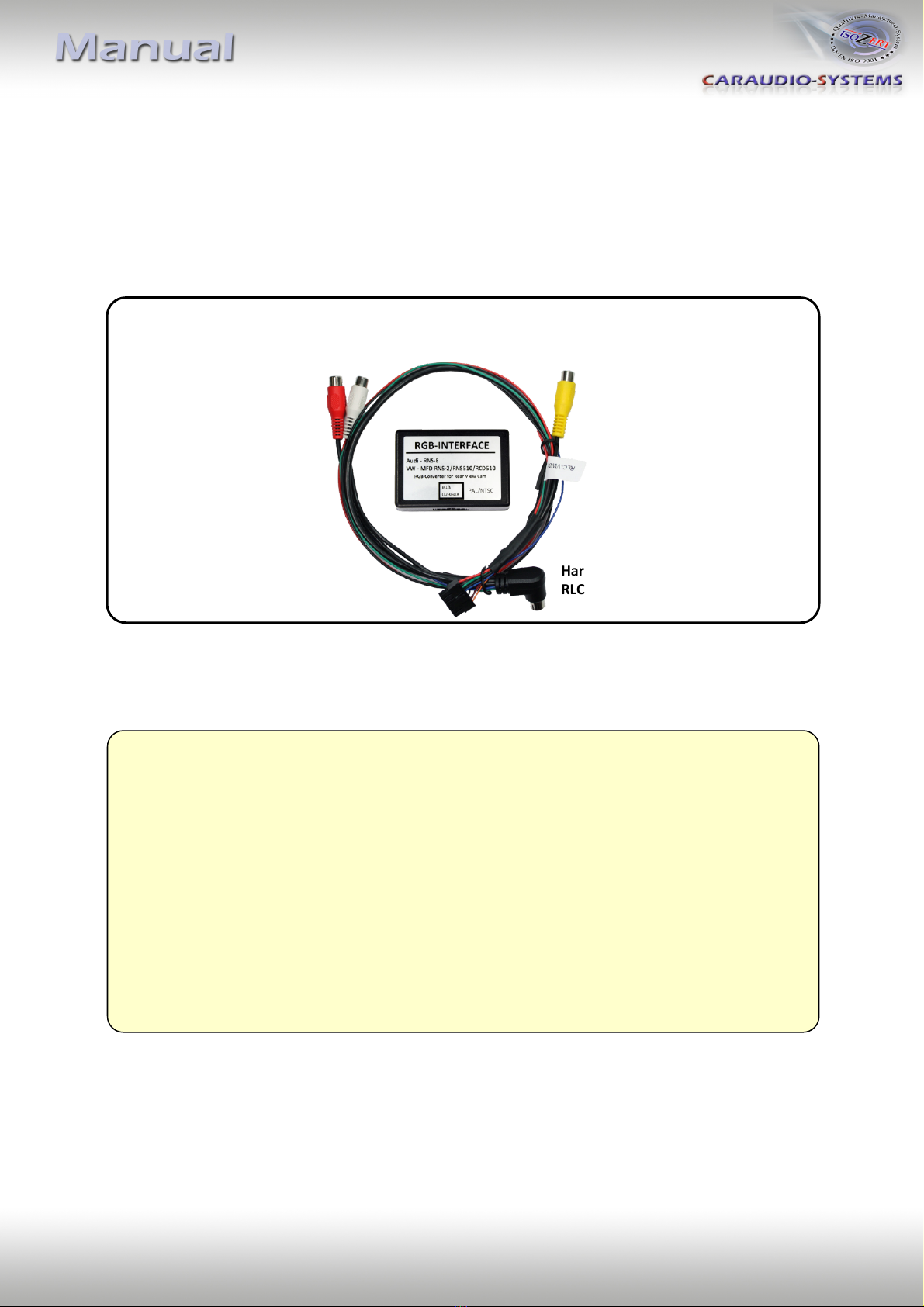

1.1. Delivery contents
1.2. Check compatibility of vehicle and accessories
2. Connection schema
3. Installation
3.1. Interconnecting Interface-box, harness and head-unit
3.2. Connection to AV-source or after-market rear-view camera
3.3. Activation of the interface as a current AV-source
3.4. Rear-view camera function
4. Specifications
5. Technical Support
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle’s software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.
Version 04.11.2022 RL-MFD1
Page2"
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
place of installation must be free of moisture and away from heat sources.
1.1. Delivery contents
1.2. Check compatibility of vehicle and accessories
Interface-box
RLC-M02
HW_____ SW_____
Harness
RLC-VN01
Take down the SW-version and HW-version of the interface boxes, and store this
manual for support purposes.
Requirements
Vehicle Volkswagen
Navigation VW MFD1 (4:3), Audi Navigation Plus (4:3)
Limitations
Factory-TV-tuner Must NOT be installed
Factory-rear-view- camera Must NOT be installed
Video-source Interface is initialized to PAL
Automatic camera switching Not possible with all VW MFD1 versions,
generally not possible with Audi Navigation Plus
Version 04.11.2022 RL-MFD1
Page3"

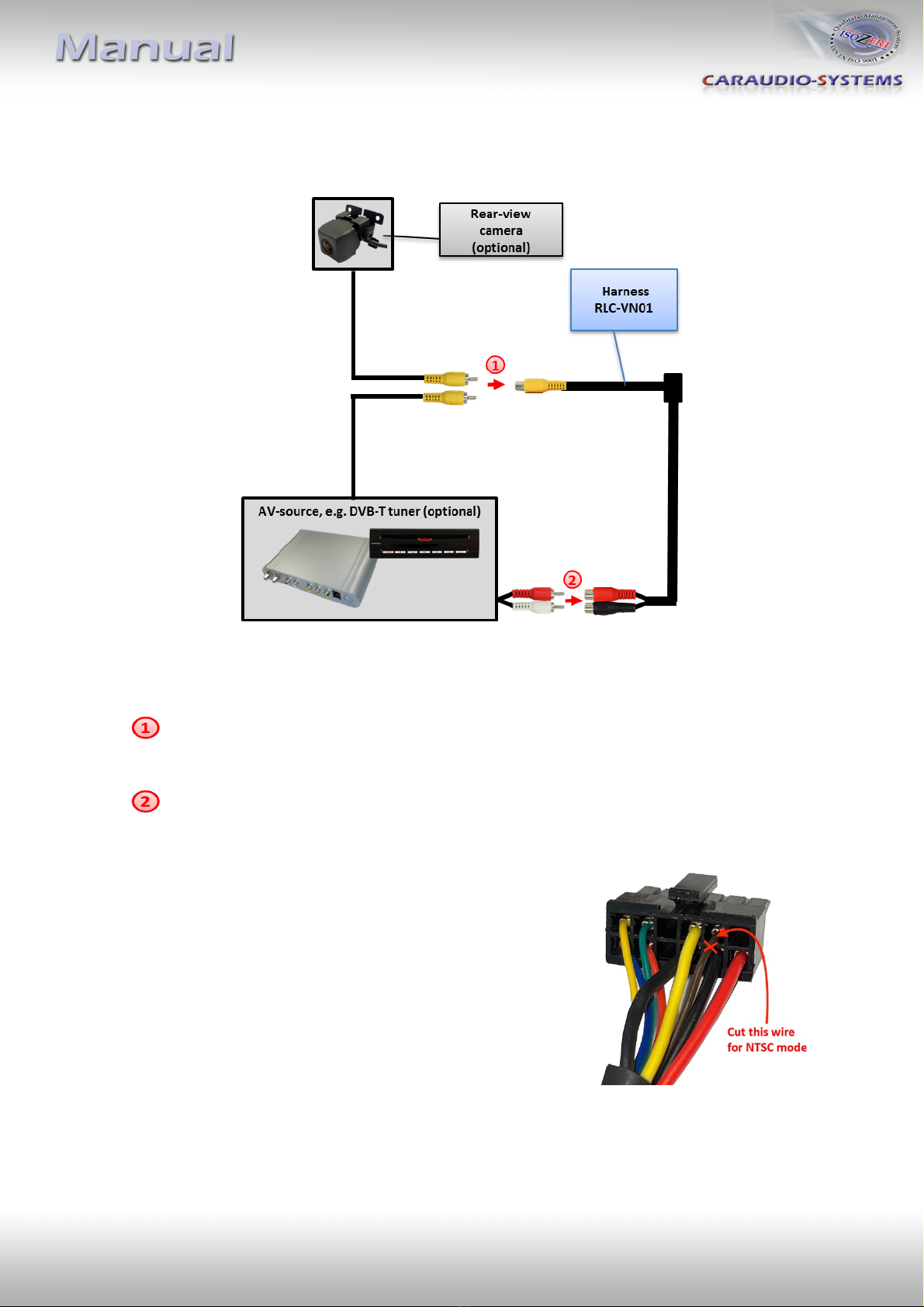

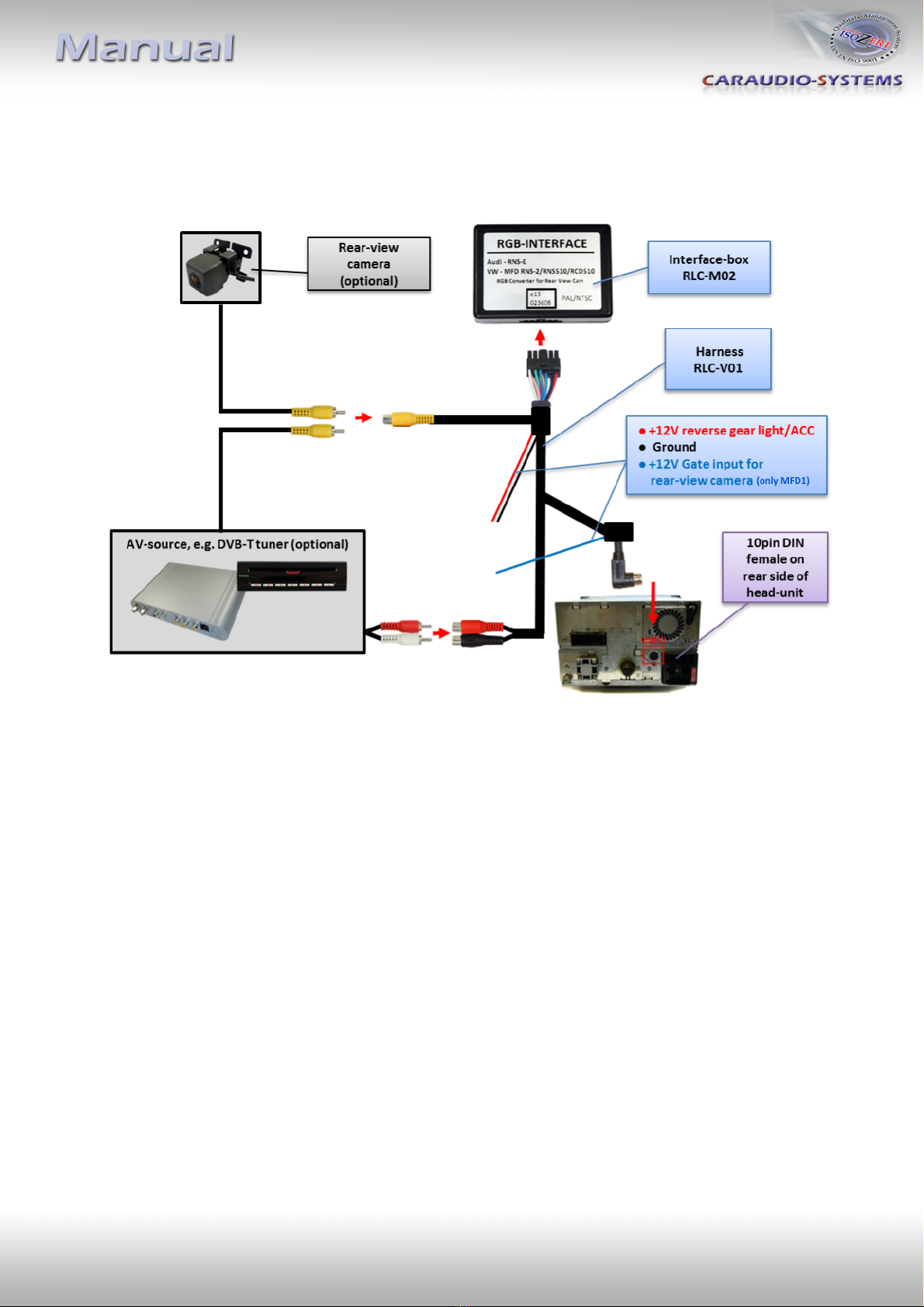

2. Connection schema
3. Installation
Switch off ignition and disconnect the vehicle’s battery! If according to factory rules
disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle in
sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a
resistor lead.
Place of installation is behind the head-unit.
Version 04.11.2022 RL-MFD1
Page4"

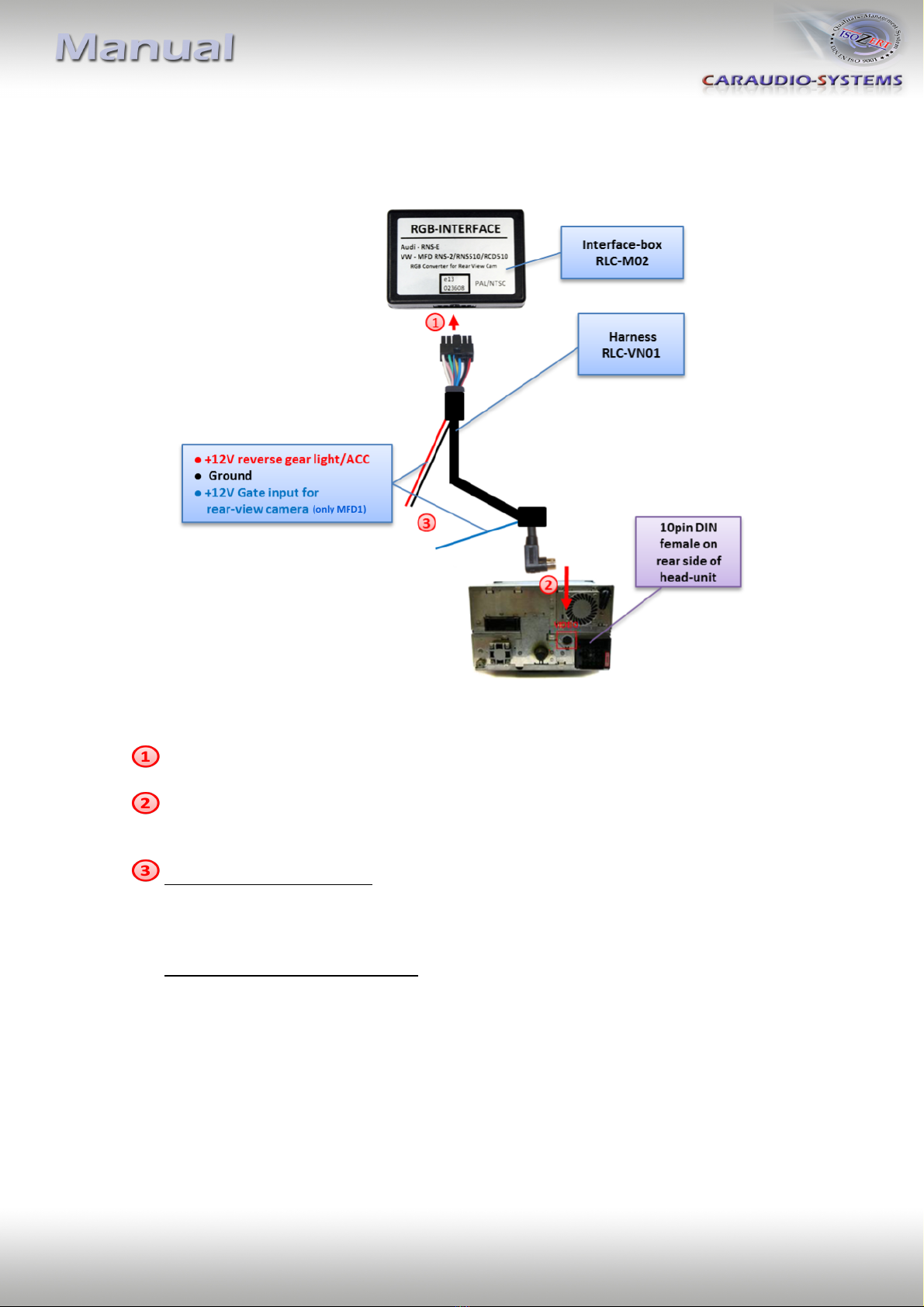

3.1. Interconnecting Interface-Box, harness and head-unit
Plug harness RLC-VN01 into 12pin Molex of Interface-box RLC-M02.
Plug male 10pin DIN-connector of RLC-VN01 into female 10pin DIN-connector of
head-unit.
If connecting an AV-source:
Connect red wire of harness RLC-VN01 to +12V ACC and black wire of harness
RLC-VW02 to ground. Connect the blue wire to +12V ACC by using the interface with
Audi Navigation Plus, do not connect the blue wire with VW MFD1.
If connecting a rear-view camera:
Connect red and blue wire of harness RLC-VN01 to +12V reverse gear light (we
suggest to connect through relais to avoid signal noise) and black wire of harness
RLC-VW02 to ground.
Note: If the female 10pin DIN-connector of the head-unit is already occupied, the vehicle has
a factory TV-tuner. In this case it must be uninstalled: disconnect the male 10pin DIN-
connector of the factory harness and disconnect all wires from the factory TV-tuner.
Version 04.11.2022 RL-MFD1
Page5"
3.2. Connections to AV-source or after-market rear-view camera
Connect the video RCA of the AV-source or the after-market rear-view camera to
female video RCA-connector of harness RLC-VN01.
If connecting an AV-Source, connect the audio RCA of the AV-source to female audio
RCA-connector of harness RLC-VN01.
Note: The interface is initialized to PAL. Cut and isolate both
ends of the brown cable of harness RLC-VN01 if you want to
connect a NTSC-source.
Version 04.11.2022 RL-MFD1
Page6"
3.3. Activation of the interface as a current AV-source

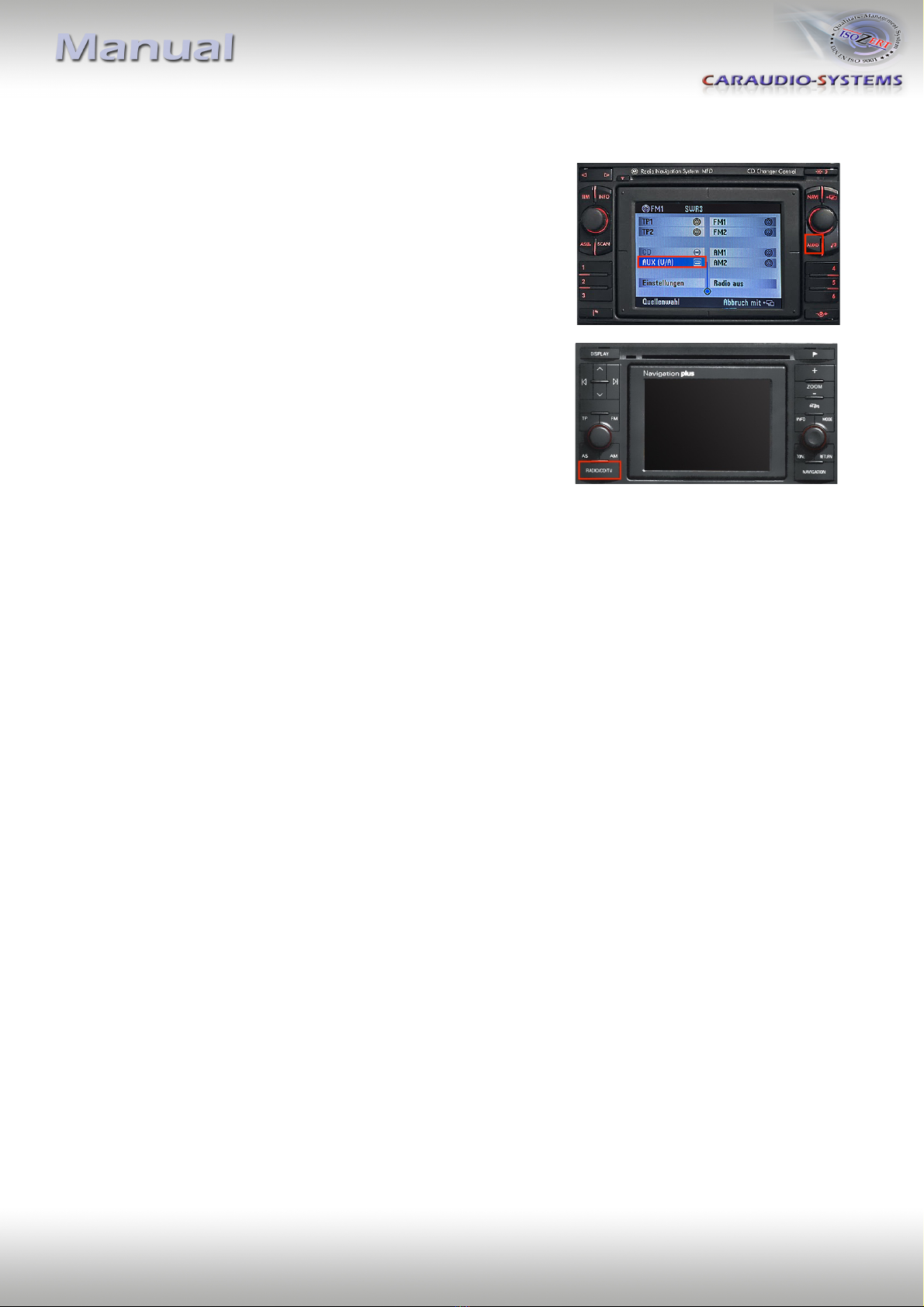

MFD1: Press AUDIO button and select menu „AUX (V/A)“.
Navigation Plus: Press RADIO/CD/TV button.
3.4. Rear-view camera function
With some VW MFD1 versions and with Audi Navigation Plus is a automatic rear-view
camera activation not possible. In these cases, the rear-view camera image must be
activated manually (see chapter "3.3 Activating the interface as the current AV source").
Version 04.11.2022 RL-MFD1
Page7"
4. Specifications
Operation voltage 10.5 – 14.8V DC
Stand-by power drain 0mA
Operation power drain 200mA
Power consumption 2.8W
Temperature range -30°C to +80°C
Weight 53g
Measurements (box only) B x H x T 72 x 23 x 50mm
5. Technical Support
Caraudio-Systems Vertriebs GmbH
manufacturer/distribution
In den Fuchslöchern 3
D-67240 Bobenheim-Roxheim
email [email protected]
