Car Solutions QVL-E65-V2 Manuel utilisateur

Video Interface for BMW E65

Specification & InstallationSpecification & Installation

Compatible with BMW 7 Series(E65/66)

Last updated: 2011.08.18Last updated: 2011.08.18

Model : Model : QVLQVL--E65E65--V2 V2 / Product code : / Product code : BMBM--09010901--652652

www.car-solutions.com [email protected]

Car-Solutions.com

Contents

www.car-solutions.com 2

3. Installation

3.1 Cautions on installation

3.2 CAN Installation

3.3 Installation

4. Troubleshooting 21

1. Before installation

1.1 Main specification

1.2 Features

1.3 System diagram

1.4 Components

1.5 Exterior

1.6 POWER cable

2. Setup

2.1 DIP switch

2.2 Keypad usage

2.3 Remote control usage

2.4 Factory mode

2.5 OSD (on screen display)

2.6 Parking guide line

2.7 BMW Handle button NAVI setting

2.8 FMTX Frequency Setting

Car-Solutions.com

1.1 Main specification

www.car-solutions.com 3

1. Input Spec. (MULTI VIDEO INTERFACE)

-. 1 x Analog R,G,B (Sync on Green)

-. 1 x CVBS(REAR CAMERA) Input. (Rear camera source)

- 3 x A/V (NTST & PAL) Input.

-. 1 x LCD Input (Car system Input)

2. Output Spec.

-. 2 X CVBS OUTPUT (Video Out for installing Headrest monitor)

-. 1 x Audio OUTPUT

-. 1 X LCD OUTPUT(LCD Operation)

3. Electric Power Consumption

- Input Power : 8VDC ~ 24VDC

- Consumption Power : 12WATT, Max

4. Switching Mode (AV source)

- Possible to skip AV source while switching Mode (AV source) by DIP S/W

(Refer to the DIP S/W page)

- By ‘SET’ button of the OSD Keypad

- By Toggle Switch (Option)

- By ‘Menu’ button of the car through CAN

※ This function may not support E65 old version which is without “Menu button”

Car-Solutions.com

1.2 Features

www.car-solutions.com 4

- FMTX Module is added in the product. (No need additional FMTX

Module for Audio)

- Offering OSD Key Pad

(The remote control is not offered anymore)

- Possible to move the displayed position of Navi (Only on RGB mode)

- Changed OSD MENU

Car-Solutions.com

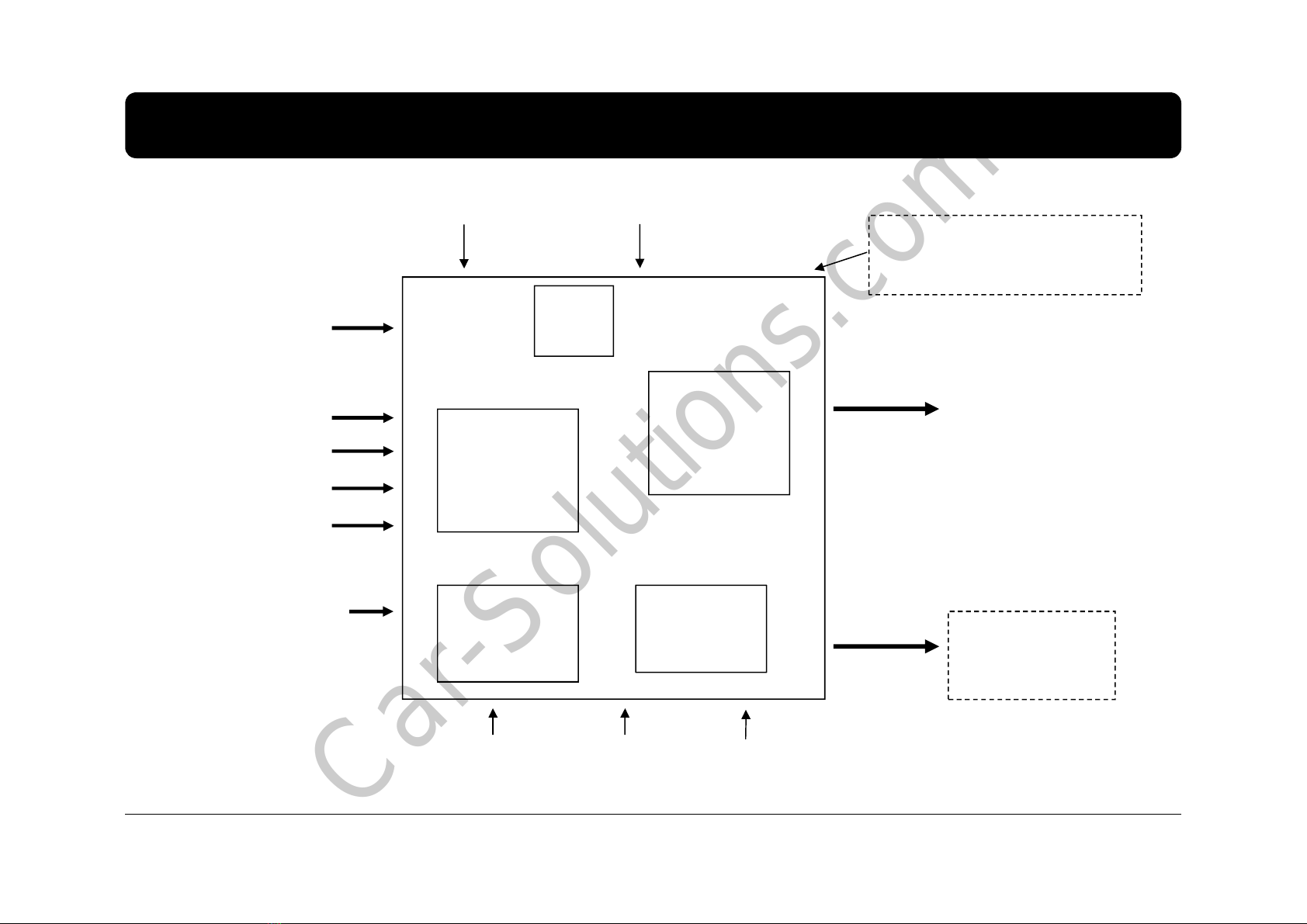

1.3 System diagram

www.car-solutions.com 5

DISPLAY

(CAR MAIN BOARD)

A/V 1

NAVIGATION Input

(Analog RGB)

CVBS IN

(Rear camera)

Car Screen Input

A/V 2

A/V 3

VIDEO

CIRCUIT

VIDEO MUX

MCU

Power Input

(+8VDC ~ +18VDC)

POWER

CIRCUIT

Dip S/W

A/V OUT

HEADREST

MONITOR

OSD Keypad Switch for source toggle

OEM NAVI Button (Can Interface)

Car Installation

OEM LCD

Rear Camera

FMTX

(Video out 2

Audio L, R1)

Car-Solutions.com

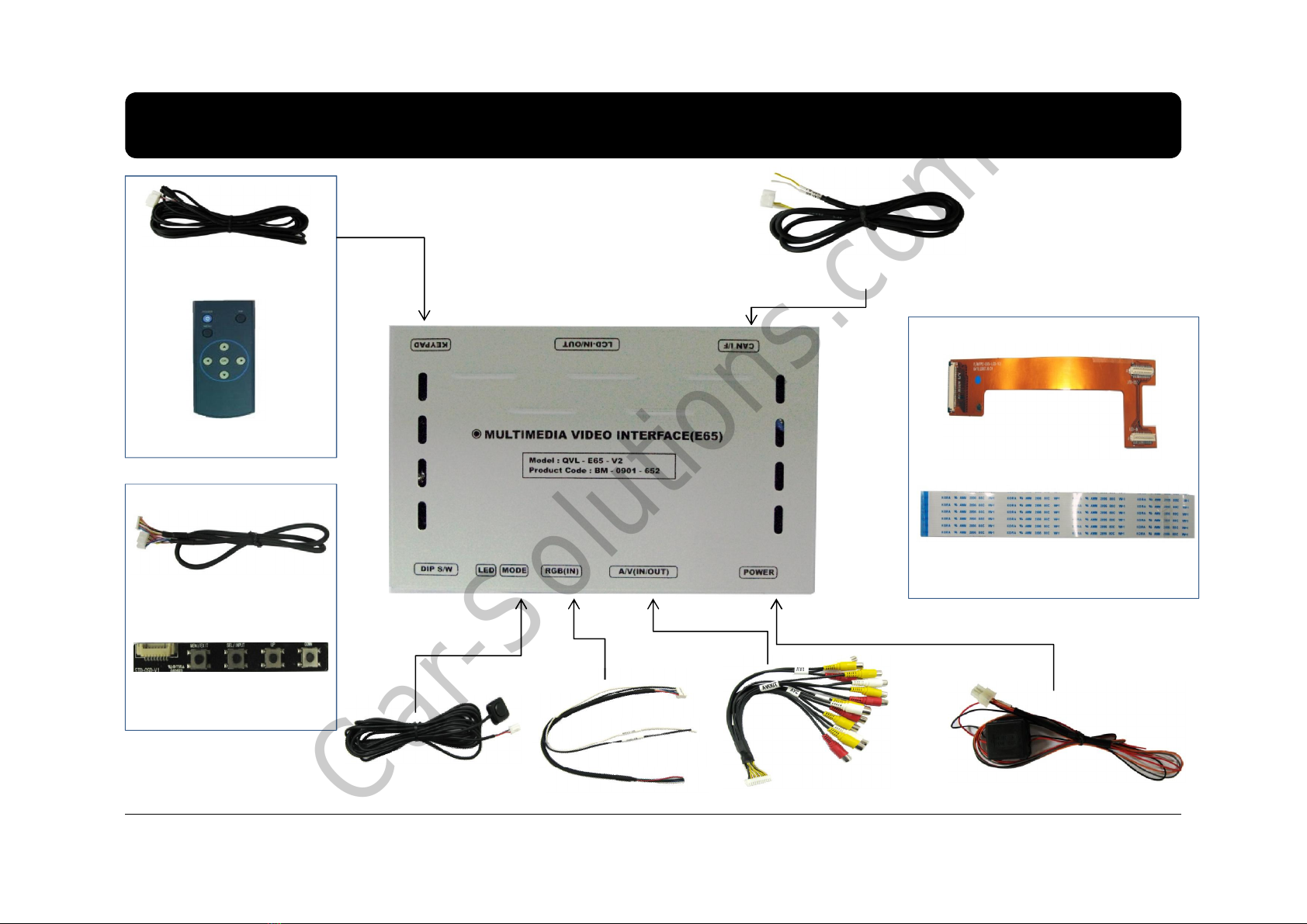

1.4 Components

www.car-solutions.com 6

POWER cable (6P) * 1eaAV cable * 1ea

MODE cable * 1ea

CAN cable * 1ea

Keypad * 1ea

Ground cable * 1ea

IR cable (8P) * 1ea

Remote control * 1ea FPC cable * 1ea

FFC cable (50P) * 1ea

RGB cable * 1ea

Car-Solutions.com

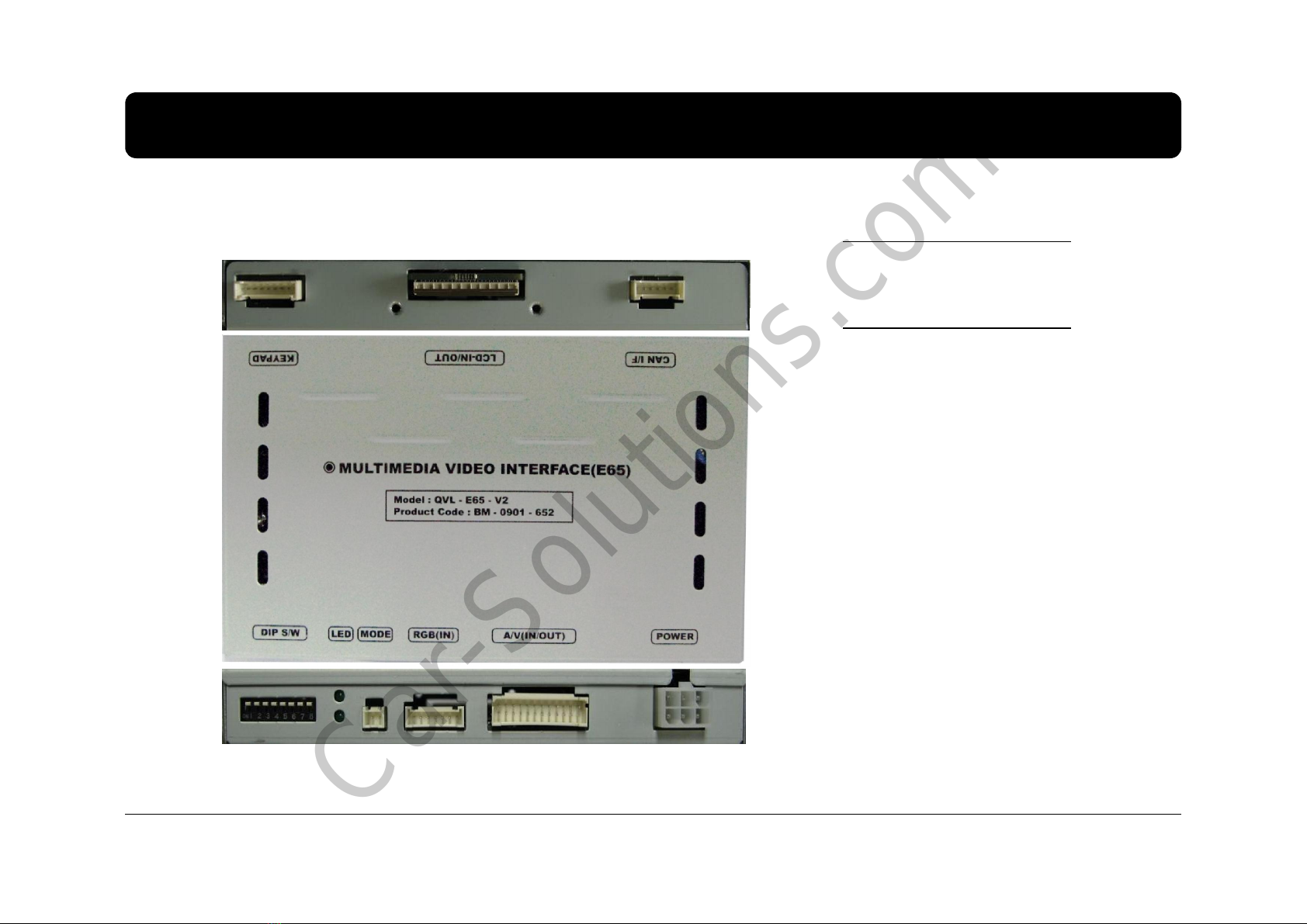

1.5 Exterior

www.car-solutions.com 7

① ② ③ ④ ⑤ ⑥

⑦ ⑧ ⑨

① DIP switch

② LED

③ MODE

④ RBG IN

⑤ A/V(IN/OUT)

⑥ POWER

⑦ KEYPAD

⑧ LCD IN/OUT

⑨ CAN I/F

Dimension

Horizontal length 149mm

Vertical length 91mm

Height 19mm

Car-Solutions.com

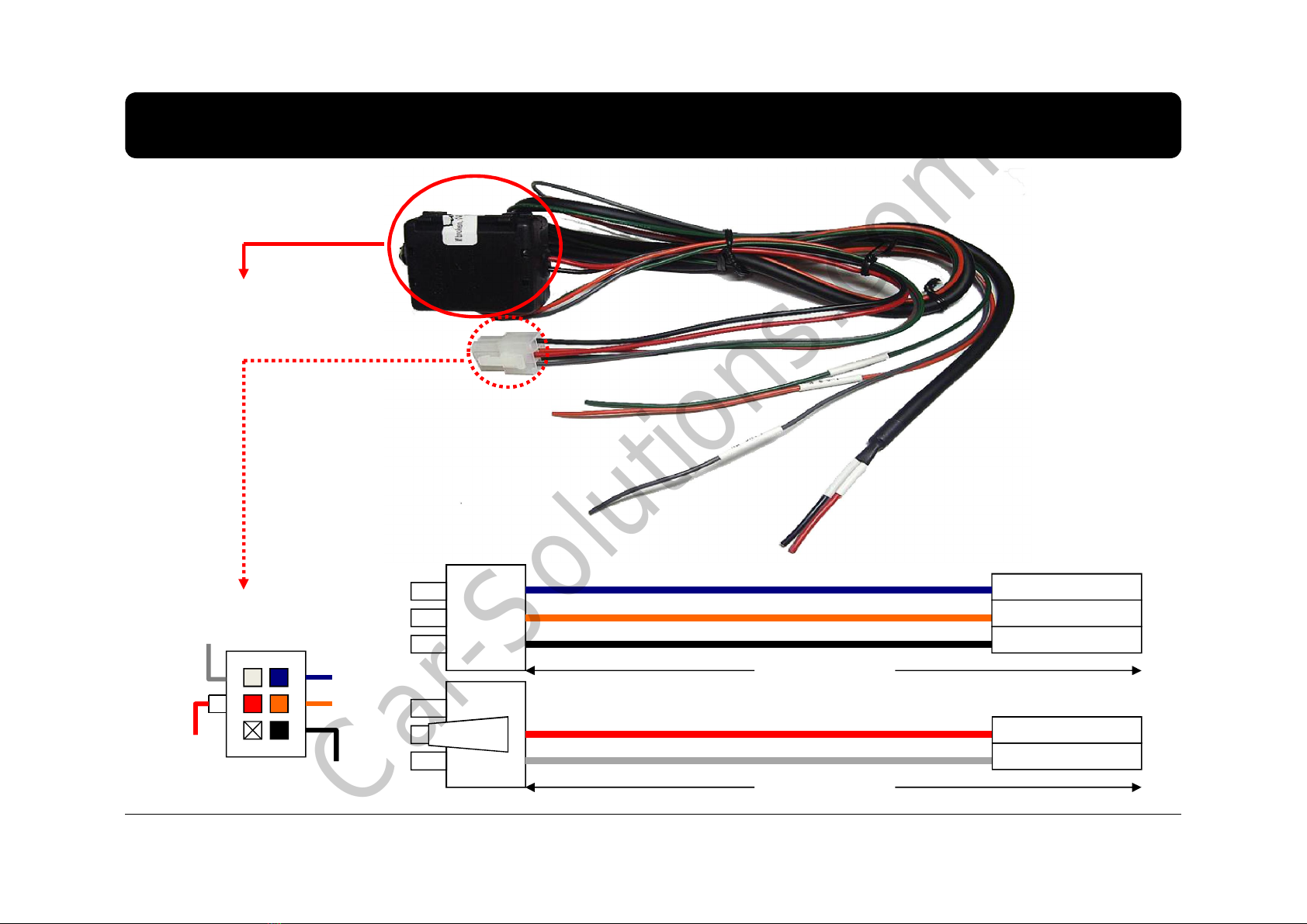

1.6 POWER cable

www.car-solutions.com 8

Blue

FMTX

I - DRV

GND

LAMP - RV

ACC

990mm

FILTER

& FUSE BOX

주황색

검정색

빨강색

회색

Red

Gray

Orange

Black

파란색

990mm

Car-Solutions.com

2.1 DIP switch

www.car-solutions.com 9

#PIN FUNCTION DIP S/W Selection

1 RGB INPUT MUTE ON : Skipping RGB Mode

OFF : RGB Display

2 A/V 1 MUTE ON : Skipping A/V 1

OFF : A/V1 Display

3 A/V 2 MUTE ON : Skipping A/V 2

OFF : A/V2 Display

4 A/V 3 MUTE ON : Skipping A/V 3

OFF : A/V3 Display

5 To select monitor size ON : 6.5” LCD Setting

OFF : 8.8” LCD Setting

6 N.C

7 Rear Mode ON : External Rear Camera

OFF : OEM Rear Camera

8N.C

※ ON : DOWN / OFF : UP

Car-Solutions.com

2.1 DIP switch

www.car-solutions.com 10

※DIP S/W Use Example

[BMW E65-6.5 Inch]

-. Use Input Mode : A/V3(DVD), Navigation (RGB)

-. Rear Camera : When to be installed on CVBS 4

▷ DIP S/W : 1 OFF

▷ DIP S/W : 2,3 ON

(INPUT MODE SKIP)

▷ DIP S/W : 4 OFF (enable A/V3)

▷ DIP S/W : 5 ON (6.5 Inch)

▷ DIP S/W : 6 OFF

▷ DIP S/W : 7 ON (enable CVBS4)

▷ DIP S/W : 8 OFF

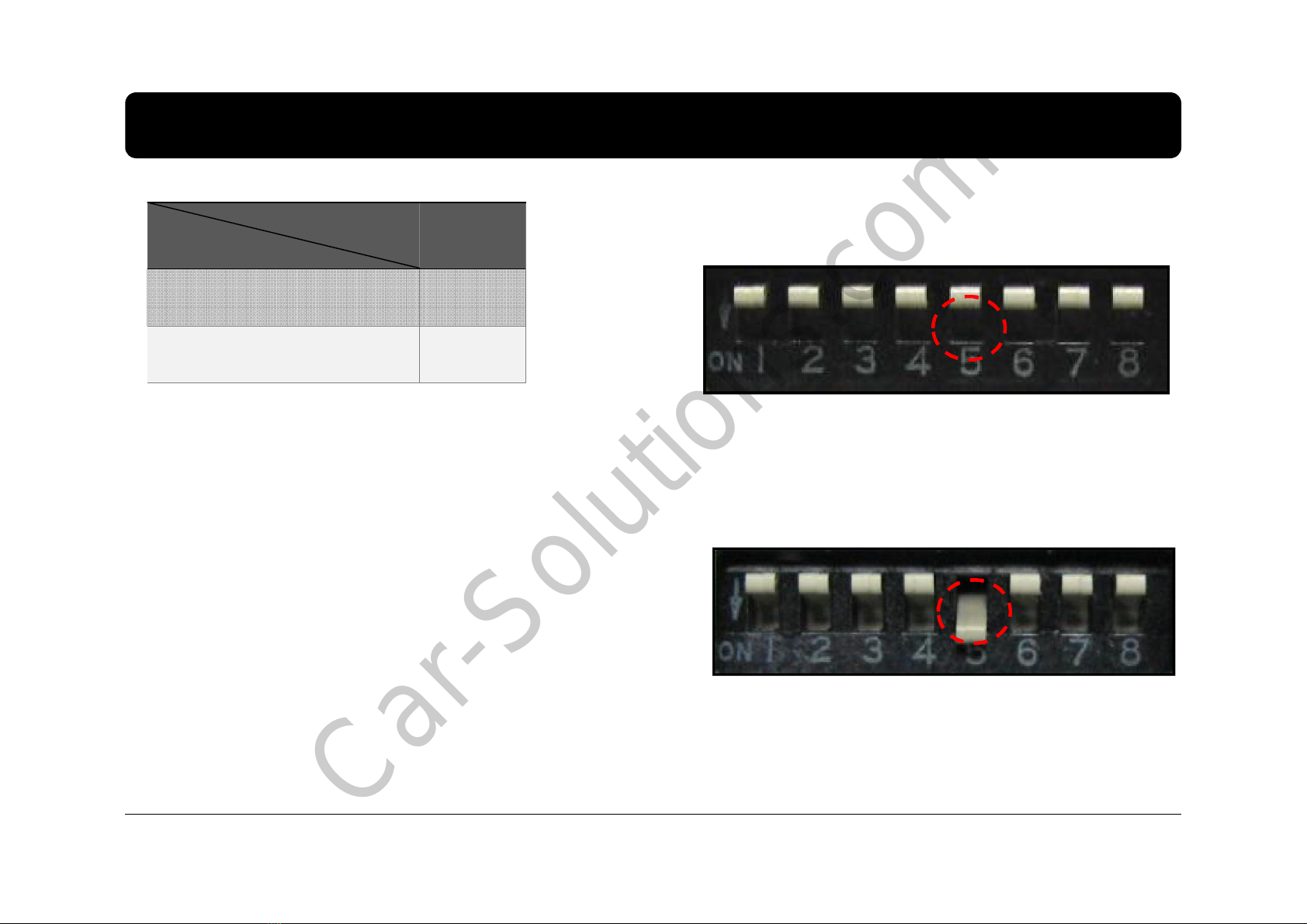

[E65 8.8 Inch]

[E65 6.5 Inch]

#PIN

Type of monitor 5

E65 8.8” OFF

E65 6.5” ON

Car-Solutions.com
