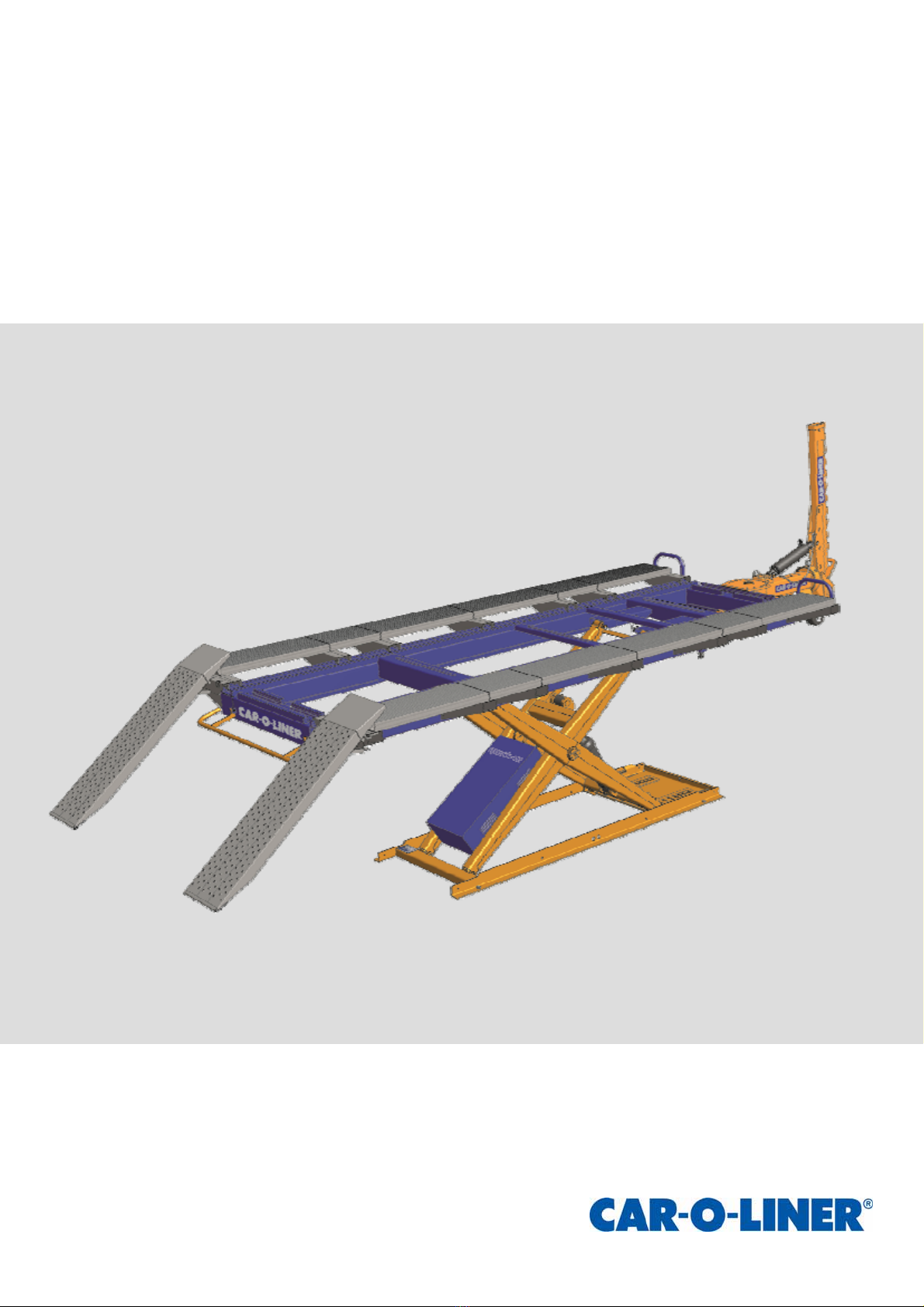

Quick 42

The multifaceted bench repair system

Instruction Manual

Car-O-Liner Group AB Quick 42

240724, EN- rev. 8, 2017-09

Foreword

This equipment is used to facilitate high quality repairs

to collision-damaged vehicles. All other use of the

equipment, or use that is contrary to the instructions in

this manual, can cause personal injury and/or equipment

damage.

Car-O-Liner Group AB including any company within

the Car-O-Liner Group of companies ("Car-O-Liner")

can not be held responsible for any claims for loss or

damages as a result from incorrect use of this equipment

or its use in a manner not intended. Save for product

liability claims for loss or damages as a result of per-

sonal injury or damage to property to the extent caused

by the negligence, gross negligence, breach of contract,

or other wrongdoing of Car-O-Liner (as prescribed by

the Product Liability Act (1992:18) or similar legisla-

tion applicable on other markets),

Car-O-Liner shall in no event be liable for any loss or

damage to revenues, profits or goodwill or other special,

incidental, indirect or consequential damages of any

kind.

Warranty

Car-O-Liner offers a one-year limited guarantee from

the date of installation of the equipment at end users

premises. This guarantee covers only material defects

and assumes normal care and maintenance according to

Car-O-Liner specification.

The guarantee assumes that:

The equipment is correctly installed and inspected in

accordance with current local laws and regulations.

The equipment has not been altered or rebuilt with-

out prior written approval from Car-O-Liner.

Genuine Car-O-Liner spare parts are used in any

repairs and conducted by Car-O-Liner certified tech-

nician.

Operation and maintenance have been carried out

according to the instructions in this manual.

All claims on warranty shall be notified through your

authorized Car-O-Liner Distributor by use of

Car-O-Liner´s VisionWeb platform without undue delay

and shall verify that the fault has occurred within the

guarantee period and that the unit has been used within

its operating range as stated in the specifications. All

claims shall include the product type and article number

as well as a detailed description of the problem and ac-

tions taken trying to solve it. This data is stamped on the

name plate (refer to section 1.2 "Marking" for location).

Note

This instruction manual provides advice as well as in-

structions for installation, operation, maintenance and

trouble shooting.

IMPORTANT! Read this manual carefully to become

familiar with the proper operation of the equipment.

It is recommended that you use your authorized

Car-O-Liner Distributor for maintaining, servicing and

upgrading your products. Never perform repairs, ad-

justments or any other work on the products which may

result in personal injury and damage to the product.

Your Car-O-Liner Distributor employs factory trained

technicians and is focused on offering you the best over-

all experience with your new Car-O-Liner product. Any

revisions or upgrades of the products, as required by

Car-O-Liner, shall be performed by your authorized

Car-O-Liner Distributor.

The photographs and drawings in this manual are in-

tended only to be illustrative and do not necessarily

show the design of the equipment available on the mar-

ket at any given time. The equipment is intended for use

in accordance with current trade practice, applicable

laws and safety regulations. The equipment illustrated in

the manual may be changed without prior notice.

The contents in this publication can be changed without

prior notice.

This publication contains information which is protected

by copyright laws. No part of this publication may be

reproduced, stored in a system for information retrieval

or be transmitted in any form, in any manner, without

Car-O-Liner’s prior written consent.

Conformity with directives and standards

The equipment is designed and manufactured by Car-O-

Liner, which is an EN-ISO 9001 and 14001 accredited

development and manufacturing organisation.

The equipment is CE-approved by Inspecta, Sweden. It

is required that only Car-O-Liner approved spare parts

and accessories are used with the equipment.

Quick 42 Car-O-Liner Group AB

40724, EN - rev. 8, 2017-09 3

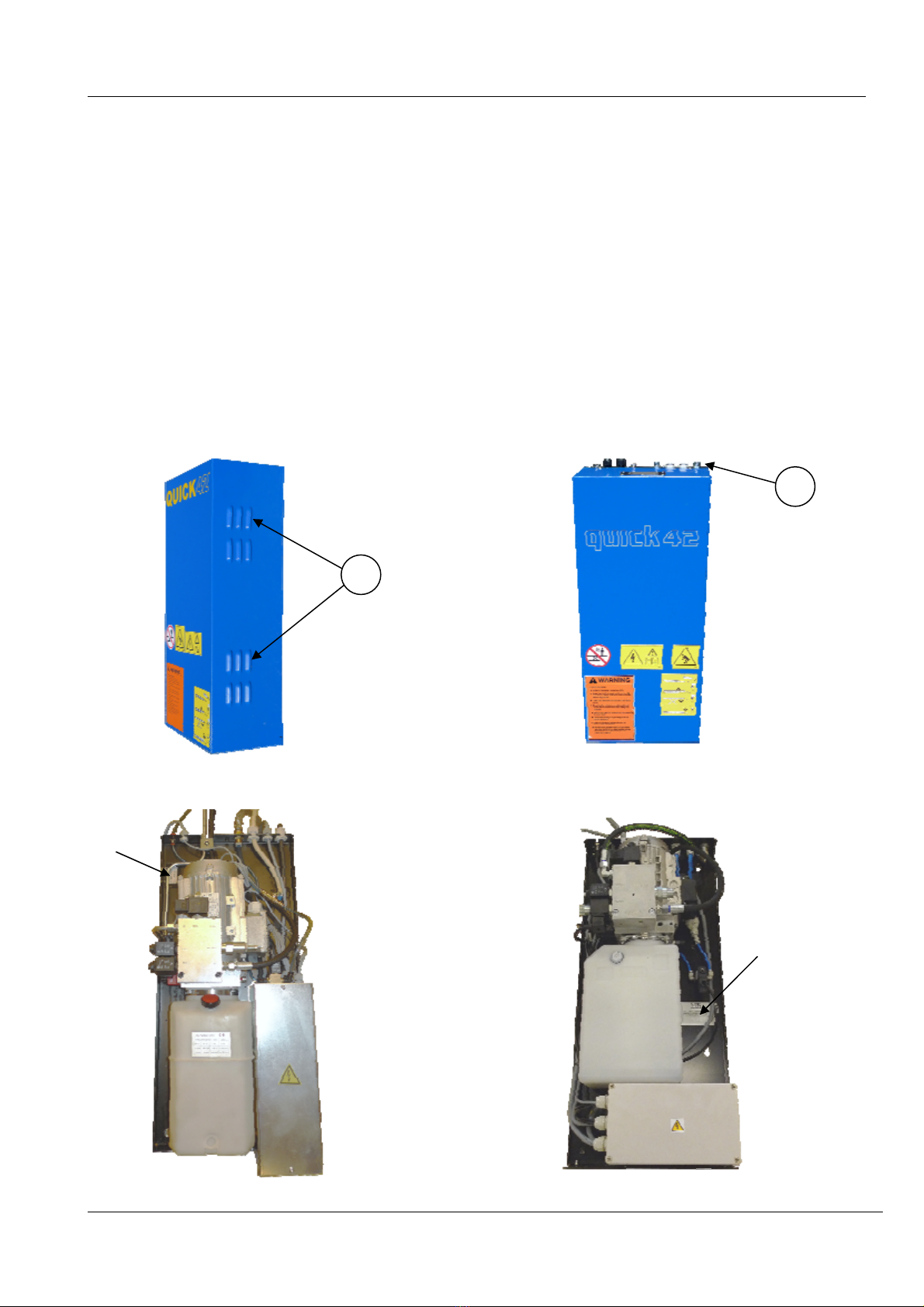

This Quick 42 Instruction Manual describes two different Power Unit versions,

henceforward reffered to as "Type 1" and "Type 2" in this Instruction Manual.

Type 1 Power unit

For identification of Type 1, see design and name

plate. Serial no. beginning with 541 on 110 V

60 Hz. Article no 39754.

Serial no. beginning with 511 on 230/400 V

50 Hz. Article no 39751.

For more extensive information, see section 3.2.3

Type 1 Power unit.

Type 2 Power unit

For identification of Type 2, see design and name plate.

Serial no.beginns with Q611 followed by manufacturing

year and a serial number.

For more extensive information, see section 3.3.8 Type 2

Power unit.

Type 1 exterior

Type 1 interior

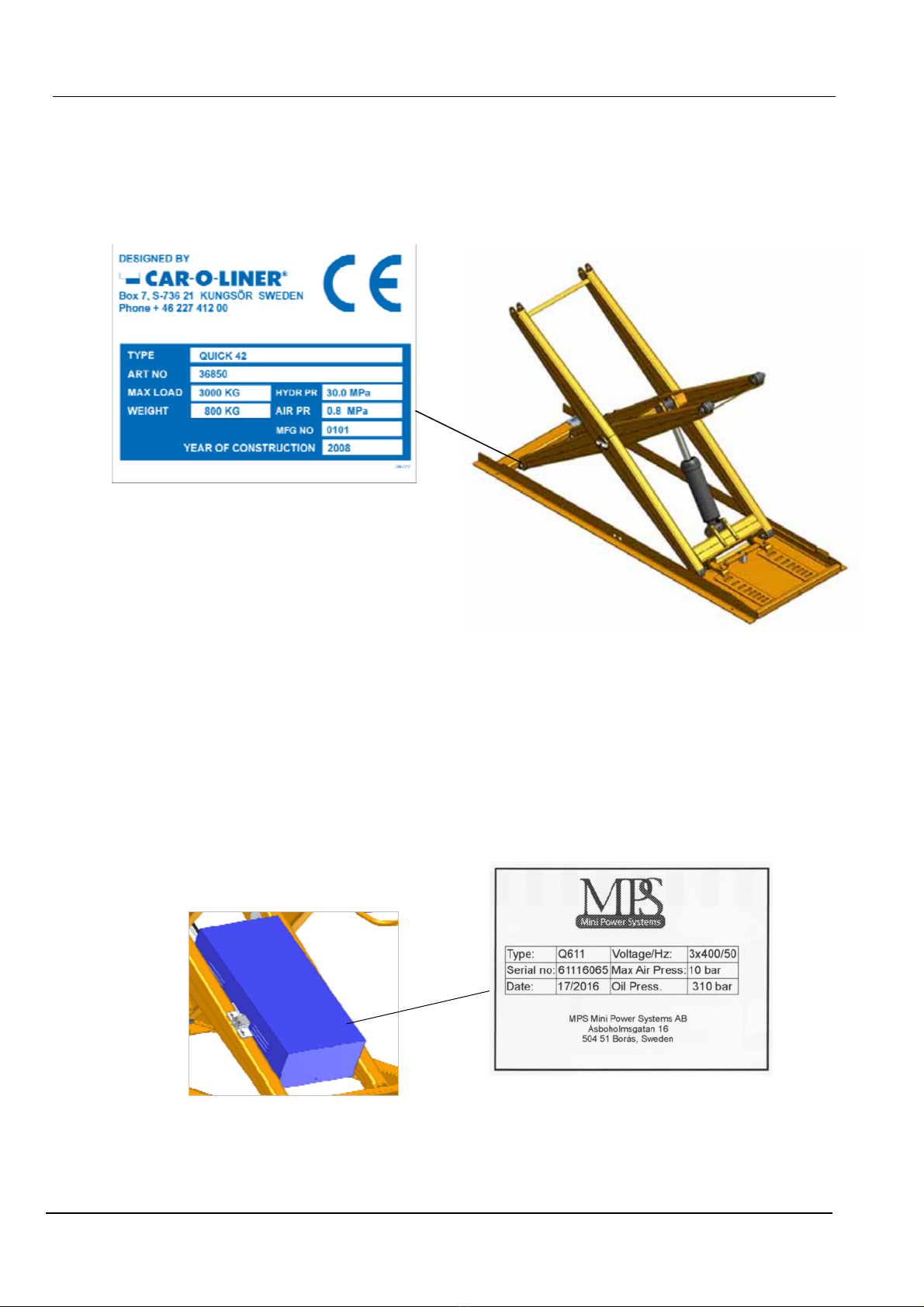

Name plate

Type 2 exterior

Type 2 interior

Name plate

(up to serial no.

Q61116064)

Car-O-Liner Group AB Quick 42

440724, EN- rev. 8, 2017-09

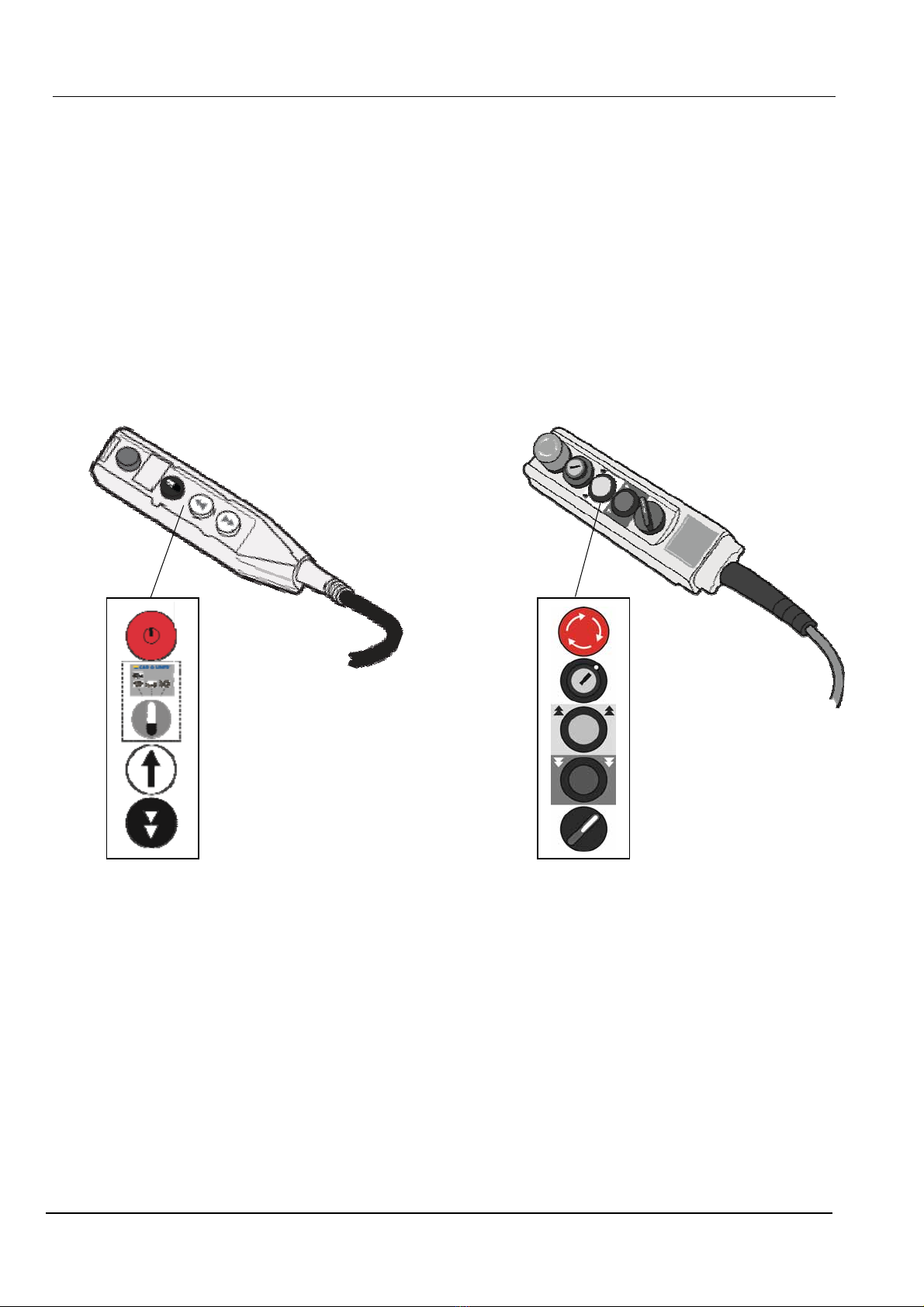

This Quick 42 Instruction Manual describes two different Pendant station

versions, henceforward reffered to as "Type 1" and "Type 2" in this Instruction

Manual.

Type 1 Pendant station

For identification of Type 1, see design and

control panel. For more extensive information,

see section 3.1.13 Type 1 Pendant station.

Type 2 Pendant station

For identification of Type 2, see design and

control panel. For more extensive information,

see section 3.1.14 Type 2 Pendant station.

Quick 42 Car-O-Liner Group AB

40724, EN - rev. 8, 2017-09 5

Conformity with directives and standards

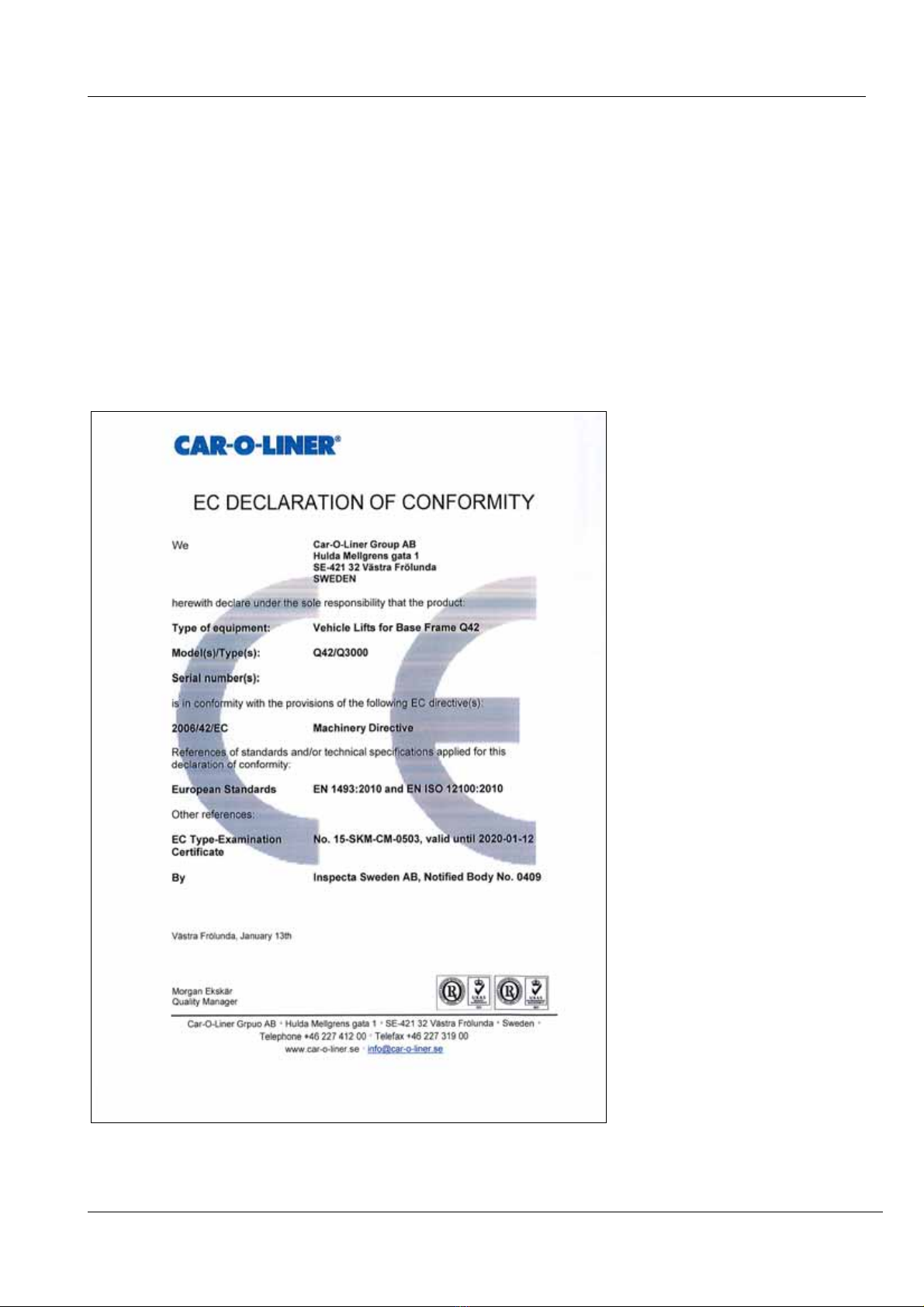

The Quick 42 bench repair system is manufactured by Car-O-Liner AB, which is an ISO 9001:2008 and ISO

14001:2004 accredited organisation.

Below an example of how the EC Declaration of Conformity for the Quick 42 is outlined.

A signed and dated copy of the EC Declaration of Conformity, including serial number, is included in

the documentation for the Quick 42. Please contact your distributor if you need a new copy of the

Declaration of Conformity.

Car-O-Liner Group AB Quick 42

640724, EN- rev. 8, 2017-09
