Contents

Cautions---------------------------------------------------------------------1~2

Refrigerator diagram--------------------------------------------------------3

Preparation-----------------------------------------------------------------4~6

Operation-------------------------------------------------------------------7~8

Instructions---------------------------------------------------------------9~10

Defrosting-Cleaning -De-commissioning----------

-----

--------11~12

Questions and Answers ---------------------------------------------13~14

Cautions

Disposal of the old appliance

Before disposing an old appliance, please make sure it’s inoperative and safe. Unplug

the appliance and remove or destroy all of the springs, latches, or bolt-locks in order to

avoid the risk of child entrapment.

It must be noted that the refrigeration system contains insulating gases and refrigerants,

which require specialized waste disposal. The valuable materials contained in a refrig-

erator can be recycled. Contact your local waste disposal center for proper disposal of

an old appliance and contact your local authority or your dealer if you have any ques-

tion. Please ensure that the pipe work of your refrigerator dose not get damaged prior to

being picked up by the relevant waste disposal center, and contribute to environmental

awareness by insisting on an appropriate, any-pollution method of disposal.

Disposal of the packaging of your new appliance

All the packaging materials employed in the package of your new appliance may be

disposed without any danger to the environment.

The cardboard box may be broken or cut into smaller pieces and given to a waste paper

disposal service. The wrapping foil is made of polyethylene and the polyethylene pads

and stuffing contain no fluorochloric hydrocarbon.

All these valuable materials may be taken to a waste collecting center and used again

after adequate recycling.

Consult your local authorities for the name and address of the waste materials collect-

ing centers and waste paper disposal services nearest to your house.

Safety Instructions and Warnings

Before starting the appliance, read the information given in the User’s Guide carefully.

The User’s Guide contains very important observations relating to the assembly,

operation and maintenance of the appliance.

Keep the User’s Guide in a safe place and remember to hand it over to the subsequent

owner, if you ever sell the appliance.

The manufacturer does not accept responsibility for any damages that may arise due to

non-observation of the following instruction.

*Damaged appliances are not to be put into operation. In case of doubt ,consult your

supplier.

Cautions

*Connection and installation of the appliance are not to be carried out in strict compliance

with the relative instructions set forth in the Use’s Guide.

*For the purpose of safety ,the appliance must be properly grounded in accordance with

specifications.

*Always remember to unplug the appliance before cleaning.To disconnect the appliance,

pull at the plug itself not the cord.

*Keep alcoholic beverages in airtight bottles or containers and always store in an upright

position. In addition, do not store any explosive substances inside the appliance-Danger

of explosion!

*Do not damage any parts of the appliance that carry refrigerant by piercing or perforating

the refrigerant’s grooves with sharp or pointed items,crushing or twisting any tubes, or

scraping the coatings off the surfaces. If the refrigerant spurts out and gets into eyes, it

may result in serious eye injuries.

*Do not obstruct or cover the ventilation grille of the appliance.

*Do not allow children to play with the appliance. In no case should children be allowed to

sit on the drawers or hang onto the door.

*Warning: Keep ventilation openings in the appliance enclosure or in the structure for

building in ,clear of obstruction.

*Warning: Do not use mechanical devices or other means to accelerate the defrosting

process, other than those recommended by the manufacturer.

*Warning: Do not damage the refrigerant circuit.

*Warning: Do not use electrical appliances inside the food storage of the appliance.

* It is necessary to have the plug accessible after installation.

* If the supply cord is damaged, it must be replaced by a supplied cord or assembly

available from the manufacturer or its service agent.

* Connection of power supply and installation should be conducted in accordance with the

instructions in the operation manual.

* Only the tools regulated by the manufacturer can be used for defrosting.

Specifications

*This appliance is designed for food refrigeration, ice making and frozen food storage.

*It is intended strictly for household use. If using it for industrial or commercial purpose ,

be sure to observe the relevant norms and regulations.

*The refrigerating circuit is leak-proof.

Refrigerator Diagram

This diagram may vary slightly with the layout of the refrigerator you

have just purchased due to technical improvements.

1.Control Panel

2.Sliding labels

3.Drawers

Preparation

Unpacking

Remove all packing materials.

Check attachments and materials

Checking should be conducted with reference to the Packing List. Contact the local

distributor if discrepancies are found.

Ensure proper location of the refrigerator.

Clean the refrigerator before use.

(See the following section “Cleaning”)

Idle time

After the refrigerator has been sited and cleaned, let it stand for more than 30 minutes

before connecting the power source

Left/Right Door Opening（（

（（

（Figure A））

））

）

The door of the refrigerator can be opened both from the left or right as required. The

following are the steps required to position the door to open to the right.

1. Remove the lower bracket (1) on the right, the door and the screw hole cover (4).

2. Remove the lower bracket pivot (3) and the spring washer(2), and then place and fix

them in the hole on the left of the lower bracket.

3. Remove the cover (5) on the upper brackets on both left and right sides; remove the

bracket pivot on the right side and the spring washer and then fix them in the bracket

hole.

4. Fix the door between the upper and lower brackets on the left and fasten the lower

bracket by tightening the screws.

5. Fix the screw hole cover in the lower bracket hole on the right, and then fix the upper

bracket covers to the upper brackets on the left and right.

6. After installation open and close the door to ensure the door operates smoothly.

Preparation

Ventilation（（

（（

（Figure B））

））

）

*Level the kitchen cabinet unit with a spirit level and a try square. Level the unit by placing

packing material underneath if required.

*A minimum gap of 38mm must be maintained at the back of the appliance for ventilation.

*Air inlet A must be at least 200 cm square and air must flow through the panel in the

cabinet plinth.

*Check that the position of the power socket (1) is correct. AC voltage in the location at

which the appliance is to be used must comply with that as shown on the data plate

located on the left inside wall of the appliance next to the vegetable bins. The power

supply must be suitably earthed.

⑴

(Figure B)

(Figure A)

⑴

⑵

⑶

⑷

⑸

⑶

⑵

Preparation

Installation（（

（（

（Figure C））

））

）

1.Check that the kitchen unit door is in the correct operating position.

2.Run the mains cable through the unit such that it can be connected to the power supply

after installing the appliance. Remove the cover (6) only if space is restricted.

3.Place the refrigerator into the kitchen unit. Fix the mountings (1) with screws (2) onto the

upper frame when two third of the refrigerator has been pushed in. Then push the

refrigerator in completely, ensuring that the gib clamp of the mountings stuck on the

horizontal frame of the kitchen unit. Adjust the position of the refrigerator making a 6mm

space between inside wall of the kitchen unit and external sides of the refrigerators. Fix

the mountings to the horizontal frame of the kitchen unit with screws.

4.Insert the seal in the aperture (approx. 10mm) between the lower front frame and bottom

board of the kitchen. Fix lower mountings (3) to the lower front frame with screws (2). Fix

the lower mountings to the bottom board of the kitchen unit with screws (2).

5.Properly insert seals in the apertures on the left, upper and right sides of the refrigerator.

6.Fix the door to the holders (4) (each upper and lower position has one) with screws (2).

Press close the doors of the refrigerator and of the kitchen unit, and then completely

open the doors, and then place the connecting plate (5)to the corresponding holder and

fix it to the door of the kitchen unit (space between the connecting plate and the edge of

the kitchen unit "t" equals to the thickness of the external board of the kitchen unit, about

20mm).Adjust the connecting element so that the handle side of the kitchen unit door

does not make contact with the unit body when closed. (Approximately 1mm gap for

large appliances), mount the second door connecting element where appropriate.

7.Plug the open hole in the appliance door.

(Figure C )

⑹

6mm

⑵

⑶

⑷t

⑴

⑵

⑸

⑵

⑴

⑵

Operation

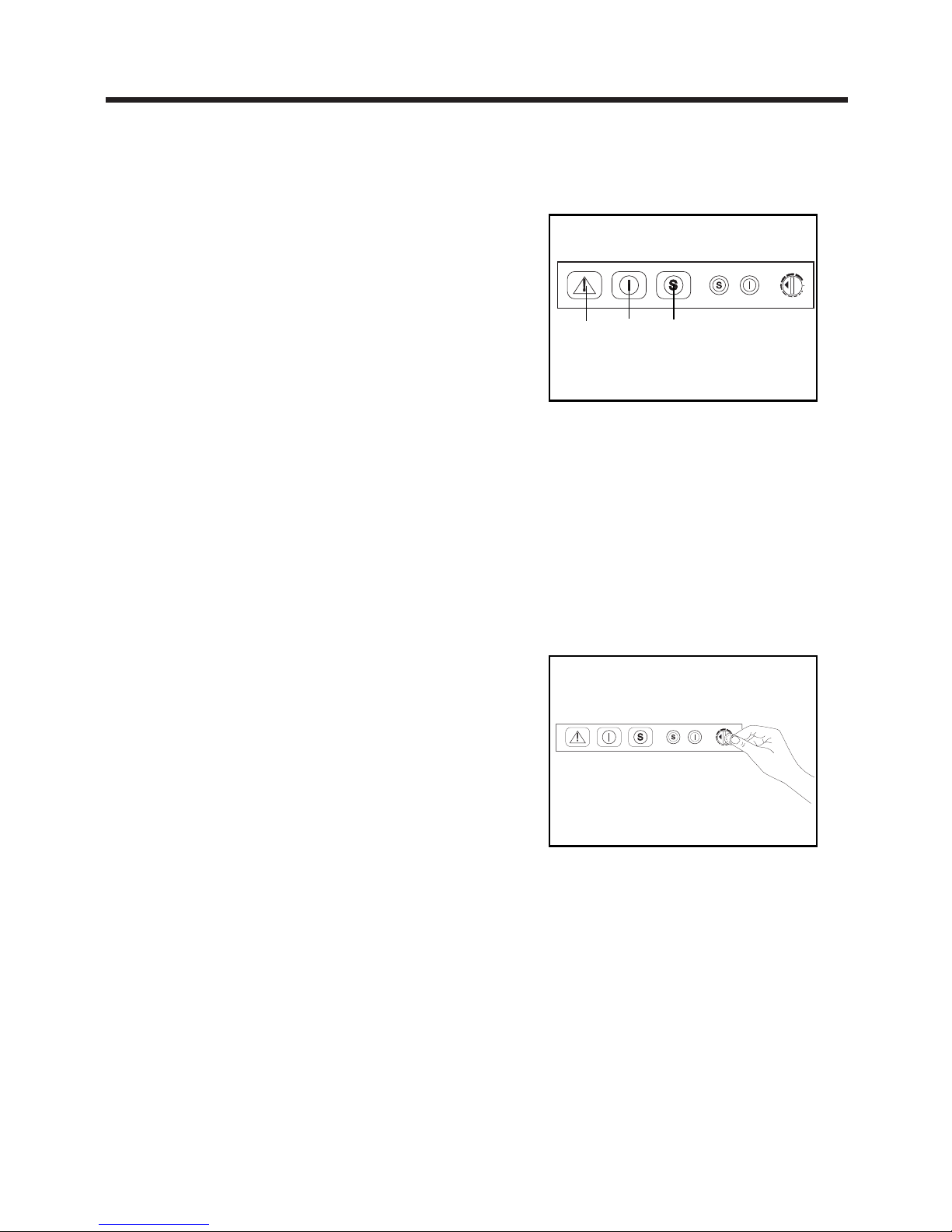

Starting the refrigerator

*Before storing the food in a new appliance,

start the appliance four hours in advance;

*Connecting the power: The green indicator (2)

and the red warning indicator (1) blink after

the refrigerator is connected to the power

supply. This is designed to prevent accidental

disconnection of the power supply.

*The red warning indicator goes out when the

temperature inside the refrigerator reaches the

desired temperature.

Adjusting the temperature

*The temperature inside the refrigerator is

adjusted by turning the temperature

controller clockwise. Using a coin to turn

the temperature controller to desired

position.

Adjusting the temperature

Starting the refrigerator

(1) (2) (3)

Operation

Green indicator(2)

The green indicator blinks when the

refrigerator is connected to the power

supply.

If the green indicator goes out, please

check the bulb. If the yellow indicator (3)

blinks, the bulb is broken. If the yellow

indication goes out, please check:

If the power switch is turned on;

If the plug is loose or the fuse is broken.

Please contact qualified electrician for the

any problems detected.

Yellow indicator(3)

When the quick freezing switch (4) is

turned on, the yellow indicator blinks and

the quick freezing system is operative

and the desired temperature will be

reached. When the quick freezing

function is reset, the yellow indicator

goes out, and the quick freezing function

is terminated. Please see the section of

Quick Freezing hereafter.

Red warning indicator(1)

The red warning indicator blinks when

the temperature inside the refrigerator

is below the required temperature.

This is commons when the refrigerator

is first started, or a large volume of

fresh food is placed for freezing

storage.

Circumstances above mentioned are

not problems, and the red indicator will

go out automatically when the tempera-

ture is reached. If the red indicator

blinks in the process of normal opera-

tion, please check: if the door if prop-

erly closed, the fresh food has just

been placed inside, or may have

occured power failure. Please contact

the closet authorized technician for

abnormal circumstances.

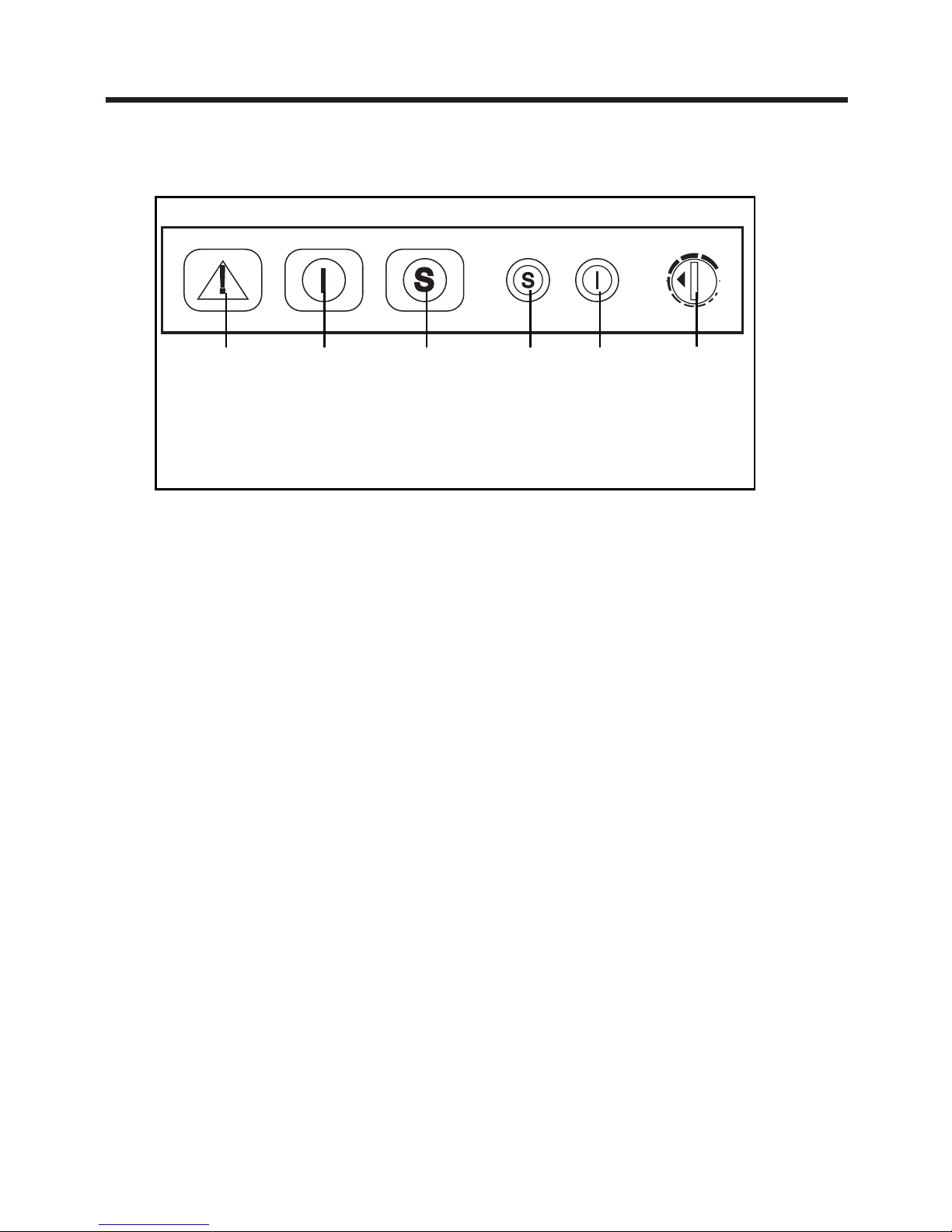

Introduction to the Main Control Panel

(1) Red indicator

(2)Green indicator

(3)Yellow indicator

(4)Quick freezing switch

(5)Power switch

(6)Temperature controller

(4)

(3)(2)(1) (6)

(5)

Instructions

*Operate the quick freezing system (6 hours in advance)

for fresh food: turn the quick freezing switch (4) and the

yellow indicator (3) blinks. (the quick freezing function does

not need to be operated when a small amount of food,

10% less than the designed freezing capacity, or frozen

food is to be stored. )

*The food to be quickly frozen should be placed separately

in more than one drawer.

*The food will become completely frozen 24 hours later.

Then turn the quick freezing switch (4) to close the function

and the yellow indicator (3) goes out..

Frozen food storage

*The recommended weight of fresh food should not be

excesive 2 kg .

*Hot food should not be stored in the refrigerator until it has

cooled down to room temperature.

*Food cut into small portions will freeze faster and be easier

to defrost and cook. The recommended weight for each

portion is less than 2.5kg.

*The outside of any food packing should dried before

storage in the freezer, and any packing materials should

be odor-free, airtight, non-poisonous and nontoxic.

Attention shall be made for the information on the packing.

*Only remove the required amount of food from the

refrigerator. Defrosted food cannot be re-stored in the

freezer unless it is first cooked.

* Do not put in bottled beer or drinks.

(4)(3)

Long-term storage of food

As the freezer storage temperature is below 18℃, bacterial actively stops. Food requir-

ing long-term storage can be stored in the frozen food compartment. Attention should

be paid to the storage information printed on the food packing.

Quick frozen food storage

To maintain the nutrition, flavor and shape of the food to be stored, freeze it as quickly

as possible in the quick freezing compartment.

Autres manuels pour RiL871

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Caple Réfrigérateur

Caple

Caple QFF158/91F Manuel utilisateur

Caple

Caple RBR1A Fiche technique

Caple

Caple RiL892 Manuel utilisateur

Caple

Caple RIL88 Manuel utilisateur

Caple

Caple RBF1A Manuel utilisateur

Caple

Caple CAFF19Si Manuel utilisateur

Caple

Caple RiL871 Manuel utilisateur

Caple

Caple RIR179 Manuel utilisateur

Caple

Caple RIL1796 Manuel utilisateur

Caple

Caple RBR5 Manuel utilisateur

Caple

Caple C175L Manuel utilisateur

Caple

Caple RBL2 Manuel utilisateur

Caple

Caple RBR6 Manuel utilisateur

Caple

Caple RFF730 Manuel utilisateur

Caple

Caple RIR178 Manuel utilisateur

Caple

Caple CAFF46GM Manuel utilisateur

Caple

Caple C156L Manuel utilisateur

Caple

Caple CAFF40SS Manuel utilisateur

Caple

Caple RBL6 Manuel utilisateur

Caple

Caple RFL70WH Manuel utilisateur

Caple

Caple C159/95 Manuel utilisateur

Caple

Caple CAFF41 Manuel utilisateur

Caple

Caple RIL1796 Manuel utilisateur

Caple

Caple C195/53 Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
