Caple C4061G Manuel utilisateur
Gas Hob
Instruction Manual
C4061G/C4071G/
C4091G
Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk
2Instruction manual C4061G/C4071G/C4091G Please keep this instruction manual for future reference
CONTENTS
Introduction 3
Warnings 3
Environmental Protection 7
Warranty 8
Parts of the Appliance 9
How to use Your Appliance 10
Care and Maintenance 11
Practical Advice 12
Troubleshooting 13
Installation Instructions 14
Gas Connection 17
Connection to Flexible Steel Tube 18
Replacement of Burner Injector 21
Valve Adjustment 22
Flame Selection 23
Caple Contact Details 24
3Instruction manual C4061G/C4071G/C4091GPlease keep this instruction manual for future reference
INTRODUCTION
Congratulations on the purchase of your new Caple hob.
We recommend that you spend some time reading this
instruction manual in order to fully understand how to
correctly install and operate your hob. For installation,
please read the installation section. Read all the safety
instructions carefully before using your hob and keep this
instruction manual for future reference.
WARNING:
-You MUST read these warnings carefully before installing or
using the hob.
-If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
-This appliance is intended to be used in household and
similar applications such as:
› Staff kitchen areas in shops, offices and other
working environments.
› Farm Houses.
› By clients in hotels, motels and other residential
type environments.
› Bed and breakfast type environments.
4Instruction manual C4061G/C4071G/C4091G Please keep this instruction manual for future reference
-This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
-Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without
supervision.
-This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
-This appliance is for indoor use only.
-To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
-Please unplug before cleaning the appliance.
-Do not pull the lead to take the plug out of the socket.
INSTALLATION WARNINGS
-Prior to installation, ensure that the local distribution
conditions (nature of the gas and gas pressure) and the
adjustment of the appliance are compatible.
-It should be installed and connected in accordance with
current installation regulations. Particular attention shall be
given to the relevant requirements regarding ventilation.
5Instruction manual C4061G/C4071G/C4091GPlease keep this instruction manual for future reference
-This appliance must be installed and serviced by a
competent person.
-This appliance shall be installed in accordance with the
regulations in force and only used in a well ventilated space.
-Remove all packaging before using the hob.
-Ensure that the gas and electrical supply complies with the
type stated on the rating label.
-Do not attempt to modify the hob in any way.
IMPORTANT SAFETY INSTRUCTIONS
-Never leave the appliance unattended when in use as pans
may boil over which may result in smoking or grease spills
that may ignite.
-Never use your appliance as a work or storage surface.
-Never use your appliance for warming or heating the room.
-After use, always turn off the cooking zones.
-Do not allow children to play, sit, stand, or climb on the
appliance.
-Do not leave children alone or unattended in the kitchen
when the hob is in use.
-Do not use a steam cleaner to clean the hob.
-Do not place or drop heavy objects on your hob.
-Do not stand on your hob.
-Do not use scourers or any other harsh abrasive cleaning
agents to clean your hob.
6Instruction manual C4061G/C4071G/C4091G Please keep this instruction manual for future reference
HOT SURFACE HAZARD
-During use, accessible parts of this appliance will become
hot enough to cause burns.
-Handles of saucepans may be hot to touch. Check saucepan
handles do not overhang other cooking zones that are on.
Keep handles out of reach of children.
-Failure to follow this advice could result in burns and scalds.
-Do not repair or replace any part of the appliance unless
specific instructions are detailed in the manual. All other
servicing should be done by a qualified technician.
-It should be installed and connected in accordance with
current installation regulations. Particular attention shall be
given to the relevant requirements regarding ventilation.
-Ensure air is able to circulate around gas appliances
Insufficient ventilation will lead to depletion of the oxygen
in the air in the place of installation.
-In case of intense or prolonged use of the appliance, it may
be necessary to increase ventilation, for example by opening
a window (or door) direct to outside or increasing the
power of extractor fans, if present.
7Instruction manual C4061G/C4071G/C4091GPlease keep this instruction manual for future reference
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is
marked according to the European directive on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. The symbol on the product indicates that this
product may not be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. Disposal must be carried
out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation.
UKCA DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation.
TECHNICAL FICHE
This appliance conforms to all current and applicable energy regulations. To view the Technical
Fiche that supports the energy labelling data, please visit the product page on our website
www.caple.co.uk
8Instruction manual C4061G/C4071G/C4091G Please keep this instruction manual for future reference
WARRANTY
Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you
must provide the following information to your retailer in order to receive a replacement: date of
purchase, model and serial number. Registration can also be completed online by visiting
www.caple.co.uk.
Ensure you keep your warranty card safe, you may need to show it to Caple Service together with
proof of purchase.
If you fail to show your warranty card you will incur all repair charges. Spare parts are only
available from Caple Service and spare parts authorised centres.
9Instruction manual C4061G/C4071G/C4091GPlease keep this instruction manual for future reference
PARTS OF THE APPLIANCE
1. Triple ring burner
2. Rapid burner
3. Semi-rapid burner
4. Simmer Burner
5. Control knobs
6. Pan Supports
7. Safety Device - Activates if the flame accidentally goes out (spills, drafts, etc.),
interrupting the delivery of gas to the burner.
8. Igniter
7
8
C4061G C4071G
C4091G
10 Instruction manual C4061G/C4071G/C4091G Please keep this instruction manual for future reference
HOW TO USE YOUR APPLIANCE
The position of the corresponding gas burner is indicated on each control knob.
GAS BURNERS
The burners differ in size and power. Choose the most appropriate one for the diameter of the
cookware being used.
The burner can be regulated with the corresponding control knob by using one of the following
settings:
This hob is equipped with an ignition switch incorporated into the control knob. To light a burner,
simply press the corresponding knob all the way in and, then, turn it in the counter-clockwise
direction to the High setting, keeping it pressed in until the burner lights.
As a safety device is fitted, the knob must be pressed in for about 10 seconds, until the device that
keeps the flame lit warms up.
CAUTION
To turn off a burner, turn the knob in the clockwise direction until it stops (it should be on the
off setting).

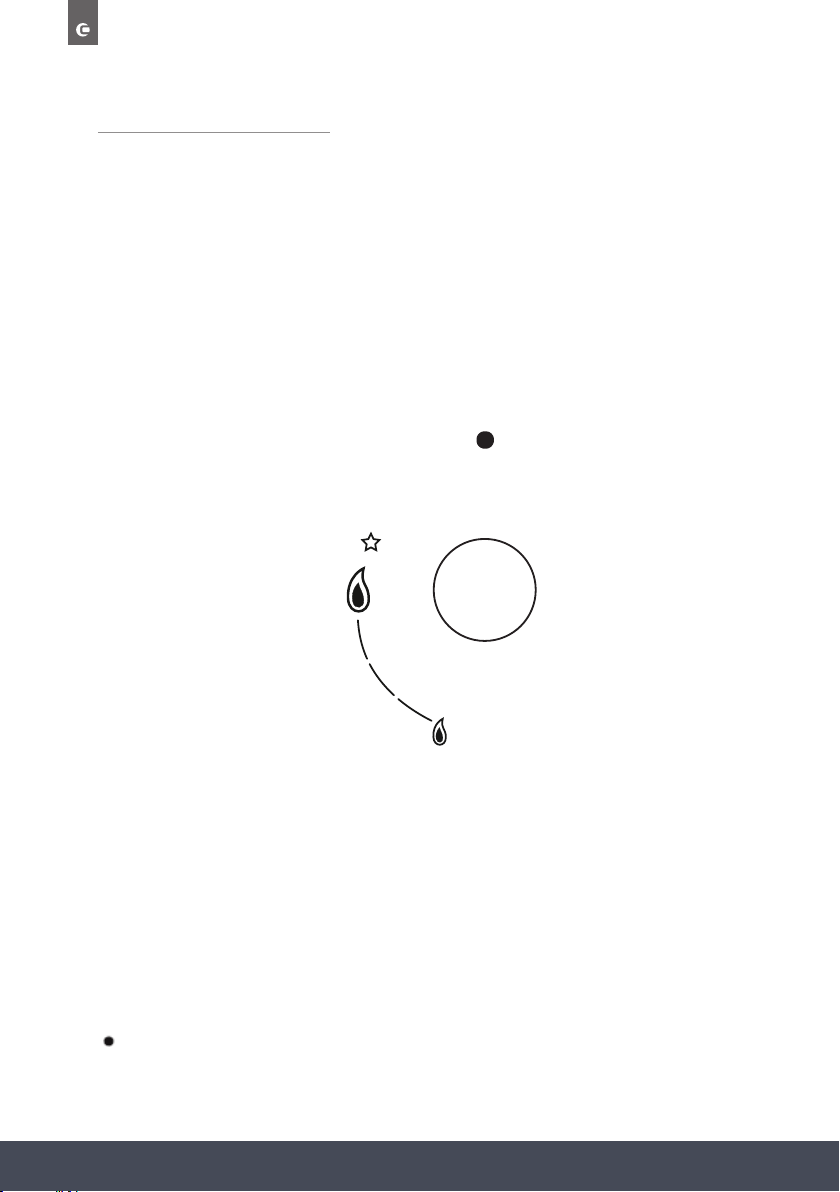

OF F
HIGH
LOW
IGNITE
10
