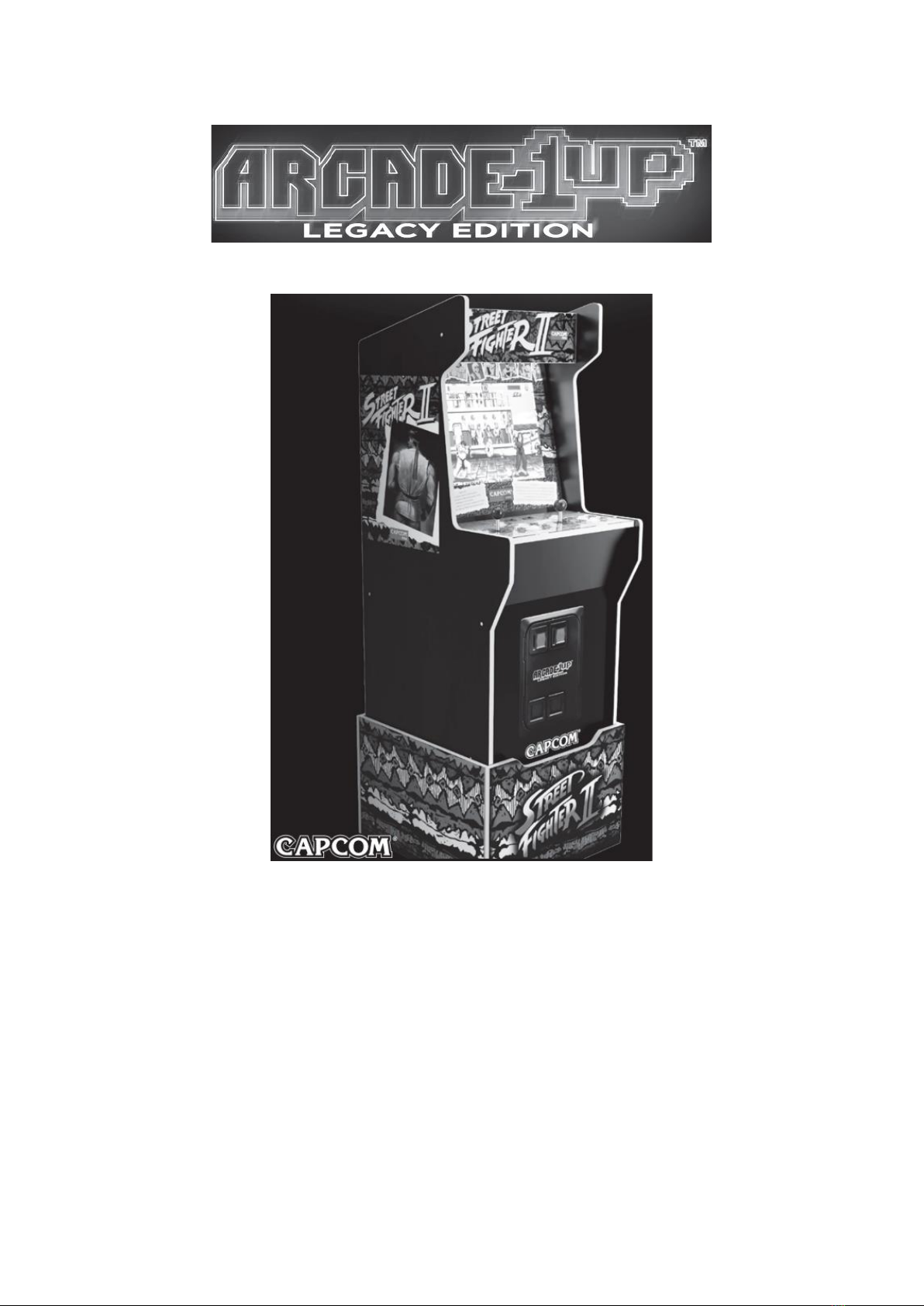

Capcom ARCADE-1UP LEGACY EDITION STREET FIGHTER II Manuel utilisateur

Arcade machine

Capcom Legacy

User Manual • Uživatelský manuál •

Užívateľský manuál • Használati utasítás •

Benutzerhandbuch

English

3 –12

Čeština

13 –22

Slovenčina

23 –32

Magyar

33 –43

Deutsch

44 –54

Dear customer,

Thank you for purchasing our product. Please read the following instructions carefully

before first use and keep this user manual for future reference. Pay particular attention

to the safety instructions. If you have any questions or comments about the device,

please contact the customer line.

✉www.alza.co.uk/kontakt

✆+44 (0)203 514 4411

Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

Read before using the Arcade1UP

Safety precautions

The following symbols are used in labels on the game to draw attention to potentially

hazardous situations:

WARNING: Failure to avoid the risk may result in death or serious injury. To reduce

the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Electrical Shock Hazard. Disconnect power before removing cover. Should only be

done by a qualified technician.

1. Please read and comprehend all warnings stated in this manual.

2. Do not get arcade wet when cleaning.

3. Parents and guardians: Please read entire manual before allowing gamer to play.

4. The AC/DC adapter and apparatus shall not be exposed to dripping or splashing and

that no object filled with liquids, such as vases, shall be placed on apparatus.

The AC/DC adapter is used as disconnect device.

The AC/DC adapter of apparatus should not be obstructed OR should be easily

accessed during intended used. To be completely disconnect the power input, the

AC/DC adapter of apparatus shall be disconnected from the mains.

5. If appliance is provided with protective earth terminal, it should be connected to

main outlet with a protective earth connection.

6. Minimum distances 10 cm / 3.94 inches around the apparatus for sufficient

ventilation.

7. The ventilation should not be impeded by covering the ventilation openings with

items such as newspaper, tablecloths, curtains etc.

8. No naked flame sources such as lighted candles should be placed on the apparatus.

9. The apparatus should only be used in moderate climates.

Warning the epilepsy

A very small percentage of individuals may experience epileptic seizures or blackouts

when exposed to certain light patterns or flashing lights. Exposure to certain patterns or

backgrounds on a television screen or when playing video games may trigger epileptic

seizures or blackouts in these individuals. To reduce the risk of such a seizure incident, it

is recommended to take a 10–15-minute break at each hour of playing.

WARNING: Arcade1UP assumes no liability for improper installation or excessive loads

placed on screws or bracket. This wall anchor is not a substitute for proper adult supervision.

Important safety instructions

1. Read these Instructions.

2. Keep these Instructions.

3. Heed all Warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or

other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding - type plug. A

polarized plug has two blades with one wider than the other. A grounding type plug

has two blades and a third grounding prong. The wide blade or the third prong are

provided for your safety. When the provided plug does not fit into your outlet,

consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Unplug this apparatus during lightning storms or when unused for long periods of time.

13. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate normally, or has been dropped.

14. Use only with a riser specified by the manufacturer or sold with the apparatus.

When a riser is used, use caution when moving the riser/apparatus combination to

avoid injury from tip-over.

15. The equipment shall be used at working ambient temperature 32° - 95°F (0° - 35°C).

Installation

This game is designed for indoor and personal use only. It must not be installed

outdoors. The following conditions must be avoided.

1) Direct exposure to sunlight, high humidity, direct water contact, dust, high heat, or

extreme cold.

2) Vibration. The game must be installed on a level surface. Do not install in an area

such that the game would present an obstacle in case of an emergency (i.e., near

fire equipment or emergency exits).

Specifications

This product is intended for use only with the adapter provided:

Blue Iron Holdings Ltd., Model BI36-120300-E2

Power supply:

AC/DC Adapter

Input power:

AC 100-240 V~50/60 Hz 1.2 A Max

Output power:

DC 12 V 3 A

Monitor:

17” LCD

Cabinet assembled dimensions

(without riser):

45.8” x 19” x 22.75”

(116.33 x 48.26 x 57.80 cm)

The AC/DC adapter is used as disconnect device.

The AC/DC adapter of apparatus should not be obstructed OR should be easily

accessed during intended used.

To be completely disconnect the power input, the AC/DC adapter of apparatus shall

be disconnected from the mains.

Assistance or service

Before contacting us for assistance or service, Please check the "Troubleshooting"

section in the User Manual. If you still have questions regarding your Arcade1Up

product or require technical support.

Contact Arcade1UP Customer Service at www.arcade1up.com and click on "Support".

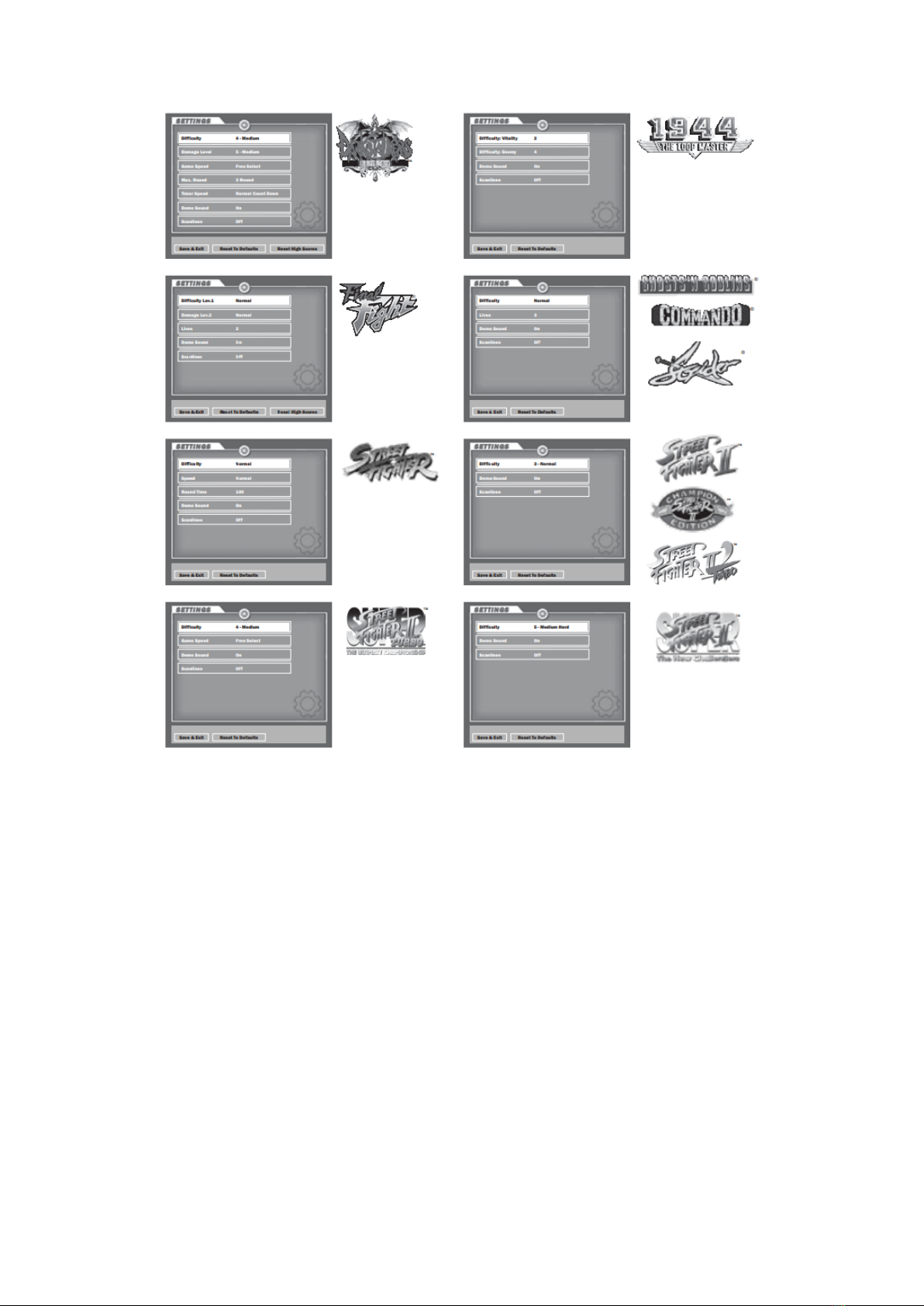

Settings

1. Move joystick to scroll through game list.

2. Press player 2 to enter settings.

3. Move joystick to adjust settings.

4. Select “Save & exit” then press player 1.

5. Select “Reset to defaults” then press a button to return the game to its original state.

CAUTION: Servicing instructions are for use by qualified service personnel only. To reduce

the risk of electric shock, do not perform any servicing other than that contained in the

operating instructions unless you are qualified to do so.

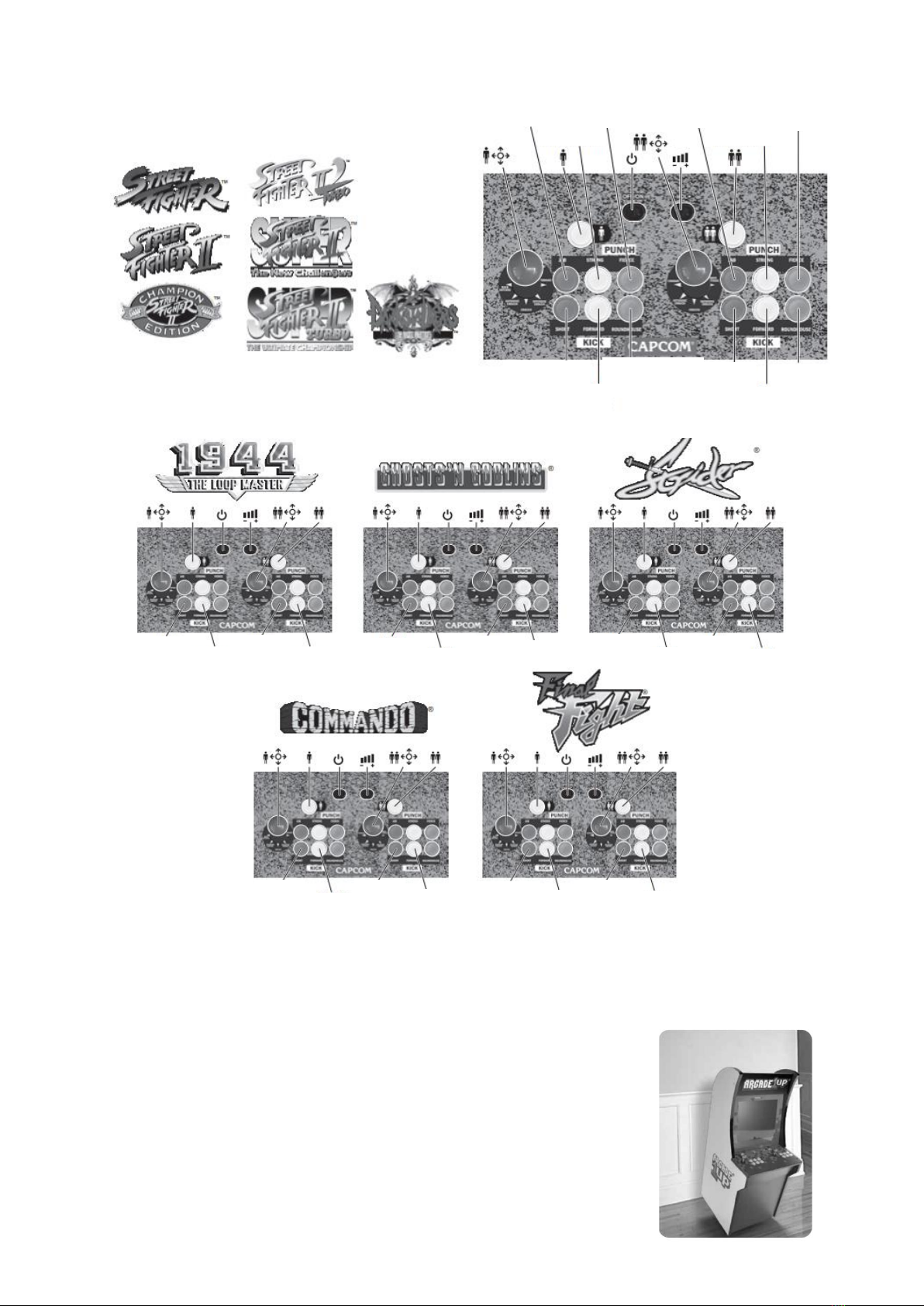

Game controls

*Arcade may take 10-15 seconds to power on after switching on.

1. Move joystick to scroll through game list.

2. Press player 1 to choose game.

3. Follow game controls bellow for each game.

4. Hold player 1 (5 seconds) to bring up the pause menu.

5. Hold player 2 (5 seconds) to reset game.

To enjoy a safe gaming environment

Please use the wall anchor kit that is included with the product.

JUMP

ATTACK

GRENADE

GUN

SHOOT

BOMB/

LOOP

BOMB/

LOOP

JAB PUNCH

JAB

PUNCH

FIERCE PUNCH

STRONG

PUNCH

STRONG

PUNCH

FIERCE

PUNCH

SHORT KICK

SHORT

KICK

FORWARD

KICK

ROUNDHOUSE

KICK

FORWARD

KICK

ROUNDHOUSE KICK

Serious or fatal crushing injuries can occur from furniture tip-over.

To help prevent tip-over:

•Set upArcade1UP on a level floor.

•Never allow children to climb or hang on product.

•Always set up an anti-tip device!

Use of tip-over restraints may only reduce, but not eliminate, the risk of tip-over.

WARNING: Arcade1UP assumes no liability for improper installation or excessive loads

placed on screws or bracket. This wall anchor is not a substitute for proper adult supervision.

Make sure to locate your Arcade1UP on a flat surface.

Troubleshooting

PROBLEM

POSSIBLE CAUSE

SOLUTION

Game will not turn ON.

*Power cord is not plugged

into wall outlet.

*Wires/Plugs are hooked

up incorrectly.

*ON/OFF Switch is in the

OFF position.

*Upload switch on back of

monitor is in the OFF

position.

*Make sure power cord is plugged

into the wall outlet and there is

power to that outlet.

(Plug other electrical equipment into

the power outlet to make sure the

outlet normally works.)

*Make sure all Wires/Plugs are

properly connected and all the way

set in as directed in assembly

instructions.

*Slide ON/OFF Switch located on

control deck to the ON position.

*Slide upload switch on back of

monitor to the ON position.

Game will turn ON, but

there is no sound.

*Wires/Plugs were hooked

up incorrectly.

*Volume Switch is in the

OFF position.

*Make sure all Wires/Plugs are

properly connected and all the way

set in as directed in assembly

instructions.

*Slide Volume Switch located on

control deck to the right.

NOTE: Push volume slide switch

right to increase volume, left to

lower volume.

You hear sound but

there is no picture.

*Wires/Plugs were hooked

up incorrectly.

*Make sure all Wires/Plugs are

properly connected and all the way

set in as directed in assembly

instructions.

The game screen is

frozen.

*The game encountered a

problem when processing

the data.

*Turn the ON/OFF switch OFF and

then back ON again.

*You may need to RESET the game.

Turn the ON/OFF switch to the OFF

position. Unplug the game from the

wall outlet and wait 60 seconds to

RESET the game. Plug the game back

in and turn the ON/OFF switch back

to ON.

Marquee won’t

light up.

*Marquee power cord is

not plugged in at the back

of the monitor.

*Marquee power cord is

plugged into the wrong

input.

*Make sure all Wires/Plugs are

properly connected and all the way

set in as directed in assembly

instructions.

The game screen looks

pixelated / blurry or

there are lines running

through the image.

*Wires/Plugs were hooked

up incorrectly.

*Pixel Smoothing may be

turned ON/OFF in the

settings menu.

*Make sure all Wires/Plugs are

properly connected and all the way

set in as directed in assembly

instructions.

*Enter the settings menu to see if

Pixel Smoothing is turned ON/OFF.

*You may need to RESET the game.

Turn the ON/OFF switch to the OFF

position. Unplug the game from the

wall outlet and wait 60 seconds to

RESET the game. Plug the game back

in and turn the ON/OFF switch back

to ON.

One of the buttons on

the control deck is

stuck in the down

position.

*Debris may have gotten

between the button and the

button housing.

*Take something thin (like a

business card) and place it between

the button and the button housing

and slide it back and forth to loosen

the debris.

You are not able to

scroll through the

games on the game

selection menu.

*You may be using the

wrong joystick or pressing

the incorrect buttons to

scroll through the games.

*Look at the game control section in

the instruction manual to make sure

you are using the correct joystick or

pressing the correct buttons to scroll

through the game selection menu.

You can scroll through

the games on the game

selection menu, but

you can’t enter a game

to begin playing.

*You may be pressing the

wrong button to enter the

game.

*Look at the game control section in

the instruction manual to make sure

you are pressing the correct button

to enter the game.

You have entered the

game, but you can’t

get the game to start.

*You may be pressing the

wrong button to start the

game.

*Look at the game control section in

the instruction manual to make sure

you are pressing the correct button

to start the game.

Table des matières

Langues :

Autres manuels Capcom Machine de jeu d'arcade

Capcom

Capcom Naomi Vs. SNK Millenium Fight 2000 Manuel utilisateur

Manuels Machine de jeu d'arcade populaires d'autres marques

Universal Space

Universal Space COCONUT BASH Manuel utilisateur

Bay-Tek

Bay-Tek EVOLVE Manuel utilisateur

Global VR

Global VR America's Army Instructions d'installation et d'utilisation

Atronic

Atronic Cashline Manuel utilisateur

Universal Space

Universal Space Checky Monkey Manuel utilisateur

Bay-Tek

Bay-Tek Skee Ball 1908 Alley Manuel utilisateur

Aristocrat Technologies

Aristocrat Technologies Mars X Upright Manuel utilisateur

Family Fun Companies

Family Fun Companies Reactor Guide de démarrage rapide

Universal Space

Universal Space FRUIT MANIA Extreme Manuel utilisateur

falgas

falgas CARRUSEL FIESTA Manuel utilisateur

Konami

Konami DanceDanceRevolution Manuel utilisateur

Bay-Tek

Bay-Tek quik drop Manuel utilisateur

Bandai Namco

Bandai Namco PAC-MAN BATTLE ROYALE CHOMPIONSHIP DELUXE Manuel utilisateur

Adrenaline

Adrenaline Flying Tickets Instructions d'installation et d'utilisation

Swinks

Swinks Stern Pinball Ghostbusters Manuel utilisateur

Innovative Concepts in Entertainment

Innovative Concepts in Entertainment MONOPOLY ROLL-N-GO Manuel utilisateur

jakar

jakar SPEED CARS Manuel utilisateur

Carmelli

Carmelli HAT TRICK NG1015H Manuel utilisateur
