Canyon CNP-WFAP Manuel utilisateur

EN - 1

CNP-WFAP

Wireless Access Point

User Manual

EN - 2

Table of Contents

INTRODUCTION..............................................................................................................................3

SAFETY PRECAUTIONS ...................................................................................................................3

PACKAGE CONTENTS.......................................................................................................................4

HARDWARE OVERVIEW..................................................................................................................5

GETTING STARTED........................................................................................................................6

CONNECTING TO DEVICE ...............................................................................................................6

WINDOWS XP SETUP.....................................................................................................................6

WINDOWS VISTA SETUP...............................................................................................................7

WINDOWS 2000 SETUP ...............................................................................................................7

WINDOWS 98/ME SETUP............................................................................................................7

DEVICE CONFIGURATION.........................................................................................................9

WIRELESS AP CONFIGURATION WIZARD...............................................................................10

STATUS.............................................................................................................................................12

RADIO ..............................................................................................................................................12

SECURITY ........................................................................................................................................13

MAC FILTER...................................................................................................................................16

WDS ................................................................................................................................................16

ADVANCED.......................................................................................................................................17

CLIENT INFO...................................................................................................................................18

SITE SURVEY ..................................................................................................................................18

IP CONFIG ......................................................................................................................................18

DHCP SERVER...............................................................................................................................19

DHCP Setup............................................................................................................................19

IP Reserve..............................................................................................................................19

DHCP Info...............................................................................................................................20

MISC ...............................................................................................................................................20

Restore Default/Restart System...............................................................................20

Firmware Upgrade.............................................................................................................21

TROUBLESHOOTING...................................................................................................................22

APPENDIX ........................................................................................................................................23

TECHNICAL SPECIFICATIONS .....................................................................................................23

EN - 3

Thank you for purchasing CANYON CNP-WFAP. We sincerely wish you to enjoy the

wireless access point. It provides user an easy and stable high speed internet

connection. It is also equipped with built-in NAT technology that acts as a firewall to

protect the network from outside intrusions. Ultimately, the device is implemented

with an IEEE 802.11b/g access point which is capable of wireless LAN network. To

fully utilize the functions and features of CANYON CNP-WFAP, please read

through the user manual before you get started.

Introduction

Safety Precautions

Please observe all safety precautions before using the device. Please follow all

procedures outlined in this manual to properly operate the device.

zDo NOT attempt to disassemble or alter any part of the device that is not

described in this guide.

zDo NOT place the device in contact with water or any other liquids. The device

is NOT designed to be liquid proof of any sort.

zIn the event of liquid entry into device interior, immediately disconnect the

device from the computer. Continuing use of the device may result in fire or

electrical shock. Please consult your product distributor or the closest support

center.

zTo avoid risk of electrical shock, do not connect or disconnect the device with

wet hands.

zDo NOT place the device near a heat source or directly expose it to flame.

zNever place the device in vicinity of equipments generating strong

electromagnetic fields. Exposure to strong magnetic fields may cause

malfunctions or data corruption and loss.

zAll images in the user manual are for user reference only. Actual products

might differ slightly than images shown here.

EN - 4

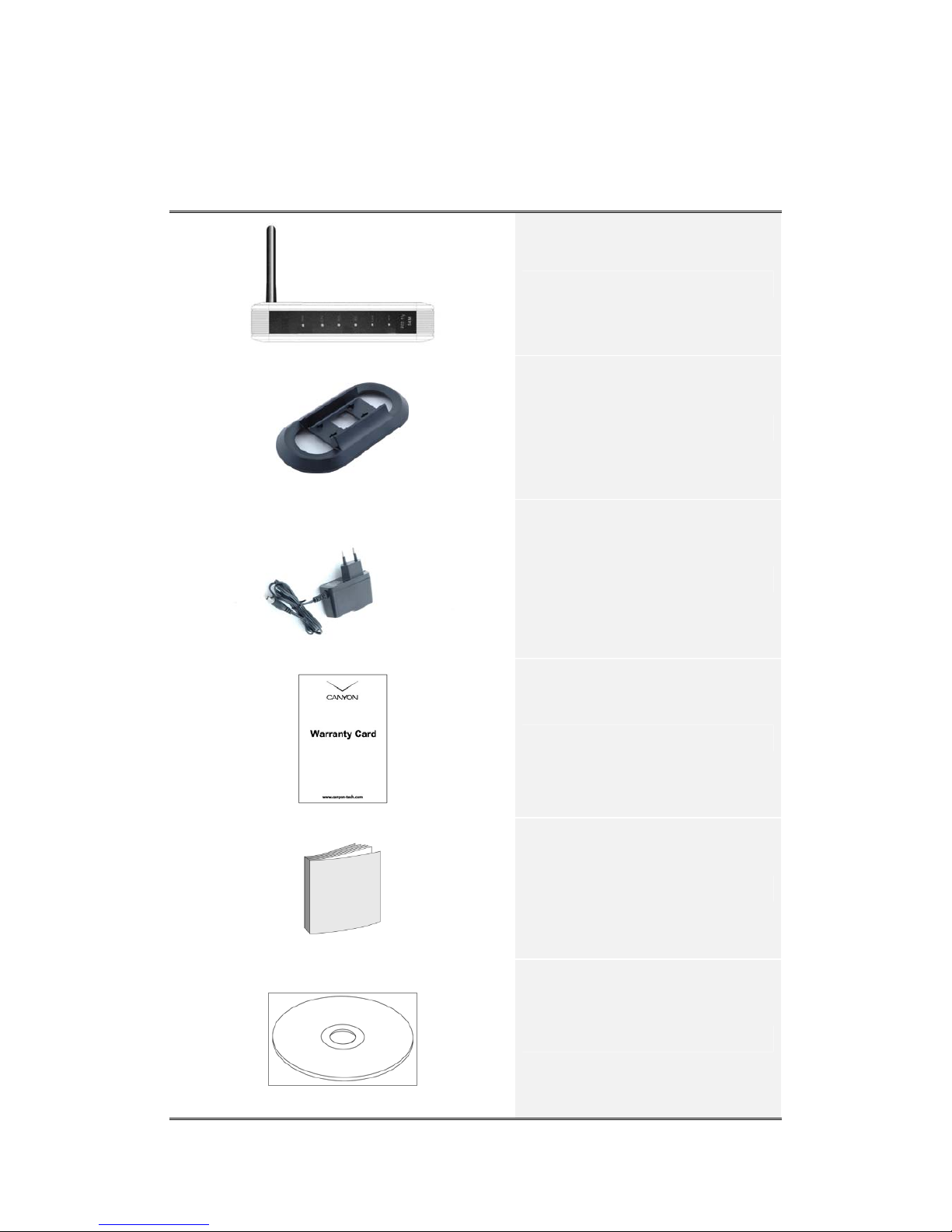

Package Contents

Product Image Item Name

CNP-WFAP Main Unit

Standing Base

Power Adapter

Warranty Card

Quick Guide

Documentation CD

EN - 5

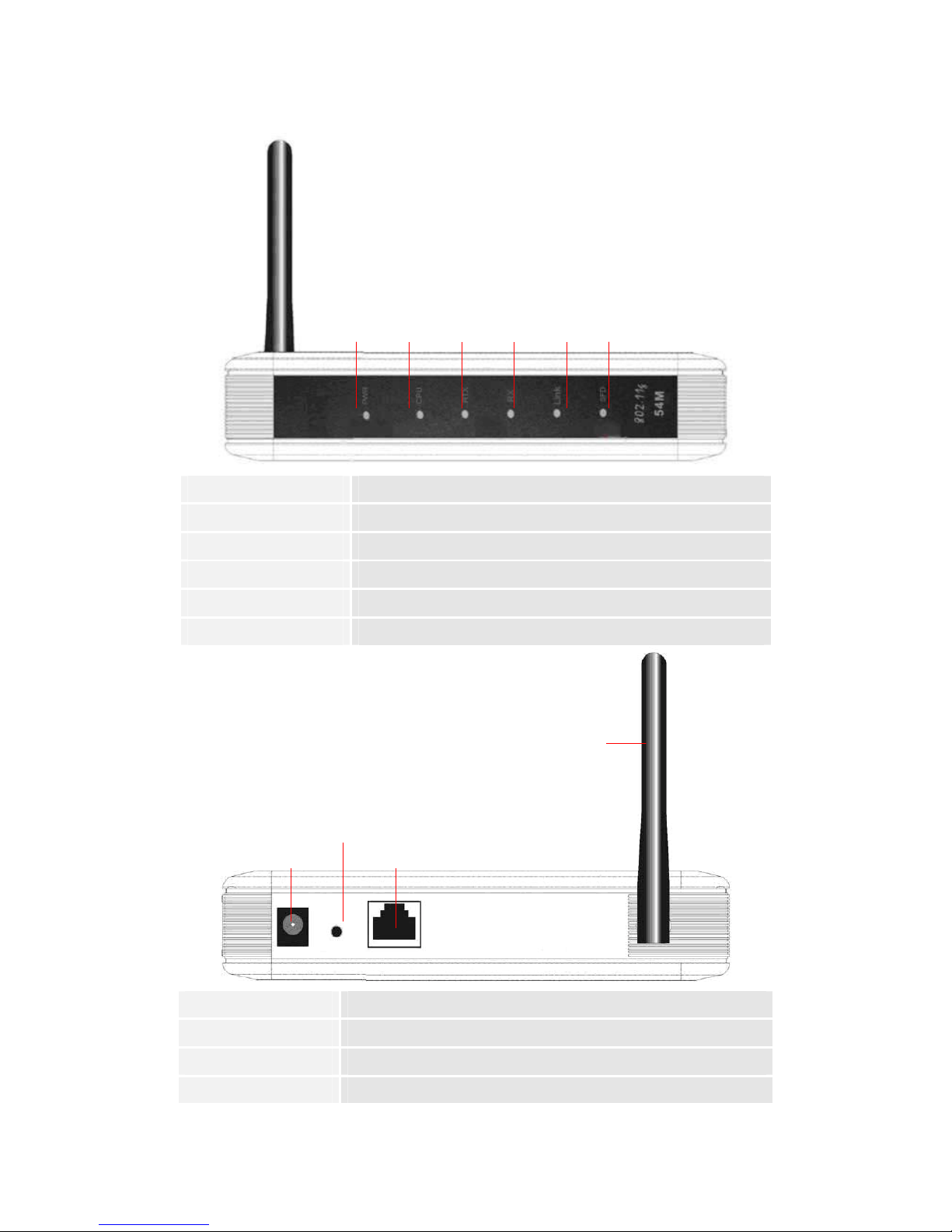

Hardware Overview

PWR Power status indicator

CPU Device status indicator

LINK LAN connection status indicator

SPD Transmission activity status indicator

TX LAN transmission activity status indicator

RX Wireless transmission activity status indicator

DC Jack Connects to power adapter

Default Reset device to factory default settings

LAN Connects to cable/DSL modem

Antenna Transmits signals

PWR RX

LAN

Default

Antenna

DC Jack

CPU LINK SPD TX

EN - 6

Getting Started

Connecting to Device

Please follow the steps below to connect the modem and PC(s) with CANYON

CNP-WFAP:

1. Begin by searching for an appropriate location to setup device. Please keep

in mind to keep the device in the center of working area as the signal

strength and data transfer rate falls off with distance.

2. It is also recommended to place device at a higher position to ensure

minimum obstacle interference.

3. Make sure that all network devices are powered off, including the device

itself, PCs, switches, cable or DSL modem, and other peripherals.

4. Connect the modem to WAN port of the device by one CAT 5 Ethernet

cable.

5. Connect PC(s) with the LAN ports (PC1/PC2/PC3/PC4) of the device by CAT

5 Ethernet cables. One PC connects to only one port using one cable.

6. Power on the cable or DSL modem.

7. Plug in the power of the device. The Power status indicator at the front

panel of device will light up as soon as the power adapter is connected

properly.

8. Power on PC(s).

Windows XP Setup

1. Click on Start ÆSettings ÆControl Panel.

2. Click on Network and Internet Connections icon.

3. Click on Network Connections

4. Right click on Local Area Connection icon and click on Properties.

5. Select TCP/IP option and click on Properties. The Properties dialog box will

be displayed.

6. Check “Obtain an IP address automatically” and “Obtain DNS server

address automatically” options.

7. Click Ok to confirm modifications.

EN - 7

Windows Vista Setup

1. Click on Start ÆSettings ÆNetwork Connections.

2. Right click on Local Area Connection icon and click on Properties.

3. Click on Continue in User Account Control dialog box.

4. Select TCP/IPv4 option and click on Properties. The Properties dialog box

will be displayed.

5. Check “Obtain an IP address automatically” and “Obtain DNS server

address automatically” options.

6. Click Ok to confirm modifications.

Windows 2000 Setup

1. Click on Start ÆSettings ÆControl Panel.

2. Double click on Network and Dial-up Connections icon. The Network dialog

box will be displayed.

3. Right click on Local Area Connection icon and click on Properties.

4. Select TCP/IP option and click on Properties. The Properties dialog box will

be displayed.

5. Check “Obtain an IP address automatically” and “Obtain DNS server

address automatically” options.

6. Click Ok to confirm modifications.

Windows 98/ME Setup

1. Click on Start ÆSettings ÆControl Panel.

2. Double click on Network icon. The Network dialog box will be displayed.

3. Please make sure that appropriate network card is installed before

proceeding. Click on the Configuration label.

4. Select TCP/IP option and click on Properties. The Properties dialog box will

be displayed.

NOTE:

Select the TCP/IP item with an arrow “Æ” pointing to the network card if more

than one TCP/IP options is present.

5. Make sure that the option “Obtain IP address automatically” is checked.

6. Make sure that the “WINS Resolution” option is checked under WINS

Configuration dialog box.

7. From Gateway dialog box, remove all entries from the Installed gateways

EN - 8

by selecting them and clicking on Remove.

8. From DNS Configuration dialog box, remove all entries from DNS server

search order box and Domain suffix search order box by selecting them

and clicking on Remove. Click on Disable DNS.

9. Click Ok to confirm modifications.

NOTE:

To access the device via a wireless connection, PC must be equipped with

802.11b or 802.11g wireless adapter/PCI card. The configuration should be set

as below:

zOperation Mode: Infrastructure

zSSID: Default

zAuthentication: Disabled

zEncryption: Off

EN - 9

Device Configuration

Before setting up the device, please make sure that the host PC(s) is set on the IP

sub-network accessible by CANYON CNP-WFAP device. The default network

address of the device is set as 192.168.1.1. Please configure IP address of host PC

at 192.168.1.XXX where XXX is a number between 002 and 254. The subnet mask

should be 255.255.255.0. Please follow below steps to enter web browser

management mode.

1. Open a browser

(Internet Explorer

browser only) and

type in “192.168.1.1”

at the address bar and

press Enter.

2. Type “guest” at the

user name text box

and “guest” again at

the password text box.

3. The home page of web

browser management

mode will be displayed.

4. Click on 8 different

functions on the main

router menu on the

left. The corresponding

information will be

displayed at right.

5. Click on Help at any

time to bring up help

menu.

NOTE:

The factory settings of user name and the password are by default “guest”. It is

recommended that user change that information to better maintain network

security.

EN - 10

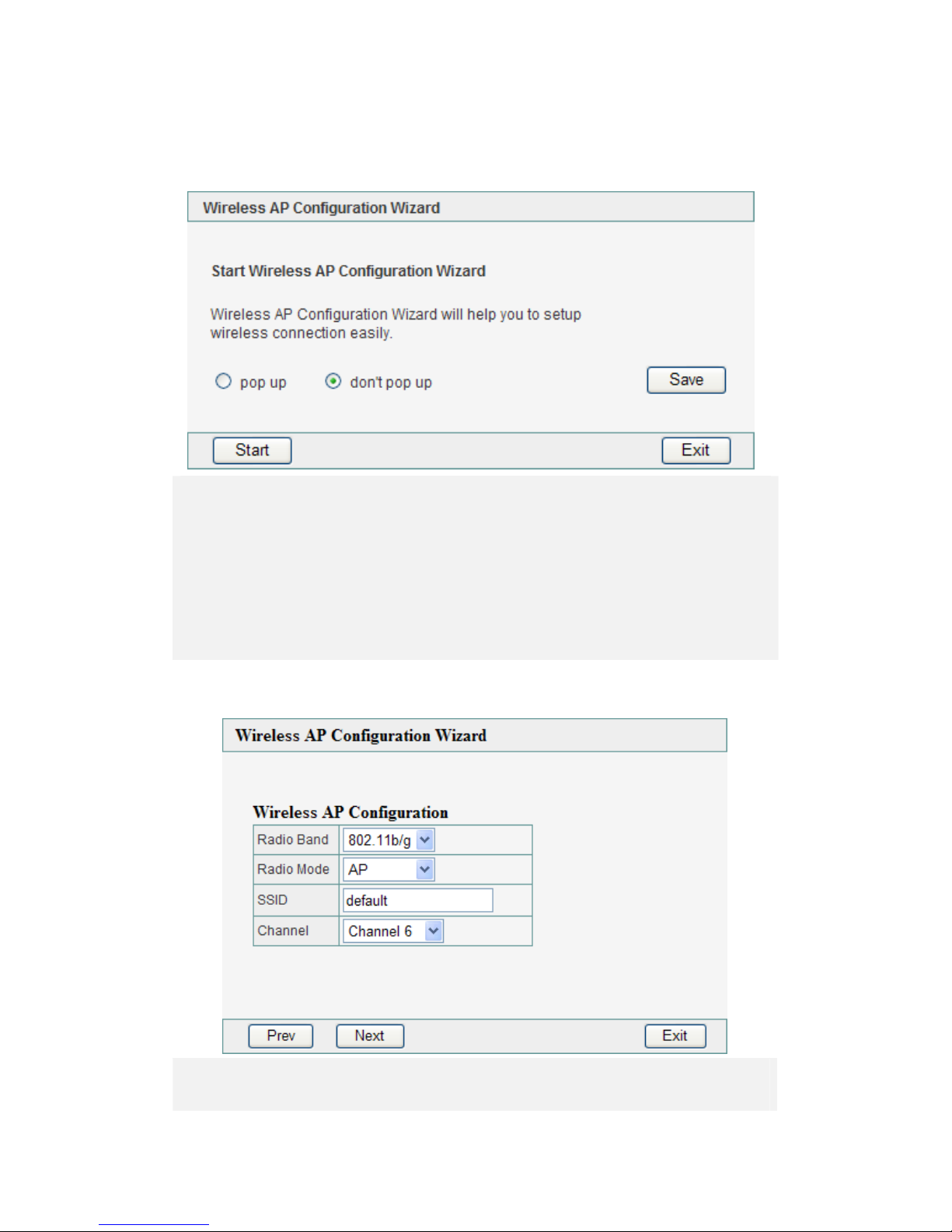

Wireless AP Configuration Wizard

1. Start Wireless AP Configuration Wizard

zInternet Configuration Wizard will pop up upon successful login.

NOTE:

In order to enter Wizard mode, temporarily disable popup window blocking

option if necessary or click on Wizard to start.

zSelect pop up to enable automatic Internet Configuration Wizard prompt

window. Click on Save to save this setting.

zClick on Start to continue or Click on Exit to exit.

2. Wireless AP Configuration

zSelect a Radio Band type from the drop down box. (802.11b/g is

recommended)
