Canon CREATIVE PARK Zebra Manuel utilisateur

Make a mountain fold and valley fold on A1.

Trace along the mountain fold line and valler fold line with a

pencil, scoring it to make it easier to fold.

The Assembly instructions are divided into four blocks: A (head and

neck), B (body), and C (legs and back). Follow the instructions for

each block to assemble your zebra.

Keep scissors and glue away from small children.

Be careful not to cut your fingers when using scissors.

marks a basic assembly technique that remains the same

regardless of the part.

Instructions are printed only for the first instance.

Scissors

Paste, or woodwork glue

Stencil pen, or bodkin

Ruler

Pencil

Scissors line

Mountain fold

Valley fold

Glue spot

Glue reverse side

Parts No.

Zebra : Assembly Instructions

Katsuyuki Shiga(PinoArt)

Canon Inc.

Page

Assemble the head and neck

Use pattern: Page2/Page3.

Cut out A1 by cutting along the lines.

Cut along the line marked .

Parts name

Glue spot

A1 Brow Parts No.

Cut a slot right into

the apex of the

triangular glue tab.

Triangular glue tab

Scissors line

Using the photo as a guide, move your fingers in the direction of the

arrow, adjusting the pressure to curl the paper.

The parts will be easier to assemble if curled.

A1 Brow

Attach the triangular glue tabs so that the front side becomes convex.

Add a slight curl to A1 when attaching it.

Using the photo as a guide, attach in the direction of the arrow.

Notation Key

Tools

Attach A5 and A6 together, and attach A4.

Attach A2 and A3 together, and attach A1.

Attach A4 to the head.

Attach A7 and A8 to the head.

Glue and assemble A9, A10 and A11, A12.

Next, attach them to the head.

Put glue on the edges

of the back of the parts.

Assemble A13, A14 and attach then to the Head in order.

Put glue

on the back.

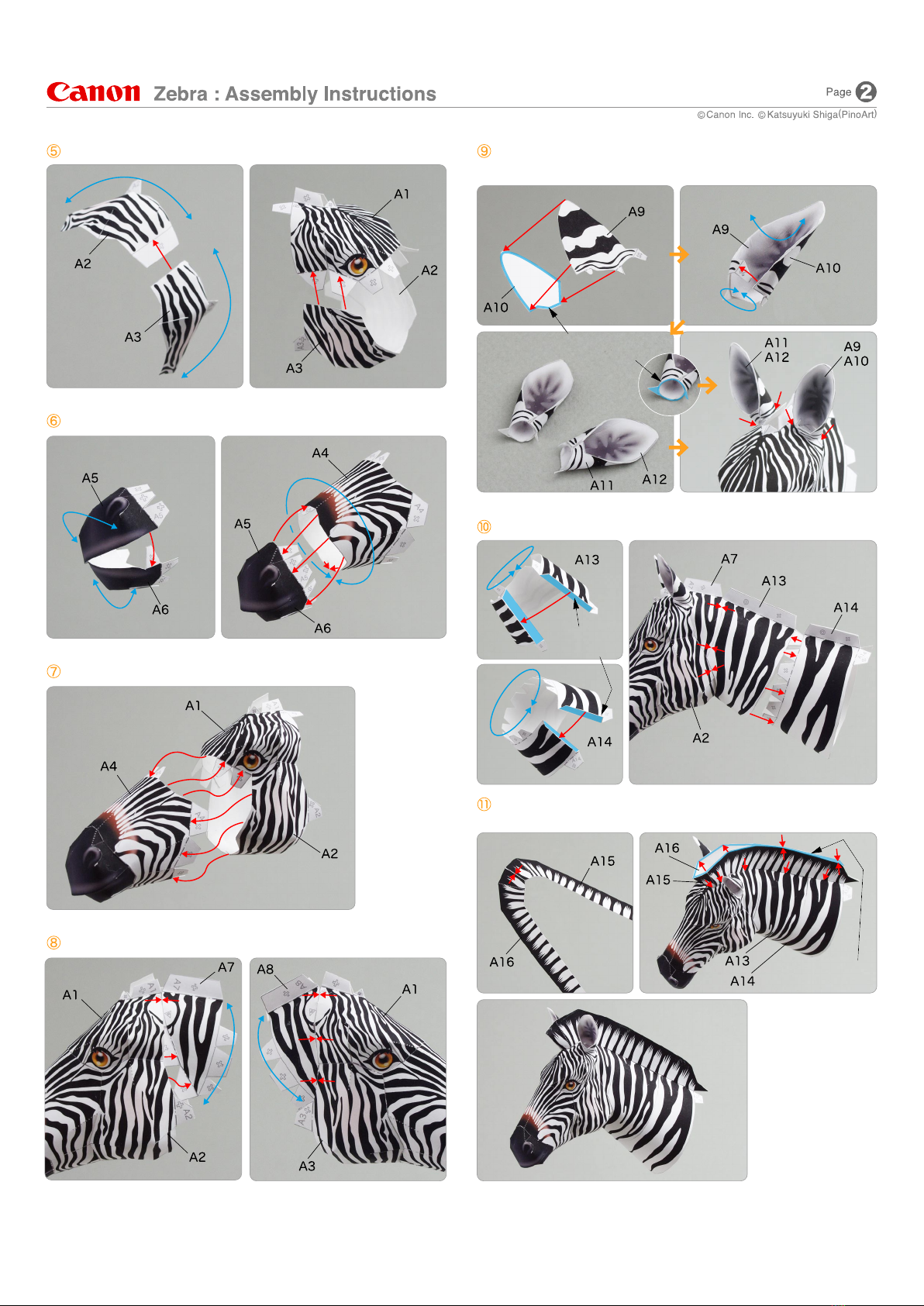

Assemble A15 and A16, attach them to the neck,

and the head is complete.

Put glue on the edges

of the back of the parts.

Zebra : Assembly Instructions

Katsuyuki Shiga(PinoArt)

Canon Inc.

Page

Assemble the body

Use pattern: Page4/Page5.

Assemble B1 and B2, and attach it to the neck.

Attach B3 and B4 together, and attach B1, B2.

Assemble parts C1/C2/C3/C4, and attach them in order.

Assemble the legs and back

Use pattern: Page6 to Page8.

When assembling

the legs, put glue

on the edges

of the back

of the parts too.

Align the seams

on each part.

Use a pencil

to hold down

the glue tabs

inside.

Align the seams

on each part.

Align the seams

on each part.

Assemble parts C5/C6/C7/C8 in the same way.

Attach these legs to the shoulders.

Make sure

all the glue tabs

are tucked inside. Attach the right foreleg in the same way.

Assemble C9 to B3.

Zebra : Assembly Instructions

Katsuyuki Shiga(PinoArt)

Canon Inc.

Assemble C10 and C11, and attach to the body.

Next, assemble C12.

Assemble C13, and attach it to C10.

When

assembling the legs,put glue

on the edges of the back of the parts too.

Assemble C14, C15 and C16,

and attach them together in order. Next, attach them to C13.

Align the seams on each part.

Align the seams

on each part.

When assembling the legs,

put glue on the edges

of the back of the parts too.

Use a pencil

to hold down

the glue tabs inside.

In the same way, assemble C17, and C18, C19 and C20,

and attach them to the body.

Assemble C21, C22, C23 and C24. Place the hooves

on the ground, without adding any glue. Attach the body

to the hooves, taking care to balance it so that it is straight.

Align the seams on each part.

Align the seams on each part. Put glue on the edges

of the back of the parts.

Assemble C25, and attach to the body,

and your zebra is complete!
