Canon 3000F - CanoScan Scanner Manuel utilisateur

Windows®XP

Canon Scanner WIA Driver

User’s Guide

For Windows XP

Introduction ................................. 2

Starting the WIA Driver ............... 3

WIA Driver Scanning Window ...... 7

Scanning ...................................... 9

Adjusting the Image Quality ...... 13

I-OE-072A

Canon Scanner WIA Driver User’s Guide 2

he Canon Scanner WIA Driver (hereafter WIA Driver) is the scanner driver for use

with the Windows XP.

The WIA Driver is extremely convenient. Not only can it be started with a push of the

scanner’s button as a stand-alone program, it can also be started as a scanner driver

from within WIA- and TWAIN-compliant application programs. However, it will not

function in TWAIN-compliant applications with the user interface turned off (no

window appearing).

Caution

1. No part of this document may be reproduced or transmitted in any form or by any means, electronic

or mechanical, for any purpose, without the express written permission of Canon Inc.

2. The equipment and software described in this guide are subject to change without notice.

3. Notwithstanding the considerable care taken in preparing this guide, please note that Canon Inc.

does not accept liability for any results arising from the operation of the equipment or software

mentioned herein.

4. Please note that scanning copyrighted materials, including documents and images, without

permission from the copyright holder is prohibited by law, except for personal or household use.

•Adobe and Acrobat are trademarks of Adobe Systems Incorporated.

•Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States and/or

other countries.

•CanoScan and ScanGear are trademarks of Canon Inc.

•Other names and products not mentioned above may be registered trademarks or trademarks of their

respective companies.

©CANON INC. 2002

System Requirements

Please use the WIA Driver on systems meeting the following minimum requirements.

Computer: IBM PC/AT compatible with a built-in USB port

OS: Windows XP (Not compatible with Windows 98, Windows

Millennium Edition, or Windows 2000 Professional)

Supported Scanners

This WIA Driver supports the following scanner models.

CanoScan N670U / N676U / N1240U

CanoScan LiDE20 / LiDE30

CanoScan LiDE50

CanoScan 3000/ 3000F

CanoScan 5000/ 5000F

CanoScan 8000F

CanoScan 9900F

Introduction

*Film scanning is not supported with this driver.

Canon Scanner WIA Driver User’s Guide 3

The WIA Driver can be started directly as a stand-alone program or it can be started

from within an application program.

Direct Start

Use the following procedure to start the WIA Driver directly.

•The Scanners and Cameras Wizard starts when the WIA Driver is started

directly.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

1. Press one of the scanner buttons or open [My Computer] and double-

click the scanner icon.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

2. If a following dialog appears, confirm that “Microsoft Scanner and

Camera Wizard” is selected and click [OK].

Starting the WIA Driver

Canon Scanner WIA Driver User’s Guide 4

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

3. This will display the Scanners and Cameras Wizard. Follow the on-

screen instructions to scan.

Starting the WIA Driver

Canon Scanner WIA Driver User’s Guide 5

Starting from within an Application Program

Use the following procedures to start the WIA Driver from within a program that can

acquire and process images (a graphics program).

•The WIA Driver functions as a scanner driver when it is started from

within an application program.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

1. Start the application program.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

2. If you have more than one scanner or a digital camera connected

simultaneously, you will need to choose the [Select Scanner] or

[Select Source] menu option of the application program (TWAIN-

compliant application programs only) to select the WIA Driver.

•This step is not required if only one scanner is connected as an input

device for images.

•In a WIA-compliant application program, such as the Windows Paint

program, the Select Device window will open when the [From Scanner

or Camera...] function is selected.

•The names of the selection window and scanner vary between

programs.

Starting the WIA Driver

Paint Menu

If you are using Windows Paint, click the

[File] menu and select [From Scanner or

Camera…].

ArcSoft PhotoStudio Menu

Click the [File] menu and choose [Select

Source].

Canon Scanner WIA Driver User’s Guide 6

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

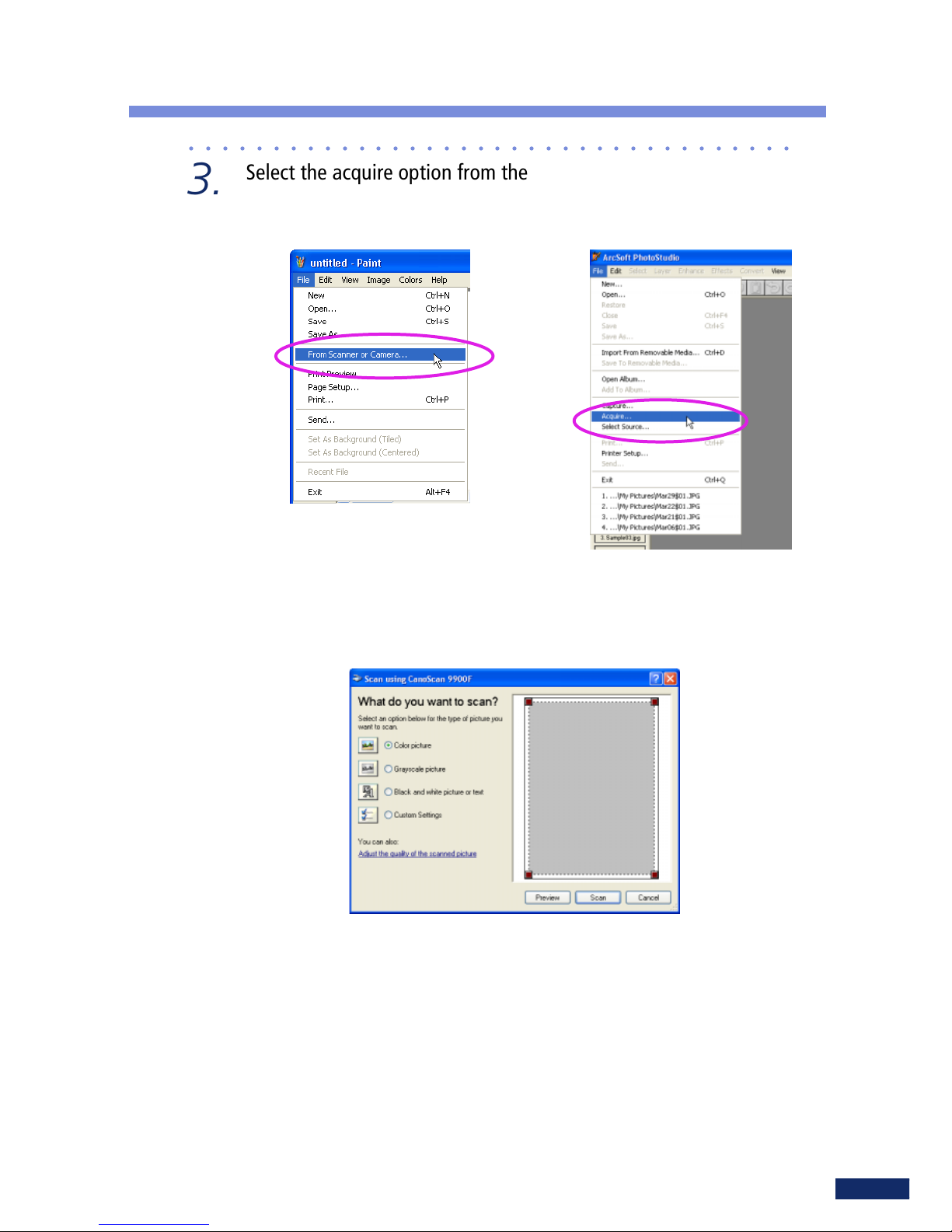

3. Select the acquire option from the application’s pull-down menu.

•The name of the menu item and option will vary between

application programs.



This will start the WIA Driver and display the scanning window.

ArcSoft PhotoStudio MenuWindows Paint Menu

Starting the WIA Driver

Canon Scanner WIA Driver User’s Guide 7

WIA Driver Scanning Window

The following functions can be used in the WIA Driver scanning window. Select a

function according to the purpose to which the image will be put and scan.

Scanning Window when the WIA Driver is Started Directly

The Scan window appears with the following features when you start WIA Driver by

pressing a scanner button or by double-clicking the scanner icon in the My Computer

window.

This option is automatically selected if the user specifies resolution,

brightness or contrast settings.

Select this option to scan text, line art or similar images as black and

white images. (300 dpi resolution)

Select this option to scan photographs and printed materials as

grayscale images. (300 dpi resolution)

Select this option to scan photographs and printed materials as

color images. (150 dpi resolution)

Select this to adjust settings such as

the resolution, brightness or contrast

yourself

(p. 13)

Click this to refresh

the preview image.

Click this to enlarge

the selection to fill the

preview pane.

Click this to show the

entire image.

Click this to stop

scanning.

Click this to proceed

to the next step.

Click this to return to

the previous step.

Close Box

Click here to close the

WIA Driver.

Preview Area

The space in which preview images

display. Use it to set the scan area.

Canon Scanner WIA Driver User’s Guide 8

Scanning Window when the WIA Driver is Started from within an

Application Program

The Scan window appears with the following features when you start WIA Driver from

an application program, such as Windows Paint or ArcSoft PhotoStudio.

This option is automatically selected if the user specifies

resolution, brightness or contrast settings.

Select this option to scan text, line art or similar images as

black and white images. (300 dpi resolution)

Select this option to scan photographs and printed

materials as grayscale images. (300 dpi resolution)

Select this option to scan photographs and printed

materials as color images. (150 dpi resolution)

Select this to adjust settings such as

the resolution, brightness or contrast

yourself

(p. 13)

Click this to preview

the image.

Help Button

If you do not

understand a

procedure, click this

button first and then

click somewhere on

the scanning window

to display an

explanation of that

feature.

Close Box

Click here to close the

WIA Driver.

WIA Driver Scanning Window

Click here and drag to

change the size of the

scanning window.

Click this to start

scanning.

Click this to stop

scanning.

Preview Area

The space in which preview images

display. Use it to set the scan area.

Canon Scanner WIA Driver User’s Guide 9

Use the following procedures to scan with the WIA Driver.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

1. Place an item on the scanner.

•Align the item with the alignment mark on the scanner.

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

2. Start the WIA Driver.

•To start it directly, press a scanner button or double-click the scanner

icon in the My Computer window

(p. 3)



To start it from within an application program, first start the

application program, then select the acquire function from its pull-

down menu

(p. 5)

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

3. Preview the image.

•If you started the program directly, click the [Next] button in the first

dialog followed by the [Preview] button in the next dialog.

•If it was started from within an application program, click the

[Preview] button.

Scanning

Started Directly

Started from within an Application Program

Canon Scanner WIA Driver User’s Guide 10

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

4. Select a scanning method according to the use to which the image

will be put.

•You can select from the [Color picture], [Grayscale picture] and [Black

and white picture or text] options.

•To manually adjust the image quality settings, click the [Custom

settings] or [Adjust the quality of the scanned picture] button and

adjust the settings in the dialog that appears

(p. 13)

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

5. Set the scan area as required.

•When you are scanning photos or other items smaller than the document

glass (platen) area, the entire item is automatically selected by default.

•You can change the scan area of the displayed

image by clicking and dragging the dotted lines or

any corner point. (Dragging refers to holding the

mouse button down while moving the mouse.)

•Clicking inside the scan area and dragging will

move the entire scan area selection frame without

changing its size.

•Clicking outside the scan area deletes the

selection and allows you to reselect a scan area.

•The easiest way to include the image’s upper left portion in the scan area

is to drag the mouse from the bottom right corner up toward the upper

left without releasing the mouse button until the cursor has passed

beyond the image.

Scanning

Started Directly

Started from within an

Application Program
