Canon S830D Manuel utilisateur

Table of Contents

Preface 1

Shipping Materials 1

Introduction 1

Printer Parts and Their Functions 2

Setting Up 4

Preparing the Printer 4

Connecting the Printer to the Computer 4

Installing the Print Head 6

Loading Paper 9

Installing the Printer Driver 10

Aligning the Print Head 16

Basic Operations 22

Printing with Windows 22

Printing with Macintosh 24

Printing Without Using the Computer 26

Before Printing 26

Printing Photographs 35

Print Applications 44

If Photographs Cannot Be Printed Clearly

(Operation Panel Section)

If an Error Is Displayed on the Operation Panel 53

Print Head Maintenance 56

Notes on Handling the USB Interface (for Windows Users) 57

For Further Details... 58

Quick Start Guide

BUBBLE JET PRINTER

QA7-2140-V01

Exif Print

This printer supports Exif 2.2 (also called “Exif Print”).

Exif Print is a standard for enhancing the communication between digital cameras and printers. By

connecting to an Exif Print-compliant digital camera, the camera’s image data at the time of shoot-

ing is used and optimized, yielding extremely high quality prints.

Canadian Radio Interference Regulations

This digital apparatus does not exceed the Class B limits for radio noise emissions from a digital

apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”,

ICES-003 of the Industry Canada.

Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils

numériques de Classe B prescrites dans la norme sur la matériel brouilleur: “Appareils Numériques”,

NMB-003 édicatée par l’Industrie Canada.

International ENERGY STAR®Program

As an ENERGY STAR Partner, Canon Inc. has determined that this product meets the ENERGY

STAR guidelines for efficiency.

The International ENERGY STAR Office Equipment Program is a global program

that promotes energy saving through the use of computer and other office equip-

ment. The program backs the development and dissemination of products with

functions that effectively reduce energy consumption. It is an open system in

which business can participate voluntarily. The targeted products are office equip-

ment such as computers, monitors, printers, faxes and copiers.

Their standards and logos are uniform among participating nations.

Power Requirements

Never use a power supply voltage other than that supplied in the country of purchase. Using the

incorrect voltage could cause a fire or electric shock. The correct power supply voltages and frequen-

cies are as follows:

Europe AC 230V±10%, 50Hz

USA/Canada AC 120V, 60Hz

Australia AC 240V, 50Hz

Preface

■■

Shipping Materials

■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■

Thank you for purchasing a Canon Bubble Jet Printer.

Check that all the following items are in the box. If anything is missing or is damaged, contact

your Canon Authorised Dealer or Sales Representative.

❏Printer

❏Setup Software & User’s Guide CD-ROM

❏Quick Start Guide

❏Print Head

❏6 Ink Tanks

❏PCMCIA Card Adapter

❏Bubble Jet Printer - digital camera connection cables (Direct Interface cable DIF-B100/DIF-B250)

* Cables should be purchased separately according to your computer. For details on cable

types and specifications, refer to page 4.

■■

Introduction

■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■

This Quick Start Guide uses the following symbols to indicate important information. Always

observe the instructions indicated by these symbols.

Instructions that, if ignored, could result in death or serious personal injury caused by

incorrect operation of the equipment. These must be observed for safe operation.

Instructions that, if ignored, could result in personal injury or material damage caused by

incorrect operation of the equipment. These must be observed for safe operation.

Also read the Safety Precautions in the User’s Guide. Observe the warnings and cautions to

avoid personal injury or damage to the printer.

Trademark Notices

• Canon

is a registered trademark of Canon Inc.

• BJ™ is a trademark of Canon Inc.

• Microsoft

and Windows

are registered trademarks of Microsoft Corporation in the U.S.

and other countries.

• Apple, Mac and Macintosh are trademarks of Apple Computer, Inc., registered in the U.S.

and other countries.

• CompactFlash is a trademark of SanDisk Corporation.

• MEMORY STICK is a trademark of Sony Corporation.

• SmartMedia™ is a trademark of Toshiba Corporation.

• All other trademarks and registered trademarks appearing in this Quick Start Guide are

the property of their respective owners.

whatsoever without the express written permission.

■■

Printer Parts and Their Functions

■■■■■■■■■■■■■■■■■■■■■

■Front View

Operation Panel

For details, refer to

"Operation Panel."

Card Slot

Use to connect the

PC card adapter.

Eject Button

Press to remove the

PC card adapter. Paper Output Tray

Paper Guide

When loading paper, ensure

the left edge just touches

this guide.

To move the paper guide,

pinch the knob and slide in

the appropriate direction.

Paper Rest

Camera Port

Use to connect the

printer to a digital

camera.

Sheet Feeder

Load paper here.

Paper feeds

automatically, one sheet

at a time.

Indicator lamp

Goes on when memory

card reading becomes

enabled and flashes while

the memory card is being

read. When this lamp

goes off, when the

memory card cannot be

read.

Front Cover

Open to replace the ink tanks or

remove jammed paper.

■Rear View

USB Port

Used to connect the printer to a

computer through a USB interface.

Image Viewer

Connection

Remove the cover when

installing the optional TFT

Image Viewer <<IV-100>>

(see page 32).

Power Cord Connection

Connector used to connect the supplied

power cord.

■Inside the Printer

Paper Thickness Lever

Adjusts the gap between the print head and the surface of the printing paper.

Print Head Holder

Install the print head here.

Reset Button

Press to resume printing once

an error has been cleared. The

printer will then initialise ready

for printing.

Also, to cancel printing in

progress when connecting to

the computer, press this button.

POWER Lamp

Off: the printer is turned off.

Green: the printer is ready to print.

Flashing green: the printer is preparing to print, or is currently printing.

Flashing orange: an error has occurred and the printer is not ready to print.

Flashing orange and green alternately: an error has occurred that may require a service call.

POWER Button

Press to turn the printer

on or off.

Print Head Lock Lever

Locks the print head into the holder.

Once the print head is installed, do not touch this lever.

■Operation Panel

For details on names and functions on the Operation Panel, refer to

“

Operation Panel Names

and Usage

”

on page 26.

Place the printer on a flat surface.

Remove the packing material and tape

from the printer as shown.

Attach the paper rest to the sheet

feeder.

Attach the paper output tray as shown.

Setting Up

■■

■

Preparing the Printer

■■■■■■■■■■■■■■■■■■■■■■■■■■■

■■

■

Connecting the Printer to the Computer

■■■■■■■■■■■

➥

Note

If you are printing with only Direct Print, skip this section and go to

“

Installing the Print

Head

”

on page 6.

Use a USB cable.

USB cable

• Windows XP, Windows Me, Windows 2000, Windows 98

• Mac OS 8.6 or later

Recommended: Canon or other computer manufacturer cable, up to 2 meters in length.

paper output tray

paper rest

Follow the steps below to install the printer

driver correctly.

Ensure the printer and the computer

are switched off.

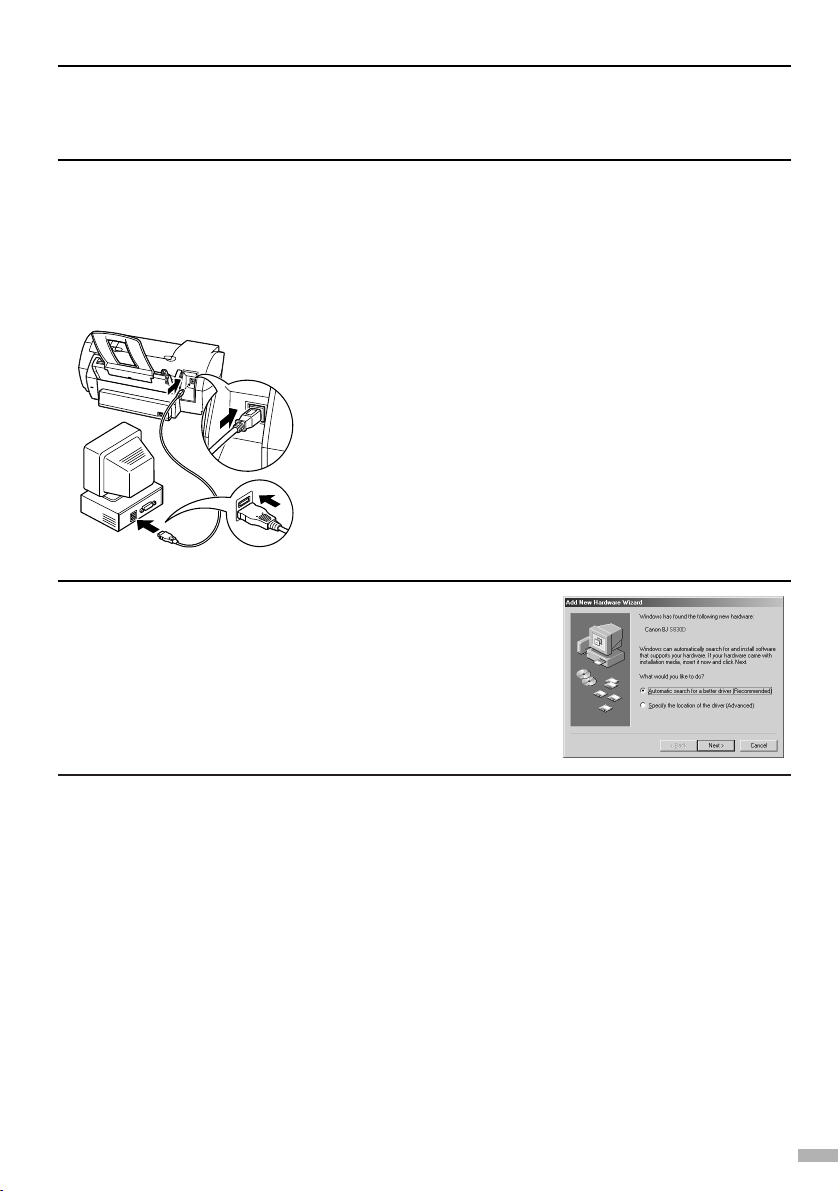

Connect the cable.

➥

Notes

•If your computer has an earth connection, ensure that this is attached.

• If you do not intend to use the printer for a long period of time, unplug the power cord

from the power outlet after turning off the printer.

➥

Note

If the Add New Hardware Wizard or Found New Hardware

Wizard screen appears when carrying out the following

operations, click Cancel and turn off the computer.

Plug the printer in.

Turn on the printer. Do NOT turn on

the computer yet.

The POWER lamp flashes and the printer begins

to operate. Wait until the POWER lamp remains

fully lit.

Open the front cover.

➥

Note

If the front cover is opened more than ten

minutes, the print head holder moves to the

right side. If this occurs, close the front cover,

and open it again.

Remove the tape.

■■

■

Installing the Print Head

■■■■■■■■■■■■■■■■■■■■■■■■

• Never attempt to plug the power cord into the power outlet or unplug the power cord

when your hands are wet.

•Never damage, modify, stretch, or excessively bend or twist the power cord. Do not place

heavy objects on the power cord.

• Never use any power supply other than the standard power supply available in the

country of purchase. Using the incorrect voltage and frequency could cause a fire or

electric shock.

• Always push the plug all the way into the power outlet.

■Installing the Print Head

Raise the print head lock lever.

Do not touch internal parts other than the lock

lever.

Remove the protective cap from the

print head.

➥

Notes

•Do not touch the

print head nozzles or

electrical contacts.

• Do not attempt to

reattach the

protective cap once it

has been removed.

Place the print head in the holder.

Lock the print head into place by

lowering the lever.

Do not touch the lock lever once the print head

has been installed.

■Installing the Ink Tanks

•For safety reasons, store ink tanks out of the reach of small children.

• Do not drop or shake ink tanks.

Take out the yellow ink tank.

Pull the orange tape in the direction of

the arrow and remove the clear film.

electrical contacts

print head

nozzles

print head

holder

print head

Hold the ink tank as shown in the

diagram and remove the protective

cap.

➥

Notes

•Do not squeeze the sides

of the ink tanks as this

may cause the ink to leak

out and stain your clothes

and hands.

• Do not touch the ink port.

• Do not attempt to reattach

the protective cap once it

has been removed.

Insert the yellow ink tank into the right-

hand slot. Press the top until it clicks

into place.

Use the same procedure to install the

other ink tanks in their appropriate

slots.

Check the labels to ensure that each tank is in the

correct position.

➥

Notes

•Only install the ink tanks in the positions

specified by the labels.

• If ink tanks are not installed in the right

position, colours will not be printed

correctly. Immediately reinstall the tank in

the correct position and carry out print head

cleaning. For details, refer to the User’s

Guide.

Close the front cover.

Wait until the POWER lamp remains fully lit.

ink port

Black

Yellow

Magenta

Cyan

Photo Cyan

Photo Magenta

Autres manuels pour S830D

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Canon Imprimante

Canon

Canon PIXMA G2570 Guide de configuration

Canon

Canon imageRUNNER ADVANCE C5560 Guide rapide

Canon

Canon MG6800 Series Manuel utilisateur

Canon

Canon iPF5000 - imagePROGRAF Color Inkjet Printer Manuel utilisateur

Canon

Canon iP3000 - PIXMA Photo Printer Manuel

Canon

Canon imagePROGRAF iPF6400SE Manuel utilisateur

Canon

Canon Oce VarioPrint i Series Manuel utilisateur

Canon

Canon Ivy Manuel utilisateur

Canon

Canon imagePROGRAF W2200 Manuel utilisateur

Canon

Canon Color imageCLASS LBP664Cdw Manuel utilisateur

Canon

Canon imagePRESS C850 Manuel utilisateur

Canon

Canon iP100 - PIXMA Color Inkjet Printer Manuel utilisateur

Canon

Canon g3000 series Guide de configuration

Canon

Canon iP2600 - PIXMA Color Inkjet Printer Mode d’emploi

Canon

Canon iP1800 - PIXMA Color Inkjet Printer Manuel utilisateur

Canon

Canon iPF6100 - imagePROGRAF Color Inkjet Printer Manuel utilisateur

Canon

Canon iPF720 - imagePROGRAF Color Inkjet Printer Manuel utilisateur

Canon

Canon Pixma iP4300 Series Manuel utilisateur

Canon

Canon iR1230G Manuel utilisateur

Canon

Canon iP3500 - PIXMA Color Inkjet Printer Manuel utilisateur

Canon

Canon imageCLASS LBP6780x Manuel utilisateur

Canon

Canon BJ-20 Manuel utilisateur

Canon

Canon IPF850 Manuel utilisateur

Canon

Canon MG5200 series Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

IRA3D

IRA3D POETRY4 Manuel utilisateur

Ricoh

Ricoh Aficio AP400 Manuel utilisateur

BIXOLON

BIXOLON SRP-352plusV Manuel utilisateur

Epson

Epson Stylus Photo PX700W Instructions de montage

Ricoh

Ricoh SP204SF Manuel utilisateur

Star Micronics

Star Micronics futurePRNT TSP100 Manuel utilisateur

Epson

Epson TM-TM88V-i Manuel d'utilisation et d'entretien
