1. Checking Included Items

□ Setup CD-ROM for

Windows PC

□ Power cord

□ Safety and Important Information

□ Ink tanks for setup

□ Getting Started (this manual)

2. Removing Packing

Materials / Turning on

Printer

When printing starts, the operation panel lifts up

automatically and the paper output tray comes out. Do

not put anything in front of the printer.

1 Remove the packing materials (such as orange

tape and protective lm on the touch screen) from

outside the printer.

Using the printer with the protective lm attached

may cause malfunction.

2 aHook the hollows on the both sides of

the printer with your ngers and open the

scanning unit / cover.

bRemove the orange tape.

3 LIFT UP the scanning unit / cover, and then close

it.

4 Connect the power cord diagonally from the back.

Back

Do not connect any cables except the power cord

yet.

5 Lift the operation panel and press the ON button.

6 Drag the screen and tap the language to select.

7 Read the messages and follow the on-screen

instructions.

For details about information that is sent to Canon,

refer to "Sending Data To Canon" in Safety and

Important Information.

8 Select OK.

3. Installing Ink Tank

1 Open the scanning unit / cover.

Do not touch the print head holder (A) until it

stops.

(A)

2 aCOMPLETELY remove the orange tape.

bRemove the protective wrap.

3 Hook the orange cap with your nger to remove it

GENTLY.

Do not push the both sides of the

ink tank with the Y-shape air hole

blocked.

Do not touch.

4 Insert the ink tank into the print head and push it

down rmly until it snaps into place.

The color of the ink tank that you set appears on

screen.

If the color is not displayed on the screen even

though you have installed the ink tank, the color

of the ink tank may be wrong or you may have

installed an ink tank, such as one with a different

model number, that is not supported by this printer.

Either install an ink tank for the correct color or use

the provided ink tank for setup.

5 Install all the ink tanks the same way as in step

4, and then conrm that all the colors appear on

screen.

6 LIFT UP the scanning unit / cover, and then close

it.

If an error message appears on the screen, make

sure the ink tanks are installed correctly.

4. Loading Paper / Aligning

Print Head

To obtain a better print result, print a pattern for Print Head

Alignment and scan it.

1 aPull out the cassette.

bRemove the cassette cover.

2 Open the paper guides, and then align the guide in

front with the mark of LTR or A4.

ENGLISH

3 aLoad plain LTR or A4 size paper with the print

side facing down.

bSlide the right paper guide to align it with the

side of the paper stack.

cAlign the paper stack with the paper guide in

front.

4 Attach the cassette cover and insert the cassette.

The following gure shows the state after the cassette

is inserted.

Side

5 If the following screen appears, select OK.

The paper output tray comes out automatically.

6 Make sure that a pattern is printed for Print Head

Alignment.

It takes about 4 minutes to nish printing.

7 aOpen the document cover.

bLoad the printed pattern on the platen glass.

8 After closing the document cover, select OK.

9 If the following screen appears, select OK.

If the orange tape remains on the paper output tray,

remove it.

6-A. Connecting to Computer

Mac OS

Windows

You need a connection setup for each computer. Proceed with the setup from step 1 for each computer.

1 Start the setup le for either method or method .

5. Preparing for Connection

In the following description, smartphones and tablet

devices are collectively described as smartphone.

1 Select Next.

2 Make sure that the following screen appears.

From here on, proceed to a step according to how you use

the printer.

Use Only Printer

aTap the Stop button.

bSelect Do not connect > Yes in this order.

The setup is now complete.

aOpen a web browser ( etc.) on your computer.

bInput the following URL and access the Canon

website.

cSelect Set Up.

dInput the model name of your printer and click OK.

You can select a model name from the list.

eClick Setup.

The procedures for Windows and Mac OS are shown

below. If you are using a computer with an OS other

than Windows or Mac OS, such as a Chrome OS, do

the setup according to the on-screen instructions.

fClick Download and download the setup le.

gExecute the downloaded le.

Proceed to step on the next page to

continue.

Downloading from the Internet

• To use the printer by connecting only to a computer or both to a computer and smartphone

"6-A. Connecting to Computer"

• To use the printer by connecting only to a smartphone

"6-B. Connecting to Smartphone" on page 6

• To use the printer without connecting to a computer or smartphone

"Use Only Printer"

ENGLISH

Using Setup CD-ROM (Windows Only)

aLoad the Setup CD-ROM in your computer.

■ When using Windows 10 or Windows 8.1:

bWhen the following message appears on the right

side of your computer screen, click it.

cIf the following screen appears, click Run

Msetup4.exe.

dIf the User Account Control dialog box appears,

click Yes.

When This Message Does Not Appear (or Has

Disappeared)

1. Click File Explorer on the taskbar.

2. Click This PC on the left side of the opened window.

3. Double-click the CD-ROM icon on the right side of

the window.

If the contents of the CD-ROM appear, double-click

Msetup4.exe.

4. Proceed to step d.

■ When using Windows 7:

b When the AutoPlay screen appears, click Run

Msetup4.exe.

c If the User Account Control dialog box appears,

click Continue.

When AutoPlay Screen Does Not Appear

1. Click Computer from the start menu.

2. Double-click the CD-ROM icon on the right side of

the opened window.

If the contents of the CD-ROM appear, double-click

Msetup4.exe.

Proceed to step to continue.

2 Click Start Setup.

The connection with your computer is now complete. You can print from your

computer.

If the following screen appears, click Exit.

Follow the on-screen

instructions to proceed

with the setup.

6-B. Connecting to Smartphone

Android

iOS

You need a connection setup for each smartphone. Proceed with the setup from step 1 for each smartphone.

Preparation

• Turn on Wi-Fi on your smartphone.

• If you have a wireless router, connect your smartphone to the wireless router you want to connect to the printer.

* For operations, refer to manuals of your smartphone and the wireless router or contact those manufacturers.

1 Install the application software Canon PRINT Inkjet/SELPHY in your smartphone.

: Search "Canon PRINT" in App Store.

: Search "Canon PRINT" in Google Play.

Or access the Canon website by scanning the QR code.

* You may not connect your smartphone to the Internet wirelessly during connecting the printer to the smartphone directly.

In that case, you may be charged depending on the contract with your service provider.

* Up to 5 devices can be connected to the printer via wireless LAN connection directly.

2 Check the display on the printer.

The screen turns off when no operation is made for about 10 minutes. Tap the touch screen to display the screen.

■ If the following screen appears:

Check the icon on the lower left, and then proceed

to or .

If appears, the printer cannot communicate

by wireless LAN connection. For details, access

"http://ij.start.canon" to see Frequently Asked Questions.

■ If the following screen appears:

Proceed to .

No (Proceed to .)

YES

aTap the installed application software.

bFollow the on-screen instructions to register the

printer.

cMake sure that the following screen appears.

The connection with your smartphone is

now complete. You can print from your

smartphone.

To print photos, load photo paper. Proceed to "Loading

Photo Paper" on page 8.

The following icon appears.

(The printer is connected to a network.)

ENGLISH

Procedures below vary depending on iOS or Android. Select your operating system and proceed to its

procedure.

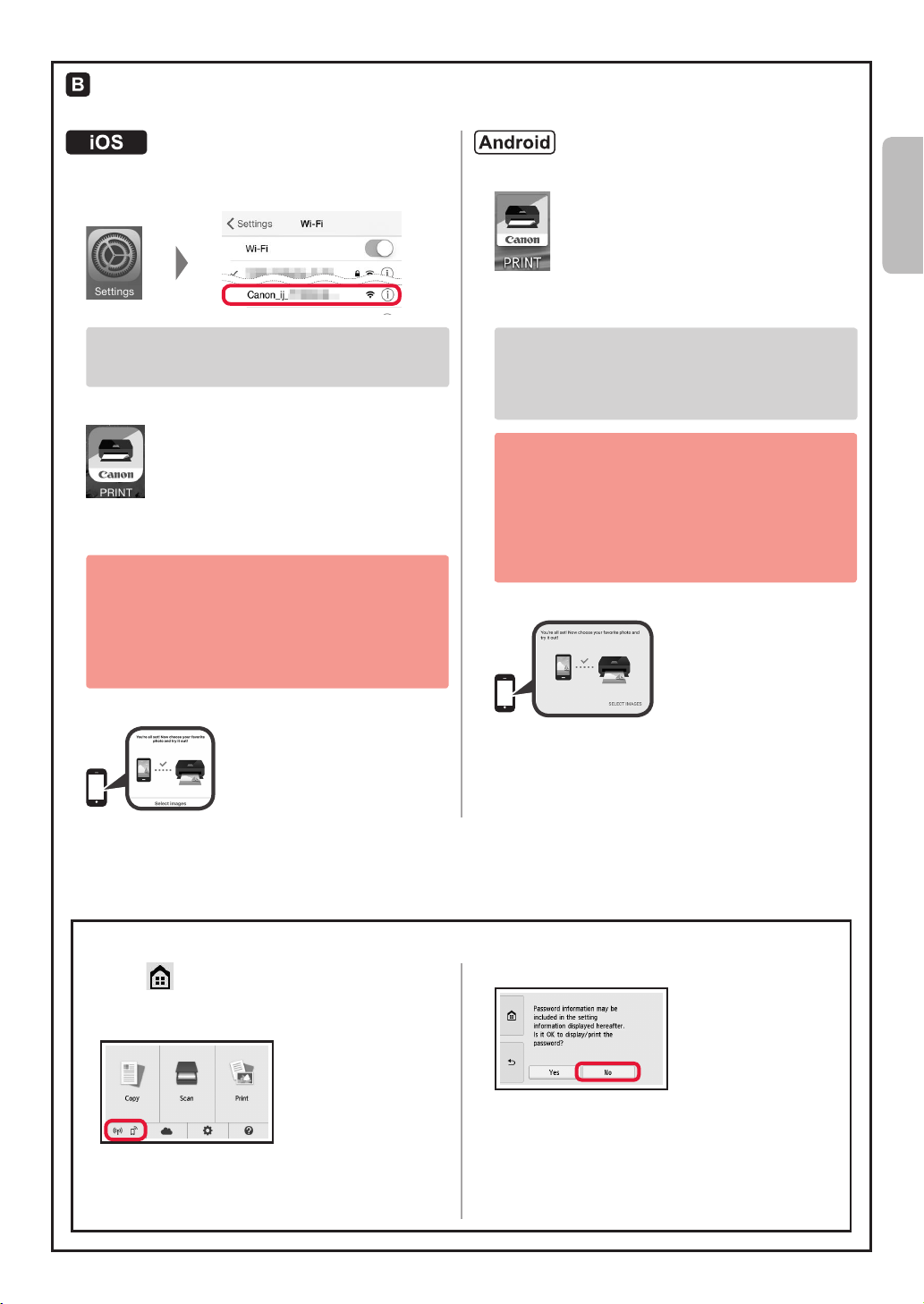

aTap Settings on your smartphone's home screen,

and tap Canon_ij_XXXX in the Wi-Fi settings.

If Canon_ij_XXXX does not appear on the list,

see "Preparation for Printer" below to operate the

printer, and then repeat step a.

bTap the installed application software.

cFollow the on-screen instructions to register the

printer.

Follow the on-screen instructions to proceed

with the setup.

If you select Auto Select Conn. Method

(recommended) on the connection method

selecting screen, the appropriate connection

method is selected automatically depending on

your environment.

dMake sure that the following screen appears.

aTap the installed application software.

bFollow the on-screen instructions to register the

printer.

If a message saying "Printer is not registered.

Perform printer setup?" does not appear, see

"Preparation for Printer" below to operate the

printer, and then wait for a while until the message

appears.

Follow the on-screen instructions to proceed

with the setup.

• The appropriate connection method is selected

depending on your environment.

• If two printer names appear on the Register

Printer screen as shown below, select A.

A) TS8100 series (xxx.xxx.xxx.xxx)

B) Direct-xxxx-TS8100series

cMake sure that the following screen appears.

The connection with your smartphone is now complete. You can print from your

smartphone.

To print photos, load photo paper. Proceed to "Loading Photo Paper" on page 8.

aSelect on the touch screen of the printer.

bSelect the icon on the lower left of the HOME

screen.

cIf the following screen appears, select No.

dSelect LAN settings > Wireless LAN > Wireless

LAN setup > Easy wireless connect in this order.

eSelect Yes.

fReturn to the operation of your smartphone.

Preparation for Printer

1 Open the rear tray cover and pull out the paper

support.

2 aOpen the feed slot cover.

bSlide the right paper guide to the end.

3 aLoad several sheets of photo paper with the

print side facing up.

bSlide the right paper guide to align it with the

side of the paper stack.

4 Close the feed slot cover.

Read the message on the printer's screen and

1 Make sure the printer is turned on.

2 Load several sheets of photo paper.

3 Insert the memory card into the card slot.

4 Select photos to be printed.

5 Tap the Color button.

The printer starts printing.

Loading Photo Paper

Printing Photos Saved on Memory Card

You can print photos saved on a memory card with easy operations.

Load photo paper in the rear tray.

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Canon Imprimante

Canon

Canon GX5070 Guide de configuration

Canon

Canon Pixma TS3400 Series Manuel utilisateur

Canon

Canon imageCLASS X LBP1238 Manuel utilisateur

Canon

Canon MG6600 Series Manuel utilisateur

Canon

Canon PIXMA HOME OFFICE TR8660 Guide de configuration

Canon

Canon PIXMA iP4820 Series Manuel utilisateur

Canon

Canon MG8150 Manuel utilisateur

Canon

Canon MP980 series Manuel utilisateur

Canon

Canon MG3560 Guide de configuration

Canon

Canon imgaePRESS 1110+ Manuel technique

Canon

Canon PIXMA TR152 Manuel utilisateur

Canon

Canon PIXMA E300 series Manuel utilisateur

Canon

Canon Color Bubble Jet BJC-4400 Series Manuel utilisateur

Canon

Canon imagepress C7010VP Guide de dépannage

Canon

Canon 8996A001 - i 455 Color Inkjet Printer Guide de configuration

Canon

Canon imageCLASS MF4680 Guide de sécurité

Canon

Canon PIXMA MG3140 Manuel utilisateur

Canon

Canon PIXMA E3300 Series Guide de configuration

Canon

Canon imageGLASS MF455dw Manuel utilisateur

Canon

Canon LBP361dw Manuel utilisateur

Canon

Canon i960 Series Manuel utilisateur

Canon

Canon SELPHY SQUARE QX10 Manuel utilisateur

Canon

Canon PIXMA mini260 Manuel utilisateur

Canon

Canon SELPHY CP400 Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

IRA3D

IRA3D POETRY4 Manuel utilisateur

Ricoh

Ricoh Aficio AP400 Manuel utilisateur

BIXOLON

BIXOLON SRP-352plusV Manuel utilisateur

Epson

Epson Stylus Photo PX700W Instructions de montage

Ricoh

Ricoh SP204SF Manuel utilisateur

Star Micronics

Star Micronics futurePRNT TSP100 Manuel utilisateur

Epson

Epson TM-TM88V-i Manuel d'utilisation et d'entretien
