Canon MP980 series Manuel utilisateur

How to Use This Manual Printing This Manual

MC-3204-V1.00

Basic Guide

Describes the summary of

this product.

Advanced Guide

Describes the detailed

function of this product.

Troubleshooting

Page 1 of 947 pagesMP980 series On-screen Manual

How to Use This Manual

Printing This Manual

Printing DVD CD Label

MP-2549-V1.00

dvanced Guide

Contents

Overview of the Machine

Main Components

How to Navigate Menus on the LCD

Printing from a Memory Card

Printing Photos Saved on the Memory Card

Using Various Functions

Inserting the Memory Card

Copying

Making Copies

Using Various Copy Functions

Printing Photos from Printed Photos or

Film

Reprinting Printed Photos

Printing Photos from a Film

Using Various Functions

Scanning

Saving Scanned Data

Printing from Your Computer

Printing Photos (Easy-PhotoPrint EX)

Printing Documents (Windows)

Printing Documents (Macintosh)

Other Usages

Printing the Notebook or Graph Paper

Printing Photos Directly from Your Mobile Phone

or Digital Camera

Machine Settings

Solution Menu and My Printer

Loading Paper / Originals

Loading Paper

Loading Originals to Copy or Scan

Routine Maintenance

Replacing an Ink Tank

When Printing Becomes Faint or Colors Are

Incorrect

Cleaning the Paper Feed Roller

Cleaning the Pad in the Cassette

Appendix

Safety Precautions

Legal Limitations on Use of Your Product and

Use of Images

Tips on How to Use Your Machine

Page 2 of 947 pagesMP980 series Basic Guide

Advanced Guide Troubleshooting

Contents > Overview of the Machine

Overview of the Machine

This section shows the component names of the machine and describes the basic operations you need

to know before using it.

Main Components

Front View

Rear View

Inside View

Operation Panel

How to Navigate Menus on the LCD

Selecting Menus on the HOME Screen

Selecting Setting Items

Other Operations

Page top

Page 3 of 947 pagesOverview of the Machine

Advanced Guide Troubleshooting

Contents > Overview of the Machine > Main Components

Main Components

Front View

(1) Document Cover

Open to load an original on the Platen Glass.

(2) Operation Panel

Use to change the settings of the machine or to operate it.

See Operation Panel.

(3) LCD (Liquid Crystal Display)

Displays messages, menu selections, and the operation status. You can also preview photos on the LCD

before printing.

Note

The LCD will turn off if the machine is not operated for about 5 minutes. To restore the

display, press any button except the ON button or perform the print operation.

(4) Paper Support

Raise and tip back to load paper in the Rear Tray.

(5) Paper Guides

Slide to align with both sides of the paper stack.

(6) Rear Tray

Load various sizes or types of paper which you can use on the machine. Two or more sheets of the same

size and type of paper can be loaded at the same time, and fed automatically one sheet at a time.

See Loading Paper.

(7) Card Slot Cover

Open to insert a memory card.

See Inserting the Memory Card.

(8) Infrared Port

Use this port to print from a mobile phone with wireless infrared communication.

See Printing Photos from a Wireless Communication Device.

Page 4 of 947 pagesMain Components

(9) Direct Print Port

Connect a PictBridge compliant device such as a digital camera or the optional Bluetooth Unit BU-30* when

printing directly.

See Printing Photos Directly from Your Mobile Phone or Digital Camera.

You can also insert a USB flash drive to this port to save scanned data on it.

See Saving Scanned Data.

* The Bluetooth Unit is not available in some countries or regions depending on the local laws and

regulations. For details, contact your local Canon service representative.

Warning

Do not connect any equipment other than PictBridge compliant devices, the optional

Bluetooth Unit BU-30, and USB flash drives to the Direct Print Port of the machine. This

may cause fire, electric shock, or damage to the machine.

Caution

Do not touch the metal casing.

(10) Paper Output Tray

Opens automatically when printing or copying starts and printed papers are ejected.

(11) Output Tray Extension

Open to support the printouts. Open it when printing or copying.

(12) Scanner Lock Switch

Locks the Scanning Unit (Cover) to keep it from opening when transporting the machine. Make sure to

unlock it before turning the power on.

(13) FAU (Film Adapter Unit) Protective Sheet

Protects the FAU lamp and the Platen Glass. The Film Guide used for scanning film is stored behind the FAU

Protective Sheet.

(14) FAU (Film Adapter Unit) lamp

Lights up the film original when scanning films.

(15) Platen Glass

Load an original to copy or scan.

(16) Cassette

Load A4, B5, A5, or Letter-sized plain paper and insert it into the machine. Two or more sheets of the same

size of paper can be loaded at the same time, and fed automatically one sheet at a time.

See Loading Paper.

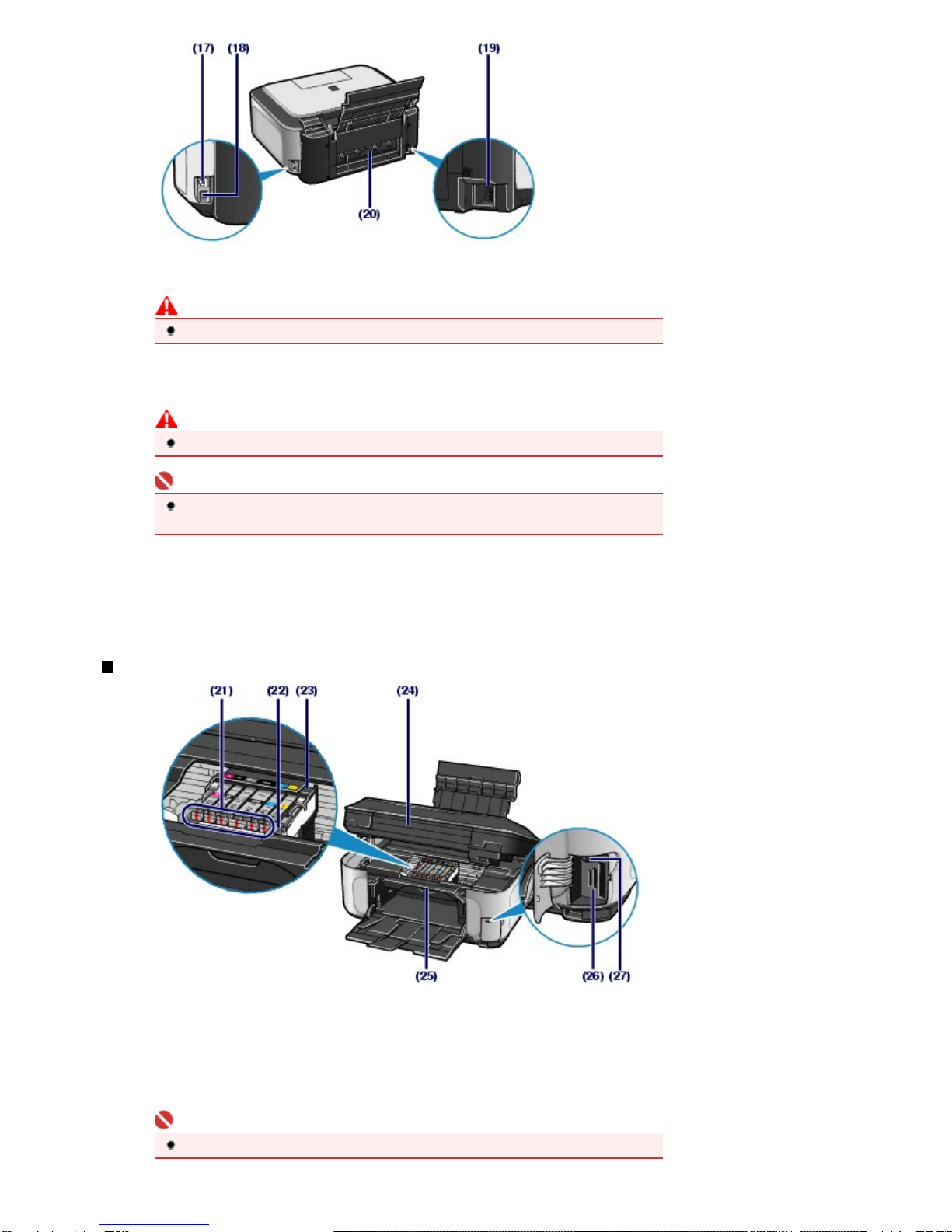

Rear View

Page 5 of 947 pagesMain Components

(17) Wired LAN Connector

Plug in the LAN cable to connect the machine to a LAN.

Caution

Do not touch the metal casing.

(18) USB Port

Plug in the USB cable to connect the machine with a computer.

Caution

Do not touch the metal casing.

Important

Do not plug in or unplug the USB cable while the machine is printing from or scanning

originals to the computer.

(19) Power Cord Connector

Plug in the supplied power cord.

(20) Rear Cover

Detach to remove jammed paper.

Inside View

(21) Ink lamp

Lights or flashes red to indicate the ink tank status.

See Checking the Ink Status.

(22) Print Head Lock Lever

Locks the Print Head into place.

Important

Do not raise this lever after installing the Print Head.

Page 6 of 947 pagesMain Components

(23) Print Head Holder

Install the Print Head.

(24) Scanning Unit (Cover)

Scans originals. Open it to replace ink tanks, to check ink lamps, or to remove jammed paper inside the

machine. When opening the Scanning Unit (Cover), lift it with the Document Cover closed.

(25) Inner Cover

Close it when printing on paper.

(26) Card Slot

Insert a memory card.

See Inserting the Memory Card.

(27) Access lamp

Lights or flashes to indicate the memory card status.

See Inserting the Memory Card.

Note

For details on installing the Print Head and ink tanks, refer to the printed manual: Getting

Started.

Operation Panel

(1) ON button

Turns the power on or off. Before turning on the power, make sure that the Document Cover is closed.

Important

Disconnecting the power plug

When disconnecting the power plug after turning off the power, be sure to confirm that

the Power lamp is not lit. If the power plug is disconnected from the wall outlet while the

Power lamp is lit or flashing, the machine may become unable to print properly since the

Print Head is not protected.

(2) Buttons to use when navigating menus on the LCD

See How to Navigate Menus on the LCD .

(3) Black button

Starts black & white copying, scanning, etc.

(4) Color button

Starts color printing, copying, or scanning.

(5) Stop button

Cancels operation when a print job is in progress.

(6) Alarm lamp

Lights or flashes orange when an error, such as paper-out or ink-out, occurs.

(7) [+] [-] buttons

Specifies the number of copies to copy or print.

Page 7 of 947 pagesMain Components

(8) Power lamp

Lights blue after flashing when the power is turned on.

(9) OK button

Selects a menu or setting item. See How to Navigate Menus on the LCD .

Resolves an error when printing is in progress or resumes the machine's normal operation after removing

ammed paper.

Page top

Page 8 of 947 pagesMain Components

Advanced Guide Troubleshooting

Contents > Overview of the Machine > How to Navigate Menus on the LCD

How to Navigate Menus on the LCD

You can use the machine to make copies or various kinds of printings without a computer. You can

operate the machine, using the Easy-Scroll Wheel, (Left), (Right), (Up), (Down) button, or OK

button on the Operation Panel to navigate menus or select setting items on the LCD.

This section describes the basic operation to navigate menus on the HOME screen and to select setting

items necessary for printing.

Selecting Menus on the HOME Screen

The HOME screen appears when the power is turned on or when the HOME button is pressed.

To start printing photos on a memory card, copying, or scanning, select menus on the HOME screen.

1. Press the HOME button (A).

The HOME screen appears.

2. Turn the Easy-Scroll Wheel (B) to select the menu to use, and press the OK button

(C).

You can also use the (Left) or (Right) button (D) to select the menu.

The selected menu screen appears.

The following menus are available on the HOME screen.

Copy :You can change copy scale, make two-sided copy, or copy in

various layouts.

See Copying.

You can print photos saved on a memory card of your digital

Page 9 of 947 pagesHow to Navigate Menus on the LCD

Memory card :camera.

See Printing from a Memory Card.

Easy photo reprint :You can scan printed photos and print them easily. You can

also specify the number of copies for each photo.

See Printing Photos from Printed Photos or Film.

Film print :You can scan the image data on the 35 mm film strips and

slides to print them.

See Printing Photos from Printed Photos or Film.

Settings :You can maintain the condition of the machine, change

settings of the machine, or print the notebook or graph paper.

See When Printing Becomes Faint or Colors Are Incorrect ,

Cleaning the Paper Feed Roller , Machine Settings or Printing

the Notebook or Graph Paper.

Photo index sheet :You can easily print photos on a memory card using the Photo

Index Sheet.

See Using Photo Index Sheet to print.

Scan :You can save scanned data on your computer, or on a

memory card or USB flash drive inserted into the machine,

using the Operation Panel.

See Scanning.

Note

If you insert a memory card while the HOME screen or any screen of the Copy, Easy photo reprint,

Film print, and Settings menus appears, the screen changes to the photo selection screen in Select

and print of the Memory card menu.

To select a function other than Select and print, press the HOME button and display the HOME

screen.

Selecting Setting Items

The displayed screen varies depending on the menu you selected, but the operation is the same.

This section describes how to change the print quality, using the example of the print confirmation

screen in Select and print of the Memory card menu.

1. Use the Easy-Scroll Wheel (B) or the (Up) or (Down) button (D) to select the

print quality, and press the OK button (C).

2. Use the Easy-Scroll Wheel or the (Up) or (Down) button to select another print

quality, and press the OK button.

The screen returns to the print confirmation screen in Select and print.

Page 10 of 947 pagesHow to Navigate Menus on the LCD

Autres manuels pour MP980 series

Table des matières

Autres manuels Canon Imprimante

Canon

Canon PIXMA TS6020 Manuel utilisateur

Canon

Canon Image Prograf PRO-2000 Manuel utilisateur

Canon

Canon Pixma iP2820 Manuel utilisateur

Canon

Canon iR2016J Manuel de service

Canon

Canon iPF6100 - imagePROGRAF Color Inkjet Printer Manuel utilisateur

Canon

Canon TR4700 Series Guide de configuration

Canon

Canon PIXMA iP7200 Series Manuel utilisateur

Canon

Canon BJ-10sx Manuel utilisateur

Canon

Canon imageClass LBP6230dw Manuel utilisateur

Canon

Canon iP6310D - PIXMA Color Inkjet Printer Manuel

Canon

Canon imageCLASS MF5950dw Instructions de montage

Canon

Canon imagePROGRAF iPF750 MFP M40 Manuel utilisateur

Canon

Canon S1 imagePASS Series Guide de référence

Canon

Canon PowerShot S100 DIGITAL ELPH Manuel utilisateur

Canon

Canon imagePROGRAF iPF6300S Guide de l'utilisateur

Canon

Canon iP90 - PIXMA Color Inkjet Printer Manuel d'installation

Canon

Canon iPF500 - imagePROGRAF Color Inkjet Printer Manuel utilisateur

Canon

Canon PIXMA mini260 Manuel utilisateur

Canon

Canon PIXMA G2110 Series Manuel utilisateur

Canon

Canon PIXMA TS5355a Manuel utilisateur

Canon

Canon i900D Series Guide de configuration

Canon

Canon PIXMA IP5300 Manuel utilisateur

Canon

Canon imageCLASS MF241d Manuel utilisateur

Canon

Canon imagePROGRAFi iPF840 series Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

IRA3D

IRA3D POETRY4 Manuel utilisateur

Ricoh

Ricoh Aficio AP400 Manuel utilisateur

BIXOLON

BIXOLON SRP-352plusV Manuel utilisateur

Epson

Epson Stylus Photo PX700W Instructions de montage

Ricoh

Ricoh SP204SF Manuel utilisateur

Star Micronics

Star Micronics futurePRNT TSP100 Manuel utilisateur

Epson

Epson TM-TM88V-i Manuel d'utilisation et d'entretien
