Canon Laser Shot LBP-1310 Manuel utilisateur

Laser Beam Printer

User's Guide


1

Table of Contents

Ta b le of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Tu r ning the Printer On/Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Turning On the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Turning Off the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

About Online and Ofﬂine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Online . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Offline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Paper Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Printable Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Printable Areas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Paper You Cannot Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Printing from the Paper Cassette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Cautions When Loading Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Loading Paper in the Paper Cassette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Printing from the Multi-Purpose Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Loading Paper in the Multi-Purpose Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Selecting Paper Delivery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Clearing Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Procedure for Clearing Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Replacing the Toner Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Canceling Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Checking Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Status Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

When a Message Is Displayed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

When <nn-nn サービス
 コール > or <F9-nn チェック
 プリンタ >
 Is Displayed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Error Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Turning the Printer On/Off

Tu r ning the printer’s power on and off is performed with the power switch on the left

side of the printer. Please learn the correct procedures to avoid any unexpected

trouble.

Turning On the Printer

To use the printer, turn it on by pressing down the power switch. Printing is enabled

after the printer performs a self-diagnostic test to check the status of the printer and

any options installed.

IMPORTANT

•

Do not turn on the printer again immediately after turning off the power. Turn on the

printer after at least 3 seconds have passed since turning off the power.

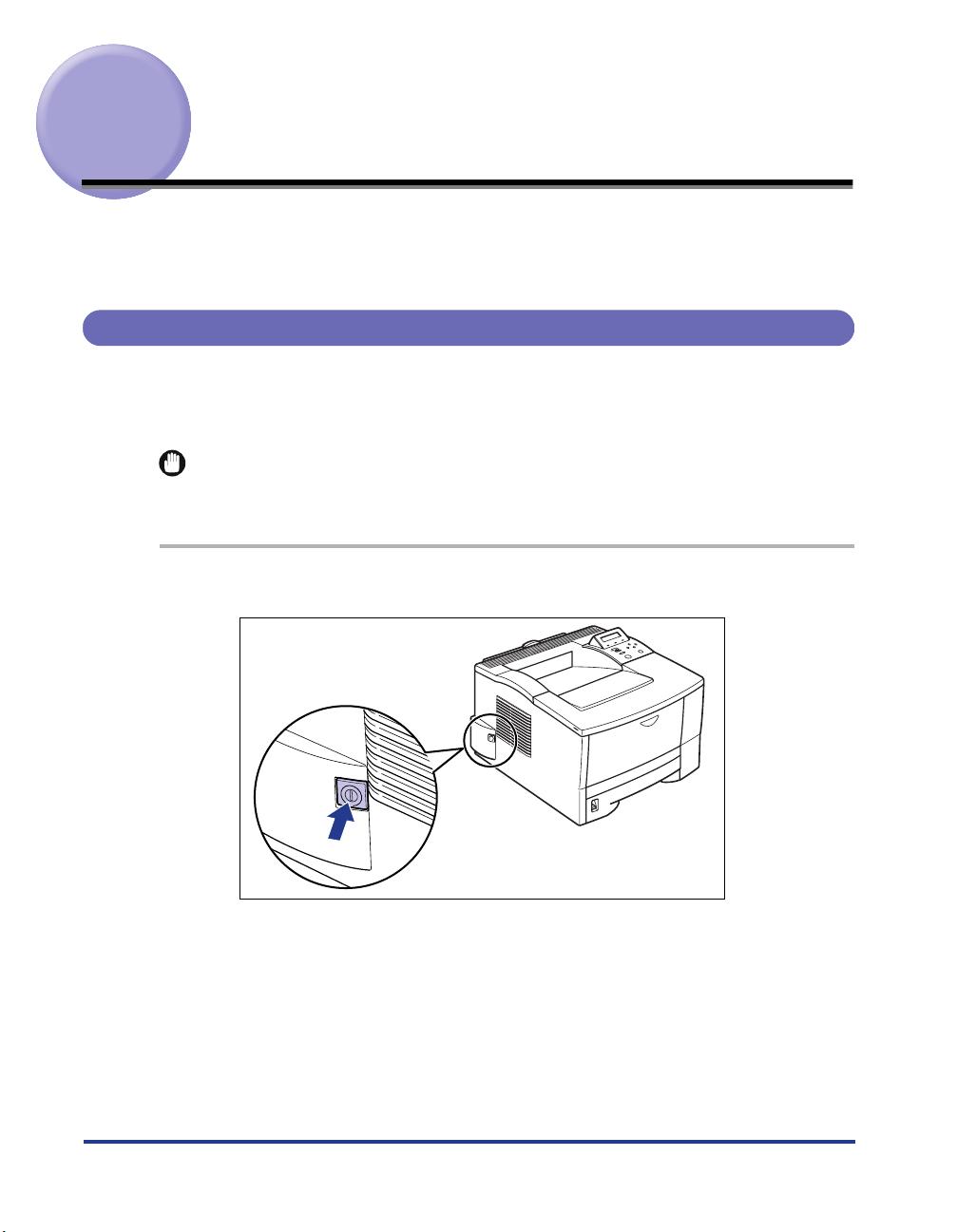

Press down the power switch on the printer.

The power switch will be in a pressed-down state.

The indicators and the display on the control panel are turned on. Then, the

printer performs a self-diagnostic test to check the status of the printer and any

options installed.

If no errors are found, the オンライン indicator, the 印刷可 indicator and the

selected paper feed indicator light up, and the message <00 インサツカノウ >

appears on the display when the printer is ready to print.

The information shown on the display is as follows:

Turning Off the Printer

The printer should be turned off as described in the following procedure.

IMPORTANT

•

If the printer is connected to a network, make sure that the printer is not printing data

from another personal computer before turning off the power.

•

If the power is turned off while the

ジョブ

indicator is on, any print data remaining in the

memory of the printer is erased. Press

［排出］

while offline to output any important print

data, or wait until printing is complete, before turning off the power. (See “Canceling

Printing,” on P. 58)

•

Do not turn off the power to the printer while it is printing.

•

Do not turn off the power to the printer during the self-diagnostic test performed

immediately after the power has been turned on.

•

If the message that the NVRAM is initializing or writing data is displayed, make sure that

the message has been canceled before turning off the power.

•

If the message that the Flash Memory is initializing or deleting data is displayed, make

sure that the message has been canceled before turning off the power.

オンライン

排出

リセット／実行

動作モード

セットアップ

ユーティリティ

ジョブキャンセル 

給紙選択

メッセージ  ジョブ 印刷可



ｲﾝｻﾂ



ｶﾉｳ





ｲﾝｻﾂ



ｶﾉｳ



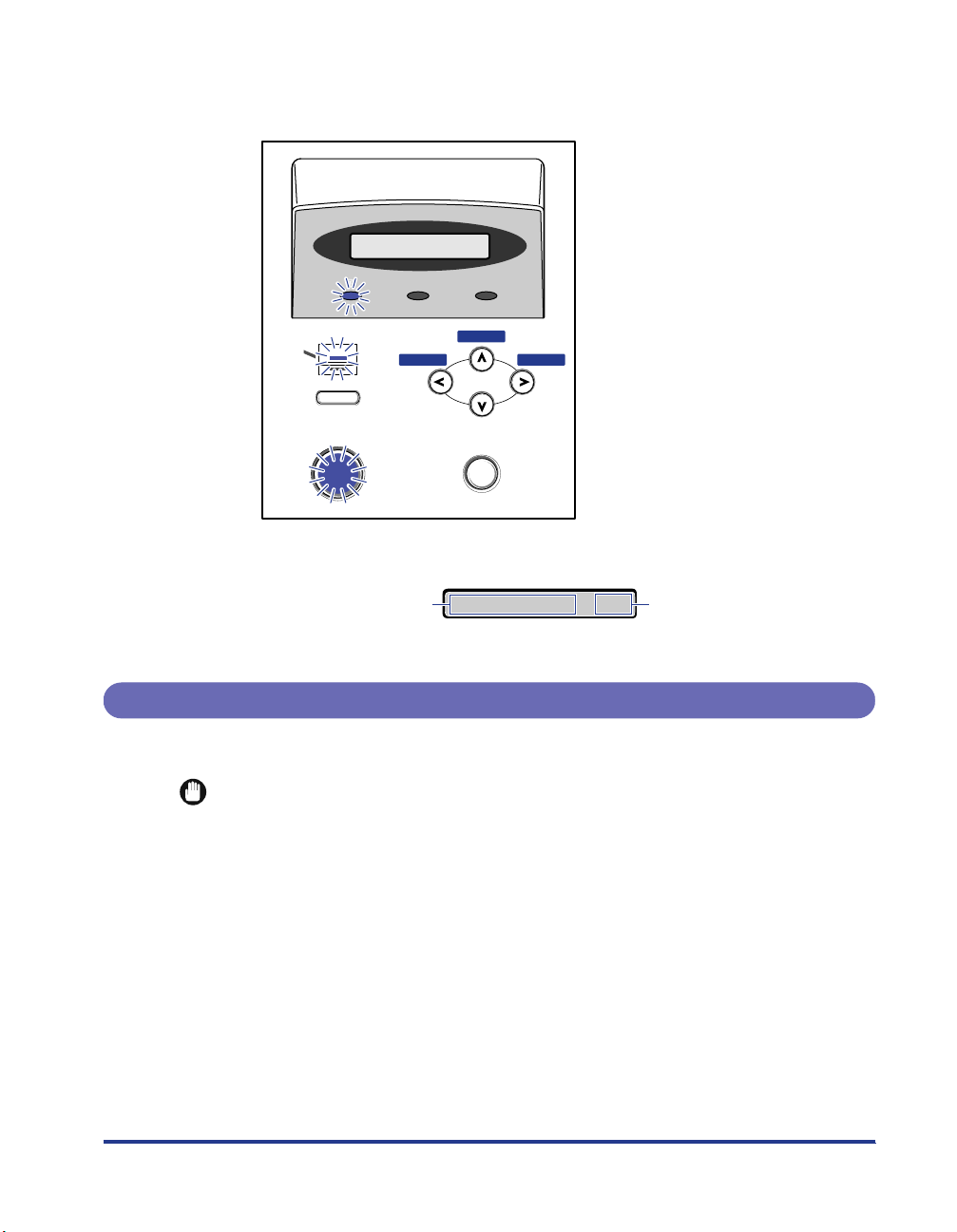

Ready to print and no

data is being

processed for printing.

Currently selected

paper feed size.

Make sure that the ジジ

ジジョョ

ョョブブ

ブブ

indicator is off.

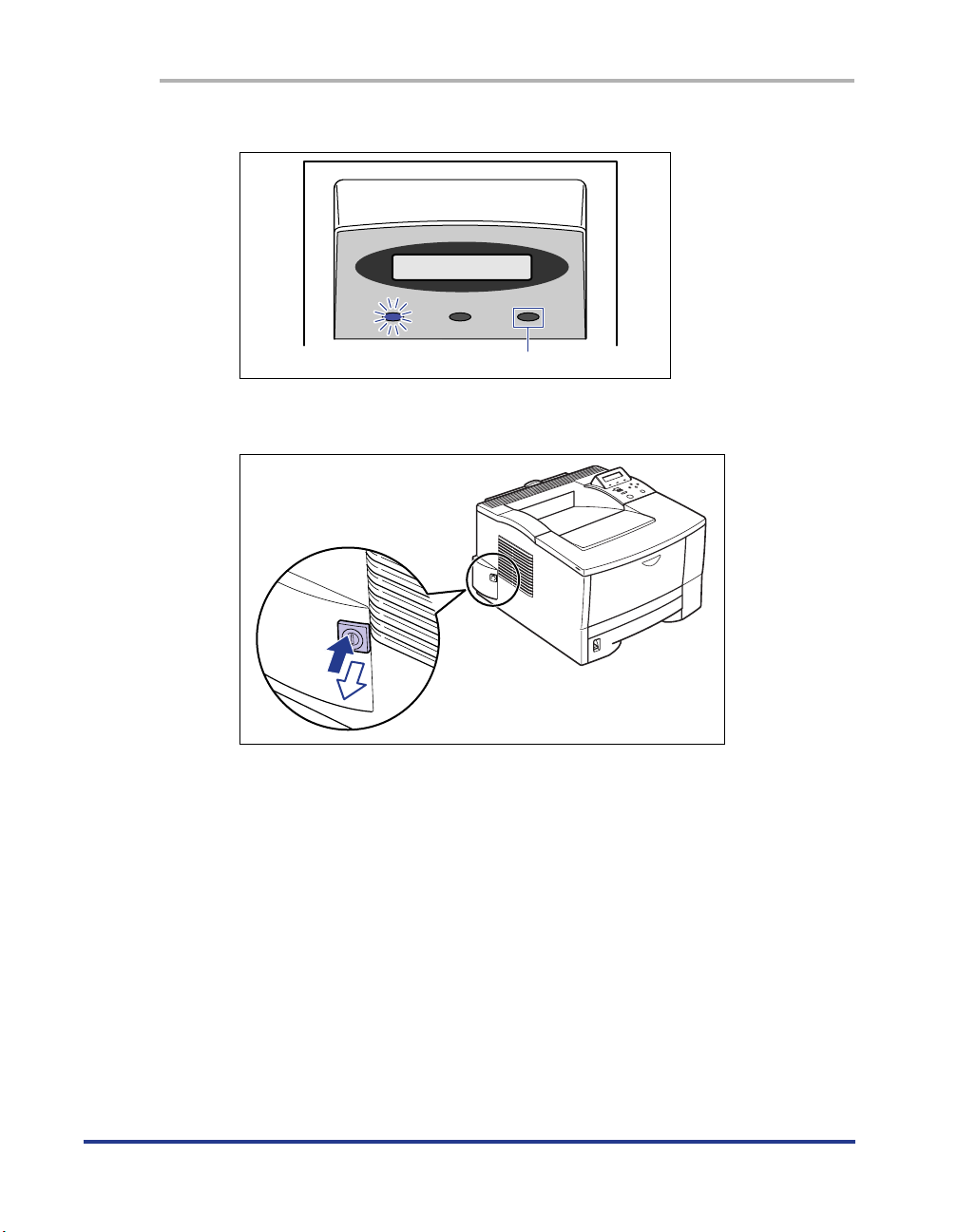

Press down the power switch.

The power switch will pop up.

メッセージ  ジョブ 印刷可



ｲﾝｻﾂ



ｶﾉｳ



off

About Online and Ofﬂine

When the printer can receive data from a personal computer and is able to print the

data, this is called “online”, and when the printer cannot receive data, this is called

“ofﬂine.” The printer should be ofﬂine when you perform operations from the menu

on the control panel.

Online

The printer must be online in order to print data received from a personal computer.

Make sure that the printer is online before you send a job to the printer. If the printer

is not online, bring the printer online as described in the following procedure. The

printer automatically comes online when it is turned on.

Press [ オオ

オオンン

ンンララ

ラライイ

イインン

ンン ].

The オンライン indicator is turned on and the printer is ready for printing.

IMPORTANT

•

If there is an error in the printer (when the

メッセージ

indicator is on or the digit part

of the message is ﬂashing), the printer will not come online. Eliminate the cause of

the error before bringing the printer online.

•

Do not open the cover of the printer or remove the paper cassette while printing. If

the cover is opened or the paper cassette is removed, the printer will stop printing

and may not be able to resume printing again.

NOTE

•

If the printer is in panel off mode, the

オンライン

indicator goes out and only the

印刷

可

indicator remains lit.

オンライン

Ofﬂine

The printer must be ofﬂine when you use the menu on the control panel of the

printer, to select the paper feeding method, or set the paper size. Check that the

printer is ofﬂine before you press any keys on the control panel. If the printer is not

ofﬂine, take it ofﬂine as described in the following procedure.

Press [ オオ

オオンン

ンンララ

ラライイ

イインン

ンン ].

The オンライン

indicator is turned off and the printer gets ready for operation using

the control panel.

IMPORTANT

•

If you try to print data from a personal computer while the printer is ofﬂine, a

message, such as

＜プリンタの準備ができていません＞

＜プリンタが接続されていませ

ん＞

is shown and the printer is not available for printing.

•

The printer automatically comes online after being left ofﬂine for more than ﬁve

minutes. However, the printer does not come online when an error occurs (when

the

メッセージ

indicator is on or the digit part of the message is flashing) or during

operations such as selecting a menu function or paper feed method, or setting the

paper size.

オンライン

Paper Requirements

Use paper that is compatible with your printer in order to get the best performance

from your printer. Using incompatible paper can lead to reduced printing quality and

paper jams.

Printable Paper

You can use the following types of paper with this printer. ◎

in the table means

single side printing and duplex printing is possible, and ○

means only single side

printing is possible, ×means impossible.

IMPORTANT

•

All types of paper must be loaded in the portrait orientation.

•

In the following cases, the safety function is activated to prevent the malfunctions caused

by heat, etc., and then the print speed may be gradually decreased.

•

If paper smaller than Executive-size (267 mm) is continuously printed, the print speed

may decrease to 4 ppm.

•

If paper that is 270 mm or longer is continuously printed, the print speed may decrease to

2 ppm. (Print speed will return to normal when the temperature inside the printer drops

below a certain temperature.)

Paper Size

Abbreviations of Paper Sizes

The following abbreviations are used on the paper size selector for the paper

cassette.



Type of Paper

Plain Paper (64-105 g/m2)

Paper Source

Letter

Executive

Legal

Custom Paper*1

Width : 76.2-215.9 mm

Length : 127-355.6 mm

Thick Paper (106-163 g/m2)

Transparencies A4

Label sheets A4

Postcards 100 ×148 mm

Stamped, self-addressed

postcards148 ×200 mm

Envelopes Youkei No.4

Letter

Executive

Legal

Custom Paper

Width : 76.2-215.9 mm

Length : 127-355.6 mm

Multi-Purpose

Tray

○

◎

○

◎

○



○



○

Cassette 1

○

◎

○

◎

×



×

Cassette 2 (Option)

○

◎

○

◎

×



×

If you are using plain paper that is less than 100 g/m2, printing can be performed

using paper larger than A5-size only.

Paper Size

Legal

Letter

Executive

LGL

LTR

EXEC

Paper size selector for

the paper cassette

Paper Capacity of Paper Sources

Paper Capacity of Paper Delivery Tray

■

Plain Paper

You can use plain paper of 76.2-215.9 mm width, 127-355.6 mm length and 64-105 g/m

weight with this printer. This includes A4-, B5-, A5-, Legal-, Letter- and Executive-size

paper. These standard sizes of paper can be fed from the paper cassette or paper tray.

Duplex printing is possible for A4-, Letter- and Legal-size paper. Non-standard-size paper

can be fed only from the paper tray and single-side printing is possible.

■

Thick Paper

You can use thick paper of 76.2-215.9 mm width, 127-355.6 mm length and 106-163 g/m

weight with this printer. This includes A4-, B5-, A5-, Legal-, Letter- and Executive-size

paper. Thick paper can be fed from the paper tray and only single-side printing is possible.

About 250 sheets

×



×

About 250 sheets

×



×



Plain Paper (64 g/m2)

Thick Paper (128 g/m2)

Transparencies

Label sheets

Postcards

Stamped,

self-addressed postcards

Envelopes

About 100 sheets

About 50 sheets

About 40 sheets

About 10 sheets

Type of Paper

Paper Source

Multi-Purpose

Tray Cassette 1

Cassette 2 (Option)

About 50 sheets

About 30 sheets

1 sheet

About 40 sheets



About 10 sheets



Plain Paper (64 g/m2)

Thick Paper (128 g/m2)

Transparencies

Label sheets

Postcards

Stamped,

self-addressed postcards

Envelopes

About 150 sheets

About 40 sheets *2

About 10 sheets *2

About 60 sheets *2

×



×

*1The maximum number of sheets of paper that can be stacked on the tray may differ depending on

the environment in which the printer is located.

*2For thick paper, transparencies and label sheets, you can use the output tray, however they may

become curled or wrinkled. It is recommended that you use the sub-output tray for these types of

paper.

Type of Paper

Paper Delivery*1

Output Tray Sub-output Tray

Table des matières

Autres manuels Canon Imprimante

Canon

Canon GX5070 Guide de configuration

Canon

Canon PIXMA E464 Manuel utilisateur

Canon

Canon DIRECT PRINT CDI-E350-020 Manuel utilisateur

Canon

Canon CDI-M113-010 Manuel utilisateur

Canon

Canon imagePROGRAF iPF765 Manuel utilisateur

Canon

Canon imagePROGRAF SS-41 Manuel utilisateur

Canon

Canon TR7020a Guide de configuration

Canon

Canon imageRUNNER ADVANCE 715iFZ III Guide d'installation

Canon

Canon PIXMA G3070 Series Guide de configuration

Canon

Canon imagePROGRAF TX-4000 Manuel utilisateur

Canon

Canon PIXMA mini320 Series Manuel utilisateur

Canon

Canon 1750 Manuel utilisateur

Canon

Canon imagePROGRAF iPF815 Manuel utilisateur

Canon

Canon imagePROGRAF TZ-30000 Manuel utilisateur

Canon

Canon imagePROGRAF iPF750 MFP M40 Manuel utilisateur

Canon

Canon PIXMA TS6340 Manuel utilisateur

Canon

Canon 3432B007 Manuel utilisateur

Canon

Canon SELPHY SQUARE QX10 Manuel utilisateur

Canon

Canon PIXMA iP6000D Manuel utilisateur

Canon

Canon iPF750 - imagePROGRAF Color Inkjet Printer Manuel utilisateur

Canon

Canon SmartBase MPC200 Guide de l'utilisateur

Canon

Canon imageCLASS LBP623Cdw Manuel utilisateur

Canon

Canon PIXMA MX432 Manuel utilisateur

Canon

Canon MAXIFY GX2000 Series Guide de configuration

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

IRA3D

IRA3D POETRY4 Manuel utilisateur

Ricoh

Ricoh Aficio AP400 Manuel utilisateur

BIXOLON

BIXOLON SRP-352plusV Manuel utilisateur

Epson

Epson Stylus Photo PX700W Instructions de montage

Ricoh

Ricoh SP204SF Manuel utilisateur

Star Micronics

Star Micronics futurePRNT TSP100 Manuel utilisateur

Epson

Epson TM-TM88V-i Manuel d'utilisation et d'entretien
