Canon ImagePRESS C800 Series Manuel utilisateur

imagePRESS C800 /C700 /C60 Series

Canon U.S.A., Inc.

Edition

Technical

orkbook

This page was intentionally left blank.

iii

imagePRESS C800 Series Technical Workbook

1st Edition, October 2015

Technical Workbook

This Workbook was produced and published in its entirety by:

Anthony Lamirata

Canon U.S.A., Inc.

Engineering Systems & Support Division

1 Canon Park

Melville, NY 11747

Disclaimer

Information in this Workbook is based on material available prior to publication

This Workbook is for private use only. Any other use, reproduction or transmission of this Workbook, in any form or by any

means including, without limitation, storage in a database or retrieval system, without the prior written permission of an

All trademarks appearing in this Workbook are trademarks of their respective owners.

Table of Contents

Model Issues 1

Adjustment of Image Registration 2

Image Position Adjustment 3

Use Care Removing / Mounting the Induction Heating Unit 4

Use Care Mounting the Fixing Belt Displacement Control Motor Unit 5

Use Care Mounting the Pressure Belt Displacement Control Motor Unit 7

Clearing the Fixing Belt Unit Counter 9

Use Care When Mounting the Pressure Belt Unit 10

How to Adjust Pressure for Fixing Nip 15

Creases on the Fixing Belt 16

Introduction of Quality Assurance Kits 16

Model Troubleshooting 17

E008-0001: Pressure Belt Unit Service Life Detection Error 18

E008-0002 / E008-0003: Fixing Belt Unit Life Detection Error 19

E007-0102: Pressure Belt Home Position Detection Error 20

E014-0001: Fixing Motor Error 21

Soiling on the Side of Image (Soiled Print) 22

Parallel Streaks in the Paper Feed Direction 23

How to Set the Refresh Operation of Fixing Belt 24

Horizontal Streaks near the Edge of the Image at 175mm Intervals 25

Appendix 27

TP15 257.pdf 28

Adjustment of the Image Registration 30

Adjusting the Image Position 51

This page was intentionally left blank.

TECHNICAL WORKBOOK

Model Issues

This Technical Workbook is a compilation of previous Technical Publications and

other sources for the imagePRESS C800 /C700 /C60 Series. Material in this

Workbook may also cover topics such as the recommended Maintenance

Procedures, Trouble-Shooting Tips to address General Paper Handling as well as

other technical or End User topics.

This portion of the Technical Workbook material will focus on known issues for

the imagePRESS C800 /C700 /C60 Series that you should be aware of.

Remember that Product Knowledge is one of the guidelines of a strong

Troubleshooting Game Plan.

Chapter

TECHNICAL WORKBOOK

Adjustment of Image Registration

First, all Image Position Adjustments are referenced to Magenta. So, first make certain that Magenta

Image Quality is at its best in this regard. Next, the levelness of the floor can negatively affect the Image

Positon. If the engine is moved even a few inches it can affect Image Registration. The Image

Registration and Position Adjustments are executed based on the premises that the Media or Paper is cut

to the appropriate size and is square. It is also based on the foundation that the four (4) corners of the

paper are at a right angle.

The subsequent Medias are recommended for the Image Registration Adjustment: 1

•GF-C081 81.4 g/m2

•OK Top Coated + 128 g/m2

•Hammermill Color Copy Digital 28lb 105 g/m2

•CANON-OCE TOP COLOR 100 g/m2

It is also acceptable to use Media which an End User utilizes frequently to perform the Image Position

Adjustment.

When performing the Image Registration Adjustments Canon U.S.A., Inc. strongly recommends

performing the subsequent Procedures:

•Standard Value Of Left Edge Margin (Mechanical Adjustment for Cassette, Execute with all paper

sources)

•Standard Value of Leading Edge Skew

•Standard Value of Leading Edge Right angle (based on an assumption that right angle accuracy of paper is

correct)

•Standard Value of Trapezoid

•Magnification Ratio in Horizontal Scanning Direction

•Magnification Ratio in Vertical Scanning Direction

•Standard Value of Left Edge Margin/Leading Edge Margin (1st side/2nd side: Software Adjustment)

1For the detailed procedure for the Image Registration Adjustment, please reference the Adjustment for Image Registration

in the Appendix, or in the imagePRESS C800 Series Service Manual, Chapter 9, Installation > Installing the Host

Machine > Image Position Adjustment > Checking/Adjusting.

IMPORTANT!

Do not use Recycled Paper, Textured Paper, or Vellum Paper. Variation in feed

performance is more likely to occur with these type Medias. Use of these type

media can result in a flawed Image Position Adjustment.

TECHNICAL WORKBOOK

Image Position Adjustment

The Image Position Adjustment 2is very important and many factors are involved. As previously mentioned, all

Image Position Adjustments are referenced to Magenta. So again, first make certain that Magenta Image

Quality is at its best in this regard. Again, the levelness of the floor can negatively affect the Image Positon. If

the Engine has been moved, even a few inches, it can affect the Image Position. Furthermore, routine

procedures like removal and re-installing the Registration Assembly can negatively affect the Image Position.

The Image Position Adjustment should be performed if any of these situations are encountered.

The subsequent Medias are recommended for the Image Position Adjustment:

•GF-C081 81.4 g/m2

•OK Top Coated + 128 g/m2

•Hammermill Color Copy Digital 28lb 105 g/m2

•CANON-OCE TOP COLOR 100 g/m2

It is also acceptable to use Media which an End User utilizes frequently to perform the Image Position

Adjustment.

When performing the Image Position Adjustment, Canon U.S.A, Inc. strongly recommends performing

the subsequent Procedures:

•Adjusting the Image Position

•Correct Image Misalignment

•Correct Distortion (Parallelogram)

•Correct Distortion (Trapezoid)

•Adjusting the Zoom Ratio of the Image

•Adjusting Left Edge Alignment of the Image

•Adjusting Lead Edge Alignment of the Image

2For the detailed procedure for the Image Position Adjustment, please reference the Adjustment for the Image Position in the

Appendix, or in the imagePRESS C800 Series Service Manual, Chapter 5 Adjustment > Basic Adjustment > Image

Position Adjustment > Checking/Adjusting or Chapter 9, Installation > Installing the Host Machine > Image Position

Adjustment > Checking/Adjusting.

IMPORTANT!

Do not use Recycled Paper, Textured Paper, or Vellum Paper. Variation in feed

performance is more likely to occur with these type Medias. Use of these type

media can result in a flawed Image Position Adjustment.

TECHNICAL WORKBOOK

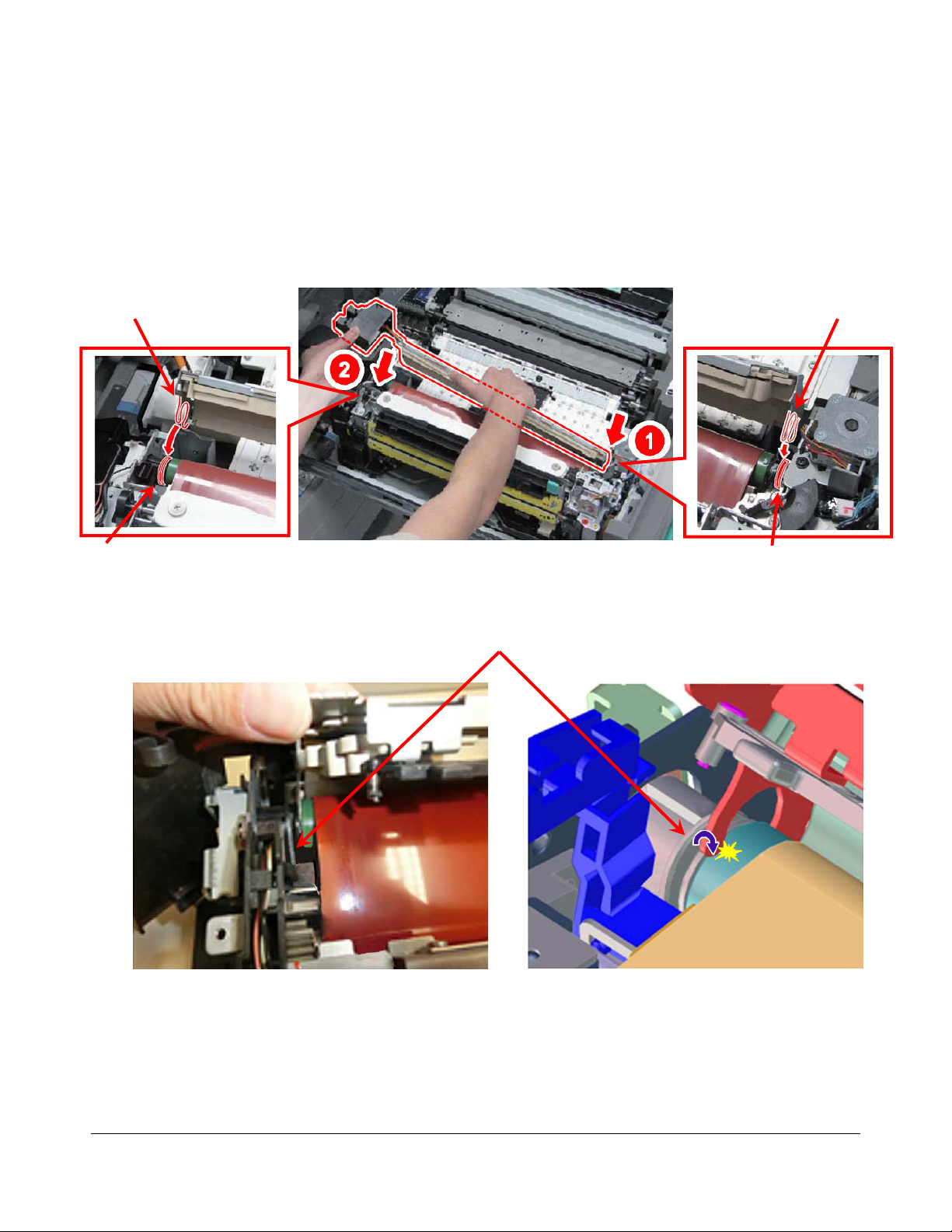

Use Care Removing /Mounting the Induction Heating Unit

When the Induction Heating (IH) Unit is inserted into the Fixing Belt Unit, E007 Errors can result if care is not

used. First, fit the Hook [3] into the Front Side []of the IH Unit to the Groove [A] on the Front Side of the

Fixing Belt Unit, and then fit the Hook [4] into the Rear Side []to the Groove [B] on the Rear Side. As it is

hard to see the Hook fit into the Groove, be careful not to let the Hook of the IH Unit come in contact with

the Fixing Belt.

[A]

[B]

[3]

[4]



NOTE:

Do not let the hook deviate from the Groove [A] on the Rear Side of the IH Unit.

[A]
