Canon ImageCLASS D1320 Guide de sécurité

1Preface

2Installing the Machine

P. 6

3Configuring and

Connecting the Fax

P. 14

Appendix

P. A-1

Connecting to a Computer

and Installing the Drivers

P. 18

Read this guide first.

Please read this guide before operating this

product.

The remarks for important safety

instructions are described in "Basic

Operation Guide." Read the guide also.

After you finish reading this guide, store it in

a safe place for future reference.

Starter Guide

Illustrations and displays used in this manual are which of D1370 unless specified.

Setting Up the Machine to Suit Your Needs

Copy

Media Print Fax*1Settings from

a Computer

Scan

PC Fax*1

Scan

PC Fax*1

Registering the Sender Information P. 14

Fax Settings*1

Settings are now complete.

Selecting the Receive Mode P. 15

Connecting a Telephone Line P. 16

Preparing the Toner Cartridges P. 8

Connecting the Power Cord P. 11

Specify settings related to the Copy, Print, Fax *1, PC Fax *1, Scan, Remote UI and ,Media Printing functions. Follow the steps in

the flowchart below.

Start settings.

Carrying the Machine to the Installation Site and Removing the Packing Materials P. 6

Turning the Power ON and

Specifying the Initial Settings

Language Settings Country and Region Settings Time Zone Settings

P. 12

Loading Paper P. 10

Settings for paper sizes and paper types are required after turning the power ON.

P. 13

Remote

Network

Connection

USB

Connection

Settings in a Computer

: available : not available

Copy Print

(2-sided)

(PS/PCL)

Fax

(PC Fax) Scan Send to E-mail/

Store to Shared Folder Remote UI ADF

(2-sided)

D1370

D1350

D1320

Available Features

*1 You may use this function in the D1370/D1350 only.

Required Operations

For Windows

For Macintosh

Connecting to a Network P. 19

Checking the IP Address P. 20

Checking the IP Address P. A-3

Installing the Software P. 25

Installing the Software P. 22

Connecting a USB Cable P. 26

Connecting a USB Cable P. 23

Current Time Settings

Checking the Supplied Accessories

1. Confirm that all the supplied

accessories are contained in the box.

If an item is missing or damaged, please contact our Canon

Authorized Service Facilities or the Canon Customer Care

Center.

The machine unit

The toner cartridge is

already installed.

Telephone cable *1

Supplied Toner Cartridge

The average yield of the included toner cartridge is as follows.

Canon Cartridge 120 Starter Average yield*1: 2,300 sheets

*1 The average yield is on the basis of “ISO/IEC 19752”*2 when printing A4 size paper with the default print density setting.

*2 "ISO/IEC 19752" is the global standard relating to "Method for the determination of toner cartridge yield for monochromatic electrophotographic printers

and multi-function devices that contain printer components" issued by ISO (International Organization for Standardization).

The average yield of the replacement toner cartridge varies from that of the supplied toner cartridge.

To purchase replacement toner cartridges, see "About Replacement Toner Cartridges" in the e-Manual.

About the LAN cable

The machine does not come with a LAN cable

or a hub. Have cables or a hub ready as needed.

• Use a Category 5 or higher twisted pair cable.

• If you want to connect the machine to a 100BASE-TX

Ethernet network, all the devices to be connected to the

LAN must support 100BASE-TX.

About the USB cable

The machine does not come with a USB cable.

Have cables ready as needed.

Preface

Installing the Machine

Configuring and Connecting the Fax

Connecting to a Computer and

Installing the Drivers

Appendix

Power cord

Starter Guide (This manual)

Registration Card

Speed dial label*1

*1 D1370/D1350 Only

Limited Warranty Notice

Toner cartridge

Basic Operation Guide

User Software CD-ROM

For Windows For Macintosh

User Software CD-ROM

About the Drivers and Software

The drivers and software included in the CD-ROM supplied with this machine are as follows.

MF Drivers

Printer driver You can print from an application to the machine once you have the printer driver

installed on your computer.

Printer Drivers:

UFRII LT/UFRII (XPS)PCL5e/PCL6/PS Printer Driver

* The appropriate Printer Driver differs according to your machine.

UFRII (XPS)/PCL5e/PCL6 is for Windows only.

Fax driver

(D1370/D1350 only)

If you install the fax driver on your computer, you can select “Print” from an application,

select the Canon fax driver as a printer, and specify the output destination and options.

The fax driver converts the data into an image that conforms to standard fax protocols so

that the data can be printed or saved using the recipient’s fax machine.

Scanner driver You can use the machine as a scanner once you have the scanner driver installed on your

computer.

Network Scan Utility You need this utility software to use the machine as a network scanner. It is automatically

installed along with the scanner driver.

MF Toolbox

MF Toolbox* The MF Toolbox provides a group of commands for you to open a scanned image in an

application, send it as an e-mail attachment file, store it on the hard disk, etc.

Others

Presto! PageManager You can handle scanned images in many ways using this software.

Canon Font Manager You can manage the fonts for Windows with Canon Font Manager software.

* MF Toolbox for Macintosh and MF Toolbox for Windows may be different in some features.

For details, see the Scanner Driver Guide.

: Supported

: Not supported

Windows 2000/XP Windows Vista/7 Windows Server 2003/

Server 2008

Mac OS X

(version 10.4.9 or later)

Printer driver

2 pt

Fax driver

2 pt

Scanner driver

Network Scan Utility

2 pt

MF Toolbox

Presto! PageManager

Canon Font Manager

* Supported only over network connections.

Supported Operating Systems

About the Supplied Manuals

Read this manual first.

This manual describes the settings for

setting up the machine and installing

the software. Be sure to read this

manual before using the machine.

Starter Guide

Basic Operation Guide

e-Manual

Read this manual next.

This manual describes the basic use of

the machine.

Read the desired chapter

to suit your needs.

The e-Manual is categorized by subject to

find desired information easily.

For details about using the e-Manual, refer

to “Using the e-Manual“ in “Appendix.”

• Preface

• Installing the Machine

• Configuring and Connecting the Fax*

• Connecting to a Computer and Installing the Drivers

• Appendix

• Before Using the Machine

• Document and Paper Handling

• Copying

• Printing from a Computer

• Registering Destinations in the

Address Book*

• Using the Fax Functions*

• Important Safety

Instructions

• Basic Operation

• Copy

• Fax*1*2

• Print*2

• Scan*2

• Network Settings

• Security

• Setting and Managing from

Computer

• Troubleshooting

• Maintenance

• Setting Menu List

• Specifications

• Using the Scan Functions

• Maintenance

• Troubleshooting

• Registering/Setting the

Various Functions

• Appendix

* The e-Manual is included in the User Software CD-ROM.

*1 The fax function is available only for D1370/D1350.

*2 If you are using Macintosh, see the following Driver Guides or Help for more details on these functions.

You can find the driver guides in the following locations on the User Software CD-ROM.

• Mac UFR II Printer Driver Installation Guide → [Documents] - [Print] - [Guide] - [index.html]

• Mac PS Printer Driver Installation Guide → [Documents] - [Print(PS)] - [Guide] - [index.html]

• Mac Fax Driver Installation Guide → [Documents] - [FAX] - [Guide] - [index.html]

• Mac Scanner Driver Guide → [Documents] - [Scan] - [Guide] - [index.html]

* The fax function is available only for D1370/D1350.

This manual

Preface

Installing the Machine

Configuring and Connecting the Fax

Connecting to a Computer and

Installing the Drivers

Appendix

Send Setting Guide

Read this manual for how

to set Send features.

This manual describes setting for

sending scanned data to E-mail and/

or file servers.

• Send to E-mail Function

• tore to Shared Folder Function

* The Send Setting Guide is included in the User Software CD-ROM.

Determining the Installation Site

Carrying the Machine to the Installation Site

and Removing the Packing Materials

4" (100 mm)

32 1/2"

(824 mm)

52 3/4" (1,341 mm)

25 5/8"

(650 mm)

4" (100 mm)

2. Remove the packing materials. * The packing materials may be changed in form or placement, or may be

added or removed without notice.

1. Take the machine out of the plastic bag, and then carry to the

installation site.

Hold the grips. Carry the machine.

Remove the packing materials.

* D1370/D1350 only.

Remove the unpacking manual.

Preface

Installing the Machine

Configuring and Connecting the Fax

Connecting to a Computer and

Installing the Drivers

Appendix

Remove the packing materials.

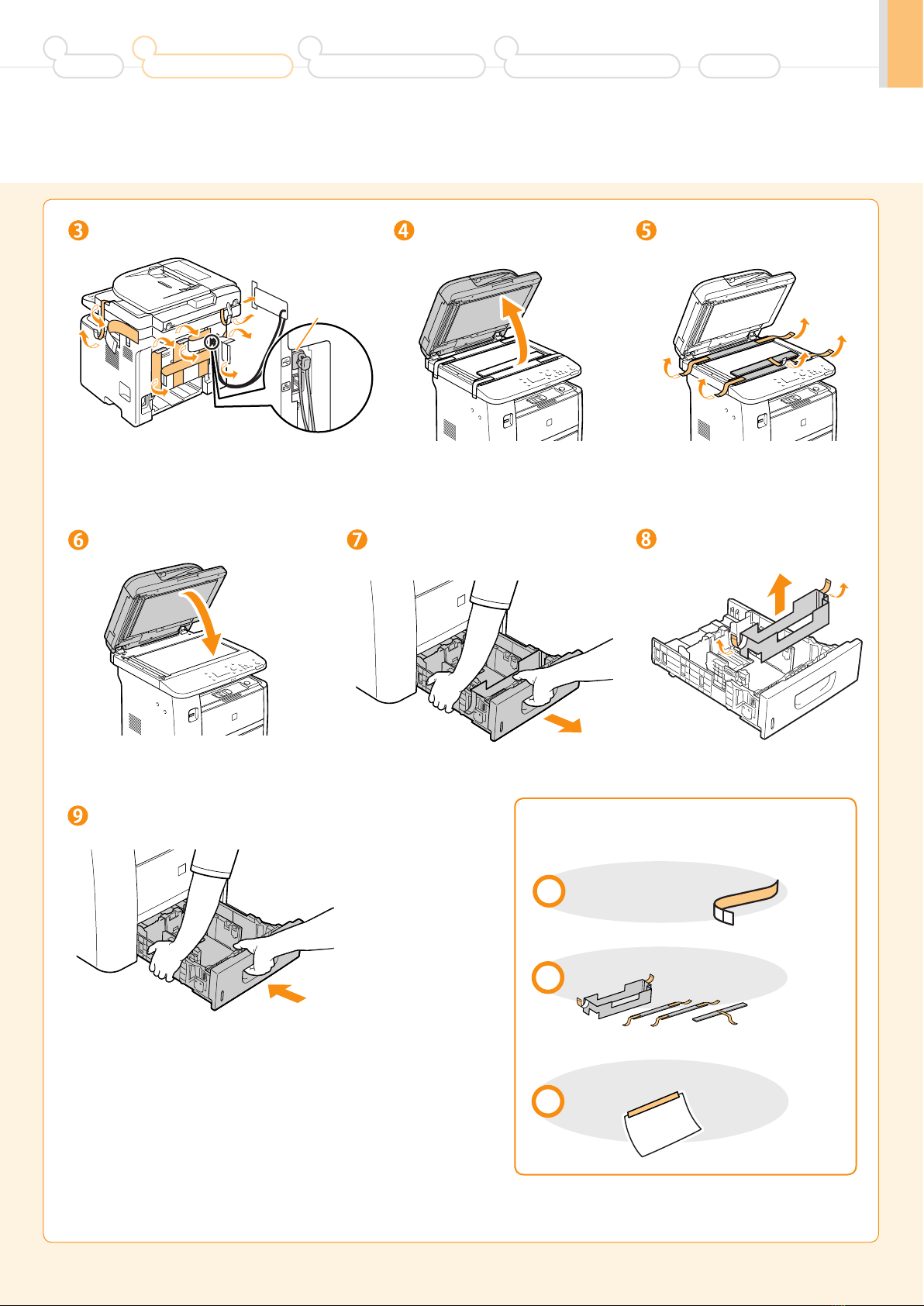

Pull out the paper drawer.

(A)

Open the feeder.

Remove the packing materials

with tape.

Remove the packing materials

with tape.

Close the feeder.

Set the paper drawer.

* Do not remove the cap (A) on the USB port at this stage.

Uncap when installing for USB connection.

Make sure that the following packing

materials are all removed from the machine.

Check!

Tape x 20 (D1370/D1350)

x19 (D1320)

Packing materials with tape x4

Unpacking manual x1

Preparing the Toner Cartridges

1. Open the front cover.

Open the front cover.

Hold down the open button.

2. Remove the packing materials from the toner cartridge, and install

the toner cartridge.

Remove the toner cartridge.Remove the packing material. Remove the packing material.

Shake five to six times. Remove the tab.

Place the toner cartridge on a flat surface, and remove

the tab.

Pull the sealing tape completely out.

The full length of the sealing tape is approximately 20

in. (50 cm).

Preface

Installing the Machine

Configuring and Connecting the Fax

Connecting to a Computer and

Installing the Drivers

Appendix

Protrusion

LeftSideView

Protrusion

RightSideView

Insert the toner cartridge.

Fit the protrusions on both sides of the toner cartridge into the guides located on both sides of the machine, and slide the

toner cartridge into the machine until the toner cartridge comes to rest and is held against the back of the machine.

Make sure that the following packing materials are all

removed from the machine.

Check!

Packing materials x2

Sealing tape x1

3. Close the front cover.

The serial number is located on the rating label centered on

the rear side of the machine (a character string of 3 letters and

a 5-digit number).

Write down the information here (on the

back cover of the Basic Operation Guide).

Rating label

FT5-XXXX (XXX) XXXXXXXXXX © CANON INC. 2011 PRINTED IN xxxxxx

CANON INC.

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

CANON MARKETING JAPAN INC.

16-6, Konan 2-chome, Minato-ku, Tokyo 108-8011, Japan

CANON U.S.A., INC.

One Canon Plaza, Lake Success, NY 11042, U.S.A.

CANON EUROPA N.V.

Bovenkerkerweg, 59-61, 1185 XB Amstelveen, The Netherlands

CANON CHINA CO. LTD.

15F Jinbao Building No.89, Jinbao Street, Dongcheng District, Beijing 100005, PRC

CANON SINGAPORE PTE LTD

1 HarbourFront Avenue, #04-01 Keppel Bay Tower, Singapore 098632

CANON AUSTRALIA PTY LTD

1 Thomas Holt Drive, North Ryde, Sydney NSW 2113, Australia

CANON GLOBAL WORLDWIDE SITES

http://www.canon.com/

Serial No.

Date of Purchase

Write down the serial number and purchase date on the back cover of the Basic Operation Guide enclosed in the package.

You need this information when contacting your local authorized Canon dealer or Canon Customer Care Center.

1. Pull out the paper drawer.

Loading Paper

2. Slide the paper guides, and load the paper.

While holding the lock release lever, adjust the paper guides.

Match the paper guides with the size of the paper that is loaded.

When changing the size of the paper to be loaded

Be sure to set the paper size.

At factory shipment, the machine’s default settings

have LTR for paper size and Plain for paper type.

Proceed to“Setting a Paper Size and Type” on p.13.

Load the paper.

Load the paper that it aligns

with the rear side of the paper

drawer .

Set the paper under the hooks. Make sure that the paper stack does

not go over the line of the load limit

mark.

Check!

Hook

Hooks

Up to here

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Canon Imprimante

Canon

Canon imageRUNNER ADVANCE DX C478iZ Guide d'installation

Canon

Canon TS3500 Series Guide de configuration

Canon

Canon iP6210D - PIXMA Color Inkjet Printer Manuel utilisateur

Canon

Canon Laser Shot LBP-5100 Manuel utilisateur

Canon

Canon iP4600 - PIXMA Color Inkjet Printer Manuel utilisateur

Canon

Canon BJ-130E Mode d’emploi

Canon

Canon BJ-230 Manuel utilisateur

Canon

Canon W8200 Instructions d'installation et d'entretien

Canon

Canon G3410 Manuel utilisateur

Canon

Canon iRC5185 Series Manuel utilisateur

Canon

Canon Color imageRUNNER LBP3460 Manuel utilisateur

Canon

Canon iR2016 Series Manuel utilisateur

Canon

Canon PIXMA MX512 Manuel utilisateur

Canon

Canon PIXMA G2260 Manuel utilisateur

Canon

Canon 8996A001 - i 455 Color Inkjet Printer Guide de configuration

Canon

Canon Selphy CP730 Guide de configuration

Canon

Canon C1538P Manuel utilisateur

Canon

Canon imageRUNNER ADVANCE C7580i Guide d'installation

Canon

Canon S800 Manuel utilisateur

Canon

Canon CP-100 Manuel utilisateur

Canon

Canon imagePROGRAF W2200 Manuel utilisateur

Canon

Canon iPF6100 - imagePROGRAF Color Inkjet Printer Manuel utilisateur

Canon

Canon PowerShot S5 IS Manuel utilisateur

Canon

Canon Color imageCLASS MF8580Cdw Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

IRA3D

IRA3D POETRY4 Manuel utilisateur

Ricoh

Ricoh Aficio AP400 Manuel utilisateur

BIXOLON

BIXOLON SRP-352plusV Manuel utilisateur

Epson

Epson Stylus Photo PX700W Instructions de montage

Ricoh

Ricoh SP204SF Manuel utilisateur

Star Micronics

Star Micronics futurePRNT TSP100 Manuel utilisateur

Epson

Epson TM-TM88V-i Manuel d'utilisation et d'entretien

Canon imageCLASS D1320 Guide de sécurité

Manuels Imprimante populaires d'autres marques
