i550 User's Guide

file:////Storage/Canon/Techdoc/20211901_i550_i850_i950/aangeleverde_pdf/i550 User's Guide/i550_UG_ENG.htm [3-10-2002 14:05:56]

Table of Contents

How to Use This Manual

Safety Precautions

Printer Parts and Their Function

Further Printing Techniques

Printing Media

Checking the Status of the Printer

Routine Maintenance

Troubleshooting

Appendix

Index

Index Contents

How to Use This Manual

This manual is written in HTML(Hyper Text Markup Language), the language used to display texts and images on Worldwide Web Pages.

Various Web browsers are available for seeing HTML view and therefore the same text or image may be displayed in different ways

depending on the browser you use. This manual has been prepared on the assumption that it would be displayed read under the following

conditions:

Web browser: Microsoft® Internet Explorer 5.0 or later.

Web browser screen: Full screen

Resolution of display (Desktop): 800 x 600 pixels or above

Color amount of display: 16 bit or more

Web browser: Microsoft® Internet Explorer 5.0 or later.

Web browser screen: Full screen

Resolution of display (Desktop): 800 x 600 pixels or above

Color amount of display: 32,000 or more

How to Read This Manual

Let's take a look at how to read this manual. For how to use the browser, refer to the User's Guide or Help topics of the browser you use.

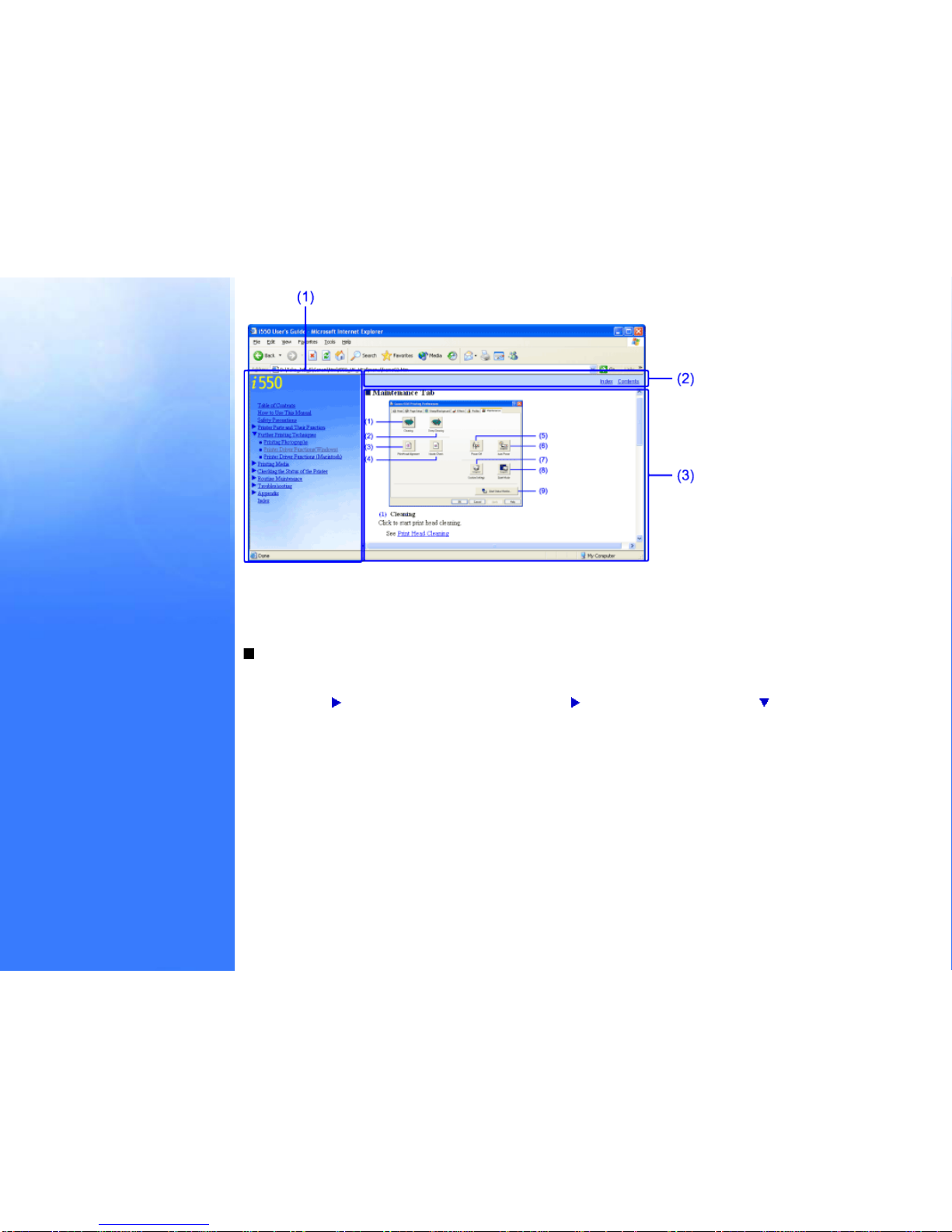

Manual Configuration

This manual consists of three screens: Contents, Menu, and Description screen.

i550 User's Guide

file:////Storage/Canon/Techdoc/20211901_i550_i850_i950/aangeleverde_pdf/i550 User's Guide/menu/index.htm (1 van 4) [3-10-2002 14:06:00]

(1) Contents screen

(2) Menu screen

(3) Description screen

Using The Contents Screen

Clicking a title on the Contents screen will display the associated title page on the Description screen.

The title with the mark is displayed in two layers. Clicking the button will change the mark to the with the titles in the lower layer

displayed.

i550 User's Guide

file:////Storage/Canon/Techdoc/20211901_i550_i850_i950/aangeleverde_pdf/i550 User's Guide/menu/index.htm (2 van 4) [3-10-2002 14:06:00]

Using The Menu Screen

(1) Index: Clicking this option will display a list of indexes in the Description screen.

(2) Contents: Clicking this option will display a complete contents of titles contained in both the Quick Start Guide and this manual.

Using the Description Screen

i550 User's Guide

file:////Storage/Canon/Techdoc/20211901_i550_i850_i950/aangeleverde_pdf/i550 User's Guide/menu/index.htm (3 van 4) [3-10-2002 14:06:00]

(1) Clicking the character string with a blue underline allows you to jump to the associated page.

(2) : Clicking this button allows you to jump to the previous page.

(3) : Clicking this button allows you to jump to the next page.

(4) : Clicking this button allows you to jump to the beginning of this page.

i550 User's Guide

file:////Storage/Canon/Techdoc/20211901_i550_i850_i950/aangeleverde_pdf/i550 User's Guide/menu/index.htm (4 van 4) [3-10-2002 14:06:00]

Table of Contents

Quick Start Guide

Preface

Shipping Materials

Introduction

Setting Up

Preparing the Printer

Connecting the Printer to the Computer

Installing the Print Head

Loading Paper

Installing the Printer Driver

Aligning the Print Head

Basic Operations

Printing with Windows

Printing with Macintosh

Print Head Maintenance

Notes on Handling the USB Interface (for Windows Users)

For Further Details...

User's Guide

How to Use This Manual

How to Read This Manual

Safety Precautions

Printer Parts and Their Function

Front View

Operation Panel

Rear View

Inside the Printer

Further Printing Techniques

Printing Photographs

Table of Contents

file:////Storage/Canon/Techdoc/20211901_i550_i850...verde_pdf/i550 User's Guide/html/UK_i550UG-66.htm (1 van 3) [3-10-2002 14:06:10]

Printer Driver Functions(Windows)

Printer Driver Functions (Macintosh)

Printing Media

Compatible Media Types

Envelopes

High Resolution Paper HR-101N

Glossy Photo Paper GP-301N/GP-301

High Gloss Photo Film HG-201

Glossy Photo Cards FM-101

Photo Paper Pro PR-101

Photo Paper Pro PC-101S

Photo Paper Plus Glossy PP-101

Matte Photo Paper MP-101

Transparencies CF-102

T-Shirt Transfers TR-201

Banner Paper

Checking the Status of the Printer

BJ Status Monitor Functions

BJ Backgrounder and BJ Background Monitor

BJ Printer Monitor

BJ Print Monitor

Routine Maintenance

Replacing an Ink Tank

When Printing Becomes Faint or Colors are Incorrect

Printing the Nozzle Check Pattern

Print Head Cleaning

Print Head Deep Cleaning

Aligning Print Head

Transporting Printer

Troubleshooting

Cannot Install Printer Driver

Print Quality is Poor

Printer Does Not Start or Stops During Print Jobs

Table of Contents

file:////Storage/Canon/Techdoc/20211901_i550_i850...verde_pdf/i550 User's Guide/html/UK_i550UG-66.htm (2 van 3) [3-10-2002 14:06:10]

Paper Does Not Feed Properly or Paper Jams

The POWER Lamp Flashes Orange

An Error Message is Display on the Screen

Problems Relating to Windows

Problems Relating to the Macintosh

Appendix

Printing Area

For Faster Printing

Using Printer with a Network

Uninstalling Printer Drivers

Uninstalling User's Guide

Specifications

Index

Table of Contents

file:////Storage/Canon/Techdoc/20211901_i550_i850...verde_pdf/i550 User's Guide/html/UK_i550UG-66.htm (3 van 3) [3-10-2002 14:06:10]

Safety Precautions

Please read the safety warnings and cautions provided in this manual to ensure that you use your printer safely. Do not attempt to use

printer in any way not described in this manual.

Warning You may cause an electric shock/fire or damage the printer if you ignore any of these safety precautions.

Do not use flammable sprays near the printer.

This could cause a fire or electric shock if the spray comes into contact with electrical components inside the

printer.

Choosing a location Do not place the printer close to flammable solvents such as alcohol or thinners.

Power supply

Never attempt to plug in or unplug the printer from the power supply when your hands

are wet.

Always push the plug all the way into the power outlet.

Never damage, modify, stretch or excessively bend or twist the

power cord. Do not place heavy objects on the power cord.

Never plug the printer into a power socket that is shared with

other equipment (extension lead/cord, 2- or 3- way adapter, etc.).

Never use the printer if the power cord is bundled or knotted.

If you detect smoke, unusual smells or strange noises around the printer, immediately

unplug the printer at the power supply and call for service.

Periodically, unplug the printer and use a dry cloth to wipe off

any dust or dirt collects on the plug and the power outlet. If the

printer is placed at a location exposed to a lot of dust, smoke, or

high humidity, the dust that collects on the plug absorbs moisture

and may cause insulation failure and fire.

Cleaning the printer

Use a damp cloth to clean the printer. Never use flammable

solvents such as alcohol, benzene or thinners.

If flammable solvents come in contact with electrical components

inside the printer, it could cause a fire or electric shock.

Always unplug the printer from the power outlet before cleaning the printer.

If you accidentally switch the printer on while cleaning it, you could injure yourself or

damage the printer.

Maintaining the printer Do not attempt to disassemble or modify the printer. There are no user serviceable parts

inside the printer.

The printer contains high-voltage components. Never attempt any maintenance procedure not

described in this guide.

Caution You may cause injury or damage the printer if you ignore any of these safety precautions.

Safety Precautions

file:////Storage/Canon/Techdoc/20211901_i550_i850_...leverde_pdf/i550 User's Guide/html/UK_i550UG-2.htm (1 van 3) [3-10-2002 14:07:21]

Working around the printer Do not use flammable sprays near the printer.

This could cause a fire or electric shock if the spray comes into contact with electrical

components inside the printer.

Choosing a location

Do not install the printer in a location that is unstable or subject to excessive

vibration.

Do not install the printer in locations that are very humid or dusty, in direct

sunlight, outdoors, or close to a heating source.

To avoid the risk of fire or electric shocks, install the printer in a location with an

ambient temperature range of 5°C to 35°C (41°F to 95°F) and humidity of 10% to

90% (condensation free).

Do not place the printer on a thick rug or carpet.

Ensure that the area around the power outlet is kept clear at

all times so you can easily unplug the power cord if necessary.

When moving the printer, carry the printer at both ends.

Power supply

Never remove the plug by pulling on the cord.

Do not use an extension lead/ cord.

Never use a power supply voltage other than that supplied in the country of

purchase.

The correct power supply voltage and frequency is as follows:

Europe: AC 230V ±10M%, 50Hz

USA/Canada: AC 120V, 60Hz

Australia: AC 240V, 50Hz

Working around the printer Never put your hands or fingers in the printer while it is printing.

Do not place metal objects (paper clips, staples, etc.) or containers of flammable

solvents (alcohol, thinners, etc.) on top of the printer.

Print heads and ink tanks

For safety reasons store print heads and ink tanks out of the reach of small children.

If a child ingests any ink, consult a doctor immediately.

Do not shake print heads or ink tanks.

Ink may leak out and stain clothing or the surrounding area.

Never touch the electrical contacts on a print head after printing.

The metal parts may be very hot and could cause burns.

Safety Precautions

file:////Storage/Canon/Techdoc/20211901_i550_i850_...leverde_pdf/i550 User's Guide/html/UK_i550UG-2.htm (2 van 3) [3-10-2002 14:07:21]
