Canon BJC-610 Manuel utilisateur

BJC-610

USER’S

MANUAL

Canon

BJC-610

Contents

Chapter 1 Introduction 1

Features and Benefits 2

Options and Supplies 3

Ink Cartridges 4

Print Media 4

Related Publication 5

Customer Support 6

Servicing the Printer 7

Line Printers Versus Page Printers 7

Line Printers and Processing 8

Page Printers and Processing 8

Chapter 2 Setting Up the Printer 9

Unpacking Your Printer 10

Removing the Shipping Materials 12

Selecting a Location for Your Printer 14

Examining the Printer 15

From the Front 15

Operator Panel 16

From the Back 17

Inside the Printer 17

Attaching the Power Cord 18

Connecting Your Printer to the Computer 19

Installing the Print Head Unit 20

Installing the Ink Cartridges 24

Turning the Printer On and Off 28

Initialization 28

1 of 6 4/15/98 10:49 AM

Turning Off the Printer 29

Loading a Stack of Paper 30

Installing the Microsoft Windows Printing System 33

Checking the Computer Requirements 33

Making Backup Copies of Your Diskettes 34

Running the Setup Program 34

Optimizing Print Quality 37

Chapter 3 Using the Microsoft Windows Printing System 39

Understanding the Microsoft Windows Printing System 40

Printing With the Microsoft Windows Printing System 40

Using the Microsoft Windows Printing System 42

The Microsoft Windows Printing System Dialog boxes 43

Opening the Microsoft Windows Printing System

Dialog Boxes 44

The Setup Dialog Box 46

Specifying and Collating Multiple Copies 47

Choosing Orientation 48

Choosing the Paper Source 49

Choosing the Paper Size 50

The Quality Dialog Box 51

Selecting the Media Type 52

Changing the Printer Resolution 54

Selecting the Print Quality 55

Resetting the Quality Settings 56

The Graphics Dialog Box 56

Selecting the Halftoning Method 57

Using the Color Controls 59

Resetting the Graphics Settings 60

Experimenting With Graphics Settings 60

Comparing Settings 61

Checking the Status of a Print Job 63

2 of 6 4/15/98 10:49 AM

Using the Printer Status Window 64

Opening the Printer Status Window 65

Using the Printer Status Windows as an Icon 65

Using the Printer Menu 67

Using the View Menu 67

Using the Options Menu 68

Using the Toolbar 73

Closing the Printer Status Window 73

Messages 74

Responding to an Information Message 74

Responding to Alerts 75

Messages With Sounds 76

Using the Print Manager 78

Turning On the Print Manager 78

Opening the Print Manager 78

The Print Manager Window 79

Opening the Printer Status Window From the Print

Manager 81

Giving Print Manager Priority 81

Installing and Configuring a Printer 82

Working With TrueType Fonts 83

Setting TrueType Options 83

Changing TrueType Options 84

Reviewing and Deleting Fonts 84

Chapter 4 Paper Handling 87

Selecting Paper Types 88

Before Loading Paper 90

Setting the Paper Thickness Lever 90

Setting the Paper Selection Lever and the Paper

Support 92

Printer Settings for Various Print Media 95

Automatically Feeding Paper 96

Auto Feed Guidelines 99

Manually Feeding Paper 101

Printing on Special Papers 104

Printing on Envelopes 106

Preparing Your Software 106

Loading Envelopes 107

Printing on Legal Paper 110

Printing in Landscape Orientation 111

Printing on High Resolution Paper 113

3 of 6 4/15/98 10:49 AM

Chapter 5 Printing in Color 115

Analyzing the Content 116

Planning the Physical Layout 116

Selecting the Print Media 117

Print Media Guidelines 117

Understanding Your Application's Capabilities 118

Considering Your Computer's Monitor 119

Color and Printing Speed 120

Improving Printing Speed 121

Using the Microsoft Windows Print Manager 123

Color and Cost 124

Chapter 6 Maintaining the Printer 125

Printer Guidelines 125

Cleaning the Printer 127

Cleaning the Print Head Unit 128

Using the Microsoft Windows Printing System 129

Using the Operator Panel 129

Replacing an Ink Cartridge 133

Ink Cartridge Guidelines 134

Using Ink 136

Storing Ink Cartridges 137

Installing an Ink Cartridge 137

Replacing the Print Head Unit 141

Print Head Unit Guidelines 141

Removing the Used Print Head Unit 142

Installing a new Print Head Unit 143

Transporting the Printer 147

Chapter 7 Troubleshooting 153

Check List 153

Initialization Problem 157

Indicator Light Problems 157

Operational Problems 160

Printing Problems 162

Paper Loading Problems 166

Print Quality Problems 170

Color Printing Problem 174

Microsoft Windows Problems 177

Clearing Paper Jams 184

AppendixA Specifications 187

AppendixB Application Notes 195

Printing Envelopes in Microsoft Windows 195

4 of 6 4/15/98 10:49 AM

AmiPro 3.0 195

Microsoft Publisher 196

Microsoft Word for Windows 198

WordPerfect 199

Works 3.0 for Windows 199

Selecting Colors Through Your Software Applications 203

CorelDRAW 203

Microsoft Excel 203

Microsoft Word for Windows 206

AppendixC Using the Printer with MS-DOS 207

Managing Your Printer from MS-DOS 208

Software Applications 208

Operator Panel Buttons 209

DIP Switches 209

Setting Up MS-DOS Application Programs 209

Selecting a Printer Driver 209

Selecting a Printer Control Mode 211

Software and Printer Compatibility 213

Using ESCape Sequence 215

Lotus 1-2-3 Setup String 215

Common ESCape Sequences 215

Using the Operator Panel 218

Indicator Lights 219

Ejecting Paper 220

Pausing a Print Operation 221

Selecting a Print Mode 221

Turning On the Printer's Envelope Mode 223

Turning Off the Envelope Mode 224

Specifying Page Length 224

Printing the Test Patterns 225

Color Pattern 225

Font Pattern 227

Checking the Print Head Unit 229

Nozzle Check Pattern 229

Alignment Pattern 230

Customizing the Printer 233

Factory Default Settings 234

DIP Switch Settings 235

Epson LQ Mode 236

BJ Mode 238

Changing a DIP Switch Settings 240

5 of 6 4/15/98 10:49 AM

Chapter 1

Introduction

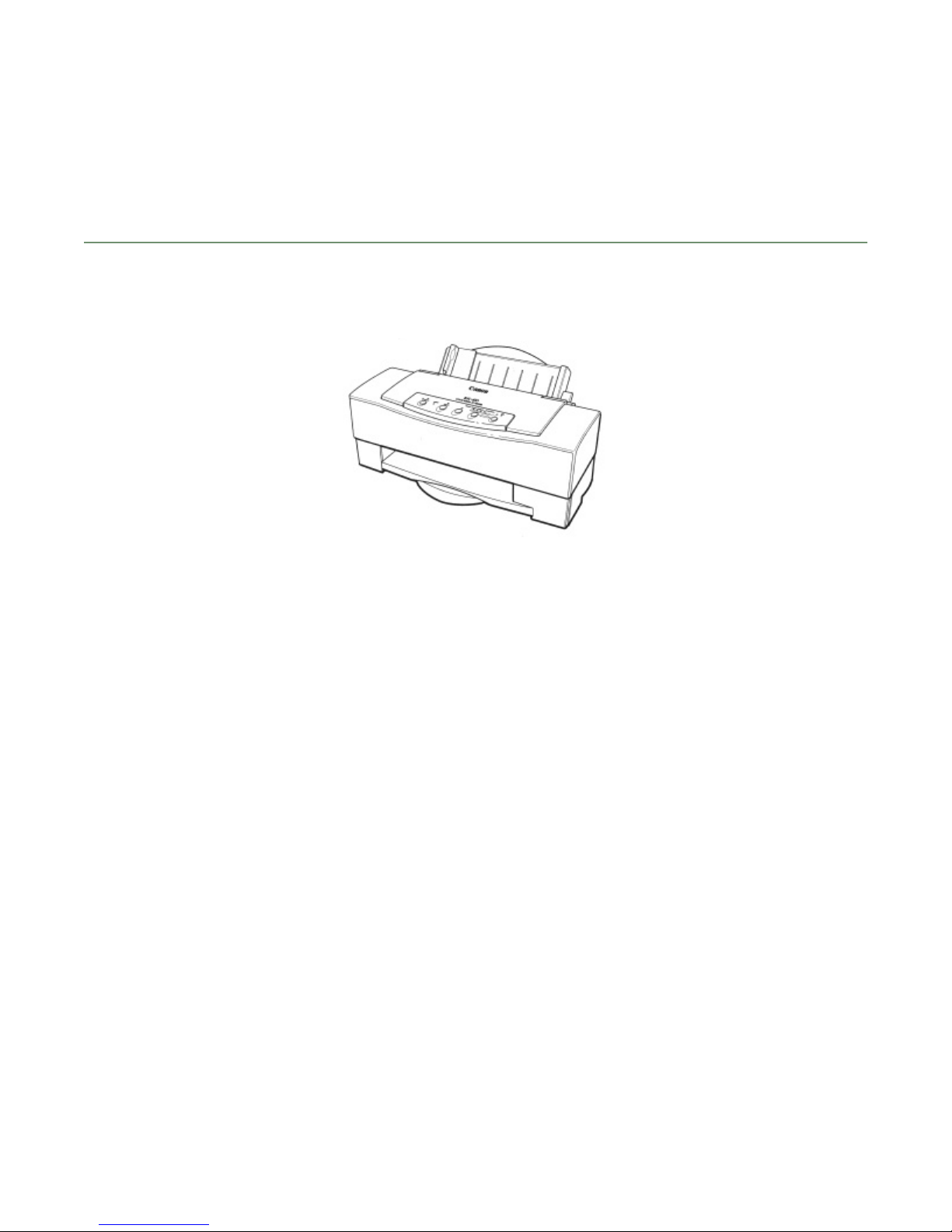

Congratulations on your purchase of the Canon BJC-610 Color Bubble Jet Printer. We appreciate your

choosing this printer to meet your printing needs.

Your printer features the Microsoft Windows Printing System, which makes printing from Microsoft

Windows faster and easier then ever before. With the Microsoft Windows Printing System, your printer is

able to print faster than traditional approaches. As soon as the Microsoft Windows Printing System

accepts a document for printing, you can return to your application. You receive instant notification of

printer information and you can see the printer's status on your computer screen.

The BJC-610 offers exceptionally high print quality and fast print speed using both color and back inks.

We are certain you will be satisfied with its advanced Bubble Jet technology.

This chapter introduces you to the features of your new printer, lists the options and supplies you can

purchase for the printer, and describes Canon's customer support procedures.

Introduction 1

1 of 1 4/15/98 10:54 AM

Features and Benefits

The BJC-610 Color Bubble Jet Printer produces high quality printing by incorporating many useful

features.

Microsoft Windows Printing Software

The printer comes ready to run with the Microsoft Windows Printing System. This new software system

helps your computer and printer work together to print as fast as possible, and allows your computer to

actually tell you, as well as show you, what your printer is doing.

Excellent print quality and speed

The printer's high performance print head offers up to 720 by 720 dots per inch (dip) for high resolution

text and graphics with the Microsoft Windows Printing System, and up to 360 by 360 dpi with MS-DOS

application programs. Your printer offers both vibrant print quality and exceptional print speed: 300

characters per second (cps) in High Speed mode and 205 cps in High Quality Mode.

High quality ink

The ink cartridges employ high quality, light-resistant ink in both black and colors. The ink dries quickly

and looks great on plain paper.

Low cost color printing

With Canon's innovative ink system, each ink cartridge is separate. if you use one color more than others,

you can replace that cartridge only.

Simple maintenance

The Ink cartridges are simple to replace. The black ink cartridge is larger than the other color ink

cartridges, which allows you to use the printer as a monochrome printer without repeatedly replacing the

black ink cartridge.

Impressive color output

The printer produces vibrant colors on a wide variety of media, including plain paper, specially treated

paper, high gloss film, high resolution paper, fabric sheets, Bubble Jet (water-resistant) paper, envelopes,

and transparencies. It also has the ability to print on back print film, which can be shown on a lighted

panel.

Convenient paper handling

An automatic sheet feeder holds up to approximately 100 sheets of plain paper, 50 sheets of transparency

or back print film, or 15 envelopes.

Introduction 2

1 of 1 4/15/98 11:14 AM

Software compatibility

Using the Microsoft Windows Printing System, you can print form any Microsoft Windows application.

In the MS-DOS environment, the printer emulates the Epson LQ-2550 printer or the IBM Propritner

X24E printer.

TrueType fonts

The TrueType fonts (available with the Microsoft Window Printing System) enhance your font capability

and improve your print quality.

Compact desktop design

The printer is lightweight at under 10 pounds (9.9 lb. / 4.5 kg) and occupies a minimum amount of desk

space.

Quiet Printing

The nonimpact printing method offers quiet operation.

Canon Creative CD ROM

Canon Creative opens up a new world of imaginative possibilities for using your computer and Canon

Color Bubble Jet Printer. You can create personalized greeting cards, stationery, counted cross-stitch

patterns, coloring books, stickers, labels, and more! It also includes clip art and additional TrueType

fonts. The software package on the CD ROM is available on 3 1/2-inch diskettes if you do not have a CD

ROM. To obtain diskettes, please refer to the manual that came with the CD-ROM.

Options and Supplies

Your BJC-610 printer supports excellent and unique print media options that allow you to produce

dazzling, professional, and fun presentations. All of these print media are specially designed and

manufactured to work with your color printer so you can produce the finest output possible.

Canon has an extensive dealer network equipped to offer you supplies as you need them. To find a dealer

near you, call the Canon referral service at 1-800-848-4123.

If you want to purchase supplies directly from Canon, you may do so by calling Canon Accessories at

1-800-671-1090 .Supplies are offered at the manufacturer's suggested list price.

Introduction 3

1 of 1 4/15/98 11:15 AM

Ink Cartridges

Canon offers the following ink cartridges:

Canon Ink Cartridge BJI-201 Bk HC (black, high capacity)

Canon Ink Cartridge BJI-201 C (cyan)

Canon Ink Cartridge BJI-201 M (meganta)

Canon Ink Cartridge BJI-201 Y (yellow)

Print Media

Canon manufactures the following print media.

Canon Coated Paper LC-101

This coated paper is specially designed for your BJC-610 printer, which will produce sharp and vivid

color output on this high grade matte paper. The Coating used on this paper is a unique formula that

ensures full compatibility with your Canon color inks. Use this paper for your printer output that requires

crisp color rendering on a high quality, nonglossy paper. Letter and Legal sizes are available.

Canon Transparencies CF-102

These overhead clear transparencies (also called Over Head Projection or OHP film) are specially

designed for your BJC-610. Other overhead clear transparencies may cause problems in your Canon

color printer by not feeding correctly into the printer or by not allowing the ink to dry properly. Use

Canon clear transparencies to produce crisp and professional overhead presentations. Letter size is also

available.

Canon Back Print Film BF-102

This unique glossy paper allows you to print extremely high quality color output, such as required for

photographic images and graphics. The back printer film is capable of being viewed by rear illumination,

such as a light box, or as regular prints without the benefit of the light box. Back print film is a

mylar-based translucent sheet. When viewed by a light box, back print film provides a sharp, bright, and

vivid presentation of special items, such as photographs, portraits, and graphics. It is also great for trade

show displays and other special presentations when rear-illuminated. Letter size is available.

Introduction 4

1 of 1 4/15/98 11:16 AM

Autres manuels pour BJC-610

Table des matières

Autres manuels Canon Imprimante

Canon

Canon Pixma PRO-100S series Guide de configuration

Canon

Canon i950 Series Manuel utilisateur

Canon

Canon Color imageRUNNER LBP3460 Manuel utilisateur

Canon

Canon 475D - i Color Inkjet Printer Manuel utilisateur

Canon

Canon PIXMA MG3520 Instructions d'installation et d'entretien

Canon

Canon FAX-L170 Guide de sécurité

Canon

Canon PIXMA MG5470 Series Manuel utilisateur

Canon

Canon ImageRUNNER 2422L Manuel utilisateur

Canon

Canon i 320 Manuel utilisateur

Canon

Canon S900 Manuel utilisateur

Canon

Canon SELPHY CP750 Guide de configuration

Canon

Canon LASER SHOT LBP-720 Manuel utilisateur

Canon

Canon IR 2420 Fiche d'information produit

Canon

Canon TR8500 Series Manuel utilisateur

Canon

Canon iPF6100 - imagePROGRAF Color Inkjet Printer Manuel utilisateur

Canon

Canon CP-220 Manuel d'installation et d'exploitation

Canon

Canon 820D - S Color Inkjet Printer Guide de l'utilisateur

Canon

Canon 0324B001 - SELPHY ES1 Photo Printer Guide de démarrage rapide

Canon

Canon LBP674Cx Manuel utilisateur

Canon

Canon g3000 series Manuel utilisateur

Canon

Canon LBP722Cdw Manuel utilisateur

Canon

Canon BJC 210 - Color Inkjet Printer Manuel utilisateur

Canon

Canon TS8100 Series Guide de configuration

Canon

Canon imageRUNNER ADVANCE C356iF Guide d'installation

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

IRA3D

IRA3D POETRY4 Manuel utilisateur

Ricoh

Ricoh Aficio AP400 Manuel utilisateur

BIXOLON

BIXOLON SRP-352plusV Manuel utilisateur

Epson

Epson Stylus Photo PX700W Instructions de montage

Ricoh

Ricoh SP204SF Manuel utilisateur

Star Micronics

Star Micronics futurePRNT TSP100 Manuel utilisateur

Epson

Epson TM-TM88V-i Manuel d'utilisation et d'entretien
