Chapter 1

Introduction

Congratulations on your purchase of the Canon Bubble Jet Printer BJ-

200e. We appreciate your choosing this printer to meet your printing

needs. It offers exceptional print quality, fast printing speeds, and

trouble-free operation with the convenience of compact size and low

cost.

This chapter introduces you to the features of your new printer and

describes how to use this User's Manual.

Features and Benefits

The Bubble Jet Printer BJ-200e produces high-quality printing by

incorporating many useful features.

Excellent print quality

The printer's high-performance print head offers 360 x 360 dots per inch

(dpi) for high resolution graphics. The printer also produces excellent

gray-scale quality when using Microsoft® Windows™ graphics

applications through the BJ-200e Windows printer driver.

Convenient paper handling

An automatic sheet feeder holds up to 100 sheets of paper or 15

envelopes.

Software compatibility

Two resident printer control modes allow you to use the printer with a

wide variety of applications:



BJ-10 mode emulates the IBM Proprinter X24E printer



Epson LQ mode emulates the Epson LQ-510 printer

Two print modes/speeds

The print modes allow you to choose between print quality and speed:



HQ (high quality) mode provides high quality at 173 characters

per second (cps)



HS (high speed) mode provides draft quality at 248 cps

Reduction mode

The printer offers two reduction modes for printing spreadsheets and

other wide documents on regular paper. In reduction mode, the printer

reduces the output to two-thirds or one-half of its full size.

High quality ink

The ink in the BC-02 ink cartridge is not easily affected by light, dries

quickly, and is smudge-resistant.

Quiet printing

The non-impact printing method offers quiet operation.

Automatic capping system

To ensure trouble-free operation, the printer automatically moves the

print head to the home position and caps the print head whenever the

printer is inactive or set off-line.

Simple maintenance

The replaceable ink cartridge contains both the ink and the print head;

when it runs out of ink, you simply replace it.

Compact desktop design

The printer is lightweight (6.6 lb/3 kg) and occupies a minimum amount

of desk space.

On-line documentation

A detailed On-Line Guide makes learning about the printer easy and fast

on your computer screen.

TrueType Fonts

The Canon TrueType Font Pack enhances your font capability and

improves your print quality.

Using This Manual

You can use this manual to set up and operate your printer. It provides

detailed information on all the features of the Bubble Jet Printer BJ-

200e.

If you set up the printer using the Quick Start Guide, you can read this

manual for more detailed information on how to operate the printer.

Once you are familiar with the printer, you'll find the On-Line Guide

helpful for finding quick answers to any questions you may have about

basic operational functions.

The rest of this section describes the contents and conventions of this

manual.

Contents

This manual includes all the information you need to set up and operate

your printer in several easy-to-read chapters.

Chapter 1, Introduction

Introduces you to the features of the printer, and describes how this

manual is organized.

Chapter 2, Setting Up the Printer

Describes how to select a location for your printer, and how to unpack

and assemble it.

Chapter 3, Loading Paper

Describes how to select paper and how to load it into the printer. It also

shows you how to print on envelopes and thick paper.

Chapter 4, Using the Operator Panel

Explains how to control your printer using the buttons on the operator

panel.

Chapter 5, Using the Printer With Your Software

Describes how to use the printer with Windows. It also describes how to

install a printer driver and select a printer driver and select a printer

control mode.

Chapter 6, Maintaining the Printer

Describes how to clean the printer and replace the ink cartridge.

Chapter 7, Troubleshooting

Provides procedures to help you solve problems that may occur with the

printer.

Chapter 8, Customizing the Printer

Describes the printer's DIP switches and explains how you can

customize the factory default settings of the printer by changing these

DIP switches.

The appendix lists printer specifications. At the back of the book, you'll

find a glossary and an index.

The Canon Bubble Jet Printer BJ-200e Programmer's Manual is available

for software designers, advanced programmers, and users interested in

using a programming language to send commands to the printer. To

order a copy of this manual, call the Canon help desk at 1-800-423-

2366.

Conventions

This User's Manual uses the following conventions to help you operate

the printer correctly and safely:

In this manual, distinctive typefaces identify the printer buttons you

press, the lights on the operator panel, and any commands you enter at

your computer.

The Buttons you press appear in this typeface: POWER

The names of the lights you see appear in this typeface: HQ.

When you type something on your computer, it appears in this typeface:

DIR /P

Customer Support

Help desk

Canon provides customer support and service for all Canon printer

products. If you have any questions regarding your new printer, call the

Canon Computer Systems help desk at 1-800-423-2366. Help is

available Monday through Thursday from 9 A.M. to 8 P.M. and Friday 9

NOTE: Notes provide advice or suggestions regarding the use of the

printer.

CAUTION: Cautions alert you to operations that could cause damage to

your hardware or software.

NOTE: Although your printer supports some European paper and envelope

sizes, this manual refers to standard U.S. sizes only. If you use European size

paper, see Appendix A, Printer Specifications, for a list of the paper sizes

supported by the printer as well as printing area specifications.

A.M. to 5 P.M. Eastern Standard Time (EST), except on holidays.

If you seem to have an operational problem, try to solve it by referring

to the information in Chapter 7, Troubleshooting. If you cannot quickly

resume normal operation, contact Canon's experienced support

personnel at the help desk.

Fax number

You can also send comments, suggestions, and technical questions to

Canon via facsimile. The number for this service is 1-714-438-3317,

which accesses a G3 fax machine. Be sure to state your question and

provide a phone number or fax number for a response.

Fax retrieval system

Canon is proud to announce a 24-hour, toll-free fax retrieval system.

You can use this service to get helpful documents faxed directly to your

fax machine. These documents contain useful information to assist you

in the operation of your Canon printer. To access this service, call 1-

800-423-2366.

Bulletin board services

Canon also provides a bulletin board service (BBS), which is useful for

obtaining newly developed third-party drivers. Call 1-714-438-3325.

The protocol for the BBS is up to 14,400 bps, eight data bits, one stop

bit, and no parity.

If you use CompuServe®, you can access the Canon Peripherals Forum.

This allows you to talk with other users or send a message to Canon.

Just type GO CANON at any CompuServe prompt.

Canada

Customer support for Canadian residents is available at 1-905-795-2083

from 9 A.M. to 7 P.M. EST (except holidays).

In other countries, please contact your Canon dealer.

Supplies

To order supplies, call 1-800-423-2366

Servicing the Printer

The Canon Bubble Jet Printer BJ-200e is designed with the latest

technology to provide trouble-free operation. The warranty card that

limited two-year warranty for its Bubble Jet printers. Be sure to read the

came with your printer describes Canon's warranty information and

Printer BJ-200e needs servicing, call the Canon referral save the card. If

you feel your Bubble Jet service at 1-800-848-4123 to locate the Canon

Authorized Service Facility (ASF) nearest you.

At the time of this manual's writing, Canon does not offer an extended

warranty program beyond the two-year warranty; however, some

authorized Canon dealers may offer such programs for a fee. If you are

interested in an extended warranty, contact your Canon Authorized

Service Facility to see if it offers such a service.

Chapter 2

Setting Up the Printer

This chapter describes the steps you follow to unpack and set up your

printer. It offers guidelines for finding a suitable location for the printer,

explains how to install the ink cartridge, and describes how to connect

the power cord and the interface cable.

If you have already set up your printer using the Quick Start Guide, you

may want to scan this chapter for the additional information it supplies.

Unpacking the Printer

Carefully remove all items from the box.

In addition to this User's Manual, you will find these items in the box:

If your printer was damaged in shipping, or if any items are missing,

notify your dealer immediately.

As you unpack the printer, save the carton and packing materials in case

you want to move or ship the printer in the future. Remove all the

shipping tape and any Styrofoam packing material used to protect the

printer during shipping.

Open the front cover and remove the tape that secures the ink cartridge

holder. Make sure the paper thickness lever is to the left for printing on

normal paper.



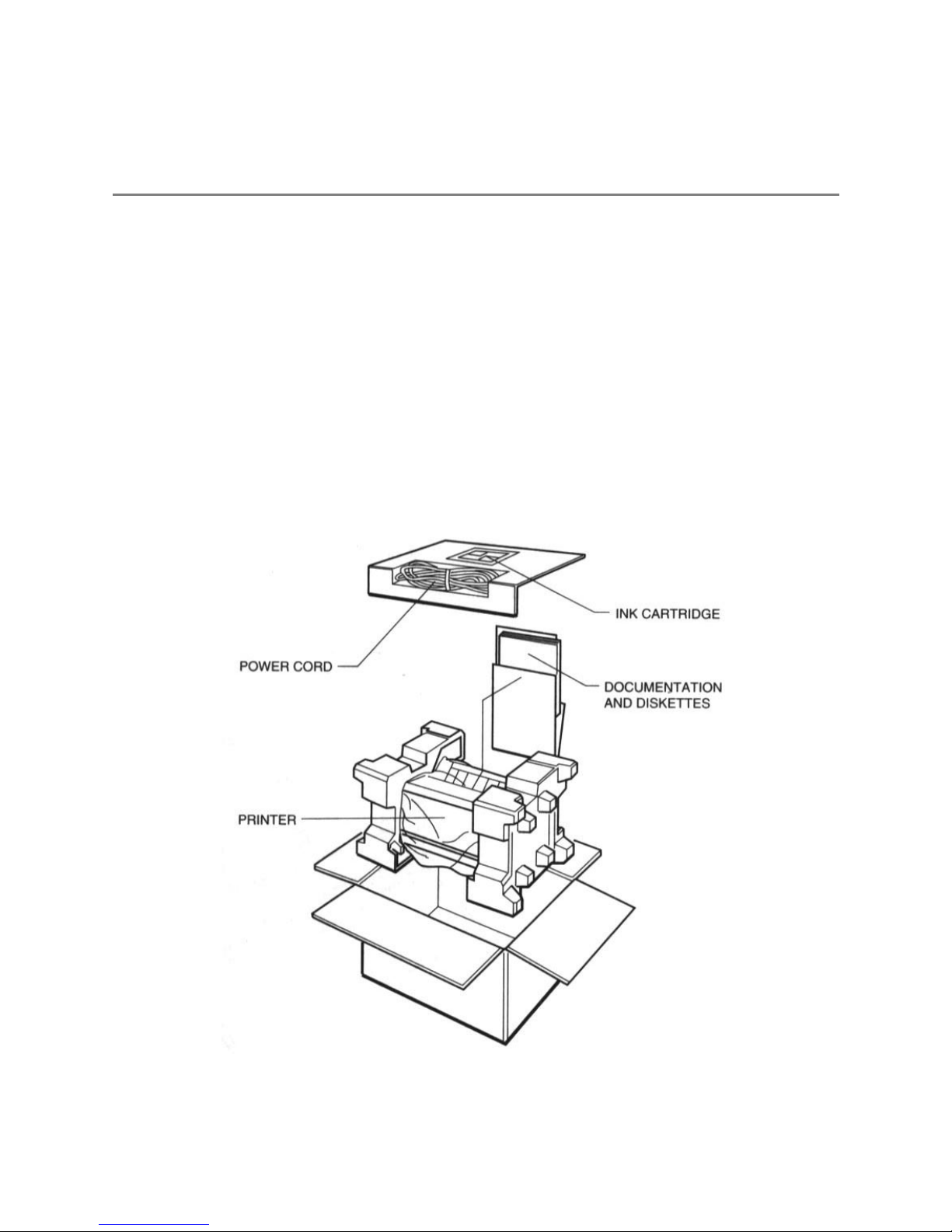

Canon Bubble Jet

Printer BJ-200e



WordPerfect™

drivers diskette (in

envelope)



BC-02 ink cartridge



TrueType Font Pack

diskette



AC power cord



Product Warranty

card (U.S.A. and

Canada)



Quick Start Guide



Registration Card



Windows Driver and

On-Line Guide

diskettes (in

envelope)

NOTE: In addition to the items shipped with your printer, you need a

Centronic®-compatible, parallel interface cable, which you can purchase

from your dealer.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Canon Imprimante

Canon

Canon imagePROGRAF TX-3100 Guide de configuration

Canon

Canon ImagePROGRAF iPF680 Manuel utilisateur

Canon

Canon imageCLASS X C1538P Manuel utilisateur

Canon

Canon 2238B002 Manuel utilisateur

Canon

Canon MultiPASS C50 Manuel utilisateur

Canon

Canon SELPHY CP1000 Manuel utilisateur

Canon

Canon BJC-S830D Manuel

Canon

Canon TS3500 Series Guide de configuration

Canon

Canon iP6210D - PIXMA Color Inkjet Printer Manuel utilisateur

Canon

Canon G1230 Guide de configuration

Canon

Canon PIXMA TS3520 Guide de configuration

Canon

Canon iP3500 - PIXMA Color Inkjet Printer Manuel utilisateur

Canon

Canon imagePRESS Server G100 Manuel d'utilisation et d'entretien

Canon

Canon LBP5000 Series Manuel utilisateur

Canon

Canon LBP-810 Manuel utilisateur

Canon

Canon imagePROGRAF iPF8300 Guide de l'utilisateur

Canon

Canon iP110B Guide de configuration

Canon

Canon i860 Series Manuel utilisateur

Canon

Canon imageCLASS D600s Manuel utilisateur

Canon

Canon Selphy CP600 Manuel utilisateur

Canon

Canon PIXMA TS8152 Manuel utilisateur

Canon

Canon Pixma MG3500 Series Guide de configuration

Canon

Canon iR2020 Series Manuel utilisateur

Canon

Canon imagePRESS 1135 Series Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

IRA3D

IRA3D POETRY4 Manuel utilisateur

Ricoh

Ricoh Aficio AP400 Manuel utilisateur

BIXOLON

BIXOLON SRP-352plusV Manuel utilisateur

Epson

Epson Stylus Photo PX700W Instructions de montage

Ricoh

Ricoh SP204SF Manuel utilisateur

Star Micronics

Star Micronics futurePRNT TSP100 Manuel utilisateur

Epson

Epson TM-TM88V-i Manuel d'utilisation et d'entretien
