Canon USB Application Interface Board-D1 Manuel utilisateur

SERVICE

MANUAL

USB Application

Interface Board-D1

DU7-1136-000

SEPT. 2004

REV. 0

SM cover USB App Interface.qxd 9/20/2004 2:42 PM Page 1

Application

This manual has been issued by Canon Inc. for qualified persons to learn technical theory, installation,

maintenance, and repair of products. This manual covers all localities where the products are sold. For

this reason, there may be information in this manual that does not apply to your locality.

Corrections

This manual may contain technical inaccuracies or typographical errors due to improvements or changes

in products. When changes occur in applicable products or in the contents of this manual, Canon will

release technical information as the need arises. In the event of major changes in the contents of this

manual over a long or short period, Canon will issue a new edition of this manual.

The following paragraph does not apply to any countries where such provisions are inconsistent with

local law.

Trademarks

The product names and company names used in this manual are the registered trademarks of the

individual companies.

copied, reproduced or translated into another language, in whole or in part, without the written consent

of Canon Inc.

Printed in Japan

Caution

Use of this manual should be strictly supervised to avoid disclosure of confidential information.

Introduction

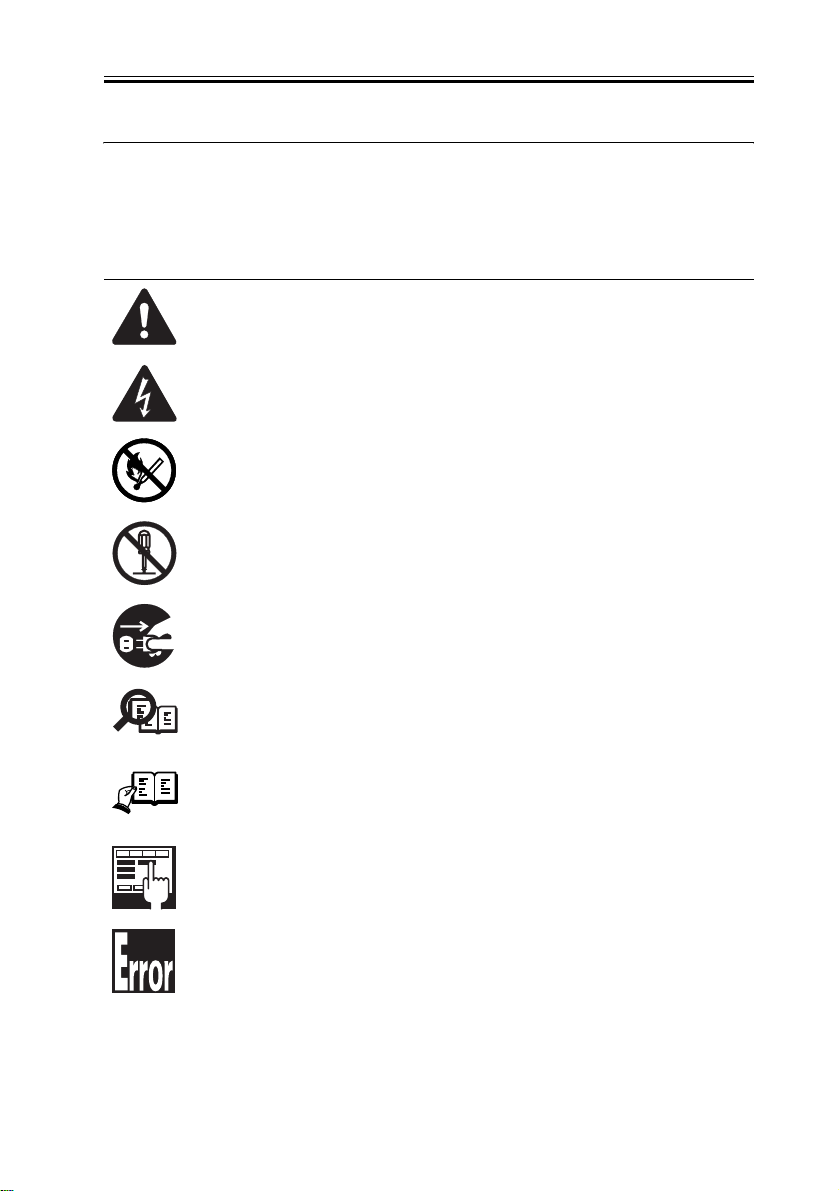

Symbols Used

This documentation uses the following symbols to indicate special information:

Symbol Description

Indicates an item of a non-specific nature, possibly classified as Note,

Caution, or Warning.

Indicates an item requiring care to avoid electric shocks.

Indicates an item requiring care to avoid combustion (fire).

Indicates an item prohibiting disassembly to avoid electric shocks or

problems.

Indicates an item requiring disconnection of the power plug from the electric

outlet.

Indicates an item intended to provide notes assisting the understanding of the

topic in question.

Indicates an item of reference assisting the understanding of the topic in

question.

Provides a description of a service mode.

Provides a description of the nature of an error indication.

Memo

REF.

Introduction

The following rules apply throughout this Service Manual:

1. Each chapter contains sections explaining the purpose of specific functions and the

relationship between electrical and mechanical systems with reference to the timing of

operation.

　In the diagrams, represents the path of mechanical drive; where a signal name

accompanies the symbol, the arrow indicates the direction of the electric

signal.

　The expression "turn on the power" means flipping on the power switch, closing the front

door, and closing the delivery unit door, which results in supplying the machine with

power.

2. In the digital circuits, '1'is used to indicate that the voltage level of a given signal is

"High", while '0' is used to indicate "Low".(The voltage value, however, differs from

circuit to circuit.) In addition, the asterisk (*) as in "DRMD*" indicates that the DRMD

signal goes on when '0'.

　In practically all cases, the internal mechanisms of a microprocessor cannot be checked

in the field. Therefore, the operations of the microprocessors used in the machines are

not discussed: they are explained in terms of from sensors to the input of the DC

controller PCB and from the output of the DC controller PCB to the loads.

The descriptions in this Service Manual are subject to change without notice for product

improvement or other purposes, and major changes will be communicated in the form of

Service Information bulletins.

All service persons are expected to have a good understanding of the contents of this

Service Manual and all relevant Service Information bulletins and be able to identify and

isolate faults in the machine."

Contents

Chapter 1　Specifications

1.1 Product composition .................................................................................................. 1-1

1.1.1 Product Configuration......................................................................................... 1-1

1.2 Specifications............................................................................................................. 1-2

1.2.1 Specifications ...................................................................................................... 1-2

Chapter 2　Installation

2.1 Checking components................................................................................................ 2-1

2.1.1 Checking the Contents ........................................................................................ 2-1

2.2 Installation procedure ................................................................................................ 2-2

2.2.1 Installation Procedure (iR4570/3570, 2870/2270 Series)................................... 2-2

2.2.2Mounting the Ferrite Core (outside North America) .......................................... 2-6

Chapter 3　Maintenance

3.1 Related Service Mode................................................................................................ 3-1

3.1.1 Service Mode List .............................................................................................. 3-1

Chapter 1　

Specifications

Contents

1.1 Product composition...................................................................................1-1

1.1.1 Product Configuration.........................................................................1-1

1.2 Specifications .............................................................................................1-2

1.2.1 Specifications ......................................................................................1-2

Chapter 1

1-1

1.1 Product composition

1.1.1 Product Configuration 0008-5313

This kit consists of the following items.

F-1-1

T-1-1

[1] Security Expansion Board (USB) - D1 1

[2] Ferrite Core 2

[3] Tie-wrap 2

Chapter 1

1-2

1.2 Specifications

1.2.1 Specifications 0008-5316

The Security Expansion Board (USB)-D1, an optional board connected with PCI, has 2

functions. One is to add 2 USB host terminals required when the IC card reader or the like

is connected to the host machine with USB in MEAP environment.

The other is to add the encryption accelerator chip required when HDD encryption

processing is speeded up during installation of the security kit.

The USB host interface function becomes enabled by combination with an USB-supported

MEAP application. The encryption accelerator function cano be used only while the

security kit is enabled.

The PCI Bus Extension Kit is necessary to install the Security Expansion Board (USB)-D1.

Main specifications of the Security Expansion Board (USB)-D1 are as follows:

USB Host Interface Function

- USB full speed (equivalent to USB1.1)

- USB host terminal: 2 pcs.

- Max. power supply at the host terminal: 500mA per port

Encryption Accelerator Function

- Encryption processing accelerator IC Motorola-made MPC190

- Supported encryption system

Public key cryptogram system: RSA Diffie-Hellman,

Elliptic curve cryptogram system

Common key encryption system: DES, 3DES, RC4

Chapter 2

Functions
