Set-Up Instructions

Thank you for purchasing the Canon FAXPHONE L170.

To get your machine ready for use, please follow the instructions in this document before

referring to any other documentation.

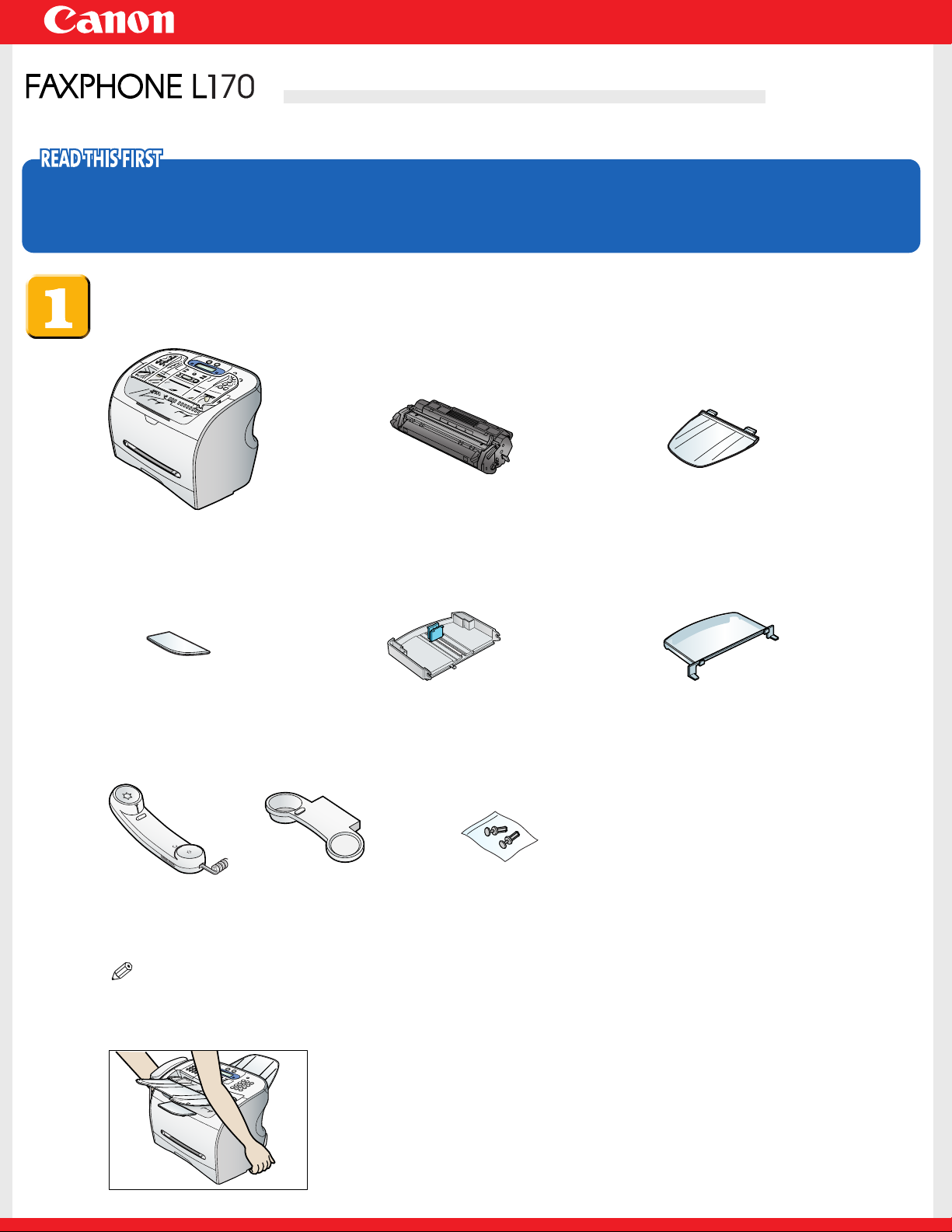

Unpack the machine and its components.

Check that you have the following:

NOTE

•You need a USB cable (less than 16.4 ft./5 m) to connect your machine to a computer for printing.

•To lift the machine, hold it firmly and level as illustrated.

AMachine BS35 S-Cartridge CDocument output tray

DOutput tray ECassette extension FExtension cover

GHandset HHandset cradle IPlugs with pins (2)

●Power cord

●Telephone line cord

●Documentation

Set-Up Instructions

Basic Guide

Warranty

Warranty for S35 Cartridge

Registration Card (for USA only)

●FAXPHONE L170 Software CD-ROM

●Destination labels

Remove the shipping materials from the machine.

1Place the machine on a flat surface.

2Remove all shipping tapes from the exterior of the machine.

3Open the document feeder tray by flipping it down.

4Gently open the operation panel by grasping it at the center

and pulling it up.

Remove the protective sheet from the ADF, and close the

operation panel by pressing down until it clicks.

NOTE

•Do not remove the USB label on the back of the machine at this

stage.

Assemble the machine.

2Attach the extension

cover Fon the back of

the machine.

4Insert the paper cas-

sette into the machine.

1Insert the tabs of document out-

put tray Cinto the slots on the

back of the machine.

5Insert the output tray Dinto

the corresponding slots.

3Pull out the paper cas-

sette,

and attach the cassette

extension Eto the cas-

sette.

Operation panel

ADF

Document

feeder

tray

USB label

Load paper.

1Pull out the paper cassette.

2Adjust the rear paper end guide to match the paper size.

3Load the paper into the cassette. Make sure the paper stack sits below the hooks.

4Adjust the blue side paper end guides to match the paper size.

Make sure the height of the paper stack does not exceed the limit marks .

5Insert the cassette into the machine as far as it will go.

NOTE

•If you do not completely insert the cassette into the machine, paper jams may occur.

•For details, see p.4-3 of the Basic Guide.

•After you have loaded plain paper in the cassette, you can make sure the machine is printing properly

by making several copies of a document. For instructions, see Chapter 10, "Making Copies."

•Do not load paper from the rear of the cassette.

Attach the handset cradle to the machine.

1Insert the plugs with pins into the holes on the handset cradle.

2Insert the plugs with the handset cradle in the holes on the machine.

3Carefully push the pins into the plugs as far as they will go.

NOTE

•If you have difficulty inserting the plugs, turn the machine so that the left side is facing you and the

right side is placed against a wall.This will allow you to insert the plugs without the machine moving.

•If the pins are not pushed fully into the plugs, the handset cradle will not be securely attached to the

machine.

HOOK

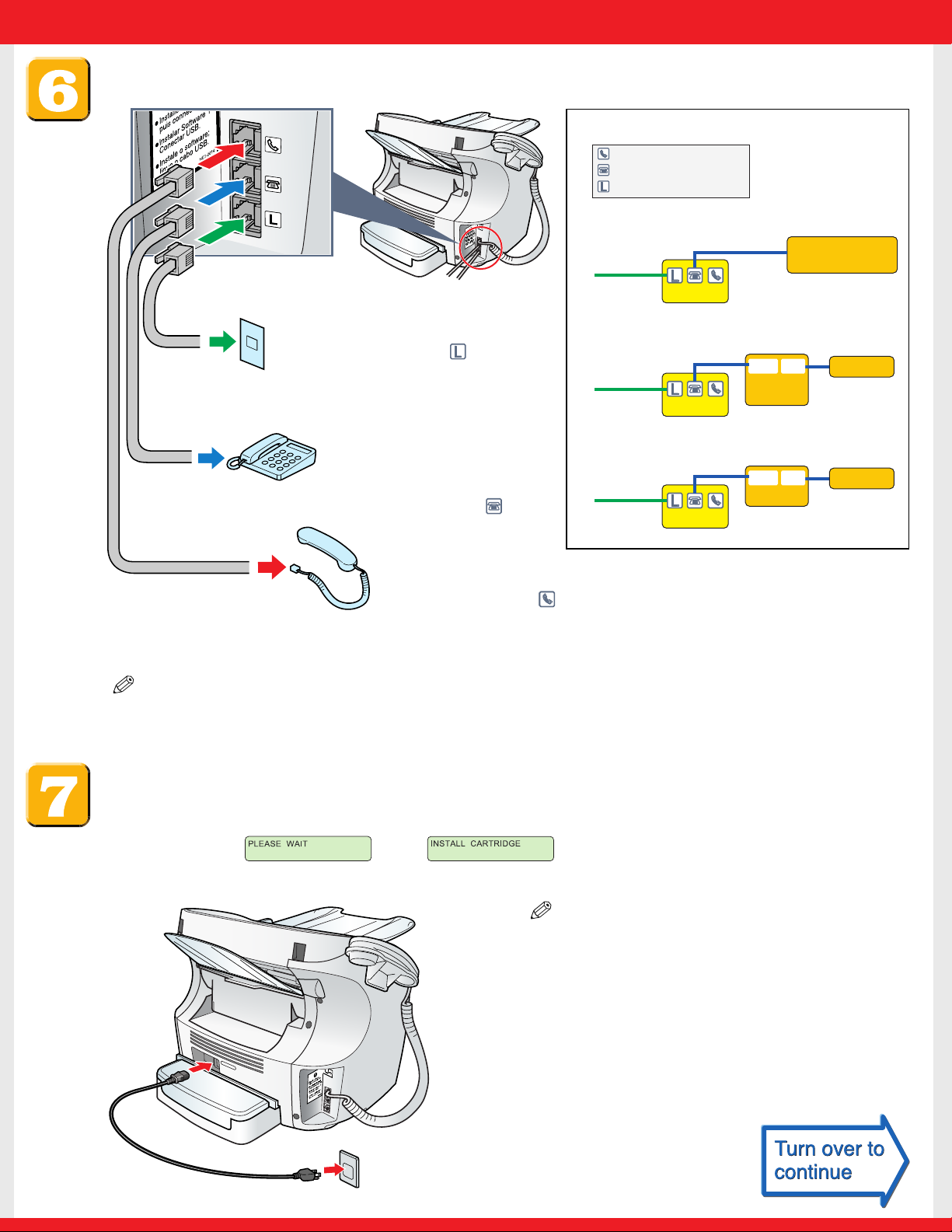

Connect the handset and telephone line cord.

Connect the power cord.

When the power cord is plugged into the machine and into the wall outlet, the machine is turned on.

The LCD displays , then . The LCD returns to the standby display when

you install the toner cartridge.

•Telephone or answering machine

•Telephone and answering machine

Connect external devices as follows:

Telephone

line

Telephone or

answering machine

Telephone

line

Answering

machine

LINE TEL Telephone

Machine

•Built-in computer modem and telephone

Telephone

line

Computer

LINE TEL Telephone

Machine

= Telephone line jack

= External device jack

= Handset jack

External device (optional)

Connect the cord of an

extension telephone,

answering machine or

data modem to the jack.

Telephone line cord

Connect the supplied

telephone line to the jack.

Then connect the other end to the

telephone line jack on your wall.

Handset

Place the handset on

the cradle. Connect the

handset cord to the jack.

NOTE

•The machine does not have a power switch.

NOTE

•You must complete all the steps in this document to receive faxes properly.

Install the S35 S-Cartridge.

1Make sure the machine is plugged in.

2Remove the cartridge from the bag. Keep the bag in a safe place for future use.

3Gently rock the cartridge several times to evenly distribute the toner inside.

4Hold the cartridge on a flat stable surface with one hand, and break the tab and pull

out the seal completely with the other hand.

5Open the printer cover at the front of the machine.

NOTE

•If you are replacing the old cartridge with the new one, remove the old cartridge from the machine.

Then, discard the old toner cartridge immediately according to the local laws and regulations for dis-

posal of consumables.

6Hold the cartridge and position the arrow mark on the cartridge towards the inside of

the machine as shown below.

7Align the projections Aon both sides of the cartridge to the guides Bin the machine

and slide the cartridge completely into the machine.

8Close the printer cover.

INSTRUCTIONS

NOTE

•Always hold the cartridge as shown so that the side with the instruc-

tions are facing upward. Do not forcefully move or push the protective

shutter of the drum in any way.

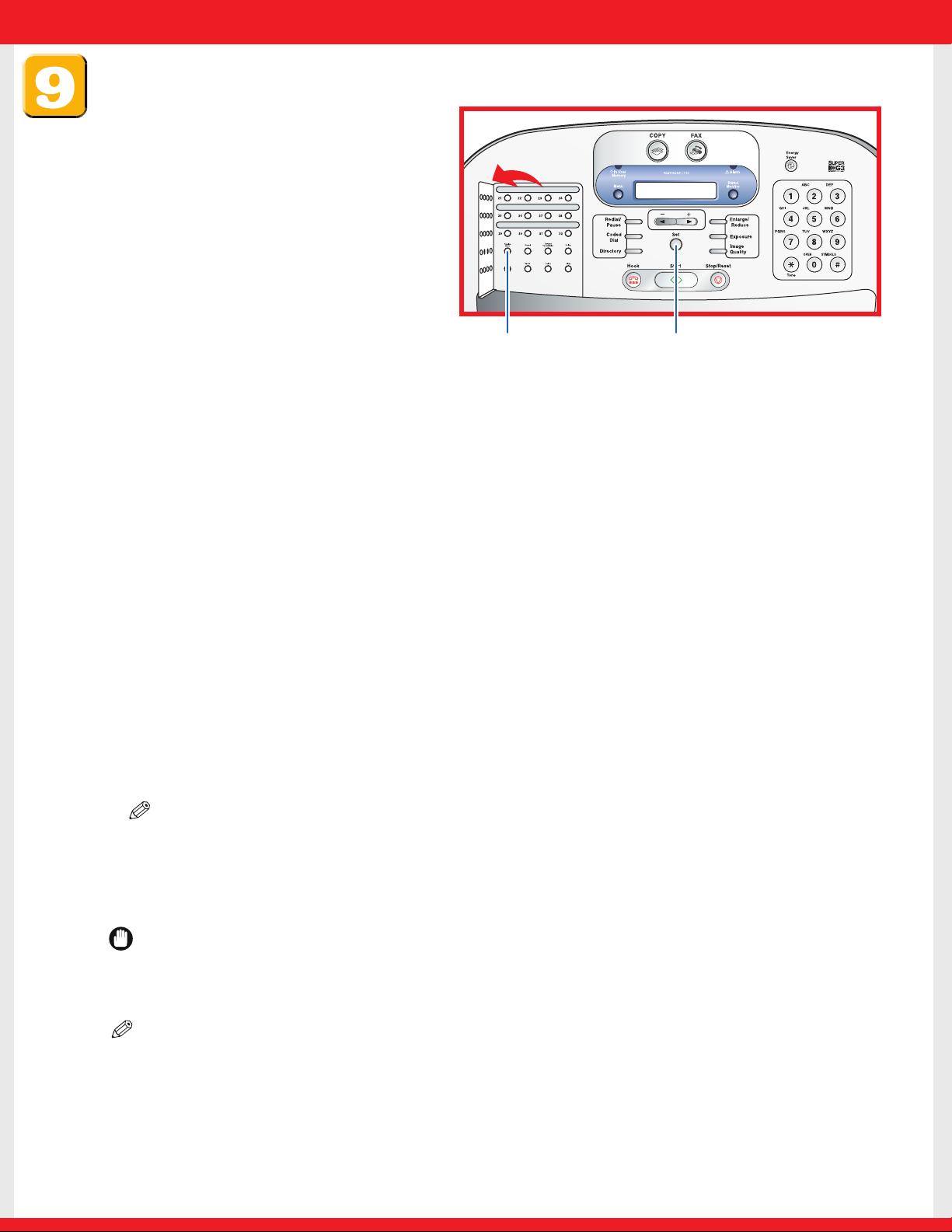

Set the fax receive mode.

1Open the One-Touch Speed Dial

panel.

2Press [Receive Mode] ➊.

3Press [Receive Mode] repeatedly

until the mode you want appears in

the LCD.“FAX ONLY” is the default

setting.

Select from the following:

FAX ONLY:

Answers all calls as fax calls. It receives faxes automatically and disconnects voice calls.

MANUAL:

Rings for every call, whether it is a fax call or a voice call. For a fax call, you have to manually activate

reception of the fax.

AnsMode:

Receives faxes automatically and routes voice calls to the answering machine.

Fax/Tel:

Automatically switches between fax calls and voice calls. Receives faxes automatically and rings for

voice calls.

DRPD:

To distinguish between fax and voice calls by using Distinctive Ring Pattern Detection.

NOTE

•You will need to subscribe to a DRP Service offered by some telephone companies.

4Press [Set] ➋.

IMPORTANT

•Before sending a fax, you MUST register the fax number, your name, and the current date and

time in the machine. For details, see p. 3-3 of the Basic Guide.

NOTE

•For details on setting fax receive mode, see p. 7-1 of the Basic Guide.

➊➋

Install the Printer Driver. (Windows 98/Me/2000/XP)

IMPORTANT

•DO NOT connect the USB cable before installing the software.

NOTE

•When installing the software in Windows XP or Windows 2000, log onto the system as a member of

the Administrator group.

•If the Found New Hardware Wizard appears, click [Cancel],and follow this procedure.

1Insert the CD-ROM into your CD-ROM drive.

2Click [Install Printer Driver] to start installation.

The setup wizard starts.

3Follow the on-screen instructions to complete the installation process.

During installation, follow these guidelines:

•Click [Next] or [Yes] to move from one dialog box to the next.

•Be sure to wait for Windows to complete each setup step. If you hear the computer

working, wait until it is done.

4When prompted, connect the USB cable to the machine and your computer after

removing the USB label.

The printer driver is installed and the printer icon is added to the [Printers] folder.

USB port

USB cable USB label

IMPORTANT

•The USB cable must be connected within 90 seconds to your computer port after [Yes] in the

[USB Connection] dialog box is clicked, otherwise the installation will not complete. For more

information on connecting the USB cable, refer to the Basic Guide.

NOTE

•While the printer driver is being installed, a message appears to view the README file.

If you want to view the README file now, click [Yes].If not, click [No].

5Select [Restart my computer now],or [Restart my computer later] →click [Exit].

NOTE

•Remember to register your machine to ensure product support.The serial number is located on the

back of the machine.

Part no. FA7-5680 (000)

Canon is a registered trademark of Canon Inc.

All other products and brand names are registered

trademarks or trademarks of their respective owners.

Specifications subject to change without notice.

PRINTED IN CHINA
