Canon TS5100 series Manuel utilisateur
Démarrage
Lire Sécurité et informations importantes
(addendum) en premier.
Getting Started
Read Safety and Important Information
(addendum) rst.
1
2
Installation de l'imprimante ................................................page 1
Connexion avec un ordinateur et un smartphone
ou une tablette..................................................................page 4
Manipulation
de l'imprimante
Vidéos explicatives
Installing the Printer...........................................................page 1
Connecting with Computer and Smartphone/Tablet..........page 4
How to Hold Printer Explanatory Movies
1
ENGLISH
1. Checking Included Items
□ Power cord □ FINE cartridge
□ Safety and Important Information
□ Getting Started (this manual)□ Setup CD-ROM for
Windows PC
2. Removing Packing
Materials / Turning on
Printer
1 Remove the packing materials (such as orange
tape and protective lm on the LCD) from outside
the printer.
2 Hook the hollows on the both sides of the printer
with your ngers and open the scanning unit /
cover.
3 Remove the orange tape and the protective
material and discard them.
4 Close the scanning unit / cover.
5 Connect the power cord diagonally from the back.
Back
Do not connect any cables except the power cord
yet.
6 Lift the operation panel and press the ON button.
7 Use the { or } button to select a language, and
then press the OK button.
8 Press the OK button.
For details about information that is sent to Canon,
refer to "Sending Data To Canon" in Safety and
Important Information.
9 Use the { or } button to select Agree or Do not
agree, and then press the OK button.
10
Read the messages and press the OK button.
2

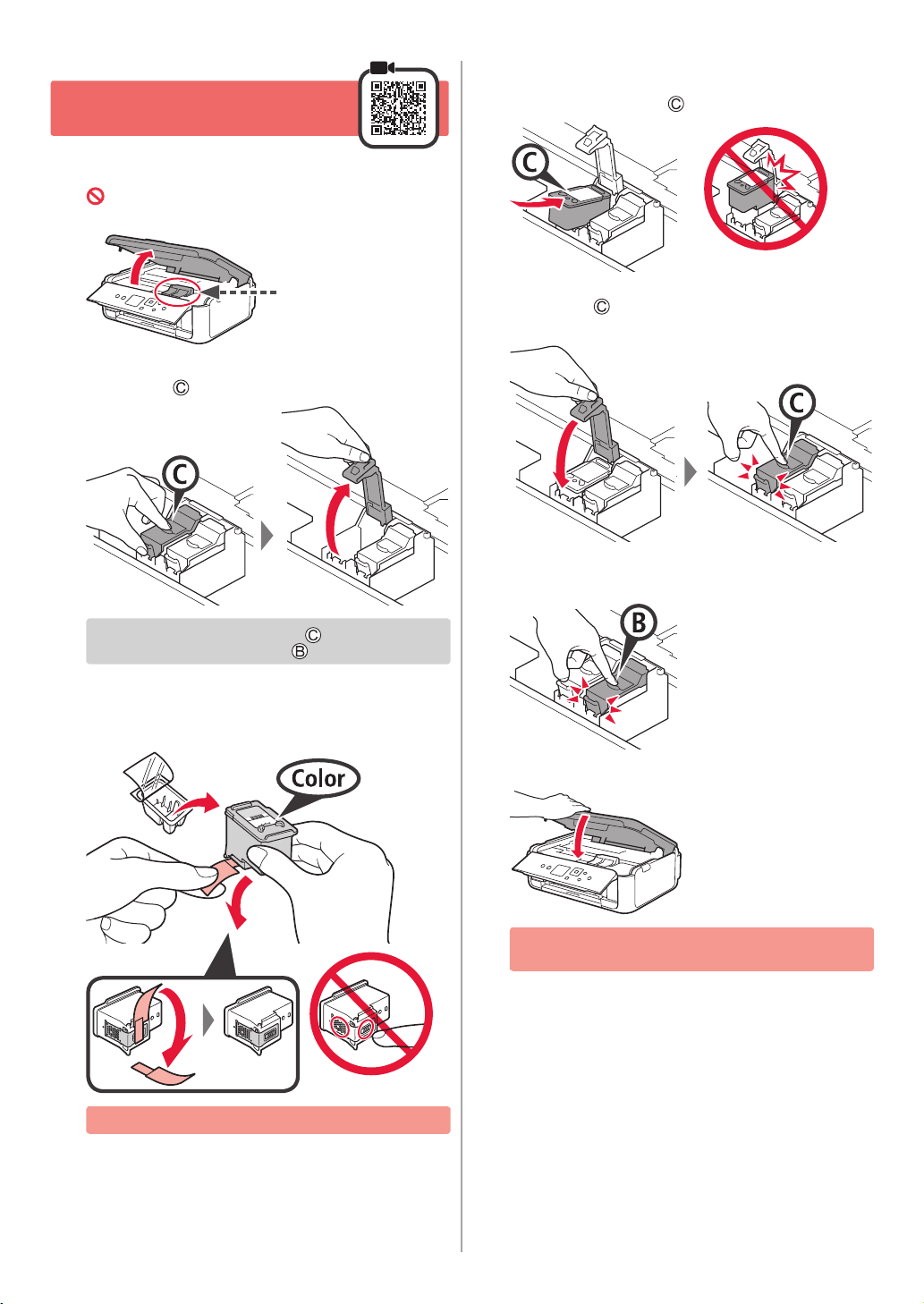

3. Installing FINE Cartridge
1 Open the scanning unit / cover.
Do not touch the FINE cartridge holder (A) until it
stops.
(A)
2 Pinch and open the ink cartridge locking cover on
the left side .
Install the Color FINE cartridge on the left side
and the Black FINE cartridge on the right side.
3 aTake out the Color FINE cartridge from the
package.
bRemove the protective tape.
a
b
Do not touch.
Be careful of ink on the protective tape.
4 Set the Color FINE cartridge on the FINE cartridge
holder on the left side .
Do not bump it against the
surrounding parts.
5 Push down in the ink cartridge locking cover
rmly until it snaps into place to close it completely.
6 Repeat steps 2 to 5 and install the Black FINE
cartridge as well, on the right.
7 Close the scanning unit / cover.
If an error message appears on the screen, make
sure the FINE Cartridges are installed correctly.
3
ENGLISH

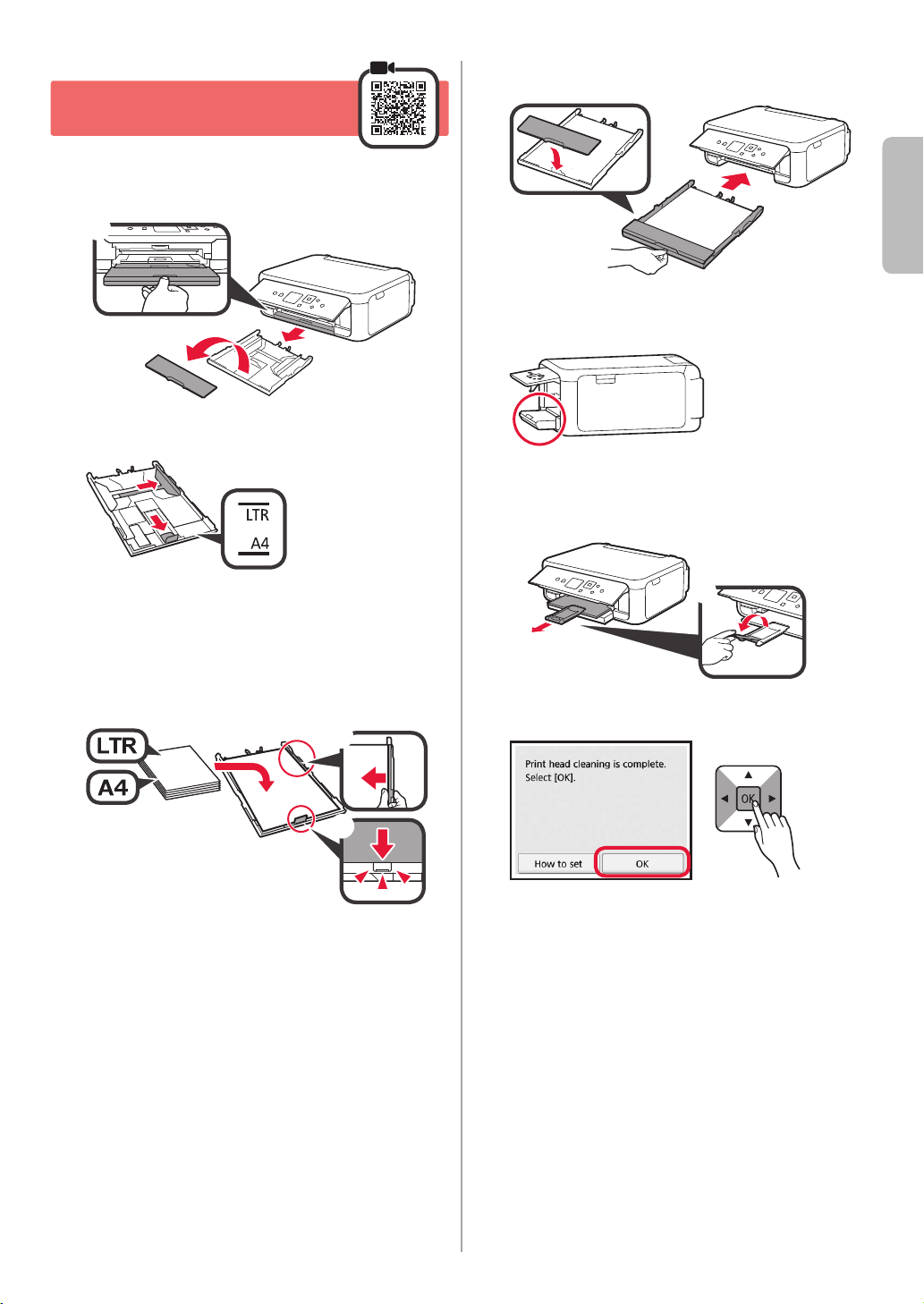

4. Loading Paper
1 aPull out the cassette.
bRemove the cassette cover.
a
b
2 Open the paper guides, and then align the guide in
front with the mark of LTR or A4.
3 aLoad plain LTR or A4 size paper with the print
side facing down.
bSlide the right paper guide to align it with the
side of the paper stack.
cAlign the paper stack with the paper guide in
front.
a
b
c
4 Attach the cassette cover and insert the cassette.
The following gure shows the state after the
cassette is inserted.
Side
5 aPull out the paper output tray.
bOpen the output tray extension.
b
a
6 If the following screen appears, select OK with the
[ or ] button, and then press the OK button.
4
6-A. Connecting to Computer
Mac OS
Windows
You need a connection setup for each computer. Proceed with the setup from step 1 for each computer.
1 Start the setup le for either method or method .

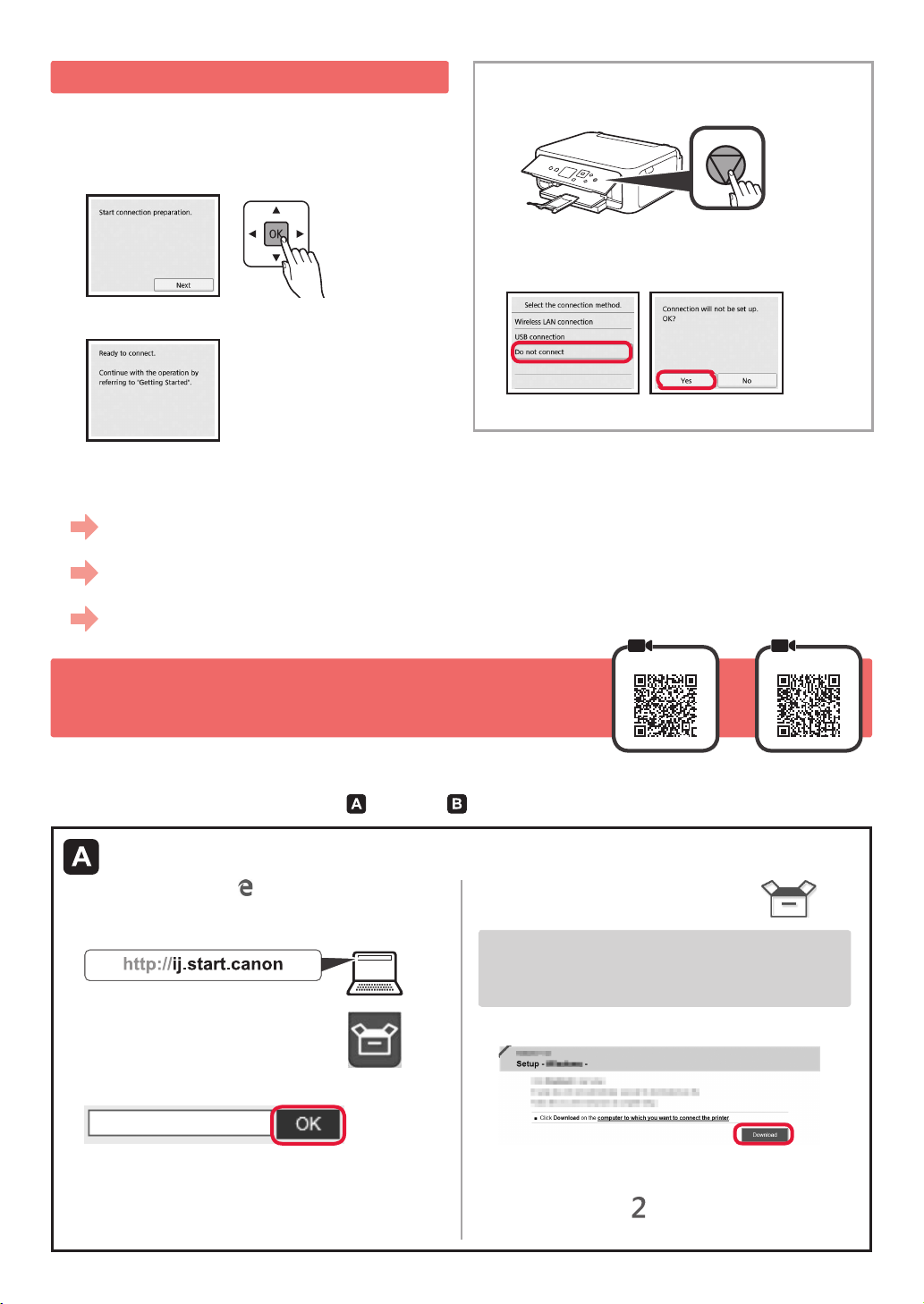

5. Preparing for Connection
In the following description, smartphones and tablet
devices are collectively described as smartphone.
1 Press the OK button.
2 Make sure that the following screen appears.
From here on, proceed to a step according to how you use
the printer.
Use Only Printer
aPress the Stop button on the printer.
bSelect Do not connect > Yes in this order with
the {, }, [, or ] button, and then press the OK
button.
The setup is now complete.
aOpen a web browser ( etc.) on your computer.
bInput the following URL and access the Canon
website.
cSelect Set Up.
dInput the model name of your printer and click OK.
You can select a model name from the list.
eClick Setup.
The procedures for Windows and Mac OS are shown
below. If you are using a computer with an OS other
than Windows or Mac OS, such as a Chrome OS, do
the setup according to the on-screen instructions.
fClick Download and download the setup le.
gExecute the downloaded le.
Proceed to step on the next page to
continue.
Downloading from the Internet
• To use the printer by connecting only to a computer or both to a computer and smartphone
"6-A. Connecting to Computer"
• To use the printer by connecting only to a smartphone
"6-B. Connecting to Smartphone" on page 6
• To use the printer without connecting to a computer or smartphone
"Use Only Printer"
5
ENGLISH

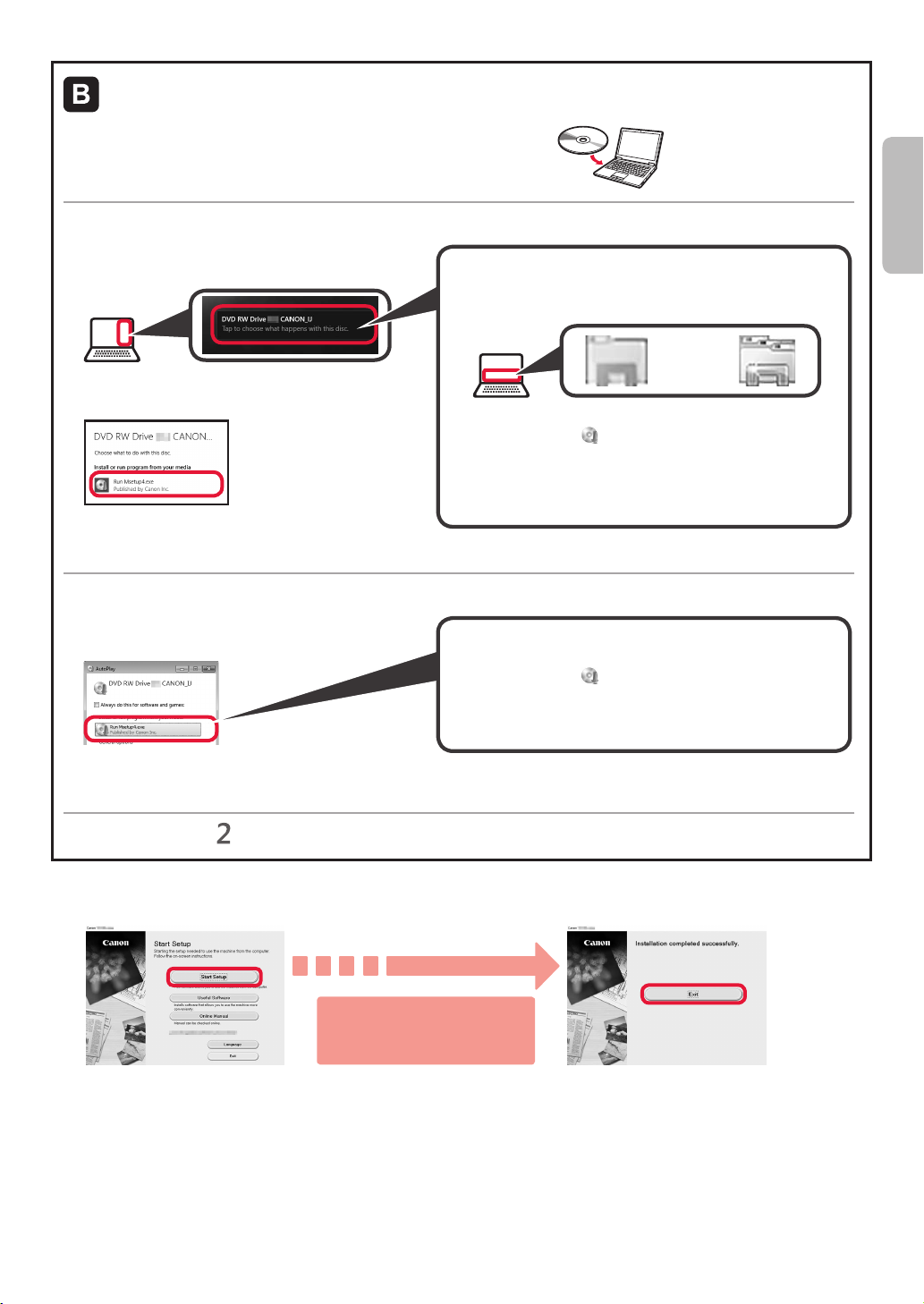

Using Setup CD-ROM (Windows Only)
aLoad the Setup CD-ROM in your computer.
■ When using Windows 10 or Windows 8.1:
bWhen the following message appears on the right
side of your computer screen, click it.
cIf the following screen appears, click Run
Msetup4.exe.
dIf the User Account Control dialog box appears,
click Yes.
When This Message Does Not Appear (or Has
Disappeared)
1. Click File Explorer on the taskbar.
or
2. Click This PC on the left side of the opened window.
3. Double-click the CD-ROM icon on the right side of
the window.
If the contents of the CD-ROM appear, double-click
Msetup4.exe.
4. Proceed to step d.
■ When using Windows 7:
b When the AutoPlay screen appears, click Run
Msetup4.exe.
c If the User Account Control dialog box appears,
click Continue.
When AutoPlay Screen Does Not Appear
1. Click Computer from the start menu.
2. Double-click the CD-ROM icon on the right side of
the opened window.
If the contents of the CD-ROM appear, double-click
Msetup4.exe.
Proceed to step to continue.
2 Click Start Setup.
The connection with your computer is now complete. You can print from your
computer.
If the following screen appears, click Exit.
Follow the on-screen
instructions to proceed
with the setup.
6
6-B. Connecting to Smartphone
Android
iOS
You need a connection setup for each smartphone. Proceed with the setup from step 1 for each smartphone.
Preparation
• Turn on Wi-Fi on your smartphone.
• If you have a wireless router, connect your smartphone to the wireless router you want to connect to the printer.
* For operations, refer to manuals of your smartphone and the wireless router or contact those manufacturers.
1 Install the application software Canon PRINT Inkjet/SELPHY in your smartphone.
: Search "Canon PRINT" in App Store.
: Search "Canon PRINT" in Google Play.
Or access the Canon website by scanning the QR code.
* You may not connect your smartphone to the Internet wirelessly during connecting the printer to the smartphone directly.
In that case, you may be charged depending on the contract with your service provider.
* Up to 5 devices can be connected to the printer via wireless LAN connection directly.
2 Check the display on the printer.
The screen turns off when no operation is made for about 10 minutes. Press one of the buttons on the operation
panel (except for the ON button) to display the screen.
■ If the following screen appears:
Check the icon on the lower left, and then proceed
to or .
If appears, the printer cannot communicate
by wireless LAN connection. For details, access
"http://ij.start.canon" to see Frequently Asked Questions.
■ If the following screen appears:
Proceed to .
No (Proceed to .)
YES
aTap the installed application software.
bFollow the on-screen instructions to register the
printer.
cMake sure that the following screen appears.
The connection with your smartphone is
now complete. You can print from your
smartphone.
To print photos, load photo paper. Proceed to "Loading
Photo Paper" on page 8.
The following icon appears.
(The printer is connected to a network.)
7
ENGLISH

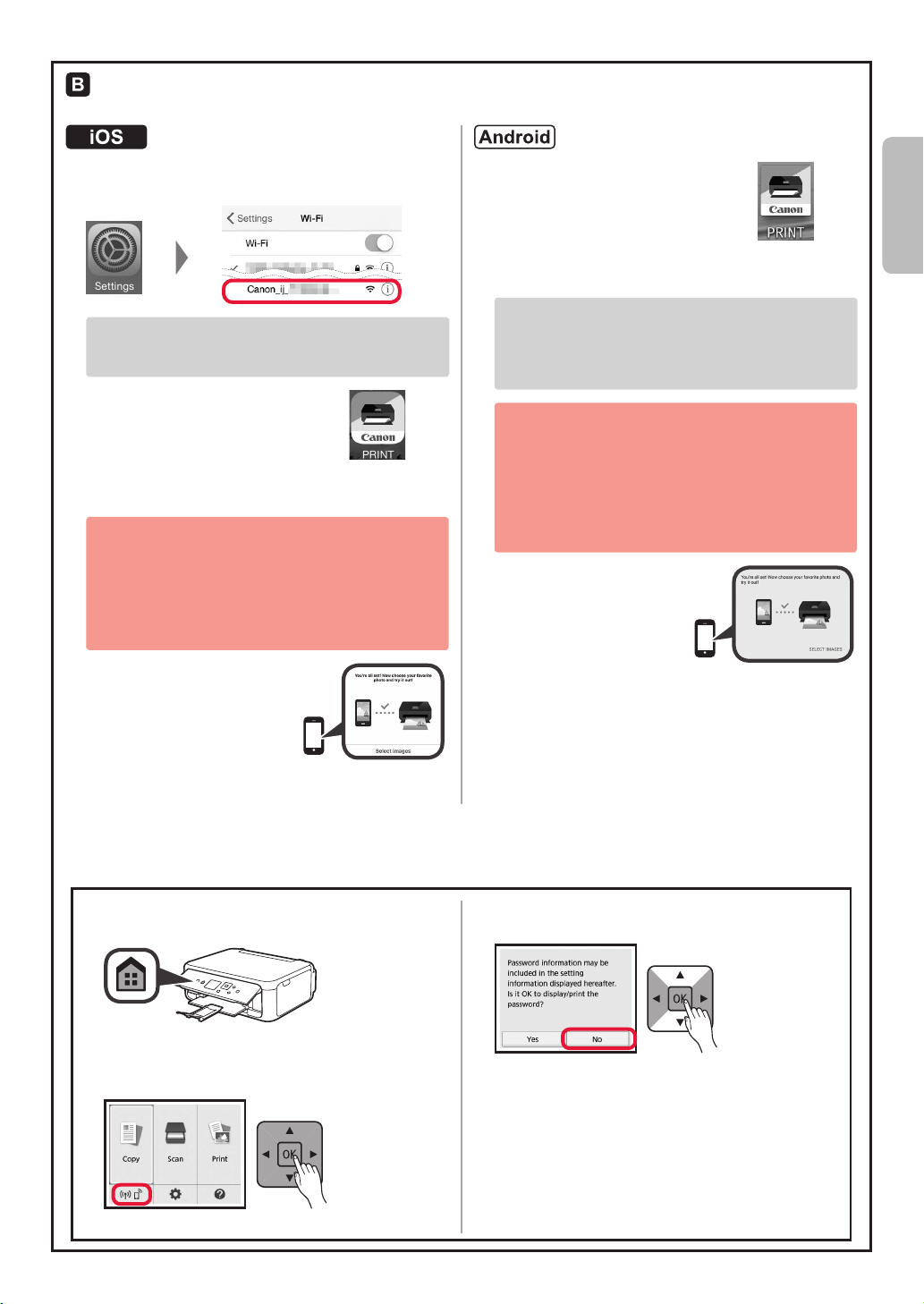

Procedures below vary depending on iOS or Android. Select your operating system and proceed to its
procedure.
aTap Settings on your smartphone's home screen,
and tap Canon_ij_XXXX in the Wi-Fi settings.
If Canon_ij_XXXX does not appear on the list,
see "Preparation for Printer" below to operate the
printer, and then repeat step a.
bTap the installed application software.
cFollow the on-screen instructions to register the
printer.
Follow the on-screen instructions to proceed
with the setup.
If you select Auto Select Conn. Method
(recommended) on the connection method
selecting screen, the appropriate connection
method is selected automatically depending on
your environment.
dMake sure that the right
screen appears.
aTap the installed application software.
bFollow the on-screen instructions to register the
printer.
If a message saying "Printer is not registered.
Perform printer setup?" does not appear, see
"Preparation for Printer" below to operate the
printer, and then wait for a while until the message
appears.
Follow the on-screen instructions to proceed
with the setup.
• The appropriate connection method is selected
depending on your environment.
• If two printer names appear on the Register
Printer screen as shown below, select A.
A) TS5100 series (xxx.xxx.xxx.xxx)
B) Direct-xxxx-TS5100series
cMake sure that the right
screen appears.
The connection with your smartphone is now complete. You can print from your
smartphone.
To print photos, load photo paper. Proceed to "Loading Photo Paper" on page 8.
aPress the HOME button on the printer.
bUse the {, }, [, or ] button to select the icon
on the lower left of the Home screen, and then
press the OK button.
cIf the following screen appears, select No with the
[ or ] button, and then press the OK button.
dUse the {, }, [, or ] button to select LAN
settings > Wireless LAN > Wireless LAN setup
> Easy wireless connect in order, and then press
the OK button.
eUse the [ or ] button to select Yes, and then
press the OK button.
fReturn to the operation of your smartphone.
Preparation for Printer
8

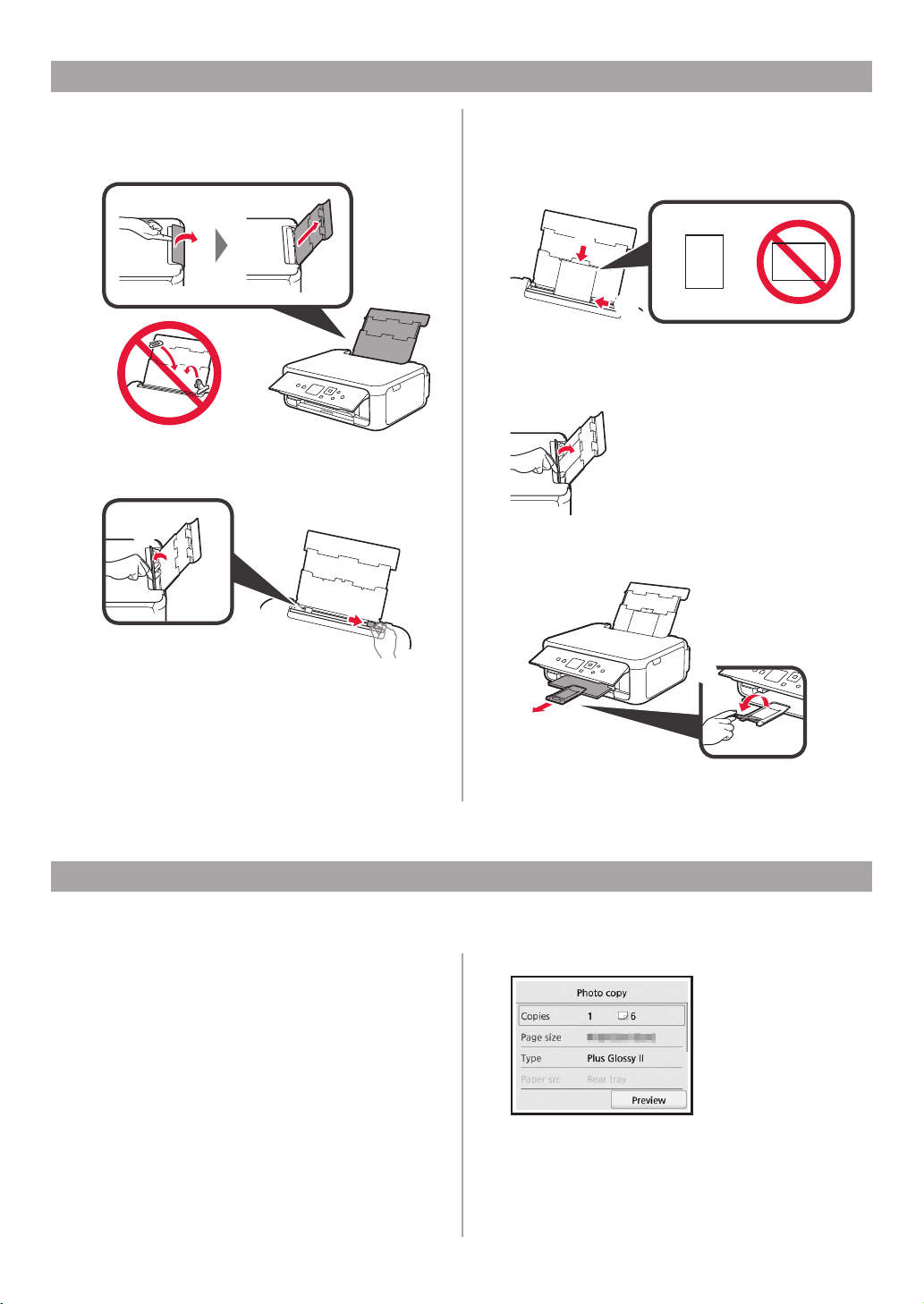

Load photo paper in the rear tray.
1 Open the rear tray cover and pull out the paper
support.
2 aOpen the feed slot cover.
bSlide the right paper guide to the end.
a
b
1 Make sure the printer is turned on.
2 Load several sheets of photo paper.
3 Use the {, }, [, or ] button to select Copy
on the Home screen, and then press the OK
button.
4 Use the { or } button to select Photo copy,
and then press the OK button.
5 Read the messages and then press the OK
button.
6 Follow the on-screen instructions to load the
printed photo on the platen glass, and then
press the OK button.
3 aLoad several sheets of photo paper with the
print side facing up.
bSlide the right paper guide to align it with the
side of the paper stack.
a
b
4 Close the feed slot cover.
Read the message on the printer's screen and
register the information of the loaded paper.
5 aPull out the paper output tray.
bOpen the output tray extension.
b
a
7 Specify the print settings as necessary.
8 Press the Color button for color copying.
Press the Black button for black & white
copying.
The printer starts printing.
Loading Photo Paper
Copying Photos
You can scan the printed photo and print it. You can also scan several photos and print them at once.
Autres manuels pour TS5100 series
5
Ce manuel convient aux modèles suivants
1
Table des matières
Langues :
Autres manuels Canon Imprimante tout-en-un
Canon
Canon PIXMA MP520 Manuel utilisateur
Canon
Canon ImageCLASS MF5730 Guide de démarrage rapide
Canon
Canon MP640 Series Manuel utilisateur
Canon
Canon imageRUNNER ADVANCE C2230 Manuel utilisateur
Canon
Canon MultiPASS MP700 Manuel
Canon
Canon imageRUNNER 4570 Manuel utilisateur
Canon
Canon PIXMA MX420 Series Manuel utilisateur
Canon
Canon imagePRESS C7000 Series Caractéristiques techniques
Canon
Canon Pixma MG3500 Series Guide de configuration
Canon
Canon MultiPASS F50 Instructions d'installation et d'entretien
Canon
Canon imageRUNNER ADVANCE 8595i Guide d'installation
Canon
Canon imageCLASS MF7470 Instructions d'installation
Canon
Canon IR5000 - iR B/W Laser Comment utiliser
Canon
Canon iR4570 Series Manuel utilisateur
Canon
Canon ImageCLASS 2300 Instructions d'installation et d'entretien
Canon
Canon imageCLASS D320 Manuel
Canon
Canon imageRUNNER ADVANCE C9075S PRO Instructions d'installation
Canon
Canon PIXMA MX512 Manuel utilisateur
Canon
Canon ImageRunner C2550 Instructions d'installation et d'entretien
Canon
Canon imageRUNNER 2200 Manuel utilisateur
Manuels Imprimante tout-en-un populaires d'autres marques
Triumph Adler
Triumph Adler DC 2016 Manuel
Epson
Epson WorkForce WF-2510 Guide de l'utilisateur
Epson
Epson Stylus Scan 2000 Manuel d'installation et d'exploitation
Epson
Epson PictureMate Snap PM 240 Mode d’emploi
Konica Minolta
Konica Minolta bizhub C35 Manuel utilisateur
Brother
Brother MFC-J430w Manuel utilisateur
