Canon PIXMA MX860 series Manuel utilisateur

<< Previous Next >>

Getting Your Multifunction

Back On Your Network

After A Router Or Network Change

PIXMA MX860

Windows OS

If any of the following situations exist, you will need to

Uninstall and Re-Install the MP Drivers

•You have replaced your Router or Access Point

•You want to use a different wireless network

•Router settings have been changed.

<< Previous Next >>

Uninstalling and Re-installing Your Multifunction

to Your Network

PIXMA MX860

Windows OS

Uninstalling the Multifunction Drivers 4

Preparing to Connect My Multifunction to My Network 6

Network Requirements 6

Important Information You Need Before Adding Your Multifunction 7

Preparing Your Multifunction 8

Downloading & Installing the Drivers 11

Downloading the Driver 11

Installing the Driver 13

Setup the Machine and the Computer 15

Note: Login as a user with Administrator privileges to uninstall . Turn off any programs running in the background, such as

antivirus programs and firewalls before beginning.

Uninstalling the Multifunction Drivers << Previous Next >>

1. Select 'Program' (for Windows 2000), or 'All

Programs' (for Windows XP / Vista / 7) from the Start

menu.

2. Select the name of the printer model to remove and

select 'MP Drivers Uninstaller.‘

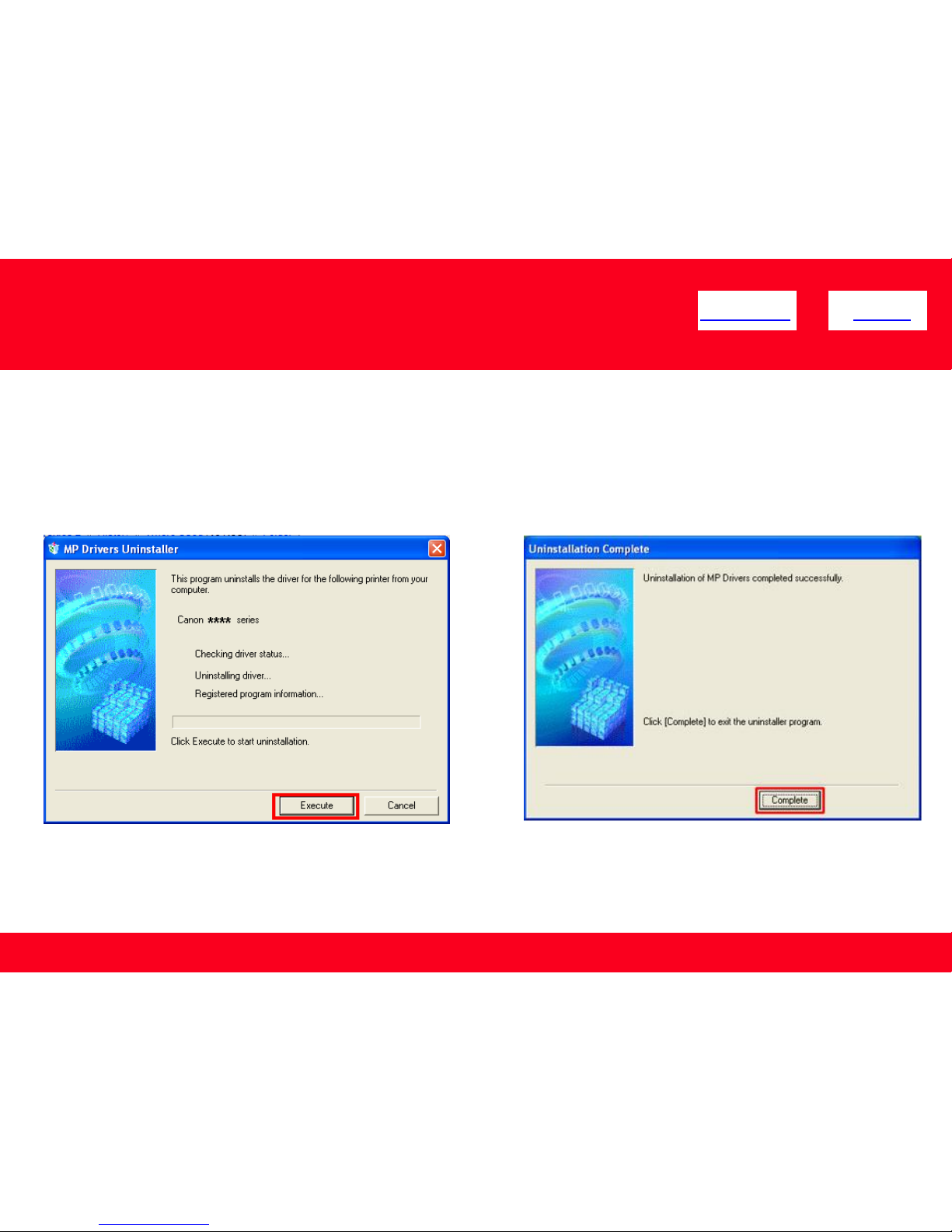

3. When the MP Drivers Uninstaller window is

displayed, click 'Execute.‘

Uninstalling the Multifunction Drivers << Previous Next >>

4. When the confirmation window is displayed, click

'Yes.'

5. When the Uninstallation Complete window is

displayed, click 'Complete.'

Network Requirements

Before connecting the machine to the network, make sure that configuration of the computer and access point or router is

complete, and that the computer is connected to the network.

Notes on Network Connection

•The configuration, router functions, setup procedures and security settings of the network device vary depending on your

system environment. For details, refer to your device's instruction manual or contact its manufacturer.

•The machine cannot be used over a wireless and wired connection at the same time.

Wireless Connection

Connect to your network environment over a wireless connection.

Preparing to Connect My Multifunction

To My Network

<< Previous Next >>

Preparing to Connect My Multifunction

To My Network

Be sure to prepare an access point.

Important Information You Need Before Adding Your Multifunction

The following information is required to connect to your access point or router.

•Access Point Name/Network Name:

Also referred to as SSID. A name to identify the specific access point.

•Network Key:

Also referred to as encryption key, WEP key or WPA/WPA2 passphrase, Pre-Shared key.

A password is required to prevent unauthorized access to communication.

Check your access point or router for the following information, and then write it down.

NOTE: For details on how to check the following information, refer to the manual of your access point or router, or contact its manufacturer.

An "Ad-hoc connection,"which establishes a direct

connection to the computer over a wireless connection

without using an access point, is not supported.

<< Previous Next >>

Preparing Your Multifunction

Note : The procedures below are for Wireless LAN setups not using the WPS (Wi-Fi Protected Setup)or WCN (Windows Connect Now) setup

methods

At this point the USB cable should not be connected between the computer and printer.

Step One

Press the Menu button (A).

Step Two

Use the or button to select Settings, then press the

OK button.

<< Previous Next >>

Preparing Your Multifunction

Step Three

Select Device settings, then press the OK button.

Step Four

Select LAN settings, then press the OK button.

<< Previous Next >>

Preparing Your Multifunction

Step Seven

Press the On button to turn off the printer. Connect the USB

cable to the printer and computer

Step Five

Select Change wireless / wired, then press the OK

button.

Step Six

Select Wireless LAN active, then press the OK button.

<< Previous Next >>
