Solución de problemas de conguración de red

Network Setup Troubleshooting

ENGLISH

Network Setup Troubleshooting

This manual mainly describes problems you may encounter when setting up a network, and the possible

causes and solutions.

Find a description related to your problem and follow the solution.

If you cannot nd a description for your problem or if you encounter a problem after setup, refer to the on-

screen manual: Basic Guide/Advanced Guide.

Screens are based on Windows Vista Ultimate.

Names of functions, etc. may differ from this manual depending on your access point or application

software.

•

Other Troubleshooting Tips

Forgotten or Do Not Know the Access Point Name/Network Name (SSID), Security

Protocol (encryption standard), and Network Key

The Machine is Not Detected after the Network Environment is Changed

P.8

P.2

Check Access Point to Be Used Screen is Displayed P.3

Set Printer IP Address Screen is Displayed

Multiple APs detected is Displayed

Check Settings Screen is Displayed

P.4

P.7

P.5The Machine is Not Displayed (Detected) on the Detected Printers List Screen

P.4

P.7

Problems during Software Installation

Problems during Network Setup

The Target Access Point is Not Displayed (Detected) on the Detected Access Points

List Screen

P.2

WPS

P.6

Set Up New Printer Screen is Displayed

Cannot connect is Displayed P.7

PIN codes do not match is Displayed P.8

An access point could not be detected. is Displayed P.3

The following symbols are used in this manual.

Description for Windows users.

Description for Macintosh users.

Connection Checklist P.11

Reference Information P.9

Restoring the Machine's Default LAN Settings to Perform Setup Again P.10

Conguring the Access Point's Wireless LAN Settings Manually P.9

Instructions as notes for operation or additional explanations.

WPS WCN Additional Computers Setup

Check

Problems during Software Installation

The Target Access Point is Not Displayed (Detected) on the Detected

Access Points List Screen

Make sure that you follow Check 1, 2, 3, 4, 6 and

7 of "Connection Checklist" on page 11, then click

Refresh (A) to search for the access point again.

Check 1

Turn off the access point, turn it back on, then click Refresh (A) to search for the

access point again.

Check 2

Is SSID broadcast (connection via "ANY" SSID, etc.) disabled or is the stealth mode

enabled on the access point?

For details on how to check the settings of the access point, refer to the manual supplied with the

access point or contact its manufacturer.

•

Enable SSID broadcast (connection via "ANY" SSID, etc.) or disable the stealth mode,

then click Refresh (A) to search for the access point again.

For details on how to change the settings of the access point, refer to the manual supplied with

the access point or contact its manufacturer.

•

To establish a connection without changing the access point settings, refer to and

onward in "Conguring the Access Point's Wireless LAN Settings Manually" on page 9.

Check 3

If the target access point is not displayed on the

Detected Access Points List screen, check the

following points.

Is "WPA/WPA2 Enterprise" set as a security protocol (encryption standard) on the

access point?

Check 5

"WPA/WPA2 Enterprise" is not supported on the machine.

Change the security protocol (encryption standard) for the access point, then congure

settings again.

For details on how to change the security protocol (encryption standard) for the access point,

refer to the manual supplied with the access point or contact its manufacturer.

•

For the procedure to congure settings of the machine, refer to "10 Set Up a Wireless

Connection" on page 34 in the printed manual: Getting Started.

•

Is the MAC address ltering enabled on the access point?

Set the access point to accept the MAC address of the machine.

Check 4

For details on how to change the settings of the access point, refer to the manual supplied with

the access point or contact its manufacturer.

•

To check the MAC address of the machine, select Device settings using the Menu button, then

select LAN settings > Print LAN details using the [, ]and OK buttons, then on the printed

LAN setting information, check MAC Address.

•

For details on how to check the settings of the access point, refer to the manual supplied with the

access point or contact its manufacturer.

•

ENGLISH

SSID•

An identier to identify the specic access point.

An access point's periodic transmission of a signal revealing its SSID.

Stealth mode•

A function to prevent the SSID of the access point from appearing on other wireless devices.

SSID broadcast•

A function to block access from unauthorized wireless devices by saving the MAC addresses of specic

wireless devices (computers, printers, etc.) to the access point beforehand.

MAC address ltering•

A unique number assigned to each network device.

MAC address•

Network Key•

A password required to set to prevent unauthorized access to communication.

Glossary

Action

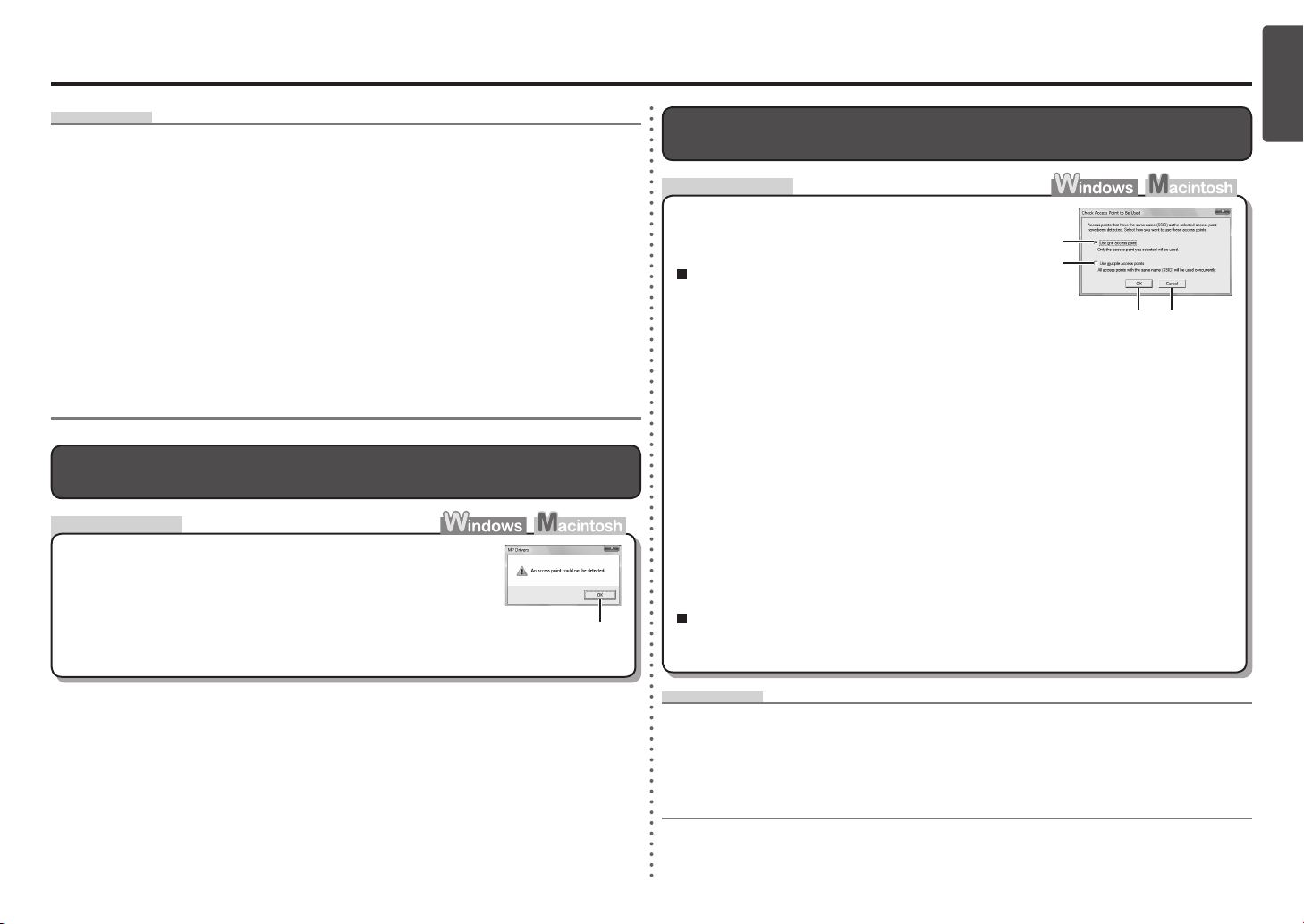

Check Access Point to Be Used Screen is Displayed

The message appears when multiple access points with

the same name are found.

To use roaming, select Use multiple access points (D), then click OK or Continue

(C).

When you have only one access point

The access point selected on the Detected Access

Points List screen will be used. Make sure that the

target access point is selected correctly by following

the procedure below, then proceed with the setup.

When using multiple access points (roaming)

A unique number assigned to each network device.

MAC address•

Detected Access Points List screen returns.•

For details on how to check the MAC address of the access point, refer to the manual

supplied with the access point or contact its manufacturer.

•

A function to provide seamless communication when multiple access points with the same SSID are in

use by automatically connecting to another nearby access point upon interruption of signals from the

current one.

Roaming•

Check

An access point could not be detected. is Displayed

The message appears when no access point can be detected.

Click OK (A) to display the Detected Access Points List

screen, then try to detect the access point again by referring to

"The Target Access Point is Not Displayed (Detected) on the

Detected Access Points List Screen" on page 2.

Glossary

Click Cancel or Back (A).

Select the access point name/network name (SSID) that matches the MAC

address of the target access point, then click Connect.

Select Use one access point (B), then click OK or Continue (C).

The Check Access Point to Be Used screen is displayed.•

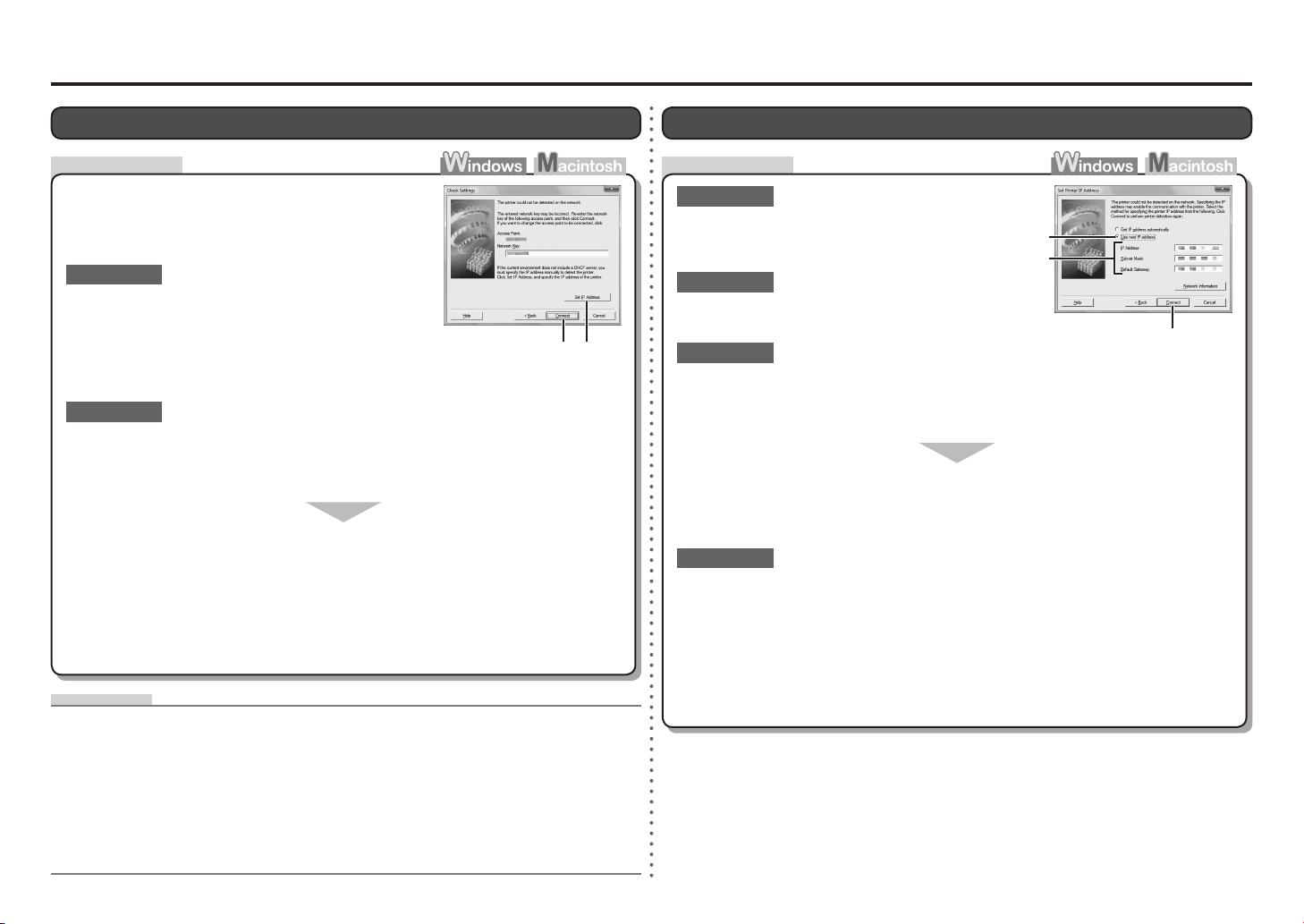

Set Printer IP Address Screen is Displayed

Select Use next IP address (B).

Enter the value you want to specify for each of IP Address, Subnet Mask, and

Default Gateway or Router (C).

Click Connect (A).

Make sure that you follow "Connection Checklist" on

page 11, then click Connect (A).

Check 1

Check 2

Turn off the access point, turn it back on, then click

Connect (A).

Check 4

If the problem is not solved even after following Check 1 to 3, follow the procedure

below to specify the IP address.

When obtaining an IP address automatically, make sure that the DHCP function of the

access point is active.

For details on how to check the settings of the access point, refer to the manual supplied with the

access point or contact its manufacturer.

•

Enable the DHCP function of the access point, then click Connect (A).

For details on how to change the settings of the access point, refer to the manual supplied with

the access point or contact its manufacturer.

•

Check 3

Check

Check Settings Screen is Displayed

The screen appears when an IP address was not

obtained automatically due to incorrect network key or

inactive DHCP function.

Make sure that the DHCP function of the access point is active.

For details on how to check the settings of the access point, refer to the manual supplied with the

access point or contact its manufacturer.

•

For details on how to change the settings of the access point, refer to the manual supplied with

the access point or contact its manufacturer.

•

If the DHCP function is inactive, enable the DHCP function of the access point or

specify the IP address of the machine, then click Connect (A).

DHCP function•

A function to automatically assign required information (IP address, etc.) to computers, printers or other

devices connected to the network.

IP address•

A numerical identication assigned to each computer or network device connected to a network.

Check 1

Check 2

If the network key is incorrect, enter the network key

again and click Connect (A).

For details on how to check the network key of the access

point, refer to the manual supplied with the access point or

contact its manufacturer.

•

To specify the IP address of the machine, click Set IP Address (B), then follow the procedure in

Check 4 of "Set Printer IP Address Screen is Displayed" on page 4.

•

Network Key•

A password required to set to prevent unauthorized access to communication.

Check

Glossary

ENGLISH

Subnet mask•

A number used to distinguish the network and host portions of an IP address.

Default gateway•

A device required to connect to external networks.

IP address•

A numerical identication assigned to each computer or network device connected to a network.

DHCP function•

A function to automatically assign required information (IP address, etc.) to computers, printers or other

devices connected to the network.

Glossary

Check

Is the machine connected to a network?

For details on how to check if the machine is connected to a network, select Device settings

using the Menu button, then select LAN settings > Print LAN details using the [, ]and OK

buttons, then on the printed LAN setting information, make sure that Link Status is set to Active.

•

Make sure that you follow Check 1, 2, 4, 5, 6 and 7 of "Connection Checklist" on page

11, then click Redetect.

Check 2

Check 1

If the machine is not connected to a network, perform setup again by following the

procedures in "10 Set Up a Wireless Connection" on page 34 and onward in the printed

manual: Getting Started.

Check 3

Is the IP ltering feature enabled on the access point?

Set the access point to accept the IP address of the machine.

For details on how to check the settings of the access point, refer to the manual supplied with the

access point or contact its manufacturer.

•

For details on how to change the settings of the access point, refer to the manual supplied with

the access point or contact its manufacturer.

•

To check the IP address of the machine, select Device settings using the Menu button, then

select LAN settings > Print LAN details using the [, ]and OK buttons, then on the printed

LAN setting information, check IP Address.

•

The Machine is Not Displayed (Detected) on the Detected Printers

List Screen

Is the privacy separator feature enabled on the access point?

Disable the privacy separator feature.

Check 5

Check 4

For details on how to change the settings of the access point, refer to the manual supplied with

the access point or contact its manufacturer.

•

For details on how to check the settings of the access point, refer to the manual supplied with the

access point or contact its manufacturer.

•

When obtaining an IP address automatically, make sure that the DHCP function of the

access point is active.

For details on how to check the settings of the access point, refer to the manual supplied with the

access point or contact its manufacturer.

•

Enable the DHCP function of the access point, then click Redetect.

For details on how to change the settings of the access point, refer to the manual supplied with

the access point or contact its manufacturer.

•

Check 4

When obtaining an IP address automatically, make sure that the DHCP function of the

access point is active.

For details on how to check the settings of the access point, refer to the manual supplied with the

access point or contact its manufacturer.

•

Enable the DHCP function of the access point, then click Redetect.

For details on how to change the settings of the access point, refer to the manual supplied with

the access point or contact its manufacturer.

•

Is the machine connected to a network?

For details on how to check if the machine is connected to a network, select Device settings

using the Menu button, then select LAN settings > Print LAN details using the [, ]and OK

buttons, then on the printed LAN setting information, make sure that Link Status is set to Active.

•

Check 2

If the machine is not connected to a network, perform setup again by following the

procedures in "10 Set Up a Wireless Connection" on page 34 and onward in the printed

manual: Getting Started.

Is the IP ltering feature enabled on the access point?

Check 3

For details on how to check the settings of the access point, refer to the manual supplied with the

access point or contact its manufacturer.

•

Set the access point to accept the IP address of the machine.

For details on how to change the settings of the access point, refer to the manual supplied with

the access point or contact its manufacturer.

•

To check the IP address of the machine, select Device settings using the Menu button, then

select LAN settings > Print LAN details using the [, ]and OK buttons, then on the printed

LAN setting information, check IP Address.

•

Check

Set Up New Printer Screen is Displayed

The screen appears when the machine cannot be detected during setup using WPS or

WCN, or when setting up on an additional computer.

Make sure that you follow Check 1, 2, 4, 5, 6 and 7 of "Connection Checklist" on page

11, then click Redetect.

Proceed with the setup.

Check 1

WPS WCN Additional Computers Setup

Refer to the troubleshooting tip below only when conguring wireless settings by using WPS or WCN, or

when setting up on an additional computer.

A function to restrict communication of network devices with specic IP addresses, preventing them

from connecting to the network.

IP address ltering•

A function to prevent communication between multiple wireless devices (such as computers and

printers) connected to an access point.

Privacy separator feature•

DHCP function•

A function to automatically assign required information (IP address, etc.) to computers, printers or other

devices connected to the network.

IP address•

A numerical identication assigned to each computer or network device connected to a network.

Glossary

ENGLISH

Check

Action

Problems during Network Setup

Multiple APs detected is Displayed

The message appears when multiple access points are

detected.

Wait for a while, then congure the settings again.

WPS

Check the access point settings, then congure WPS

settings again.

For details on how to check the settings of the access point, refer to the manual supplied with the

access point or contact its manufacturer.

•

The message appears when an error occurs.

Cannot connect is Displayed

For the procedure to congure WPS settings of the machine, refer to "Wireless Setup Using WPS

(Wi-Fi Protected Setup)" on page 55 in the printed manual: Getting Started.

•

When using an access point that does not support WPS, congure the settings by referring to "10

Set Up a Wireless Connection" on page 34 in the printed manual: Getting Started.

•

Is the privacy separator feature enabled on the access point?

Disable the privacy separator feature.

Check 5

For details on how to change the settings of the access point, refer to the manual supplied with

the access point or contact its manufacturer.

•

For details on how to check the settings of the access point, refer to the manual supplied with the

access point or contact its manufacturer.

•

A function to restrict communication of network devices with specic IP addresses, preventing them

from connecting to the network.

IP address ltering•

IP address•

A numerical identication assigned to each computer or network device connected to a network.

Glossary

A function to prevent communication between multiple wireless devices (such as computers and

printers) connected to an access point.

Privacy separator feature•

DHCP function•

A function to automatically assign required information (IP address, etc.) to computers, printers or other

devices connected to the network.

Check

Action

Other Troubleshooting Tips

The Machine is Not Detected after the Network Environment is

Changed

IP address•

A numerical identication assigned to each computer or network device connected to a network.

Wait until the IP address is assigned to the computer. You may need to restart your

computer.

Search for the machine again after conrming a valid IP address is assigned to the computer.•

Forgotten or Do Not Know the Access Point Name/Network Name

(SSID), Security Protocol (encryption standard), and Network Key

Check the access point settings.

For details on how to check the settings of the access point, refer to the manual supplied with the

access point or contact its manufacturer.

•

Follow the procedure below to congure WPS settings

again.

PIN codes do not match is Displayed

The message appears when setup is not completed within

10 minutes.

Set the new PIN code to the access point or computer.

Select PIN code method on the WPS screen, then press the OK button.

A new PIN code appears.•

For details on how to set PIN codes to the access point or computer, refer to the manual

supplied with your access point or contact its manufacturer.

•

Glossary

Check

ENGLISH

6-A

Action

Reference Information

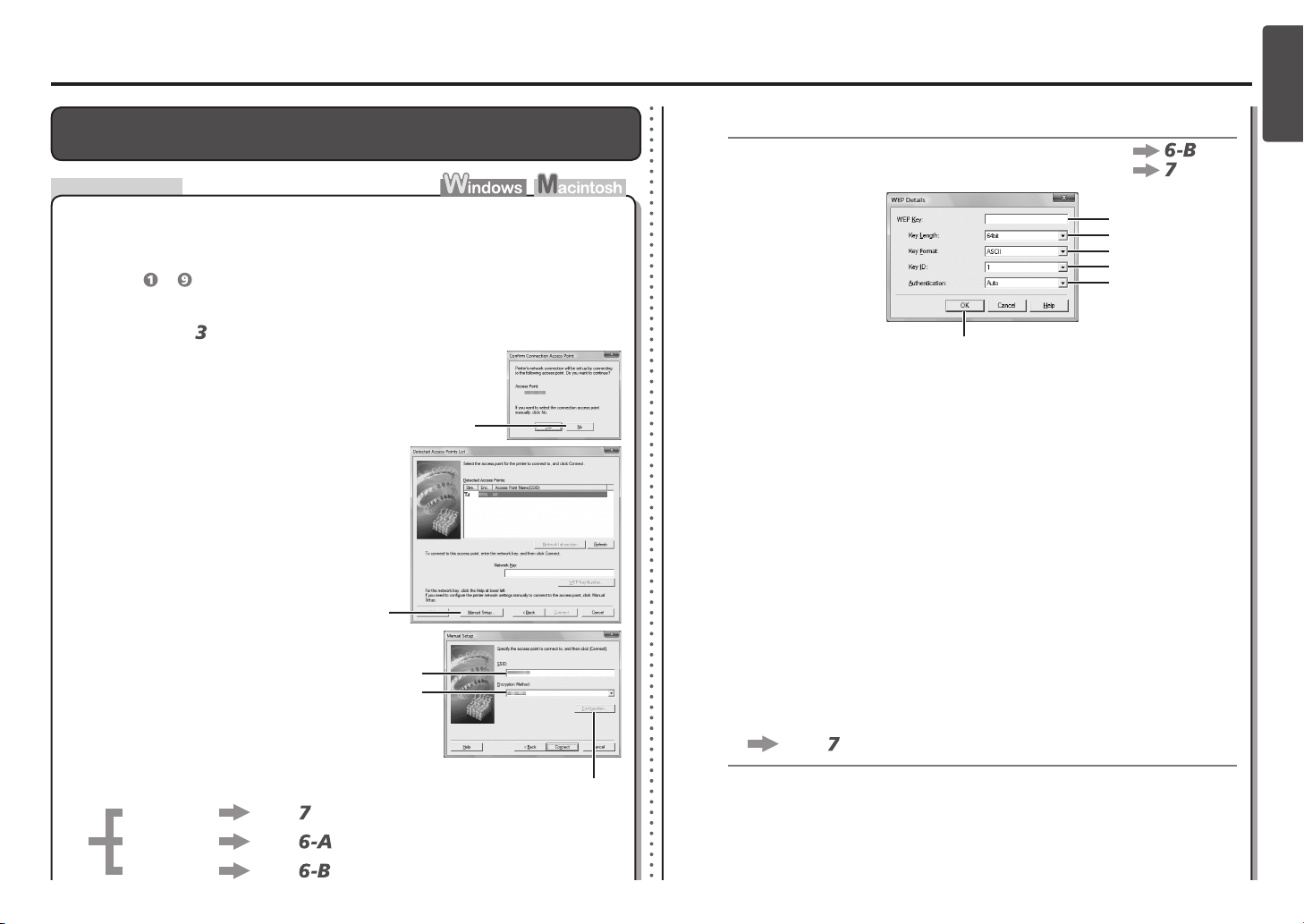

Enter the access point name/network name

(SSID) in SSID (C).

When the Conrm Connection Access

Point screen appears, click No (A).

Enter the access point name/network name (SSID) and security setting (WEP, WPA,

etc.) directly.

Follow the procedure below.

Conguring the Access Point's Wireless LAN Settings Manually

The Detected Access Points List screen is

displayed.

•

Go to either of the following steps according

to the selected Encryption Method (security

protocol).

•

Disable

WEP

WPA/WPA2

Go to .

Go to on page 10.

Select the security protocol for the access

point in Encryption Method (D), then click

Conguration (E).

Click Manual Setup (B).

The Manual Setup screen is displayed.•

Perform to in "Install the Software (2)" on page 36 in the printed manual:

Getting Started.

When WEP 40 bit is selected in AirPort Utility (AirPort Admin Utility), select 64 bit.•

When WEP (Transitional Security Network) is selected in AirPort Utility, select 128

bit.

•

WEP

(P.10)

Select Authentication (J), then click OK (K).

Go to on page 10.

Select Key ID (I).

Enter upper and lower case letters of the alphabet correctly when the network key is

5 or 13 characters. Letters are case sensitive.

Letters are not case sensitive if the network key is 10 or 26 characters (digits).

•

Select Key Length (G).

Select Characters when the network key is 5 or 13 characters.

Select Hexadecimal when it is 10 or 26 characters (digits).

•

Select Key Format (H).

When using AirPort, select 1in the screen.

Selecting other key numbers will disable the connection between the machine and

AirPort.

•

Enter the network key in WEP Key (F).

If the Detected Access Points List screen is

displayed, go to .

•

WPA/WPA2

Disable

(P.10)

Autres manuels pour PIXMA MX340 Series

Table des matières

Langues :

Autres manuels Canon Imprimante tout-en-un

Canon

Canon IMAGERUNNER ADVANCE C5030 Manuel utilisateur

Canon

Canon IMAGERUNNER 7095 PRINTER Manuel utilisateur

Canon

Canon PIXMA MG3120 Manuel utilisateur

Canon

Canon imageRUNNER ADVANCE C3330 Series Manuel utilisateur

Canon

Canon imageRUNNER ADVANCE 8595i Guide d'installation

Canon

Canon imageRUNNER 2270 Manuel utilisateur

Canon

Canon PIXMA MX374 Manuel utilisateur

Canon

Canon imageCLASS MF212w Manuel utilisateur

Canon

Canon imageRUNNER ADVANCE C5500 Series Manuel technique

Canon

Canon ImageCLASS 2300 Manuel

Canon

Canon MultiPASS MP360 Manuel utilisateur

Canon

Canon 0860B001 Manuel utilisateur

Canon

Canon Laser Class 310 Manuel utilisateur

Canon

Canon imageRUNNER ADVANCE DX C359i Manuel utilisateur

Canon

Canon 3301B002 Manuel utilisateur

Canon

Canon MP 1000 Manuel utilisateur

Canon

Canon PIXMA MX7600 Manuel utilisateur

Canon

Canon PIXMA MX340 Series Manuel utilisateur

Canon

Canon MB2700 series Guide de configuration

Canon

Canon imageRUNNER 2545 Manuel utilisateur

Canon

Canon MX530 series Instructions d'utilisation

Canon

Canon PIXMA MP780 Manuel utilisateur

Canon

Canon Color imageCLASS MF8050Cn Instructions de montage

Canon

Canon iR2025 Manuel utilisateur

Manuels Imprimante tout-en-un populaires d'autres marques

Triumph Adler

Triumph Adler DC 2016 Manuel

Epson

Epson WorkForce WF-2510 Guide de l'utilisateur

Epson

Epson Stylus Scan 2000 Manuel d'installation et d'exploitation

Epson

Epson PictureMate Snap PM 240 Mode d’emploi

Konica Minolta

Konica Minolta bizhub C35 Manuel utilisateur

Brother

Brother MFC-J430w Manuel utilisateur

Konica Minolta

Konica Minolta BIZHUB 558 Manuel utilisateur

Lexmark

Lexmark MX710 Series Manuel

Brother

Brother MFC-9760 Manuel utilisateur

Lexmark

Lexmark XC8155 Manuel utilisateur

Lexmark

Lexmark X642E Manuel utilisateur

Sharp

Sharp MX-2310U Mode d’emploi

Aficio

Aficio 200 Manuel utilisateur

Ricoh

Ricoh Pro C900 Manuel utilisateur

Lexmark

Lexmark X925 Manuel utilisateur

Brother

Brother Business Smart MFC-J4510dw Manuel utilisateur

Epson

Epson Stylus CX8400 Series Manuel utilisateur

Oce

Oce VarioLink 5022 Manuel utilisateur
