Canon MultiPASS C755 Manuel utilisateur

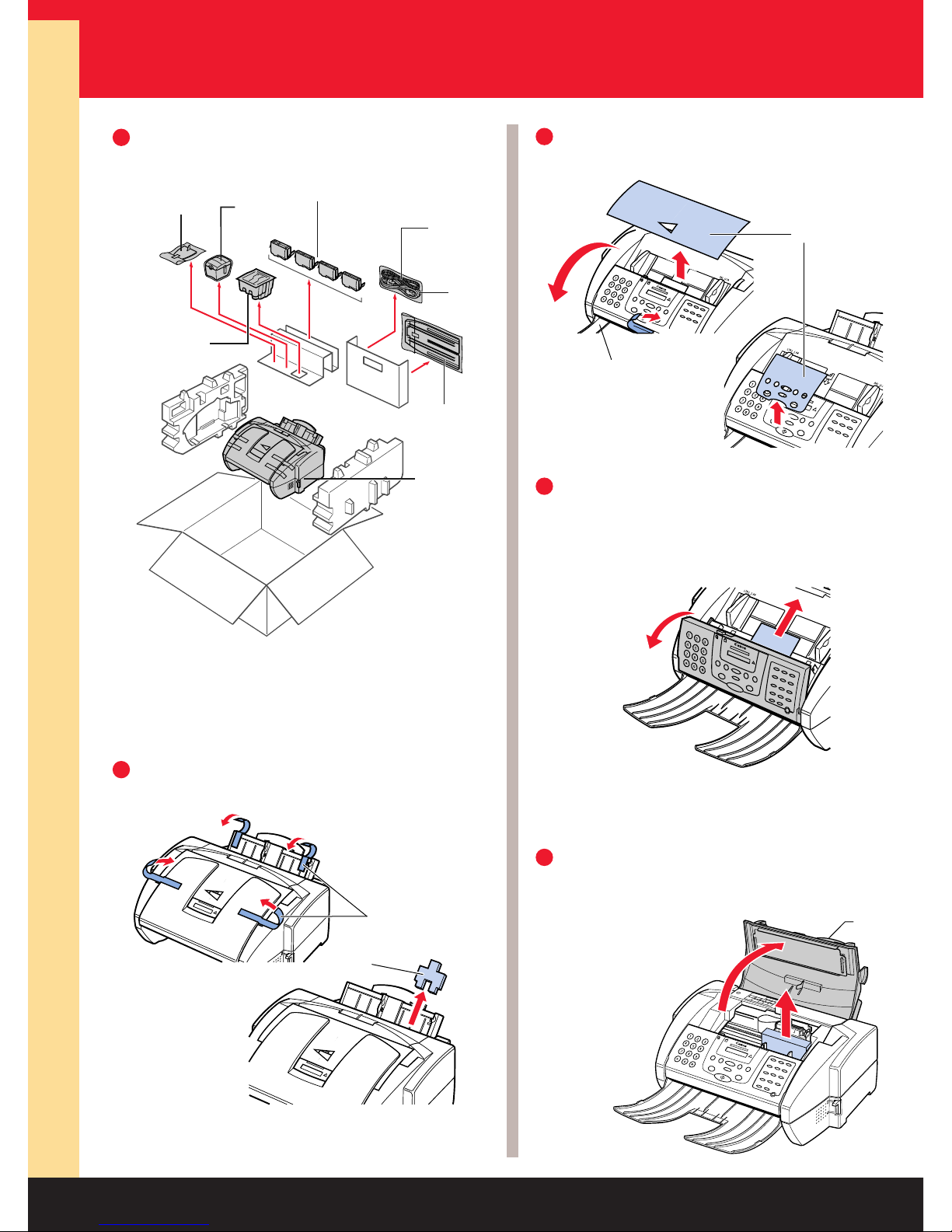

Unpack the MultiPASS

Carefully remove all items from

the box.

Remove all shipping tape and

materials from the unit.

Spacer

Tape

(Check all surfaces)

Remove these items from the documentation package:

this Quick Start Guide, the Canon Creative for

MultiPASS CD-ROM, the Stand-alone Fax Manual,

Registration card, and Warranty card.

Note that tape may not be in the exact locations

shown here.

Open the document tray and remove

the protective sheets.

Open the operation panel; it only

opens slightly.

Remove the protective sheet from the unit's

Automatic Document Feeder (ADF).

Press the operation panel closed until it clicks

into place.

Open the Automatic Document Feeder

(ADF), and remove any protective

material from the

cartridge holder.

Document Tray

Protective Sheets

Document

Support Ink Cartridge 

Storage Box

BC-33e Color

BJ Cartridge

MultiPASS

C755

Unit

Power

Cord

Telephone

Line

Output Tray

BCI-3e BJ Tanks (C, M, Y, Bk)

ADF

2Set Up the MultiPASS

Attach the

document

support.

4Connect your computer to

the MultiPASS.

5Connect the power cord to the

MultiPASS and to a wall outlet.

2Attach the

output tray.

Connect the

phone line.

Connect the

telephone line to

the jack on the

MultiPASS and to

the wall jack.

If you use Caller ID with any of these

configurations, place the Caller ID device

between the MultiPASS and the wall jack.

MultiPASS Only

Recommended Device Connections Receive Modes

Fax Only

or DRPD

Wall Jack

MultiPASS and Telephone Fax/Tel, DRPD,

or Manual

Wall Jack

MultiPASS and Answering Machine Ans.Machine

Wall Jack

Telephone

Answering

Machine

MultiPASS, Answering Machine and Telephone Ans.Machine

Wall Jack Answering

Machine Telephone

MultiPASS and PC Modem Fax Only

or DRPD

Wall Jack

Make sure the computer is turned off.

Connect a USB or parallel cable

to your computer

and then to

the MultiPASS.

The MultiPASS has no power switch.

The power is on

as long as

the unit is

plugged in.

USB connection Parallel cable connection

USB Cable Users–Do not connect the

cable now.

To use the MultiPASS for receiving both faxes

and voice calls, you must attach a telephone

and/or answering machine to the jack on

the unit.

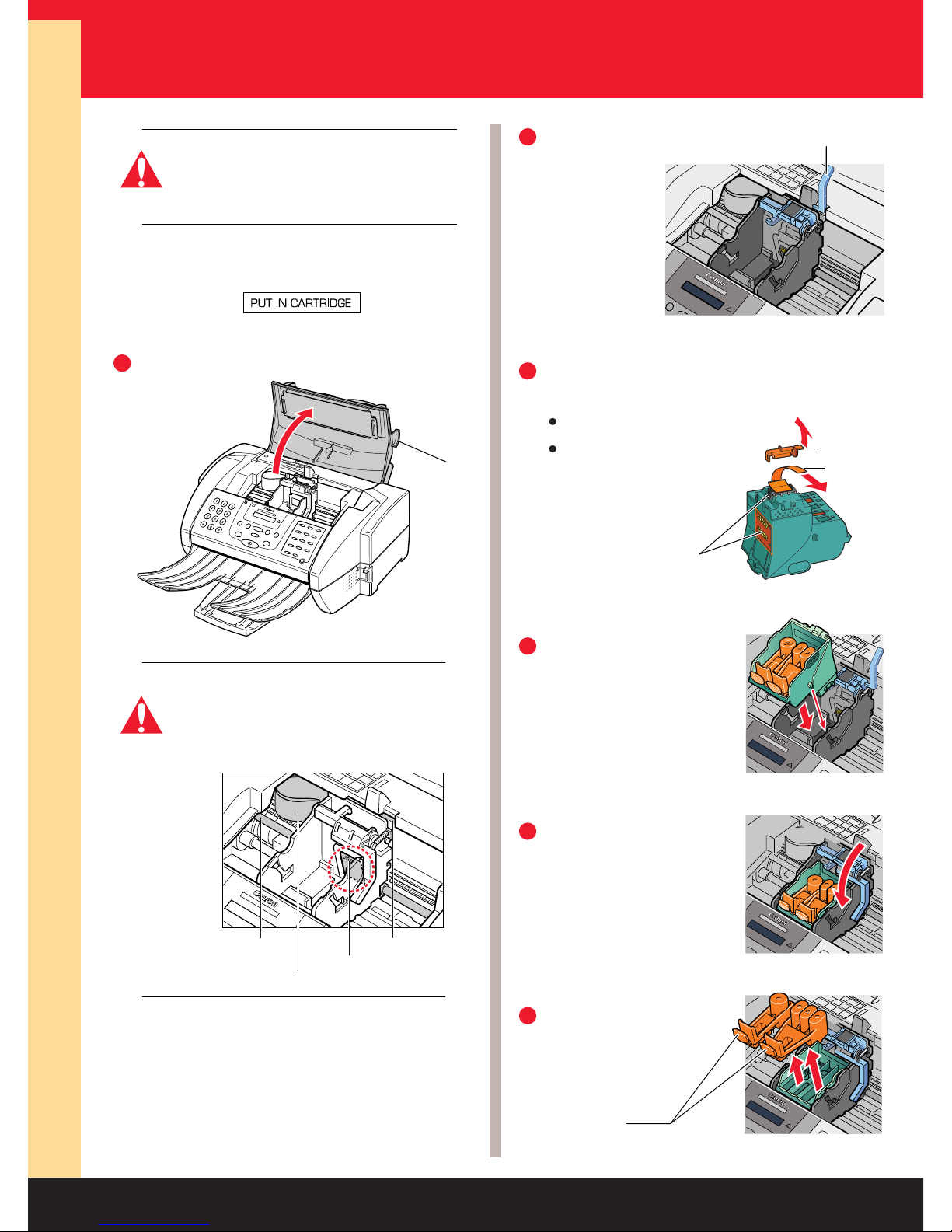

Install the BJ®Cartridge

Caution

Spilled ink can stain any surface.

Open BJ cartridges and tanks very carefully.

See your User's Manual for complete details

on BJ cartridge and tank maintenance.

Make sure the MultiPASS is plugged in.

The LCD reads:

Open the ADF.

Do not touch the ribbon cable, the small

circuit board, the guide rail, or the round

shaft. Touching these parts may adversely

affect operation of the unit and/or affect

print quality.

Handle

Ribbon Cable

Circuit Board

Guide Rail

Round Shaft

Raise the blue cartridge

lock lever

on the

cartridge

holder.

Remove the cartridge from its package,

and remove these protective materials:

Orange cap

Orange tape

Set the cartridge

into the cartridge

holder.

Lower the blue

cartridge lock lever

until it locks into

place.

Press in on the

tabs to remove

the pieces.

Remove the two

orange pieces.

Cap

Tape

Do Not Touch

these areas

Lock Lever

Made in Japan Made in Japan Madein Japan Made in Japan

PUSH PUSHPUSH PUSH

Ink Tank

BCI-3C

Ink Tank

BCI-3M

Ink Tank

BCI-3Y

Ink Tank

BCI-3BK

Black Cyan Magenta Yellow

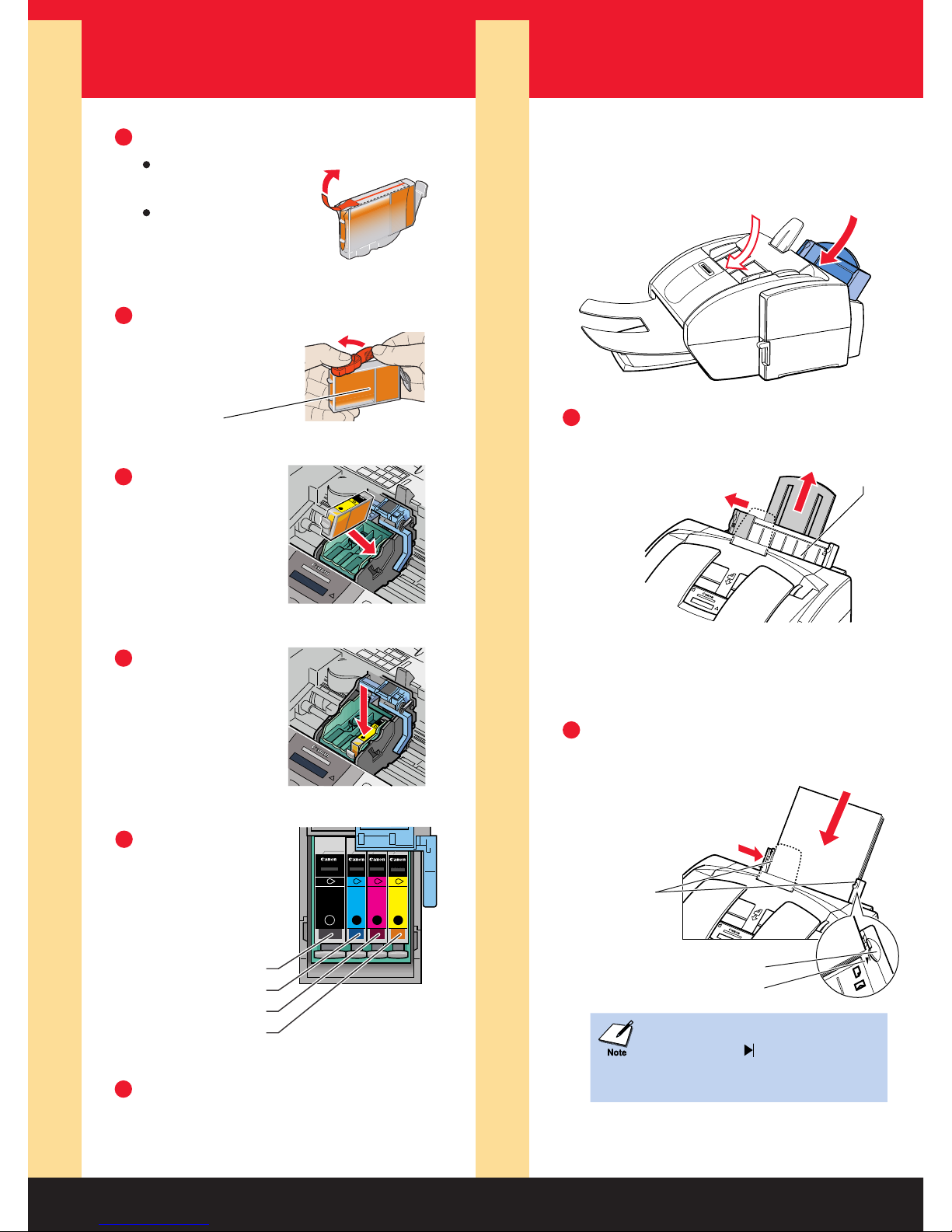

4Install the BJ Tanks 5Load a Stack of Paper

Twist off the orange

protective cap.

To prevent spills,

do not press

the side of

the BJ tank.

Insert the

yellow BJ

tank into the

right slot of

the cartridge.

Press down

on the top of

the BJ tank

until it locks

into place.

Install the other

3 BJ tanks

as shown.

Magenta (BCI-3eM)

Yellow (BCI-3eY)

Close the ADF cover.

When the ALARM light stops flashing,

the printer is ready.

Pick up the yellow BJ tank.

Pull up the

orange tape.

Remove the

plastic wrapper

from the tank.

Black (BCI-3eBK)

Cyan (BCI-3eC)

Pull the paper rest up until it stops.

Move the paper guide to the left

to match the size

of your paper.

Fan a stack of paper. Fan the edge that will feed

into the MultiPASS first; then tap the stack on

a flat surface to even its edges.

Insert the stack of paper.

Do not fill the sheet feeder above

the limit mark ( ). The sheet feeder

holds up to 100 sheets of plain

paper (20 lb or 75 g/m2).

Adjust the paper guide snugly against the side

of the stack of paper.

Make sure the print side of the paper is face-up.

Align the right edge of

the stack with the right

side of the sheet feeder.

The sheet feeder is the larger capacity tray

behind the ADF.

Sheet Feeder

(holds blank paper

for printing or

receiving faxes)

ADF

(holds documents

to be faxed, copied,

or scanned)

Paper limit mark

No gaps

here

Tab

Sheet Feeder

InkTank

BCI-3M

Yellow

Made in Japan

PUSH

InkTa

BCI-

Yellow

Madein Japan

PUSH

Install the MultiPASS Software

6Your MultiPASS comes with a Setup program that makes installing the MultiPASS software easy and fast.

You install the MultiPASS software from the Canon Creative for MultiPASS CD-ROM.

Important! The MultiPASS must be plugged in. If you have a previous version of the MultiPASS Desktop Manager

installed, you must remove it. See your MultiPASS Desktop Manager Software Guide for details.

Windows®2000/NT Users: Administrator Privileges are required to install and remove the MultiPASS

Desktop Manager software.

Stand-alone Fax Users: If you plan to use the MultiPASS as a stand-alone fax machine, see the Stand-alone

Fax Manual for instructions on how to program your name and fax number. Then select your Receive mode

based on how you set up your phone connection in Step .

Click Cancel if you see a screen similar to these:

"New Hardware Found", "Update Device Driver

Wizard", or "Add New Hardware Wizard".

Make sure you return to the Windows desktop.

1. Make sure your computer is turned off.

2. Be sure the MultiPASS is plugged in and connected

to the computer.

3. Make sure the Canon Creative CD is NOT yet

inserted in your CD drive.

4. Now turn on the computer.

5. If any Windows applications start automatically,

close them before you start installation. This is very

important. Make sure NO programs are running,

including any virus protection programs.

Start up your system in this order:

Windows 95/98/2000/NT Parallel Cable Users

Make sure Windows starts.

1. Insert the Canon Creative CD into your CD drive.

(This CD contains all the device software for your

MultiPASS, including the MultiPASS Printer and

Fax drivers, MultiPASS ODBC, and ScanGear™

for MultiPASS.) Setup starts automatically.

When you see the Windows desktop, follow

these steps.

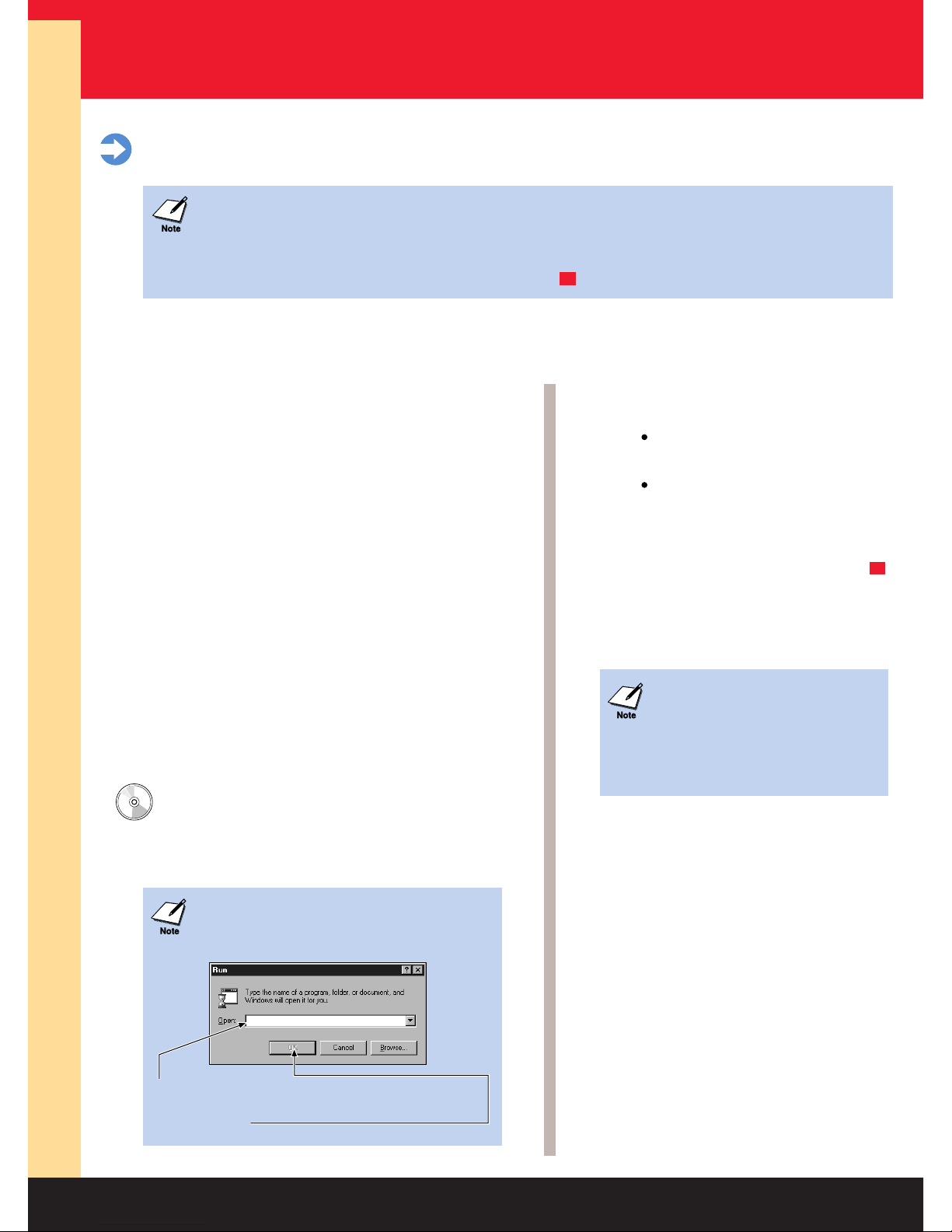

If Setup does not start automatically, from the

taskbar, click Start and then Run. You see the

Run screen.

If anything is displayed in the Open box, replace it

by typing X:\SETUP (where X:is your CD drive).

Then click OK.

2. Follow the on-screen instructions to

finish installation.

Normally you click Next or Finish

to move from one screen to the next.

Be sure to read each screen carefully.

When specifying your fax information,

you must enter a fax heading and

specify a Receive mode. Select your

Receive mode based on how you set

up your phone connection in Step .

When installation is complete, the Setup

program determines whether or not your

computer needs to be restarted.

The next time you start your

computer, you may see the

"New Hardware Found" screen.

Wait a few seconds while the

system updates itself; the screen

will disappear.

The next time you start your system,

double-click on the Canon Creative Launcher

icon on your desktop. From here you can

install the Canon Creative software, run the

software programs after they are installed,

manuals, and find out how to order supplies

and get help from Canon.

The User's Manual and Software Guide are

provided in Adobe®Acrobat®PDF format.

You can access the manuals in one of two ways:

Double-click the Canon Creative Launcher icon

on your desktop.

Browse the Canon Creative for MultiPASS

CD-ROM from your CD drive.

Next, click the "Manuals, Supplies, and Help"

button. Then click on the button that corresponds

to the manual you want to read. If you do not have

Adobe Acrobat 4.0 loaded on your computer,

simply follow the instructions to load it. (You must

use Adobe Acrobat 4.0; do not use other versions.)

You can also open the manuals from the

MultiPASS program list.

1. Make sure the MultiPASS C755 is NOT connected

to your computer.

2. Turn on your computer.

3. Insert the Canon Creative CD into your CD drive.

Setup starts automatically.

4. When prompted, connect the USB cable to your

computer and then to the MultiPASS

(see Step for details).

5. Follow the instructions on each screen

to complete software installation.

Windows 98—USB Cable Users

1. Make sure the MultiPASS C755 is NOT connected

to your computer.

2. Turn on your computer.

3. Connect the USB cable to your computer and

then to the MultiPASS (see Step for details).

Windows recognizes the new device and starts

Plug & Play for your USB port.

4. Follow the instructions on each screen.

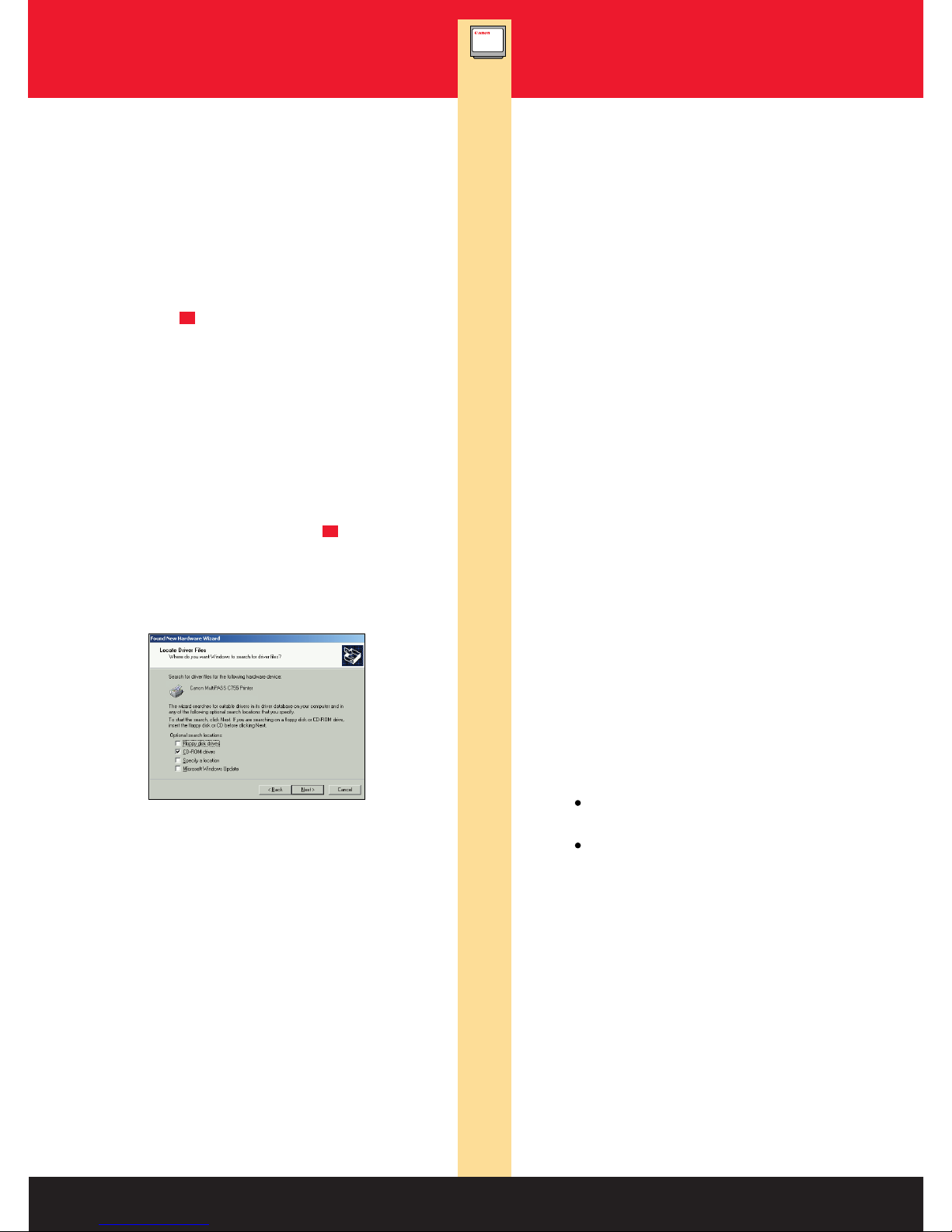

When you see this screen:

Insert the Canon Creative CD into your CD

drive and wait for the drive to start up.

Make sure CD-ROM drive is checked, and

be sure to uncheck the other options.

Then click Next.

5. Continue to follow the instructions on each

screen to complete software installation.

Windows 2000—USB Cable Users

What's Next?

MultiPASS C755 User's Manual

(online)

This manual offers detailed information on how

to operate your new MultiPASS. It describes

how to use the MultiPASS as a color printer and

covers the basics on how to send and receive

faxes. It also includes maintenance,

troubleshooting, and specifications.

After using this Quick Start Guide to unpack and

set up your new MultiPASS unit, you'll want to look

at the rest of your documentation.

MultiPASS Desktop Manager

Software Guide (online)

To use the PC faxing and scanning features of

the MultiPASS, you must install the MultiPASS

Desktop Manager software. Then use the online

Software Guide to find out how to use the

MultiPASS Desktop Manager to define and

control all of the features of the MultiPASS.

Stand-alone Fax Manual

(printed)

If you are NOT going to connect the MultiPASS

to your computer, use this manual to find out

how you use the operation panel on the

MultiPASS to control all your faxing and

receiving functions.

ENERGY STAR®Compliant

MultiPASS, and ScanGear are trademarks of Canon Inc. All other product

and brand names are trademarks or service marks of their respective

owners. As an Energy Star®Partner, Canon U.S.A., Inc., has determined

that this product meets the Energy Star® guidelines for energy efficiency.

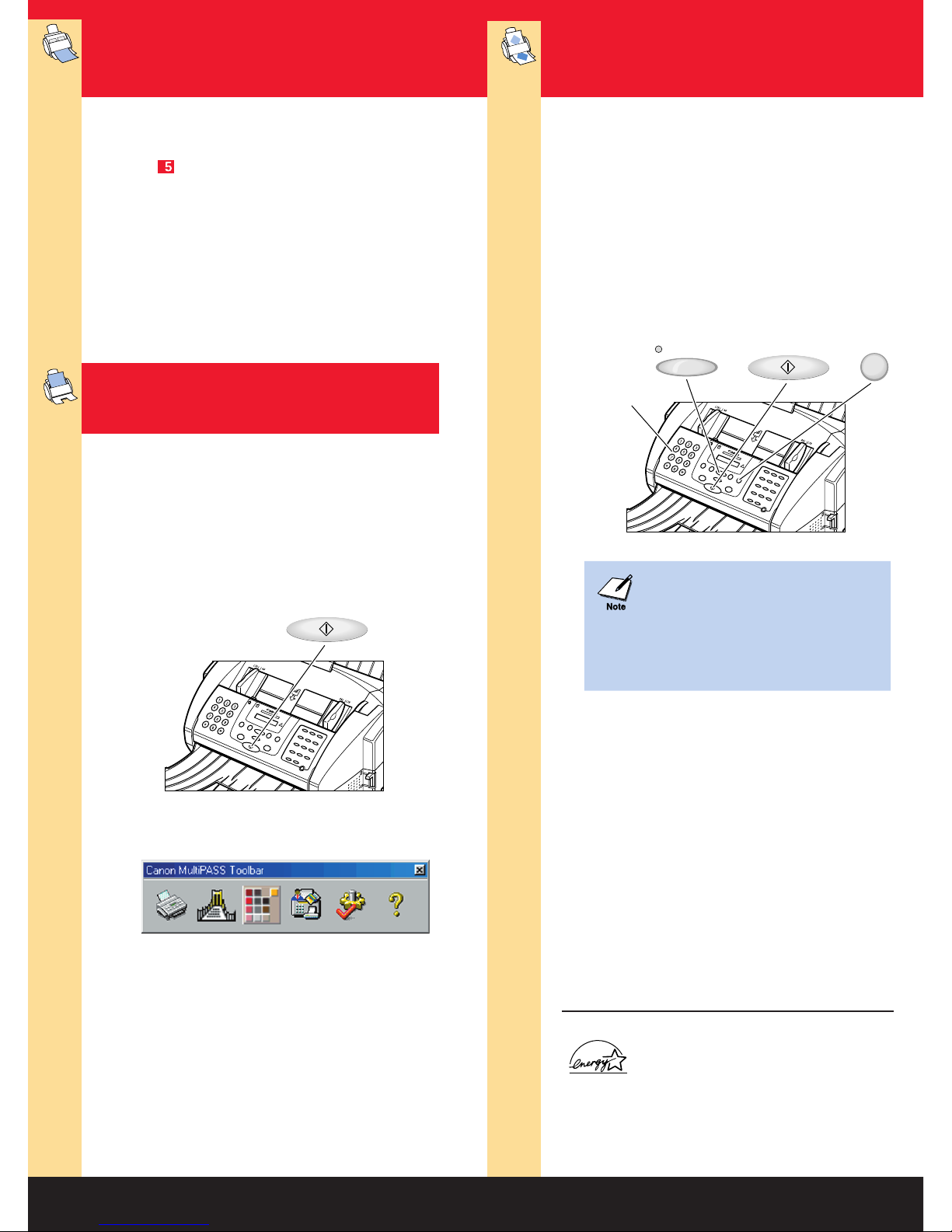

Faxing or Scanning

an Image or Document

Printing an Image

or Document

To print an image or a document, make sure

you have paper loaded in the sheet feeder (see

Step). Then simply start the application

program that you used to create the image or

document. With the document open, select the

Print command. (Normally you choose Print or

Print Setup from the File menu.) Make sure the

Canon MultiPASS printer is selected as your

default printer. After specifying any special

printing parameters, select OK to start the print

job. See your online MultiPASS C755 User's

Manual for details.

Now you simply click a button on the Toolbar to

scan a document or image to a particular

destination. See your online MultiPASS Desktop

Manager Software Guide for complete details on

using the Toolbar.

For faxing, you load the document face-down in

the Automatic Document Feeder (ADF), dial the

number you are faxing to, and then press the

Start button on the MultiPASS.

For scanning, you load the image or document

face-down in the ADF, then press the Start

button on the MultiPASS.

When scanning, the Toolbar will launch on your

Windows desktop:

Copying an Image

or Document

MultiPASS Hardware Cannot

Initialize

If you see this error message, refer

to the Troubleshooting chapter in

your online MultiPASS C755 User's

Manual for details.

To copy an image or a document, make sure

you have paper loaded in the sheet feeder.

Next, place the image or document you want

to copy face-down in the ADF. On the operation

panel, press the Copy button and then press

the Start button. (To make multiple copies,

press Copy, enter the number of copies with

the numeric buttons, and then press Start.

To make one color copy, press Color so the light

comes on, press Copy, and then press Start.

See your online MultiPASS C755 User's Manual

for details.)

Numeric

Buttons

Start

Color/B&W Start Copy

Printed in U.S.A.

CST-5532-000

30-32305

Autres manuels pour MultiPASS C755

Table des matières

Autres manuels Canon Imprimante tout-en-un

Canon

Canon imageCLASS D661 Manuel utilisateur

Canon

Canon PIXMA MX860 series Instructions d'installation et d'entretien

Canon

Canon PIXMA MG3220 series Manuel

Canon

Canon iP3300 - PIXMA Color Inkjet Printer Manuel utilisateur

Canon

Canon Pixma MP800R Manuel utilisateur

Canon

Canon Color imageCLASS MF8180c Guide de sécurité

Canon

Canon PIXMA MX892 Manuel utilisateur

Canon

Canon imageCLASS MF4100 Series Manuel utilisateur

Canon

Canon imageRUNNER ADVANCE C2225 Instructions de montage

Canon

Canon imageCLASS LBP151dw Manuel utilisateur

Canon

Canon PIXMA MP520 Manuel utilisateur

Canon

Canon iR2000 Series Guide de référence

Canon

Canon ImageRunner C1225 Manuel utilisateur

Canon

Canon imageCLASS MF6500 Series Guide de l'utilisateur

Canon

Canon ColorPASS-GX400 Instructions d'installation et d'entretien

Canon

Canon IMAGERUNNER ADVANCE SERIES Manuel utilisateur

Canon

Canon imageRUNNER ADVANCE C356iF II Manuel d'utilisation

Canon

Canon MF7280 - ImageCLASS B/W Laser Instructions d'installation et d'entretien

Canon

Canon mg6400 series Guide de configuration

Canon

Canon LaserBase MF3220 Series Manuel utilisateur

Canon

Canon PIXMA MP610 Series Manuel utilisateur

Canon

Canon imageRUNNER ADVANCE C355P Manuel utilisateur

Canon

Canon 1750 Manuel utilisateur

Canon

Canon PIXMA MP990 Manuel utilisateur

Manuels Imprimante tout-en-un populaires d'autres marques

Triumph Adler

Triumph Adler DC 2016 Manuel

Epson

Epson WorkForce WF-2510 Guide de l'utilisateur

Epson

Epson Stylus Scan 2000 Manuel d'installation et d'exploitation

Epson

Epson PictureMate Snap PM 240 Mode d’emploi

Konica Minolta

Konica Minolta bizhub C35 Manuel utilisateur

Brother

Brother MFC-J430w Manuel utilisateur

Konica Minolta

Konica Minolta BIZHUB 558 Manuel utilisateur

Lexmark

Lexmark MX710 Series Manuel

Brother

Brother MFC-9760 Manuel utilisateur

Lexmark

Lexmark XC8155 Manuel utilisateur

Lexmark

Lexmark X642E Manuel utilisateur

Sharp

Sharp MX-2310U Mode d’emploi

Aficio

Aficio 200 Manuel utilisateur

Ricoh

Ricoh Pro C900 Manuel utilisateur

Lexmark

Lexmark X925 Manuel utilisateur

Brother

Brother Business Smart MFC-J4510dw Manuel utilisateur

Epson

Epson Stylus CX8400 Series Manuel utilisateur

Oce

Oce VarioLink 5022 Manuel utilisateur
