Canon IR3530 Manuel de référence

(1/36)

Canon Service Bulletin COPIER

Issued by Canon Europa N.V.

Subject:

Introducing a new model (iR2230/3530)

Background:

With introduction of the new model iR2230/3530, differences from the existing model iR2270/3570 are informed in

this bulletin.

Detail:

1. Differences

1-1. System Configuration

1-1-1. System Configuration of the Delivery Options

The options that have been deleted:

- Finisher-Q3/Saddle Finisher-Q4

- Buffer Pass-E1

- Puncher Unit-L1/N1/P1

Others

- 3 Way Unit-A1 has been changed from standard equipment to an option (iR3530).

1-1-2. System Configuration of the Pickup Options

The option that has been deleted:

- Paper Deck-Q1

1-1-3. System Configuration of the Print/Transmission Options

The options that have been added:

- UFR II Printer Kit-E3: To add the BDL function by the combination of the P Boot ROM and the HDD.

- Multi-PDL Printer Kit-E1: To add the UFR II/PCL/PS print function using the N Boot ROM.

- iR System Expansion Kit-A1: To add the HDD to iR2230/3530.

- Printer Kit-E2: To add the BDL/PCL function using the H Boot ROM.

The options that have been deleted:

- LIPS LX Printer&Scanner Kit-A1 (P Boot ROM)

- LIPS V Expansion Kit-A1 (License)

- Direct Print Expansion Kit-A1 (License)

- iR 256MB Expansion RAM-B1

- Multi FAX Board-D1

Model:

iR3530

iR2230

Ref No.:

iR4570-008

(F1-T01-0M4-10018-01)

Date:

28-01-05

iR4570-008

(2/36)

- Send Expansion Kit-E1 (License)

- PDF Creation Function Expansion Kit-B1 (License)

1-2. External View/Operation

Change of the control panel unit

[1] The LCD has become smaller and black-and-white.

[2] The function keys have become hard keys.

F-1

123

456

78 9

[1] [2]

iR4570-008

(3/36)

1-3. User Mode

Compared with iR2270/3570, the following service modes have been deleted.

1-4. HDD

The HDD has become an option.

1-5. Shutdown Sequence

If the HDD of standard equipment is not mounted, the shutdown sequence is not performed at power-off. However,

if the optional HDD is mounted, the shutdown sequence same as that of iR2270/3570 (i.e., the machine equipped

with the HDD as standard equipment) is performed, and then the power is turned off.

iR4570/3570, 2870/2270 iR2230/3530

Mode-1 Mode-2 Description Mode-2 Description

Common

settings

select special

tray**

(w/ finisher)

- w/ Fisher-Q3/Q4

tray A: finisher output tray

(upper)

tray B: finisher output tray

(lower)

tray C: host middle tray

tray A: D14*copy/*Box/

printer/receive/fax/other

tray B: copy/Box/*printer/

receive/fax/other

tray C: copy/Box/printer/

receive/*fax/*other

fine tune for receive/fax

tray A: fax/fax 1/fax 2

tray B: receive/fax 1/fax 2

tray C: *receive/*fax 1/

*fax 2

deleted deleted

Adjust-

mentsand

Cleaning

center bind

staple

edging**

(w/ saddle

finisher)

Start key deleted deleted

center bind

position

change**

(w/ saddle

finisher)

size: A3,11x17/B4/LGL/

A4R,LTRR

position: -2.0 mm to +2.0

mm (in 0.35-mm

increments)/*0 mm

deleted deleted

iR4570-008

(4/36)

1-6. Paper Pickup/Feeding System

The Paper Deck-Q1 has been deleted from options. With this change, the paper pickup areas from the paper deck are

eliminated from the paper path illustrations.

The eliminated areas are shown below.

F-2

[1] Pickup from the Cassette 1

[2] Pickup from the Cassette 2

[3] Pickup from the Cassette Feeding Unit (option)

[4] Pickup from the Paper Deck (delete)

[5] Pickup from the Manual Tray

[6] Deliver to the Copy Tray 1

[4]

[1]

[5]

[6]

[3]

[2]

iR4570-008

(5/36)

1-7. Function, Power Supply

Some pickup/delivery options have been deleted. With this change, the names of options to which power is supplied

are eliminated from the power supply illustration on the Service Manual.

F-3

Printer power supply block

To Finisher-Q3/Q4

(by way of Cassette

Feeding Unit-Y2)

Side Paper Deck-Q1

To Buffer Path-E1

To Finisher-S1

Heater switch

SW5

Cassette heater(H4)

Deck heater(H7)

Cassette pedestal(H1C)

Reader heater(H6)

Leakage breaker

ELCB2

Main switch

SW1

Heater

switch PCB

Pickup

heater

mounting

kit

Reader heater(H5)

AC driver PCB

Accessories

power

supply PCB

All-night

power

supply PCB

Printer

power

supply PCB

Fixing main heater(H1)

Fixing sub heater(H2)

Thermal switch(TP1)

Controller power supply PCB

13VA2

24VU2

24VU1

24VU2

13VA1

13VA2

13VB

To Cassette Feeding Unit-Y2

To 3-Way Unit-A1

3VB

Controller

PCB

Printer

unit

DADF

-N1

Super G3 Fax

Board-Q1

Front cover

open/close switch

SW2

DC controller PCB

3VA

5VA

13VA1

2 4VU2

24VU1

HVT

High-voltage

power supply PCB

24VA

13VA2 13VA2

24VU1: non-all night 13VA1: non-all night 5VA: non-all night 3VA: non-all night

3VB: all night13VA2: non-all night

13VB: non-all night

24VU2: non-all night

24VA: non-all night

13VA2

24VU2

13VA

24VU2

13VA1

3VA

5VA

13VB

3VB

iR4570-008

(6/36)

1-8. Control Panel Unit

1-8-1. Block Diagram

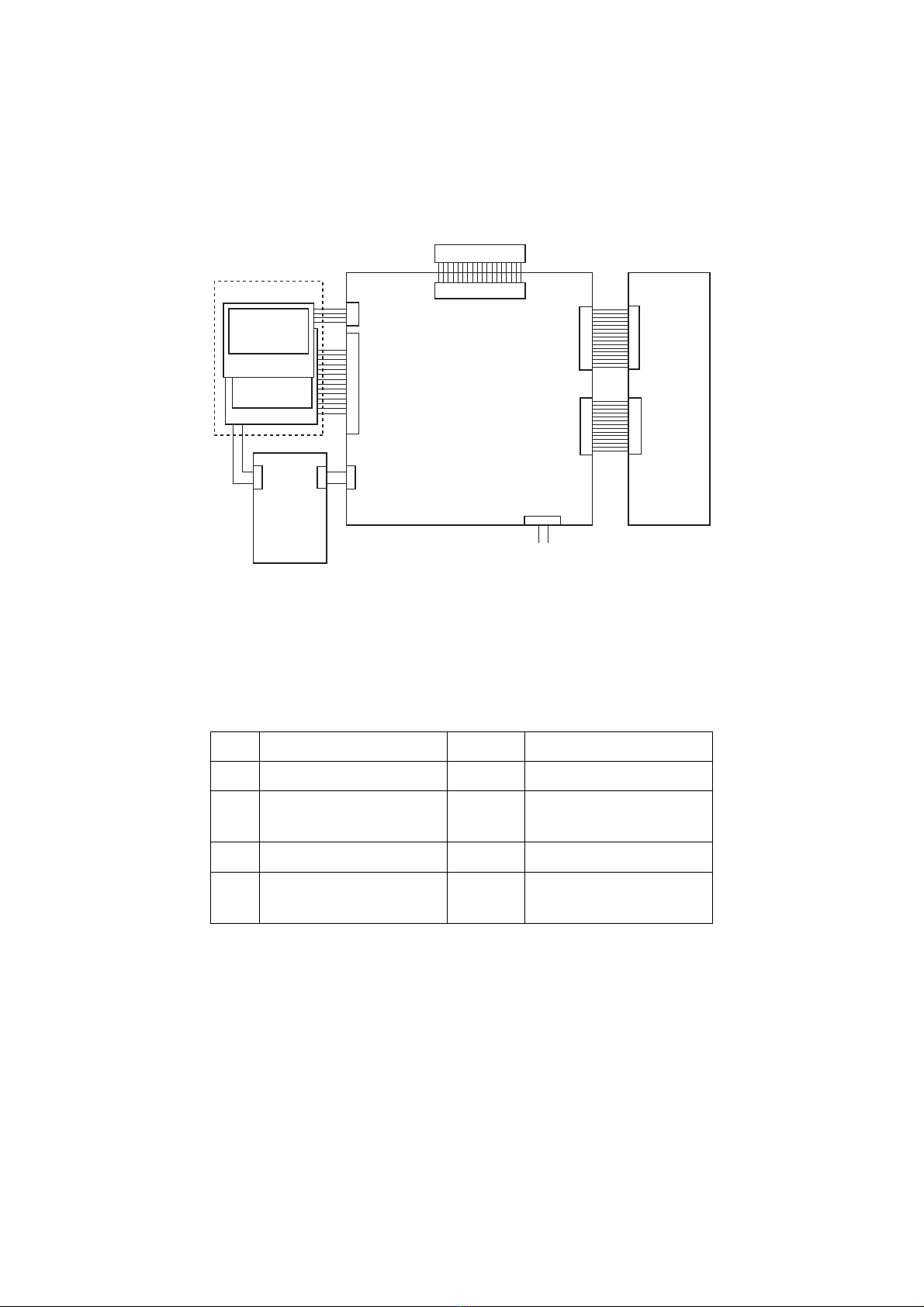

As mentioned above, the LCD has become black-and-white, and the hard keys have been added. Therefore, the board

connection in the control panel unit is changed. The changed blocks are shown below.

F-4

1-8-2. Electrical Parts Layout

The electrical parts related to the control panel unit are placed as shown below. The parts [2] to [4] are related to the

control panel unit.

No. Name Part No. Detail

[1] Reader Controller PCB FG3-3765 Control the reader unit/ADF

[2] Control Panel Inverter PCB FM2-2753 Control to turn ON the backlight of

the LCD

[3] Control Panel CPU PCB FM2-2754 Control the control panel unit

[4] Control Panel Key PCB FG6-8939 Control numeric keys entry

information

J1121

J955J956

J1120

J1116

J1117

116

J6802

J6801

J1119

J1118

J511

A18

B18

from Controller Unit

Control Panel CPU PCB

Control Panel

Inverter PCB

Control Panel Key

Switch PCB

Touch Panel

LCD Panel

to Foot Switch

iR4570-008

(7/36)

F-5

1-9. Parts Replacement Procedure

1-9-1. Control Panel Unit

With change of the control panel unit, replacement procedures of the following parts related to the control panel unit

have been prepared newly.

- Removing the control panel unit

- Removing the control panel frame

- Removing the control panel inverter PCB

- Removing the control panel key switch PCB

- Removing the control panel CPU PCB

- Removing the control panel LCD PCB

The procedure for removing the control panel bottom cover is not changed.

The following are the new replacement procedures.

1-9-1-1. Removing the control panel unit

1) Open the right door [1].

F-6

[2]

[3]

[4]

[1]

iR4570-008

(8/36)

2) Remove the 2 screws [1].

F-7

3) Remove the rubber cap [1], and detach the screw [2].

4) Slide the control panel unit to the arrow direction.

F-8

5) Disconnect the connector [1], and remove the control panel unit.

F-9

iR4570-008

(9/36)

1-9-1-2. Removing the control panel frame

1) Disconnect the flat cable [1] to the arrow direction.

2) Move the connector 2 stoppers [2] to the arrow direction, and disconnect the 2 flat cables [3].

F-10

3) Disconnect the 3 connectors [1].

F-11

4) Detach the harness from the 3 clamps [1].

F-12

iR4570-008

(10/36)

5) Remove the 5 screws [1], and detach the control panel hook [2].

F-13

6) Remove the 11 self-tapping screws [1] and the flat screw [2], and detach the control panel frame [3].

F-14

Points to note on the cable when attaching the control panel frame.

1. Make sure that the inverter cable properly passes the path [1] indicated on the figure below.

F-15
