Canon ImageCLASS MF4570dw Guide de l'utilisateur

<< Previous Next >>

Installing Your WiFi capable

imageCLASS Product

to Your Network for the First

Time

imageCLASS MF4570dw

Windows OS

<< Previous Next >>

Installing Your WiFi capable imageCLASS Product

to Your Network for the First imageCLASS MF4570dw

Windows OS

Before adding the machine to a wireless LAN 3

Connection procedure 4

Switching the connection method to wireless LAN 5

Selecting a method for setting the wireless LAN 8

Configuring using WPS 9

Configuring Manually 20

Required Information 22

Using the Wireless Setup Assistant 23

Checking the IP Address 47

Installing MF Drivers and MF Toolbox 49

Before adding the machine to a wireless LAN << Previous Next >>

Check to make sure that the setup of the computer

and wireless LAN or access point are complete.

If they are not set up, you will not be able to use the machine on the wireless

LAN network even if you perform the following steps.

•The structure of your computer or networked device, the existence of

router functions, setting methods and security settings vary depending on

your environment.

•For more information, see the instructions manual provided with the

network device you are using, or contact the manufacturer.

•This machine does not support “ad hoc connection” for direct wireless

connection with computers.

•Always provide a wireless LAN router or access point.

Precautions when connecting to a wireless LAN

•The configuration of your computer or networked device, as well as the

router functions, setting methods and security settings, vary depending on

your environment.

•You can connect the machine to wireless LANs or wired LANs, but you

cannot use both at the same time. When using a wireless LAN connection,

do not connect a LAN cable to the machine. This may cause malfunctions.

•If using the machine in your office, consult with your network administrator.

Connection procedure << Previous Next >>

Once you have finished checking, connect the machine to the wireless LAN

The diagram below shows the primary steps in connecting your imageCLASS device to the wireless LAN.

1. Press [ ] (Menu).

2. Press [ ] or [ ] to select <Network Settings>, and then press [OK].

The next screen is displayed for approximately 5 seconds.

It is not necessary to turn OFF/ON the main power of the machine here. It will be done on Step 5.

Switching the connection Method to

Wireless LAN

<< Previous Next >>

Switching the connection Method to

Wireless LAN

<< Previous Next >>

3. Press [ ] or [ ] to select <Select Wired/Wireless LAN> , and then press

[OK].

4. Select <Wireless LAN> using [ ] or [ ], and then press [OK].

<< Previous Next >>

Switching the connection Method to

Wireless LAN

5. Turn the machine OFF/ON when the following screen disappears.

It is necessary to turn the machine OFF/ON to activate the settings.

Turn OFF the machine and wait for at least 10 seconds before turning it back ON.

Configuring with WPS Features(Recommended Method)

Check whether the box or body of the wireless LAN router or access points that you are using supports the WPS

function.

As an example, a symbol such as show below can be seen on the shipping box or machine.

This supports WPS (Wi-Fi Protected Setup).

If you are not sure if WPS is supported, contact the wireless LAN router or access point manufacturer.

Click Here

Configuring Manually

Manually configure the settings for wireless LAN routers and/or access points which do not support WPS.

Click Here

<< Previous Next >>

Selecting a method for setting the wireless

LAN

Two methods are provided for connecting to the wireless LAN or access point, connecting using WPS (Wi-Fi Protected

Setup) function or connecting manually.

Select the appropriate setting method after checking the following function on the wireless LAN or access point you are

using.

<< Previous Next >>

Configuring with WPS Features

Is there a WPS button?

YES

Set the machine’s PIN code using “WPS PIN Code

Mode” that is entered manually from the

computer to the wireless LAN router or access

point.

Click Here

Connect using “WPS Push Button Mode.”

Click Here

<< Previous Next >>

Configuring with WPS Features (Push Button

Mode)

1. Press [ ] (Menu).

2. Press [ ] or [ ] to select <Network Settings> , and then press [OK].

The next screen is displayed for approximately 5 seconds.

You do not need to turn the machine OFF/ON in this step.

Autres manuels pour ImageCLASS MF4570dw

Table des matières

Autres manuels Canon Imprimante tout-en-un

Canon

Canon PIXMA MP640 Manuel utilisateur

Canon

Canon MultiPASS L90 Guide de sécurité

Canon

Canon PIXMA MX712 Manuel utilisateur

Canon

Canon Color imageCLASS MF8050Cn Guide de sécurité

Canon

Canon imageRUNNER 1300 Series Manuel utilisateur

Canon

Canon imageRunner 2204F Manuel utilisateur

Canon

Canon imageRUNNER ADVANCE 6075 Series Manuel utilisateur

Canon

Canon Perfect Binder A1 Manuel utilisateur

Canon

Canon MX450 series Guide de configuration

Canon

Canon PIXMA MX392 Manuel utilisateur

Canon

Canon MF419x Manuel utilisateur

Canon

Canon iR C3200 Series Manuel utilisateur

Canon

Canon MF3110 - ImageCLASS Laser Multifunction Guide de l'utilisateur

Canon

Canon MF7280 - ImageCLASS B/W Laser Manuel utilisateur

Canon

Canon mg6400 series Guide de configuration

Canon

Canon ImageCLASS MF4690 Guide de sécurité

Canon

Canon iR3530 Manuel de référence

Canon

Canon Color imageCLASS MF8580Cdw Instructions de montage

Canon

Canon MF5750 - ImageCLASS B/W Laser Manuel utilisateur

Canon

Canon imageRunner 3300E Manuel utilisateur

Canon

Canon MX450 series Guide de configuration

Canon

Canon PIXMA MX512 Manuel

Canon

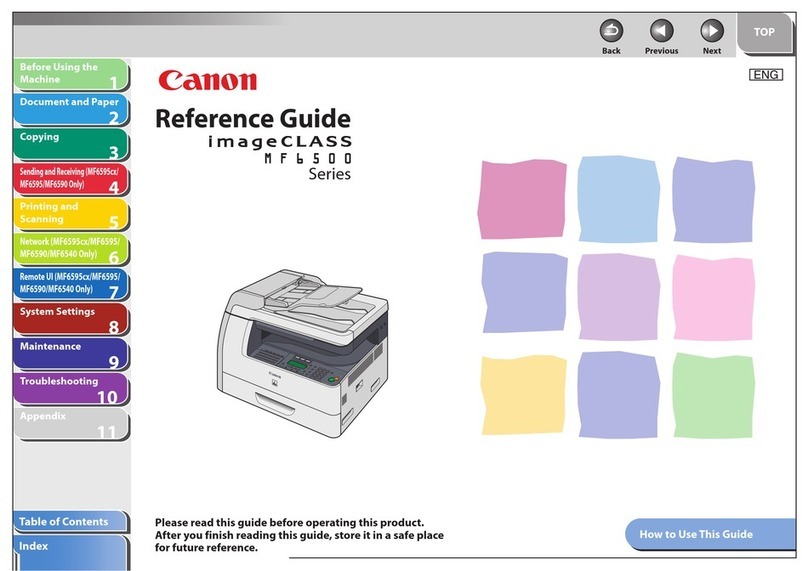

Canon imageCLASS MF6500 Series Guide de l'utilisateur
