Introduction to Downriggers pg. 2

Mounting Your Downrigger pg. 2-7

Attaching the Crank Handle pg. 8

Terminator & Line Release pg. 9

Cannon Uni-Release pg. 9

Attaching the Rod Holder pg. 10

Operating Your Downrigger pg. 11

The Effects of Blowback pg. 12

Maintaining Your Downrigger pg. 13

Troubleshooting pg. 13

Trolling Tips pg. 14

Warranty Information pg. 15

Cannon Service Policy pg. 15

Authorized Service Centers See List

EASI-TROLL hS

EASI-TROLL /E

LAKE-TROLL

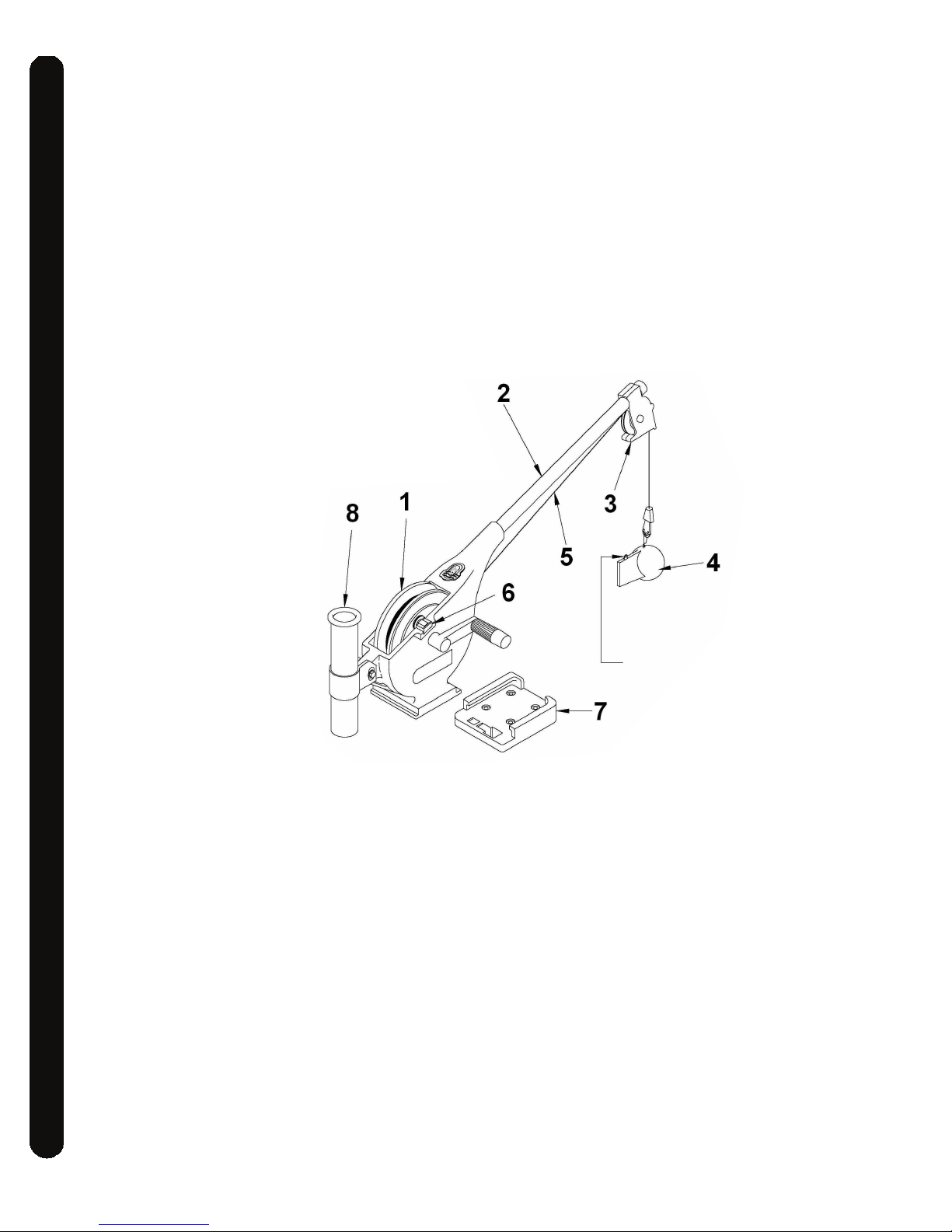

Parts Description

1. Reel This is used to spool the cable, available in lengths ranging from 150 to 400 feet.

2. Boom This is used to extend the weight out from the body of the downrigger and has a pulley fixed

to its end. Boom lengths range from 24 to 53 inches.

3. Swivel Head This relays the cable at the end of the boom to lower the weight.

4. Weight This is used to maintain the depth at which you want to fish. Sizes of weights range from 4 to

20 lbs.

5. Cable This connects to the weight. Cable material is 150 lb. test stainless steel cable.

6. Depth Meter This determines how much cable you have run out, enabling you to choose your trolling

depth.

7. Mounting Base This attaches to the boat, enabling you to place the downrigger where you choose.

8. Rod Holder This holds your fishing rods while trolling and may also be used for storing rods.

Introduction to Controlled Depth Fishing

Undoubtedly there are many fishermen

familiar with the methods and use of controlled

depth fishing. During the mid 1960's the state of

Michigan introduced Pacific salmon into the Great

lakes in an attempt to revitalize its sport fishing

industry. From this successful transplant, new

fishing techniques and equipment were

developed. One such method was controlled

depth fishing which enabled fishermen to place a

lure at a desired depth by utilizing downriggers.

Because of the varying factors (water

temperature, thermocline, weather, tides, time of

day, or time of year) it is necessary for successful

fishing to maintain specific water depths that

coincide with fish movements and feeding

patterns.

One essential feature of the downrigger is

the depth meter or gauge that indicates lure

depth. This allows the angler to control as well

as return to specific depths where fish have

been caught.

Due to the success of controlled depth

fishing, downriggers are now being used

throughout the world to catch a wide variety of

species in both fresh and salt water. Whether

fishing for blues off Rhode Island, walleyes in

Lake Erie, sailfish off the coast of Florida, or

stripers in Tennessee, the use of downriggers

will make your fishing more successful and more

enjoyable.

Introduction to downriggers

Attach Line Release

to Rear Hook on

Weight

Downrigger Mounting on Boats

A downrigger should be mounted where ever it

is easy to operate and observe. You want to be

able to see your fishing rod and to react quickly.

So, choosing a good spot to mount your

downrigger on your boat is 99% of the job.

Due to the great variety of boats available,

mounting your downrigger can be a dilemma.

Having proper mounting accessories is essential.

Cannon has a complete line of mounting

accessories to conveniently mount your

downriggers on any boat.

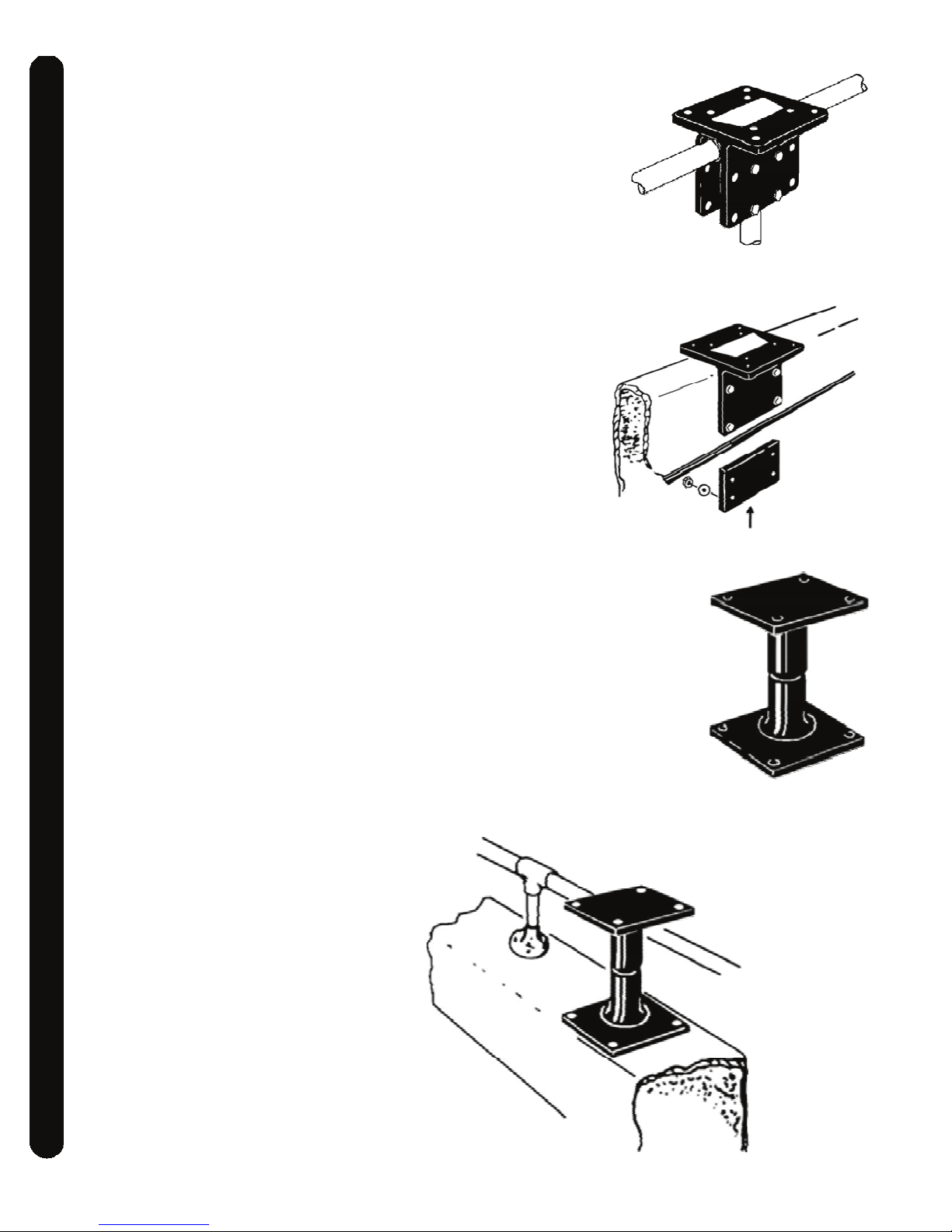

Arrows Indicate

Mounting Locations

Deck Plate

Gimbal Mount

Clamp Mount

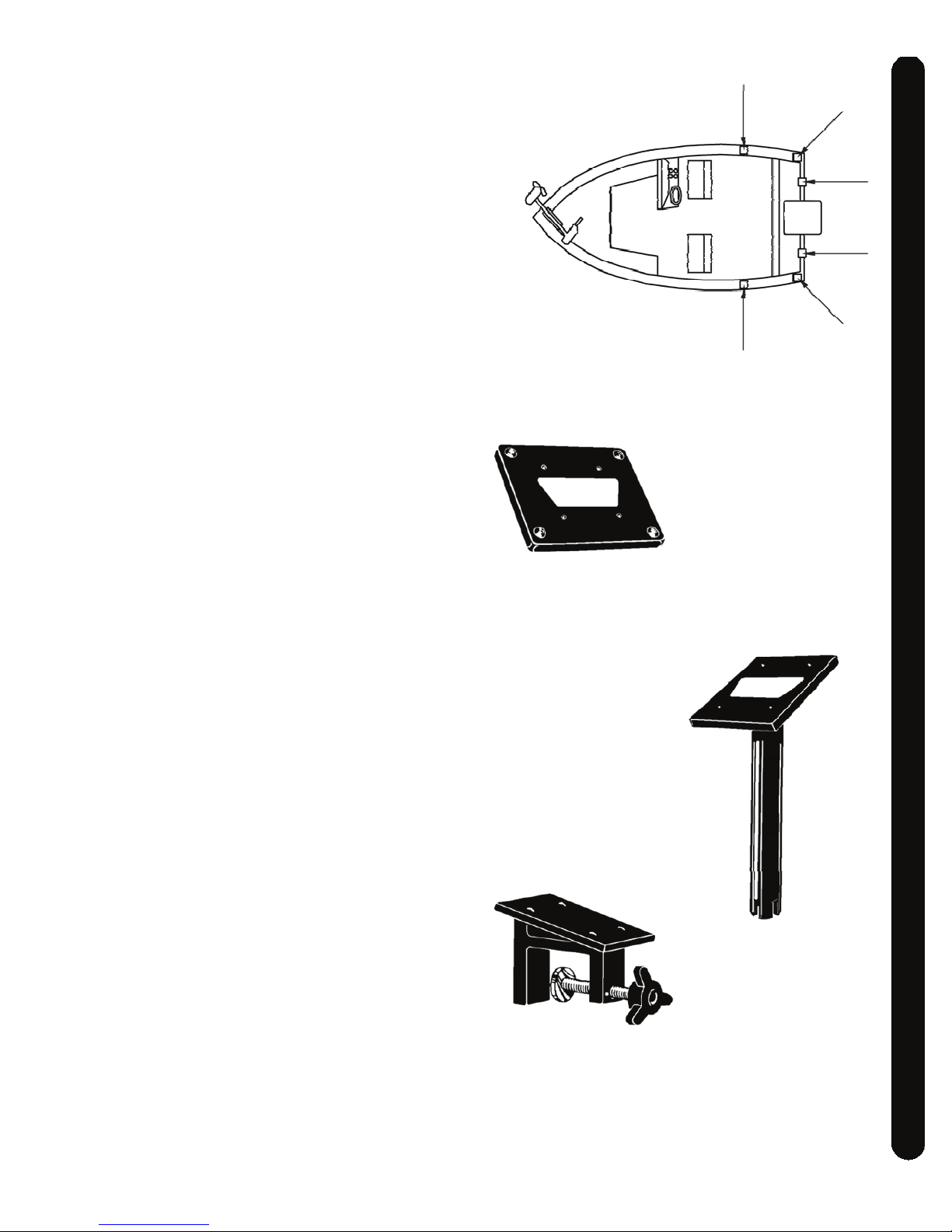

Mounting Accessories

Deck Plates are necessary when extra

strength must be added to the base material of

the boat and for attaching the downrigger to other

mounting accessories.

Gimbal Mounts are designed to fit medium-

sized flush mounted rod holders built into the

gunwale of many larger fishing boats and

cruisers. Only sturdy, high quality rod holders

should be used for this temporary mounting

system. Gimbal mounts are available in 9" or 12"

post lengths.

MOUNTING & SETUP

Clamp Mounts can be mounted at the

junction of two rail sections with the aid of two ¼"

pieces of plywood. They will protect your rail from

any marks from the clamp and provide a non-slip

surface.

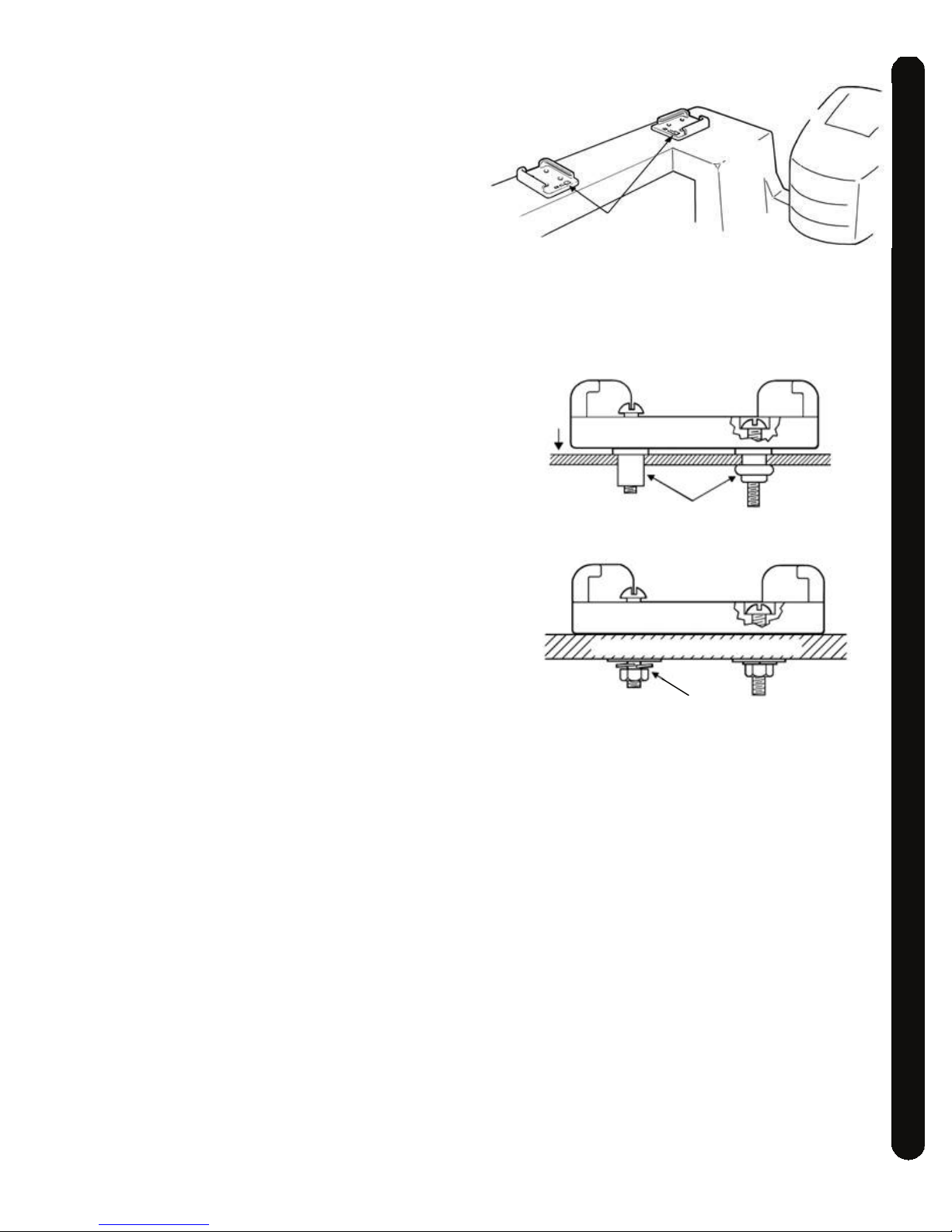

Side Rail Mounting

Side/Rail mounts can be mounted to a welded

T-section. It can also be used at the two rail

section butt joint. In both installations it is

recommended to use a non-slip material, such as

rubber or a thin wood sheet, between metal

surfaces.

You can also use these for mounting to a very

narrow side gunwale. There is a plate provided for

back-up with bolts and washers. If the gunwale

compartment is foamed in, then wellnuts should

be used. It is also recommended to install two

additional flat head screws through the top plate

for stabilization (you will need to drill and

countersink).

Side/Rail on T-Section

Side/Rail on Gunwale

MOUNTING & SETUP

NOTE: In no case should this mount be used

on fiberglass ¼" thick or less unless it is

foamed in.

Pedestal Mounting

Pedestals are used wherever additional height is

needed for ease of operation or to clear

obstructions, such as handrails.

Caution: When using a pedestal mount or

side/rail mount, do not extend the telescopic

boom on your Easi-Troll HS \ Lake-Troll. The

increased leverage will cause excessive

strain and possible failure of the mount.

Pedestal for Additional Height

MOUNTING & SETUP

Outboard

Facing

Note Locking

Slots in Base

Side

Gunwale

Decks

up to

7/16"

Thick

Base

Wellnuts

Decks Thicker Than 7/16"

Base

Rear

Stern

Facing

Washer, Lock Washer, and

1/4-20 Hex Nut

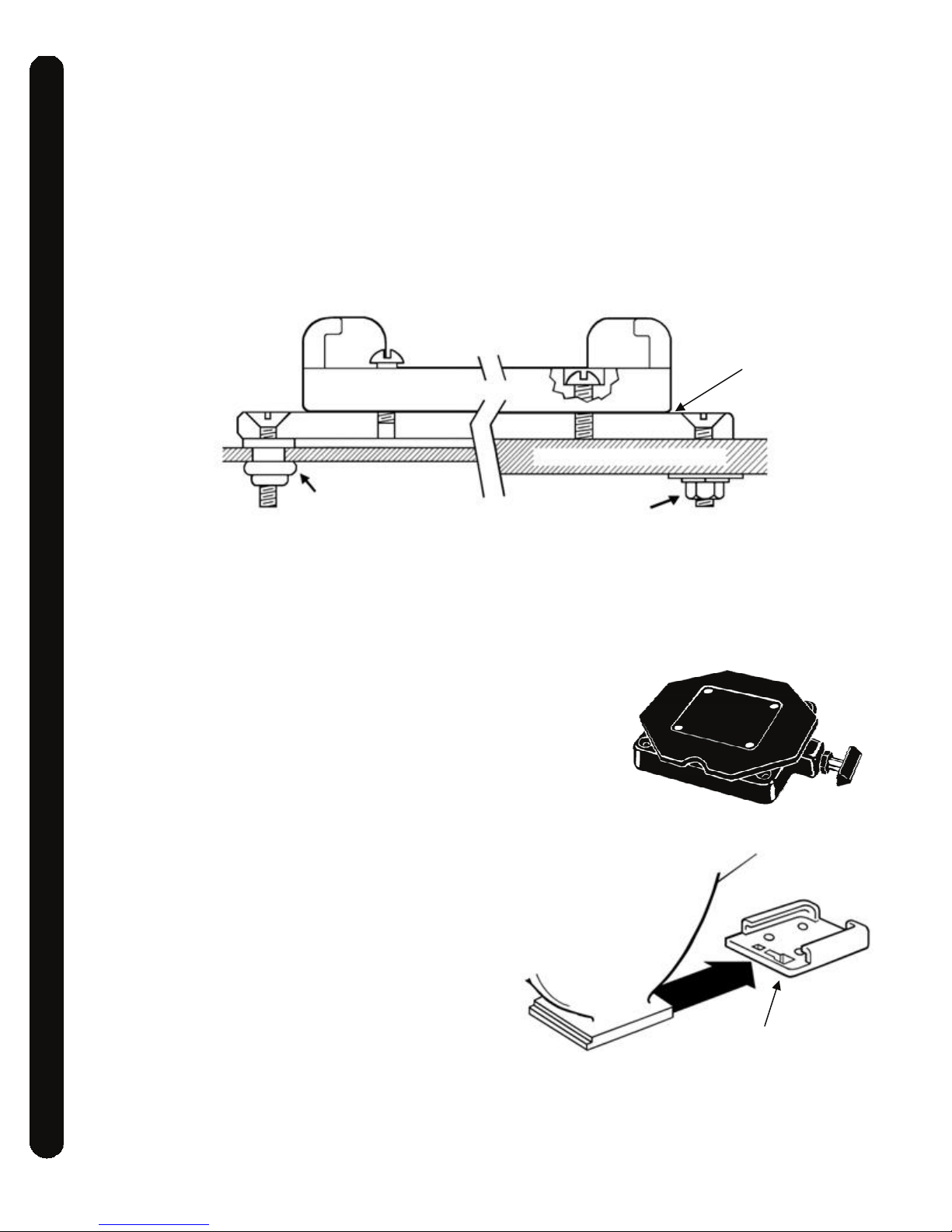

Installing the Base on Your Boat

Decks up to 7/16" thick

Where access to the underside of the deck is

not available, the mounting base can be mounted

using wellnuts. Use the base as a template to

mark locations and drill four 1/2" holes. Mount the

base using four 1/4"-20 x 1 1/2" truss head screws

and four wellnuts. Tighten the screws so the

wellnuts are firmly compressed as pictured.

Decks thicker than 7/16"

For decks thicker than 7/16", or where the

underside of the deck is accessible, mount the

base with screws, nuts, and washers. Use the

base as a template to mark the locations and drill

four 9/32" holes. Use four 1/4" -20 x 2 1/2" truss

head screws and four each flat washers, lock

washers, and nuts. Fasten the base to the deck as

pictured.

NOTE: Wellnuts cannot be used on decks thicker

than 7/16".

MOUNTING & SETUP

Deck Up to 7/16" Thick Base

Deck Thicker Than 7/16"

Wellnut

Cannon Deck Plate

Low-Profile Swivel Base

Washers, Screws,

& Nuts

Latch

Decks thinner than 1/4"

Use a Cannon Deck Plate to prevent

deflection and add stability to decks thinner than

1/4". Use the deck plate as a template to mark the

hole locations.

If access to the underside of the deck is not

available, the deck plate can be mounted using

screws and wellnuts. Drill 1/2" holes. Use four

1/4”-20 x 2" flat head screws and four wellnuts to

mount deck plate as pictured. Tighten the screws

so the wellnuts are firmly compressed.

Where the underside is accessible, mount

the deck plate using screws, nuts, and washers.

Drill 9/32" holes. Use four 1/4”-20 x 2" flat head

screws, nuts and washers (flat and lock). Fasten

plate to deck as pictured. To secure the low-

profile base to the deckplate use four 1/4”-20 x 1

1/2" truss head screws.

NOTE: When using the telescopic boom, we strongly recommend the use of a deck plate on all

boats to provide adequate stability for the downrigger.

Low-Profile Swivel Base

To mount the Low-Profile Swivel Base,

follow the same procedure as for the deck plate

with this exception: use four 1/4"-20 x 1-1/2" truss

head screws to fasten the mounting base and four

additional 1/4"-20 x 2-1/2" truss head screws to

attach the swivel base to the boat deck.

Mounting the Downrigger on the

Base

Slide the bottom of the frame over the lip of the

base, with the boom outboard or facing the stern.

Move the frame over the base until the latch clicks

into place. If properly seated, the frame should

completely cover the base.

CAUTION: If not fully seated, your downrigger can

be dislodged from the base.

Tip: Periodically check base to ensure integrity.

The base should be replaced at least every 5

years.

Setting Up Your Downrigger

Attaching the Boom

The boom inserts into the downrigger frame.

Be sure that the boom is held securely by seating

it firmly against the shoulder inside the fame and

fastening the boom locking screw (#8 X 1” self

tapping) so that it engages the hole in the boom.

#4 x 1/2"

Screws (2)

The 3/4"-Long Phillips

Screw Must Engage

Hole in Boom

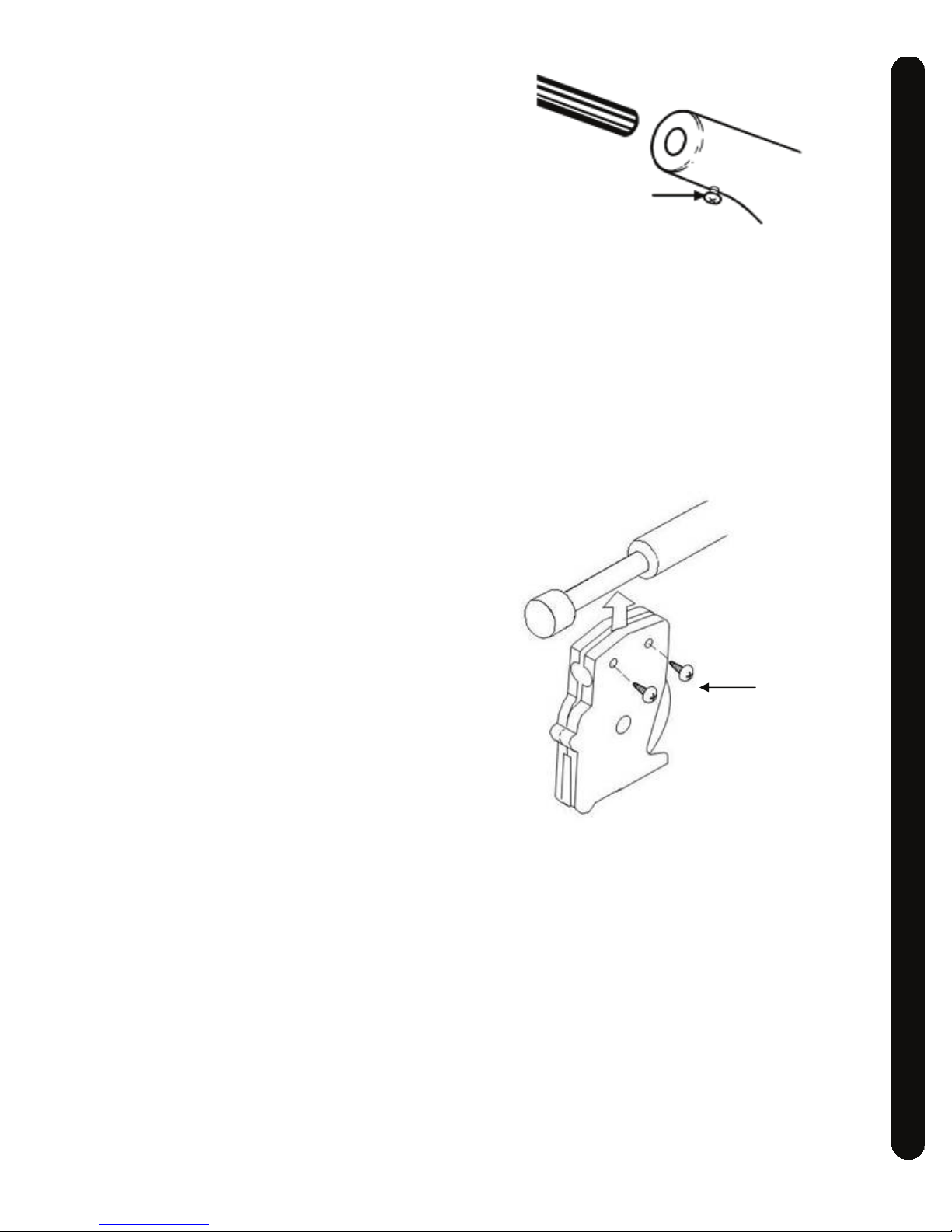

Assemble Swivel Head To Boom

Spread the swivel head side plates and slip the

assembly over the boom end. Snap the assembly

together and install two #4 x 1/2" screws into the

swivel head.

For Lake-Troll only: On swivel head assembly

with counter leave the corrugated spacer in place

until the assembly is snapped together, remove

the spacer and install the screws.

TIP: Adjusting the angle of the boom head can

help control cable wrap on the reel.

MOUNTING & SETUP

Attaching the Crank Handle

Assembly

Make sure the thrust bearing is sandwiched

between its two races. The thrust bearing spring

should be oriented where the narrow end is

toward the bearing. Slide the bearing with races

and spring over the ratchet shaft. Then, carefully

thread the crank handle onto the shaft and

continue turning the handle clockwise until the

clutch is fully tightened

NOTE: Place your fingertip on the edge of the

bearing and races. This allows the crank to be

threaded more easily until the spring puts

resistance on the clutch pad.

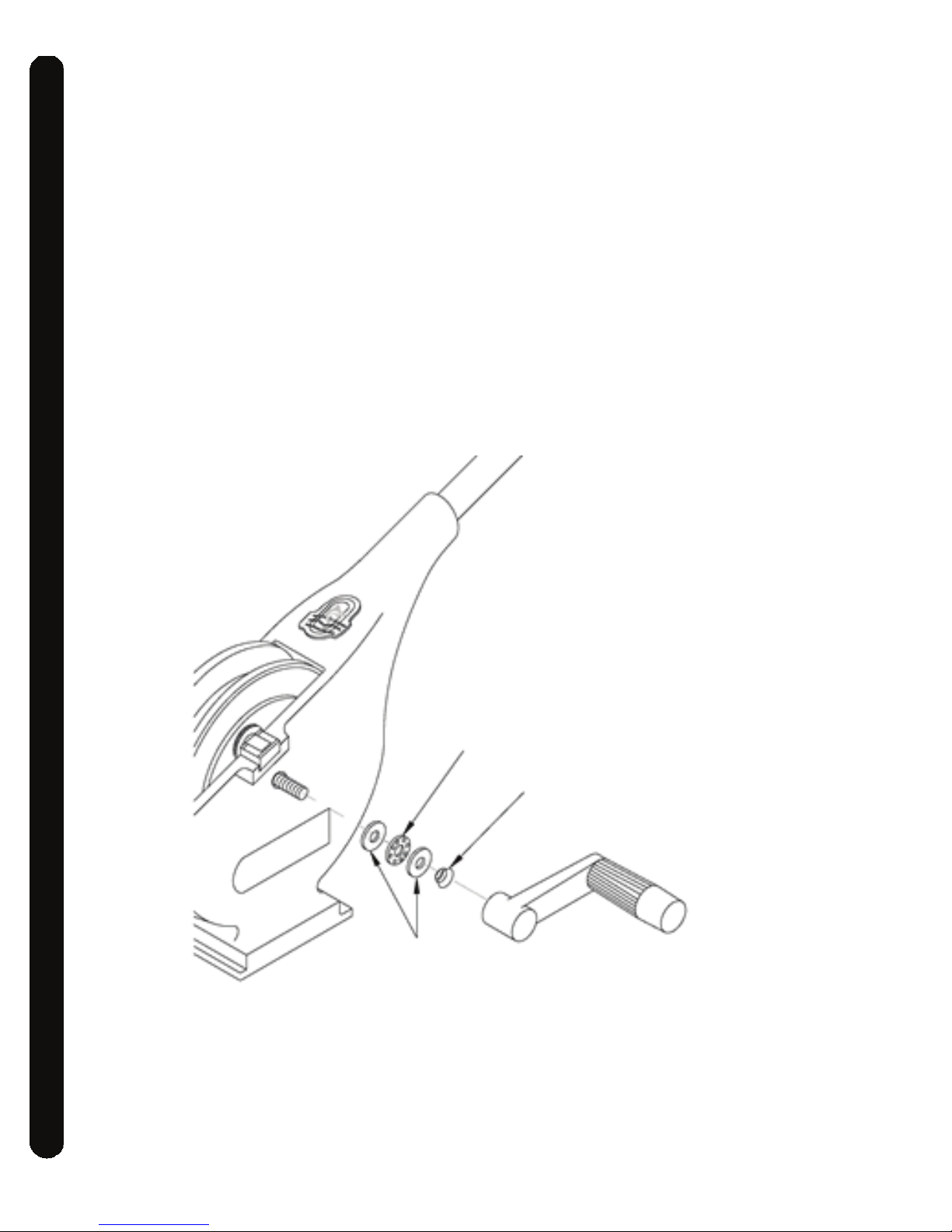

Attaching the crank handle

Thrust Bearing

Races Crank Handle

Spring

Cannon Uni-Release

The Cannon Uni-Release attaches directly to

the downrigger weight. Attach fishing line to the

clip at the end of the release, and then click

through a series of increasing tension settings.

The release can be used with any test line on salt

or fresh water and may be adjusted from 2 to 22

pounds of grip tension on the line.

To change line release tension, turn tension knob

to (+) to increase or (-) to decrease. Tension also

may vary according to where the line is placed in

the grips. Higher tension is on the line if it is set

back toward the hinge, and lower if set closer to

the opening. To open the release, spread the

release arms with thumb and forefinger applying

pressure to the sides.

Open Tension

Adjust

Fishing Line

Gripper

Pads

Open

Rubber Cushion Cable

Snap &

Swivel

Tip: A set of pliers with wire cutters is

recommended for this part of setup.

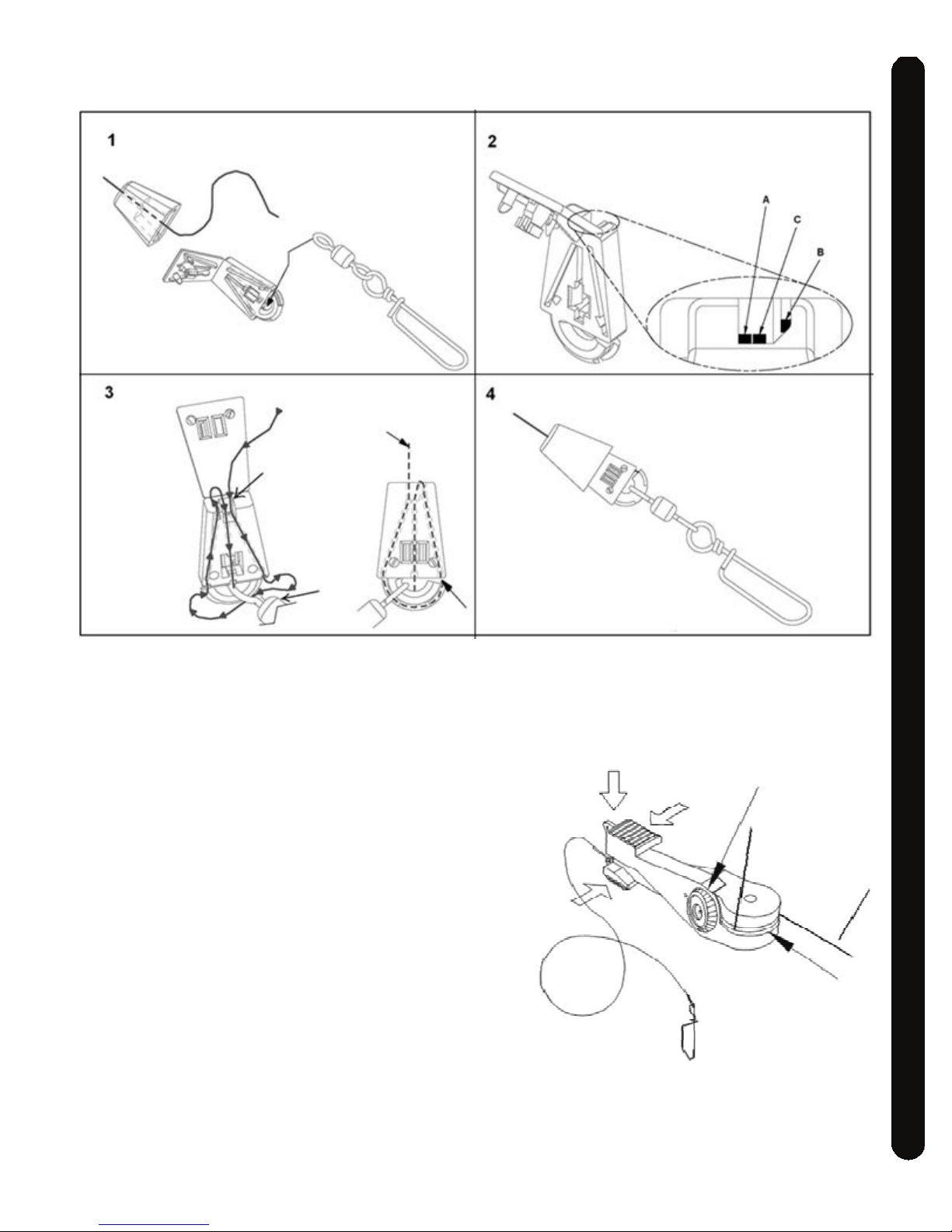

Examine the top of the terminator and note the

order shown in the detail to run cable.

Unwind about 2 feet of cable

and thread the cable through

the rubber cushion.

Lead cable into

HOLE A.

Pull six inches of

cable through.

Thread cable

through swivel,

then up into

bottom of the

terminator.

Lead cable out of

HOLE B and into

HOLE C. Push

the cable until its

end touches the

inside of the

terminator hook.

HOLE A

Swivel

TIP: Use only straight cable, not kinked.

Tighten cable

by squeezing

terminator until

it snaps shut.

Then pull at top

and bottom

until drawn

tight. Make

sure that the

cable

threads in

groove of

the hook.

Slide the cushion over the top of the

terminator and give it a test pull.

The cable is set to attach a Cannon

Trolling Weight.

Attach to terminator.

CABLE IN

CABLE

OUT

Terminating the Downrigger Cable

TERMINATOR & LINE RELEASE

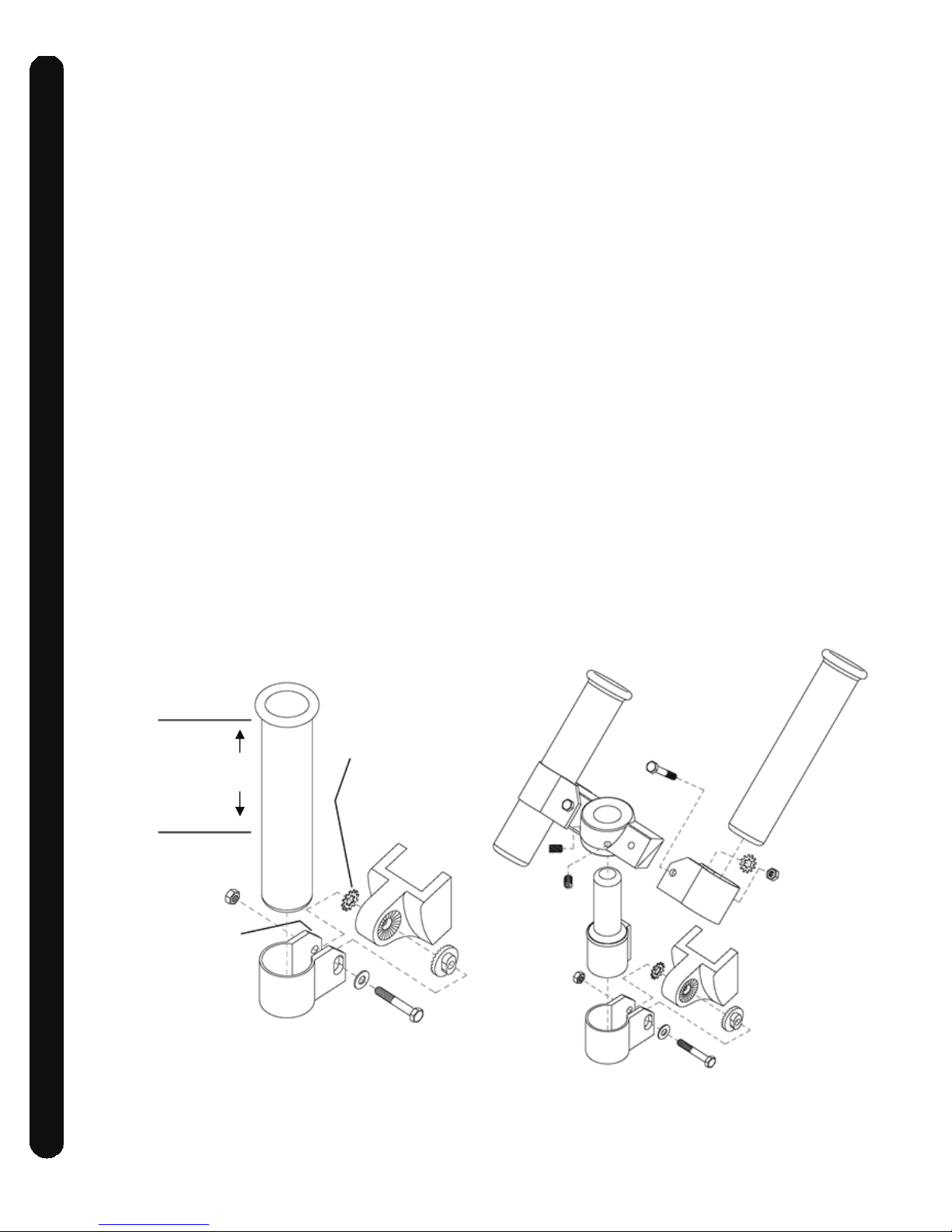

ATTACHING THE ROD HOLDER

Recommended

Area to Clamp

Rod Holder

Star Washer

Placement

Angled

Shoulder

Dual Rod Holder Assembly

Single Rod Holder Assembly

Attaching the Rod Holder

The positive lock rod holder incorporates a

locking disk that allows the rod holder to be

aligned in 15 degree increments. Slide the rod

holder tube into the clamp to the desired position

within the recommended area (see below).

Be sure the angled shoulders are facing up.

Place the locking disk into the mating recess of

the frame.

Slip the clamp arms in place where the

obround tab on the disk fits into the slot on the

clamp. Slide the star washer between the arm of

the clamp and the frame. Place the flat washer

onto the bolt. Then insert the bolt with washer

through the clamp by entering the disk, going

through the frame, the star washer, and out the

other side of the clamp. Tighten the nut to secure

the rod holder. Reposition the rod holder by

loosening the nut and adjusting the tilt.

CAUTION: This rod holder is intended for use

of up to 30 lb. test line only, and is not

recommended for use with any tackle IGFA

rated higher than 30 lb. A safety strap (not

included) is recommended for all applications.

The rod holder assembly is not warranted

when used with tackle above 30 lbs.

Equipment placed in the rod holders and the

loss thereof is the responsibility of the user

and is in no way warranted by JOHNSON

OUTDOORS, INC. Mounting must be in

accordance with the above instructions and

diagram to be warranted.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Cannon Matériel de pêche

Cannon

Cannon UNI-TROLL 10 STX-TS Manuel utilisateur

Cannon

Cannon Uni-Troll 10TS Manuel utilisateur

Cannon

Cannon DIGI-TROLL 10 Manuel utilisateur

Cannon

Cannon OPTIMUM TS Manuel utilisateur

Cannon

Cannon MAG 20DT Manuel utilisateur

Cannon

Cannon DIGI-TROLL 5 Manuel utilisateur

Cannon

Cannon MAGNUM 5 Manuel utilisateur

Cannon

Cannon MAG 20DT/HS Manuel utilisateur

Cannon

Cannon DIGI-TROLL 10 Manuel utilisateur

Cannon

Cannon Uni-Troll 10 Manuel utilisateur

Cannon

Cannon MINI-TROLL 1901200 Manuel utilisateur

Cannon

Cannon OPTIMUM Manuel utilisateur

Cannon

Cannon Magnum 5 ST Manuel utilisateur

Cannon

Cannon 1907000 Manuel utilisateur

Cannon

Cannon EASI-TROLL ST Manuel utilisateur

Cannon

Cannon Easi-Troll Manuel utilisateur

Cannon

Cannon DIGI-TROLL 5 Manuel utilisateur

Cannon

Cannon Magnum 10 STX TS Manuel utilisateur

Cannon

Cannon 2450163 Manuel utilisateur

Cannon

Cannon Mag 20 Dt/Hs Manuel utilisateur

Cannon

Cannon Digi-Troll IV Manuel utilisateur

Manuels Matériel de pêche populaires d'autres marques

Kongsberg

Kongsberg Simrad SY50 Manuel utilisateur

Jiffy

Jiffy Pro4 Lite Manuel utilisateur

Fishmaster

Fishmaster Pro Series Guide de démarrage rapide

MIVARDI

MIVARDI Carp Scout XL Manuel utilisateur

FLAJZAR

FLAJZAR FISHTRON CatFish TX3 Manuel d'exploitation et d'entretien

Milwaukee

Milwaukee 2873-20 Manuel utilisateur

VEXILAR

VEXILAR FL-8SLT Manuel utilisateur

Fishmaster

Fishmaster Casting Platform Guide de démarrage rapide

Marcum Technologies

Marcum Technologies PanCam Manuel utilisateur

Harmony

Harmony SlideTrax 8023061 Manuel utilisateur

Quantum

Quantum Baitcast Reel Manuel utilisateur

K-Drill

K-Drill Ice Auger Manuel utilisateur

FISHING SPECIALTIES

FISHING SPECIALTIES Bowducer Manuel utilisateur

Fox

Fox Receiver Manuel utilisateur

Abu Garcia

Abu Garcia REVO MGX Manuel utilisateur

Daiwa

Daiwa TanacomBull 1000 Manuel utilisateur

Sealey

Sealey HP01 Manuel utilisateur

Eskimo

Eskimo 11608 Manuel utilisateur
