MICROWAVE OVEN
INSTRUCTION MANUAL
CMW20SMWLI
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
1
Household use only
SAVE THESE INSTRUCTIONS
IMPORTANT SAFEGUARDS
WARNING: If the door or door seals are damaged, the oven must
not be operated until it has been repaired by a trained person.
WARNING: It is hazardous for anyone other than a trained person
to carry out any service or repair operation, which involves the
removal of any cover, which gives protection against exposure to
microwave energy. WARNING: Liquids or other food must not be
heated in sealed containers since they are liable to explode.
1. Only use utensils that are suitable for use in microwave ovens
2. Metallic containers for food and beverages are not allowed
during microwave cooking.
3. When heating food in plastic or paper containers, keep an eye
on the oven due to the possibility of ignition
4. The microwave oven is intended for heating food and beverages.
Drying of food or clothing and heating of warming pads,
slippers, sponges, damp cloth and similar may lead to risk of
injury, ignition or fire.
5. If smoke is observed, switch off or unplug the appliance and
keep the door closed in order to stifle any flames microwave
heating of beverages can result in delayed eruptive boiling,
therefore care has to be taken when handling the container;
2
6. The contents of feeding bottles and baby food jars are to be
stirred or shaken and the temperature is to be checked before
consumption, in order to avoid burns;
7. Eggs in their shell and whole hard-boiled eggs shall not be
heated in microwave ovens since they may explode, even
after microwave heating has ended;
8. Failure to maintain the oven in a clean condition could lead to
deterioration of The surface that could adversely affect the life
of the appliance and possibly result in a hazardous situation.
The microwave oven is intended to be used freestanding or
built-in or in a cabinet.
9. The appliance must not be placed in a cabinet
10. Care should be taken not to displace the turntable when
removing containers from the appliance.
11. The appliance shall not be cleaned with a steam cleaner.
Warning: When the appliance is operated in the combination
mode, children should only use the oven under adult supervision
due to the temperatures generated.
CAUTION: HOT SURFACE
12. If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person
in order to avoid a hazard.
13. This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
3
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
14. Children shall not play with the appliance.
15. Cleaning and user maintenance shall not be made by children
without supervision.
16. Group 2 Class B appliance
Group 2 ISM equipment: group 2 contains all ISM equipment
in which radio-frequency energy is intentionally generated
and/or used in the form of electromagnetic radiation for the
treatment of material, and EDM and arc welding equipment.
Class B equipment is equipment suitable for use in domestic
establishments and in establishments directly connected to a
low voltage power supply network which supplies buildings
used for domestic purposes.
4
INSTALLATION
1. Remove the package from the microwave and carefully check
the microwave for damage. Such as:
Whether the furnace body is shocked and shows signs of heavy
pressure.
Whether the furnace door is flat and the switch is smooth and
flexible.
Whether the metal insulation mesh on the furnace door is bent or
deformed.
Whether the power cord is loose.
If you find any of the above, please contact your dealer or our
special maintenance department immediately.
2. The microwave oven must be placed flat in a ventilated, dry,
non-corrosive environment, away from high temperatures and
vapors.
3. Do not place any objects on the top of the stove. In order to
have sufficient air circulation space, the product should be placed
85cm above the ground. The distance between the sides of the
microwave oven and the wall should be no less than 5cm, the
distance between the back of the furnace and the wall should be
no less than 10cm and the distance from the top wall cabinet
should be no less than 20cm.
4. The microwave oven should be away from the TV, radio and
antenna (generally greater than 5m), otherwise it will cause
interference.
5
5. The microwave oven should be placed in the place where the
power cable is convenient to plug in, and the grounding is
guaranteed to be good. In case of leakage, the grounding wire can
be formed.
The current loop avoids electric shock.
6. Be sure to operate the microwave oven with the door closed.
7. Do not place the microwave in the cabinet.
8. When using the microwave oven for the first time, since the
residue or grease in the manufacturing process exists in the
furnace cavity or on the heating pipe, there may often be odor and
even white smoke during heating. This is a normal phenomenon
and has been used several times. After this, this will not happen,
pay attention to open the doors and windows to maintain good
ventilation.
CLEANING
MICROWAVE OVEN CARE
CAUTION
The oven should be cleaned regularly and any food deposits
removed.
WARNING
1. Remove the power cord from the wall outlet before cleaning.
Don't immerse the appliance in water or other fluids when cleaning.
2. Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life of
the appliance and possibly result in a hazardous situation
6
3. Never use hard detergent, gasoline, abrasive powder or metal
brush to clean any part of the appliance
4. Do not remove the waveguide cover
5. When the microwave oven has been used for a long time, there
may be some strange odors exist in oven, Following 3 methods
can get rid of them:
a. Place several lemon slices in a cup, then heat with high Micro
Power for 2-3 min.
b. Place a cup of red tea in oven, then heat with high micro power.
c. Put some orange peel into oven, and then heat them with high
Micro Power for 1 minute.
6. WARNING: Only allow children to use the oven without
supervision when adequate instructions have been given so that
the child is able to use the oven in a safe way and understands the
hazards of improper use.
TIPS FOR CLEANING
Details for cleaning door seals, cavity and adjacent parts:
Exterior:
Wipe the enclosure with a dampened soft cloth
Door:
Using a dampened soft cloth, wipe clean the door and window
Wipe the door seals and adjacent parts to remove any spill or
spatter
Wipe the control panel with a slightly dampened soft cloth
Interior walls:
7
Wipe clean the cavity with a dampened soft cloth
Wipe clean the waveguide cover to remove any food splashed
Turntable/ Rotation ring/ Rotation axis:
Wash with mild soap water
Rinse with clean water and allow drying thoroughly
PRODUCT INSTRUCTION
Waveguide cover
1) Door lock
Microwave oven door must be properly closed in order for it to
operate
2) Viewing window
Allow user to see the cooking status
3) Rotating ring
The glass turntable sits on its wheels; it supports the turntable and
helps it to balance when rotating
8
4) Rotating axis
The glass turntable sits on the axis; the motor underneath it drives
the turntable to rotate
5) Turntable
The food sits on the turntable, its rotation during operation helps to
cook food evenly
CAUTION
- Place the rotating ring first
- Fit the turntable onto the rotating axis and make sure that it is
geared in properly
6) Control panel
See below in details (the control panel is subject to change without
prior notice)
7) Outer cover
Used for wrapping and protecting the internal structural parts and
electrical components of the whole machine
8) Waveguide cover
It is inside the microwave oven, next to the wall of control panel.
WARNING
Never remove the waveguide cover
9

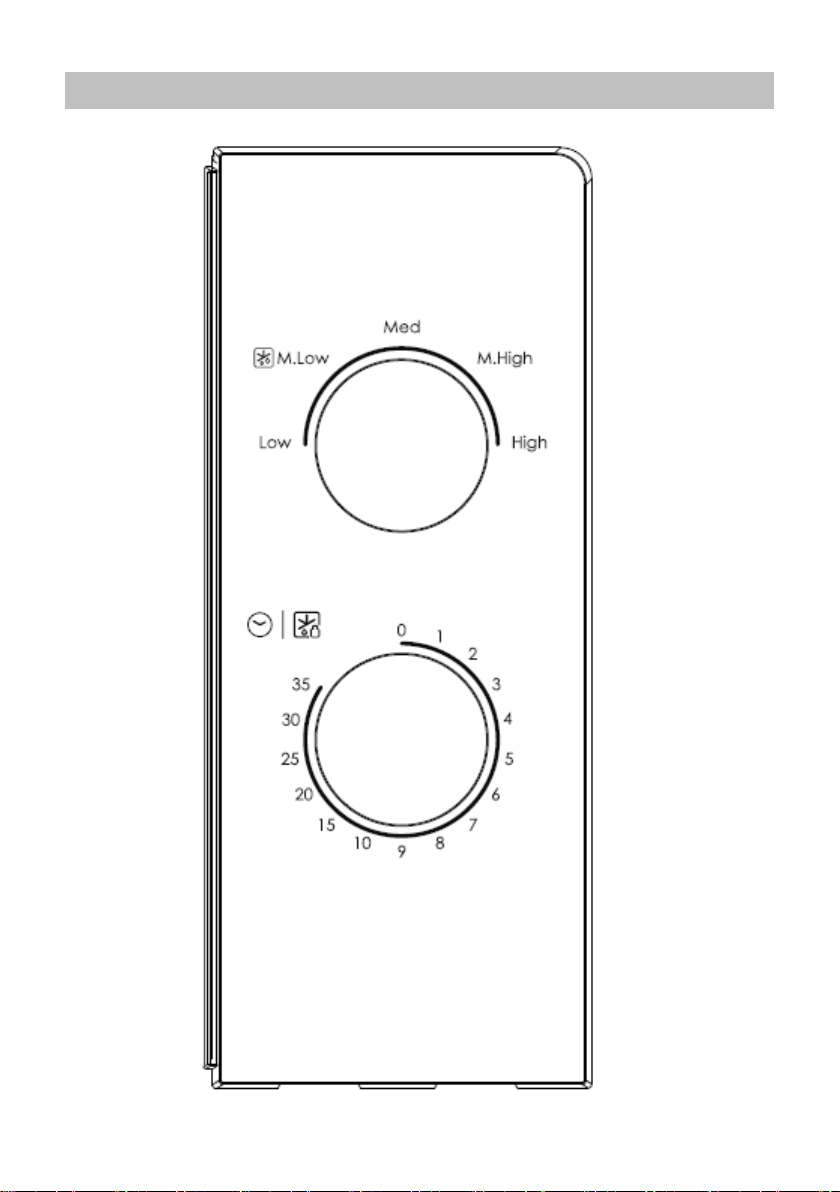

OPERATION OF CONTROL PANEL
